A conductor in electrostatic equilibrium is an electrical conductor at rest whose mobile charge carriers have finished redistributing, with no maintained bulk electric current. In the ideal macroscopic model,A residual bulk electric field would drive further electric charge redistribution. The electric potential difference between any two points joined through the metal is $-\int \mathbf{E}\cdot d\mathbf{l}=0$, so each connected piece is an equipotential. Gauss's law then gives zero net bulk charge density. This is a statement about net macroscopic electric charge, not the absence of positive atomic nuclei and negative Electrons. Excess electric charge is represented by surface charge density; atomic surface structure is outside this continuum model. ^[ref].

The word inside must distinguish metal from a cavity in a conductor. A completely enclosed, charge-free cavity in a conductor has constant boundary electric potential $V_c$. The constant solution of Laplace's equation and Uniqueness of the Dirichlet problem give $\Phi =V_c$ and $\mathbf{E}=0$ throughout the cavity in a conductor, regardless of its shape or external electric charges. Grounding is unnecessary for this inward electrostatic shielding; an isolated enclosure can change its overall electric potential without producing an internal electric field. Zero enclosed net electric charge alone would only give zero electric flux. A positive and negative pair inside a cavity in a conductor can have zero total electric charge and a nonzero electric field. ^[ref].

If fixed electric charges inside a cavity in a conductor sum to $q$, a Gaussian surface lying entirely in the metal and enclosing that cavity in a conductor has zero electric flux. Thus the total induced inner-wall electric charge is $-q$. For one such cavity in a conductor and an isolated enclosure with total metal electric charge $Q_c$, the outer-wall electric charge is $Q_c+q$. In particular, an initially neutral isolated enclosure generally has an exterior electric field when $q\ne 0$. For fixed internal sources, external changes only shift the constant electric potential inside an isolated enclosure, leaving the internal electric field unchanged. ^[ref].

A grounded enclosure fixes $V_c=0$ and can acquire metal electric charge $-q$; with no exterior sources and $\Phi \to 0$ at infinity, Uniqueness of the Dirichlet problem gives zero exterior electric field. With external sources present, the exterior electric field need not vanish, but it is independent of the internal sources at fixed grounded boundary electric potential. ^[ref].

Faraday's ice pail experiment makes the distinction between redistribution and transfer visible. In his letter of 4 February 1843, Faraday described an insulated pewter pail connected by wire to a gold-leaf electrometer, and a brass ball suspended on a long dry silk thread to reduce the hand's influence. He discharged the pail and charged the ball away from it. Lowering the ball without contact produced leaf divergence, which grew during entry and became approximately independent of further depth; withdrawing it collapsed the leaves. Contact with the bottom transferred electric charge, and the withdrawn ball was discharged. The readout was leaf divergence, not a direct map of the internal electric field. These observations distinguish electrostatic induction from contact transfer of electric charge. ^[ref].

For a modern version of Faraday's ice pail experiment, connect an insulated inner metal pail to the signal input of a high-input-impedance electrometer, with its reference lead and an outer shield grounded. Zero and momentarily ground the pail, then isolate the signal side. Lower a charged paddle deeply without touching and record the electric potential difference; withdraw it and check return to zero. Repeat with contact, then withdrawal: a residual reading indicates transferred electric charge. Reverse the paddle's sign and repeat. The electrometer reads volts; inferring electric charge requires the effective capacitance of pail, cable and input, so a stable reading at fixed geometry is a relative measure, not automatically a value in coulombs. Keep supports clean, nearby charged objects distant, and the operator grounded; humidity can cause leakage. ^[ref].

A complementary electrostatic shielding demonstration uses a charged hollow metal enclosure, a small metal sampling ball on an insulating handle, and an electrometer. Discharge the sampling ball between trials; touch it to the exterior, withdraw it, and transfer its collected electric charge to the electrometer. Repeat by touching the inner wall without touching the exterior during withdrawal. The exterior sample produces a response, whereas the inner sample gives a null within instrument sensitivity. This compares accessible surface responses rather than assuming a perfectly spherical enclosure. ^[ref]. Useful additional controls are an uncharged enclosure baseline, a repeat exterior sample to verify sensitivity, and repeated trials at different depths. An access hole, charged handle, leakage or disturbed surface charge density limits the inference; a null bounds detectable transfer, rather than proving an exactly zero electric field. An open pail's depth plateau tests good enclosure empirically. Neither demonstration establishes shielding of arbitrary time-dependent electromagnetic fields.

Coulomb's law gives the mutual electric force between stationary point charges in vacuum. Put electric charges $q_1$ and $q_2$ at ${\mathbf{r}}_1$ and ${\mathbf{r}}_2$, and define the displacement from charge 1 to charge 2 by $\mathbf{r}={\mathbf{r}}_2-{\mathbf{r}}_1$, with separation $r=|\mathbf{r}|>0$ and unit vector $\hat{\mathbf{r}}=\mathbf{r}/r$. In SI units, the force on charge 2 due to charge 1 isHere ${\epsilon }_0$ is the vacuum permittivity. The magnitude is $k|q_1{q}_2|/r^2$. If $q_1{q}_2>0$, the force on charge 2 points away from charge 1; if $q_1{q}_2<0$, it points toward charge 1. Interchanging the charges gives ${\mathbf{F}}_{1\leftarrow 2}=-{\mathbf{F}}_{2\leftarrow 1}$, consistent with Newton's third law in this electrostatic setting. ^[ref].

For a fully computed example, stipulate $q_1=+2\mathrm{nC}$, $q_2=-3\mathrm{nC}$, ${\mathbf{r}}_1=0$, ${\mathbf{r}}_2=0.20\mathrm{m}\hat{\mathbf{x}}$ and the approximate value $k=8.99\times 10^9\mathrm{N}{\mathrm{m}}^2/{\mathrm{C}}^2$. ThenThe force is attractive, of magnitude $1.3485\times 10^{-6}\mathrm{N}$. The source electric field at charge 2 is ${\mathbf{E}}_1({\mathbf{r}}_2)=449.5N/C\hat{\mathbf{x}}$, pointing away from the positive source. Multiplication by the negative $q_2$ reverses the direction to give the attractive force. This field excludes charge 2's own self-field.

Holding the electric charges fixed while changing the separation from $R$ to $2R$ or $3R$ gives the normalized inverse-square law valuesFor the stipulated example, separations $0.20$, $0.40$ and $0.60\mathrm{m}$ give magnitudes $1.3485\times 10^{-6}$, $3.37125\times 10^{-7}$ and $1.498333\dots \times 10^{-7}\mathrm{N}$. The diagram computes these ratios and uses one common arrow-length scale for both sign choices.

The inverse-square law has a geometric explanation through Gauss's law: a source point charge gives fixed total electric flux through a concentric sphere, whose surface area is $4\pi r^2$. Dividing that flux by the area gives a radial electric field proportional to $1/r^2$. This connects a pairwise force calculation to a global conservation-like accounting of field sources. For several stationary point charges, the superposition principle adds the individual electric fields as vectors, and ${\mathbf{F}}_i=q_i{\mathbf{E}}_{\mathrm{other}}({\mathbf{r}}_i)$ uses all sources except charge $i$ itself. The Coulomb potential energy gives an alternative route when the desired quantity is work rather than instantaneous force.

Electric flux measures how much electric field crosses a chosen oriented surface, with a sign distinguishing the two crossing directions. A strong electric field running along a surface contributes nothing to its electric flux: only the normal component counts. This lets Gauss's law turn a potentially complicated electric field into one number recording the net enclosed electric charge.

For a surface $S$ with chosen unit normal $\mathbf{n}$, the electric flux is the surface integralHere $dA$ is positive surface area, while $d\mathbf{S}$ is the vector area element. The dot product makes electric flux a signed scalar, rather than a vector like the electric field. Its SI unit is $\mathrm{N}{\mathrm{m}}^2/C$: electric field measured using the newton per coulomb, multiplied by surface area in square metres. Reversing the orientation of a surface replaces $\mathbf{n}$ by $-\mathbf{n}$ and reverses the electric flux. Calling it electric flux does not imply that electric charge is moving through the surface. ^[ref].

For an open patch in a plane, with surface area $A$ and a constant electric field, the unit normal is constant and the surface integral simplifies toThe angle $\theta$ is between the electric field and the chosen unit normal, not between the electric field and the plane. The cosine describes the signed projected surface area seen by the electric field. Thus electric flux is positive for $0\le \theta <90^{\circ }$, zero at $90^{\circ }$, and negative for $90^{\circ }<\theta \le 180^{\circ }$. ^[ref].

For example, take $E=100N/C$ and $A=0.02{\mathrm{m}}^2$, so $EA=2\mathrm{N}{\mathrm{m}}^2/C$. Three choices of angle giveKeeping the $60^{\circ }$ patch fixed and reversing its unit normal gives $120^{\circ }$ and changes $+1$ to $-1\mathrm{N}{\mathrm{m}}^2/C$. The electric field and physical patch have not changed. If the electric field is instead tangent to the patch, its dot product with the unit normal vanishes: electric flux is zero even though $E=100N/C$.

For a closed surface enclosing a volume $V$, choose the outward unit normal. Gauss's law givesHere ${\epsilon }_0$ is the vacuum permittivity, and $Q_{\mathrm{enclosed}}$ is the signed total electric charge inside. The electric field in the surface integral includes all sources, including external electric charges. Assume no ideal point charge lies on the integration surface. Zero enclosed electric charge implies zero total electric flux; it does not imply zero electric field everywhere on the closed surface or inside it. Positive and negative contributions to the surface integral can cancel. ^[ref].

To see the cancellation with sources inside, place point charges $+q$ at $(-a,0,0)$ and $-q$ at $(a,0,0)$, where $q>0$, $a=0.30\mathrm{m}$, and both lie inside the sphere of radius $R=1\mathrm{m}$ centered at the origin. This separated pair has the electric dipole geometry. Its enclosed electric charge is $q-q=0$, so its total outward electric flux is zero. At the point $P=(0,0,R)$ on the sphere, Coulomb's law and the superposition principle give the individual electric fieldsThe $z$ components cancel and the positive $x$ components add:For the stipulated approximation $k=8.99\times 10^9\mathrm{N}{\mathrm{m}}^2/{\mathrm{C}}^2$ and $q=1\mathrm{nC}$, this is about $4.740N/C$ along positive $x$. At $P$, the outward unit normal is $\hat{\mathbf{z}}$, so this nonzero electric field is tangent to the sphere. At other points of the sphere, its normal component can be positive or negative. The source-field formula applies away from the two point charges, where the electric field has zero divergence; it is singular at the sources. ^[ref].

The diagram shows streamlines of the three-dimensional electric field in the section $y=0$. The circle is a cross-section of the sphere, not the integration surface: Gauss's law uses the entire three-dimensional surface integral. A two-dimensional line integral of outward field around that circle would be a different quantity, with units $\mathrm{N}m/C$ rather than the electric flux units $\mathrm{N}{\mathrm{m}}^2/C$.

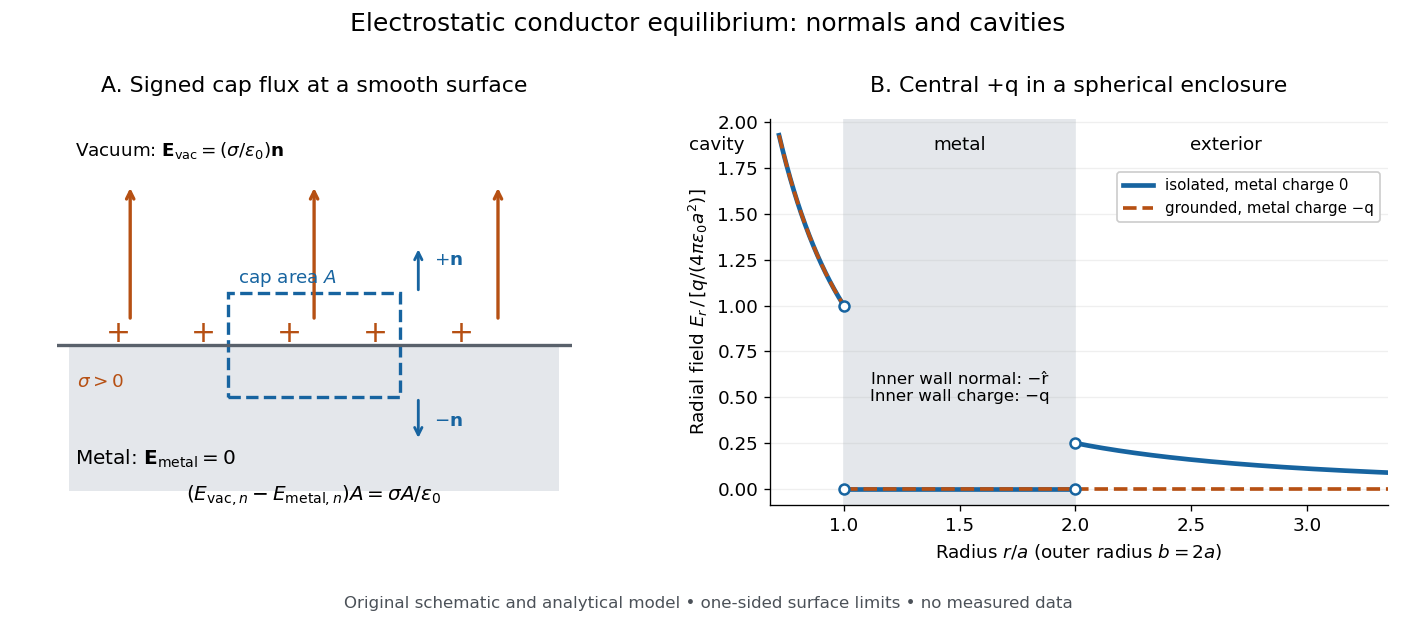

The electrostatic boundary conditions at a conductor relate the one-sided total electric fields at a smooth metal–vacuum interface. Choose a unit normal $\mathbf{n}$ from metal into the adjacent vacuum, let ${\mathbf{E}}_{\mathrm{metal}}$ and ${\mathbf{E}}_{\mathrm{vac}}$ be the two limiting electric fields, and let $\sigma$ be the signed surface charge density. A thin Gaussian pillbox with cap area $A$ has outward cap normals $+\mathbf{n}$ on the vacuum side and $-\mathbf{n}$ on the metal side. As its height tends to zero, its side electric flux tends to zero for bounded local electric fields, leavingThe minus sign comes from the second outward cap normal, not from the sign of the electric charge. A shrinking rectangular loop across the interface and the zero closed line integral in electrostatics give continuity of the tangential component:For a conductor in electrostatic equilibrium, ${\mathbf{E}}_{\mathrm{metal}}=0$, henceThus positive surface charge density gives an electric field away from metal and negative surface charge density gives an electric field toward metal. The derivative uses the same chosen unit normal, from the vacuum side. The ideal surface layer has no unique electric field value on the layer itself; these are limiting values. Ordinary surface electric charge preserves continuity of electric potential; an ideal electric dipole sheet would require a different model. ^[ref].

Here “exterior” means just outside the metal, including the vacuum within a cavity in a conductor. On a spherical inner wall of radius $a$, its unit normal from metal into the cavity in a conductor is $-\hat{\mathbf{r}}$. A central positive point charge $q$ gives ${\mathbf{E}}_{\mathrm{vac}}=q\hat{\mathbf{r}}/(4\pi {ϵ}_0{a}^2)$ there, soThe outward normal of the cavity in a conductor as a volume is instead $+\hat{\mathbf{r}}$; confusing these two unit normals reverses the inferred sign. For a stipulated spherical enclosure with inner radius $a$, outer radius $b$, no external sources and total isolated metal electric charge $Q_c$, spherical symmetry and Gauss's law give the analytical modelIts outer surface charge density is $(Q_c+q)/(4\pi b^2)$. Grounding to $V_c=0$ with zero electric potential at infinity instead gives $Q_c=-q$ and zero exterior electric field, while preserving the same nonzero electric field inside the charged cavity in a conductor.

As a numerical sign check, stipulate $q=1\mathrm{nC}$, $a=0.10\mathrm{m}$, $b=0.20\mathrm{m}$ and $1/(4\pi {ϵ}_0)\simeq 8.99\times 10^9\mathrm{N}{\mathrm{m}}^2/{\mathrm{C}}^2$. The inner electric field is approximately $899N/C$ along $+\hat{\mathbf{r}}$, but ${\mathbf{E}}_{\mathrm{vac}}\cdot \mathbf{n}=-899N/C$ and ${\sigma }_{\mathrm{inner}}\simeq -7.96nC/{\mathrm{m}}^2$. An isolated neutral enclosure has $+1\mathrm{nC}$ on the outer wall, approximately $+1.99nC/{\mathrm{m}}^2$ and $225N/C$ just outside. Multiplying each surface charge density by its spherical surface area recovers the signed wall electric charges.

The local result uses the total electric field, including all induced and imposed sources. The factor $\sigma /{ϵ}_0$ follows from the zero metal-side electric field; a symmetric isolated sheet in vacuum instead has magnitude $|\sigma |/(2{ϵ}_0)$ on each side. ^[ref]. At sharp corners, limiting electric fields can be singular and the smooth local pillbox argument needs care. In material outside the metal, use the normal free-charge jump of the electric displacement field and the material's permittivity, as in electrostatic interface boundary conditions. ^[ref].

Faraday's ice pail experiment distinguishes redistribution of electric charge by electrostatic induction from transfer of electric charge by contact. Lower a charged body into an initially neutral isolated metal pail: an externally connected electrometer responds even though the body never touches the metal. Withdraw the body without contact and the response disappears. Repeat with conductive contact before withdrawal and a residual response can remain. The striking point is that an exterior response does not establish that the pail has gained net electric charge.

Apparatus and readout. A modern implementation uses two concentric wire-mesh cylinders: a 10 cm diameter, 15 cm high inner pail on insulating rods and a grounded outer shield. Connect the electrometer's signal lead to the inner pail and its reference lead to the shield. Momentarily ground and zero the signal assembly, then isolate it; the shield remains grounded. A charged disk on an insulating handle goes into the lower half without touching. The electrometer measures electric potential difference in volts, with sign determined by the lead connections. It does not directly measure electric charge in coulombs.^[ref]

A charge ledger before contact. To separate exact reasoning from the open apparatus, first idealize the pail as a closed cavity in a conductor with one internal body of total electric charge $q$. Let the isolated metal have total electric charge $Q_0$. The metal's electric field is zero at electrostatic equilibrium.^[ref] A Gaussian surface enclosing the cavity in a conductor but lying wholly in the metal therefore has zero electric flux. Gauss's law and charge conservation giveFor $Q_0=0$ and $q>0$, the inner-wall total is $-q$ and the outer-wall total is $+q$: the metal remains neutral. The exterior electric field can therefore be nonzero without any transfer from the body. The connected electrometer and signal cable belong to the same isolated conducting assembly and share its exterior electric charge. The zero-electric field assertion concerns metal, not the occupied cavity in a conductor.

This ledger fixes totals, not the local surface charge density. Moving an off-center body changes the inner-wall distribution while its integral remains $-q$. With fixed outer geometry, fixed $Q_0+q$ and unchanged exterior sources, Uniqueness of the Dirichlet problem together with the fixed total outer electric charge determines the same exterior solution: the outside cannot reveal the body's position or detailed internal distribution. For example, internal bodies with stipulated electric charges $+2q$ and $-q$ give the same total exterior response as a single body with $+q$. Internal bodies with $+q$ and $-q$ can give a null exterior response while retaining a nonzero internal electric field. This is why a null reading cannot establish an empty cavity in a conductor.

Withdrawal is the control. Record a baseline, insert without contact, withdraw, and check return to baseline. After a fresh zero, repeat with the charged disk touching the inner wall, then withdraw and record the residual response. Finally zero the pail and reinsert the disk without contact to test remaining electric charge. Keep the operator grounded, discharge unwanted handle electric charge, and keep the unused charged disk distant. Dirty supports and humidity promote leakage. These controls separate transfer from electrostatic induction and stray coupling.^[ref]

In the ideal contact test, the internal body is itself an electrical conductor and makes a conducting connection to the wall. After charge relaxation, body and enclosure become a single equipotential; the remaining charge-free void has zero electric field. The body then carries no excess electric charge on surfaces facing that void. Withdrawal without subsequent charging leaves total metal electric charge $Q_0+q$. A coated paddle can retain electric charge on insulating patches, so merely touching it does not guarantee complete transfer. A residual reading establishes some transfer under the controls; the disk retest checks the stronger claim of complete transfer. The ideal argument assumes no leakage and no relevant contact-generated charging.

Grounding changes the ledger. With no exterior sources and zero electric potential at infinity, a closed grounded enclosure has zero exterior electric field, inner-wall electric charge $-q$ and zero outer-wall electric charge.^[ref] Consequently, disconnecting ground before withdrawal retains total metal electric charge $-q$, which moves to the exterior after withdrawal. Keeping ground connected during withdrawal instead restores zero electric charge. A lasting opposite-sign response can therefore arise through grounding without body–wall contact.

For the real open pail, no Gaussian surface lying wholly in metal closes over the mouth. Increasing insertion depth and seeking a stable response tests whether enclosure is a good approximation; mesh openings, rim proximity and nearby objects limit it. In a fixed-geometry approximation, the positive insertion response obeys $\Delta V\simeq q/C_{\mathrm{eff}}$, where $C_{\mathrm{eff}}$ is the effective capacitance of the pail, shield, cable and electrometer input. Changed geometry changes that conversion. Wait for charge relaxation and instrument settling at each step, while keeping the observation short compared with leakage. The experiment probes settled electrostatics; it does not establish shielding against arbitrary changing electromagnetic fields.

The fringing field of a capacitor is the nonuniform electric field near the edges of its electrical conductors, extending outside the gap. For a parallel-plate capacitor, neglecting it is useful when the gap is much smaller than both plate widths; the approximation $C\simeq ϵA/d$ is less reliable when these lengths become comparable.

Finite plates break the translational symmetry of the infinite-plate model. Each conductor in electrostatic equilibrium is an equipotential, so the electric field must meet a smooth conducting surface normally. Near an edge, the equipotentials curve into the surrounding space and the electric field changes both direction and magnitude. The surface charge density adjusts to enforce the conducting boundary conditions; it is not uniform all the way to a sharp edge. The electrostatic boundary conditions at a conductor explain why zero electric field inside the metal does not imply zero electric field just outside it.

The practical issue is where the nearly uniform region ends. A probe near the centre can support $E\simeq V/d$ while a probe close to an edge detects a lateral component and a different magnitude. A total capacitance reading also includes electric flux outside the simple footprint. The fringing field of a capacitor can therefore matter in permittivity measurements even when a central electric field measurement looks nearly ideal. Keysight's three-electrode fixture diverts the fringe contribution away from the measured response.^[ref]

A Gaussian surface is a closed surface used with the integral form of Gauss's law to relate electric flux to enclosed electric charge. It need not coincide with the surface of any charged body. Choosing it to match a symmetry can make the normal component of the electric field constant on a portion of it, allowing that component to be taken outside a surface integral. A concentric sphere works for an isolated spherically symmetric charge distribution; an arbitrarily placed sphere generally does not.

Zero enclosed electric charge implies zero total electric flux. Inferring zero electric field additionally needs information such as the spherical symmetry used in the electric field of a uniformly charged spherical shell. The imagined boundary does not itself block or redirect the electric field.
