Latent heat of fusion ($L$)

An ice bath can absorb heat while its temperature barely changes: the heat converts ice into water. The latent heat of fusion quantifies this melting budget. For a pure substance at its equilibrium melting temperature $T_m(p)$ and specified pressure $p$, define it here per unit mass:Here $h_l$ and $h_s$ are the specific enthalpies of the coexisting bulk liquid and solid, and $H$ is enthalpy. For ordinary melting, $L>0$, in $\mathrm{J}\mathrm{k}{\mathrm{g}}^{-1}$; an amount $m$ has a total fusion enthalpy $mL$ in joules. A molar fusion enthalpy instead has units $\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}$ and equals $ML$, where $M=m/n$ is mass divided by amount of substance in $\mathrm{kg}\mathrm{mo}{\mathrm{l}}^{-1}$. Always check the normalization before inserting a tabulated value into an energy balance.^{[ref] [ref]}

For a closed system converting completely from solid to liquid at fixed pressure, with only pressure-volume work and negligible changes in bulk kinetic energy and potential energy, the first law of thermodynamics gives $Q_p=\Delta H=mL$. Both endpoints are at $T_m(p)$: warming initially colder ice or subsequently warming the resulting water requires additional sensible heat. Since $H=U+pV$, the corresponding specific internal energy jump is $\Delta u=L-p\Delta v$, where $v=V/m$; $L$ includes the work associated with the change in volume. Heat is transferred energy, whereas enthalpy is a state function. ^[ref]

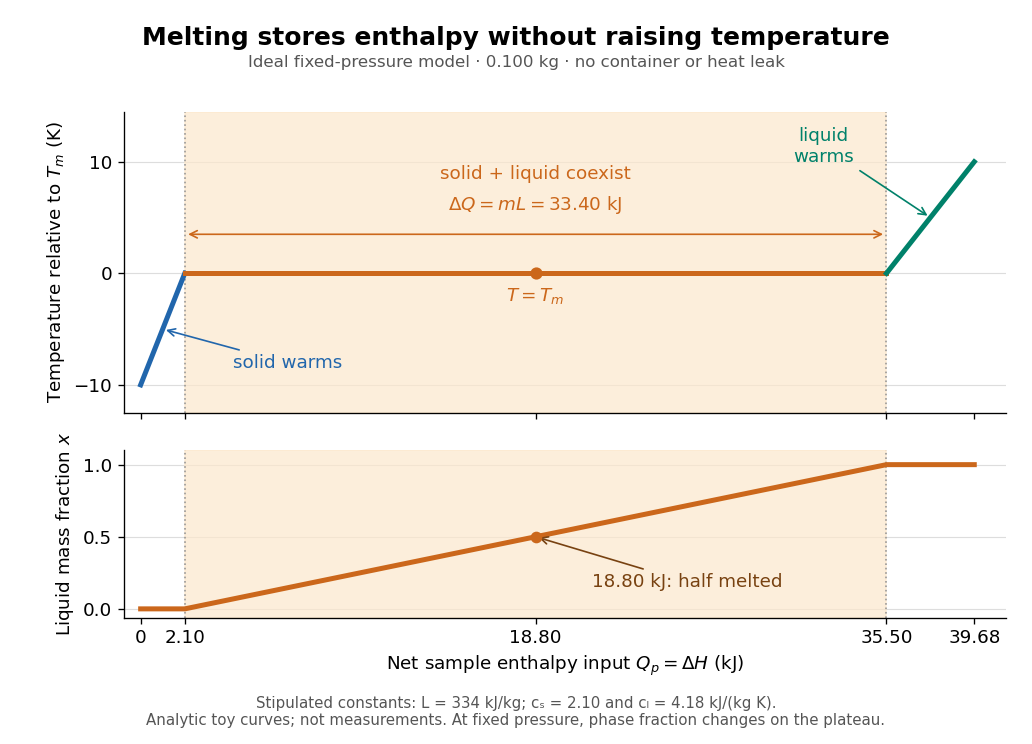

Let $x=m_l/m$ be the liquid phase fraction by mass, rather than by volume. Neglecting interfacial contributions to enthalpy, equilibrium phase coexistence at fixed pressure givesIn the model above, reaching $T_m$ takes $2.10\mathrm{kJ}$ of sensible heat; the plateau then absorbs $33.40\mathrm{kJ}$, ending at a cumulative $35.50\mathrm{kJ}$. At $18.80\mathrm{kJ}$, half the mass is liquid and the temperature is still $T_m$. The final warming takes another $4.18\mathrm{kJ}$. The rounded $L$ and $c_l$ are inspired by the introductory ice-melting calorimetry values in Case Western's demonstration; constant properties and exact equilibrium throughout are stipulated model assumptions. ^[ref]

Within one thermodynamic phase, specific heat capacity at constant pressure is $c_p=(\partial h/\partial T{)}_p$, in $\mathrm{J}\mathrm{k}{\mathrm{g}}^{-1}{\mathrm{K}}^{-1}$; a sample's heat capacity at constant pressure is $C_p=m{c}_p$, in $\mathrm{J}{\mathrm{K}}^{-1}$. The plateau is a finite enthalpy change at zero temperature change through varying $x$, so neither a finite single-phase $c_p$ nor $Q=m{c}_p\Delta T$ represents it. The heating curve needs separate sensible heat intervals and a fusion contribution. ^[ref]

The plateau assumes a pure substance, a stable bulk solid-liquid phase coexistence pair, fixed pressure, and sufficiently slow, uniform heating to remain near thermodynamic equilibrium. The total mass and composition must remain fixed, with negligible evaporation and no other phase transition. A fast heater can produce temperature gradients, so a local thermometer need not read the equilibrium $T_m$. Neither $T_m$ nor $L$ is universal across pressures or compositions: common-pressure melting-point slope describes the pressure dependence of $T_m$, while mixtures can melt over a temperature range as their coexisting compositions change. Their liquidus must be consulted instead of assuming a pure-substance plateau. ^[ref]

This makes ice useful as a temperature buffer: under these conditions it can absorb $m_{s}L$ before the remaining solid mass $m_s$ disappears, after which the water warms. If a stipulated constant net input power $P$ goes entirely into melting, that buffer lasts $m_{s}L/P$. Reversing the equilibrium conversion releases the same fusion enthalpy during freezing. The beautiful thermodynamic connection is $L=T_m(s_l-s_s)$, with $s$ the specific entropy and $T_m$ absolute temperature: equal Gibbs free energies at phase coexistence allow different enthalpies and entropies. The nearly stationary thermometer hides a finite, measurable change of state. ^[ref]

Ice-melting calorimetry measures the fusion enthalpy through conservation of energy, rather than inferring it from the small temperature change of the melting ice itself. In a mixing experiment, warm water and the container cool while added ice melts and the resulting water warms. Their combined energy balance separates fusion from sensible heat.

Weigh the container and stirrer, then weigh the added warm water to obtain $m_w$. Let the container and water reach a common initial temperature $T_i$. Prepare ice in a clean ice-water mixture near $T_m$, rather than assuming freezer ice is already at $T_m$; drain and blot its surface immediately before transfer. Add it without splashing, stir gently, and record temperature before addition and until after the last ice disappears. Reweigh to find the added mass $m_i$. Wisconsin's laboratory guide specifies drying each piece, weighing before and after, and recording the temperature history; it places the initial and final temperatures on opposite sides of the jacket temperature to reduce net environmental exchange. ^[ref]

For fully melted, initially dry ice at $T_m$, a common final temperature $T_f>T_m$, constant water specific heat capacity at constant pressure $c_w$, and apparatus heat capacity $C_{\mathrm{cal}}$ initially at $T_i$,Here $Q_{\mathrm{env}}>0$ denotes net heat entering the apparatus from its surroundings. The left side supplies the fusion enthalpy and the sensible heat on the right; the water produced by melting must be warmed too. The balance extends Case Western's mixing demonstration by including the apparatus and environmental terms. If the specific heat capacities vary appreciably, replace their products with the corresponding temperature integrals. ^[ref]

Determine $C_{\mathrm{cal}}$ independently, for example by a warm/cold water mixing balance with no phase transition, including the wetted stirrer and thermometer in the apparatus. Check the thermometer calibration, keep the lid in place between transfers, and monitor the surroundings. Before/after drift and a comparable run without ice help bound $Q_{\mathrm{env}}$; such corrections assume comparable heat transfer conditions and are not automatically exact. Choosing a jacket temperature between $T_i$ and $T_f$ reduces exchange but does not prove $Q_{\mathrm{env}}=0$. Ensure all the ice has melted and the contents are well mixed before using the measured $T_f$: with residual ice, the weighed addition is not the mass that has undergone fusion. Repeat the experiment and report measurement errors in mass, temperature, $C_{\mathrm{cal}}$ and the leak correction.

An independent way to see the plateau is David Roundy's Oregon State experiment: heat an ice-water mixture slowly with a waterproof resistor in an insulated cup, stir, and record temperature, heater electric current $I(t)$, electric potential difference $V(t)$ and elapsed time. Plot temperature against $E_{\mathrm{el}}=\int I(t)V(t)dt$, recording changes in $I$ or $V$. The initial solid mass must exclude accompanying water. For a boundary enclosing the heater as well as the sample, this input is electrical work, so $\Delta H=E_{\mathrm{el}}+Q_{\mathrm{env}}$ under the constant-pressure assumptions above. Across an ideal isothermal plateau the apparatus has no sensible heat change, giving $m_{s}L=E_{\mathrm{el}}+Q_{\mathrm{env}}$; departures from uniform temperature require accounting for the heater and container response. ^[ref]

Surface water counted as ice needs warming but has already undergone melting. Its presence therefore biases a dry-ice estimate of latent heat of fusion downward. This is why drying the added ice is a quantitative control in ice-melting calorimetry, rather than cosmetic preparation. Let $m_a$ be the total added mass at $T_m$, of which a fraction $r$ is already liquid and $(1-r)$ remains solid. The correct constant-property balance isIf an analysis incorrectly treats all $m_a$ as solid and sets $Q_{\mathrm{env}}=0$, it obtainsThus $r=0.10$ gives a $10\%$ low estimate with no heat leak. Unaccounted incoming heat also lowers the estimate; outgoing heat raises it. These signs follow directly from the displayed energy balance. Conversely, dry ice initially below $T_m$ absorbs additional sensible heat; neglecting that term overestimates $L$. These are different biases and may partially cancel, so agreement with a reference value alone does not validate the controls.

For this model with $r=0$ and $Q_{\mathrm{env}}=0$, the balance predicts $T_f-T_m\simeq 8.829\mathrm{K}$, with $16.700\mathrm{kJ}$ consumed by fusion and $1.845\mathrm{kJ}$ by warming the melted water. At $r=0.10$ with the same zero leak, it predicts $T_f-T_m\simeq 10.369\mathrm{K}$ and $L_{\mathrm{app}}=300.6\mathrm{kJ}\mathrm{k}{\mathrm{g}}^{-1}$. A net incoming $1\mathrm{kJ}$ shifts $L_{\mathrm{app}}$ downward by a further $20\mathrm{kJ}\mathrm{k}{\mathrm{g}}^{-1}$ because $m_a=0.050\mathrm{kg}$. The warmer final water in the wet case is evidence of a smaller fusion budget, not a larger true $L$.
