Agarose gel electrophoresis uses a porous agarose polymer network. For linear double-stranded DNA within a suitable separation range, shorter fragments generally move farther in a fixed run. Raising the agarose concentration changes the mesh and the range of sizes that can be resolved.^[ref] A compact circular DNA molecule need not migrate like linear DNA of the same length: geometry affects passage through the mesh.^[ref]

A concrete laboratory example is Addgene's documented DNA separation protocol. Its standard 1% gel contains 1 g of agarose in 100 mL of TAE buffer. Dissolved agarose sets in a casting tray around a comb; removing the comb leaves sample wells. The gel is covered with the same buffer solution in a box connected to a voltage source. Loading buffer contains glycerol to increase sample density and a tracking dye to show run progress. A DNA ladder occupies a separate lane beside the samples. With wells near the negative cathode, DNA migrates toward the positive anode. After separation, bound stain makes the DNA visible by fluorescence under a UV transilluminator. The DNA ladder supplies the size reference; the tracking dye monitors migration but does not identify sample DNA.^[ref]

In the manufacturer's controlled comparison, the same DNA ladder runs in 1%, 2%, and 3% agarose gels with the same run time and other stated conditions. The changed gel band spacing shows why a calibration belongs to its particular gel conditions, rather than establishing a universal distance law.^[ref]

In interpreting an unknown sample, a blank lane tests for detectable background or carryover in that blank, while the DNA ladder checks migration and detection of its known fragments. An empty sample lane cannot by itself distinguish absent DNA from unsuccessful loading or insufficient detection. These controls answer different questions; neither makes matching migration a proof of matching nucleotide sequence.

A DNA ladder contains DNA fragments of known lengths in base pairs. Its gel bands supply size references. Match the sample's strandedness and shape, and use the specified lengths for that DNA ladder. A size reference need not provide a quantitative mass standard.^[ref]

DNA sequencing determines the order of nucleotide bases in DNA. Sequence data can test molecular rearrangements, as in the functional plastid-to-nucleus gene transfer experiment, or support phylogenetics after a suitable sequence alignment.

An ordered nucleotide sequence answers a different question from fragment size. The eight-nucleotide strands ACGTTAGC and AACCGGTT have equal lengths and identical counts of adenine, cytosine, guanine and thymine, yet different orders. A length-compatible gel band therefore cannot identify either strand by itself. Sanger sequencing makes length informative by deliberately coupling each stopping position to the identity of its last added nucleotide.

That coupling is the beautiful experimental idea: convert an invisible order into a collection of ordered endpoints. Sanger ladder reading recovers the newly synthesized strand; base pairing and the reverse complement then connect that readout to the original template. The distinction also matters when checking a mutation: a reliable local nucleotide sequence supports a particular molecular change, while its effect on a phenotype requires additional evidence.

A gel band is a localized population of stained or otherwise detected molecules with sufficiently similar migration in one sample lane. One visible gel band need not contain only one nucleotide sequence. Two different linear DNA fragments of 375 base pairs can occupy the same unresolved gel band; equal migration supplies size evidence under suitable conditions, not a sequence determination.

Fluorescence from a bound stain can support an estimate of DNA quantity, but suitable staining and detector response matter.^[ref]

For a quantitative model with equal staining response per unit mass, background-subtracted, integrated fluorescence $I$ satisfies $I=km$. This requires an unsaturated detector and a common proportionality constant $k$; visual peak brightness alone does not supply $I$.

The amount of substance is $n=m/M$, where $M$ is molar mass. For double-stranded DNA with approximately equal average mass per base pair, $M$ is proportional to length $L$, so $n$ is proportional to $I/L$. In a constructed example, equal integrated signals from 250-base pair and 1000-base pair gel bands imply approximately equal masses but four times as many short DNA molecules. Conversely, equal numbers of those DNA molecules would give about four times the signal for the longer fragments in this model. Neither conclusion follows from darkness in a schematic drawing.

Separation of charged molecules through a gel in an electric field. Denaturing conditions suppress folded structures, helping compare RNA lengths; matching migration alone does not establish an identical nucleotide sequence or identical covalent bonds. In the ribozyme experiments, labelled RNA was detected after separation by exposing photographic film.

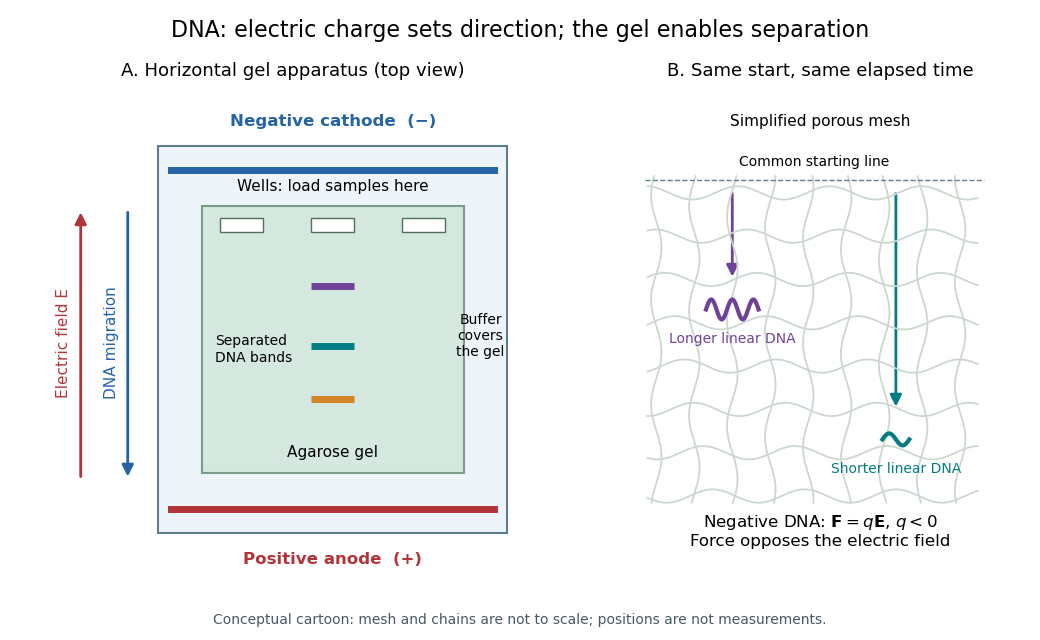

In DNA agarose gel electrophoresis, the backbone phosphate groups carry negative electric charge under the usual mildly alkaline buffer solution conditions. DNA therefore moves toward the positive anode, away from the negative cathode.^[ref]

The electric field points the other way: the electric force $\mathbf{F}=q\mathbf{E}$ reverses direction when $q<0$. The apparatus is driven by an external source of electric potential difference; the positive anode convention here belongs to that operating mode. Direction follows electric charge, so it is not a rule that all molecules move toward the same electrode.

The useful result is a spatial comparison: a mixture becomes separated gel bands, which can be compared with a DNA ladder or recovered for subsequent analysis. Agarose gel electrophoresis of linear double-stranded DNA, gel electrophoresis of denatured RNA, and SDS-PAGE of proteins use different conditions to make migration informative about chain size. An electric field supplies motion; the gel supplies a porous obstacle course.

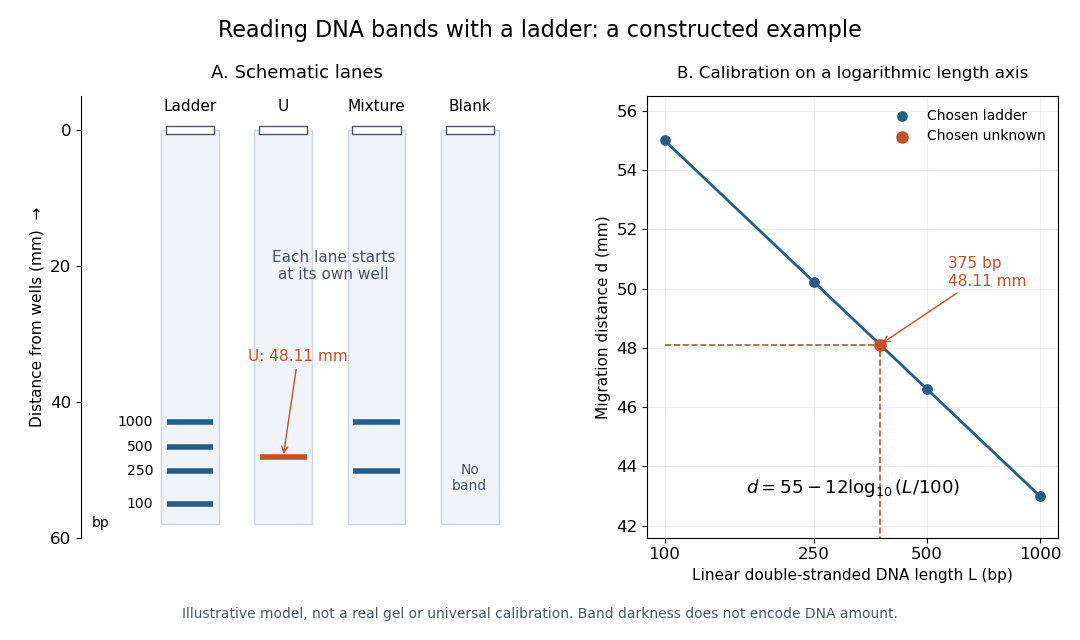

A gel electrophoresis size calibration relates migration distance to known fragment lengths on the same gel. Here is an explicitly chosen model for linear double-stranded DNA, not measured data or a universal law. Let $L$ be the numerical length in base pairs and $d$ the numerical migration distance in millimetres from the wells:The logarithm has a dimensionless argument: $L/100$ is the length divided by 100 base pairs. The chosen DNA ladder fragments $L=100,250,500,1000$ give $d=55.00,50.22,46.61,43.00$, respectively. The gel bands therefore appear in the reverse order of length along the direction of migration.

To invert the calibration, rearrange the logarithm:Our chosen unknown $L=375$ gives $d=48.1116248\dots$, between the 250-base pair and 500-base pair references. Inserting that distance into the inverse recovers 375; retaining only $d=48.11$ gives about $375.12$ base pairs. The extra digits reflect rounding in this model, not the resolving power of a real gel.

For linear interpolation between those two reference gel bands, use the logarithm of length. Here the fraction of the distance from the 500-base pair reference toward the 250-base pair reference is $t={\log }_{10}(500/375)/{\log }_{10}2\approx 0.4150$, giving $L=500(250/500{)}^t=375$. Direct linear interpolation of lengths instead gives approximately $396.24$ base pairs. This difference explains why the choice of calibration coordinates matters. A real calibration must be checked over its usable range; folded RNA or circular DNA does not automatically share the linear double-stranded DNA calibration.

In the weak-field reptation regime of agarose gel electrophoresis, the electrophoretic mobility of a long linear DNA chain scales as $\mu \propto M^{-1}$, where $M$ is its number of base pairs. One way to see the scaling is that the constrained-chain diffusion coefficient scales as $D\propto M^{-2}$, whereas its effective electric charge scales as $M$; the drift response is proportional to $DM$. With the same electric field and running time, the migration distance is therefore $x=\mu Et\propto M^{-1}$. The time cancels from the ratio, givingHere “kbp” means a thousand base pairs, not a rate. The second gel band has traveled farther and corresponds to the shorter chain under this migration model. The inverse-length law applies only over an appropriate migration regime.^[ref].

At very low agarose concentration the mesh becomes too open to sieve these chains effectively. In the free-solution limit the chain's electric charge and friction are both approximately proportional to its length, so both chains have nearly the same electrophoretic mobility and their gel bands cease to separate well. At very high agarose concentration the pores become small and transport is strongly hindered; over a fixed experimental time both chains migrate very little, so their absolute spatial separation again becomes small. Increasing gel concentration can improve resolution over an intermediate range, but not indefinitely.

The numerical result is conditional on the inverse-length reptation law. Actual gel electrophoresis size calibration often uses an empirical approximately linear relation between distance and $\log M$ over a specified range. One known band alone cannot fix that relation's slope. The PDF supplies neither gel concentration nor a calibration curve, so $8.9\mathrm{kbp}$ is the standard model estimate rather than a uniquely calibrated experimental size.

Plasmid restriction mapping compares fragment lengths after a restriction digest with the pattern predicted by specified cut positions. Use the original 6000-base pair plasmid feature map. Abstract restriction enzyme A cuts once, at 1000. Abstract restriction enzyme B cuts twice, at 2500 and 4500. Assume complete cutting of identical circular copies at exactly those sites, with no loss of DNA. These assumptions define a length-accounting exercise; the labels A and B do not stand for particular commercial enzymes.

For the combined restriction digest, successive clockwise distances areand the final fragment crosses the chosen zero:Their sum is $1500+2000+2500=6000$. The single A cut opens the circle into one full-length linear fragment. It does not produce pieces of lengths 1000 and 5000, because coordinate zero was never an end.

For contrast, stipulate a different starting substrate: a linear 6000-base pair DNA fragment with physical ends at 0 and 6000 and the same three internal cut coordinates. Its complete restriction digest givesbase pairs, summing again to 6000. There are four fragments, including two of equal length. Even an ideal length-resolving comparison would show only three distinct sizes if both 1500-base pair fragments occupy the same gel band. Fragment number and visible gel band number need not agree.

The general counting argument is short. For $k\ge 1$ distinct complete cuts of a circle, each fragment runs from one cut to the next, so there are $k$ fragments. For a linear substrate with $k$ distinct internal cuts, its two pre-existing ends give $k+1$ intervals. Summing successive distances counts every original base pair once in either case. The rule assumes internal double-strand cuts and does not treat an uncut circle as a zero-length product.

In practice, compare released linear fragments with an appropriate DNA ladder using agarose gel electrophoresis. The original uncut circular DNA need not migrate like a linear fragment of equal length; the existing agarose gel electrophoresis discussion explains that shape-dependent limitation. Partial cutting also changes the expected pattern. In this example, a circular copy cut at 1000 and 2500 but not 4500 yields lengths 1500 and 4500. A 4500-base pair product would therefore be compatible with that missed cut rather than uniquely identifying a different construction.

Matching lengths constrain an arrangement without determining every nucleotide sequence. For example, any change of letters preserving all three cut positions leaves this predicted pattern unchanged. Even the order of fragments can be ambiguous when only their unordered lengths are observed. DNA sequencing across both joins and through the plasmid insert tests additional claims that this length model cannot decide.

The endpoint argument identifies what its scientific controls must interrogate. A known-template comparison tests whether preparation, copying and detection can produce an interpretable ladder. A no-template comparison tests background arising without the intended template. Agreement from an independently primed opposite-strand read tests the proposed nucleotide sequence through its reverse complement. These are distinct analytical checks; none follows merely from seeing a gel band.

An ambiguous ladder should retain its ambiguity. More than one band at a nominal position can reflect mixed templates or unwanted stops; a missing band can reflect failed detection rather than an absent nucleotide. Four clean lanes are an assumption of the ideal example. They do not establish a unique genome, a biological function, or the frequency of a mutation in a population. The historical observations below show why a control for copying chemistry matters even before interpreting the letters.
