The antiparticle of a quark.

A one-loop Feynman diagram with four vertices joined into a box. Two W bosons and two internal quarks give a short-distance contribution to neutral D-meson mixing.

The angle of the real two-generation quark mixing rotation, with $V_{ud}=V_{cs}=\cos {\theta }_C$, $V_{us}=\sin {\theta }_C$, and $V_{cd}=-\sin {\theta }_C$.

Color charge is the gauge group charge of Quantum chromodynamics, associated with its $SU(3)$ symmetry. A quark transforms in the fundamental three-dimensional representation, an antiquark in its conjugate, and a lepton is a singlet. The word color is a label for this charge, unrelated to visible light.

The leading high-energy approximation neglects quark and target masses and transverse constituent momentum. A lightlike reference momentum is used for the hadron; this does not describe a massless particle at rest.

A hadron with integer spin. An ordinary meson has valence content consisting of a quark and an antiquark.

A high-energy hadron is treated as constituents scattering incoherently. In electromagnetic deep inelastic scattering, the charged constituents are quarks and antiquarks.

The flavour-diagonal weak neutral current coupled to the real Z boson has real vector and axial current couplings. With ${\eta }_C(Z)=-1$, part (e) shows that this tree-level interaction is invariant under CP symmetry, although the simultaneous presence of the Dirac current and axial current generally violates charge conjugation and parity symmetry in quantum field theory separately. This conclusion concerns the tree-level weak neutral current, rather than every interaction or radiative effect in the Standard Model.

The weak charged current couples distinct quark flavours and involves the Cabibbo-Kobayashi-Maskawa matrix:Here $u_{Li}$ and $d_{Lj}$ are left-handed quark fields. A CP symmetry transformation exchanges the two conjugate-field operators; because it acts through a unitary operator, it does not complex-conjugate their numerical coefficients. Equality with the original interaction therefore requires a Cabibbo-Kobayashi-Maskawa matrix that can be made real by quantum field rephasings. With three generations, a physical CP-violating phase remains in general, measured by the Jarlskog invariant. Therefore the W boson interactions can violate CP symmetry. Merely seeing a complex coefficient is insufficient: the phase must survive quantum field rephasing, unlike the real two-generation Cabibbo angle rotation.

A leading short-distance Standard Model contribution to neutral D-meson mixing is a box Feynman diagram with two W bosons and two internal down-type quark lines:

The incoming $c\bar{u}$ pair becomes $u\bar{c}$; the internal labels run over the down quark, strange quark and bottom quark. Each corner is a weak charged current vertex. Four such vertices make the contribution of order $g^4$. Summing the internal flavours produces Cabibbo-Kobayashi-Maskawa matrix factors and the Glashow-Iliopoulos-Maiani mechanism: the flavour-independent term cancels by ${\sum }_i{V}_{ci}^{\ast }{V}_{ui}=0$. This box Feynman diagram is one contribution; long-distance intermediate hadron states can also contribute to neutral D-meson mixing.

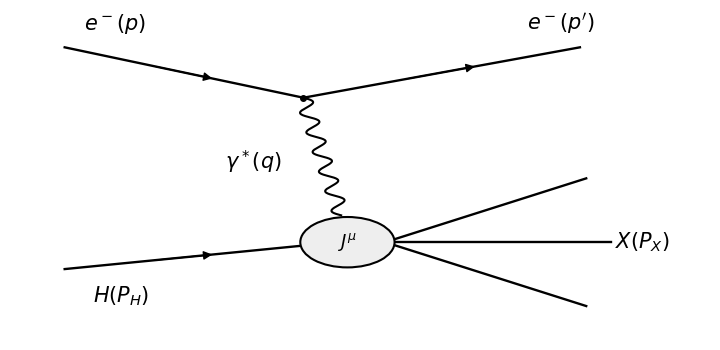

The deep inelastic scattering process contains a virtual photon exchanged between the Electron and the hadron:

Use an electromagnetic vector current $J^{\mu }$ containing the dimensionless quark charges, with the coupling $e$ factored out. The scattering amplitude, up to an irrelevant phase, isTo match the printed prefactor, define the leptonic tensor with a spin sum over both Electron spins and keep the initial spin average $1/2$ outside it. The gamma-matrix trace givesFor a stationary target and massless Electron, the invariant flux factor is $4ME$. The inclusive final-state Lorentz-invariant phase-space measure and target spin average are contained in $4\pi W_H^{\mu \nu }$. Thus the differential scattering cross-section isHere $q^4$ means $(q^2{)}^2$. If the initial spin average is instead built into the leptonic tensor, its normalization is $2(\cdots )$ and the displayed cross-section prefactor must be doubled. The two conventions give the same observable.

Use the massless collinear parton approximation in a high-energy frame: $P^2=0$, $k=\xi P$, and $k^{\prime }=\xi P+q$ with $k^{\prime 2}=0$. This neglects target-mass corrections to the parton model; it does not literally set a stationary massive target to a massless particle in the earlier flux formula.

For a quark of dimensionless charge $Q_f$, the electromagnetic vector current matrix element is $Q_f\bar{u}(k^{\prime }){\gamma }^{\mu }u(k)$. The spin average and gamma-matrix trace giveIntegrating the three-momentum Dirac delta function in the parton hadronic tensor leavesSince $k\cdot k^{\prime }=\xi \nu$, this isFor the massless Electron momenta, $p^2=p^{\prime 2}=0$ and $q=p-p^{\prime }$. Substitution into the leptonic tensor givesand likewise $q^{\nu }{L}_{\mu \nu }=0$. These Ward identities eliminate every term with an exposed $q$ index in the contraction. ThereforeHere $\doteq$ means equality after contraction with the leptonic tensor. The shortened tensor is not itself conserved; the omitted terms restore current conservation in the full hadronic tensor.

A constituent quark that does not participate in the elementary weak vertex of a meson decay. It combines with a produced quark or antiquark in the final hadron.
