In the 2007 cavity quantum electrodynamics experiment of Christine Guerlin and collaborators, including Sébastien Gleyzes, Michel Brune, Jean-Michel Raimond and Serge Haroche, an injected coherent state occupied a 51.1 GHz microwave cavity with niobium-coated mirrors exhibiting superconductivity. Velocity-selected rubidium chemical atoms were prepared as circular Rydberg atoms in levels with principal quantum numbers 50 and 51. Repeated atomic readouts progressively narrowed the inferred photon number to a Fock state; later records revealed jumps. The cavity damping time was $T_c=0.130\mathrm{s}$. Empty-cavity Ramsey interferometry scans fixed the analysis-phase origin; weak injected fields refined the response calibration. Finite fringe contrast required calibrated likelihoods; photon losses could interrupt convergence.^[ref]

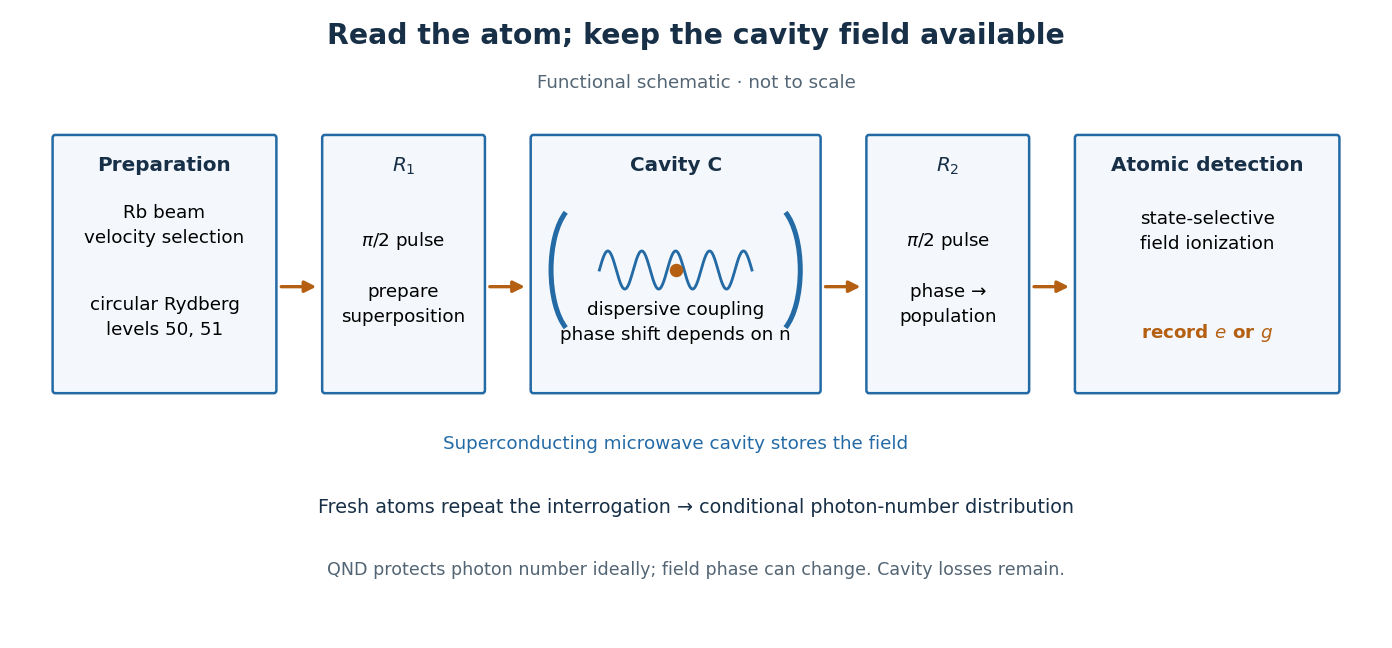

The functional sequence is preparation, first Ramsey interferometry zone $R_1$, dispersive cavity $C$, second zone $R_2$, and state-selective detection. The first $\pi /2$ microwave pulse prepares an atomic quantum superposition; dispersive atom-cavity coupling adds a photon number-dependent relative quantum phase while suppressing energy exchange. The second pulse converts that quantum phase into atomic populations; state-selective field ionization reads $e$ or $g$. Successive chemical atoms carry the meter records away while the same field remains available.^[ref]

This arrangement makes quantum nondemolition measurement useful for following a field repeatedly and preparing a Fock state by conditioning. The photon number is inferred from a sequence of physical records; it is not a directly visible label attached to a photon. Each atomic probe makes a weak, partial measurement in quantum mechanics of photon number, and the accumulated records can approach a resolved count. A single binary meter need not identify one among many possible Fock states, as perfect discrimination of pure states requires orthogonality.

Lithium niobate is $\mathrm{LiNb}{\mathrm{O}}_3$, a crystalline oxide containing lithium, niobium, and oxygen. Its non-centrosymmetric structure supports piezoelectricity and useful optical responses.

An applied electric field can change its optical response, allowing electrical control of light in a modulator. The connection between crystal symmetry and macroscopic response makes lithium niobate a bridge between crystallography and optical engineering.

U. Essmann and H. Träuble reported triangular vortex arrays, including defects, using electron microscopy on lead-indium and niobium samples in the remanent state.^[ref] Such a prepared state need not display the equilibrium array at a uniform applied field. Images of regular positions and a proof of unrestricted vortex motion would answer different questions.

The 1985 spectroscopy experiment used niobium-based tunnel Josephson junctions on silicon, thermally anchored with final bias low-pass filters to a dilution refrigerator. Calibrated germanium and cobalt thermometers measured temperature. A filtered coaxial cable injected microwaves; repeated switches to nonzero electric potential difference measured escape with irradiation on and off. Bias scans at fixed microwave frequency resolved separate enhancements matching calculated unequal energy level spacings. Raising temperature merged the structure toward classical response. Junction parameters were calibrated in the classical regime; reducing the superconducting critical current with a magnetic field checked thermal readout. Parameter uncertainties limited absolute resonance positions.^[ref]

The companion escape experiment mounted a tunnel Josephson junction on an attenuating coaxial cable, cold-anchored its bias filters, ramped the electric current, and counted switches to nonzero electric potential difference. Rapid current shutoff limited heating. Classical escape and microwave resonance calibrated the superconducting critical current, capacitance and environmental loading. Low-temperature escape agreed with the quantum prediction using these calibrated parameters. A magnetic field reduced the superconducting critical current to keep the same apparatus thermally activated at lower temperature, testing excess noise. Frequency-dependent loading contributed uncertainty; the predicted damping correction was smaller than combined errors, so the experiment did not resolve that correction.^[ref]

Together these tests connect spectral structure and escape of the same kind of collective coordinate. They do not constitute a demonstration of coherent gate operations on a qubit, or prove that every macroscopic coordinate retains quantum behavior under arbitrary environmental coupling. The attraction is more concrete: a fabricated electrical circuit admits both an independently measurable classical model and quantitative quantum tests of its phase dynamics.

Niobium is the chemical element with atomic number 41 and symbol $\mathrm{Nb}$. It is a transition metal. Niobium and several niobium alloys are used as superconductors. Its common $+5$ chemistry also appears in oxides, including lithium niobate, whose optical and electrical behavior differs from that of the metal.^[ref]

Use chemical signatures to reconstruct processes, then test tectonic context. Geochemistry can establish melting conditions, surface alteration and recycling, but plate tectonics is a kinematic system. I would sample dated suites across a mapped geological succession and compare competing origins, rather than declare an isolated “arc-like” analysis proof of a global regime. Radiometric dating must identify whether the measured age records crystallization, later metamorphism, alteration or inheritance.

Hydrous magmatism and selective element transfer. Analyze fresh basalt, associated intrusive rocks and differentiated volcanic suites for major elements, trace elements and isotope ratios. Relative enrichment of fluid-mobile elements such as barium, strontium and lead, together with relative depletion of niobium and tantalum, can support addition of slab-derived components to a depleted mantle wedge. Test coherent variations in barium/niobium, thorium/niobium and rare-earth element patterns against modeled fluid addition, sediment melting, source depletion and fractional crystallization. Do not treat these ratios as fixed universal cutoffs. Crustal contamination, remelting of previously arc-modified crust, residual rutile or other source effects can create some similar patterns. Altered rocks can also gain mobile elements long after their formation.

The case becomes stronger if the chemical evolution occurs in a plausible succession of oceanic, early forearc and mature arc magmas, with supporting structure and geochronology. The key evidence would be correlated process changes in an independently reconstructed margin, not resemblance to one modern basalt plot. A geochemical discrimination diagram is a comparison tool; its modern training associations are not a proof that only those settings could exist on a hotter Earth.

High-pressure melting and the fate of mafic crust. Tonalite-trondhjemite-granodiorite suites with high strontium/yttrium or lanthanum/ytterbium and low heavy rare-earth element abundances can indicate melting with residual garnet and little plagioclase. Model the combined major element composition, residual phases and melt fraction to estimate the pressure, hydration and source of melting. This could support melting of buried hydrous oceanic crust. However, basal melting of thickened crust, delamination and nonplate vertical burial can produce related conditions. High strontium/yttrium alone neither proves a descending slab nor dates the first subduction. Conversely, hotter ancient subduction might not produce exactly the same magmatic products as modern cold slabs.^[ref]

Radiogenic isotopes distinguish new extraction from reworking. Couple zircon uranium-lead dating with hafnium isotope ratios, and whole-rock samarium-neodymium isotope ratios with strontium isotope ratios or lead isotope ratios. These systems can constrain contributions from depleted mantle, older continental crust and altered surface reservoirs. For a closed parent-daughter system,where $P(t)$ is the present parent abundance, $D^{\ast }$ the radiogenic daughter accumulated since closure, and $\lambda$ the radioactive decay constant. Initial daughter composition, closure and mixing must be constrained before interpreting an age. A crustal extraction model age depends on a reference mantle evolution and subsequent history; it is not automatically a rock's crystallization age or the date of a tectonic transition.

Juvenile signatures can indicate addition from the mantle, while evolved signatures can indicate reworking of older crust; neither is exclusive to a particular tectonic regime. Spatially organized juvenile additions at a reconstructed margin, followed by collision and reworking, are more diagnostic than an undifferentiated global age histogram. Work combining zircon hafnium isotope ratios, oxygen isotope ratios and age distributions illustrates how crustal generation, reworking and preservation can be separated conceptually, while remaining dependent on sampling and model assumptions.^[ref]

Stable isotopes can identify a visit to the surface. Zircon oxygen isotope ratios substantially different from an appropriate mantle reference may record melting of material that previously underwent low-temperature water-rock interaction. This would support surface alteration followed by burial or remelting. It would not, by itself, distinguish subduction from burial under a thick volcanic pile or another form of recycling. Alteration, metamorphic exchange, inherited cores and analytical domains need checking. Multiple stable isotope systems, including boron isotope ratios in appropriate rocks, can strengthen a fluid-transfer interpretation if their fractionation and later resetting are modeled.

Deep samples provide an independent archive. If dated diamond inclusions or mantle xenoliths preserve eclogite compositions together with a surface-alteration chemical signature, they could demonstrate transfer of crustal material into deep lithospheric mantle. Dating the relevant mineral assemblage and distinguishing inclusion growth from later host transport are essential. A primary diamond-inclusion study used coupled chemical and isotopic observations to infer changes in deep recycling; the general lesson is to test a transport history, not to make the first preserved sample an infallible onset clock.^[ref] Delamination or other sinking processes remain alternatives unless structure and regional history establish plate convergence.

For each candidate signal, I would seek an older comparison population, quantify alteration and analytical uncertainty, reproduce the pattern in several independent regions, and combine chemistry with the tests in the other parts. A securely dated demonstration of subduction shows that it operated by that time in that region; it does not demonstrate that it began then everywhere. A secular shift toward more frequent, spatially coherent signatures can support expansion of the regime, but only after correcting for the survival of its archive.

In 1986, Akira Tonomura and collaborators coated a ferromagnet shaped as a torus with superconducting niobium and copper. A cooled stage held it in a 150 kV field-emission electron microscope. An electron biprism overlapped object and reference waves; film holograms were reconstructed optically. Room-temperature leakage screening selected samples; varying copper thickness tested electron penetration.^[ref]

Below the superconducting transition, through-hole and outside electron waves differed in wave phase by zero or $\pi$ modulo $2\pi$. Warming through it changed the interference reversibly. Leakage and coherent-penetration bounds do not prove zero magnetic field.^[ref]

Why these two phases? The shield's superconducting flux quantum is $h/(2e)$, whereas the probing electron has electric charge $-e$. Substituting $\Phi =Nh/(2e)$ givesAn odd $N$ therefore moves a carrier fringe by half its spacing; an even $N$ leaves it unchanged modulo a full spacing. The phase quantization provides an internal check on the superconducting enclosure. It does not mean that zero wave phase proves zero trapped magnetic flux.^[ref]

The readout is electron holography in the off-axis holography geometry: a known tilted reference converts an unknown relative wave phase into a spatial carrier displacement. Reconstructing a magnetic wave phase assumes stable reference phase, adequate coherence and a calibrated carrier; electrostatic charging and material traversal can also shift wave phase. Optical wave phase amplification rescales the displayed fringe displacement. The experiment's shielding and comparison tests support the magnetic inference; an interferogram by itself measures the total relative wave phase, rather than separately certifying every contribution. The ideal field-free model describes the limiting geometry, while finite leakage and penetration remain questions of experimental bounds.
