Selecting an inner fiducial volume reduces externally produced radiation because outer xenon attenuates it before it reaches the selected target. This trades target mass for reduced background. It does not remove uniformly distributed internal radioactivity or every neutron recoil, so purification, veto information and calibration remain important.

A scanning tunneling microscope can modify an adsorbate's potential landscape as well as image it. First locate the atom with a weakly perturbing tunnel-current setpoint. Bringing the tip closer strengthens tip–atom coupling. In lateral atomic manipulation, moving the tip parallel to the surface can pull or push the atom between adsorption sites; reducing the coupling afterwards leaves it at the chosen location. A change in tunneling current during the motion can signal a jump, and a subsequent low-current image checks the final arrangement.

In vertical atomic manipulation, a suitable tip interaction or voltage pulse transfers an atom between substrate and tip. The tip is repositioned and the atom is deposited elsewhere by changing that interaction again. Electric fields and inelastic tunneling excitation can also change adsorption, induce hopping or modify bonds. The useful mechanism depends on the atom, substrate, tip and bias: there is no universal pulse amplitude that works for every system. Low temperature suppresses thermal diffusion and ultrahigh vacuum helps preserve a clean, stable surface.

A motivating demonstration is IBM in atoms. Don Eigler and Erhard Schweizer used a low-temperature STM to position individual xenon atoms on a nickel surface, constructing a chosen atomic pattern. The 1990 paper reported operation at about $4\mathrm{K}$ with atomic positioning precision. This demonstrates controlled rearrangement of surface adsorbates, rather than making the image alone prove that every STM feature is an isolated atom.^[ref]

For an isolated approximately spherical mass distribution outside its luminous extent, retain the gravitational force $GMm/r^2$ and use the specified low-acceleration inertial law. circular motion then givesThe radius cancels when enclosed luminous mass is effectively constant. This is the asymptotic modified Newtonian dynamics result associated with the baryonic Tully-Fisher relation; an arbitrary extended disk cannot everywhere be replaced exactly by a point mass.

At the disk edge,Using $G=6.67\times 10^{-11}{\mathrm{m}}^3\mathrm{k}{\mathrm{g}}^{-1}{\mathrm{s}}^{-2}$ givesThis is an order-of-magnitude isolated, low-acceleration estimate. The edge acceleration is below $a_0$, but not extremely small compared with it; a full interpolation law, disk geometry and an external gravitational field can affect a more precise mass fit.

For the spherical mass profile for a flat rotation curve, assume spherical symmetry where the halo dominates. A flat rotation curve gives $M(<r)=v^{2}r/G$, and differentiating $M(<r)=4\pi {\int }_0^r\rho (s)s^{2}ds$ yieldsHere $\rho$ is the density of the spherical gravitating model; it is not an exact deprojection of a thin luminous disk or a proof that the central density must diverge. At the outermost stated measured radius,This is enclosed mass within $2R$, not a measured global total. Treating it as the entire galaxy-plus-halo mass additionally assumes truncation there. Extending $\rho \propto r^{-2}$ to infinity would give divergent mass; no outer cutoff is provided. TODO: A global total requires the unprovided outer halo extent or a continuation of its mass profile. Subtracting the MOND-inferred luminous mass to obtain a Newtonian halo mass would mix independent model-dependent estimates without an independently measured luminous mass.

In the Bullet Cluster collision, most observed baryonic mass is hot gas. ram pressure slows and shocks the gas, while the galaxies pass through much more freely. weak gravitational lensing maps the projected gravitational mass without requiring that the gas be in hydrostatic equilibrium. The dominant lensing peaks lie closer to the galaxies than to the displaced X-ray gas. This supports a dominant weakly collisional dark matter component under the usual gravity model. It is stronger evidence than a mass-to-light discrepancy alone because distinct components separate during the same encounter. The inference needs background-source shape/redshift calibration, projection control and uncertainty in the lensing reconstruction; it does not identify a WIMP species or by itself exclude every modified-gravity theory.^[ref]

For dark-matter direct detection, consider XENON100 at Gran Sasso. A halo WIMP can undergo elastic scattering from a xenon atomic nucleus, leaving a recoil of only a few to tens of keV. The expected rate is very low, so a large target, low threshold and long exposure must be combined with background rejection. The nuclear-recoil kinematics of WIMP scattering gives $E_{R,\max }=2{\mu }_{\chi N}^2{v}^2/m_N$ in the nonrelativistic limit, where ${\mu }_{\chi N}$ is the reduced mass and masses and velocities use consistent units. This explains why low-energy response calibration matters.

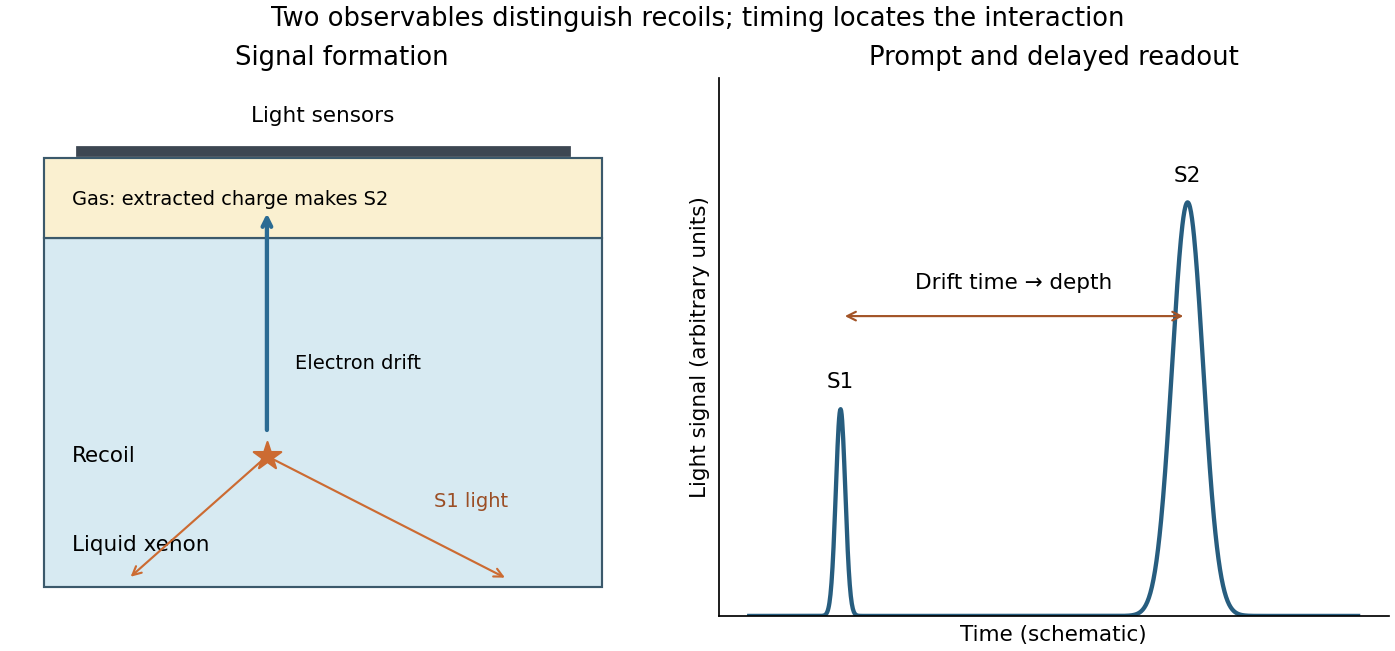

The dual-phase xenon detector measures prompt particle scintillation S1 and delayed electroluminescence S2 from ionization electrons extracted into gas. Their time separation gives interaction depth; the S2 light pattern supplies transverse position. An inner fiducial volume uses xenon's self-shielding to suppress external backgrounds. The S2/S1 distribution statistically separates nuclear recoils from electron recoils; it is not perfect event-by-event identification. Underground siting reduces cosmic-ray backgrounds, while passive shielding, low-radioactivity components, xenon purification and a surrounding active detector veto reduce other events.^[ref]

Neutrons can also make nuclear recoils, so charge-to-light discrimination alone cannot eliminate them. Multiple-scatter rejection, shielding and background modelling remain necessary. Gamma-source and neutron-source calibrations map electron- and nuclear-recoil distributions, energy scale and selection acceptance. Position-dependent light collection and charge losses need correction; photon-counting fluctuations and uncertain low-energy yields limit threshold sensitivity. Blind event selection and independent sidebands guard against tuning cuts to apparent candidates. The 224.6-live-day, 34 kg search found two benchmark candidates against about one expected background event, consistent with background. Its interaction limit therefore depends on the assumed halo distribution, WIMP mass and nuclear response; it is not a detection or an exclusion of all dark matter.^[ref]

Particle candidate. A stable, electrically neutral weakly interacting massive particle can become nonrelativistic before cosmological particle freeze-out. Its annihilation rate per particle $\Gamma =n⟨\sigma v⟩$ eventually falls below the Hubble parameter; the surviving comoving number then remains approximately fixed. A weak-scale annihilation cross section can give a cosmologically significant thermal relic. This is a mechanism and a parameter-scale motivation, not a guarantee that every weakly interacting particle has the right abundance.

supersymmetry supplies neutralinos, mixtures of neutral electroweak gauginos and higgsinos. If a neutralino is the lightest supersymmetric particle and R-parity is conserved, it cannot decay solely into Standard Model particles and is stable. Its electroweak interactions can make it a WIMP. Conservation of R-parity and a neutral lightest state are additional assumptions; R-parity violation, coannihilation, composition and resonant annihilation can substantially change the conclusion.

An underground test. XENON100 at Gran Sasso used a liquid-xenon target in a two-phase time projection chamber. A WIMP scattering elastically from a xenon nucleus could produce a low-energy nuclear recoil. The interaction makes prompt particle scintillation, S1, and ionization electrons. An electric field drifts the electrons upward; their extraction into xenon gas produces delayed electroluminescence, S2. The delay measures depth, while the S2 light pattern determines the transverse position. An inner fiducial volume suppresses surface backgrounds through xenon self-shielding; underground overburden reduces cosmic-ray muons, and shielding and material selection reduce radioactivity.^[ref]

The S2/S1 ratio separates most electron recoils from nuclear recoils. Gamma-source calibration maps the electron-recoil leakage; an americium–beryllium neutron source calibrates nuclear-recoil response and cut acceptance. Purity and position corrections must be measured, and selection fixed before unblinding the search region. neutrons can themselves produce single nuclear recoils, so discrimination is not perfect; material assays and transport simulations constrain this background. In the 224.6-live-day, 34-kg analysis, two candidate events were compatible with the expected $1.0\pm 0.2$ background events. The result constrained scattering cross sections rather than establishing a discovery.^[ref]

A predicted count also depends on the local dark matter halo density, distribution of velocities, recoil threshold and nuclear response. Thus a null result constrains a particle model under stated astrophysical assumptions; it does not exclude all dark matter. A collider missing-momentum signal would likewise need independent evidence for a cosmological lifetime.

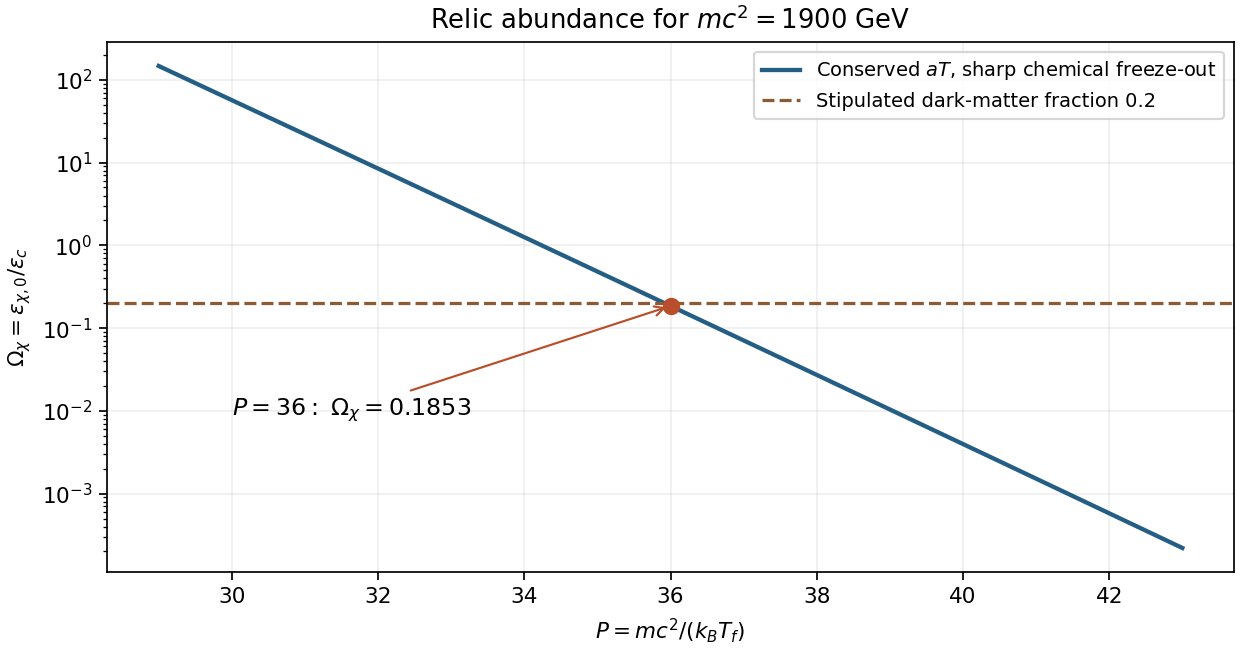

Relic energy density in the stipulated freeze-out approximation. Let $M=m{c}^2=1900\mathrm{GeV}$ and $\theta =k_{B}T$. Writing the given distribution in energy units givesBy sharp-freeze-out relic dilution, after cosmological particle freeze-out conserve particle number, $n{a}^3=\mathrm{constant}$. In the approximation $aT=\mathrm{constant}$ for the background bath,Inserting the printed inputs yieldsand henceThis is approximately $93\%$ of the stipulated dark-matter energy density, $0.2\times 5=1\mathrm{GeV}{\mathrm{m}}^{-3}$, so the toy calculation gives the right order and is close to the target. At fixed $P$ the cancellation of $M$ in $n_0$ is exact for the given prefactor, while the present energy density remains proportional to $M$.

The equilibrium exponential must be evaluated at freeze-out, not at today's temperature: equilibrium no longer maintains the particle number afterward. More accurately, comoving entropy conservation gives $a^3{g}_{\ast s}{T}^3=\mathrm{constant}$ and multiplies the displayed $n_0$ by $g_{\ast s,0}/g_{\ast s,f}$, when both counts use the same bath-temperature convention. TODO for a refined numerical abundance: the question supplies no entropy degrees of freedom or annihilation history for that refinement. The value $0.185$ is therefore the intended constant-$g_{\ast s}$ estimate, not a precision relic-abundance prediction; realistic entropy release, gradual freeze-out and the model's annihilation channels matter.

The known active neutrinos are too light and too fast to supply the dominant cold dark matter. Their relativistic decoupling leaves substantial free streaming, which erases rather than seeds sufficiently small-scale structure; their allowed mass density is also inadequate for the dominant cold component. Changing a light active neutrino from Dirac to Majorana does not remove those problems. What can change the picture is an enlarged neutral-fermion sector containing sterile states with different masses, production and decay rates. A sufficiently long-lived sterile neutrino in a Majorana state can be a dark-matter candidate; Majorana character alone supplies neither stability nor the correct abundance.

For the spinor calculation, put $a=p_z/(E+m)$ and define $A=N(1-a)/2$, $B=N(1+a)/2$. Applying the given chiral projectors givesConsequentlywhere the last equality uses $E^2-p_z^2=m^2$. Same-chirality Lorentz scalar products instead vanish: for example ${\overline{U}}_{1L}{U}_{1L}=0$. The nonzero overlaps demonstrate the Lorentz scalar structures coupling left and right chirality. For $U$ to $U$ this is a particle-number-preserving Dirac coupling; for $U$ to the charge-conjugate $V$ sector it can describe a lepton-number-violating Majorana coupling.

There is a normalization subtlety: both displayed overlaps equal the on-shell mass parameter used to define the spinors. A chiral scalar spinor overlap verifies a coupling structure without fixing an independent Lagrangian coefficient $M_L$. Repeating the on-shell construction with mass parameter $M_L$ would instead give the corresponding overlap $M_L$; this is a different input, rather than a newly derived parameter. The independent coefficients of a Dirac mass term and a Majorana mass term are defined byThe Majorana terms connect a field with its charge conjugate and violate the corresponding continuous lepton phase symmetry by two units. With only unbroken Standard Model gauge symmetry, a left-handed Majorana mass also requires electroweak symmetry breaking or an appropriate higher-dimensional operator; it is not an arbitrary gauge-invariant bare mass for a lepton doublet.

Use an all-left-handed Weyl basis ${\mathbf{n}}_L=({\nu }_L,{\nu }_R^c{)}^T$. For real parameters the one-family Dirac-Majorana mass matrix isWriting $({\nu }_{1L},{\nu }_{2L}{)}^T=\left(\begin{array}{cc}\cos \theta & -\sin \theta \\ \sin \theta & \cos \theta \end{array}\right)({\nu }_L,{\nu }_R^c{)}^T$ gives an orthogonal diagonalization, with $\tan 2\theta =2m/(M_R-M_L)$ up to the rotation-sign convention. Massive-particle chirality and helicity are not identical; the familiar left/right helicity language becomes an approximation in the relativistic regime.

The characteristic polynomial isIts roots areFor Majorana fermions the nonnegative physical masses, as explained by physical Majorana mass and signed eigenvalue, are $|{\lambda }_{\pm }|$ after a possible field rephasing; a negative real eigenvalue is not a negative physical rest mass. When $M_R\gg |m|,|M_L|$,The light state is predominantly ${\nu }_L-(m/M_R){\nu }_R^c$, while the heavy state is predominantly ${\nu }_R^c+(m/M_R){\nu }_L$. Each mass eigenstate combines its Weyl component and charge conjugate to form a Majorana field.

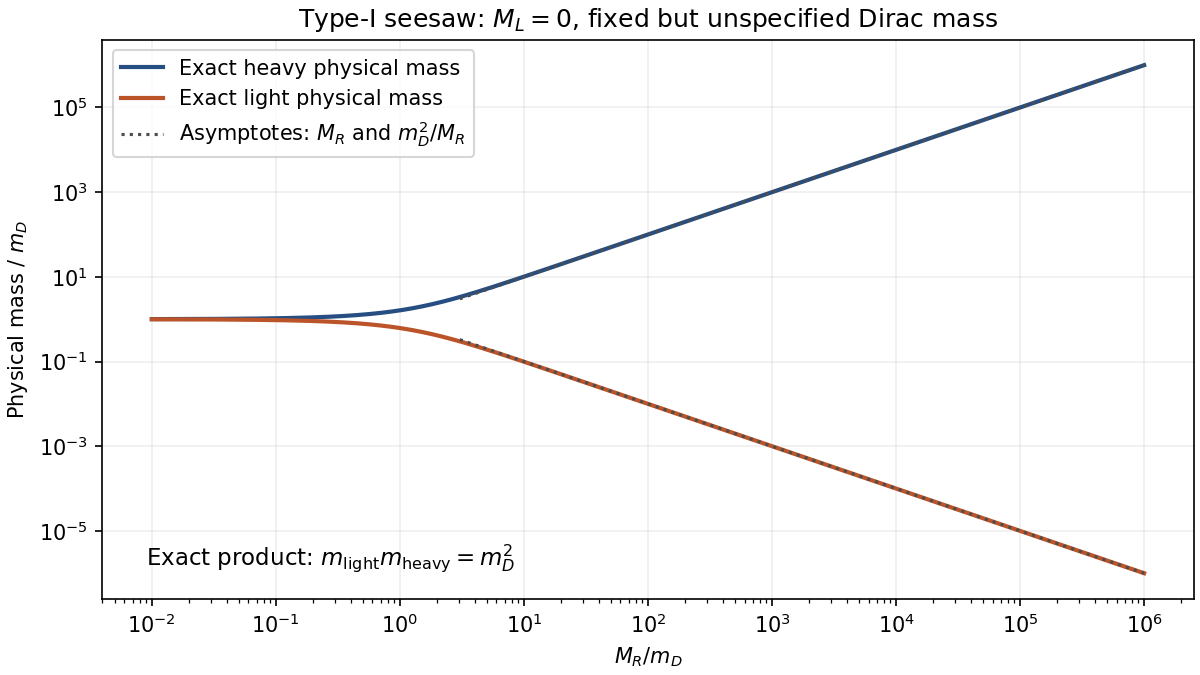

For $M_R=10^{12}\mathrm{GeV}$, the heavy mass is approximately $10^{12}\mathrm{GeV}$. In the type-I limit $M_L\simeq 0$,The seesaw light-mass estimate needs a Dirac scale: no unique numerical light mass follows because the Dirac mass and $M_L$ were not supplied. As an explicitly conditional illustration, choosing $m=100\mathrm{GeV}$ and $M_L=0$ gives $10\mathrm{eV}$; this is an assumed Dirac scale, not additional exam data or a prediction from $M_R$ alone. A heavy seesaw state is also not automatically stable enough to be dark matter.

The conventional minimal Pati-Salam model gauge group isThe group printed in this paper is different: it contains two $SU(4)$ factors and only one $SU(2)$. This is a discrepancy in the original PDF, not just in the transcription. The standard-model discussion below uses the conventional intended Pati-Salam model model. A literal theory with the printed product would require additional fermion representations and symmetry-breaking data that are not specified.

The Pati-Salam model unifies the three quark color charges with lepton number as a fourth color charge. A family forms $(4,2,1)$ left-handed and $(4,1,2)$ right-handed multiplets, including a right-handed neutrino. The extended color charge group contains quark-lepton gauge bosons, while the right-handed weak factor supplies right-handed charged currents after symmetry breaking. The Pati-Salam charge embedding isThe original paper explicitly develops the smaller local subgroup $SU(2{)}_L\times SU(2{)}_R\times SU(4{)}_C$, as well as a larger underlying global structure; neither distinction licenses silently replacing the printed group.^[ref] The product group is a quark-lepton unification scheme rather than a simple gauge group with one automatically common coupling. Breaking the right-handed and $B-L$ symmetries can generate a large $M_R$ and light/heavy Majorana neutrinos through the seesaw. The gauge group alone does not uniquely fix their masses or guarantee a dark-matter lifetime.

The most important laboratory test of Majorana character is neutrinoless double beta decay,with no outgoing neutrinos. Under light-neutrino exchange, the amplitude involvesThe coherent squared mixing elements allow phase cancellations. A null result constrains this combination within the assumed mechanism, rather than proving that all neutrinos are Dirac.

The observable is a peak in summed electron energy at the decay Q value, unlike the continuous two-neutrino spectrum. Enriched source material, large exposure, good energy resolution, underground operation and radiopure construction suppress backgrounds. germanium arrays use the source as a semiconductor detector; xenon time-projection chambers combine ionization, light and event-position information; bolometers measure deposited energy through a temperature rise. The GERDA collaboration's Phase-I study is a concrete example of an enriched-germanium source-detector search with background suppression.^[ref] energy calibration, resolution tails, radon and material backgrounds, cosmic-ray vetoes, signal-like event topology and sideband fits all need independent checks before a Q-value excess is convincing. Collider same-sign dilepton processes can test heavier Majorana states, but require a specified production and decay mechanism. Lepton-number violation, absolute-mass measurements and oscillation data provide complementary information; oscillations alone do not settle Majorana character.

A detector that reconstructs one coordinate from the time required for ionization electrons to drift in an electric field, with the other coordinates measured by the charge or light pattern. A two-phase xenon implementation obtains depth from the delay between prompt particle scintillation and gas-phase charge readout.
