Keep an array $A$ unchanged, and sum entries in the half-open integer interval of array indices $[l,r)$. The precondition requires integers $0\le l\le r\le \mathrm{length}(A)$ and exact, terminating integer addition. An empty range returns the empty sum zero; a one-entry range returns that entry. Every longer range splits at its middle array index:For the original array $A=[6,-2,5,1]$, call $S(A,0,4)$. The left half returns $6+(-2)=4$, the right half returns $5+1=6$, and the original invocation returns $4+6=10$. The right half's left endpoint increases from zero to two: what decreases is range length $r-l$, not every argument. Negative entries affect the answer but do not affect algorithm termination.

For range length $n=r-l\ge 2$, the children have lengths $\lfloor n/2\rfloor$ and $\lceil n/2\rceil$, both positive and strictly less than $n$. The floor function chooses the split; the ceiling function gives the other length. Algorithm termination follows by this natural number measure. For algorithm correctness, apply mathematical induction on $n$: the two base cases return the specified sum; for a larger range, the two disjoint child ranges cover every original array index exactly once, so addition of their correct sums gives the required sum.

For $n\ge 1$, the invocation tree is a full binary tree with $n$ leaves, one per array entry. If $I$ is its number of nonleaf vertices, counting edges gives $2I=I+n-1$, so $I=n-1$. Thus the total invocation count is $2n-1$, and there are $n-1$ combining additions. Here $n=4$ gives seven calls and three combining additions. For $n=1$, there is one call and no combining addition; for $n=0$, there is also one call and no combining addition, but no entry leaf, so the $2n-1$ formula does not apply.

The call stack holds the active branch, rather than the entire invocation tree. Execute the left child completely before the right child, retaining the left result in the parent stack frame. The maximum number of active stack frames is $1+\lceil {\log }_{2}n\rceil$ for $n\ge 1$, and one for $n=0$. Balanced splitting therefore needs $O(\log n)$ frames for $n\ge 2$, compared with the $O(n)$ frames of the factorial recursive process. Assuming constant-cost array access, index operations and addition, its time complexity is $O(n)$ and its auxiliary space complexity is $O(\log n)$ machine words for $n\ge 2$, excluding the stored input. Pass the same array with different endpoints, rather than copying slices. These bounds require all stored indices and partial sums to fit in a constant number of machine words; exact unbounded integer addition and storage require a separate bit cost analysis.

A binary tree representing a mathematical expression, with values at its leaves and binary operations at internal nodes. The tree records which pair of intermediate values is combined at each step.

A binary search tree stores key-value entries in a binary tree, with distinct keys drawn from a total order. At every vertex, all keys in its left subtree must be smaller than its own key, and all keys in its right subtree must be larger. Thus the entries represent a partial function from keys to values: a key has at most one associated value and may be absent. ^[ref]

Lookup starts at the root of a tree. Compare the target with the current key: equality returns its value, a smaller target continues into the left subtree, and a larger target continues into the right subtree. Reaching an empty subtree reports absence. The ordering rule justifies discarding the other subtree at every step; this is the algorithm correctness argument for lookup. It applies to the entire subtree, even if that subtree contains many vertices. ^[ref]

In the seven-key example, search for $5$. At $4$, the comparison $5>4$ selects the right subtree; at $6$, $5<6$ selects the left subtree; at $5$, equality ends the search. The visited keys are $4\to 6\to 5$, three key comparisons. The right-child chain stores exactly the same keys and satisfies the same binary search tree rule, but lookup of $5$ visits $1\to 2\to 3\to 4\to 5$, five comparisons. Searching for absent key $8$ visits $4,6,7$ in the first binary search tree and all seven keys in the chain before reaching an empty right subtree.

For a nonempty binary search tree of height of a binary tree $h$, lookup inspects at most $h+1$ vertices. Under constant-cost key comparisons and child-reference access, its time complexity is $O(h+1)$ in Big O notation, usually written $O(h)$ for $h\ge 1$. With $n$ entries, $h\le n-1$, giving $O(n)$ worst-case lookup. If the shape is kept balanced so that $h=O(\log n)$, lookup takes $O(\log n)$ for $n\ge 2$. The empty and one-entry cases take constant work. The worst-case linear bound also appears in Sedgewick and Wayne's ordinary, unbalanced implementation. ^[ref]

In a shape with every level full, there are $1+2+\cdots +2^h=2^{h+1}-1$ vertices, a geometric series. This explains how a small height of a binary tree can accommodate many entries. The binary search tree ordering rule alone does not guarantee this shape or logarithmic time complexity. Breadth-first search also gains no logarithmic key-lookup guarantee merely from having a binary tree: in the displayed balanced example, its left-to-right level order is $4,2,6,1,3,5,7$, so it inspects six keys before finding $5$, and an absent target requires all seven. Directed lookup uses the total order to choose one branch.

The ordering requirement includes every ancestor on the graph path from the root of a tree. Consider the smaller binary tree with root key $4$, left child $2$, right child $6$, and right child $3$ under $2$. Key $3$ must satisfy both $2<3$, from its immediate parent in a rooted tree, and $3<4$, from its position in the root's left subtree. Replacing $3$ by $5$ preserves all immediate parent-child comparisons, including $2<5$, but violates $5<4$. Lookup for $5$ would incorrectly go from $4$ to $6$ and then to an empty left subtree, overlooking the stored key.

An inorder traversal visits a left subtree, then its own vertex, then a right subtree. On the valid small example its output is $2,3,4,6$; on the invalid example it is $2,5,4,6$, exposing the descent from $5$ to $4$. Both seven-key binary search trees yield $1,2,3,4,5,6,7$. The theorem is that an inorder traversal of a finite binary search tree with distinct keys lists every key once in strictly increasing total order. For a short proof outline, use mathematical induction on the number of vertices: each smaller subtree produces its own sorted list, and the full ordering rule places every left key before the current key and every right key after it. Concatenating these three parts preserves strict order. Sedgewick and Wayne's keys method uses this left-current-right order. ^[ref]

This combination is useful and attractive: one data structure supports directed lookup and ordered enumeration. An inorder traversal costs $O(n)$ time complexity for $n$ entries, since it visits every vertex; balance accelerates lookup but cannot eliminate the work of outputting all keys.

// Destination: computer-science.bigb

A binary tree, in the data structure convention used here, is a rooted tree in which each vertex has zero, one or two children in a rooted tree, occupying distinct left and right positions. A single left child and a single right child give different binary trees. A vertex with no children in a rooted tree is called a leaf. An empty binary tree has no root of a tree and is also allowed as a storage case. ^[ref]

For example, give the root of a tree label $4$, its left child label $2$ and its right child label $6$. Attach $1,3$ as the left and right children in a rooted tree of $2$, and $5,7$ as those of $6$. This binary tree has seven vertices, six edges, and height of a binary tree $2$: a longest downward graph path contains two edges. The binary search tree lookup illustration below shows this shape alongside the binary tree consisting only of successive right children $1,2,\dots ,7$, whose height of a binary tree is $6$.

Left and right positions specify an ordered shape, not a numerical total order on stored labels. Swapping labels $1$ and $7$ in the first example still gives a binary tree, but destroys the binary search tree property. Nor must a binary tree be balanced: the right-child chain is just as valid. The same shape convention supports a binary heap, a Huffman code, or a binary search tree, each with its own additional rules. The useful idea is to describe two smaller subtrees at each vertex, making structural recursion natural.

For a precise recursive description, a finite binary tree is either empty or a root of a tree carrying a value together with an ordered pair $(L,R)$ of disjoint smaller binary trees. The entries of this ordered pair are its left and right subtrees, each of which may be empty. Thus two binary tree child slots exist even when fewer than two children in a rooted tree exist; an empty slot does not denote an extra vertex. This decomposition is the basis of structural recursion.^[ref]

In the four-vertex mixed example, $A$ has left child $B$ and right child $D$, while $B$ has only a right child $C$. Count its vertices by structural recursion: the empty binary tree contributes zero and each nonempty binary tree contributes one plus the counts of its left and right subtrees. Thus $B$ contributes $1+0+1=2$, and $A$ contributes $1+2+1=4$. The same decomposition computes height of a binary tree, supports inorder traversal, and supplies short proofs by structural induction. It separates shape from the values stored in a data structure.

Ignoring values, let $b_n$ count finite binary tree shapes with $n$ vertices, retaining left and right slots and counting the empty shape once. Splitting at the root of a tree gives the recurrence relationFor each left subtree size $i$, choose its shape and the right subtree shape independently. This yields the Catalan numbers: $b_1=1$, $b_2=2$, and $b_3=2+1+2=5$. The two shapes at $n=2$ are exactly the left-only and right-only examples. Forgetting the slot distinction would change the counting problem.

One of the two distinguished positions, left or right, at a vertex of a binary tree. Each binary tree child slot is occupied by a child and its subtree, or is empty. A reference representation can use null for an empty binary tree child slot. Two slots are capacity for at most two children in a rooted tree, rather than a requirement for two actual vertices.

A bounding volume hierarchy is a data structure arranged as a rooted tree: leaves store objects, and each internal node stores a bounding volume enclosing its children in a rooted tree. Consequently, every node encloses all objects in its subtree. A common choice is a binary tree of axis-aligned bounding boxes. The objects assigned to sibling subtrees can be different even when their bounding volumes overlap.^[ref]

Here is an exact two-dimensional example. Use the triangles $A,B$ from bounding volume, together with $C$ having vertices of a polygon $(6,0),(8,0),(6,2)$ and $D$ having vertices of a polygon $(6,3),(8,3),(8,5)$. Group $A,B$ under $L$, and $C,D$ under $R$. Their parent axis-aligned bounding boxes and the box at the root of a tree areThe diagram shows all seven nodes. Taking the coordinate-wise minimum and maximum of the two child boxes constructs each parent box; the resulting box contains the set union of the children, and can also contain empty space between them.

A bounding volume hierarchy traversal starts at the root of a tree and discards a subtree when its bounding volume misses the query. Accepted internal nodes expose their children; accepted leaves supply candidates for actual shape tests. Box2D's official Collision: Dynamic Tree describes axis-aligned bounding box region queries that return overlapping leaf boxes. A query box that bounds a different query shape can produce additional false candidates.

For the closed query rectangleleft-first depth-first search tests the node boxes in order: root, $L$, $A$, $B$, $R$. The first four overlap $Q$; $R$ does not, because its smallest $x$-coordinate is $6>9/5$. Pruning $R$ skips both $C$ and $D$. Five box tests leave two broad phase candidates. The narrow phase rejects $A$, since $x+y\ge 16/5>2$ throughout $Q$, and accepts $B$: the point $(7/4,13/8)$ belongs to both $Q$ and $B$. There are two detailed shape tests and one true hit.

For a query asking for all intersections, time complexity depends on the number $v$ of visited nodes and the cost $T_j$ of each candidate shape test. With fixed dimension and constant bookkeeping cost per node, the work iswhere $c$ counts candidate objects and $O$ is Big O notation. A balanced binary tree has small height of a binary tree, but a query can enter both children at every level. In this example a query containing $[0,8]\times [0,5]$ visits all seven nodes and tests all four triangles. More generally, a full binary tree with $n$ single-object leaves has $2n-1$ nodes, so such a query takes $O(n)$ work for constant-cost shape tests even when its height of a binary tree is $O(\log n)$. Listing $n$ hits itself requires $n$ outputs. Small height alone gives no unconditional logarithmic query bound.

For collision detection between two bounding volume hierarchies, traverse pairs of nodes: reject disjoint pairs of bounding volumes, expand a nonleaf member of an accepted pair, and apply the narrow phase at accepted leaf pairs. A single collection's self-query must exclude pairing an object with itself and avoid duplicate unordered pairs. If every object overlaps every other object, reporting all pairs already requires $n(n-1)/2$ results. Construction quality, empty space in boxes and the queries determine how much pruning is useful.^[ref]

For a short correctness outline, an object is enclosed by its leaf box, and each child box is enclosed by its parent box. Repeated subset relations carry this property to every ancestor. A true query intersection therefore prevents rejection at every ancestor of the object's leaf. Updating leaf boxes after motion also requires restoring all affected ancestor bounds before querying.

The Catalan number $C_n$ counts Dyck paths with semilength of a Dyck path $n$. For a nonnegative integer $n$,The count $C_0=1$ includes the empty path. Of the $\left(\genfrac{}{}{0ex}{}{6}{3}\right)=20$ paths with three up steps and three down steps, exactly five stay at nonnegative height. Their shapes and balanced parentheses encodings appear below.^[ref]

The useful connection is a shared decomposition. A Dyck path splits uniquely at its first-return decomposition of a Dyck path; a binary tree splits at its root into left and right subtrees; a binary parenthesization splits at its last operation. Each removes one outer unit and leaves an ordered pair of smaller objects. The resulting Catalan recurrence lets one count several different structures with the same calculation. A count of five does not mean the structures are physically identical: a bijection supplies the precise translation between them.

Any deterministic comparison sort correct for all orders of $n$ distinct sort keys needs at least $\lceil {\log }_2(n!)\rceil$ comparisons on some input. Here $n!$ is a factorial, ${\log }_2$ a logarithm, and the brackets denote the ceiling function. This is a worst-case requirement, not a requirement on every input.^[ref]

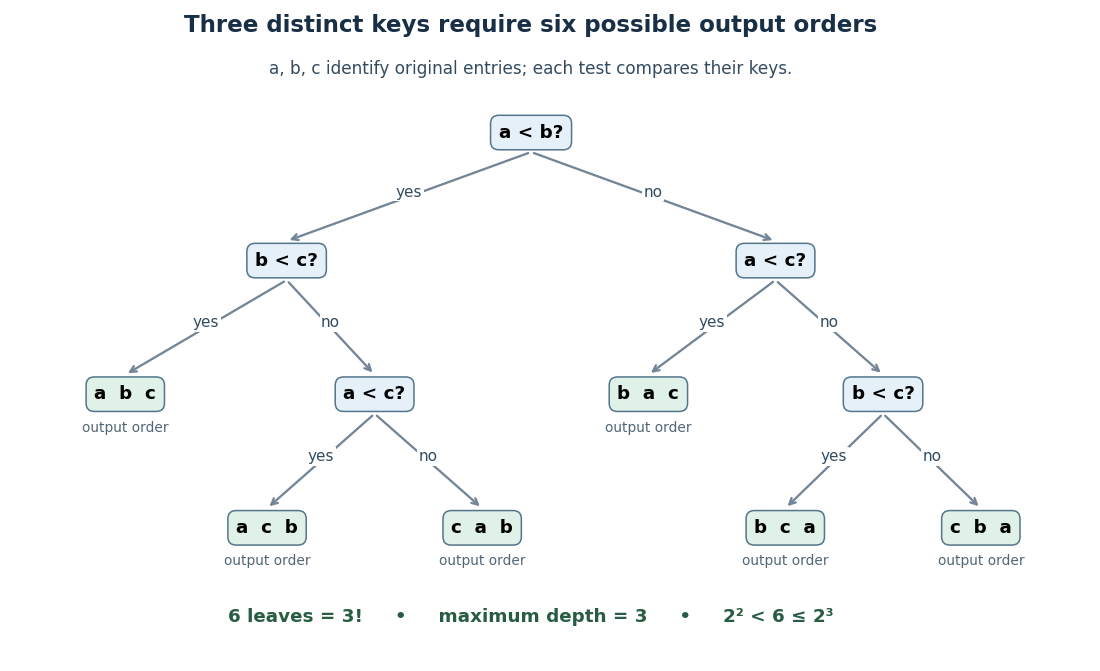

For three distinct sort keys, the diagram has one leaf for each possible ordering of the original entries $a,b,c$. Some paths need two comparisons, others three; two comparisons cannot distinguish all six orders.

For the proof outline, represent adaptive comparisons by a binary tree: distinct sort keys give only two outcomes per comparison. A leaf fixes an output permutation; one leaf cannot correctly handle two different strict orders. Hence there must be at least $n!$ leaves. Maximum depth $h$ permits at most $2^h$ leaves, so $2^h\ge n!$ gives the bound. Even a three-way comparator has only two reachable outcomes on this distinct-key family.

The growth follows without a precise approximation to the factorial. At least $\lfloor n/2\rfloor$ of its factors are at least $n/2$, so for $n\ge 2$,The brackets denote the floor function. This gives a constant times $n\log n$ lower bound for large $n$, matching the worst-case comparison growth of merge sort.

Distinct sort keys are essential to the $n!$ counting argument. Identical sort keys do not create $n!$ different strict orders. If all sort keys coincide, stable sorting returns the arrival order. This does not remove the worst-case bound for a comparison sort required to handle arbitrary distinct-key inputs.

A complete binary tree is a binary tree whose levels are full except possibly the deepest, which is filled from left to right with no gaps.^[ref]

Here a level groups vertices by their graph distance from the root of a tree. A binary heap uses this shape to maintain logarithmic height of a binary tree. Completeness differs from the two-children condition of a full binary tree.

For a six-vertex example, give $A$ two children in a rooted tree $B,C$, give $B$ two children in a rooted tree $D,E$, and give $C$ only a left child $F$. The levels have $1,2,3$ vertices, and the last occupies its first three positions, so this is a complete binary tree. It is not a full binary tree, since $C$ has exactly one child. Moving $F$ to the right slot of $C$ preserves $n=6$ and height of a binary tree $2$, but leaves a gap before $F$ and destroys completeness. Merely keeping the deepest vertices near the left side is insufficient; every earlier position must be occupied.

Number positions by the left-to-right level order of breadth-first search, beginning with root position $1$. The children of position $i$ have positions $2i$ and $2i+1$. A nonempty complete binary tree occupies exactly positions $1,\dots ,n$, so its height of a binary tree is $\lfloor {\log }_{2}n\rfloor$: positions $2^h,\dots ,2^{h+1}-1$ form level $h$. This consecutive occupancy explains the compact array representation of a binary heap, while heap order is a separate condition on values. Neither completeness nor the binary tree definition supplies the binary search tree ordering rule.

A decision tree represents a deterministic computation of a known Boolean function $f:\{0,1{\}}^n\to \{0,1\}$ by inspecting input bits. Each internal vertex of its binary tree names a coordinate $i$ to query, its two outgoing edges carry answers 0 and 1, and each leaf carries the output 0 or 1. Starting at the root of a tree, read the named bit, follow its answer edge, and repeat until a leaf is reached. Correctness requires the leaf's label to equal $f(x)$ for every input $x$.^[ref]

The next coordinate, or the decision to stop, can depend on earlier answers: this is adaptive querying. The same input always follows the same graph path; adaptivity does not require randomness. A correct leaf must have the same output for every completion of the observed bits. Thus a decision tree can stop as soon as the observations form a query certificate. Querying an already known coordinate adds no information, so we use decision trees without repeated coordinates on a graph path; an efficient tree also removes queries made after the output is already forced.

The motivation is exact computation with shortcuts. If inspecting an input entry is expensive, the question is how much of the input must actually be read. The decision-tree query cost counts these inspections, while local calculations on known values are free in this model; this cost need not equal an implementation's time complexity. Here the Boolean function is specified in advance and must be computed exactly on every input. Decision tree learning instead fits a predictor from data, with a different objective.

An explicit-stack depth-first tree traversal stores pending subtree roots instead of suspended recursive calls. In a binary tree, visit the current node, defer its nonempty right child on a stack, and continue with its left child; pop when the current subtree is empty. The unvisited subtrees remain disjoint and, together with the visited nodes, partition the original tree. This loop invariant proves that accumulating each visited label gives the tree sum. At most one right sibling per ancestor is pending, so auxiliary storage is $O(d)$ for depth $d$ and running time is $\Theta (N)$ for $N$ nodes. Unlike a full recursive stack frame, a pending entry need contain only a subtree pointer.

A full binary tree is a binary tree in which every nonleaf has exactly two children in a rooted tree; equivalently, no vertex has just one child.^[ref]

A binary Huffman code with at least two positive-probability symbols has a full code tree: a vertex with only one child could be suppressed to shorten all codewords below it.

Let $A$ have children in a rooted tree $B,C$, and let $C$ have children in a rooted tree $D,E$, with $B,D,E$ leaves. Every vertex has zero or two children in a rooted tree, so this five-vertex binary tree is full. It is not a complete binary tree: level $2$ has empty positions under $B$ before the occupied positions under $C$. Instead put $D,E$ under $B$ and leave $C$ a leaf. The resulting five-vertex binary tree is both full and complete, yet is not a perfect binary tree because its leaves occur at two different distances from the root of a tree.

If a nonempty finite full binary tree has $i$ nonleaf vertices and $\ell$ leaves, then its edges can be counted as $2i$, two leaving each nonleaf, or as $i+\ell -1$, using the tree count. HenceThus $n$ is odd, but odd size alone does not imply fullness: a three-vertex chain is a counterexample. Nor does fullness guarantee small height of a binary tree. Repeatedly give one continuing vertex a leaf in one slot and another continuing vertex in the other, ending with two leaves. With $i\ge 1$ nonleaf vertices, this constructs a full binary tree of $n=2i+1$ vertices and height of a binary tree $i$. The two-children rule permits height growing linearly with size.

For a nonempty binary tree, the largest number of edges on a downward graph path from its root of a tree to a leaf. A single vertex has height of a binary tree $0$; a chain of $n\ge 1$ vertices has height of a binary tree $n-1$. A convenient recursion convention assigns an empty binary tree height $-1$, giving $h=1+\max (h_L,h_R)$ for the left and right subtrees. A binary search tree lookup visits at most $h+1$ vertices.

The convention counts edges, rather than vertices on the longest graph path. Its recursive form is^[ref]

For a leaf, both subtrees are empty, giving $1+\max (-1,-1)=0$. For the mixed four-vertex example, $h(C)=h(D)=0$, $h(B)=1+\max (-1,0)=1$, and $h(A)=1+\max (1,0)=2$. The four-vertex chain has height of a binary tree $3$. A convention that counts vertices would add one to every nonempty binary tree height, so a height formula must specify its convention.

At distance $d$ from the root of a tree, there are at most $2^d$ vertices: each vertex in the preceding level has at most two children in a rooted tree. Summing this geometric series and using the longest graph path gives, for $n\ge 1$,The upper bound is attained by a chain; a perfect binary tree attains the capacity bound. For $n=4$, the minimum possible height of a binary tree is $\lceil {\log }_{2}5\rceil -1=2$, as in the mixed example, while the maximum is $3$. The binary tree definition permits both extremes. Small height of a binary tree bounds the length of a directed lookup in a binary search tree; evaluating the height of a binary tree by the displayed structural recursion still examines all $n$ vertices, requiring $O(n)$ time complexity under constant-cost child access and arithmetic.

A Huffman code is the prefix code returned by Huffman coding; the algorithm chooses a code tree, while the code specifies the actual symbol-to-codeword assignment. For the probability distribution $(0.4,0.3,0.2,0.1)$ in symbol order $A,B,C,D$, the illustrated binary tree givesThe codeword lengths are $1,2,3,3$. This is a prefix code because no complete codeword is an initial segment of another complete codeword. Thus a decoder can start at the root of a tree, follow one edge per bit, emit a symbol on reaching its leaf, then restart at the root of a tree. In particular, 011010111 splits as 0 | 110 | 10 | 111 and decodes to $A,C,B,D$. No separators are transmitted: the leaf tells the decoder where a codeword ends.

The expected codeword length isbits per source symbol. Four symbols would require $2$ bits each if all codewords had the same length, so this Huffman code saves $0.1$ bit per symbol on average, or $5\%$ of that fixed-length payload. A particular message can grow: $A,C,B,D$ uses nine bits here instead of eight. These lengths count the encoded symbols only; transmitting a code description or message framing can add further cost.

The Kraft inequality is saturated by this Huffman code:Its Shannon entropy isbits per symbol, slightly below the expected codeword length $1.9$. The entropy lower bound for prefix codes applies to every binary prefix code for this probability distribution. It need not be attainable with integer codeword lengths for individual symbols; Huffman coding reaches the best mean within that class. ^[ref]

A Huffman code need not be unique. In the first example, the tied $B$ and $CD$ weights can exchange their $0/1$ edge labels, changing codewords but preserving their codeword lengths. Ties can also change the lengths themselves. For a second probability distribution $(0.4,0.2,0.2,0.2)$, first merge $C,D$ to weight $0.4$. The next merge can join $B$ with either $A$ or the $CD$ subtree, since both have weight $0.4$. Joining $B$ with $A$ permits $A\mapsto 00,B\mapsto 01,C\mapsto 10,D\mapsto 11$, with all lengths $2$. Joining $B$ with the $CD$ subtree permits $A\mapsto 0,B\mapsto 10,C\mapsto 110,D\mapsto 111$, with lengths $1,2,3,3$. Both are optimal prefix codes with expected codeword length $2$: for the latter, $0.4\cdot 1+0.2\cdot 2+0.2\cdot 3+0.2\cdot 3=2$. Tie choices can change the code tree without changing the minimum mean.

// Target: algebra.bigb

Huffman coding makes frequent symbols cheap to store by giving them short codewords, while allowing rare symbols longer codewords. For a known probability distribution on a finite alphabet with at least two positive-probability symbols, binary Huffman coding constructs a prefix code minimizing expected codeword length among binary prefix codes that encode one source symbol at a time. The objective is an average under that probability distribution; it does not promise to shorten every message. Encoder and decoder must agree on the resulting Huffman code. ^[ref]

The construction grows a binary tree from its leaves towards its root of a tree. Start with one leaf per symbol, weighted by its probability. Repeatedly join the two currently smallest weights beneath a new parent in a rooted tree, whose weight is their sum, and replace the pair by that subtree. Include newly formed subtrees when choosing the next pair. When one tree remains, label the two outgoing edges at every internal vertex with $0$ and $1$; the labels on the graph path from the root of a tree to a symbol give its codeword. This is a greedy algorithm: each step makes a locally cheapest merge, yet the result is an optimal prefix code.

For a concrete example, use probabilities $p_A=0.4$, $p_B=0.3$, $p_C=0.2$, $p_D=0.1$. First join $D$ and $C$, creating weight $0.3$. The remaining weights are $0.3$ for $B$, $0.3$ for the $CD$ subtree, and $0.4$ for $A$. Join the two $0.3$ weights to make $0.6$, then join $A$ with that $0.6$ subtree to make $1$. The merge weights are therefore $0.3,0.6,1$. Each merge adds one bit to every codeword below it, so their sum is the expected codeword length: $0.3+0.6+1=1.9$ bits per source symbol. The diagram fixes the edge labels to produce the Huffman code used below.

The useful insight is that choosing short codewords is a resource allocation problem: the prefix code condition constrains the available codeword lengths through the Kraft inequality. Huffman coding solves this one-symbol problem exactly for the supplied probability distribution. For repeated emissions of a memoryless classical information source, the same Huffman code can be applied symbol by symbol. More general compression can exploit dependencies or encode groups of symbols; the one-symbol optimality statement does not compare all such methods.

An inorder traversal of a binary tree uses recursion to visit the left subtree, output the current vertex, and visit the right subtree; an empty subtree outputs nothing. This is a depth-first traversal of a tree with output between the two recursive calls. It produces sorted keys for a binary search tree, but arbitrary labels in a binary tree need not appear in total order.

// Target: computer-science.bigb

A binary tree with each data label stored at a leaf of a tree. One useful Haskell datatype has constructors One a for a leaf and Two (Tree a) (Tree a) for an internal node. Every finite inhabitant has at least one leaf, so this datatype cannot encode an empty leaf sequence. Its natural tree fold has a leaf operation a -> b and an internal operation b -> b -> b; replacing the two constructors by those operations defines the structural recursion.

For matrix dimensions $r\times s$ and $s\times t$, ordinary matrix multiplication computes $rt$ matrix entries, each using $s$ scalar multiplications. Thus its cost is $rst$ scalar multiplications, with $rt(s-1)$ additions if each sum starts from its first term. Here we minimize only the scalar multiplication count, using this dense matrix multiplication rule throughout. The counts describe arithmetic operations, rather than measured elapsed time; matrix multiplication methods that exploit structure or use faster formulas require a different cost rule.

Take matrices $A$, $B$, $C$ with matrix dimensions $12\times 5$, $5\times 40$, $40\times 3$. Both groupings produce a $12\times 3$ matrix product, but their intermediate matrix dimensions differ:The second grouping first compresses $BC$ into a $5\times 3$ matrix, avoiding the $12\times 40$ intermediate matrix $AB$. The saving is $3060$ scalar multiplications, although both groupings use exactly two matrix multiplications. This is why counting only matrix multiplication operations hides the interesting choice.

Associativity permits these regroupings in exact arithmetic; commutativity is neither assumed nor generally true for matrix multiplication. Swapping $A$ and $B$ here would even make their matrix product undefined. In floating-point arithmetic, round-off error can make the two groupings yield different computed matrix entries; the cost optimum alone does not guarantee the smallest numerical error.

Extend the original example by a matrix $D$ with matrix dimensions $3\times 15$, so $(p_0,p_1,p_2,p_3,p_4)=(12,5,40,3,15)$. The Catalan number $C_3=5$ counts all possible groupings. Their scalar multiplication costs areThe optimum is $(A(BC))D$, with cost $1320$. Enumeration makes a useful check here, but dynamic programming reaches the same answer by solving ten integer intervals, including the four single-matrix base cases:For example, $m[2,4]=\min \{1800+5\cdot 40\cdot 15,600+5\cdot 3\cdot 15\}=\min \{4800,825\}=825$. The three final-split candidates for the full matrix product supply a compact certificate:The first candidate already uses the better grouping of $BCD$; the worse $A(B(CD))$ need not be reconsidered at the top level. This is how optimal substructure lets the table represent all five possibilities with only three final candidates.

Read $s[1,4]=3$, which separates $ABC$ from $D$. Then $s[1,3]=1$ separates $A$ from $BC$, and $s[2,3]=2$ separates $B$ from $C$. This recursion stops at every $i=j$, returning the corresponding matrix name. Combining the returned expressions recovers $(A(BC))D$, rather than only its cost. Every recursive call uses a shorter integer interval, establishing algorithm termination; a tied minimum may choose any attaining split. The recovered binary tree has $n$ leaves and $n-1$ internal nodes, so reconstruction takes $O(n)$ steps. Its attraction is the separation between an enormous family of groupings and a small set of reusable dynamic programming states.

Every nonempty finite binary tree with $n$ vertices has exactly $n+1$ empty binary tree child slots. There are $2n$ slots altogether, and precisely $n-1$ occupied slots, one for each edge of its underlying tree. ThereforeThis counts missing child references, not vertices or leaves. In the mixed four-vertex example, $A$ has no empty binary tree child slots, $B$ has one, and $C,D$ each have two: $0+1+2+2=5$. The four-vertex chain also has five: one at each of its first three vertices and two at the last. For $n=0$, there are no vertices and hence no child fields; the empty binary tree instead has a single empty root position if it is represented by a root reference.

A second proof uses the recursive decomposition. Count every empty subtree occurrence, including the root position for the empty binary tree: let $e(\varnothing )=1$. For a nonempty binary tree, $e(T)=e(L)+e(R)$. If the two subtrees have $n_L,n_R$ vertices, structural induction gives $e(T)=(n_L+1)+(n_R+1)=n+1$. Distinct empty positions may share the same null value; these are occurrences, not separately allocated objects. This count is useful when analysing the base cases reached by a structural recursion that calls both subtrees of every vertex.
