Past exam of the mathematics and the environment and mathematical physiology course of the University of Oxford / 2009 / B

In alternating-access carrier transport, the four reversible reaction pairs are $S_i+C_i\rightleftharpoons P_i$, $S_e+C_e\rightleftharpoons P_e$, $C_i\rightleftharpoons C_e$ and $P_i\rightleftharpoons P_e$. Binding and unbinding use $k_{+},k_{-}$; both conformational pairs use $k$ in each direction. Define the net binding rates $B_i=k_{+}{s}_i{c}_i-k_{-}{p}_i$ and $B_e=k_{+}{s}_e{c}_e-k_{-}{p}_e$. Mass action and the change of each species in each reaction giveFor example binding consumes one free interior substrate and one free interior carrier, and produces one interior complex; loaded-carrier transformation then moves that bound substrate across the membrane. A bare-carrier transformation alone does not transport substrate. The concentration convention implicitly uses compatible compartment-volume normalization, as required for the stated unweighted conservation laws.

Adding the two complex and two free-carrier equations cancels binding and conformational exchange, givingEach free or bound carrier contains one carrier protein, and the model neither synthesizes nor degrades it. Adding the two free-substrate and two bound-substrate equations likewise givesBinding stores substrate temporarily and loaded conformational exchange relocates it; neither changes total substrate. The two invariants count distinct conserved chemical moieties. The constants $c_0$ and $s_0$ should not be interchanged: protein and substrate need not be present in equal amounts.

Replace only the free-substrate equations byThe other four equations remain as above. The carrier invariant remains unchanged because no protein is added or removed. The two external substrate terms cancel in the total-substrate balance, so the second invariant also remains unchanged. This cancellation describes a balanced source and sink, even though there is a nonzero throughput. A constant sink is physically meaningful only while substrate concentrations remain nonnegative; it is not a state-dependent removal law valid after an interior reservoir is exhausted.

At steady state the interior free-substrate balance gives $B_i=-J$. Substituting this into the interior free-carrier balance gives $0=J+k(c_e-c_i)$. ThereforeFor positive inward throughput there are more free carriers facing inward: release of transported substrate must be followed by outward return of empty carriers at net rate $k(c_i-c_e)=J$.

The relation $B_i=-J$ means $k_{-}{p}_i=k_{+}{s}_i{c}_i+J$. Put $K=k_{-}/k_{+}$ and substitute the preceding expression for $c_i$:The first term is the equilibrium binding contribution from the outward free-carrier pool; the additional terms account for the maintained current and the excess inward-facing free carriers. This is a steady throughput relation, not a detailed-balance assumption.

The exterior free-substrate equation gives $B_e=J$ at steady state. Thus $k_{+}{s}_e{c}_e-k_{-}{p}_e=J$, andThe sign of the current term is opposite to the interior relation because substrate is supplied to the exterior and removed from the interior. Nonnegative occupancies are selected by the complete steady transport solution and compatible substrate totals.

The loaded-carrier balance gives $J=k(p_e-p_i)$. Substitute the preceding two complex concentrations and collect the current terms:Next carrier conservation givesEliminate $c_e$ between these relations and set $K_d=k/k_{+}$. Simplification yieldsHere $c_0$ must be the total carrier protein, as in the conservation equation. Calling it total substrate in the final line of the scan is a typographical inconsistency; total substrate is the different invariant $s_0$.

For carrier-turnover saturation of passive transport at fixed $s_i$, write $A=s_i+K+K_d$, $D=A(K+K_d)-K_d^2>0$ and $C=K_{d}K{k}_{+}{c}_0/2>0$. Then $J=C(s_e-s_i)/(A{s}_e+D)$, soThe flux is outward when the substrate gradient is reversed and inward when $s_e>s_i$. Saturation occurs because there is a finite carrier population and finite binding-release/conformational turnover: arbitrarily abundant exterior substrate cannot make carriers cycle arbitrarily quickly. This is passive facilitated transport, so no maintained flux remains when the two free concentrations agree. Varying $s_e$ at fixed $s_i$ compares reservoir-controlled steady states or systems with different total substrate; it is not a trajectory preserving one fixed $s_0$.

The cytoplasmic concentration $c$ gains a constant influx $r$ from outside the cell and loses calcium through a first-order extrusion term $kc$. The pump flux $J_{+}$ moves calcium from cytoplasm into the sarcoplasmic reticulum, saturating with cytoplasmic concentration through a Hill function with scale $K_1$, maximal rate $V_1$ and exponent $n$. The release flux $J_{-}$ returns stored calcium to the cytoplasm. It requires both calcium in the store and calcium-dependent activation of release; its two saturating factors have scales $K_2,K_3$ and exponents $m,p$. This represents calcium-induced calcium release. The leak $k_s{c}_s$ is passive return from the store.

Every internal transfer appears with opposite signs in the two balances, so $d(c+c_s)/dt=r-kc$ in the model's compatible volume normalization. Only influx and extrusion change the total. The nonlinear pump and activated release can redistribute this total rapidly and generate oscillations even with constant external input.

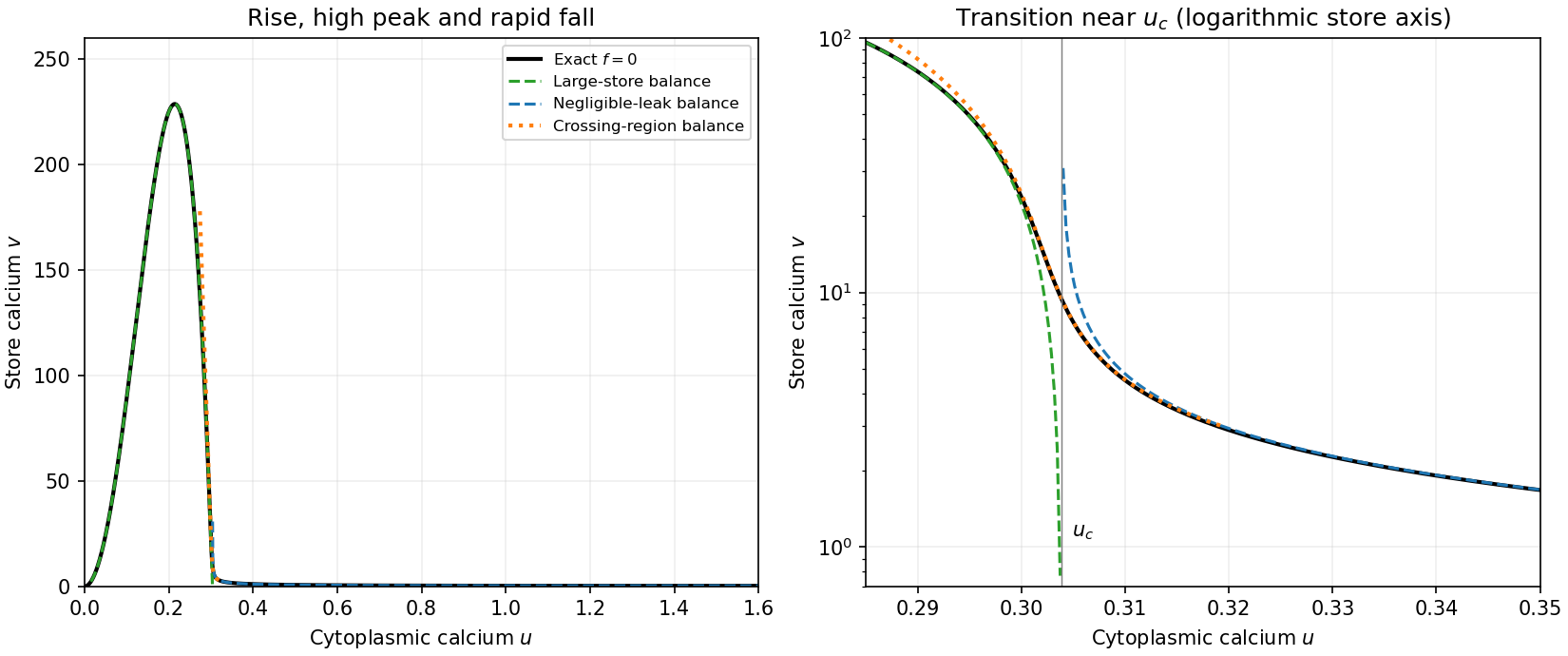

For the three-region calcium nullcline, defineFor $u>0$, $f(u,0)>0$, $f\to -\infty$ as $v\to \infty$, and $f_v=-2K(u)v/(1+v^2{)}^2-\delta <0$. Thus there is exactly one positive root $v=V(u)$ for every positive $u$. The curve starts at the origin and initially satisfies $v\sim \beta u^2/\delta$.

For $0<\beta <1$, let $u_c>0$ solve $J(u_c)=K(u_c)$ and put $K_c=K(u_c)$, $J_c^{\prime }=J^{\prime }(u_c)$, $K_c^{\prime }=K^{\prime }(u_c)$. Explicitly, with $z_c=u_c^2$,In particular $u_c\sim \sqrt{\beta }$ and $K_c^{\prime }-J_c^{\prime }>0$ for small $\beta$.

On the large-$v$ branch away from the crossing, replace $v^2/(1+v^2)$ by one. This gives $v\sim [J(u)-K(u)]/\delta$ where this is large and positive. Near $u_c$ retain the next term $1-v^{-2}$ and linearize $J-K$:Finally where the leak is negligible compared with the other terms, $v^2/(1+v^2)\simeq J(u)/K(u)$, so $v\simeq [J/(K-J){]}^{1/2}$ on the side $J<K$. These are overlapping asymptotic descriptions with different validity ranges, not three exact disconnected curves. The curve rises to a large peak, falls sharply near $u_c$, then approaches a small finite level as $u\to \infty$. At leading small-$\delta$ order that last level is $[\beta /(1-\beta ){]}^{1/2}$.

At every equilibrium the store balance gives $f=0$, and adding $\gamma$ times that balance to the cytoplasmic one gives $u=\mu$. The unique-root result therefore gives a single positive equilibrium $(\mu ,V(\mu ))$. Its Jacobian iswith derivatives evaluated at that equilibrium. At small $\mu$, $f_u>0$ and the trace is negative; sufficiently large $\mu$ also has $f_u>0$, since $J^{\prime }$ is of order $u^{-3}$ and $K^{\prime }$ of order $u^{-5}$. Thus both extreme regimes have a linearly stable unique equilibrium.

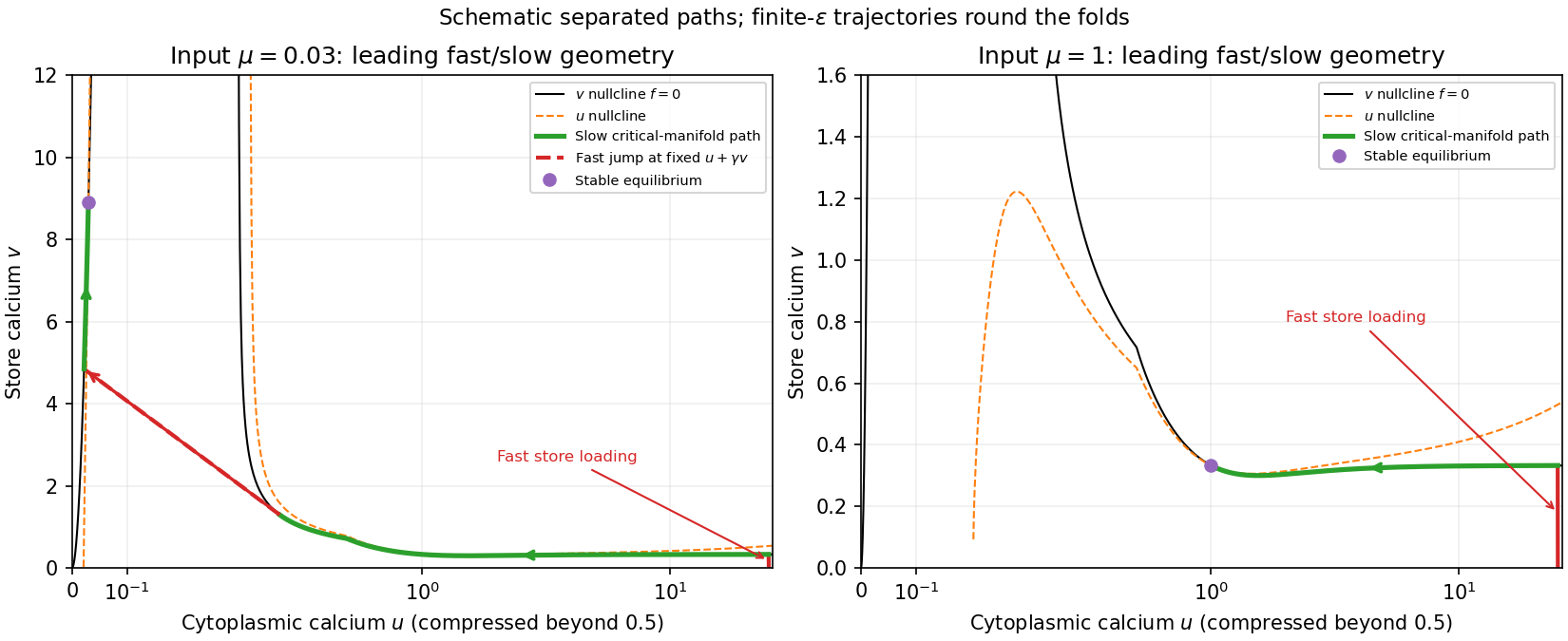

The fast variable is not $v$ alone. Using total-calcium fast fibres, introduce total scaled calcium $w=u+\gamma v$. Then $\dot{w}=\mu -u$, while on fast time $\sigma =\tau /ϵ$ the leading equations give $du/d\sigma =-\gamma f$, $dv/d\sigma =f$ and $w$ constant. Fast paths are therefore straight lines of slope $-1/\gamma$ in the $(u,v)$ plane. Attracting portions of the critical manifold satisfy $f_v-\gamma f_u<0$, rather than merely $f_v<0$. Along $v=V(u)$, slow motion obeysStarting with large $u$ and $v=0$, $f>0$ drives a rapid move upward and left, loading the store until the trajectory approaches the right attracting branch. For large $\mu$ in the right stable regime, slow motion on that branch carries it toward $u=\mu$; the direction reverses appropriately if the starting value lies below that equilibrium. For sufficiently small $\mu$, slow motion travels left along the right branch until its fold, then a fast approximately constant-$w$ jump carries the trajectory to the left attracting branch. Subsequent slow motion reaches the small-$u$ equilibrium. At a fold the slow approximation is singular, so the full equations resolve the transition. At very small $u$ an additional loss of time-scale separation is possible because the rates themselves vanish; the fast/slow drawing describes the separated portions, not a uniform estimate arbitrarily near the origin.

For Hopf thresholds in a two-pool calcium model, with the unique equilibrium parametrized by $u=\mu$, locate changes of stability by solving the two equationsIf there are two simple roots ${\mu }_{-}<{\mu }_{+}$ with positive trace between them, the equilibrium is a repeller throughout that interval, since its determinant stays positive. At a nondegenerate crossing a Hopf bifurcation is possible, with linear frequency $[-f_v/ϵ{]}^{1/2}$. A complete classification of criticality requires a nonlinear coefficient, not merely the trace calculation. At leading singular order the thresholds approach the folds determined by $f=0$ and $f_v-\gamma f_u=0$, equivalently $V^{\prime }=-1/\gamma$.

Periodic solutions are also supported globally in the positive quadrant. The axes point inward for positive input, $v^{\prime }\le (\beta -\delta v)/ϵ$ bounds $v$, and the $u$ equation then bounds $u$ by a linear restoring term plus a bounded source. A large rectangle can thus be chosen forward invariant. For an initial point distinct from the repelling unique equilibrium, its omega-limit set cannot contain that equilibrium or a boundary equilibrium. The Poincaré-Bendixson theorem supplies a periodic orbit. In the strong separation regime it follows the two attracting branches and jumps between them, a relaxation oscillation.

The interval requires the maximum of $f_v-\gamma f_u$ along the critical manifold to exceed $ϵ$; the listed scale hierarchy alone is not a substitute for that test for arbitrary remaining constants. As an explicit example, $\beta =0.1$, $\delta =10^{-5}$, $ϵ=5\times 10^{-4}$ and $\gamma =0.1$ give approximately ${\mu }_{-}=0.22618$ and ${\mu }_{+}=0.37350$. At $\mu =0.3$ the trace is positive, whereas at $0.03$ and $1$ it is negative. The figures use this example and label their singular-limit portions accordingly.

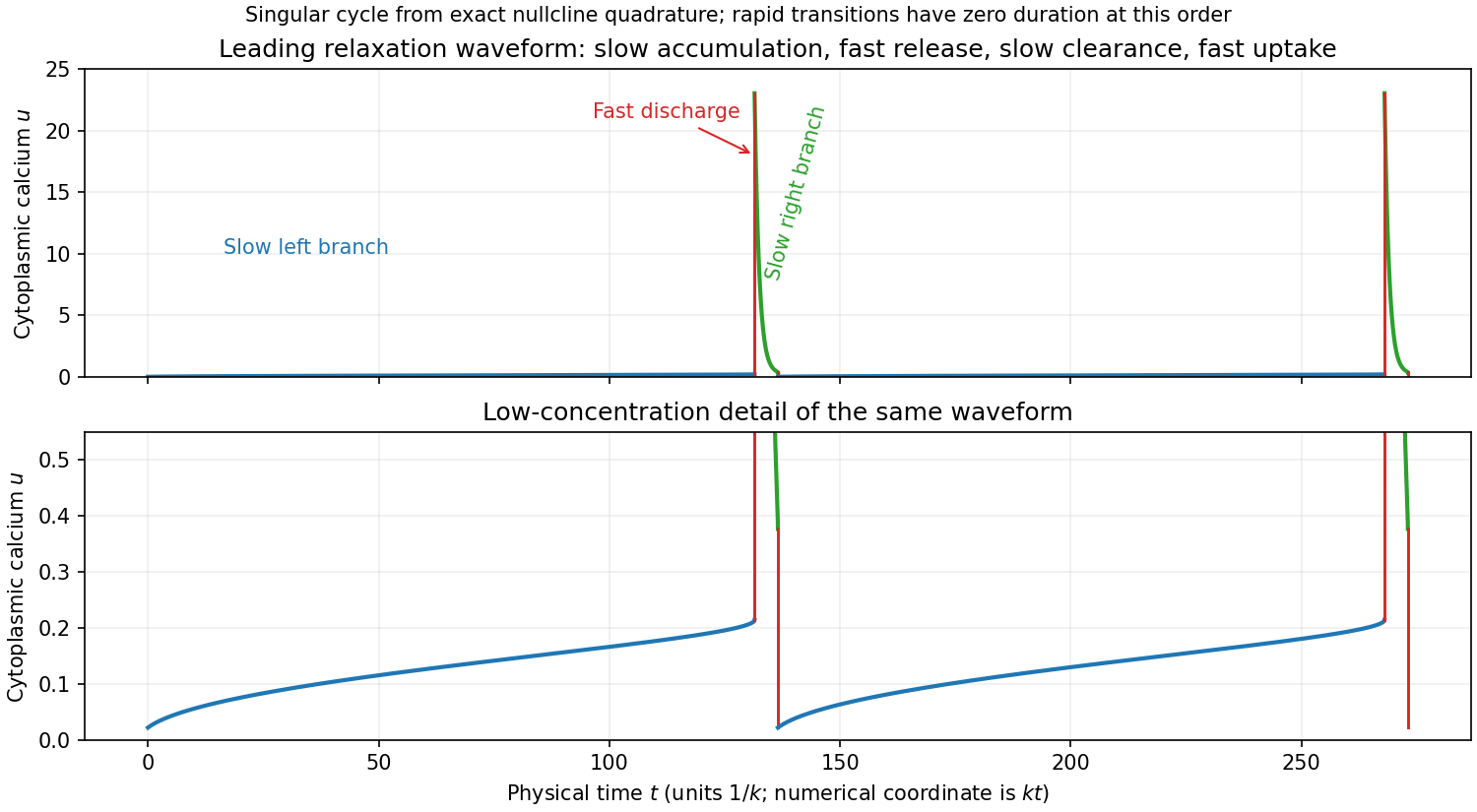

In a relaxation cycle, cytoplasmic calcium rises slowly on the left attracting branch while total calcium is accumulated, then rises rapidly during store discharge along a constant-$w$ fast path to the right branch. It subsequently decreases on the right slow branch as extrusion dominates input, and finally drops rapidly during store uptake back to the left branch. The result is a repeated pulse with slow sections joined by sharp transitions, rather than a sinusoid except near a small-amplitude Hopf bifurcation.

For explicit time labelling, the compatible scaling $u=c/K_1$, $v=c_s/K_2$ gives $\tau =kt$, $\gamma =K_2/K_1$, $ϵ=k{K}_2/V_2$, $\mu =r/(k{K}_1)$, $\beta =V_1/V_2$ and $\delta =k_s{K}_2/V_2$. Hence an interval $\Delta \tau$ corresponds to physical duration $\Delta t=\Delta \tau /k$. Slow-branch times can be computed by integratingin the direction of motion; fast-jump durations are omitted at leading order. The plot uses that quadrature, with vertical lines representing the limiting rapid transitions. Finite $ϵ$ rounds those lines and changes the precise amplitude and period, especially near folds.

In delayed carbon-dioxide ventilation feedback, $P$ is the effective carbon-dioxide partial pressure of the lumped body compartment. Its stored carbon-dioxide amount is proportional to $P$, with effective capacitance $K$, so $KdP/dT$ is its accumulation rate. Metabolism produces carbon dioxide at rate $M$. Ventilation removes it at a rate proportional to partial pressure times ventilation, $P\dot{V}$, with gas-conversion constants absorbed into the model coefficients. The equation is therefore a one-compartment carbon-dioxide balance: production minus respiratory removal equals accumulation. It idealizes mixing and treats metabolic production as constant over the time scale of interest.

Chemoreceptors respond to carbon-dioxide levels, but feedback is delayed by blood transport to sensing sites, neural processing and the response of respiratory muscles. A fixed positive delay $\tau$ approximates their combined effect. The ventilation at the present instant therefore depends on the earlier pressure, $\dot{V}(t)=\mathcal{V}(P(t-\tau ))$, not just on $P(t)$. This delayed negative feedback can overcorrect after the pressure has already changed, providing a mechanism for oscillatory breathing. The delay equation requires a pressure history over an interval of length $\tau$, rather than a single initial value.

The positive-part law $\mathcal{V}(P)=G[P-P_0{]}_{+}$ is a threshold-linear approximation to the ventilatory response. Below the apnoeic threshold $P_0$, this model assigns zero ventilation; above it, each pressure increment produces a proportional ventilation increase, with gain $G>0$. Taking the positive part ensures a nonnegative ventilation rate rather than the unphysical negative rate that unrestricted linear extrapolation would give. It is a local idealization of the response, not a claim that actual physiology lacks other respiratory drives or saturates nowhere. In the delayed model this response is evaluated at the delayed pressure.

Distinguish physical time $t$ from scaled time $T=t/\tau$. PutThen $K(P_s/\tau )p^{\prime }=M-[P_0+P_{s}p](M/P_0)v$, givingA steady state must be positive, since otherwise ventilation vanishes while production remains positive. It solves $\mu p_{\ast }^2+p_{\ast }-1=0$, soThe value $1/(1+\mu )=1-\mu +{\mu }^2+O({\mu }^3)$ printed in the question agrees only through first order. Thus it is a small-$\mu$ approximation with error of order ${\mu }^2$, not an exact equilibrium for nonzero $\mu$. The other quadratic root is negative and inadmissible for this steady ventilation balance.

Since the steady state is strictly positive, the positive-part function is differentiable in a neighbourhood of it. Write $p=p_{\ast }+q$. Retaining first-order terms givesSubstitute the exponential mode $q=e^{\lambda T}$ to obtainHere the last equality uses the exact steady-state equation. For small $\mu$, $\beta =\alpha \mu +O(\alpha {\mu }^2)$ and $\gamma =\alpha (1+\mu )+O(\alpha {\mu }^2)$. Linearizing at the exact root avoids carrying a spurious constant residual from the printed approximate equilibrium.

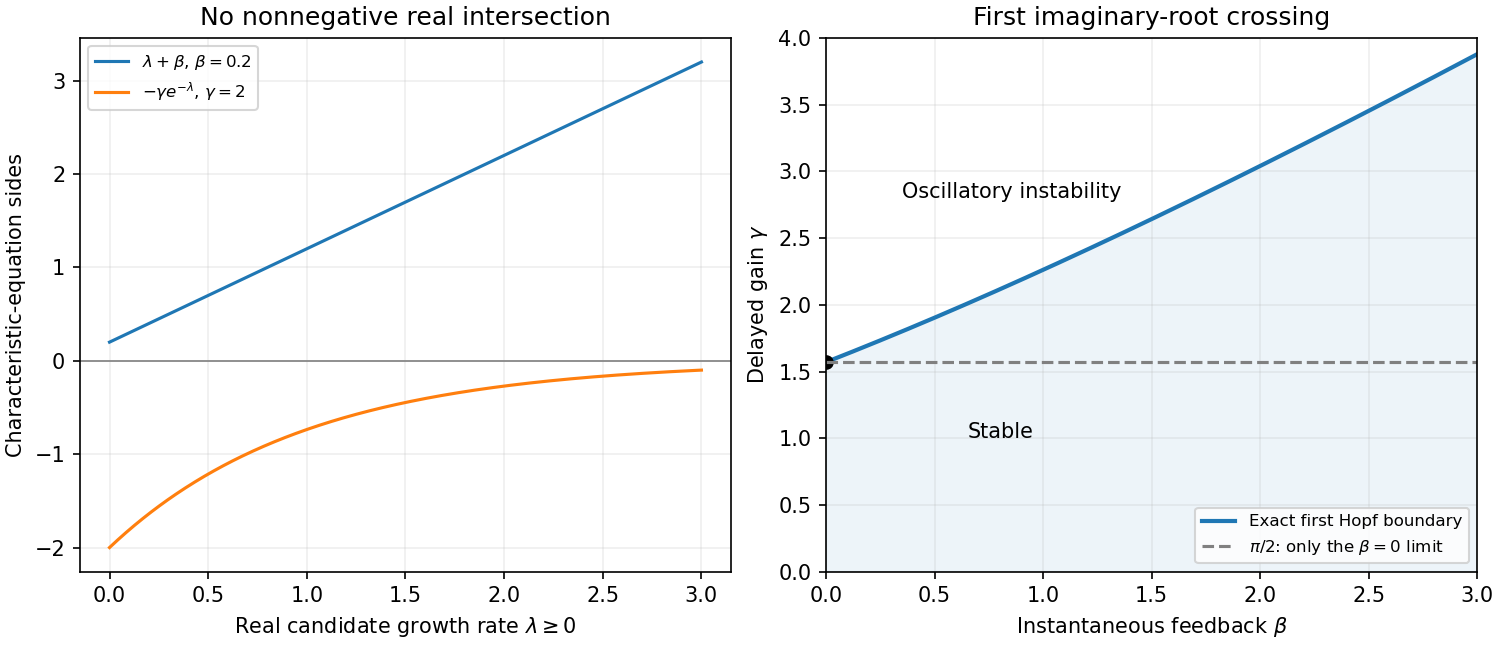

For real $\lambda \ge 0$, draw $y=\lambda +\beta$ and $y=-\gamma e^{-\lambda }$. The first is nonnegative and increasing, while the second is negative and approaches zero from below. They cannot intersect on the nonnegative real axis. At zero the characteristic function equals $\beta +\gamma >0$, so a stationary zero-root crossing is excluded as well.

Consequently a loss of stability from a stable regime cannot occur by a real eigenvalue crossing through zero. It must involve a conjugate pair crossing the imaginary axis at nonzero frequency, yielding oscillatory instability. This does not mean that every characteristic root is nonreal: negative real roots may exist and are harmless for stability. The graph and imaginary-axis conditions are shown together below.

For the first Hopf boundary of scalar delayed negative feedback, first, if a root has nonnegative real part then $|\lambda +\beta |=\gamma e^{-\mathrm{Re}\lambda }\le \gamma$. For $\beta \ge \gamma$ this is impossible, apart from the potential equality case $\lambda =0$, already excluded. Thus $\beta <\gamma$ is necessary for instability, although not sufficient by itself.

At an imaginary root $\lambda =i\omega$ with $\omega >0$, separate real and imaginary parts:The first crossing uses ${\omega }_c\in (\pi /2,\pi )$ for $\beta >0$, and satisfiesThe period is in scaled time; its physical value is $\tau {\mathcal{T}}_c$. Higher-frequency branches have larger critical gains. For fixed $\beta$, stability at zero delayed gain and absence of any earlier imaginary or zero-root crossing identify this lowest branch as the first stability boundary. Its crossing is transverse: implicit differentiation of $\lambda +\beta +\gamma e^{-\lambda }=0$ gives at the imaginary rootFor very small $\beta$, ${\omega }_c=\pi /2+2\beta /\pi +O({\beta }^2)$, so ${\mathcal{T}}_c\to 4$ and ${\gamma }_c=\pi /2+2\beta /\pi +O({\beta }^2)$. Therefore ${\gamma }_c=\pi /2$ is exact in the limit $\beta =0$ and is the leading approximation for small positive $\beta$. At that limit $\lambda e^{\lambda }=-\gamma$ first has an imaginary pair at $\lambda =\pm i\pi /2$; subsequent pairs occur at $\pi /2+2n\pi$ and cannot be the first loss of stability. A nonlinear Hopf theorem, including its nondegeneracy conditions, is needed to turn the linear imaginary mode into a claim about a particular finite-amplitude periodic branch.
