Signaling feedback

Signaling feedback returns the effect of a downstream event to an earlier stage of signal transduction, closing a loop analogous to feedback control. Trace the causal arrows: if an earlier relay activates a later relay and the later relay changes the earlier relay's activity, the return path closes the loop. Negative feedback opposes the initiating change; positive feedback reinforces it. Signaling feedback is a possible property of signal transduction, not a requirement of every pathway.

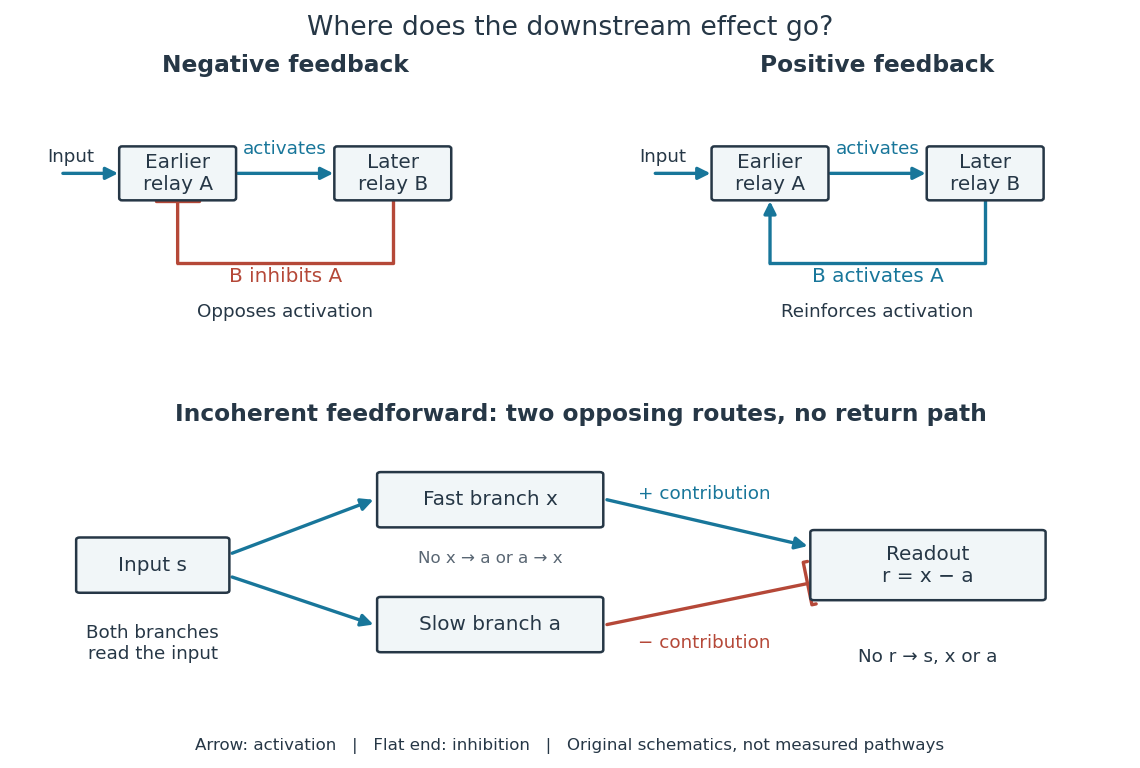

For a schematic example, let relay $A$ activate relay $B$. If $B$ inhibits $A$, increased $A$ eventually produces an opposing influence: negative feedback. If $B$ activates $A$, increased $A$ produces a reinforcing influence: positive feedback. These signs describe effects on activity, rather than the direction in which molecules travel. A closed loop containing two inhibitions can have positive feedback, because inhibiting an inhibitor reinforces the original change. The sign belongs to the whole loop.

Negative feedback can restrain excessive activation and help preserve a usable range of responses. Positive feedback can support a decisive transition: Alberts and colleagues describe an enzyme whose product increases its own activity. Such reinforcement can contribute to switchlike behavior, but a positive feedback arrow alone does not prove bistability. A different structure, an incoherent feedforward loop, sends opposing influences forward from the same input; inhibition there is not a downstream return. ^{[ref] [ref]}

A worked mathematical model shows why negative feedback does not automatically produce complete signaling adaptation. Let $s$ be a fixed normalized input, $r$ a normalized response, $g\ge 0$ a dimensionless feedback gain, and $\tau >0$ a time constant. Suppose response removal contributes $-r$ and a return proportional to the response contributes $-gr$. The ordinary differential equation isSetting the derivative to zero gives the equilibrium point $r_{\ast }=s/(1+g)$. A displacement $\delta r=r-r_{\ast }$ obeys $\tau d(\delta r)/dt=-(1+g)\delta r$, so its decaying exponential function establishes asymptotic stability. For a unit input switched on at $t=0$, initial condition $r(0)=0$, $g=2$ and $\tau =1$ second,The negative feedback reduces the eventual response from $1$ to $1/3$, but this response rises monotonically and never returns to its zero baseline. Attenuation and complete signaling adaptation are different properties. This deliberately simple mathematical model specifies no molecular pathway; integral action provides a contrasting way to remove a lasting offset in a stable feedback control system. ^[ref]

Negative feedback closes a causal loop whose net effect opposes an initiating change. In signal transduction, activation followed by a downstream inhibition of the earlier activating stage is one example of negative feedback. Loop sign alone does not establish asymptotic stability or complete signaling adaptation; see the worked signaling feedback example.

A useful biological example is chemotaxis feedback regulation: an Escherichia coli biological cell adjusts its response to a sustained attractant instead of remaining at its immediate response. Increased CheA activity promotes CheB phosphorylation; CheB reverses receptor methylation, opposing their activation. After attractant addition, reduced activity instead favors receptor methylation by CheR, restoring activity. This is a return from receptor activity to the machinery regulating that activity. The response need not return exactly at every dose. ^[ref]

A motivating measurement is the chemotaxis FRET assay. CheY and CheZ carrying yellow and cyan fluorescent tags were observed in immobilized Escherichia coli biological cells on a coverslip in a flow chamber. Adding and removing attractant changed the yellow-to-cyan emission ratio, reporting the association of phosphorylated CheY with CheZ. This measures a molecular readout upstream of motor behavior. Comparisons with biological cells lacking CheR, CheB, or both tested the dependence on receptor modification; these perturbations also change starting activity and sensitivity, so they are not pure changes of one feedback gain. ^[ref]

The later chemotaxis feedback regulation experiment used only the Tar receptor and nonmetabolizable methylaspartate, supplied and removed by flow. Long recordings separated slow recovery from incomplete signaling adaptation; correction for bleaching addressed drift in the optical readout. Activity recovered incompletely after sufficiently large additions, with detectable imprecision already at $10\mu \mathrm{M}$ in that preparation. Restricting the receptor type and preventing consumption of the stimulus help interpret the perturbation, but limit transfer to other receptors and conditions. The readout infers CheA activity through CheY-CheZ association, rather than directly measuring every molecular step. ^[ref]

Negative feedback can also overshoot or sustain oscillations if its return arrives too late. The worked signaling feedback example gives the contrasting instantaneous case; the delayed negative feedback model below isolates the effect of timing. Loop sign describes causation, while asymptotic stability describes what happens to displacements over time.

A feedback delay is a time interval between an event and its returning influence. Multiple biochemical steps can introduce an effective lag; a fixed delay is an idealization, not a universal description of signal transduction. To isolate timing, let $x$ be a signed displacement from an equilibrium point and use normalized dimensionless variables:The local removal is $-x$ and the returning influence is negative at every delay. At $d=0$ the ordinary differential equation reduces to the decay already illustrated under signaling feedback. For $d>0$ a delay differential equation requires a history on $[-d,0]$, not just an initial condition at one instant. Negative values of $x$ are displacements, not negative chemical concentrations.

An exponential function $x=e^{\lambda t}$ gives the characteristic equation of a delay differential equationPutting $\lambda =i\omega$ and equating real and imaginary parts gives $\cos (\omega d)=-1/2$ and $\omega =2\sin (\omega d)$. The first crossing with $\omega >0$ therefore occurs atFor this particular mathematical model, the equilibrium point is asymptotically stable for $0\le d<d_c$. No nonnegative real delayed feedback characteristic root can satisfy the equation; the first loss of asymptotic stability is the indicated pair of imaginary delayed feedback characteristic roots. Differentiating the characteristic equation of a delay differential equation along a root yieldsThus the pair moves into growth as the delay increases through $d_c$. The neutral mode at $d_c$ is a periodic function, but its amplitude depends on history: this linear mathematical model does not select an attracting limit cycle.

The figure plots $x(t)=e^{at}\cos (bt)$ using a delayed feedback characteristic root $\lambda =a+ib$ and that same formula on the history interval. At $d=0.7$ the displayed mode decays; at $d=1.5$ it grows. These are exact modes up to numerical root accuracy, not step responses with identical histories. Molecular bounds and a changed return law would be needed to interpret what happens after an unstable biological response becomes large.

A delayed feedback characteristic root solves the characteristic equation of a delay differential equation and supplies an exponential function mode. Its real part determines decay or growth of that mode.

In Escherichia coli, chemotaxis feedback regulation couples receptor activity to modification of the receptors by CheR and CheB. It is a molecular example of negative feedback supporting signaling adaptation, with precision and kinetics assessed by the chemotaxis FRET assay above.

Removal of methyl groups from a modified receptor. In chemotaxis feedback regulation, this reverses the chemical modification introduced by receptor methylation; the two processes have different enzyme-dependent rates. Whether the demethylation rate depends on total receptor modification or on active receptors matters for perfect adaptation.

A conceptual chemotaxis adaptation model in which saturated CheR action supplies receptor methylation while CheB preferentially demethylates active receptors. If $\dot{M}=r-bA/(K+A)$, the steady state output is $A_{\ast }=Kr/(b-r)$, independent of ligand whenever a physically accessible stable steady state exists. Changing enzyme abundance can change this baseline without destroying adaptation to a subsequent ligand step.^[ref]

If the forward receptor-modification flux depends on remaining unmethylated substrate, it generally depends indirectly on ligand through the modified receptor pool. The steady output then need not be ligand independent. Near-perfect adaptation may remain in a saturation limit; finite modification capacity and completely inactive receptor populations also bound the ideal perfect-adaptation result.

Return of an output to its original steady value after a persistent input change, with the adaptation property persisting over a range of model parameters. integral action can implement this property under stability and operating-range assumptions.

CheW is a coupling protein linking chemotaxis receptor arrays to CheA-associated signalling complexes. Removing it from a reconstituted system can test its functional requirement, while a physical-interface assay addresses direct contacts.

CheA is the signaling enzyme that promotes phosphorylation of CheY and CheB in the chemotaxis feedback regulation pathway.

CheB is an enzyme that reverses receptor methylation in chemotaxis; its regulation contributes to negative feedback.

CheR is an enzyme that catalyzes receptor methylation in chemotaxis, contributing to signaling adaptation.

The phosphorylation state of the protein CheY connects receptor signaling to motor behavior in Escherichia coli.

CheZ is an enzyme that binds phosphorylated CheY and accelerates removal of its phosphate.

The chemotaxis FRET assay uses Förster resonance energy transfer between fluorescent tags on CheY and CheZ to report their association. Interpreting this emission ratio as CheA activity requires the coupling between CheY phosphorylation and CheZ binding described in the experimental sources above.

Positive feedback closes a causal loop whose net effect reinforces an initiating change. A loop with two inhibitory links can therefore have positive feedback. In signal transduction, a product that increases the activity of the enzyme making it illustrates reinforcement; the consequences depend on the full mathematical model, not just the loop sign. See signaling feedback.

A biological example is cell-cycle activation feedback. Cyclin B binds Cdc2, whose activity promotes activation of Cdc25; Cdc25 removes inhibitory phosphorylation from Cdc2, permitting further activation. Cdc2 also inhibits Wee1, an enzyme that inhibits Cdc2 through phosphorylation. That second return contains two inhibitions and therefore also has positive feedback. These are regulatory paths, not a claim that every connection is a single direct molecular encounter. ^[ref]

Reinforcement can preserve a decision after its initiating stimulus weakens: returning from the high state may require a lower input than entering it. The cell-cycle hysteresis experiment below tests this history dependence at matched cyclin B concentrations. A steep response alone is insufficient evidence of bistability, and finite observation times can make slow relaxation look like memory. A proposed switch must specify its input, readout and observation interval.

A reinforcing circuit in which two activities inhibit one another, potentially stabilizing mutually exclusive states.

Saturating positive feedback limits the reinforcing rate as activity increases. Here is an explicitly synthetic ordinary differential equation for normalized nonnegative input $u$, response $x$, and return strength $\beta$:The return is an increasing, nonproportional function of $x$, while removal is proportional to $x$. Time and activities are dimensionless variables. At $x=0$ the vector field points into the nonnegative domain, and $dx/dt\le u+\beta -x$ prevents unbounded growth there. This makes the toy useful for asking about a bounded switch; it supplies no molecular mechanism for the chosen rate law.

At an equilibrium point, $f=0$. For a simple equilibrium point, the sign of the derivativedetermines local asymptotic stability. If $\beta =1$, the maximum reinforcing slope is $3\sqrt{3}/8<1$, so $f$ decreases strictly: every $u\ge 0$ has one asymptotically stable equilibrium point despite positive feedback.

Three equilibrium points become possible only if the reinforcing slope exceeds removal's slope somewhere. Its maximum is $3\sqrt{3}\beta /8$, at $x=1/\sqrt{3}$. Consequently this toy requiresfor two distinct folds. This is a necessary threshold for a bistability interval in this toy, not a universal biochemical number. At a fold, both $f=0$ and $f_x=0$, givingFor $\beta =1.8$, the folds are at $(x,u)\simeq (0.350003,0.153563)$ and $(0.887240,0.094405)$. Between these input values there are two asymptotically stable equilibrium points separated by an unstable one. At $u=0.12$, the three activities are approximately $0.171331$, $0.621230$ and $1.127439$; the low and high ones are stable.

A sufficiently slow increasing sweep follows the low branch to $u_{\mathrm{on}}\simeq 0.153563$ and then jumps upward. A decreasing sweep follows the high branch to $u_{\mathrm{off}}\simeq 0.094405$ and then jumps downward: hysteresis. These are limiting quasistatic thresholds, with relaxation between input changes and negligible perturbations that could cause earlier switching. Finite sweep rates and fluctuations can alter observed thresholds. A switchlike response with only one stable equilibrium point does not have this equilibrium hysteresis mechanism.

Cell-cycle activation feedback is the reinforcement of Cdc2 activation through Cdc25 and suppression of Wee1. Its role is to help make transitions in the cell cycle decisive; the cell-cycle hysteresis experiment tests the resulting states rather than inferring them solely from circuit arrows.

A 2003 study split a Xenopus laevis egg extract into portions with different histories. One received calcium to destroy endogenous cyclin B before receiving nondegradable cyclin B; the other received nondegradable cyclin B first, then calcium. The same sustained cyclin B dose was approached from low or high Cdc2 activity. A phosphorimager quantified histone H1 phosphorylation, sampling every $15$–$30$ minutes until an apparent stationary response. At $45$–$60\mathrm{nM}$, the dose maintained high activity but failed to induce it from the low state.^[ref]

Controls tracked labeled endogenous cyclin B disappearance after calcium treatment and persistence of nondegradable cyclin B, addressing unequal remaining input. The comparison supports hysteresis under extract conditions; finite observations cannot establish indefinite persistence. It does not isolate each reinforcing path or establish thresholds in intact biological cells.^[ref]

A Xenopus laevis egg extract is a preparation of egg contents retaining biochemical machinery of the cell cycle outside intact biological cells.

Histone H1 is the protein used as a substrate for the Cdc2 activity readout in the cell-cycle hysteresis experiment.

Cyclin-dependent kinase 1, abbreviated CDK1 and historically called Cdc2, is the catalytic protein kinase in the CDK1–cyclin B assembly. CDK1 transfers a phosphate group from ATP to a protein substrate; cyclin B supplies a regulatory binding partner. Binding and phosphorylation regulate catalytic competence, so detecting CDK1 protein alone does not establish activity. The distinction makes a durable catalytic component reusable as the cell cycle changes its regulatory inputs.^[ref]

The cell-cycle activation feedback uses CDK1 activity as both an output and a regulatory input: activity promotes Cdc25 activation and suppresses Wee1, reinforcing release from inhibitory phosphorylation. The already described cell-cycle hysteresis experiment tests how that output depends on history at matched cyclin B input; the histone H1 kinase assay below explains what its output measures. A binding diagram alone cannot establish hysteresis.

A CDK1 phosphorylation state identifies modified amino acid residues. Different sites have opposite effects: in studied Xenopus laevis Cdc2, Thr14/Tyr15 are inhibitory, while Thr161 phosphorylation is activating. T denotes a threonine residue, Y a tyrosine residue, and numbers are protein primary structure positions. Do not assume this numbering for every species.^[ref]

The 1992 study supplies a useful separation of mechanisms: replacing Thr14, Tyr15 and Thr161 still permitted cyclin B binding, but replacing Thr161 prevented activation of histone H1 phosphorylation. Binding therefore did not suffice for catalytic activity in that preparation. Activating phosphorylation also occurred with catalytically inactive Cdc2, supporting a separate CDK-activating kinase rather than a requirement for intramolecular autophosphorylation.^[ref]

In this deliberately coarse classification, bound cyclin B, activating phosphorylation, and cleared inhibitory sites must coincide for the activity-permissive state. Removing inhibitory phosphate groups does not supply missing cyclin B or activating phosphorylation. Conversely, adding activating phosphorylation does not erase inhibitory modification. Actual preparations contain mixtures of states and additional regulators; this classification gives no numerical reaction rate.

A CDK-activating kinase is a protein kinase supplying activating phosphorylation to a cyclin-dependent kinase 1 preparation. The Xenopus laevis experiment above distinguished this activity from the catalytic activity of Cdc2 itself. CAK names that function here, without asserting that every species uses the same protein assembly.

Myt1 is a protein kinase distinct from Wee1. The cloned Xenopus laevis Myt1 phosphorylated Cdc2 at both inhibitory sites Thr14 and Tyr15; depletion experiments implicated it as the predominant Thr14-directed activity in Xenopus laevis egg extracts.^[ref]

A histone H1 kinase assay measures protein kinase action on supplied histone H1, a protein substrate. When the transferred phosphate carries a radioactive isotope label, label incorporated into histone H1 reports catalytic action over the assay interval. It does not count CDK1 molecules, and a crude preparation can contain other protein kinases acting on histone H1. Attribution therefore needs controls.

A 2010 study prepared human HeLa S3 extracts after a double thymidine block, using swelling, a Dounce homogenizer, centrifugation, dialysis and concentration. Added recombinant cyclin B1 incubated for $20$ minutes.^[ref]

Aliquots received histone H1 and terminal-${}^{32}\mathrm{P}$-labeled ATP for a $15$-minute room-temperature reaction, stopped with Laemmli buffer. Dried SDS-PAGE gels exposed a phosphorimager screen; a BioRad Molecular Imager FX quantified labeling. No-added-cyclin B activity set the normalization baseline; RO-3306 reduced H1 activity approximately $85\%$. Companion Western blots monitored Tyr15 phosphorylation, with actin Western blot loading control.^[ref]

Mixed extracts lose compartment boundaries; inhibitor sensitivity supports a major CDK1 contribution, with residual signal.^[ref] Substrate choice and inhibitor specificity limit attribution. The cell-cycle hysteresis experiment supplies a separate history comparison with this kind of histone H1 readout; its dose thresholds should not be transferred to human biological cells.

CDK1 activity and protein abundance are different observables. A total-CDK1 Western blot estimates protein amount under its calibration and loading assumptions. A phosphosite-specific Western blot asks about a particular CDK1 phosphorylation state. A histone H1 kinase assay asks how much substrate modification occurs under specified assay conditions. Any conversion between them needs a model and suitable controls.

An original counting example stipulates $100$ CDK1 molecules, with $60$ bound to cyclin B in each of two hypothetical samples. In sample A, $10$ bound molecules are activity-permissive and $50$ are inhibited; in sample B, $40$ are activity-permissive and $20$ are inhibited. The other $40$ are unbound in both samples. Total CDK1 and bound CDK1 agree, but activity-permissive counts differ fourfold. These are invented counts for bookkeeping, not measured biological populations.

If each activity-permissive molecule contributes the same reaction rate, substrate and ATP remain available, and the assay stays linear in time, a simple illustrative readout isHere $R$ is the recorded signal, $R_0$ is a matched blank signal, $N_{\mathrm{active}}$ is the activity-permissive count, $t$ the reaction interval, and $\alpha$ a common signal contribution per active molecule per unit time. The corrected signals in the stipulated samples have ratio $40/10=4$, although their total protein amounts agree. This is an assay accounting assumption, not an ordinary differential equation for the cell cycle. The no-added-cyclin B baseline in the inspected experiment can itself contain catalytic activity; it need not equal an enzyme-free blank $R_0$.

Substrate depletion, differing inhibitory conditions or a saturated detector can break the simple proportionality. Comparing samples therefore requires matched reaction intervals, substrate supply, loading and detector response, rather than assuming that brighter histone H1 labeling automatically means more total CDK1.

Cyclin B is a regulatory protein partner of CDK1. The protein kinase catalytic component is CDK1; bound cyclin B helps make that component competent to act. Changes in cyclin B synthesis and destruction regulate how much assembly can form, while CDK1 phosphorylation states determine whether bound assemblies are inhibited. This separates the supply of regulatory partners from release of an already assembled brake.^[ref]

More cyclin B therefore need not give a proportional increase in CDK1 activity. Compare the matched-input cell-cycle hysteresis experiment, where different histories produced different activities, and the distinct measurements under CDK1 activity and protein abundance. Neither comparison makes cyclin B itself the catalytic protein kinase.

Cdc25 is a protein phosphatase: it removes inhibitory phosphate groups from CDK1, relieving inhibition of an appropriately prepared cyclin B–CDK1 assembly. Its reaction is removal, whereas Wee1 is a protein kinase adding inhibitory modification. Removing the inhibitory sites is different from removing the activating phosphorylation supplied by CAK.^[ref]

Cdc25 action on CDK1 must also be distinguished from phosphorylation of Cdc25 itself. In cell-cycle activation feedback, CDK1-dependent regulation promotes Cdc25 activity, which can then activate additional inhibited CDK1. The complete regulatory path can involve intermediates. A histone H1 kinase assay of a mixture reports downstream protein kinase action; assigning its change to Cdc25 requires a perturbation or an independent protein phosphatase assay, rather than interpreting histone H1 labeling as phosphate removal.

Wee1 is a protein kinase that inhibits CDK1 by adding a phosphate group at an inhibitory site. Purified human Wee1 phosphorylated Cdc2 at Tyr15 in the reported in vitro assay, with no Thr14 modification detected. A catalytic-site mutation abolished both the measured protein kinase activity and the ability to inhibit division. This identifies a catalytic brake rather than merely a correlated protein amount.^[ref]

Do not attribute all inhibitory CDK1 phosphorylation to Wee1: the Xenopus laevis Myt1 experiment separately identified activity toward both Thr14 and Tyr15. Nor does every phosphorylation inhibit its target: activating Thr161 modification in the studied Xenopus laevis Cdc2 has the opposite role. In cell-cycle activation feedback, suppression of Wee1 removes a brake on CDK1, reinforcing the transition without implying that the total amount of either protein instantly disappears.
