An air shower is a cascade of secondary particles produced by an energetic particle interacting in the atmosphere. Both a charged particle and a gamma ray can start one.^[ref]

Walther Bothe and Herbert Becker observed penetrating radiation from beryllium struck by alpha particles before James Chadwick's interpretation.^[ref]

Irène Joliot-Curie and Frédéric Joliot found that adding material containing hydrogen increased ionization, interpreting the ejected protons as Compton scattering recoils from extremely energetic gamma rays. James Chadwick tested this interpretation against nuclear recoils in other elements.^[ref]

The counter coupled a small ionization chamber to an amplifier and oscillograph: charged particles produced ions, and the electrical signal gave a deflection. With Norman Feather, James Chadwick also observed nitrogen recoil tracks in a cloud chamber.^[ref]

The apparatus used polonium on silver facing beryllium inside an evacuable vessel. Paraffin wax before the aluminium counter window supplied recoil protons; intervening aluminium screens measured their particle range. Deflections were photographed on bromide paper. The first counter contained air; later fillings included hydrogen, helium, nitrogen, oxygen and argon. Counts with wax absent included gas recoils; wax insertion added entering protons. Thick lead between source and counter hardly changed the initial counts, testing penetration against the low background.^[ref]

The diagram separates two routes to a signal: a proton entering from the wax and a nuclear recoil created inside the chamber gas. Its lower row is a logical summary, rather than a reconstructed experimental trace. In either route the observed ionization belongs to a charged secondary particle; identifying the incident radiation requires an additional collision model.

In the February letter, a photon interpretation requiring about $52\mathrm{MeV}$ for the protons predicted only about $0.4\mathrm{MeV}$ for nitrogen recoils, below the observed ionization. Here $1\mathrm{MeV}=10^6$ electronvolts. James Chadwick proposed a neutral particle near the proton mass and the nuclear reactionThese are the letter's approximate historical values, not a modern mass determination.^[ref]

Why compare two materials? A gamma ray is a photon, so its incident momentum is $E_{\gamma }/c$, where $c$ is the speed of light. A slow massive projectile instead has momentum $mv$ and kinetic energy $m{v}^2/2$. The relationship between incoming momentum and energy therefore changes. An elastic collision model must explain the recoil endpoints for both target masses with the same incident projectile population. Calling the radiation neutral supplies no such agreement by itself.

The original measurements depended on particle range calibration, material in the path, detector response and whether a recoil was fully stopped in the sensitive gas. Large deflections alone need not specify a complete recoil energy. The calculations below expose the ideal collision assumptions behind the inference; applying them to a measured spectrum requires checking those assumptions.

In his 1958 lecture, Pavel Cherenkov recalls the 1934 reports by himself and Sergey Vavilov: radium gamma rays illuminated solutions and their solvents. Weak light was compared using dark-adapted human vision and threshold photometry. Heating and added fluorescence quenching agents left the solvent component and its polarization of an electromagnetic wave unchanged; parallel aqueous fluorescent controls visibly quenched. Its electric vibration direction was parallel to the exciting beam, unlike the compared polarized fluorescence. Further experiments attributed the emission to fast Electrons produced by Compton scattering, rather than directly to gamma rays. These comparisons supported a mechanism distinct from ordinary luminescence.^[ref]

The evidential step is the controlled comparison, rather than the mere presence of light. A weak glow could include fluorescence from impurities; suppressing a known fluorescent control tests whether the intervention actually works. Visual threshold comparisons also require a stable observer and viewing conditions. These early controls do not themselves calibrate absolute photon yield or supply a single-Electron angular scan. Its polarization of an electromagnetic wave comparison also does not by itself measure the Cherenkov cone angle of an individual Electron.

Ilya Frank and Igor Tamm supplied the theory in 1937; Ilya Frank also investigated nuclear physics experimentally and later directed neutron research.^[ref] Sergey Vavilov, an optics and luminescence researcher and collaborator in the discovery, died in 1951. The 1958 Nobel Prize in Physics went to Pavel Cherenkov, Ilya Frank and Igor Tamm; Sergey Vavilov was not a recipient.^[ref]

A cosmic ray is a high-energy charged particle propagating through space. Galactic cosmic-ray electrons emit synchrotron and inverse-Compton radiation, while cosmic-ray nuclei produce gamma rays through collisions with gas.

In modern terminology, a primary cosmic ray arriving at Earth's atmosphere is usually a proton or another atomic nucleus, with an Electron component as well. Atmospheric collisions generate secondary cosmic rays and air showers, including muons, Electrons and photons. A gamma ray can also initiate an air shower, although it is electrically neutral. Consequently, detecting atmospheric ionization does not establish that an incoming primary cosmic ray passed through the detector. Magnetic fields bend charged particles, while gamma rays provide a more direct directional connection to their sources.^[ref]

The Hess cosmic-ray balloon experiment asks how atmospheric shielding and separation from the ground affect ionization. Its power comes from changing the environment around an enclosed detector instead of identifying each incoming particle.

Clyde Cowan, Frederick Reines and collaborators tested whether a particle produced by a nuclear reactor could interact again after leaving its source. At Savannah River, water targets containing cadmium chloride lay between liquid scintillators. Opposite detectors recorded prompt positron annihilation gamma rays; Neutron moderation preceded delayed neutron capture signals in cadmium. The arrangement used two target layers and three scintillator layers, with the middle scintillator shared.^[ref]

The original functional diagram separates the two signal mechanisms and their timing. It omits dimensions and phototube counts, and is not a reproduction of a historical drawing. The measured objects are detector pulses; identifying their common cause also requires calibration and background tests.

The 1956 paper describes positron-source and neutron-source calibrations, pulse-height gates and photographic pulse records. Diluting the target with heavy water halved the proton density and reactor signal while preserving neutron-detection efficiency. Changing the cadmium concentration altered capture timing; removing it removed the reactor signal. Added shielding tested competing external radiation. These interventions tested the reaction's ingredients, beyond simply observing a reactor-dependent count rate.^[ref]

Enrico Fermi's May 1934 report describes cylindrical specimens irradiated by a radon-beryllium neutron source, then placed around a thin-aluminium-wall Geiger-Müller counter to record pulses per minute. The irradiation and counting were successive operations.^[ref]

The October paper by Enrico Fermi, Edoardo Amaldi, Bruno Pontecorvo, Franco Rasetti and Emilio Segrè reports that interposed paraffin wax increased silver activation; surrounding blocks enhanced it further, depending on geometry. Water gave a comparable effect. A preparation without beryllium gave no effect, arguing against gamma rays alone. Oxygen-containing material without hydrogen did not give a comparable enhancement, and not all activated elements responded alike. Repeated collisions with hydrogen were proposed to slow the neutrons.^[ref]

The University of Pisa's account of Bruno Pontecorvo's work with Edoardo Amaldi describes stronger silver activation on wood than on marble. This is a retrospective account; the October paper above directly documents the deliberate paraffin wax and water comparisons.^[ref]

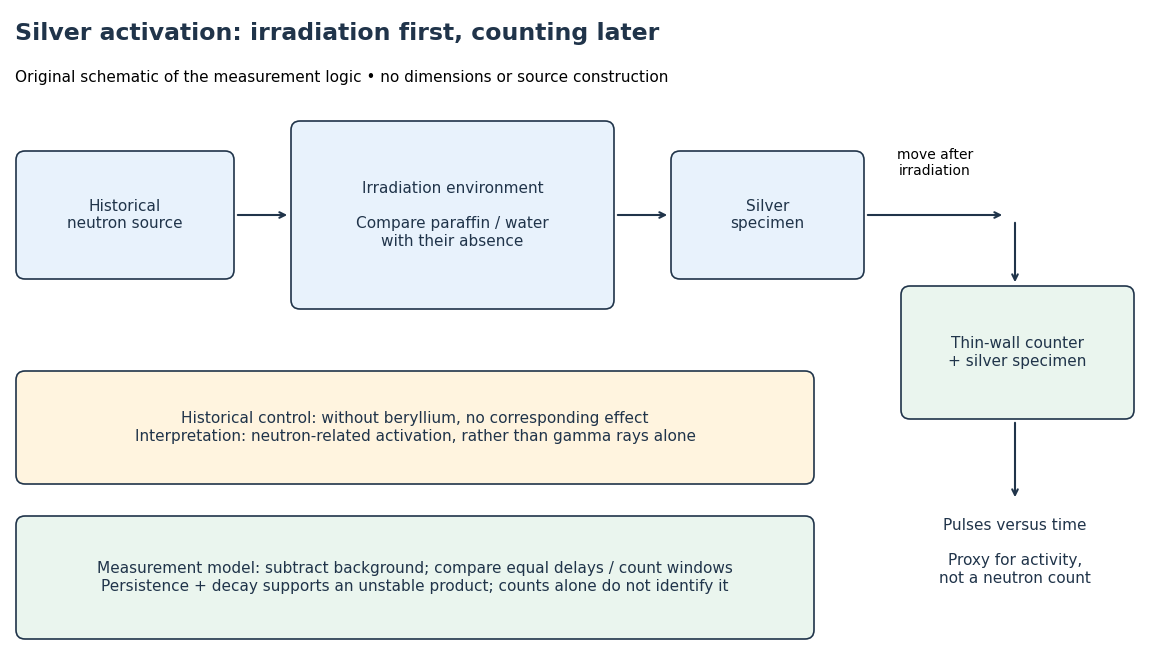

To interpret this readout, compare an irradiated specimen with an unirradiated specimen or empty-counter background, using the same counting geometry. Compare irradiation conditions at matched irradiation durations, delays and counting windows. These are requirements of the measurement model, rather than a claim that every such control is documented in the short October letter. Otherwise ordinary radioactive decay during transfer can imitate a change in activation. A persistent, decaying excess after irradiation supports an unstable product; neither a larger count nor a fitted half-life uniquely identifies an isotope.

In his 1938 Nobel lecture, Enrico Fermi distinguished single and superposed exponential decay curves and described chemical separation to identify their carriers. His slowing interpretation connected elastic collisions with enhanced capture. The lecture also described neutron capture resonances, so its account cannot support a universal rule that slower always means more reactive.^[ref]

The 1934 assignments of some uranium activities to elements beyond uranium were mistaken interpretations, not a discovery of nuclear fission. The published lecture's later footnote explicitly calls for reexamining the transuranic assignments after evidence of splitting. Distinguish that correction from the lecture as delivered.^[ref]

Gamma decay is electromagnetic nuclear de-excitation by photon emission. It preserves mass number and atomic number, while changing the nuclear state. Angular momentum and parity constrain the allowed radiation multipoles. The gamma ray topic is broader than this nuclear process.

A physicist whose research included nuclear physics and germanium gamma ray detection.^[ref]

Heisenberg's microscope is a thought experiment, not a report of a performed measurement. In Werner Heisenberg's Nobel lecture, The development of quantum mechanics, delivered on 11 December 1933, the imagined Electron is illuminated with very short-wavelength light and observed through a high-resolution microscope. A scattered photon entering the observer's eye would, through Compton scattering, eject the Electron from its original path. The passage challenges a classical trajectory picture; its microscope is hypothetical. The lecture date is 1933 even though the award is the Nobel Prize in Physics in 1932.^[ref]

The following idealized geometry makes the tradeoff visible. Let the collected light have wavelength $\lambda$ and let the microscope objective accept outgoing directions within a half-angle $\alpha$ about the vertical axis. Take $x$ transverse to that axis and hold the incoming photon momentum fixed. A diffraction-limited estimate of transverse resolution has scale $\delta x\sim \lambda /\sin \alpha$. The unobserved outgoing direction admits transverse photon momentum components between approximately $-(h/\lambda )\sin \alpha$ and $+(h/\lambda )\sin \alpha$, neglecting the angular variation of the scattered wavelength. By conservation of momentum, uncertainty in that component leaves uncertainty in the transverse recoil of the Electron:Here $h=2\pi \hslash$ is the Planck constant; the two $\delta$ symbols denote heuristic resolution and recoil scales, not the standard deviations in the Heisenberg uncertainty relation. Increasing the acceptance angle improves the estimated resolution while broadening the allowed recoil range. Numerical factors depend on the resolution criterion and angular distribution; this scaling argument cannot supply the sharp constant $\hslash /2$.

The thought experiment makes the interaction needed to obtain an image memorable. The preparation uncertainty theorem has broader use: it applies to the prepared quantum state even when the two observables are measured on separate copies. No claim that Werner Heisenberg built this gamma ray apparatus is needed to understand either argument.

The 2018 collaboration paper associated the 22 September 2017 neutrino alert with the flaring blazar TXS 0506+056 through directional and multiwavelength observations. Its approximately $3\sigma$ evidence included trial corrections and assumed relationships between neutrino and gamma ray emission. A single association did not establish a production mechanism or explain the entire diffuse neutrino flux.^[ref]

Internal conversion transfers nuclear excitation energy directly to a bound atomic Electron, which is emitted, rather than to a real gamma ray. Photon counts alone then underestimate the number of nuclear transitions unless the conversion contribution is included.

The neutron and Positron together have more rest mass than the initial proton, so a finite incident energy is necessary even before recoil is considered. In the proton's rest frame, use four-momentum conservation and a negligible neutrino mass. The initial squared center-of-mass energy is $m_p^2{c}^4+2m_p{c}^2{E}_{\nu }$; the least final squared center-of-mass energy is $(m_n+m_e{)}^2{c}^4$. Equating them gives the threshold above. At threshold the final particles share one center-of-mass velocity; they are not both at rest in the laboratory.

Writing $\Delta =m_n-m_p$, the result separates intoThe positive second term is the laboratory recoil correction. With rounded rest energies $m_p{c}^2=938.272\mathrm{MeV}$, $m_n{c}^2=939.565\mathrm{MeV}$ and $m_e{c}^2=0.511\mathrm{MeV}$, the calculated threshold is about $1.806\mathrm{MeV}$. These rounded inputs follow the recommended particle masses.^[ref]

As a further ideal energy balance, suppose the Positron stops and annihilates with an Electron, and all prompt annihilation gamma rays are contained. Its prompt visible energy is $T_{e^{+}}+2m_e{c}^2$. Neglecting neutron recoil gives $E_{\mathrm{vis}}\simeq E_{\nu }-(m_n-m_p)c^2+m_e{c}^2\simeq E_{\nu }-0.782\mathrm{MeV}$. Escaping gamma rays, detector response and recoil change that measured sum. The delayed capture signal is a separate energy deposit, not an extra contribution to the incident electron antineutrino's prompt energy reconstruction.

Let $v$ be the source velocity towards the absorber, positive for approach along the photon direction. A first-order Lorentz transformation of the photon energy gives $E^{\prime }=E+vp$; hence, for $|v|\ll c$,Moving the source shifts its emission line through the stationary absorption line. A minimum in transmitted photon counts marks their strongest overlap. The absorber is the narrow energy discriminator; the downstream particle detector only needs to count the transmitted gamma rays.

For a thin absorber with unsplit Lorentzian line shapes, the overlap is a convolution of the source and absorber profiles. The combined full width at half maximum is $W={\Gamma }_s+{\Gamma }_a$. A simple expected transmission model isHere $I_0$ is the off-resonance intensity, $v_0$ encodes a relative shift of the two transition energies, and $A$ includes the resonant absorber strength and $f_s{f}_a$. The convolution result can be checked by multiplying the Fourier transforms of two Cauchy distributions: their exponential decay constants add. The width of the absorption dip in velocity is $cW/E_{\gamma }$, rather than the width of one individual spectral line converted to velocity.

For the teaching system with ${\Gamma }_s={\Gamma }_a={\Gamma }_E$ and $v_0=0$, the dip's full width at half maximum is $2.9979\mathrm{mm}{\mathrm{s}}^{-1}$. Stipulate $A=0.25$ at zero temperature and $10,000$ expected off-resonance counts per equal-duration bin: the central bin then has $7,500$ expected counts, and the half-depth bins have $8,750$. These are model expectations, without sampled counting noise. Holding all other parameters fixed while heating both lattices to $k_{B}T=2\hslash \omega$ multiplies $A$ by $[f(T)/f(0){]}^2$. This isolates how a falling recoil-free fraction weakens the dip.

The thin-absorber model is deliberately limited. A thick absorber can saturate and broaden the dip; unresolved hyperfine structure can create multiple components. Differences in chemical surroundings can shift the centers, and uncontrolled motion can smear them. These effects must be modeled before interpreting an observed width as a natural linewidth. Their sensitivity also makes the Mössbauer effect useful: a small displacement of a narrow dip can reveal a small change in the local nuclear environment.

A 2013 RIKEN experiment used a fast calcium beam on beryllium, selected radioactive aluminium and silicon fragments, then struck carbon to produce magnesium isotopes with $N=22,24,26$. Emitted gamma rays supplied excitation energies; comparison across these isotopes supported deformation extending beyond the $N=20$ region toward $28$. This tests the limits of traditional magic numbers, not merely their arithmetic. The inferred shape depends on nuclear-structure interpretation of the energy levels, rather than direct imaging.^[ref]

Awarded in equal shares to Robert Hofstadter for electron scattering studies of atomic nuclei and discoveries about nucleon structure, and Rudolf Ludwig Mössbauer for resonance absorption of gamma rays and the Mössbauer effect.^[ref]

Nuclear de-excitation is a transition from a higher to a lower nuclear energy level. It can transfer energy to an emitted gamma ray or to an atomic Electron through internal conversion, among other channels when thresholds permit.
