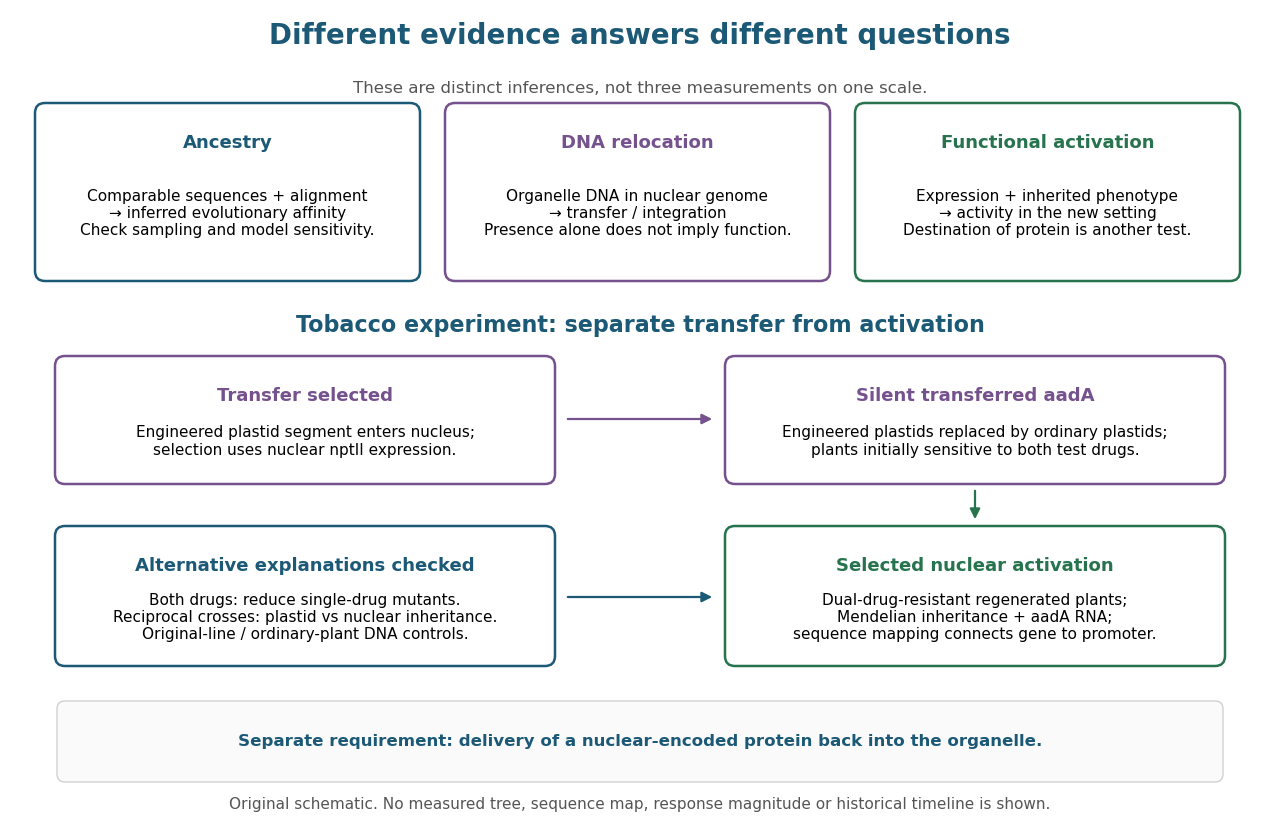

Experimental Reconstruction of Functional Gene Transfer from the Tobacco Plastid Genome to the Nucleus by Sandra Stegemann and Ralph Bock (2006, Results, pp. 2870–2874) separated relocation of DNA from activation of a relocated gene. Engineered tobacco chloroplasts carried an nptII gene with nuclear expression signals beside an aadA gene with plastid expression signals. Selection on kanamycin recovered plants with the segment in the nuclear genome. Crosses then replaced the engineered chloroplasts with ordinary chloroplasts: the nuclear segment remained, but the plants were initially sensitive to spectinomycin and streptomycin. The transferred aadA gene was not yet functional in its new setting.

Leaf pieces were cultured on regeneration medium containing both drugs. Resistant regenerated plants supplied the functional readout. Using both drugs reduced selection of spontaneous plastid mutations conferring resistance mainly to one drug. Reciprocal crosses and selfing distinguished maternal plastid inheritance from nuclear Mendelian segregation; eight of sixteen initial candidates had the latter pattern. ^[ref]

The molecular readout came from RNA hybridization and DNA sequencing. A Northern blot detected aadA messenger RNA in activated lines, with different transcript sizes. Thermal asymmetric interlaced polymerase chain reaction recovered upstream DNA; products present in activated lines but absent in original-line and ordinary-plant controls were sequenced. The mapped rearrangements connected aadA to the upstream nuclear gene promoter. Thus resistance, inheritance, RNA detection and changed nucleotide sequences supported activation of the transferred nuclear gene, rather than resistance alone. ^[ref]

This engineered test demonstrates one route to functional nuclear gene expression after plastid DNA transfer. It does not establish a natural transfer rate, replay ancient endosymbiosis or demonstrate that the resulting protein is imported into a chloroplast. The authors explicitly identify acquisition of targeting information as an additional step not reproduced by this experiment. ^[ref]

PCR converts a selected DNA sequence into a detectable and manipulable quantity; different downstream measurements give it different uses. A pair of PCR primers defines the interval amplified by DNA polymerase. Repeated denaturation, annealing and extension produce approximately $N_n=N_0(1+E{)}^n$ copies while PCR efficiency $E$ remains constant. At ideal efficiency, twenty cycles give about a millionfold amplification; depletion and accumulating products eventually cause a PCR plateau. Specificity derives from both primer-binding sites and their orientation, and should be checked by product size, melting behaviour or sequencing.

One application is genotyping. A disease-associated substitution can be detected by amplifying the surrounding region and reading the sequence, probing with an allele-specific oligonucleotide, or digesting a restriction site changed by the variant. An early demonstration amplified the human beta-globin region for restriction-based diagnosis of sickle cell disease. Amplification increased sensitivity; the restriction pattern supplied the allele information.^[ref] A negative disease-specific signal is interpretable only if a control locus amplifies, because poor extraction or an inhibitor can mimic absence of an allele. In forensic DNA profiling, several short tandem repeat loci are amplified and fragment lengths compared. A multilocus match supports identity statistically; it does not eliminate contamination, mixtures, allelic dropout or the need for appropriate population-frequency estimates.

For infectious agents, primers can detect a pathogen-specific DNA sequence. An RNA virus first requires reverse transcription, followed by polymerase chain reaction. In RT-qPCR, fluorescence is monitored during amplification, and a threshold cycle is related to starting RNA using calibrated standards and efficiency measurements. This also measures changes in cellular gene expression: compare a target transcript between conditions after suitable normalization. Include extraction controls, a no-template reaction and, for RNA measurements, a no-reverse-transcriptase control to detect genomic DNA contamination. A positive pathogen signal establishes the presence of target nucleic acid, not necessarily a viable organism or infectious virus. Likewise, RNA abundance is not a direct measurement of protein abundance or transcription rate, since RNA degradation also matters.

PCR is also a preparative method. Amplified coding sequences can be assembled into expression vectors; primer tails can add restriction sites, assembly overlaps, sequencing adaptors or an affinity tag. High-fidelity polymerase reduces unwanted substitutions, but the final clone should still be sequenced. Site-directed mutagenesis introduces a specified substitution using mutagenic primers, whereas error-prone PCR creates a library for directed evolution. Sequencing after selection distinguishes the intended change from other mutations. In chromatin immunoprecipitation, quantitative amplification of recovered loci can test enrichment of a DNA-associated protein, with input DNA and immunoprecipitation controls needed to interpret it.

These examples separate presence, identity, quantity and construction. Endpoint band intensity is a poor substitute for quantitative amplification measured before the PCR plateau; multiplex assays can also suffer unequal amplification. The appropriate answer therefore identifies what is amplified, what is measured, and which alternative explanation each control excludes.

The central principle is to attach a recoverable spatial address to an RNA-derived molecule before the tissue's positional organization is destroyed. After sequencing, each read identifies both a transcript and a capture location.

In the original array-based spatial transcriptomics method, a thin tissue section is placed on a slide carrying spatially indexed capture primers. The tissue is imaged for histology, then permeabilized. Polyadenylated messenger RNA binds the oligo(dT) region of the primers and is copied by reverse transcription. The resulting cDNA carries the positional barcode. Sequencing identifies the expressed gene, and a barcode lookup places its counts back on the tissue image. The first published array used approximately $100\mu \mathrm{m}$ capture features, so a feature could contain contributions from several cells; it was not a single-cell measurement by construction.^[ref]

Slide-seq applies the same addressing idea using a dense monolayer of roughly $10\mu \mathrm{m}$ barcoded beads. The bead barcode–position map is decoded in advance. A tissue section is transferred onto the beads, released RNA is captured, and the sequenced molecular addresses recover the bead-level expression map. This gives much finer spatial sampling than the original coarse array, although RNA capture efficiency and assignment to individual cells remain limiting.^[ref]

Some assays also incorporate a unique molecular identifier so that amplified reads from one captured molecule can be collapsed, reducing polymerase chain reaction duplication bias. Spatial barcodes identify capture locations; unique molecular identifiers identify molecules within those locations. Neither alone supplies cell boundaries.

For either method, align the coordinate map with histology, account for capture efficiency and background, and use independent tissue specimens as biological replicates. A smaller capture feature improves sampling granularity but does not guarantee equal effective spatial resolution or a pure single-cell transcriptome: tissue thickness, diffusion and mixed cell boundaries still matter.

The polymerase chain reaction amplifies a selected DNA region using repeated copying steps. Amplified material can be examined by DNA sequencing; appropriate template controls help distinguish a new rearrangement from material already present in the starting preparation.

The essential trick is to choose two PCR primers on opposite DNA strands with their extendible $3^{\prime }$ ends facing into the same interval. A DNA polymerase extends each PCR primer $5^{\prime }\to 3^{\prime }$; the resulting DNA can itself become a template. The amplicon is therefore selected by two opposed PCR primers, rather than by the DNA polymerase recognizing a named gene. This makes PCR amplification useful for inspecting one interval within a much larger genome. Here PCR means polymerase chain reaction; the statistical abbreviation PCR means principal component regression.^[ref]

For a deliberately tiny nucleotide sequence example, display the upper strand as $5^{\prime }\text{-}\mathrm{ACGT}\text{-}\mathrm{GGAATT}\text{-}\mathrm{CAGC}\text{-}{3}^{\prime }$. The left PCR primer is $5^{\prime }\text{-}\mathrm{ACGT}\text{-}{3}^{\prime }$ and binds the lower strand. The right PCR primer, written in its own $5^{\prime }$-to-$3^{\prime }$ direction, is $5^{\prime }\text{-}\mathrm{GCTG}\text{-}{3}^{\prime }$: the reverse complement of CAGC. It binds the upper strand and extends leftward in the drawing. With flanks outside this interval, the bounded amplicon contains $4+6+4=14$ base pairs, including both PCR primer sequences. These four-nucleotide PCR primers illustrate direction and counting only; they are not a proposed experimental design.

A useful way to understand the polymerase chain reaction is to separate recognition from construction. Base pairing positions a PCR primer; a DNA polymerase then joins new nucleotides onto that existing strand. The PCR primer becomes part of the copied DNA, rather than merely marking a place for an independent strand to start. A PCR thermal cycle repeatedly exposes templates, positions starting ends and permits construction. This makes DNA copying possible outside biological cells, with the chosen PCR primers specifying which interval is repeatedly accessible.

The 1993 Nobel chemistry announcement credits Kary Mullis with inventing the polymerase chain reaction method and states that the technique was first presented in 1985. The reusable-product principle explains its power: each successfully copied interval can help specify the next generation. The award attribution is a historical claim; it does not imply that every improvement in DNA polymerases, thermal cyclers or PCR controls came from one person.^[ref]
