Angular magnification is the ratio of the signed viewing angle with an optical instrument to the signed viewing angle in a stated reference arrangement. Measure both as apparent directions from the eye, positive toward the same side of the optical axis; then an inverted view has negative $M_{\theta }$. If only positive angular sizes are compared, the result is $|M_{\theta }|$ and carries no orientation information. ^[ref].

For the upright virtual image of a converging thin lens, let the eye be at $x=e\ge 0$ and take the unaided reference to be the same small object at a distance $D$ from the eye. Within the small-angle approximation,Specify $D$: keeping the object in its original position means $D=e+u$, whereas the customary magnifier rating uses a near-point reference, often $D=25\mathrm{cm}$. A reference distance is a convention, not a claim that every eye has that near point. ^[ref].

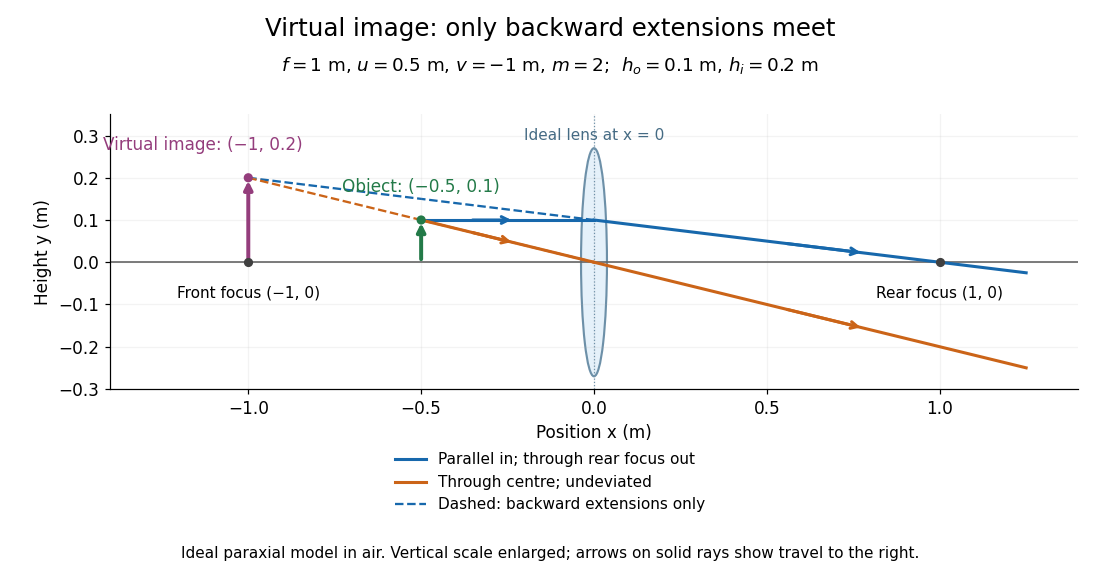

For the virtual image diagram, $m=4$, $v=-30\mathrm{cm}$ and $e=5\mathrm{cm}$. With $D=25\mathrm{cm}$, $M_{\theta }\simeq 20/7$, whereas keeping the object at $D=e+u=12.5\mathrm{cm}$ gives $M_{\theta }\simeq 10/7$. Thus neither viewing comparison gives the transverse magnification four. A person may also be unable to focus on the unaided object at the shorter reference distance.

At $u=f$, each outgoing bundle is parallel with slope $-h_o/f$; its apparent viewing direction has angle ${\theta }_i\simeq h_o/f$. Consequently $M_{\theta }\simeq D/f$ remains finite even though $m$ is undefined at a finite image plane. Equivalently, in the limit $u\to f^{-}$, the factors $m$ and $e-v$ both grow without bound but their ratio tends to $1/f$. For $f=10\mathrm{cm}$ and $D=25\mathrm{cm}$, the relaxed-view prediction is $M_{\theta }\simeq 2.5$. ^[ref].

An aperture is an opening that admits light into or through an optical instrument. Its shape and size select the transmitted light rays; an aperture alone does not bend them as an optical lens does. The aperture stop is the opening that most restricts the bundle from an on-axis object point. The entrance pupil is the image of that aperture stop formed by the preceding optical lens elements, viewed from the object side. Consequently the effective collecting diameter $D$ is the entrance pupil diameter, which can differ from the physical hole's diameter. For example, preceding optical lens elements that enlarge a $10\mathrm{mm}$ aperture stop by a factor of two give $D=20\mathrm{mm}$; measuring the physical hole alone would misidentify the focal ratio. ^[ref].

For an unobscured circular entrance pupil under a uniform beam normal to its plane, the collecting area and admitted radiant flux arewhere $E_{\mathrm{pupil}}$ is incident irradiance. Doubling $D$ quadruples admitted radiant flux. Obstructions, nonuniform illumination and losses after the entrance pupil require the actual illuminated area and transmission to be included. The same $D$ also sets an angular diffraction-limited resolution scale $\lambda /D$ at wavelength $\lambda$. Collection and diffraction therefore answer different questions from field of view: an aperture selects the bundle from each object point, while the receiving plane's extent helps select which object directions appear in the image.

NASA/JPL's published pinhole demonstration uses two white cards, foil taped over a window in one card, and a small hole pierced in the foil. Sunlight passes through the hole onto the second card; the projected image is viewed on that card. The activity describes a larger image when the card separation increases, improved visibility when the receiving card is shaded, and a separate image from each of several holes. These are qualitative observations of image formation, rather than calibrated measurements of radiant flux or diffraction. ^[ref].

A proposed quantitative extension replaces sunlight by a steadily illuminated asymmetric target and puts the foil and a translucent receiving screen in a dark box. Record target distance $u$, hole-to-screen distance $b$, hole diameter $d$, image height, orientation and edge blur. Measure screen brightness with a fixed photodetector, or record the screen with an optical camera whose integration time and gain stay fixed. Exchange centred foils of measured $d$ at fixed $u,b$; then vary $b$ with the same foil. Geometrical optics predicts an inverted image with transverse magnification $m=-b/u$ and a point's geometric blur diameter $d(1+b/u)$. Thus a larger hole admits more radiant flux without changing the central image scale, whereas increasing $b$ enlarges the image. These are predictions to test, not reported data. Keep target illumination and detector position fixed, subtract a hole-covered dark reading, repeat the original foil to check drift, and avoid clipping the detector response. Foil thickness and ragged edges can block oblique light rays; at sufficiently small $d$, diffraction invalidates the claim that ever smaller holes always sharpen the image. A lensless optical camera has no optical lens focal length: $b$ is a propagation distance, not that focal length.

For small measurement errors, write $f=L/4-d^2/(4L)$. Its partial derivatives and first-order propagation of uncertainty areHere the $\sigma$ values are standard deviations used to describe uncertainty, and $\mathrm{Cov}(L,d)$ is the covariance. Independent carrier-reading errors give ${\sigma }_d^2={\sigma }_{r_{-}}^2+{\sigma }_{r_{+}}^2$; correlated readings require the term $-2\mathrm{Cov}(r_{-},r_{+})$. Averaging repeated independent pairs reduces the random component of the uncertainty of the mean, but does not remove calibration or model errors.

As a stipulated uncertainty calculation, let $L=45\mathrm{cm}$, $d=15\mathrm{cm}$, ${\sigma }_L=0.10\mathrm{cm}$ and ${\sigma }_{r_{-}}={\sigma }_{r_{+}}=0.05\mathrm{cm}$, with all three input errors independent. Then ${\sigma }_d=0.0707\mathrm{cm}$, $A=5/18$, $B=-1/6$ and ${\sigma }_f\simeq 0.0302\mathrm{cm}$. The result would be $f=10.000\mathrm{cm}$ with this standard uncertainty in the stipulated thin lens model; these numbers are not a measured uncertainty budget. A small neglected principal-plane separation gives an additional first-order bias $f_{\mathrm{thin}}-f\simeq Ah$, distinct from that random budget.

The two kinds of sensitivity must be distinguished. At fixed focal length,These derivatives diverge as $L$ approaches $4f$ from above: a small change in object-screen spacing strongly changes the separation of the two settings. Yet the inferred focal length's displacement sensitivity $|B|=d/(2L)$ tends to zero. That does not make coalescing settings easy to measure. For fixed $L$, define the axial mismatch between the predicted real image and the screen as $g(x)=fx/(x-f)-(L-x)$, for $x>f$. At a focused setting,Near $u=v=2f$, moving the optical lens changes this mismatch only weakly, making visual discrimination of the two settings difficult. At the example's settings $g^{\prime }(15\mathrm{cm})=-3$ and $g^{\prime }(30\mathrm{cm})=3/4$, so equal carrier motion produces different axial defocus responses. This is an axial mismatch calculation, not a full prediction of perceived image sharpness.

Choose $L$ sufficiently above $4f$ to separate the two accepted focusing ranges, while retaining both real images on the available screen and rail. There is no universal best $L$: focusing uncertainty itself depends on aperture, transverse magnification, optical aberrations and the target. Close to $d=0$, the nonnegative measured separation and the quadratic term in $d$ also make first-order propagation of uncertainty unreliable if its error is comparable to its value. Repeatability, controls and the principal plane correction determine whether the elegant two-distance formula is an adequate measurement model.

KIT's teaching apparatus uses a glass spoke-wheel or test negative as the object, a halogen lamp with an illuminating optical lens, an imaging optical lens, a screen and a triangular rail with a position scale. The illuminating optical lens concentrates the lamp filament's image on the imaging optical lens's centre; translucent paper checks that illumination. This reduces the contribution of peripheral light rays and their spherical aberration. The instructions require fixed object-screen separation exceeding $4f$, at least ten displacement measurements, and separate red- and blue-filter measurements to test chromatic aberration.^[ref]

The following measurement protocol elaborates that apparatus rather than reporting additional KIT results. Align the target centre, optical lens and screen normal along one optical axis; measure $L$ between the target pattern plane and receiving screen face. Lock the target and screen. Slide the imaging optical lens to obtain the enlarged real image, then the reduced real image, reading the same carrier reference mark at each setting. Record $r_{-},r_{+}$ and $d=r_{+}-r_{-}$ for each pair. Record corresponding target and image intervals to test the reciprocal transverse magnifications independently; merely observing different image sizes is a weaker test.

Use the same central target detail to judge best optical focus. Bracket each setting by moving through both visibly blurred sides, repeat from both travel directions, and record the accepted position range as well as repeat scatter. Rail divisions set a readout limit but do not alone specify focusing uncertainty. Check scale calibration, carrier play and drift; a common additive carrier offset cancels in $d$, whereas scale-factor error remains. Keep illumination, aperture, target, screen and optical lens orientation fixed within a series. Change the aperture and colour filter in separate control series: spherical aberration and chromatic aberration can shift the apparent best optical focus, while a very small aperture introduces stronger diffraction and makes focus discrimination harder. Record these settings alongside the inferred focal length, rather than interpreting all disagreement as random measurement error.

For a rigid thick lens in air, let $h=x_{H^{\prime }}-x_H$ be the signed separation of its rear and front principal planes along the direction of propagation. Then the positive object and image distances measured from the principal planes obey $u+v=L-h$. Translating the whole assembly without reversing it moves both principal planes equally, so the measured carrier displacement still equals the difference of the two solutions for $u$. The same algebra therefore givesHere $f$ is the effective focal length measured from the principal planes. This deduction uses the principal-plane imaging equation, not the uncorrected thin lens formula.^[ref] Mechanical centre thickness is not generally $h$. Record thickness and optical lens orientation, but use a justified bound or model for $h$ if it matters at the claimed precision. The two readings $L,d$ alone cannot determine both $f$ and unknown $h$; cancelling a carrier offset does not cancel this limitation.

The Bessel lens displacement method measures a converging thin lens's focal length by moving only the optical lens between a fixed object and screen. If their separation is $L>4f$, two settings give sharp real images: one enlarged, the other reduced. Read their separation $d$ on an optical bench, then calculateThe two settings exchange object and image distances, so their signed transverse magnifications are reciprocals. This makes the experiment a visible test of conjugate optical planes as well as a focal length measurement.^[ref]

For an original stipulated example, put the object at $x=0$, the screen at $x=L=45\mathrm{cm}$, and take an ideal thin lens with $f=10\mathrm{cm}$. Its two settings are $x_{-}=15\mathrm{cm}$ and $x_{+}=30\mathrm{cm}$, with $d=15\mathrm{cm}$. The transverse magnifications are $m_{-}=-2$ and $m_{+}=-1/2$: both real images are inverted. An object $0.50\mathrm{cm}$ tall would give signed image heights $-1.00\mathrm{cm}$ and $-0.25\mathrm{cm}$. Conversely, stipulated readings $L=45\mathrm{cm}$ and $d=15\mathrm{cm}$ give $f=(45^2-15^2)/(4\times 45)=10\mathrm{cm}$. These are model calculations, not measured data or a manufacturer's calibration.

A fixed offset between a carrier's reference mark and an ideal thin lens plane cancels when subtracting the two carrier readings. That useful cancellation does not make a thick lens equivalent to one unknown optical centre: its two principal planes can be separated. The Bessel lens displacement experiment below makes this limitation explicit.

Place a converging thin lens at coordinate $x$ between the object at $0$ and the screen at $L$. In air and the paraxial approximation, the required object and image distances are $u=x$ and $v=L-x$. The thin lens equation gives a quadratic equation:Its discriminant is $L^2-4Lf$. For $L>4f>0$, the two roots and their separation areBoth roots lie inside $(0,L)$, and both object and image distances exceed $f$. The two roots therefore describe finite real images on the screen. Exchanging the roots exchanges $u,v$; from transverse magnification $m=-v/u$,The image-height ratio between the enlarged and reduced settings is $|m_{-}|/|m_{+}|=|m_{-}{|}^2$, rather than $|m_{-}|$.

At $L=4f$, the roots coincide: $d=0$, $x=L/2=2f$, $u=v=2f$ and $m=-1$. There is one setting, not two separately measurable settings. For $0<L<4f$ the discriminant is negative, so no position between the fixed object and screen gives a sharp real image there. This does not forbid a real image elsewhere if the screen is moved. Another short proof observes that $x(L-x)$ has maximum $L^2/4$ at $x=L/2$; the focusing requirement $x(L-x)=Lf$ is possible exactly when $L\ge 4f$.

An optical camera can focus a white object sharply in one colour while leaving coloured fringes around its edges in another. Chromatic aberration is the dependence of image position or image scale on wavelength, caused by optical dispersion in the optical lens materials. Axial chromatic aberration separates the optical foci along the optical axis; lateral chromatic aberration changes the transverse magnification with wavelength. Moving the receiving plane can favour one colour without bringing all colours into focus. ^[ref]; ^[ref].

For ordinary optical glass in the visible range, the blue refractive index exceeds the red refractive index. For a fixed positive thin lens in air, the lensmaker's equation then givesHere $\lambda$ is wavelength, $n$ is refractive index, $\Phi$ is optical power, $f$ is focal length, and $R_a,R_b$ are the signed surface radius of curvature values in the lensmaker's equation. The blue light rays therefore bend more strongly and meet sooner. This ordering is a statement about ordinary visible optical dispersion, not a universal rule for every material and every spectral range. ^[ref].

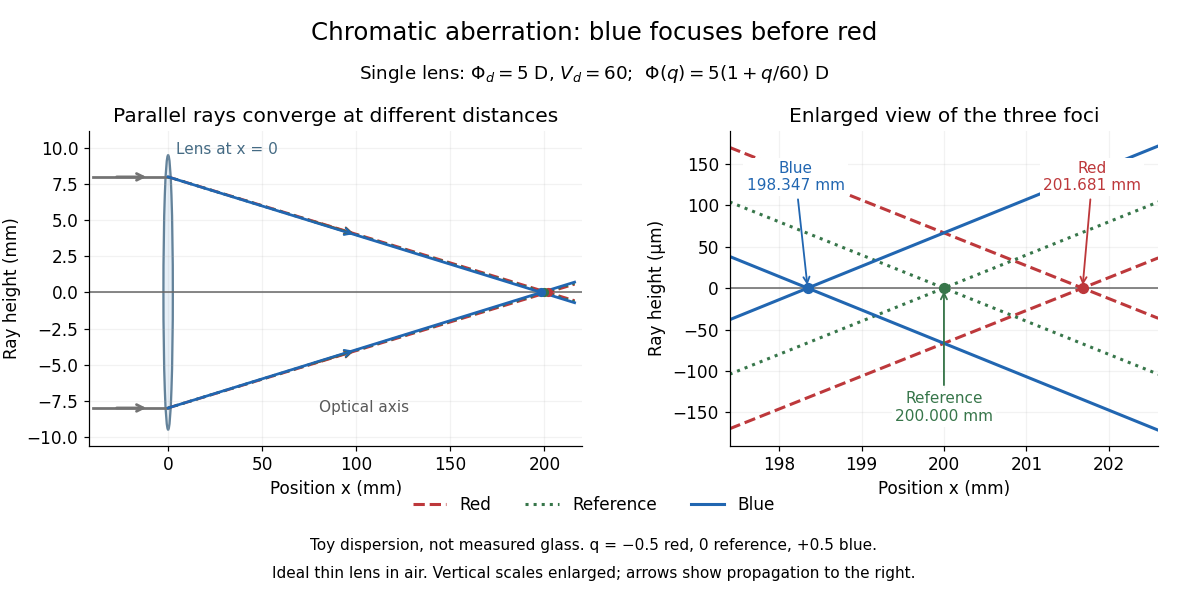

For a worked example, take a single positive thin lens with reference optical power ${\Phi }_d=5\mathrm{D}$ and Abbe number $V_d=60$, hence reference focal length $f_d=0.2\mathrm{m}$. Its F–C optical power difference is $\Delta \Phi ={\Phi }_F-{\Phi }_C={\Phi }_d/V_d=5/60\mathrm{D}\approx 0.08333\mathrm{D}$, by the achromatic doublet power balance relation below. This difference alone does not locate the reference optical power within the F–C interval. To draw a transparent example, introduce a synthetic colour coordinate $q$, a dimensionless quantity, with red $q=-1/2$, reference $q=0$, and blue $q=+1/2$, and choose the toy optical dispersion modelThe diagram's red and blue endpoints represent the C and F endpoints of this toy model. Its reference point is placed symmetrically in optical power by construction; $q$ is not a measured wavelength scale, and the model is not measured optical glass data. The endpoint focal lengths areThus the axial chromatic aberration in this example separates the endpoint optical foci by about $3.334\mathrm{mm}$. A single receiving plane cannot coincide with both optical foci.

The useful design idea is to cancel changes of optical power while retaining a positive total optical power. An achromatic lens does this with materials having different Abbe numbers. It greatly reduces chromatic aberration, but correcting two chosen wavelengths still leaves the possibility of a secondary spectrum.

A dioptre, also spelled diopter, is the unit of optical power equal to one reciprocal metre. In $\Phi =1/f$, convert focal length to metres before taking the reciprocal: $f=25\mathrm{cm}=0.25\mathrm{m}$ gives $\Phi =4\mathrm{D}$, not $0.04\mathrm{D}$. A dioptre measures focusing strength, distinct from the transverse magnification of an image.

A proposed optical bench test uses a steady illuminated diffuse patch, a relay made from two optical lens elements, interchangeable centred circular stops, and a calibrated optical power meter large enough to collect the whole output bundle. Start with small cone angles so an ordinary relay approximates the area-angle tradeoff. Measure the patch's image diameter and the accepted angular extent at both conjugate planes; the transverse magnification gives the spatial scale, but does not by itself measure etendue.

Map the local radiance with a baffled photodiode on translation and rotation stages, using two small aligned holes to select a narrow known solid angle. Keep the sampled position fixed while scanning direction, calibrate the sampling footprint and angular response, and repeat at several positions. Numerically integrate $n^2\cos \theta dAd\Omega$ over the occupied samples, and integrate $(L/n^2)dG$ to predict the collected radiant flux. This checks the filled-cone assumption instead of inferring it from two outer dimensions.

Compare the relay without a stop and with a stop of $0.6$ times the illuminated diameter in the same plane. The uniform-bundle prediction is a radiant flux ratio of $0.36$, with unchanged local radiance in the surviving samples. Cover the input for a dark reading, monitor source drift, repeat the open-stop reading, check detector linearity with calibrated optical attenuators, and enlarge the collecting detector or scan it to check for missed light rays. Lens losses, angular response, illumination gradients, alignment errors and diffraction can spoil the ideal prediction; their effects must be measured separately. This is a procedure to try, with predicted readouts, not purported experimental data.

An optical microscope whose microscope objective is designed to form a real image at a specified finite distance. The intended image distance and optical aberration corrections belong together; mechanical tube length is a mounting specification, not automatically the image distance measured from a principal plane.^[ref]

Why can a small displacement produce a large image? For a converging thin lens, write $u_o=f_o+ϵ$ with $epsilon>0$. Substitution into the thin lens equation givesThe similar triangles construction supplies the minus sign. The example has $epsilon=2\mathrm{mm}$ and hence $m_o=-5$. Letting $epsilon$ decrease moves the real image farther away; it does not keep the microscope eyepiece in focus at a fixed position. Large transverse magnification therefore requires the correct conjugate geometry, not merely a short focal length.

The focal ratio, or f-number, of a converging optical instrument focused at infinity is the dimensionless quantitywhere $f>0$ is effective focal length and $D$ is the on-axis entrance pupil diameter. The notation f/4 means $N=4$, not $f=4$ in a particular unit. A $100\mathrm{mm}$ focal length with $D=25\mathrm{mm}$ gives f/4. Closing the aperture stop until $D=12.5\mathrm{mm}$ gives f/8 while retaining the same focal length. The mechanical opening need not equal $D$. ^[ref].

For a thin lens in air with a circular aperture stop at the thin lens, the converging bundle from a distant on-axis point has half-angle $\alpha$ satisfyingThe last step uses the small-angle approximation. For a compound optical lens, the cone is set by the image-side optical pupil and its distance from the receiving plane; the simple triangle is not an exact high-angle rule. At finite object distance a thin lens instead gives $v=f(1+|m|)$, by its imaging equation and transverse magnification, so its working cone corresponds to $v/D=N(1+|m|)$. Nominal focal ratio therefore does not alone specify close-range image irradiance. ^[ref].

Two useful scalings follow under stated conditions. For a fixed uniform incident beam and unchanged transmission, collected radiant flux scales as $D^2$. For an extended source with fixed radiance, the central image irradiance scales approximately as $N^{-2}$ in the paraxial approximation: the solid angle of the cone scales as $(D/f{)}^2$. For an ideal uniformly illuminated unobscured circular entrance pupil, the first dark ring of the point spread function has angular radius and focal plane radiusHere $\lambda$ is wavelength. These are first-zero radii, not diameters or a universal rule for resolving arbitrary objects. A proof outline evaluates the circular aperture's Fraunhofer diffraction using its Fourier transform, then uses the first zero of the resulting Bessel function. ^[ref].

At $\lambda =0.55\mu \mathrm{m}$, the example's f/4 and f/8 first-ring radii are $2.684$ and $5.368\mu \mathrm{m}$. Closing the aperture stop halves $D$, quarters collected radiant flux and doubles this diffraction radius. It can also reduce optical aberrations by excluding outer light rays; actual sharpness reflects both effects. This explains why a smaller aperture need not produce a sharper image. ^[ref].

A proposed optical bench check puts a fixed collimator before a converging thin lens and a photodetector large enough to collect the entire image behind it. Compare two centred aperture stops of known diameters while fixing source output, detector gain and integration time. The integrated signal tests the $D^2$ collection law; a spatially resolved optical camera at the focal plane can separately measure the point spread function. Repeat a dark reading and the first aperture stop, and check that neither the incoming beam nor detector clips either bundle. A resolved pinhole source, imperfect collimation, optical aberrations and detector pixel size can dominate the apparent spot width; a single peak reading does not measure total collected radiant flux.

An optical microscope whose microscope objective, with the specimen at its designed front focal plane, sends out a parallel bundle of light rays from each specimen point. Different specimen points generally give different bundle directions. A tube lens then forms the finite intermediate microscope image; the microscope eyepiece views it. This parallel region permits suitable optical accessories to be inserted. Finite-conjugate and infinity-corrected components must be matched to their intended system.^[ref]

In the ideal paraxial approximation, an object height $h_o$ at objective focal length $f_o$ gives bundle slope $-h_o/f_o$. A tube lens of focal length $f_t$ maps that slope to $h_i=-f_t{h}_o/f_o$, soThis is a two-assembly result. Substituting infinity into the single-objective transverse magnification $-v_o/u_o$ would not describe the finite recorded image. Infinity correction concerns the region after the objective; relaxed-eye viewing concerns the region after the eyepiece. They are distinct conditions.

Lateral chromatic aberration, also called transverse chromatic aberration, is colour-dependent image scale: an object away from the optical axis can have different image heights at different wavelengths. Its changing transverse magnification produces displaced coloured edges. The on-axis parallel bundle in the chromatic aberration diagram illustrates axial chromatic aberration, and does not measure lateral chromatic aberration. ^[ref].

An optical lens is a transparent element, or assembly of elements, that redirects a bundle of light rays to form images or change how the bundle spreads. In an ordinary glass optical lens, refraction at the surfaces provides the redirection: their changing normal vectors make Snell's law bend different light rays by different amounts. A converging optical lens brings incoming light rays parallel to its optical axis toward an optical focus; a diverging optical lens makes them spread as if from an optical focus on the incoming side. ^[ref].

For a usual glass thin lens in air, a form thicker at the centre than at the edges normally converges, with positive focal length; one thinner at the centre normally diverges. Shape alone is insufficient: the refractive index relative to the surroundings also matters, as the lensmaker's equation shows. An aperture selects which light rays pass; an optical lens also changes their directions. The distinction explains how an optical camera can gather light from one object point over many incoming directions and deliver it to one image location.

The beautiful simplification is that an entire bundle can be characterized by a focal length, and two constructed light rays can locate an image. The thin lens examples below turn that geometry into a prediction of image position, orientation and transverse magnification. A real optical lens retains optical aberrations and diffraction, so the construction is a useful leading model rather than an exact solution of Maxwell's equations.^[ref]

Early mathematical treatments include Johannes Kepler's 1611 Dioptrice, whose title explicitly concerns vision through newly invented instruments using transparent glass, and René Descartes's 1637 La Dioptrique, whose seventh discourse discusses improving vision with shaped glass. These are landmarks in explaining and designing optical instruments, rather than dates for the invention of the optical lens. ^[ref]; ^[ref].

Magnification compares an image's scale with a specified reference. Transverse magnification compares signed lengths in object and image planes; angular magnification compares viewing angles at an observer. Both are dimensionless quantities, but they answer different questions. A projected real image twice as tall has $|m|=2$; an optical telescope's advertised viewing enlargement normally concerns angular magnification. ^[ref].

Always specify the sign and the reference arrangement. For signed transverse magnification, $m<0$ means inverted and $m>0$ means upright; $|m|>1$ means enlarged and $0<|m|<1$ means reduced. A larger virtual image can subtend a modest viewing angle if it is farther away. At $u=f$, an ideal converging thin lens has no finite image height and hence no finite transverse magnification, while angular magnification can remain finite. Enlargement also does not guarantee extra detail: diffraction-limited resolution and optical aberrations limit the information available to enlarge. ^[ref].

The viewing optical lens assembly that acts as a magnifier of the intermediate microscope image. With that image at its front focal plane, the outgoing light rays from each point are parallel. In the small-angle approximation, the viewed angle is $h_i/f_e$, versus $h_i/D$ for the same image-sized object at reference distance $D$, giving $M_e=D/f_e$.^[ref]

A finite-distance virtual image requires a different eyepiece conjugate. In the ideal thin lens model, with the eye close to the eyepiece and the virtual image at distance $D$, the angular magnification becomes $1+D/f_e$. State the viewing condition before multiplying by the objective's transverse magnification; the relaxed-eye example above uses $D/f_e$.

An optical bench is a rail or aligned platform carrying an object, optical lens elements and a screen or detector at readable positions. It turns image formation into measurements of position and transverse magnification. Read distances between the optical planes rather than arbitrary holder boundaries; keep heights and optical axis alignment controlled. ^[ref].

An optical microscope uses light and optical lens assemblies to reveal small structures, such as the boundaries of biological cells or defects in a manufactured surface. In a compound optical microscope, the microscope objective supplies an enlarged real image; the microscope eyepiece makes that intermediate microscope image subtend a larger viewing angle. The transverse magnification of the first stage and the angular magnification of the second answer different questions.^[ref]

Consider an original ideal finite-conjugate microscope in air, with both optical lens assemblies treated as converging thin lens elements in the paraxial approximation. Choose objective focal length $f_o=10\mathrm{mm}$ and object distance $u_o=12\mathrm{mm}$. The thin lens equation and signed transverse magnification givePlace a microscope eyepiece of focal length $f_e=25\mathrm{mm}$ a further $25\mathrm{mm}$ beyond the intermediate microscope image. The objective-to-eyepiece separation is therefore $85\mathrm{mm}$. Each object point then supplies a parallel outgoing bundle of light rays, appropriate to a relaxed eye focused at infinity. Define the unaided reference as the same object viewed at distance $D=250\mathrm{mm}$; this is a rating convention, not a universal property of eyesight. The eyepiece angular magnification and total signed angular magnification areFor instance, a hypothetical object height $h_o=0.020\mathrm{mm}$ becomes $h_i=-0.100\mathrm{mm}$ at the intermediate microscope image. The signed viewing angles are approximately $h_i/f_e=-0.004\mathrm{rad}$ with the instrument and $h_o/D=0.00008\mathrm{rad}$ unaided. Their ratio is $-50$: enlarged and inverted. These are stipulated model dimensions, not measurements or specifications of a modern commercial optical microscope.

The attraction of an optical microscope is that seeing can become measuring: a stage micrometer supplies a known object-space length, and microscope scale calibration converts an image readout into a specimen length. This also separates a large-looking image from a trustworthy size estimate. Meanwhile, diffraction-limited resolution depends on numerical aperture and wavelength; empty magnification enlarges an existing blur without revealing additional structure.

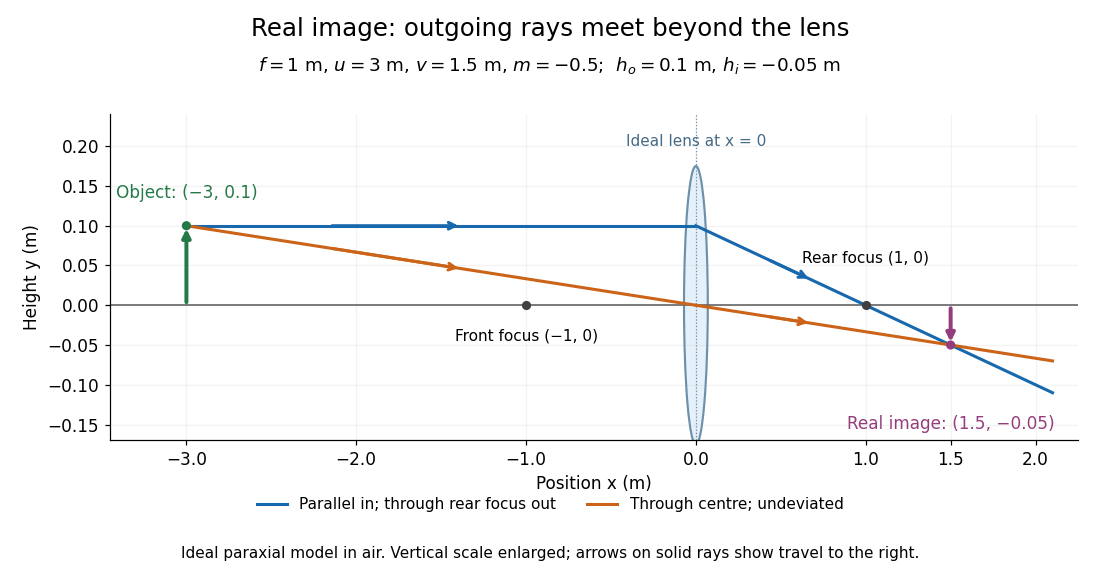

The real image is upside down. A converging optical lens produces negative transverse magnification on the screen: a point above the optical axis sends a central light ray through the optical lens centre to a point below the optical axis. The same happens in the horizontal direction. Viewed directly from behind, the screen therefore shows a picture rotated through $180^{\circ }$ relative to the scene.

Use a converging thin lens as a magnifying glass, with the screen at or just inside its front focal plane. It presents an upright virtual image at infinity or at the eye's near point, respectively. Let the near point distance be $D$; the conventional numerical assumption is $D=250\mathrm{mm}$, which is not specified in the paper.

Under the usual approximation that the eye is close to the eyepiece, interpreting $50\mathrm{mm}$ as the focal length $f$ gives the familiar angular magnificationsThe first is for a relaxed eye with the screen at the front focal plane. For the second, the virtual image is at signed distance $v=-D$ and the thin lens equation gives screen distance $u=fD/(D+f)=41.7\mathrm{mm}$. Thus the often intended maximum $6$ requires a screen-to-eye distance of approximately $41.7\mathrm{mm}$, rather than exactly $50\mathrm{mm}$.

If $50\mathrm{mm}$ instead fixes the physical screen-to-eye separation $s$, an eye adjacent to the optical lens sees the angular magnificationThis is achieved by $f=s$ for relaxed viewing, or by $f=sD/(D-s)=62.5\mathrm{mm}$ for a virtual image at the near point. The latter follows from $1/f=1/s-1/D$.

More generally, the source does not specify the eyepiece-to-eye distance either. If that distance is $e$, then $u=s-e$ and a virtual image at the near point has transverse magnification $(D-e)/u$. Its angular magnification relative to unaided viewing at $D$ isFor example, $s=50\mathrm{mm}$ and $e=25\mathrm{mm}$ give $M=9$, with $u=25\mathrm{mm}$ and $f=28.125\mathrm{mm}$. This is a concrete counterexample to a universal maximum of $5$ at fixed screen-to-eye separation. In ideal geometrical optics, $e\to s^{-}$ allows arbitrarily large $M$ with an arbitrarily short focal length; practical aperture and optical aberrations constrain this. A unique numerical maximum therefore needs the conventional near-eye eyepiece geometry and near point assumption. The conventional $f=50\mathrm{mm}$ answer is $6$, with those assumptions stated explicitly.
