For sinusoidal current density $J(t)=J_{\mathrm{pk}}\cos (\omega t)$ and constant carrier density $n$, the Electron drift velocity is $v_d(t)=-J_{\mathrm{pk}}\cos (\omega t)/(ne)$. Its displacement has amplitude $J_{\mathrm{pk}}/(ne\omega )$ and zero net change over a full cycle. The distance accumulated by this drift alone in one cycle is $4v_{\mathrm{pk}}/\omega =2v_{\mathrm{pk}}/(\pi f)$. With an RMS current, $v_{\mathrm{pk}}=\sqrt{2}{v}_{\mathrm{rms}}$. This does not measure the much larger microscopic path due to Fermi velocity and electron-phonon scattering.

The clean isotropic weak-coupling BCS coherence length is conventionally ${\xi }_0=\hslash v_F/(\pi \Delta (0))$, with Fermi velocity $v_F$. It characterizes the spatial extent of pairing correlations.^[ref]

The scale follows from the same spectral calculation. Linearizing the normal energy near the Fermi surface gives ${\xi }_k\simeq \hslash v_F(k-k_F)$. The region $|{\xi }_k|\lesssim \Delta$ therefore has radial width $\delta k\sim \Delta /(\hslash v_F)$. Fourier analysis associates this width with a distance $\ell \sim 1/\delta k\sim \hslash v_F/\Delta$. This argument establishes the scale, not the conventional factor $1/\pi$. A small superconducting energy gap consequently permits pairing correlations over many interparticle spacings.

A Landau quasiparticle is a fermionic excitation connected continuously to a Fermi gas particle when interactions preserve the phase. Near an isotropic Fermi surface, its energy relative to the chemical potential is ${\xi }_p={ϵ}_p-\mu \simeq v_F(p-p_F)$, with Fermi momentum $p_F$ and Fermi velocity $v_F$.^[ref]

The Pauli exclusion principle restricts decay. For a three-dimensional normal Fermi liquid with regular short-range interactions, a representative low-energy lifetime model isHere $E_{\ast }$ is an energy scale and $A$ is dimensionless; sharpness requires $\hslash /{\tau }_p\ll |{\xi }_p|$ at zero temperature.^[ref]

For an original example, stipulate $A=1$ and $T=0$. At $|{\xi }_p|/E_{\ast }=0.02$, the decay energy is $0.0004E_{\ast }$, just $2\%$ of the excitation energy; halving $|{\xi }_p|$ reduces that ratio to $1\%$. Approaching the Fermi surface improves the particle description even though the microscopic interaction has not weakened. This quadratic illustration is three-dimensional; low-dimensional corrections require separate analysis.

Interpret “3 mm wire” as a circular wire of diameter $3\mathrm{mm}$, and take the current density as uniform. One conduction Electron per atom givesUsing $I=neA|v_d|$, the drift velocity corresponding to a current magnitude of $13\mathrm{A}$ isIt points opposite to conventional electric current. A simple distance scale over the $1/50=0.020\mathrm{s}$ cycle is $\boxed{|v_d|/f=2.71\mu \mathrm{m}}$, but this treats the magnitude as constant. For sinusoidal mains, alternating-current drift excursion gives zero net displacement after a full cycle.

If $13\mathrm{A}$ is the usual root mean square current, $v_{\mathrm{pk}}=\sqrt{2}|v_d|$ and the displacement amplitude and total absolute drift distance per cycle areIf $13\mathrm{A}$ instead denotes peak current, these become $0.431\mu \mathrm{m}$ and $1.72\mu \mathrm{m}$. The paper does not state peak versus RMS; the characteristic drift is the boxed $1.35\times 10^{-4}\mathrm{m}{\mathrm{s}}^{-1}$ on whichever current convention is chosen. It also does not explicitly say diameter; taking $3\mathrm{mm}$ as the radius would reduce all these velocities and drift distances by four. None of these distances is the microscopic path travelled at roughly the Fermi velocity between scattering events; that path cannot be obtained from the supplied current alone.

In a metal, mobile Electrons transport heat as well as electric charge. A temperature gradient creates an imbalance between carriers arriving from warmer and colder regions. The resulting heat current obeys Fourier's law ${\mathbf{j}}_Q=-\kappa \nabla T$ for an isotropic material, where thermal conductivity $\kappa$ has units $\mathrm{W}{\mathrm{m}}^{-1}{\mathrm{K}}^{-1}$. For a bar of area $A$ carrying steady heat flow $P$, $P=-\kappa AdT/dx$ when parasitic losses are negligible.

A kinetic estimate for the electronic contribution iswhere $C_e$ is the electronic heat capacity per volume, $v_F$ the Fermi velocity, and ${\ell }_{\kappa }=v_F{\tau }_{\kappa }$ the heat-transport mean free path. Fermi-Dirac statistics and the Pauli exclusion principle restrict thermal rearrangements to states near the Fermi surface, rather than allowing every Electron to contribute a classical heat capacity. A degenerate parabolic band givesUsing the Drude model form $\sigma =n{e}^2{\tau }_{\sigma }/m$ for electrical transport, the relation between thermal and electrical relaxation times in metals becomesFor scattering that relaxes heat and charge currents similarly, ${\tau }_{\kappa }\simeq {\tau }_{\sigma }$ and the Wiedemann-Franz law follows:Thus good electrical conductors are usually good thermal conductors. The correct quantum Lorenz number differs from a naive classical electron-gas estimate.

Scattering from impurities, boundaries and phonons limits the heat-transport path. In an impurity-dominated low-temperature regime with approximately constant relaxation time, ${\kappa }_e$ is approximately proportional to $T$. Where phonon-limited electrical resistivity is proportional to $T$ and the Wiedemann-Franz approximation is applicable, ${\kappa }_e$ can be roughly temperature independent. Inelastic processes can relax heat and charge currents differently, so the Lorenz ratio is not universal at all temperatures. Lattice phonons add a separate positive thermal contribution; the measured total is $\kappa ={\kappa }_e+{\kappa }_{\mathrm{ph}}$, and the electronic Wiedemann-Franz expression should not be applied blindly to that total.

In a metal, a partially filled energy band or overlapping energy bands supplies Electrons with nearby unoccupied states. At thermal equilibrium, oppositely directed group velocities are equally populated and the net electric current vanishes. An applied electric field distorts the occupation distribution, producing a small mean drift velocity. A filled energy band alone has no such low-field intraband response because its velocity contributions cancel over the entire Brillouin zone.

In the Drude model, let $n$ be the mobile Electron number density, let $e>0$ be the elementary charge, and let $\tau$ be the momentum relaxation time. The mean motion obeysThe steady state is ${\mathbf{v}}_d=-e\tau \mathbf{E}/m$. The current density is opposite to the Electron drift velocity:This gives microscopic Ohm's law, with electrical conductivity $\sigma$ in $\mathrm{S}{\mathrm{m}}^{-1}$ and electrical resistivity ${\rho }_{\mathrm{el}}$ in $\Omega \mathrm{m}$. For a uniform wire of length $\ell$ and cross-sectional area $A$, its electrical resistance is $R={\rho }_{\mathrm{el}}\ell /A$. The dissipated power per volume is $\mathbf{J}\cdot \mathbf{E}=\sigma E^2$, the Joule heating supplied by the external source.

The free electron model with Fermi-Dirac statistics improves the microscopic picture. The Pauli exclusion principle fills states up to the Fermi energy at low temperature. For a spherical, parabolic energy band with two spin states,Only states near the Fermi surface change their occupation in a weak-field response; the large equilibrium Fermi velocity is not the small drift velocity. The same $n{e}^2\tau /m$ formula results for this isotropic parabolic model when $\tau$ is evaluated for transport near the Fermi surface. In a crystal, the energy band group velocity, effective mass and possibly direction-dependent scattering replace the simplest bare-particle picture. The mean free path is approximately ${\ell }_{\mathrm{mfp}}=v_F\tau$.

A perfectly periodic static lattice is already included in Bloch states and does not by itself give a finite electrical resistivity. Momentum relaxation comes from defects, impurities, boundaries, and electron-phonon scattering. Independent scattering mechanisms approximately add their rates, giving Matthiessen's rule,The approximately temperature-independent ${\rho }_0$ is the residual resistivity. In ordinary simple metals, the phonon contribution is approximately proportional to temperature at high temperature; a three-dimensional acoustic-phonon transport model gives a $T^5$ contribution well below the relevant Debye temperature. Other mechanisms can dominate in particular materials or regimes, so neither power law is universal.

The classical Drude model incorrectly treats the equilibrium carrier statistics. Fermi-Dirac statistics explains the small electronic heat capacity, while electrons carrying both charge and heat give the approximate Wiedemann-Franz law ${\kappa }_e/(\sigma T)={\pi }^2{k}_B^2/(3e^2)$ for degenerate carriers with appropriate nearly elastic scattering. Both the simple electrical conductivity formula and this thermal relation depend on the assumptions about energy bands and scattering, rather than being exact for all metals.

Why degenerate perturbation theory is needed. If several unperturbed states have equal or nearly equal energy, a perturbation can mix them at leading order. In that subspace, diagonalize the perturbation matrix rather than using nondegenerate formulas with small energy denominators. The resulting eigenvectors identify the combinations selected by the coupling, and the eigenvalues give the leading splitting. Other remote states can then be included perturbatively.

For the linear combination of atomic orbitals description of molecular hydrogen, equivalent atomic $1s$ states on the two nuclei supply the nearly degenerate starting functions. In an orthonormal two-state model, equal diagonal energy $E_a$ and real hopping $t$ give $E_a\pm t$ and symmetric/antisymmetric combinations. For actual overlapping atomic functions with overlap $S$ and Hamiltonian coupling $h$, one instead solves a generalized eigenvalue problem:The bonding state has enhanced density between the nuclei and the antibonding state a separating node. Two opposite-spin Electrons occupying the bonding molecular orbital describe the simplest closed-shell hydrogen-molecule bond. Electron-electron interaction and nuclear repulsion are needed to calculate a realistic total binding energy; the two-state splitting alone is not the full molecular energy.

In the nearly-free electron model, the analogous degenerate states are plane waves $|\mathbf{k}⟩$ and $|\mathbf{k}-\mathbf{G}⟩$ at a Bragg scattering. A Fourier coefficient $U_{\mathbf{G}}$ of the periodic potential couples them. At exact degeneracy $E_B$, diagonalizing their two-by-two matrix givesThe associated standing waves place electronic density differently relative to the ionic potential. These are the same gap-opening combinations illustrated in Q1(b). The labels of the two starting basis states survive as mixed orbital or plane-wave character, rather than independent crossing eigenstates.

Origin of broad and narrow bands. Spatially extended s/p-derived orbitals have substantial overlap and therefore large hopping amplitudes and broad bands. More localized d orbitals overlap less strongly and produce narrower bands. A multiorbital tight-binding calculation assigns the on-site orbital energies and hopping matrices, forms Bloch sums, and diagonalizes the resulting matrix at each wavevector. Different hopping ranges and orbital symmetry determine the bandwidths and allowed interband coupling. The two-band description retains one broad combination and one nearly flat d-derived combination; a real transition metal contains several d orbitals and more complicated dispersions.

Hybridized eigenvalues and eigenstates. Let $|{\psi }_{\mathbf{k}}⟩=a|{\varphi }_{\mathbf{k}}⟩+b|{\chi }_{\mathbf{k}}⟩$, in an orthonormal basis. Hermitian operator fixes the reverse coupling to be $V^{\ast }$. Projection onto the two components givesSolving this quadratic yields the band hybridization dispersionFor nonzero $V$, one eigenvector representation is $(a,b)\propto (V,E-E_1)$, followed by normalization. Thus the wavefunctions exchange broad-band and d-band character through the avoided crossing; the levels are equal mixtures at the uncoupled crossing.

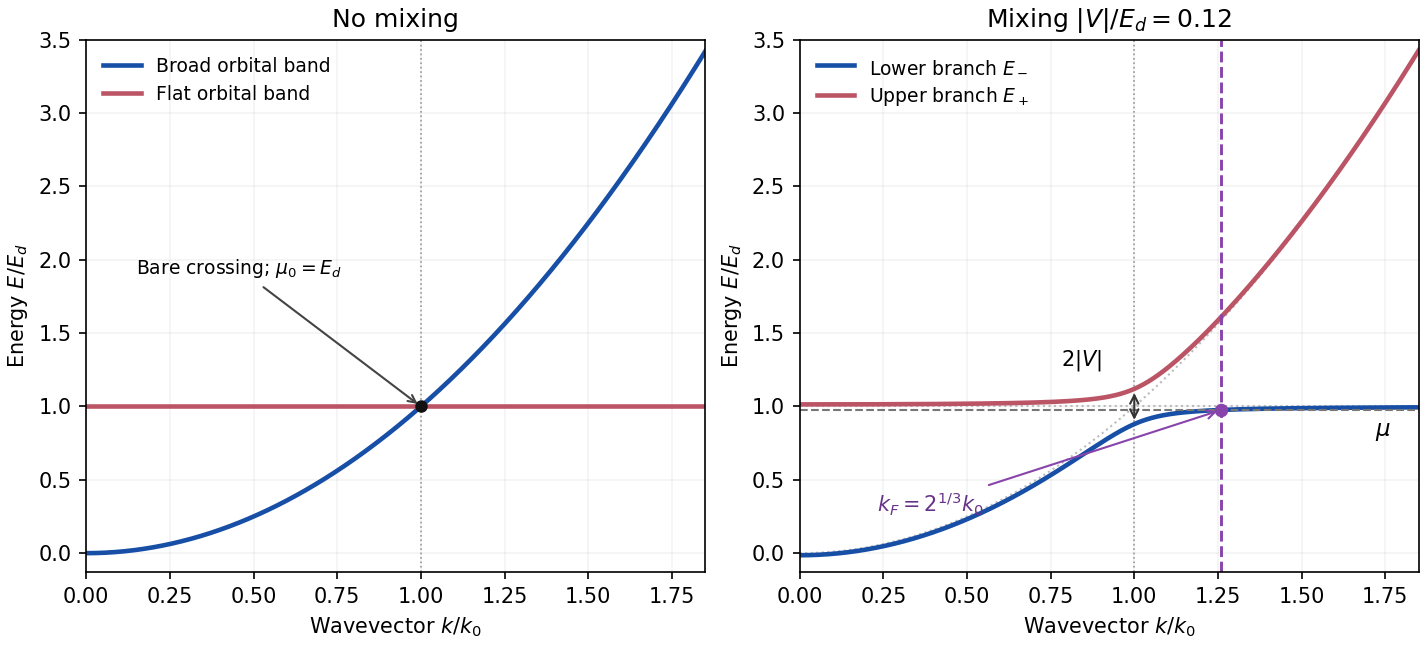

At $V=0$, the parabola crosses the horizontal level at $k=\pm k_0$, with $k_0=\sqrt{2m{E}_d}/\hslash$. For small nonzero $|V|$, the curves avoid crossing with minimum direct separation $2|V|$. The lower branch follows the parabola below the crossing and flattens toward $E_d$ above it; the upper does the opposite. The lower branch satisfies $E_{-}<E_d$ everywhere and tends to $E_d$ from below as $k\to \infty$, while the upper branch always lies above $E_d$. This is the perfectly flat-band continuum approximation, with zone-boundary intersections excluded as requested.

Fixed particle number and the larger Fermi sphere. Denote the uncoupled broad-band Fermi radius by $k_0$ to distinguish it from the new one $K$. With two spin states, the broad-band number density at $V=0$ is $k_0^3/(3{\pi }^2)$. The stipulated equal population in the flat sector makes the total density twice that value. At zero temperature and any nonzero hybridization, all occupied states fit into the monotonic lower branch below $E_d$, while the upper branch is empty. ThereforeThis is the stated factor increase. It uses fixed total particle number, equal spin counting, an exactly flat unhybridized band and enough available states below any Brillouin-zone restriction. In generic pairs of dispersive bands both hybridized pockets can remain occupied; then Fermi-volume conservation in two hybridized electron bands fixes a sum of volumes rather than this one radius. The exactly flat band is degenerate at $V=0$, so its initial occupation must be specified, as it is here.

Fermi-velocity suppression. Set $\Delta (k)=E_1(k)-E_d$. The exact derivative of the lower branch isAt $k=K$, $E_1(K)=2^{2/3}{E}_d$ and $\Delta (K)=(2^{2/3}-1)E_d>0$. For $|V|\ll \Delta (K)$, the square bracket divided by two is $|V{|}^2/\Delta (K{)}^2+O(|V{|}^4/\Delta (K{)}^4)$. Since group velocity is ${\hslash }^{-1}dE/dk$ and the broad-band reference velocity is $v_F^{(1)}=\hslash k_0/m$,so the flat-band hybridization Fermi-velocity suppression isThe reference velocity is that of the original broad-band Fermi sphere, not the broad-band slope at the larger $K$; omitting the radius change loses the factor $2^{1/3}$.

The low-temperature qualification becomes more stringent as $V\to 0$: the new chemical potential approaches $E_d$ with $E_d-\mu \simeq |V{|}^2/\Delta (K)$, and the relevant thermal energy must be small compared with this hybridization scale. At fixed nonzero temperature the singular flat-band redistribution is not automatically resolved for arbitrarily small coupling. A small but finite narrow-band dispersion can also change the occupation topology.

Density of states and magnetism. For an isotropic three-dimensional branch with spin degeneracy two,A small Fermi velocity therefore produces a large density of states. The localized, partially filled d-derived bands in iron, cobalt and nickel place many states close to the Fermi level; broad s/p-derived conduction bands in copper, silver and gold coexist with filled d bands lying below it. This explains the substantially larger Fermi-level density of states of the former group within the band picture. An exact factor of ten requires the actual band parameters and is not fixed by the two-band toy model.

A high density of states lowers the kinetic-energy cost of spin polarization. A repulsive exchange interaction can then satisfy the Stoner criterion and stabilize ferromagnetism. With a single-spin density of states $g_s$ and an on-site interaction normalization, the criterion is $U{g}_s(E_F)>1$; with spin-summed $g=2g_s$, it is $Ug(E_F)>2$. The large d-state contribution favors this instability in Fe, Co and Ni. The noble metals do not satisfy the corresponding instability condition in the same ordinary state; this does not imply that they have no weak magnetic response whatsoever.

Two atomic orbitals. In the linear combination of atomic orbitals approximation, use $|\psi ⟩=c_A|A⟩+c_B|B⟩$, where the two basis functions are localized atomic orbitals. Projecting $\hat{H}|\psi ⟩=E|\psi ⟩$ onto each orbital gives the generalized eigenvalue problemHere the scalar overlap in the matrix is $S=⟨A|B⟩$, while $H_{ab}=⟨a|\hat{H}|b⟩$. Normalization requires $c^{†}Sc=1$, with $S$ now denoting the full overlap matrix. For equivalent real orbitals with diagonal energy $E_a$, real hopping $t$, and real overlap $s$, the eigenstates and energies areFor the usual negative hopping convention, the symmetric combination is the lower bonding orbital and the antisymmetric combination is the higher antibonding orbital. In an orthonormal approximation, $s=0$ and the result reduces to a two-by-two Hermitian matrix eigenproblem.

Hybridized bands. At each $\mathbf{k}$, take the two Bloch basis states to be orthonormal, as implicit in the stated band model, and write ${ϵ}_k={\hslash }^2{k}^2/(2m)$. The Hamiltonian isFor $|{\psi }_{\mathbf{k}}⟩=a_{\mathbf{k}}|{\varphi }_{\mathbf{k}}⟩+b_{\mathbf{k}}|{\chi }_{\mathbf{k}}⟩$, the eigenvalue condition isso $(E-{ϵ}_k)(E-E_d)-|V{|}^2=0$. Thus band hybridization givesFor nonzero $V$, a convenient explicit normalized pair of eigenstates isA phase convention can make $V$ real, but the eigenvalues depend only on its modulus. These are exact within the truncated two-band model, and approximate as a description of a material.

Dispersions and limits. For $V=0$, the parabola crosses the flat band atFor $V\ne 0$ the crossing is avoided, with a direct hybridization gap $2|V|$ at $k_0$. The lower and upper branches exchange orbital character through this avoided crossing. At the origin their energies areso for $|V|\ll E_d$ the small-$k$ expansions areAt large $k$, where ${ϵ}_k-E_d\gg |V|$,The lower branch approaches $E_d$ from below and becomes flat; the upper branch approaches the free-electron parabola from above. At zero coupling the unsorted orbital bands remain exactly flat and parabolic. Sorting them by energy instead gives $E_{-}=\min ({ϵ}_k,E_d)$ and $E_{+}=\max ({ϵ}_k,E_d)$, which cross at $k_0$ without mixing.

Fermi wavevector and velocity. A partially occupied perfectly flat band has chemical potential $E_d$. Thus before mixing, the occupied broad band has radius $k_0$ defined above. For spin degeneracy two, its particle density is $n_1=k_0^3/(3{\pi }^2)$; equal population of the flat sector gives total density $n=2n_1$.

For any nonzero mixing, $E_{-}(k)<E_d$ at finite $k$, while $E_{+}(k)>E_d$. Moreover $E_{-}(k)$ increases monotonically. At zero temperature and this fixed density, a single occupied sphere in the lower branch therefore accommodates all particles, and the upper branch is empty. Fermi-volume conservation in two hybridized electron bands givesThe new radius is about $26\%$ larger than the old broad-band radius. The strictly flat uncoupled band has no uniquely determined Fermi radius of its own; its prescribed population is what enters the count.

The radial group velocity is $v_{-}(k)={\hslash }^{-1}d{E}_{-}/dk$. Differentiating the exact dispersion givesAt $k_F$, put $\delta =2^{2/3}-1$, so ${ϵ}_{k_F}-E_d=\delta E_d$. Relative to the original broad-band Fermi velocity $v_F^{(1)}=\hslash k_0/m$,Expanding for $|V|\ll E_d$ gives the flat-band hybridization Fermi-velocity suppressionThe coefficient is about $3.65$. The enlarged occupied volume coexists with a small velocity because the new Fermi surface lies on the almost-flat part of the lower branch. This result assumes fixed particle density, sufficient available states before any Brillouin zone boundary, and temperature low enough to resolve energy differences of order $|V{|}^2/E_d$. The limit $V\to 0$ at a fixed nonzero temperature need not give this sharp redistribution. Giving the narrow band a finite dispersion can also leave both pockets occupied, so the result is specific to the ideal model.

Let $n=N/\mathcal{V}$ and $c_e=C_e/\mathcal{V}$ be the carrier density and electronic heat capacity per unit volume. In isotropic kinetic theory, the angular average $⟨v_x^2⟩=v_F^2/3$ gives the electronic thermal conductivitywhere ${\ell }_Q=v_F{\tau }_Q$ is the mean free path associated with the heat-current relaxation time. With $v_F^2=2E_F/m^{\ast }$,The Drude model gives the electrical conductivity $\sigma =n{e}^2{\tau }_{\sigma }/m^{\ast }$, where ${\tau }_{\sigma }$ is the momentum relaxation time. ThereforeWhen the same approximately elastic collisions relax heat and charge currents, ${\tau }_Q={\tau }_{\sigma }$. Using $A={\pi }^2/2$ gives the Wiedemann-Franz law$L_0$ is the Lorenz number. Degenerate electrons move at the Fermi velocity, not the classical thermal velocity; using classical equipartition would give the wrong coefficient.

The drift velocity is the small ensemble-average velocity acquired by charge carriers in an applied electric field. It is distinct from their much larger random thermal or Fermi velocity. For conduction Electrons of charge $-e$, the isotropic Drude model giveswhere $\tau$ is the momentum relaxation time.

The positive electron mobility ${\mu }_e=|{\mathbf{v}}_d|/|\mathbf{E}|$ measures the ease of this drift in linear response. In the same approximation,Its units are ${\mathrm{m}}^2{\mathrm{V}}^{-1}{\mathrm{s}}^{-1}$; in an anisotropic crystal the mobility is a tensor.

The band effective mass describes the acceleration implied by the curvature of the dispersion relation. The group velocity is $\mathbf{v}={\hslash }^{-1}{\nabla }_{\mathbf{k}}E$, while $\hslash \dot{\mathbf{k}}=-e\mathbf{E}$. ThusFor an isotropic parabolic minimum this reduces to $E=E_c+{\hslash }^2{k}^2/(2m^{\ast })$ and $m^{\ast }\dot{\mathbf{v}}=-e\mathbf{E}$. It incorporates the periodic crystal potential and need not equal the bare electron mass. Negative electronic curvature near a band maximum is conveniently described by positive-mass electron holes.
