The anomalous Zeeman effect is Zeeman splitting whose pattern is not the simple orbital triplet. Spin and spin-orbit interaction make the upper and lower Landé g-factors differ. The same weak-field formula still applies when its assumptions hold: “anomalous” does not mean nonlinear in the magnetic field.

For example, take an electronic transition with $L_u=1,S_u=1/2,J_u=1/2$ and $L_l=0,S_l=1/2,J_l=1/2$, neglecting hyperfine structure. With $g_s=2$, the formula above gives $g_u=2/3$ and $g_l=2$. The two allowed $q=0$ transitions have dimensionless shifts $g_u{m}_u-g_l{m}_l=\pm 2/3$, while the $q=\pm 1$ transitions give $\pm 4/3$. Thus there are four frequencies, even though each level contains only two magnetic quantum numbers. This is an independent worked deduction; it should not be substituted for the unresolved widths in the 1896 experiment.

The dimensionless coefficient in the spin part of the electron magnetic moment. It is distinct from a gyromagnetic ratio, which has units: in the angular convention, ${\gamma }_e=-g_{s}e/(2m_e)$. It is also distinct from the Landé g-factor $g_J$ of a combined atomic angular momentum and from a nuclear or hyperfine g-factor.

For spin one-half, the largest magnitude of a spin-component magnetic dipole moment is $g_s{\mu }_B/2$, not $g_s{\mu }_B$. Thus the ideal value $g_s=2$ gives one Bohr magneton. This follows directly from the spin angular momentum projections $S_z=\pm \hslash /2$.

An atomic addition of angular momentum scheme in which the individual orbital angular momentum vectors first combine into $\mathbf{L}$ and the individual spins into $\mathbf{S}$, then these combine into total angular momentum $\mathbf{J}$. When spin-orbit coupling is weak compared with the interactions between Electrons described by electrostatics, $L$ and $S$ remain useful approximate quantum numbers. The Landé g-factor describes the resulting weak-field magnetic splitting.

The Zeeman effect comes from $-\mathbf{\mu }\cdot \mathbf{B}$. For an Electron, the orbital and spin magnetic moments are approximately $-{\mu }_B\mathbf{L}/\hslash$ and $-2{\mu }_B\mathbf{S}/\hslash$, respectively. This explains both the sign and the relative factor two in the term linear in $B$. The second term is the spin-orbit interaction: the Electron's motion through the atomic electric field produces a magnetic interaction in its rest frame. The relativistic correction, including Thomas precession, and the radial expectation value are incorporated into $K$. This effective Hamiltonian retains the linear Zeeman splitting and spin-orbit coupling, while omitting diamagnetic and hyperfine structure corrections.

Define the angular momentum ladder operators by $L_{\pm }=L_x\pm i{L}_y$ and similarly for $S_{\pm }$. Direct expansion givesso adding $L_z{S}_z$ gives the required scalar product. The off-diagonal terms change $m_{\ell }$ and $m_s$ in opposite directions. Consequently $J_z=L_z+S_z$ commutes with $H$, and $m_j$ remains a good quantum number at every magnetic field.

In the given product eigenbasis, the diagonal matrix elements areFor $\ell =1$ and $s=1/2$, the only off-diagonal couplings are between $(1,-1/2)$ and $(0,1/2)$, and between $(0,-1/2)$ and $(-1,1/2)$. Each relevant orbital ladder factor is $\hslash \sqrt{2}$ and each spin ladder factor is $\hslash$. Multiplying by $K/{\hslash }^2$ gives $\sqrt{2}K$. ThereforeAll other off-diagonal entries vanish either by the ladder endpoints or by conservation of $m_j$. This derives every entry of the displayed matrix.

The stretched states have no mixing and yieldThe $m_j=1/2$ block is $\left(\begin{array}{cc}-K& \sqrt{2}K\\ \sqrt{2}K& a\end{array}\right)$, while the $m_j=-1/2$ block is $\left(\begin{array}{cc}-a& \sqrt{2}K\\ \sqrt{2}K& -K\end{array}\right)$. Taking the trace and determinant of each $2\times 2$ block gives the remaining four energy eigenvalues:The subscripts indicate $m_j=\pm 1/2$ and the superscripts indicate the upper or lower root. These formulas are the Zeeman spectrum for orbital angular momentum one and remain valid for either sign of $K$.

For the usual ordering $K>0$, including sodium, the zero-field states follow fromThe $j=3/2$ quartet lies at $K$ and the $j=1/2$ doublet at $-2K$, separated by $3K$. In a weak magnetic field, the Landé g-factors giveThese label the curves near $B=0$. In a strong magnetic field, the Paschen-Back effect makes $(m_{\ell },m_s)$ the appropriate approximate labels:for the mixed states, with the stretched-state formulas already exact. The branch connections for $B>0$ areWithin a fixed $m_j$, the nonzero coupling prevents a crossing; this is an avoided crossing. Curves with different $m_j$ may cross because the Hamiltonian does not couple them.

For the sodium estimate, the zero-field frequency separation fixesThe lower $3s$ doublet has shifts $\pm a$. The Sodium D-line Zeeman pattern gives photon-frequency shifts $a/h$ times $\{\pm 2/3,\pm 4/3\}$ for D${}_1$ and $\{\pm 1/3,\pm 1,\pm 5/3\}$ for D${}_2$. Thus the highest-frequency D${}_1$ component and lowest-frequency D${}_2$ component approach each other by $3a/h$. Extrapolating the weak-field Zeeman splitting givesso the crossover occurs at a field of order $10\mathrm{T}$, where $a\sim K$ and the weak-field approximation is becoming marginal.

The exact eigenvalues refine the estimate within this Hamiltonian. The relevant photon energies, with a common zero-field reference omitted, are $E_{+}^{(-)}+a$ and $E_{-}^{(+)}-a$. The corresponding electric dipole transitions have $\Delta m_j=+1$ and $-1$, respectively. Equating them givesIts positive solution is $a/K=\sqrt{10}/3$, hencein the retained model. The crossing is between optical transition frequencies; the participating upper states themselves need not be degenerate.

Neglect hyperfine structure and use the electronic weak-field Zeeman splitting regime, where ${\mu }_{B}B$ is small compared with the spin-orbit interaction splitting. The sodium levels are $3s{}^2{S}_{1/2}$, $3p{}^2{P}_{1/2}$ and $3p{}^2{P}_{3/2}$. The Landé g-factor formula givesFor example, inserting $L=1,S=1/2,J=1/2$ gives $3/2+(3/4-2)/(2\cdot 3/4)=2/3$. Each sublevel with magnetic quantum number $m_J$ shifts by $g_J{m}_J{\mu }_{B}B$. Thus the lower level has shifts $\pm {\mu }_{B}B$, the upper $J=1/2$ level has shifts $\pm {\mu }_{B}B/3$, and the upper $J=3/2$ level has shifts $\pm 2{\mu }_{B}B$ and $\pm 2{\mu }_{B}B/3$.

The electric-dipole selection rule allows $\Delta J=0,\pm 1$ except $0\leftrightarrow 0$, and $m_u-m_l=0,\pm 1$. Both fine structure branches are allowed. The emitted photon energy isAll the allowed components of the sodium D-line Zeeman pattern are listed below; the last column is the photon shift in units of ${\mu }_{B}B$:These are four components of D1 and six of D2. Their strengths need not be equal; the table and arrows specify allowed transitions, not intensities.

The $3p{}^2{P}_{3/2}$ level lies above $3p{}^2{P}_{1/2}$, so D2 has the larger zero-field photon energy. ^[ref] In the stated weak-field regime its most positive shift is $5{\mu }_{B}B/3$. Since $\lambda =hc/E_{\gamma }$, the shortest wavelength is therefore produced byThe tempting $m_u=3/2\to m_l=-1/2$ pair has a larger difference of level shifts but is forbidden because $|m_u-m_l|=2$.

Use the electronic weak-field Zeeman splitting model, neglecting hyperfine structure. The Landé g-factor is $g_g=2$ for $3S_{1/2}$ and $g_e=2/3$ for $3P_{1/2}$. The shift of an absorption frequency is thereforeHere the magnetic field is weak relative to spin-orbit coupling, so $J$ remains a useful quantum number, but the spectral line widths are small enough to resolve its magnetic substates.

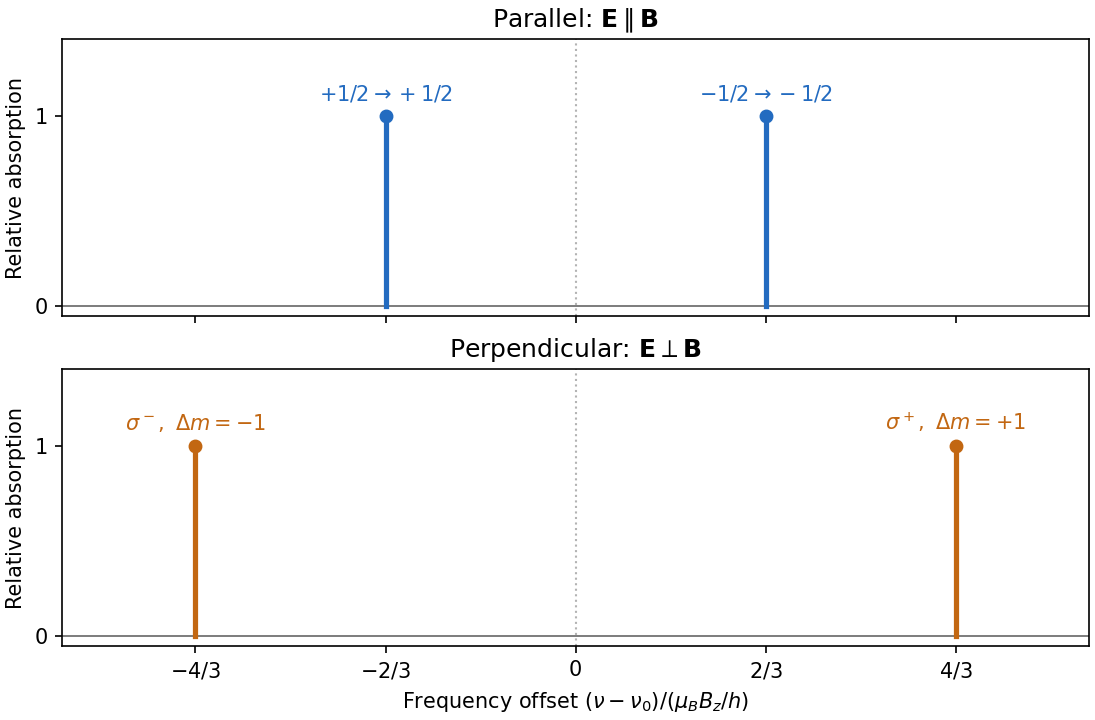

For linear polarization parallel to $z$, the optical electric field has only the field-axis $\pi$ component. The electric-dipole selection rule is $\Delta m=0$. Its two allowed transitions are $m_g=m_e=\pm 1/2$, givingFor propagation perpendicular to $z$ with linear polarization also perpendicular to $z$, the optical electric field is an equal-amplitude combination of the two field-axis circular components. It drives ${\sigma }^{\pm }$ transitions with $\Delta m=\pm 1$. These connect $-1/2\to +1/2$ and $+1/2\to -1/2$, givingThus each orientation selects two lines, with twice the separation in the perpendicular-polarization case. Neither pair has an unshifted central component. This is polarization-selective Zeeman splitting of an alkali D1 line, an anomalous Zeeman effect rather than a normal orbital triplet.

Use the uncoupled angular momentum eigenstates $|m_L,\uparrow ⟩$ and $|m_L,\downarrow ⟩$, with $m_L=-1,0,1$. For the Hamiltonian operator actually written in the paper, these are the energy eigenstates, withThe initial $J=3/2$ states are not all energy eigenstates of this operator. To find their energy populations, first perform the Clebsch-Gordan decomposition. The extremal states are $|3/2,3/2⟩=|1,\uparrow ⟩$ and $|3/2,-3/2⟩=|-1,\downarrow ⟩$. Applying the total angular momentum lowering operator to the first givesSimilarly,The initial preparation is an equal incoherent mixture of the four coupled states. Each extremal state contributes population $1/4$ to its one energy eigenvalue, while each nonextremal state contributes $2/3$ and $1/3$ of its own $1/4$ population to the two displayed components. The resulting Zeeman splitting is thereforefor nonzero $B_z$. The relative populations are $\boxed{3:2:2:2:3}$ in this order; the two zero-energy states each have population $1/12$. These Zeeman populations from an unpolarized angular-momentum multiplet remain constant under subsequent evolution by the stated static Hamiltonian operator, although off-diagonal quantum coherence can evolve.

There is a distinct weak-field model in which a retained spin-orbit interaction keeps $J=3/2$ isolated and one projects the magnetic perturbation into that quartet. The Landé g-factor is then $4/3$, giving four shifts ${\mu }_B{B}_z(\pm 2,\pm 2/3)$ with equal populations. That calculation requires the additional projection or dominant spin-orbit interaction; it is not diagonalization of the full magnetic Hamiltonian operator specified here, which also mixes the $J=1/2$ sector.

The separate proton and neutron shell capacities are $2j+1=2,4,2,6,\dots$. Filled shells and paired particles have zero net spin and magnetic dipole moment. The single-particle nuclear magnetic moment is $\mu =g_{j}j{\mu }_N$, with orbital factors $g_{\ell }^p=1$, $g_{\ell }^n=0$ and $s=1/2$.

For nitrogen, the eight neutrons form a closed shell. The seventh proton occupies $1p_{1/2}$, so $\ell =1$, $j=1/2$ and the Landé g-factor givesHence the nuclear shell model predictsIts single-particle spin and parity is $1/2^{-}$. The negative moment results from the proton spin being predominantly opposed to the total angular momentum in this $j=\ell -1/2$ level.

For oxygen, eight protons and the first eight neutrons are paired. The ninth neutron occupies $1d_{5/2}$, with $\ell =2$, $j=5/2=\ell +1/2$. Since its orbital factor is zero, $g_j=g_n/(2\ell +1)=-3.826/5$. ThereforeThese are ideal single-particle predictions in units of the nuclear magneton, not fits incorporating nuclear configuration mixing.

A $J=1/2$ doublet has moment projections $\pm g_J{\mu }_B/2$. The requested normalization assumes $g_J=2$, so the projections are $\pm {\mu }_B$ and the two Zeeman energies are $\mp {\mu }_{B}B$. For independent localized ions, the one-ion partition function and thermal moment areTherefore the spin-one-half paramagnetic magnetization isIt saturates at $n{\mu }_B$ for a field strong compared with $k_{B}T/{\mu }_B$. For a different Landé g-factor, replace every moment ${\mu }_B$ by $g_J{\mu }_B/2$; $J=1/2$ alone does not fix that factor.

For the electronic ${}^2{S}_{1/2}\to {}^2{P}_{1/2}$ transition, neglect hyperfine structure and use weak-field LS coupling. The Landé g-factors are $g_g=2$ and $g_e=2/3$, so a transition from $m_g$ to $m_e$ shifts by $({\mu }_{B}B/h)(g_e{m}_e-g_g{m}_g)$.

With propagation perpendicular to the magnetic field, linear polarization parallel to the field drives the $\pi$ electric-dipole selection rule $\Delta m=0$. The two shifts are $\pm 2{\mu }_{B}B/(3h)$. Perpendicular linear polarization is an equal-amplitude combination of the two field-axis circular components, driving ${\sigma }^{\pm }$ transitions with $\Delta m=\pm 1$ and shifts $\pm 4{\mu }_{B}B/(3h)$. Each geometry therefore selects a doublet, with twice the separation in the perpendicular-polarization case. Equal line heights within a pair require equal lower-state populations and an unsaturating probe; line positions do not require that extra population assumption.

In the simplest nuclear shell model of an odd-mass number nucleus, paired nucleons contribute zero total angular momentum and magnetic dipole moment. The last unpaired nucleon supplies the nuclear spin $j$ and the stretched-state moment $\mu =g_{j}j{\mu }_N$, where $g_j$ is the Landé g-factor and ${\mu }_N$ the nuclear magneton.

Using addition of angular momentum with $s=1/2$ givesFor $j=\ell +1/2$, this reduces to $\mu /{\mu }_N=g_{\ell }\ell +g_s/2$. For $j=\ell -1/2$, it givesThe free-nucleon orbital factors are $g_{\ell }=1$ for a proton and $0$ for a neutron. Residual nuclear interactions and configuration mixing can shift measured moments away from this ideal prediction. A single hole in an otherwise closed $j$ shell has the same stretched-state moment as a particle in that shell: removing the $m_j=-j$ particle leaves total $J_z=j$ and moment $g_{j}j{\mu }_N$.

Neglect hyperfine structure and use a magnetic field weak compared with the spin-orbit interaction. The sodium D doublet has transitions $3p{}^2{P}_{1/2}\to 3s{}^2{S}_{1/2}$ and $3p{}^2{P}_{3/2}\to 3s{}^2{S}_{1/2}$. Their Landé g-factors are $2/3$, $4/3$ and $2$ respectively. With $m_u,m_l$ denoting upper and lower magnetic labels, the photon shift isThe first transition has four allowed shifts ${\mu }_{B}B\{\pm 2/3,\pm 4/3\}$; the second has six, ${\mu }_{B}B\{\pm 1/3,\pm 1,\pm 5/3\}$. The most blue-shifted component of the second is $m_u=1/2\to m_l=-1/2$, with shift $5{\mu }_{B}B/3$. The apparently larger shift $m_u=3/2\to m_l=-1/2$ is excluded by the electric-dipole selection rule. The $3p{}^2{P}_{3/2}$ level lies above $3p{}^2{P}_{1/2}$, so in this weak-field model the $5/3$ component also has the shortest wavelength of the whole doublet. ^[ref]

An original reduced model makes the cancellation explicit. Assume LS coupling, neglect nuclear spin, and write the electronic magnetic dipole moment as $-{\mu }_B(g_L\mathbf{L}+g_s\mathbf{S})/\hslash$. For $L=1$, $S=1/2$, the projection used to derive the Landé g-factor givesThese coefficients follow by substituting $J=3/2$ or $1/2$ into the angular-momentum projection formula; neither level measures pure spin alone. In a weak uniform magnetic field, adjacent electronic projections have spacing $h{f}_J=g_J{\mu }_{B}B$ when $g_J>0$. ThereforeThe common magnetic field and Bohr magneton cancel. The ratio determines $g_s/g_L$, not $g_s$ without further knowledge of $g_L$. For $g_L=1$, it gives $a_e=(R-2)/(R+1)$. Small departures from $R=2$ are magnified differently from small departures of $g_s$ from $2$; the two fractional changes should not be identified.

With the stipulated inputs $g_L=1$, $g_s=2.0024$ and ${\mu }_{B}B/h=100\mathrm{MHz}$, the two electronic frequencies are $66.5867$ and $133.4133\mathrm{MHz}$. Their ratio is approximately $2.0036043$, and inversion recovers $a_e=0.0012$. These are ideal electronic lines, not historical gallium data. Nuclear spin, mixing between levels and other deviations from LS coupling require a more complete model in an actual atom.

Use the leading nonrelativistic magnetic coupling for an electronic level with total angular momentum operator $\mathbf{J}$, and choose the $z$ axis along a uniform external magnetic field $\mathbf{B}=B\hat{\mathbf{z}}$, $B\ge 0$. Write its magnetic quantum number as $m_J$, so $J_z|J,m_J⟩=\hslash m_J|J,m_J⟩$. There are $2J+1$ possibilities from $-J$ to $J$. With Landé g-factor $g_J$, the first-order shift isHere $e>0$ is the magnitude of the Electron electric charge, $m_e$ its mass, $h$ the Planck constant, and ${\mu }_B$ the Bohr magneton. Both $g_J$ and $m_J$ are dimensionless; with $B$ measured in tesla and ${\mu }_B$ in joules per tesla, $\Delta E$ is in joules. The photon frequency shift $\Delta {\nu }_{ul}$ is in hertz, not angular frequency; indices $u,l$ denote upper and lower levels. NIST states this weak-field convention and its orbital/spin assumptions explicitly.^[ref]

The sign follows directly from magnetic dipole potential energy. Within this electronic $J$ multiplet, the projected magnetic dipole moment is $\mathbf{\mu }=-g_J{\mu }_B\mathbf{J}/\hslash$. Therefore $H_Z=-\mathbf{\mu }\cdot \mathbf{B}$ has the displayed positive coefficient. Subtracting the shifts of the two levels and using photon energy $h{\nu }_{ul}=E_u-E_l$ gives the transition formula. For the orbital case, ${\mu }_B/h=e/(4\pi m_e)$ gives the same leading frequency spacing as the classical charged oscillator. This explains the historical sensitivity to charge divided by mass; the quantum state derivation here is modern.

“Weak” compares interaction energies: mixing with neighbouring fine structure levels must be small, so $J$ remains a useful quantum number. The formula keeps the term linear in $B$ and neglects quadratic shifts. It also omits hyperfine structure; if that is resolved and controls the coupling, the appropriate total electronic-plus-nuclear angular momentum and splitting factor must replace $J,g_J$. Weak compared with fine structure does not automatically mean weak compared with hyperfine structure.

An equal incoherent mixture within a fixed total-$J$ multiplet has density operator $\rho =P_J/(2J+1)$, where $P_J$ is its orthogonal projection. If the applied-field Hamiltonian operator is proportional to $L_z+2S_z$ and no spin-orbit interaction is retained, its energy eigenstates are the uncoupled states $|m_L,m_S⟩$. The Born rule gives their populations by the formula above, or equivalently by squared Clebsch-Gordan decomposition coefficients. Equal populations of coupled states need not give equal populations of magnetic energy eigenvalues.

For $L=1,S=1/2,J=3/2$, the nonextremal coupled states have weights $2/3$ and $1/3$ in their two uncoupled components. The five dimensionless magnetic energies $-2,-1,0,1,2$ then have populations $1/4,1/6,1/6,1/6,1/4$; the zero energy contains two independent states, each with population $1/12$. In a different, weak-field approximation with a dominant spin-orbit interaction, projecting into the isolated multiplet gives the Landé g-factor spectrum instead. The full operator and its projection must not be interchanged.

For orbital angular momentum $\ell =1$ and spin $s=1/2$, considerThe quantum number $m_j=m_{\ell }+m_s$ is conserved. The stretched states with $m_j=\pm 3/2$ have energies $K\pm 2a$. The remaining eigenvalues follow from two $2\times 2$ blocks with off-diagonal entries $\sqrt{2}K$:The subscripts denote $m_j=\pm 1/2$. For $K>0$, the zero-field multiplets are $j=3/2$ at $K$ and $j=1/2$ at $-2K$. Their weak-field Zeeman splitting is $g_{j}a{m}_j$, with Landé g-factors $4/3$ and $2/3$, respectively. When $a\gg |K|$, the Paschen-Back effect gives approximate product states $(m_{\ell },m_s)$ and energies $a(m_{\ell }+2m_s)+2K{m}_{\ell }{m}_s$. Mixing within a fixed $m_j$ causes an avoided crossing; different $m_j$ sectors can cross because the Hamiltonian does not couple them.
