For elastic scattering by the Yukawa potential, take $\kappa >0$ and use the first Born approximation in the plane-wave normalizationChoose the polar axis along the momentum transfer $\hslash \mathbf{q}$. The angular integral isThe radial volume element cancels the remaining powers of $r$, leavingFor real $A$, the differential scattering cross-section is thereforeThis also has a finite forward limit when $\kappa >0$. The Born amplitude for a Yukawa potential provides a screened route to the Coulomb potential by taking $\kappa \to 0^{+}$ at fixed $q>0$.

For an alpha particle of charge $2e$ scattering from a heavy nucleus of charge $Ze$, set $A=2Z{e}^2/(4\pi {ϵ}_0)$. Neglect recoil, so that the reduced mass is approximately the projectile mass, $E={\hslash }^2{k}^2/(2m)$, and elastic geometry givesThe Coulomb-limit scattering amplitude becomeswhich gives the Rutherford differential cross-sectionThe unscreened Coulomb potential has long range, so taking this limit does not justify the Born approximation for its full scattering state, particularly for a strongly charged target. The exact Rutherford scattering amplitude differs by a phase and has the same modulus. Thus the resulting differential scattering cross-section remains applicable to the ideal nonrelativistic Coulomb problem beyond the weak-potential regime.

To relate the detector counts to the atomic number, first compute the number of target atoms per illuminated area. With molar mass $M=0.197\mathrm{kg}\mathrm{mo}{\mathrm{l}}^{-1}$, the number density integrated through the foil isThe detector's transverse area is already its area normal to the scattered ray. Its small solid angle isThere is no extra $\cos 45^{\circ }$ factor: the foil is traversed normally and the detector area is transverse to its line of sight.

For a thin foil with negligible multiple scattering and energy loss, the detected fraction is $f=\mathcal{N}(d\sigma /d\Omega )\Delta \Omega$. Thus the measurements implyUsing $E=7.68\times 10^{6}e\mathrm{J}=1.23047\times 10^{-12}\mathrm{J}$ in the Rutherford differential cross-section gives

The stated measurements do not reproduce gold's atomic number 79 in this model. The values and units above agree with the original PDF. Substituting $Z=79$ instead would predict $f\simeq 3.17\times 10^{-7}$ with the other inputs unchanged, rather than $3.7\times 10^{-7}$. No stated correction accounts for that discrepancy; forcing the answer to 79 would require changing the data or adding an experimental correction not specified in the problem.

The Zeeman effect comes from $-\mathbf{\mu }\cdot \mathbf{B}$. For an Electron, the orbital and spin magnetic moments are approximately $-{\mu }_B\mathbf{L}/\hslash$ and $-2{\mu }_B\mathbf{S}/\hslash$, respectively. This explains both the sign and the relative factor two in the term linear in $B$. The second term is the spin-orbit interaction: the Electron's motion through the atomic electric field produces a magnetic interaction in its rest frame. The relativistic correction, including Thomas precession, and the radial expectation value are incorporated into $K$. This effective Hamiltonian retains the linear Zeeman splitting and spin-orbit coupling, while omitting diamagnetic and hyperfine structure corrections.

Define the angular momentum ladder operators by $L_{\pm }=L_x\pm i{L}_y$ and similarly for $S_{\pm }$. Direct expansion givesso adding $L_z{S}_z$ gives the required scalar product. The off-diagonal terms change $m_{\ell }$ and $m_s$ in opposite directions. Consequently $J_z=L_z+S_z$ commutes with $H$, and $m_j$ remains a good quantum number at every magnetic field.

In the given product eigenbasis, the diagonal matrix elements areFor $\ell =1$ and $s=1/2$, the only off-diagonal couplings are between $(1,-1/2)$ and $(0,1/2)$, and between $(0,-1/2)$ and $(-1,1/2)$. Each relevant orbital ladder factor is $\hslash \sqrt{2}$ and each spin ladder factor is $\hslash$. Multiplying by $K/{\hslash }^2$ gives $\sqrt{2}K$. ThereforeAll other off-diagonal entries vanish either by the ladder endpoints or by conservation of $m_j$. This derives every entry of the displayed matrix.

The stretched states have no mixing and yieldThe $m_j=1/2$ block is $\left(\begin{array}{cc}-K& \sqrt{2}K\\ \sqrt{2}K& a\end{array}\right)$, while the $m_j=-1/2$ block is $\left(\begin{array}{cc}-a& \sqrt{2}K\\ \sqrt{2}K& -K\end{array}\right)$. Taking the trace and determinant of each $2\times 2$ block gives the remaining four energy eigenvalues:The subscripts indicate $m_j=\pm 1/2$ and the superscripts indicate the upper or lower root. These formulas are the Zeeman spectrum for orbital angular momentum one and remain valid for either sign of $K$.

For the usual ordering $K>0$, including sodium, the zero-field states follow fromThe $j=3/2$ quartet lies at $K$ and the $j=1/2$ doublet at $-2K$, separated by $3K$. In a weak magnetic field, the Landé g-factors giveThese label the curves near $B=0$. In a strong magnetic field, the Paschen-Back effect makes $(m_{\ell },m_s)$ the appropriate approximate labels:for the mixed states, with the stretched-state formulas already exact. The branch connections for $B>0$ areWithin a fixed $m_j$, the nonzero coupling prevents a crossing; this is an avoided crossing. Curves with different $m_j$ may cross because the Hamiltonian does not couple them.

For the sodium estimate, the zero-field frequency separation fixesThe lower $3s$ doublet has shifts $\pm a$. The Sodium D-line Zeeman pattern gives photon-frequency shifts $a/h$ times $\{\pm 2/3,\pm 4/3\}$ for D${}_1$ and $\{\pm 1/3,\pm 1,\pm 5/3\}$ for D${}_2$. Thus the highest-frequency D${}_1$ component and lowest-frequency D${}_2$ component approach each other by $3a/h$. Extrapolating the weak-field Zeeman splitting givesso the crossover occurs at a field of order $10\mathrm{T}$, where $a\sim K$ and the weak-field approximation is becoming marginal.

The exact eigenvalues refine the estimate within this Hamiltonian. The relevant photon energies, with a common zero-field reference omitted, are $E_{+}^{(-)}+a$ and $E_{-}^{(+)}-a$. The corresponding electric dipole transitions have $\Delta m_j=+1$ and $-1$, respectively. Equating them givesIts positive solution is $a/K=\sqrt{10}/3$, hencein the retained model. The crossing is between optical transition frequencies; the participating upper states themselves need not be degenerate.

A quasihole adds one zero at $\eta$ per Electron; its local deficit carries positive electric charge $e/m$.^[ref]

Here is a transport counting outline, conditional on an incompressible quantum Hall fluid. Inserting one magnetic flux quantum $\Delta \Phi =h/e$ slowly compared with $\hslash /\Delta$, where $\Delta$ is the excitation energy gap, produces a circulating electric field by Faraday's law. The transverse sheet conductivity sends a radial electric current whose time integral has magnitudeThe opposite electric charge moves to the boundary, so the total electric charge remains conserved. The counted deficit belongs to a collective quasiparticle; no individual Electron has been cut into pieces. The argument assumes the gapped fluid and its Hall response, and is not a consequence of the finite two-Electron normalization integral.

Consider the original two-Electron example obtained by taking $N=2$ in the Laughlin wavefunction, with no additional polynomial for the centre of mass. Introduce $Z=(z_1+z_2)/2$, relative complex coordinate $w=z_1-z_2$, separation $r=|w|$, and dimensionless separation $u=r/{\ell }_B$. Since $|z_1{|}^2+|z_2{|}^2=2|Z{|}^2+|w{|}^2/2$, the probability density factorizes:Integrating out $Z$ leaves an isotropic relative probability density. Define $D_m(u)$ per unit dimensionless area and $p_m(u)$ per unit dimensionless separation:The physical areal probability density is $D_m(r/{\ell }_B)/{\ell }_B^2$. The probability of a separation between $r$ and $r+dr$ is $p_m(r/{\ell }_B)dr/{\ell }_B$. The extra $u$ comes from the Jacobian determinant in polar coordinates: a thin annulus has area $2\pi rdr$. Omitting that factor changes the question being answered.

Both wavefunction normalization and the peak shift can be checked exactly. The substitution $t=u^2/4$ gives the Gamma function integralFor $m>0$, logarithmic differentiation givesConsequently the areal maximum lies at $u=2\sqrt{m}$, while the most probable separation lies farther out, at $u=\sqrt{4m+2}$. For $m=1$ these are $2$ and $\sqrt{6}\simeq 2.449$; for $m=3$, $\sqrt{12}\simeq 3.464$ and $\sqrt{14}\simeq 3.742$. The same substitution gives $⟨u^2⟩=4(m+1)$, so the root mean square separations are $\sqrt{8}$ and $4$ respectively. The distinction between a probability density maximum and a radial maximum therefore has a directly calculable geometric origin.

This two-Electron model explains exchange and pair avoidance. It does not establish a nonzero many-particle spectral gap, an extended quantum Hall plateau, or the topological properties of a fluid in the thermodynamic limit. Those require additional many-Electron reasoning and experimental tests.

Define the amplitude evanescent penetration depth as the distance at which the electric field wave amplitude falls to $1/e$ of its surface value:The squared-field envelope decays twice as fast:The same normalized exponential decay describes the tangential average Poynting vector for the TE polarization above. An intensity penetration depth convention often means $d_{1/e}$; it must not be confused with amplitude depth $\delta$ or interpreted as outgoing normal light intensity.

For the stipulated $n_1=1.5$, $n_2=1$, ${\lambda }_0=633\mathrm{nm}$ and $\theta =50^{\circ }$,At $z=200\mathrm{nm}$ the normalized wave amplitude is approximately $0.325099$, and its squared envelope is approximately $0.105689$. At $z=\delta$, these become $e^{-1}$ and $e^{-2}$, respectively. The quantity inside the square root is dimensionless, so $\kappa$ has inverse-length units and both depths have length units.

The sharp angular dependence has a simple explanation. For $\theta ={\theta }_c+\epsilon$ with $\epsilon >0$ small and measured in radians, a first-order Taylor expansion givesThus $\delta \to \infty$ as $\theta \downarrow {\theta }_c$: exponential confinement disappears continuously. With fixed refractive indices, $\delta$ decreases as the angle of incidence increases and approaches ${\lambda }_0/(2\pi \sqrt{n_1^2-n_2^2})\approx 90.1091\mathrm{nm}$ as $\theta \to 90^{\circ }$. This is a limit of the normalized depth; exactly grazing incidence supplies zero incident normal power. Real beam widths, angular spreads and optical dispersion matter when applying these ideal plane electromagnetic wave predictions near the threshold.

A doped semiconductor at frequencies far below its bound-electron resonances can haveFor a weakly absorbing nonmagnetic half-space adjacent to vacuum, the normal-incidence optical reflectance is minimized near refractive-index matching, ${ϵ}_r\simeq 1$. When ${ϵ}_b>1$ and ${\gamma }_c$ is small this gives ${\omega }_{\min }\simeq {\omega }_{pc}/\sqrt{{ϵ}_b-1}$. The zero of the real part of ${ϵ}_r$, near ${\omega }_{pc}/\sqrt{{ϵ}_b}$, is a distinct frequency. Increasing the carrier density shifts the minimum to shorter wavelength if the carrier effective mass and background response remain fixed. With appreciable loss, the minimum must be found from the full complex Fresnel equations.

Fill the lower energy band of the dimerized tight-binding chain with both spin states. Take zero on-site energy and measure ground-state energy per doubled primitive unit cell. State counting in a Bloch band and $q=ka$ giveEquivalently, for $|\delta |\le t$, $\mathcal{E}(\delta )=-(8t/\pi )E(\sqrt{1-{\delta }^2/t^2})$, where $E(k)$ is the complete elliptic integral of the second kind in the modulus convention.

For fixed $t>0$ and $|\delta |/t\to 0$, the change isThe logarithm comes from states near the edge of the Brillouin zone. Put $u=\pi /2-q$. To leading order the square root there is $\sqrt{t^2{u}^2+{\delta }^2}$. For a fixed small cutoff $\eta >0$, direct integration givesThe rest of the band, and the higher-order corrections near its edge, contribute only $O({\delta }^2/t)$; multiplying by $-8/\pi$ gives the displayed asymptotic expansion. Here the remainder uses Big O notation. The negative logarithmic term exceeds any fixed quadratic elastic cost $K{\delta }^2$, $K>0$, for sufficiently small nonzero $\delta$. This explains the zero-temperature instability to a Peierls distortion in the ideal chain model.

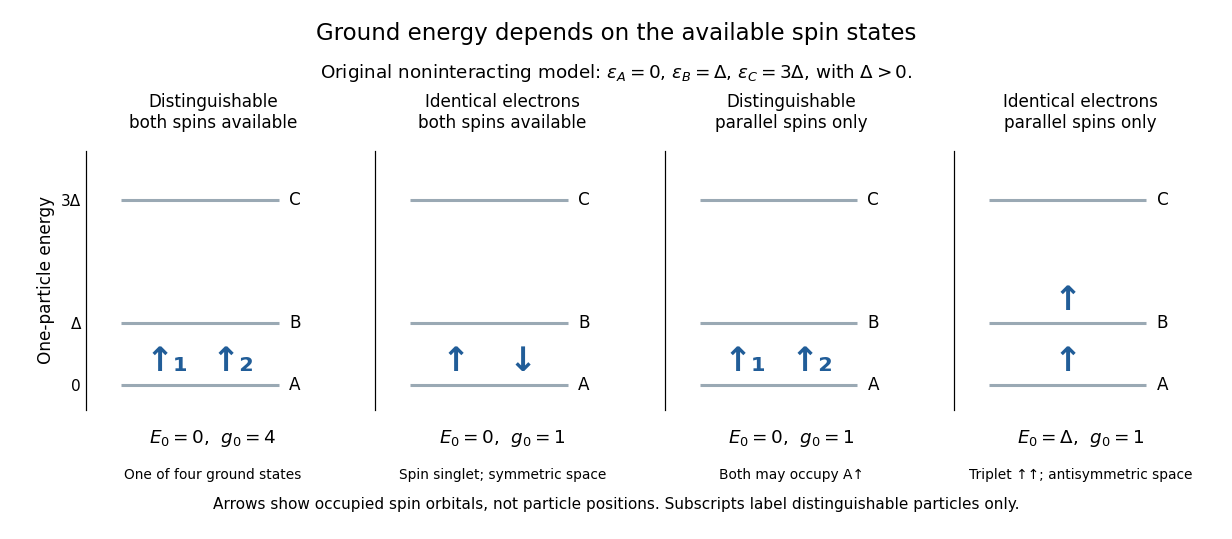

Consider an original noninteracting model with three orthonormal spatial orbitals $A,B,C$ at energies $0,\Delta ,3\Delta$, where $\Delta >0$. Both spin projections are available at each energy, so there are six spin orbitals. The Quantum Hamiltonian is $H=h\otimes I+I\otimes h$, with no interaction between particles and no dependence on spin. Comparing its allowed ground states isolates the effect of fermionic exchange symmetry.

For two distinguishable spin-one-half particles, the spatial ground state is $A\otimes A$ and any of four independent two-spin states is possible: $E_0=0$ and ground-state degeneracy four. For two identical Electrons, both can still occupy $A$, using $A\uparrow$ and $A\downarrow$, but there is just one allowed ground state: the symmetric spatial factor times the spin-one-half singlet state,Exclusion has reduced the ground-state degeneracy without raising the ground state energy.

Now restrict both particles to the same spin projection $\uparrow$. Distinguishable particles can still both occupy $A\uparrow$, so $E_0=0$. Identical Electrons must occupy different spatial orbitals; the lowest choice is $A,B$, withThe spin factor is a spin-one-half triplet state, and the spatial factor is antisymmetric. These are ground states within the restricted parallel-spin sector, not the unrestricted two-Electron ground state. Both restricted models have ground-state degeneracy one.

The first excited two-Electron energy in the unrestricted model is $\Delta$, with four independent quantum states: one occupant in $A$, one in $B$, and two spin choices for each. A basis adapted to particle exchange operators separates these into one spin-one-half singlet state with symmetric spatial factor and three spin-one-half triplet states with antisymmetric spatial factor. All four have equal energy in this model. Singlet versus triplet does not by itself determine an energy gap; an interaction or a spin-dependent term is needed to split them.

As a further count, the full two-Electron space has dimension $\left(\genfrac{}{}{0ex}{}{6}{2}\right)=15$. Its energies in units of $\Delta$ and corresponding multiplicities are $(0,1,2,3,4,6)$ and $(1,4,1,4,4,1)$. For distinguishable spin-one-half particles the ordered tensor product instead has dimension $6^2=36$, with multiplicities $(4,8,4,8,8,4)$ at those same energies. These are exact model counts, not atomic measurements. The higher restricted ground state energy follows from removing forbidden quantum states; the Quantum Hamiltonian contains no additional “exclusion force”.

For the interaction $\lambda \mathbf{S}\cdot \mathbf{L}$ built from the total two-electron spin and orbital angular momentum, set $\mathbf{J}=\mathbf{L}+\mathbf{S}$. The spin-dot-product eigenvalue identity then gives the shift in the title. In the first excited two-electron oscillator manifold, the singlet has $L=1,S=0,J=1$ and zero shift with multiplicity three. The triplet has $L=S=1$, with $J=0,1,2$ shifts $-2\lambda {\hslash }^2,-\lambda {\hslash }^2,+\lambda {\hslash }^2$ and multiplicities $1,3,5$.

The multiplicities sum to twelve, and their weighted shift sums to zero. The specified interaction preserves both $L^2$ and $S^2$; it is distinct from summing separate single-electron spin-orbit interactions. Its shifts are exact within this model's invariant oscillator manifold, with weak coupling ensuring the original level ordering remains useful.

Frustrated total internal reflection occurs when a nearby second high-index dielectric couples to the evanescent field in total internal reflection, allowing power to cross a finite low-index gap. The extra boundary changes the dielectric-interface boundary conditions; the gap field need not be a single decaying evanescent wave. Consequently, the zero normal Poynting vector calculation for two infinite half-spaces does not forbid transmission in this three-medium geometry.

Harvard’s actual demonstration uses two right-angle glass prisms, a helium-neon laser, a small clamp and two perpendicular screens as detectors. The contact faces are cleaned and placed opposite each other, with the clamp protecting the corners. Increasing pressure narrows the intervening air film; the observed beam routing changes gradually from total internal reflection toward onward transmission. The broad-gap reflecting configuration supplies the comparison for the narrow-gap transmitting configuration. This is a qualitative readout: the page explicitly says the gap is not measured.^[ref]

The inference is that the lower-index region can mediate electromagnetic energy transfer when another boundary is nearby. The demonstration does not determine a numerical evanescent penetration depth, resolve gap uniformity, or establish a three-layer transmission coefficient. For the constructed $50^{\circ }$ example, $\delta \approx 178\mathrm{nm}$ identifies the scale over which the isolated-interface field remains appreciable; substituting $e^{-2g/\delta }$ for a gap transmission fraction would omit the changed boundary fields and their interference. A quantitative gap calculation must solve the full Maxwell equations with both boundaries.
