Characterize the instrument and fixture before inferring permittivity: use the prescribed open and short measurements to compensate residual parallel response and series electrical impedance, and check a known reference capacitor or the required load standard. Keep cables and electrode geometry reproducible. An open fixture measurement is distinct from the empty-gap reference capacitor; blindly subtracting its entire capacitance would remove the desired reference signal. Compensation cannot determine an incorrectly measured specimen thickness or eliminate all specimen-dependent fringing field of a capacitor errors. ^[ref].

The motivating observation is that inserting an insulating material between fixed capacitor plates increases its capacitance. ^[ref]. To investigate this response, use two flat parallel metal electrodes with measured overlapping area $A$ and separation $d$, a uniform specimen filling the gap, and an instrument that measures electrical impedance. Record the capacitance with and without the specimen at the same small applied electric potential difference, frequency and temperature, after capacitance measurement calibration. An increase in corrected capacitance indicates a larger permittivity, provided the geometry is unchanged. A guard electrode reduces the contribution of the fringing field of a capacitor. ^[ref].

For negligible dielectric loss in the parallel-plate capacitor approximation,An air reference approximates $C_0$; it is not an exact vacuum reference. For the following synthetic example, stipulate $A=0.010{\mathrm{m}}^2$, $d=1.00\mathrm{mm}$ and the rounded vacuum permittivity ${ϵ}_0\approx 8.854\times 10^{-12}F/m$. Then $C_0=88.54\mathrm{pF}$ in this model, and relative permittivity four gives $C=354.16\mathrm{pF}$. A residual parallel capacitance of $20\mathrm{pF}$ would make an uncorrected sample/reference ratio $374.16/108.54\approx 3.447$, rather than four. This additive error does not cancel in a ratio.

At nonzero frequency $f$, measure both magnitude and phase of the electric current relative to the applied electric potential difference. Define $Y=I/V=1/Z$, where $Z$ is electrical impedance. For the stated complex permittivity convention, the ideal uniform specimen givesThus a parallel capacitor and electrical conductance describe the readout at that frequency; a single scalar capacitance cannot describe both components. The diagram's assumed dielectric relaxation gives $C_p=265.62\mathrm{pF}$ and $C_0{ϵ}_r^{\prime \prime }=88.54\mathrm{pF}$ at $1\mathrm{kHz}$. These are model predictions, not observations.

Repeat the reference measurement after removing the specimen and vary the small applied electric potential difference to test drift and linearity. Record specimen thickness, electrode area, contact conditions, frequency and temperature. Air gaps act as additional layers in series and can lower inferred relative permittivity; roughness, uncertain thickness and the fringing field of a capacitor limit the geometric formula. At sufficiently high frequency, the fixture itself changes the electromagnetic field, so low-frequency guarding and a lumped capacitor model require reassessment. ^[ref].

The reciprocal of electrical impedance, relating electric current and electric potential difference phasors by $\tilde{I}=Y\tilde{V}$. Its unit is the siemens, $\mathrm{S}={\Omega }^{-1}$. Electrical admittances add for branches in a parallel circuit.

Electrical impedance is the ratio of terminal electric potential difference and electric current phasors at one specified positive angular frequency $\omega$. For an electrical circuit modeled as a linear time-invariant system, use the sinusoidal steady state after any decaying transient has settled. With the passive sign convention, positive electric current enters the terminal assigned positive electric potential difference. Define peak complex amplitudes byThe physical $v(t)$ and $i(t)$ are real; the complex numbers encode their amplitudes and wave phases. The unit of electrical impedance is the ohm, $1\Omega =1\mathrm{V}/\mathrm{A}$. Both phasors may instead use root mean square magnitudes, with the same ratio $Z$. A nonlinear diode can generate additional frequencies; a single $Z(\omega )$ then does not describe the whole response.

Write the electrical impedance in Cartesian and polar forms asHere $R$ is the resistive real part, $X$ the signed electrical reactance, and $\varphi$ the voltage-minus-current phase difference, defined modulo a full turn. The Pythagorean theorem gives the modulus from a right triangle in the complex plane. The complex argument gives the rotation from the current phasor to the voltage phasor. Thus $V_{\mathrm{rms}}=|Z|I_{\mathrm{rms}}$, while negative $\varphi$ means electric current leads terminal electric potential difference. For $R>0$, $\varphi =\arctan (X/R)$ lies between $-\pi /2$ and $\pi /2$; outside that case, use the quadrant of the complex number rather than a bare inverse tangent. The geometric magnitude and phase difference are the two pieces of the AC relation.^[ref]

Multiplication by $Z$ acts on phasors, not on instantaneous physical signals. For example, when $i(t)=I_0\cos \omega t$,The second term is in phase quadrature with electric current; it cannot be represented by pointwise multiplication $v(t)=Zi(t)$ when $X\ne 0$. This is the useful compression: one complex multiplication replaces separate amplitude and phase difference calculations, while the real part restores the physical signal.

An ideal resistor, inductor and capacitor have $Z_R=R$, $Z_L=\mathrm{i}\omega L$ and $Z_C=1/(\mathrm{i}\omega C)$. Their electrical impedances add in a series RLC circuit, giving $Z=R+\mathrm{i}(\omega L-1/(\omega C))$. The current amplitude is $V_0/|Z|$, so cancellation of the imaginary parts explains the resonant series RLC response. The component-law derivation and opposite complex exponential convention are in reactance phase convention.

An actual teaching experiment turns the phasor definition into readings. Leipzig University's laboratory handout Measurements with an oscilloscope, experiment E 3e, uses a function generator, a two-channel oscilloscope, a known resistor and a capacitor. Figure 5 places the capacitor above the resistor, with a common return below the resistor. Channel 1 measures the applied terminal electric potential difference $v_1$; channel 2 measures $v_R$. The handout asks for peak-to-peak values and relative timing, then comparison of measured and calculated electrical impedances with $R=3\mathrm{k\Omega }$, $C=0.47\mu \mathrm{F}$ at $100$ and $300\mathrm{Hz}$. It also asks students to check the oscilloscope time base against a digitally counted generator frequency. These are apparatus and procedural specifications, not reported measured results.^[ref]

For this arrangement, Ohm's law gives $i(t)=v_R(t)/R$ if probe loading and the sensing resistor's electrical reactance are negligible. Record both voltage magnitudes with the same convention: peak, peak-to-peak, or root mean square. After the transient settles, compare matched rising zero crossings $t_1$ of $v_1$ and $t_R$ of $v_R$, with period $T=1/f$. ThenThe recovered electrical impedance includes the known resistor. For a separate unknown component in series with that resistor, subtract $R$ from the inferred total electrical impedance. A current crossing earlier than the applied voltage crossing gives $\Delta t<0$, hence negative $\varphi$. For the stipulated series RC impedance example at $1000\mathrm{Hz}$, this predicts $\Delta t=-0.160717\mathrm{ms}$; it is a calculated timing, not a lab observation. Timing supplies the complex argument that an amplitude ratio alone cannot recover.

As additional measurement controls, first feed the same sinusoid to both channels to check relative delay and polarity; then replace the reactive chain with a known resistor, expecting nearly zero phase difference. Keep both probe returns at the common return shown in figure 5. A reversed voltage polarity adds half a turn to its inferred wave phase. Match crossings with the same slope and choose $-T/2<\Delta t\le T/2$; adjacent cycles otherwise change $\varphi$ by a full turn. A sweep continuous in frequency helps track that branch. These controls test the signed inference rather than assuming that the scope's delay readout has the desired sign.

Measure the loaded terminal electric potential difference on channel 1 at every frequency. The generator's output impedance can change the applied magnitude; its front-panel setting is not the measured terminal value. The generator's internal electrical impedance is outside the terminal ratio above, while the known sensing resistor is inside it. Probe loading, finite timing resolution, component tolerances and distorted waveforms limit the inference. A repeat at lower drive amplitude tests whether one linear electrical impedance still fits. Electrical reactance bench measurement develops these loading and reference-direction issues further.

Improve a circuit's signal-to-noise ratio by reducing unwanted coupling and physical noise sources while retaining the signal bandwidth. Important methods include lowering appropriate resistances or temperature to reduce thermal electrical noise, controlling leakage and bias currents relevant to shot noise, minimizing pickup with shielding and small loop area, and selecting an operational amplifier for the source electrical impedance. Filtering limits integrated noise only if it preserves the information-bearing spectrum; a lock-in amplifier can move detection above a flicker noise region and select a narrow band. Uncorrelated noise variances add, whereas coherent pickup requires its phases and correlations to be considered. Repeated averaging reduces independent random error, but does not remove an arbitrary systematic error or slow drift.

Electrical reactance $X$ is the signed imaginary part of electrical impedance $Z=R+\mathrm{i}X$, measured in ohms. It describes the part of the terminal electric potential difference in phase quadrature with the electric current in a sinusoidal steady state. In the $e^{\mathrm{i}\omega t}$ convention, an ideal inductor has $X_L=\omega L>0$ and an ideal capacitor has $X_C=-1/(\omega C)<0$ for $\omega >0$. A large $|X|$ reduces electric current at fixed applied voltage, but an ideal purely reactive component returns the energy it receives over each cycle. This is why electrical reactance and electrical resistance have the same units yet describe different physical behavior. ^[ref].

In a series RLC circuit, electrical impedances add because the same electric current passes through every component. For ideal positive inductance $L$, capacitance $C$, and total electrical resistance $R_{\Sigma }>0$,Here $\varphi$ is voltage wave phase minus current wave phase. Below ${\omega }_0=1/\sqrt{LC}$, $X<0$ and electric current leads terminal voltage; above it, $X>0$ and electric current lags. At ${\omega }_0$, the two signed electrical reactances cancel, leaving $Z=R_{\Sigma }$ and the maximum electric current at fixed terminal voltage. This is the resonant series RLC response. Electrical resistance does not cancel: the toy circuit gives $f_0={\omega }_0/(2\pi )=1591.55\mathrm{Hz}$ and $I_{\mathrm{rms}}=9.091\mathrm{mA}$ there. These numbers follow directly from the stipulated component values. ^[ref].

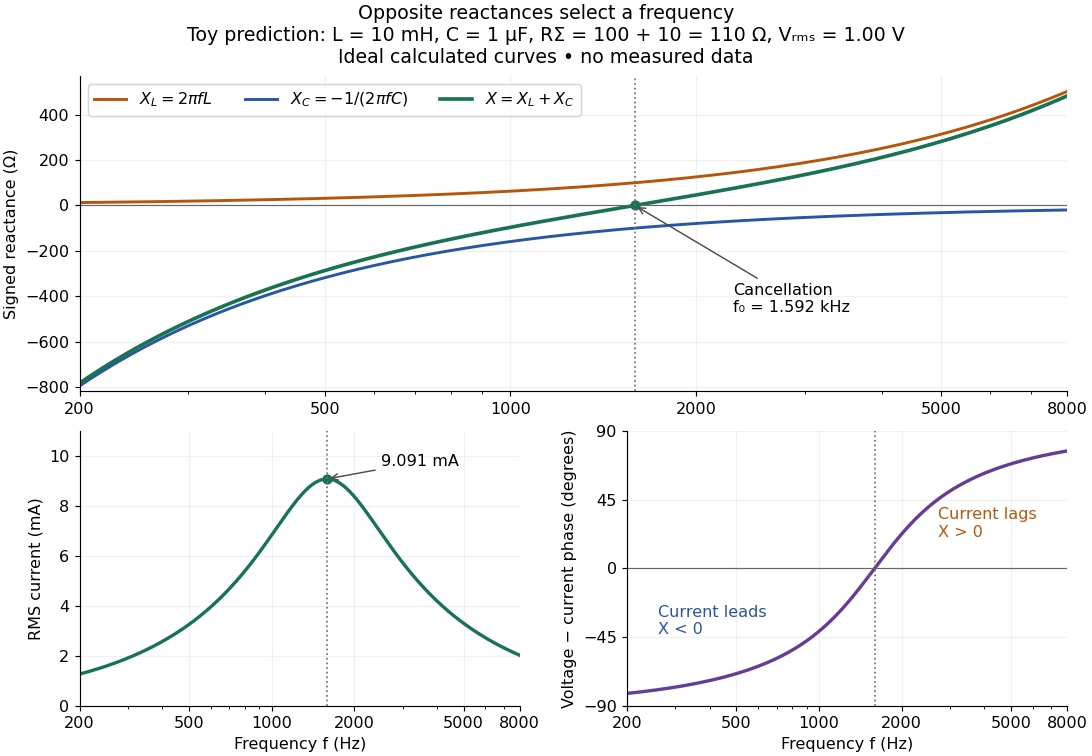

Cancellation concerns terminal voltage, not the disappearance of stored energy. In the toy circuit at resonance, the individual inductor and capacitor voltages are each $0.9091\mathrm{V}$ in root mean square magnitude, with opposite wave phases, while their sum is zero. Their peak stored magnetic energy and capacitor energy are each $0.8264\mu \mathrm{J}$, attained at different times. With smaller positive $R_{\Sigma }$, either component voltage can exceed the applied voltage. This ability to select a frequency while sustaining internal energy exchange connects electrical reactance to tuning and frequency response.

For an ideal inductor or capacitor, the absorbed instantaneous power equals the rate of change of stored energy:Positive power stores energy; negative power returns it. Over a periodic steady state, each stored energy returns to its initial value, so its cycle-averaged absorbed power is zero. An ideal resistor instead has $p_R=R{i}^2\ge 0$, transferring energy into Joule heating. More generally, the average terminal power of this series RLC circuit isZero average power in an ideal reactive component does not imply zero instantaneous power, zero electric current, or zero stored energy. Real coils and capacitors have losses, so zero ideal reactive loss is a model assumption rather than a claim about every component. ^[ref].

The motivating observation is a pair of sinusoids on an oscilloscope: changing frequency changes both their relative amplitudes and their phase difference. Gary Tuttle's EE 201 laboratory uses resistor voltage as the current-phase reference, compares predictions with readings at several frequencies, and explicitly asks students to measure component values and account for coil electrical resistance. The following bench arrangement applies that method to a series RLC circuit; its component values and illustrated traces are our own toy example. ^[ref].

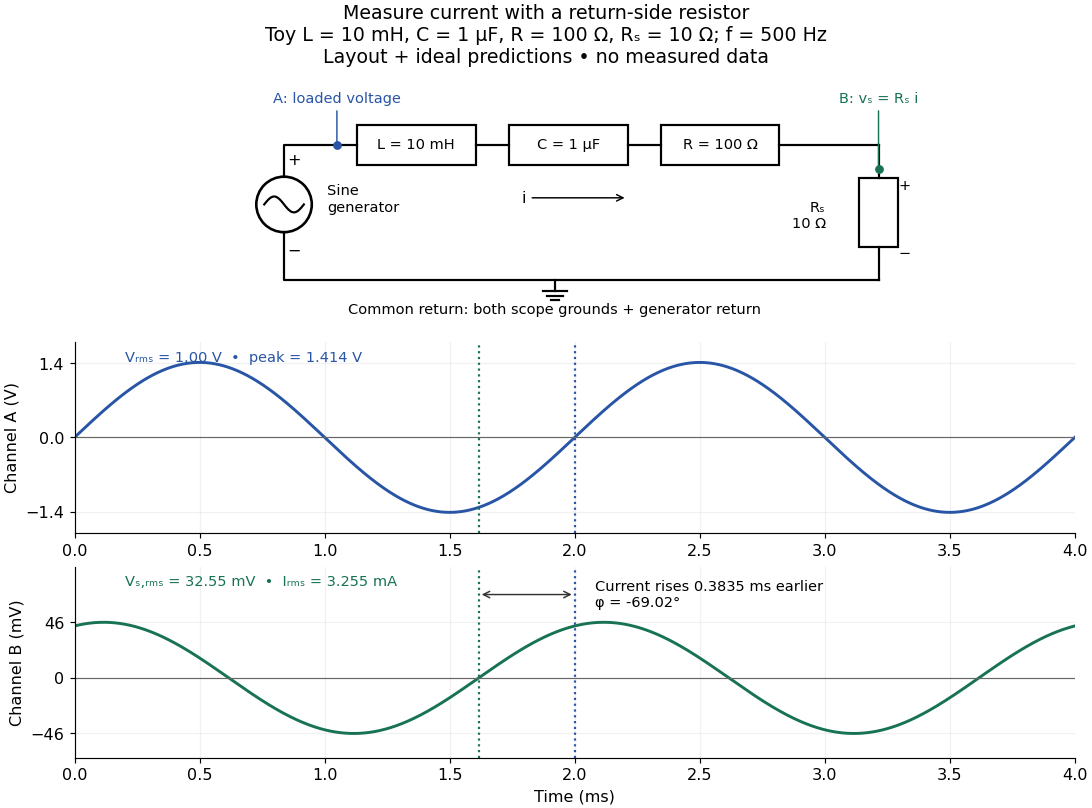

Connect a low-voltage sine generator to a series chain ending in a known sensing resistor $R_s$ at the common return. Use a resistor whose unwanted inductance is negligible over the chosen frequency range. An oscilloscope displays voltage against time: channel A reads the loaded voltage across the whole chain, and channel B reads the voltage $v_s$ across $R_s$. Both channel ground connections and the generator return meet at that same node. Ordinary bench oscilloscope grounds are electrically common; attaching one to an intermediate circuit node would change the circuit. A separate floating component voltage needs a suitable differential measurement, rather than moving a ground clip. ^[ref].

After the free transient decays, record frequency $f$, period $T=1/f$, both voltage amplitudes, and matched rising zero-crossing times $t_A,t_B$. Check that the traces are sinusoidal. Define $\Delta t=t_B-t_A$ on the branch $|\Delta t|<T/2$. With negligible probe loading and negligible sensing-resistor electrical reactance, $v_s=R_{s}i$, so channel B is the electric current reference, and in the reactance phase conventionA later current crossing gives $\Delta t>0$, hence positive electrical reactance; an earlier crossing gives negative electrical reactance. Use the same amplitude convention for both channels. An amplitude-only ratio recovers $|Z|$, so it cannot distinguish the two signs: timing supplies the missing information. The formulas follow from $Z=|Z|e^{\mathrm{i}\varphi }$ and the chosen terminal orientation.

Begin with a known resistor replacing the reactive chain: its expected phase difference is approximately zero, testing channel polarity and relative delay. Measure the same signal with both channels to establish the instrumental delay baseline, then exchange probes to check that a phase offset does not belong to one channel. Next test an inductor and a capacitor separately with $R_s$: after subtracting $R_s$ from the inferred real part, expect approximately $X/f=2\pi L$ and $fX=-1/(2\pi C)$, respectively. Finally combine $L,C,R,R_s$ and sweep through the predicted resonance. These are proposed controls and consequences of the model, not reported observations.

For the toy series RLC circuit, the prediction at $500\mathrm{Hz}$ is $X=-286.894\Omega$, $|Z|=307.259\Omega$, $\varphi =-69.02^{\circ }$, and $V_{s,\mathrm{rms}}=32.55\mathrm{mV}$. At $5000\mathrm{Hz}$, $X=+282.328\Omega$ and $\varphi =+68.71^{\circ }$. Near $1591.55\mathrm{Hz}$ the model predicts zero phase difference and $V_{s,\mathrm{rms}}=90.91\mathrm{mV}$. Keep actual loaded $V_{A,\mathrm{rms}}$ fixed or normalize by it at each frequency; the generator's display alone does not establish that voltage. The $10\Omega$ sensing resistor is part of the $110\Omega$ total and therefore changes the predicted peak electric current.

Real components add unintended electrical impedance: coil wire has electrical resistance, nearby turns add capacitance, and capacitor leads add inductance. These effects can produce a component's own resonance, beyond which the ideal $\omega L$ or $-1/(\omega C)$ approximation fails. Work in a range where that approximation is adequate, measure coil wire electrical resistance, and compare the inferred $R_{\mathrm{chain}}$ with the sensing resistor, intended resistor, and component losses. A measured nonzero real part is evidence of loss in the assembly, not negative or positive electrical reactance becoming heat. ^[ref]; ^[ref].

The probes also add electrical resistance and capacitance to the measured nodes; their loading becomes more important as frequency increases. Use compensated probes with known input electrical impedance and short ground connections, and repeat with a smaller drive voltage to test whether the inferred $X$ depends on amplitude. ^[ref]. Record actual voltage and phase readings separately from calculated predictions, with component tolerances and timing uncertainty. A phase error $\delta \varphi$ alone produces approximately $\delta X=|Z|\cos \varphi \delta \varphi$, so near zero electrical reactance, a small delay can imitate a small residual $X$. Agreement within stated uncertainties tests the model; the smooth toy curves establish no experimental accuracy.

A bridge driven between top and bottom nodes has equal resistors on its left arms, upper-right electrical impedance $Z=R_x/(1+i\omega R_x{C}_x)$ and lower-right electrical impedance $W=R_v+1/(i\omega C)$. A zero detector electric current requires $Z=W$. Equating real parts and imaginary parts gives $R_v=R_x(1-C_x/C)$ and ${\omega }_0^{-2}=R_x^2{C}_x(C-C_x)$, requiring $0<C_x<C$. Its open-circuit right-minus-left junction voltage is $V_0(W-Z)/[2(W+Z)]$, whereas a connected ideal ammeter has zero terminal voltage at every angular frequency. This distinction separates a null-current measurement from an unloaded voltage measurement.

For a source with internal electrical impedance $Z_s$, conjugate matching $Z_L=Z_s^{\ast }$ maximizes delivered mean power when the source is fixed. For a purely resistive source and equal load electrical resistance $R$, the load sees half the open-circuit voltage. A Johnson-Nyquist noise source with open-circuit mean-square voltage $4k_{B}TRd\nu$ therefore delivers $k_{B}Td\nu$ to the matched load, rather than $4k_{B}Td\nu$.

An ideal operational amplifier with a grounded noninverting input, input resistor $R_i$, and parallel feedback resistor $R_f$ and capacitor $C$ implements a low-pass filter. The virtual short and Kirchhoff's current law give $V_{\mathrm{out}}/V_{\mathrm{in}}=-Z_f/R_i$, where $Z_f=R_f/(1+i\omega R_{f}C)$. The DC gain magnitude is $R_f/R_i$ and the cutoff frequency is $1/(2\pi R_{f}C)$. The capacitance reduces high-frequency feedback electrical impedance, causing the gain magnitude to fall.

A series circuit comprising electrical resistance $R>0$ and inductance $L>0$, placed in a parallel circuit with capacitance $C>0$, has electrical admittance $Y=(R+i\omega L{)}^{-1}+i\omega C$. Vanishing imaginary part at nonzero angular frequency gives the displayed condition, requiring $L>R^{2}C$. It defines zero voltage-current phase difference, which need not coincide exactly with the maximum of impedance magnitude when loss is present. At this frequency the electrical impedance is real and equals $L/(RC)$.

An ideal open circuit permits no conduction electric current through a terminal pair, corresponding to infinite load electrical impedance. At the end of a lossless transmission line, its voltage-wave reflection coefficient is $+1$ and the terminal current is zero. Real open terminals may retain parasitic capacitance and radiation loss.

The electrical impedance seen looking into output terminals with independent sources suppressed, as in Thévenin source suppression.

An ideal inductor and capacitor in parallel have electrical admittance $1/Z=1/(j\omega L)+j\omega C$ for phasors with time dependence $e^{j\omega t}$. The branch currents cancel at angular frequency ${\omega }_0=1/\sqrt{LC}$, giving zero total electrical admittance and an infinite limiting electrical impedance. Below this resonance its electrical reactance is positive; above it the electrical reactance is negative. Losses make the peak finite.

The transmitting antenna is matched to its input transmission line, so its real terminal electrical resistance is $Z_i$. The identical receiving antenna has the same electrical impedance at the operating frequency. Its available received power for a matched load is the incident energy flux times its antenna effective area:The real receiving load is $Z_t$, so its voltage-wave reflection coefficient relative to $Z_i$ is ${\Gamma }_L=(Z_t-Z_i)/(Z_t+Z_i)$. The fraction of available power delivered to the output line isConsequently, neglecting path losses, mismatch of polarization of an electromagnetic wave and line losses,This is the Friis transmission equation with a receiving impedance-mismatch factor. For fixed $P_i,G_a,d,Z_i,Z_t$, it scales as ${\lambda }^2$. That scaling is conditional on holding antenna gain fixed: a fixed physical aperture can instead have $G_a\propto {\lambda }^{-2}$, and any wavelength dependence of the impedances also enters the expression. The matched-output check $Z_t=Z_i$ gives $P_t=P_i\mathcal{F}$.

Use phasors with time dependence $e^{i\omega t}$. The electrical impedance $Z=\tilde{V}/\tilde{I}$ is the complex number relating the sinusoidal voltage and electric current: $|Z|$ is their amplitude ratio and $\arg Z$ is the voltage phase relative to the electric current. The component laws giveThus the resistor has zero relative phase, the capacitor voltage lags its electric current by $\pi /2$, and the inductor voltage leads its electric current by $\pi /2$. The ideal capacitor and inductor store and return energy; the real electrical impedance of the resistor describes dissipation.

The original diagram's upper arm is a series resistor and capacitor; its lower arm is a parallel resistor and capacitor. The output is the upper-minus-lower voltage across that parallel arm. Assume an ideal input voltage source and an unloaded output. Their electrical impedances areFor this series-parallel RC band-pass filter, the voltage divider gives, with $w=\omega RC$,Taking the real part of $V_{0}H{e}^{i\omega t}$ yields the steady outputInitial charging contributes decaying transients if the source is switched on at a finite time; the displayed expression is the sinusoidal steady state. The output polarity matters: reversing the indicated output voltage would multiply $H$ by $-1$.

For this question use phasors with time factor $e^{i\omega t}$, so an electrical impedance is $Z=\tilde{V}/\tilde{I}$. The same electric current flows through all components of a series circuit, and their voltages add by Kirchhoff's voltage law. Hence the total series electrical impedance isThe individual steady sinusoidal currents and their phase relations are derived in the following three parts. The diagram normalizes each current by its own amplitude, so it compares phase differences without mixing unlike physical units.

Use complex phasors with time dependence $e^{i\omega t}$ and assume an unloaded output. The capacitor has electrical impedance $Z_C=1/(i\omega C)$. The voltage divider formed with the resistor gives the transfer functionFor input $V_i(t)=V_{i0}\cos \omega t$, the output amplitude and phase shift areso $V_o(t)=|{\tilde{V}}_o|\cos (\omega t-{\tan }^{-1}(\omega RC))$.

Here $\tau =RC=16.0\mu \mathrm{s}$, and the cutoff frequency is $f_c=1/(2\pi RC)=9.947\mathrm{kHz}$. This is an RC low-pass filter: at small frequency the capacitor has large electrical impedance and the output nearly equals the input; at large frequency it increasingly shunts the signal to ground. The amplitude then falls as $1/f$, and the phase shift approaches $-90^{\circ }$.

No numerical input amplitude is supplied, so the output voltages are specified as fractions of $V_{i0}$. An application is suppression of high-frequency electrical noise on a slowly varying signal. A finite load changes the transfer function and must be included if its electrical impedance is comparable with the circuit's output electrical impedance.
