Dynamic pressure is the bulk kinetic energy per unit volume associated with fluid motion at speed $U$ in a specified reference frame:Here $\rho =m/V$ is mass density. The word "pressure" identifies its units and its use as a pressure scale; $q$ is not an extra isotropic stress to add to the local static pressure in every surface traction. A stationary fluid can have large static pressure with $q=0$. Conversely, knowing $U$ and $\rho$ fixes $q$ without fixing static pressure. The definition remains useful in viscous fluid flow and compressible flow, even when the simplest Bernoulli equation is inapplicable. ^[ref]

For stipulated mass density ${\rho }_{\infty }=1.20\mathrm{kg}{\mathrm{m}}^{-3}$ and reference speed $U_{\infty }=20\mathrm{m}{\mathrm{s}}^{-1}$, $q_{\infty }=240\mathrm{Pa}$. At $40\mathrm{m}{\mathrm{s}}^{-1}$ with the same mass density, $q_{\infty }=960\mathrm{Pa}$. This quadratic scaling makes dynamic pressure a useful normalization for the lift coefficient, drag coefficient and pressure coefficient; it predicts four times a particular force only if its corresponding coefficient remains unchanged.

The connection with stagnation pressure requires hypotheses. For steady flow, constant mass density, inviscid flow, and gravity as the only body force, the Bernoulli equation gives, along one streamline,Here $p$ is static pressure, $g$ is gravitational acceleration, and $z$ is height. Bring that flow to rest without losses at the same height and the limiting static pressure is the stagnation pressure $p_0$:There must be no intervening pump supplying work or other energy input. Constancy along one streamline does not assert equal $B$ on all streamlines; irrotational flow in a connected region supplies that additional conclusion. Changing height requires retaining $\rho gz$. In compressible flow the stopping pressure difference generally differs from $\rho U^2/2$, and viscous dissipation can reduce recovered stagnation pressure. ^[ref]

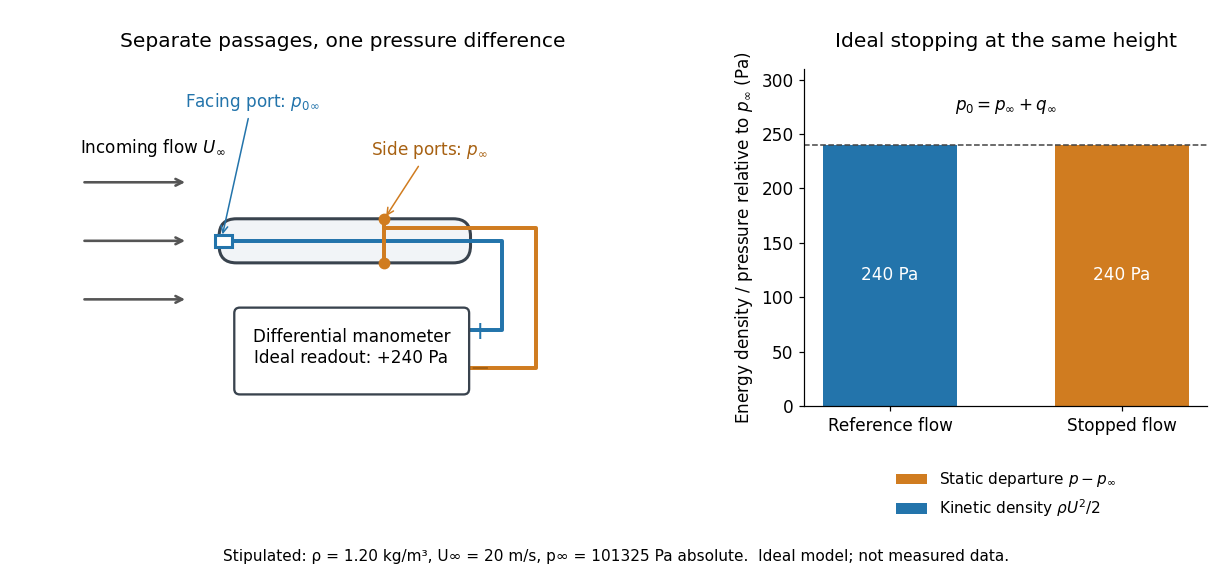

A Pitot-static tube turns this relation into a measurement: its upstream-facing opening senses stagnation pressure, while separate side openings sample static pressure. Connect these to the positive and negative ports of a differential pressure transducer or manometer. Under the hypotheses above, the measured difference $\Delta p$ givesThus the stipulated $240\mathrm{Pa}$ and $1.20\mathrm{kg}{\mathrm{m}}^{-3}$ imply $20\mathrm{m}{\mathrm{s}}^{-1}$, not an independently measured speed. Align the probe with the incoming flow and keep its passages clear: blockage and pinched tubing invalidate the comparison. At very low speed, the difference can be smaller than instrument error; at high Mach number, compressibility and possibly a shock wave require a different reduction. ^[ref]

A useful control is differential-pressure calibration. For a digital manometer, zeroing establishes the reading at equal port pressures; it does not establish the gain away from zero. The manufacturer's Series 475 Handheld Digital Manometer: Specifications - Installation and Operating Instructions by Dwyer Instruments, Inc. directs the user to vent both ports to the atmosphere before zeroing. Its stated accuracy is a fraction of full scale, not of the reading, and depends on instrument temperature. Select a suitable range and record the instrument variant and units; the manual covers several ranges.^[ref]

An independent physical check can use a liquid-column manometer: apply a stable pressure difference to both instruments and compare the digital reading with the hydrostatic pressure inferred from the vertical level difference. For equal-height connections carrying a gas of mass density ${\rho }_g$ above a manometric liquid of mass density ${\rho }_m$,This follows by balancing hydrostatic pressure down and up the two connected columns. Use vertical height, even if a tube is inclined. Known mass densities, measured height and gravitational acceleration set the comparison scale. Check several differences across the working range and reverse the port connections to check the sign. This is a proposed independent check, not a claim that the cited teaching experiment performed a full instrument calibration. Recheck zero after reconnecting the sealed tubing; a zero adjustment alone cannot detect a blocked passage or an incorrect scale.

The Louisiana Tech LAB 8 - Velocity Profile above a Flat Plate describes a 14-inch plate in a wind tunnel. A Pitot-static tube of 0.10-inch outside diameter traverses normally about 12 inches downstream; its screw scale has 0.001-inch increments. A water-column manometer reads the difference between stagnation pressure and static pressure. The procedure establishes a wall position, zeros the tunnel indicator, sets fan speed, and records at least ten positions inside the boundary layer, together with room temperature and barometric pressure. The instrument list includes a flow-stream thermometer implemented with a temperature-sensitive resistor. The manual requests comparison of outer velocity with the tunnel indicator and of the recovered velocity profile with laminar or turbulent predictions; it provides no observed dataset. These are apparatus specifications and instructions, not a reported confirmation of laminar flow.

Under incompressible flow conditions, an ideal aligned Pitot tube gives $q(y)=p_0(y)-p(y)=\rho u(y{)}^2/2$. Convert the manometer head $h$ to $q=({\rho }_{\mathrm{water}}-\rho )gh$, then infer $u=\sqrt{2q/\rho }$. Here $g$ is gravitational acceleration; mass density $\rho$ can be estimated from temperature and absolute pressure using the ideal gas law. A normalized velocity profile rises from the unresolved near-wall region to a plateau, whose value defines $U$; downstream profiles should broaden and collapse when plotted against $\eta$ if the Blasius boundary layer assumptions hold. Integrating a recovered velocity profile gives displacement thickness and momentum thickness.

Additional controls for interpreting this experiment follow from the measurement model: check differential-pressure calibration with equal port pressures and known liquid heads; leak-check tubing; align the Pitot tube with the incoming velocity; convert wall contact to the inlet-centre coordinate rather than treating outside contact as $y=0$; repeat traverses and outer velocity readings to detect drift. Keep the plate smooth and aligned, and check outer static pressure at multiple downstream stations before assuming zero pressure gradient. Repeating at another station or outer velocity tests the predicted boundary-layer scaling more directly than fitting one curve. These controls are proposed checks, not actions documented as completed in the manual.

Finite probe size, wall interference, flow fluctuations, and weak near-wall dynamic pressure limit inference. Even the manual's probe-based Reynolds number criterion, ${\mathrm{Re}}_d=ud/\nu >1000$ for its ideal Bernoulli equation conversion, must be checked with local $u$, not just $U$. In the illustrative model at $x=0.3048\mathrm{m}$, ${\delta }_{99}\simeq 3.32\mathrm{mm}$; the quoted outside diameter is $2.54\mathrm{mm}$, a substantial fraction of that thickness. A real inlet's sensing footprint and correction cannot be deduced from outside diameter alone. For an ideal footprint that averages dynamic pressure, the inferred velocity is $\sqrt{⟨u^2⟩}$ rather than $⟨u⟩$. Differentiating such sparse readings to obtain wall shear stress magnifies measurement error; the momentum thickness route is less sensitive to this differentiation but still needs the unresolved near-wall contribution. The no-slip boundary condition is a model constraint here, not a direct reading from a probe centred on the wall.

An instrument for measuring pressure relative to another pressure. A liquid-column manometer uses hydrostatic pressure; a digital manometer uses a pressure transducer.

The appeal of a liquid-column manometer is that a pressure measurement becomes a visible length measurement: mass density and gravitational acceleration supply the conversion. It can compare two pressure tappings in a flowing fluid, even though the measuring liquid itself must settle into hydrostatic equilibrium. The reference connection determines which pressure difference is being measured.

Ordinary inspiration is active enlargement of the thorax; ordinary expiration is chiefly passive recoil after the inspiratory muscles relax. The movements increase and decrease the vertical, anteroposterior and transverse dimensions together. Their relative prominence varies with posture and the individual; there is no exclusive division into abdominal and costal kinds of breathing.

The principal inspiratory muscle is the respiratory diaphragm. Its peripheral fibres shorten towards the central tendon, lowering and flattening its domes. This increases the vertical dimension of the thorax and displaces the abdominal contents downwards and forwards, making the relaxed abdominal wall project. Its costal attachments also act on the lower ribs: with abdominal support opposing unlimited descent, shortening can lift and expand the lower costal margin. Thus the respiratory diaphragm does more than pull down a piston. Its motor supply is through the phrenic nerves, principally from cervical segments C3–C5.

The external intercostal muscles elevate the ribs and help keep the intercostal spaces from being drawn inwards as pleural pressure falls. The interchondral, or parasternal, portions of the internal intercostal muscles also contribute to inspiration. It would therefore be inaccurate to label every part of the internal intercostal muscles expiratory. Coordinated activity braces the rib cage so that the shortening of one layer moves the ribs rather than simply deforming the spaces between them.

Rotation about the posterior articulations raises the anterior ends of the upper ribs and the sternum, increasing the anteroposterior diameter: the usual pump-handle description. The more laterally directed portions of the lower ribs rise and move outwards, increasing the transverse diameter: the bucket-handle description. These are descriptions of components of an oblique movement, not two independent sets of hinges. The scalene muscles can stabilize and elevate the uppermost ribs, with recruitment varying in quiet breathing. The sternocleidomastoid muscle, when the head is fixed, is an accessory elevator of the sternum in greater inspiratory effort; it is not required for an ordinary quiet breath.

The lungs follow the expanding chest wall because their surfaces remain coupled to it through the thin fluid-filled pleural cavity. More negative pleural pressure increases the distending transpulmonary pressure; enlargement of the alveoli briefly makes alveolar pressure lower than atmospheric pressure, so air enters. At the end of inspiration, airflow stops when these last two pressures equalize. During quiet expiration, relaxation of the respiratory diaphragm and inspiratory intercostal muscles allows the stretched lungs and chest-wall system to recoil towards their resting balance. The domes rise, the ribs and sternum descend, and alveolar pressure becomes slightly positive relative to atmospheric pressure while air leaves. Active abdominal muscles and the interosseous portions of the internal intercostal muscles become important in forced expiration, rather than supplying the main force in quiet expiration.^[ref]

A simple mechanical demonstration uses two elastic bags in an airtight transparent vessel, connected through its stopper to the air, with a movable rubber sheet forming the base. Pulling the sheet down expands the vessel and inflates the bags; letting it return allows deflation. A side-tube manometer can show the associated pressure change. This illustrates expansion by lowering the floor, but its rigid vessel cannot demonstrate the movements of the ribs, the action of the intercostal muscles, or the real geometry of the pleural cavity. Observing lower-chest widening and abdominal displacement during quiet breathing supplies those missing observations without confusing the model with the anatomy.

The heart supplies the principal continuing mechanical input to blood circulation; arterial recoil, respiratory movements and the action of skeletal muscles redistribute and supplement that input. They have different sources of energy and should not all be called independent propulsive powers. The pressure gradient remaining after passage through the capillaries is still a consequence of the upstream pump.

Arterial elasticity. During ventricular systole, ejected blood expands the aorta and large arteries, storing elastic potential energy in their walls. During diastole, recoil continues to drive blood into the peripheral vessels while closure of the aortic valve limits return towards the heart. This reduces the intermittency of flow downstream. The recoil is a temporary store of cardiac work, rather than a fresh source of energy. A vessel that is too rigid provides less of this smoothing; a compliant vessel with an open backward outlet would not provide the same useful result.

The skeletal-muscle pump. Contracting skeletal muscles compress adjacent veins. Venous valves make the displacement preferentially towards the heart; when compression ceases, refilling permits another stroke. Walking therefore aids return from dependent limbs. The source of the added work is muscle contraction, and the valves guide it without producing energy. Merely possessing valves cannot make a stationary column circulate.

The respiratory pump. During inspiration, falling intrathoracic pressure and displacement of the abdominal contents favour a pressure gradient from abdominal and peripheral veins towards the thoracic veins and right side of the heart. The respiratory diaphragm thus participates indirectly in venous return as well as pulmonary ventilation. The exact flow varies with posture, vessel collapse and the phase of the respiratory cycle; positive-pressure inflation does not reproduce the same mechanical circumstances as spontaneous inspiration.^[ref]

Venous tone and cardiac filling. Sympathetic contraction of venous smooth muscle can reduce venous storage capacity and transfer blood towards the central circulation. This alters the volume available for filling rather than requiring a wave of venous peristalsis. Cardiac relaxation, recoil and movement of the atrioventricular plane also affect filling pressure. Some traditionally described cardiac suction is therefore a feature of the cardiac cycle and mechanical coupling, not a separate organ pulling blood through every vessel.^[ref]

Gravity and supposed capillary attraction. Gravity assists a downward column but opposes an upward one. In a complete circuit returning to its original height it supplies no net gravitational work; its important practical effects include hydrostatic pressure differences and dependent venous pooling. Ordinary capillary action in an open narrow tube, driven by a liquid meniscus, is not a general pump in a fluid-filled capillary network. Nor does a vague attraction of blood by tissues replace a measurable pressure gradient. Local vasodilation can increase perfusion by lowering vascular resistance, but that change does not manufacture the necessary pressure source.

For a simple mean-flow description, with $Q$ the volume flow rate, $\Delta P$ the driving pressure gradient and $R$ the effective vascular resistance,This relation distinguishes a source of driving pressure from a change of resistance. In a lumped compliant arterial reservoir with vascular compliance $C$ and no inflow between beats, volume balance giveswhere $P_v$ is the downstream pressure. The exponential decay follows from stored volume leaving through the resistance. It explains continued flow during diastole without claiming that the idealization describes every reflected arterial wave.

A physical demonstration can compare a pulsatile pump feeding a narrow outlet through rigid tubing with the same pump feeding it through an elastic reservoir. Collecting the outflow over the pumping and resting phases reveals the reservoir's smoothing action; a side-arm manometer records its falling pressure. Separately compressing a valved flexible tube shows the role of a peripheral muscle pump. Keeping pump stroke and outlet resistance comparable prevents the apparatus from conflating a smoother flow with creation of extra energy.

The pressure coefficient compares a local static pressure with a specified reference static pressure, using a fixed reference dynamic pressure:The reference mass density, speed, pressure and location must accompany a reported pressure coefficient. Keep the same $q_{\infty }$ throughout a surface distribution; replacing it by local $\rho U^2/2$ gives a different quantity and fails at a stagnation point. The definition itself requires neither Bernoulli's principle nor inviscid flow, so measured pressure coefficients remain useful when those idealizations fail.

Positive $C_p$ means $p>p_{\infty }$; zero means equality; negative $C_p$ means $p<p_{\infty }$. This sign does not specify the sign of absolute pressure. For stipulated $p_{\infty }=101325\mathrm{Pa}$ absolute and $q_{\infty }=240\mathrm{Pa}$, $C_p=-3$ gives $p=100605\mathrm{Pa}$ absolute: a $720\mathrm{Pa}$ deficit, not a negative absolute pressure. If $p_{\infty }$ equals atmospheric pressure, the numerator is gauge pressure; a wind tunnel's reference static pressure need not equal room atmospheric pressure. These are reference choices, not different physical pressures.

Under the same-height, constant-mass density $\rho ={\rho }_{\infty }$, steady flow and inviscid flow hypotheses of the Bernoulli equation, and with the same Bernoulli invariant as the reference flow,The first equation immediately gives the second after subtracting $p_{\infty }$ and dividing by $q_{\infty }$. Hence a lossless stagnation point has $C_p=1$, $U=U_{\infty }$ gives $C_p=0$, and $U=2U_{\infty }$ gives $C_p=-3$. For a real stationary wall satisfying the no-slip boundary condition, the velocity is zero right at the wall; inserting that wall velocity in an inviscid flow formula would wrongly predict $C_p=1$ everywhere. A thin boundary layer approximation instead relates the wall pressure to the outer-flow pressure and uses the outer velocity where the Bernoulli equation applies.

For potential flow around a circular cylinder of radius $a$ with zero circulation, the surface tangential velocity is $u_{\theta }=-2U_{\infty }\sin \theta$. Thus the ideal pressure coefficient isWith $\theta$ measured from downstream, the front is at $\pi$ and the rear at zero. Both ideal stagnation points have $C_p=1$, while the sides at $\pi /2$ and $3\pi /2$ have $C_p=-3$. This exact model is a useful baseline for an experiment; its complete rearward pressure recovery is not a prediction for a separated real fluid wake.

To obtain a force, integrate the local normal contributions with their directions. Let $\mathbf{n}$ be the unit normal vector from the body into the fluid and $\Sigma$ its closed wetted surface:The second equality removes a spatially constant reference pressure over the closed surface; it does not remove a nonuniform hydrostatic pressure or justify dropping the reference term on an isolated open patch. A negative $C_p$ contributes outwards in this reference-subtracted calculation, even though a positive absolute pressure still pushes inwards locally. Project ${\mathbf{F}}_p$ onto the chosen lift and drag directions. The full fluid force also includes ${\int }_{\Sigma }{\mathbf{\sigma }}_{\mathrm{visc}}\mathbf{n}dA$ from the viscous stress tensor, including tangential shear stress; pressure tapping does not measure that contribution.

For the two-dimensional cylinder, force per unit span follows from $dA=ad\theta$ per unit span and $\mathbf{n}=(\cos \theta ,\sin \theta )$:Substituting $C_p=1-4{\sin }^2\theta$ gives $(0,0)$: opposite points have identical pressure coefficients and opposite normal vectors. Zero drag despite a strongly nonuniform pressure is the instructive limitation associated with D'Alembert's paradox. Real viscosity, boundary layers and flow separation can prevent rearward pressure recovery and produce pressure drag. Thus the measured curve can test the model and estimate a pressure contribution without proving that total drag vanishes.

A motivating measurement is Virginia Tech's Experiment 3 - Flow Past a Circular Cylinder. Its open-jet wind tunnel holds a rotatable $140\mathrm{mm}$ cylinder with end plates and 36 one-millimetre pressure tappings at ten-degree intervals. A reference Pitot-static tube supplies $p_{0\infty }$ and $p_{\infty }$ to one digital manometer; a second connects a surface tap to its positive port and reference static pressure to its negative port. Record the simultaneous readings:The last equality uses the low-speed stopping relation, not an additional speed measurement. The manual requires sealed tubing and zero checks with the tunnel off. It also provides a water-column manometer: read each column's initial level, and subtract the independently measured reference-to-atmosphere pressure from the tap-to-atmosphere readings. Record tap positions after rotation. Compare the two instruments and check spanwise uniformity; end plates do not guarantee two-dimensional flow. ^[ref]

The inferential distinction matters: the manometers directly measure pressure differences, the ratio estimates pressure coefficients, and a surface integral estimates the pressure part of the force. Measure room absolute pressure and temperature if converting the reference difference to speed through the ideal gas law $\rho =p_{\mathrm{abs}}/(RT)$; use thermodynamic temperature in that equation. For force reconstruction, cover the complete contour and use numerical integration with the tap geometry. Finite tap spacing, unknown end effects, probe disturbance and fluctuations limit that reconstruction; tubes and instruments also average or delay changing pressures. Retain the signed raw readings, repeated readings and reference readings so that these limits can be assessed. A small reference difference magnifies any zero error in the ratio, rather than producing a reliably large $C_p$.

A pressure measurement determines pressure relative to a specified reference using an instrument such as a manometer or pressure transducer. Gauge pressure, absolute pressure and differential pressure require different references; measurement calibration and measurement uncertainty determine how the reading can be interpreted.

A small flush opening communicating the local surface static pressure through tubing to a manometer or pressure transducer. An upstream-facing Pitot tube instead brings incident flow to rest to measure stagnation pressure.

A concrete experiment turns the phase coexistence curve into pairs of temperature and saturation pressure. A 1969 paper reports water measurements made in 1942 and 1947–1949 using a boiler and precision mercury manometer. Platinum resistance thermometers read the boiler temperature through a resistance bridge. The pressure-transfer line passed through an ice-water condenser and a dry-ice trap; helium filled connecting sections. Corrected mercury column height gave the pressure at the thermometer coils, including hydrostatic pressure contributions from water vapor, helium, mercury, and mercury vapor.^[ref]

Controls included normal/reversed-lead readings, readings at two thermometer electric currents extrapolated to zero current to remove self-heating, repeated bridge calibration, and daily triple point thermometer calibration checks. Cellar temperature measurements corrected fluid-column and gauge-block thermal expansion. One measurement series was excluded because a trapped gas bubble was suspected of corrupting the mercury head. The paper adjusted measurements to round temperatures using previously tabulated slopes; those adjusted values therefore are not independent measurements of those slopes.^[ref]

The thermodynamic inference requires liquid and gas in phase coexistence, a well-defined common temperature, and a pressure corrected to that same location. Leaks, contamination, or a temperature gradient can spoil that interpretation. A separate calorimetry measurement of latent heat, together with the two specific volumes, allows a test of the full Clapeyron equation. Converting a measured phase coexistence curve slope directly into latent heat instead assumes that equation; it is not an independent test.

A U-tube differential manometer contains a connected column of liquid with one gas connection above each liquid meniscus. Write $p_L,p_R$ for the left and right pressures, and $z_L,z_R$ for the meniscus heights on an upward vertical coordinate. Assume constant mass density $\rho$ and downward gravitational acceleration of magnitude $g$; neglect the gas column's mass density and differences in capillary pressure. The signed vertical length difference $\Delta h=z_R-z_L$ then givesLarger left pressure means a lower left liquid meniscus: $p_L>p_R$ implies $z_L<z_R$. Equal pressures give equal meniscus heights.

The balance follows directly from hydrostatic pressure. At a common height $z_0$ below both surfaces, the two points in the connected homogeneous liquid have equal pressure:Subtracting cancels the common bottom depth and leaves $p_L-p_R=\rho g(z_R-z_L)$. The same-height rule follows from hydrostatic equilibrium, $\nabla p=-\rho g{\mathbf{e}}_z$: a horizontal displacement changes no pressure, and for constant $\rho$ the quantity $p+\rho gz$ is constant throughout the connected liquid. Equal height alone is insufficient for unrelated vessels or for fluid flow with significant acceleration.

For an original constructed example, choose water of stipulated mass density $\rho =1000\mathrm{kg}{\mathrm{m}}^{-3}$, gravitational acceleration $g=9.81\mathrm{m}{\mathrm{s}}^{-2}$, and vertical length difference $\Delta h=0.060\mathrm{m}$. ThenThe SI pressure unit is the pascal: the product has units $\mathrm{kg}{\mathrm{m}}^{-3}\times \mathrm{m}{\mathrm{s}}^{-2}\times \mathrm{m}=\mathrm{kg}{\mathrm{m}}^{-1}{\mathrm{s}}^{-2}=\mathrm{Pa}$. Swapping the two connections gives $-588.6\mathrm{Pa}$ and reverses which liquid meniscus is lower. In equal-bore arms, volume conservation makes each surface move $30\mathrm{mm}$ from its initial equal-height position; using only one surface's displacement would halve the inferred pressure. With unequal arm areas $A_L,A_R$, a left fall $a$ and right rise $b$ instead obey $A_{L}a=A_{R}b$, while the vertical length difference is still $a+b$.

If the right port is open to the local atmosphere, $p_L-p_R$ is the left gauge pressure. Only with that reference and known atmospheric pressure can one obtain absolute pressure fromFor an explicitly stipulated atmospheric pressure of $100000\mathrm{Pa}$, the example gives $100588.6\mathrm{Pa}$ absolute pressure. If the right port is connected to another vessel or a pressure tapping, the same reading is a differential pressure and supplies no absolute pressure without knowing that reference.^[ref]

NASA's Wind Tunnel Experiment Details, slide 27, describes a practical manometer measurement: partially fill a Tygon tube with water and connect its two ends to total pressure and static pressure ports in a wind tunnel. The total pressure connection pushes its liquid meniscus downward; the vertical length difference supplies the pressure difference. The slide predicts increasing separation as the tunnel speed increases. It supplies an apparatus and method, rather than a table of observed readings.^[ref]

A control for this practical is to expose both connections to the same atmospheric pressure before the run: settled liquid meniscus heights should agree in a symmetric column. Read each liquid meniscus at eye level, reconnect sealed tubing to the identified ports, and wait for settling. Recheck the equal-pressure zero afterwards; reverse connections to check the sign. These checks establish neither mass density nor ruler accuracy.^[ref]

The inference is a differential pressure from hydrostatic pressure, with stagnation pressure on one side and static pressure on the other in NASA's practical. Converting that difference to a flow speed additionally needs the hypotheses discussed under dynamic pressure and Pitot-static tube. A changing pressure can leave the column oscillating; leaks, blocked pressure tappings or trapped liquid in a gas connection can alter or delay the readout. The column should be read after settling, and temperature should be recorded when choosing the measuring liquid's mass density.

Two corrections clarify the limits. If both gas ports are at the same height and carry the same gas of constant mass density ${\rho }_g$, keeping its hydrostatic pressure gives $p_L-p_R=(\rho -{\rho }_g)g\Delta h$. Different port heights require their separate gas column heights. Also, a curved liquid meniscus can sustain a capillary pressure jump through surface tension. Write $J_L,J_R$ for liquid pressure minus gas pressure at the two surfaces. Neglecting gas weight, the balance becomes $p_L-p_R=\rho g\Delta h+J_R-J_L$. Identical meniscus shapes in matching clean bores cancel those jumps; unequal bores or different wetting conditions need not. Thus the useful simplicity of $\rho g\Delta h$ rests on identifiable physical conditions.
