For a long, nondegenerate, ideal p-n junction under low injection, the diode saturation current is set by minority carriers supplied from the neutral regions. Their equilibrium densities are $n_{p0}=n_i^2/N_A$ and $p_{n0}=n_i^2/N_D$. Solving the steady diffusion and recombination equations gives $I_S=e\mathcal{A}(D_n{n}_{p0}/L_n+D_p{p}_{n0}/L_p)$, where $\mathcal{A}$ is junction area, $D_n,D_p$ are diffusion coefficients, and $L_n,L_p$ are diffusion lengths. Reverse bias suppresses opposite majority-carrier injection exponentially while collecting this minority supply. Thus $I_S$ is approximately bias independent before breakdown, but depends strongly on temperature through $n_i^2$ and on transport, doping, and geometry.

Treat the $p^{+}$ strips as much more strongly doped than the $n$ bulk, so the depletion layer lies predominantly in the latter. Fully ionized donors leave uniform space charge $\rho =e{N}_D$. In one dimension,At the depletion boundary $x=d$, the minimum-bias solution has $E(d)=0$. Thus $E(x)=e{N}_D(x-d)/{ϵ}_{\mathrm{Si}}$, and the magnitude of the potential drop isFor $N_D=10^{18}{\mathrm{m}}^{-3}$, $d=300\mu \mathrm{m}$, and ${ϵ}_r=11.6$, this isThe applied reverse bias is approximately this value; more precisely the built-in junction potential contributes to the total depletion voltage and is subtracted from the required external bias. It is small on the scale of seventy volts and is not specified. Here the stated free-carrier density is used as the effective donor density of the neutral bulk before depletion.

Joining p-type and n-type regions initially allows majority carriers to diffuse across and recombine. Exposed negative acceptor charge on the p side and positive donor charge on the n side form a depletion region. Its electric field points from n to p and balances diffusion at equilibrium. The Fermi level is then spatially constant, while the conduction and valence band edges bend across the built-in potential; this equilibrium barrier cannot supply continuous power to a load.

forward bias makes p positive relative to n, reducing the barrier from $q{V}_{bi}$ to $q(V_{bi}-V)$. electrons enter p material and holes enter n material, becoming minority carriers whose diffusion and recombination sustain the current. reverse bias enlarges the barrier and leaves a much smaller minority-carrier current until breakdown. The ideal diffusion model gives $I=I_0[e^{qV/k_{B}T}-1]$, the Shockley diode equation; depletion-region recombination, series resistance and breakdown limit this approximation. Minority-carrier injection on both sides is essential to the junction theory.^[ref]

Donor doping supplies conduction electrons to n-type semiconductor; acceptor doping supplies holes to p-type semiconductor. In the nondegenerate, fully ionized limit, majority densities are approximately $n_n=N_D$ and $p_p=N_A$, while minority densities follow $np=n_i^2$. On contact, majority carriers diffuse across the junction, exposing positive donor ions on the n side and negative acceptor ions on the p side. The depletion-region electric field points from n to p and opposes further diffusion. At thermal equilibrium the Fermi level is uniform and drift balances diffusion, with no net current.

For an abrupt junction with uniform doping and permittivity ${\epsilon }_s$, charge neutrality gives $N_D{x}_n=N_A{x}_p$. Poisson's equation then givesPositive applied $V$ means forward bias: it lowers the barrier and narrows the depletion region. Most depletion width lies in the more lightly doped side. The formula assumes the depletion approximation and fails once its operating assumptions break down.

forward bias increases minority densities at the depletion edges by the factor $e^{qV/k_{B}T}$. In the neutral material, the steady diffusion–recombination equation gives exponentially decaying excess minorities, with lengths $L_n=\sqrt{D_n{\tau }_n}$ and $L_p=\sqrt{D_p{\tau }_p}$. Taking the carrier gradients at the junction yieldsThis ideal diode law assumes low injection, nondegenerate statistics, negligible depletion-region recombination and series resistance, and sufficiently long neutral regions. Its exponential comes from the bias-dependent injection barrier; there is no universal abrupt “turn-on” voltage. reverse bias suppresses injection, giving an approximate $-I_S$ current until additional leakage or breakdown matters.^[ref]

Rectification uses the asymmetric current-voltage characteristic; controlled reverse breakdown enables voltage references, with current limiting. Bias-dependent depletion capacitance enables varactors. photodiodes and solar cells collect optically generated carriers through the junction field and diffusion toward it; efficient light-emitting diodes use radiative electron–hole recombination, preferably in a direct-gap material. Series resistance, high injection, trap-assisted recombination, heating and finite carrier storage explain departures from the ideal steady-state law.

A p-n junction brings p-type and n-type regions into contact. Majority-carrier diffusion initially leaves exposed ionized acceptors and donors, producing a depletion region and a built-in potential. At thermal equilibrium the electrochemical potential is constant: drift and diffusion currents cancel. The internal barrier is not a freely extractable battery voltage.

For a nondegenerate abrupt homojunction,Here $V>0$ denotes forward bias and the depletion approximation is assumed. forward bias lowers the barrier and injects minority carriers; reverse bias widens the depleted region and suppresses ordinary majority injection. In the ideal diffusion regime,Recombination can change the ideality factor; series resistance, high-level injection, leakage and breakdown limit this simple Shockley diode equation. The original junction theory explicitly treats both electron and hole currents, which is essential to carrier injection and transistor action.^[ref]

As a rectifying diode, the junction conducts strongly in one bias direction and weakly in the other before breakdown. This permits power rectification, signal detection and electronic switching. Stored minority charge affects turn-off time, so a static exponential current-voltage relation alone does not specify switching speed. A junction capacitance $C_j\simeq {ϵ}_{s}A/W$ varies with reverse bias and can be used in a voltage-controlled capacitor; heavily doped or high-field junctions can instead exploit controlled tunnelling or avalanche breakdown.

In a photodiode, absorbed photons generate electron-hole pairs and the depleted-region field assists collection. reverse bias widens the collecting region and can improve speed, but adds dark-current noise and breakdown constraints. In a solar cell, the same carrier generation supplies current against an external voltage. An ideal illuminated characteristic is $I=I_s(e^{qV/(k_{B}T)}-1)-I_{\mathrm{ph}}$: at open circuit the forward diode current balances photocurrent, while useful power is taken at an intermediate operating point. Neither short circuit nor open circuit delivers power to a load.

A forward-biased light-emitting diode injects electrons and holes that can recombine radiatively. Efficient emission favors suitable direct-gap materials and carrier confinement; the characteristic photon energy is near the semiconductor band gap. nonradiative recombination, escape losses, series resistance and heating limit efficiency. Two coupled junctions also form a bipolar junction transistor: an emitter injects minority carriers through a thin base, and a reverse-biased collector collects them. Useful current gain depends on efficient injection and limited base recombination, not simply on joining any three arbitrary regions.

These functions are experimentally distinguished by measuring dark and illuminated current-voltage curves, bias-dependent capacitance, transient switching or optical emission, with controlled temperature and current limits. The common mechanism is bias-controlled carrier injection or collection at a depletion barrier; the device geometry and operating mode determine which function is useful.

Dopant atoms and carrier type. Substitutional semiconductor doping places a small fraction of foreign atoms on host lattice sites. In a tetrahedrally bonded group-IV semiconductor, a group-V substitution such as phosphorus in silicon has an extra valence electron. A shallow donor level just below the conduction edge can release that electron, leaving a positively charged donor. In an n-type semiconductor, mobile electrons are the majority carriers and the chemical potential shifts toward the conduction band.

A group-III substitution such as boron in silicon has one fewer valence electron. An acceptor level just above the valence edge captures an electron from the valence states, leaving a mobile electron hole and a negatively charged acceptor. In a p-type semiconductor, electron holes are the majority carriers and the chemical potential shifts toward the valence band. The material can remain electrically neutral in both cases: mobile carrier electric charge is compensated by fixed ionized impurity electric charge. Dopant freeze-out, compensation and degeneracy qualify the simplest one-carrier-per-dopant picture.

Making the junction. Choose p material at $x<0$ and n material at $x>0$. Electrons initially diffuse from n to p, and electron holes from p to n, recombining near the interface. Negative ionized acceptors are exposed on the p side and positive ionized donors on the n side. They produce an electric field directed from n to p. The field opposes further majority-carrier diffusion until drift and diffusion balance and the equilibrium electrochemical potential is uniform.

The depletion regions are depleted of mobile majority carriers, not of the fixed dopant charges that create the space charge. At equilibrium the conduction and valence edges bend together, while the chemical potential is flat. The specified $\Delta {\varphi }_0$ is a electric potential difference: the corresponding initial chemical-potential energy separation is $e\Delta {\varphi }_0$. This convention is required by the quoted units and width formulas. Write ${\epsilon }_s=ϵ{ϵ}_0$ for the absolute permittivity; the paper's $ϵ$ is relative permittivity.

Poisson equation and widths. Let the depleted intervals be $-w_p<x<0$ and $0<x<w_n$. Fully ionized number densities $N_A,N_D$ correspond to electric charge densities $-e{N}_A,+e{N}_D$, respectively. ThusThe factor $e$ converts a dopant concentration to a space-charge density. Requiring zero field in both neutral regions gives charge neutrality,With $\mathcal{E}=-{\varphi }^{\prime }$, direct integration gives the triangular fieldContinuity at the interface is the same neutrality condition. The field is negative throughout the depleted interval. Set $\varphi (-w_p)=0$. Its integral givesPotential continuity therefore requiresCombining it with neutrality yields the abrupt-junction depletion width and capacitance resultsThe more lightly doped side depletes farther, because equal and opposite space charges must be exposed.

Applied bias. Define positive $V$ as forward bias, raising the p-side terminal potential relative to the n-side terminal. It lowers the remaining barrier from $\Delta {\varphi }_0$ to $\Delta {\varphi }_0-V$. Reverse bias has $V<0$ and raises that barrier. The same Poisson integration applies, with this replacement:Forward bias narrows the depleted region; reverse bias widens it. Under bias there need not be one equilibrium chemical potential across the device, so the equilibrium flat-level argument must not be reapplied unchanged. The barrier/width change is illustrated in the next figure.

Differential capacitance and electric charge sign. Put $B=\Delta {\varphi }_0-V>0$ and $N_{\mathrm{eff}}=N_A{N}_D/(N_A+N_D)$. The signed p-side fixed electric charge per unit area isDifferentiating with respect to forward electric potential difference gives the positive capacitance per unit areaThe n-side electric charge is $Q_n=-Q_p$, so $d{Q}_n/dV=-C_A$ instead. If $Q$ denotes a positive space-charge magnitude, the positive capacitance is $-dQ/dV$ for this forward-voltage convention. This resolves the sign implicit in the paper's positive $dQ/dV$. The total device capacitance is $C=\mathcal{A}{C}_A$, where $\mathcal{A}$ is its cross-sectional area.

Finite device and numerical sketch. For the symmetric device, $N_A=N_D=N$ and each side has thickness $d$. Before full depletion,Using ${\epsilon }_s=12{ϵ}_0=1.0625\times 10^{-10}\mathrm{F}{\mathrm{m}}^{-1}$, the zero-bias width on each side is $4.07\mu \mathrm{m}$, less than $d=10\mu \mathrm{m}$. The total zero-bias capacitance is $\boxed{C(0)\simeq 1.30\mathrm{pF}}$.

Full depletion occurs when $w=d$, soAt larger reverse bias the depleted thickness cannot exceed $2d$. In the ideal fully depleted slab, incremental terminal electric charge changes the field uniformly through that fixed thickness, giving the full-depletion capacitance of a symmetric junction slabThus the idealized piecewise sketch over the specified range isIt is continuous at full depletion, rises through $1.30\mathrm{pF}$ at zero bias, and has a formal inverse-square-root divergence as $V\to 0.5\mathrm{V}$ from below.

There are two physical limits to this extension. Once all dopants are exposed, their fixed space charge no longer increases, but the terminal electrodes can still acquire incremental electric charge; differentiating only the fixed ionized electric charge would incorrectly predict zero capacitance. Near $V=\Delta {\varphi }_0$, the depletion approximation itself fails as mobile carriers and forward injection become important, so the formal infinite endpoint is not a prediction of an actual infinite measured capacitance. The fully depleted plateau assumes ideal contacts and no breakdown, injection storage or extra series capacitance.

Nondegenerate carrier product. Assume three-dimensional parabolic energy bands near their extrema, spin degeneracy two, and no additional uncounted valley multiplicity. Near the conduction edge, a Boltzmann approximation to the Fermi-Dirac distribution givesAngular integration and the Gaussian radial integral yieldFor valence electron holes, the empty-state probability is $1-f(E)\simeq e^{(E-\mu )/(k_{B}T)}$. Measuring electron hole kinetic energy downwards from $E_v$ similarly givesThe factors two count spin once in each band. Multiplying cancels the chemical potential and proves the semiconductor mass-action law:In an intrinsic neutral semiconductor, $n=p=n_i$. In a doped equilibrium semiconductor the same product holds under the stated nondegenerate assumptions, even when $n\ne p$. Extra valleys or several valence branches must be included in the effective density-of-states factors rather than counted inconsistently.

Equilibrium junction. Put the p region on the left and the n region on the right. Before contact their majority carriers are electron holes and electrons, respectively. Diffusion initially sends electrons from n to p and electron holes from p to n. This leaves negative ionized acceptors on the p side and positive ionized donors on the n side, creating a depletion region and an electric field directed from n to p. At equilibrium this field balances diffusion, so the net electric current vanishes.

For a homojunction the gap remains constant while the conduction band and valence band edges bend downwards from p to n by $e{V}_{\mathrm{bi}}$. The equilibrium chemical potential is flat. Since $E_{c,v}(x)=E_{c,v}^{\mathrm{ref}}-e\varphi (x)$, the electrostatic potential rises from p to n. The carrier profiles satisfyWith fully ionized nondegenerate dopants, the neutral p side has $p_p\simeq N_A$, $n_p\simeq n_i^2/N_A$, while the neutral n side has $n_n\simeq N_D$, $p_n\simeq n_i^2/N_D$. Thus the electron concentration rises across the junction and the electron hole concentration falls, with both small relative to the far-side majority densities in much of the depleted region. The ideal depletion approximation neglects these mobile populations when calculating the fixed space electric charge, but the actual equilibrium profiles are smooth.

The built-in potential follows from these Boltzmann factors:There is no applied terminal bias; the internal electrostatic potential variation does not contradict a constant electrochemical potential.

Opposing carrier fluxes under reverse bias. Use $V>0$ for the magnitude of reverse bias and $I>0$ for reverse electric current, as in the PDF. The junction barrier increases by $eV$. The Shockley diode equation in that orientation can be writtenThe reverse-directed contribution is supplied by minority electrons on the p side and minority electron holes on the n side. They reach the depletion edge by diffusion and are swept across by the built-in field. The opposing contribution is associated with majority carriers thermally crossing the barrier in the forward direction; reverse bias suppresses it by the Boltzmann factor. At zero bias detailed balance makes the two equal, while at large enough reverse bias the opposing flux becomes negligible.

In the ideal neutral-region diffusion model,Here $D_n,D_p$ are minority-carrier diffusion coefficients, $L_n,L_p$ their diffusion lengths, and $\mathcal{A}$ is junction area. The two terms inside this positive prefactor are the electron and electron hole contributions; both flow in the same reverse-current direction. This separates the two carrier-species contributions from the two opposing fluxes in the Shockley diode equation. Calling the saturation term a drift current refers to its passage across the depleted region, and does not eliminate the minority-carrier diffusion needed to supply it.

Reading the measured curves. At $eV\ll k_{B}T$, the ideal equation gives $I\simeq I_{\mathrm{sat}}eV/(k_{B}T)$, initially proportional to reverse electric potential difference. At $eV\gg k_{B}T$, it approaches a plateau $I\simeq I_{\mathrm{sat}}$. The thermal electric potential differences at the three temperatures are about $21$–$26\mathrm{mV}$, consistent with a rise at small reverse biases and near saturation at larger ones. Higher temperature produces a much larger plateau because thermal electron-hole excitation raises $n_i^2$ exponentially.

The lower-temperature curve has a noticeable residual electric potential difference dependence rather than a perfectly flat plateau. Depletion-region generation, surface leakage or other departures from the ideal diffusion model can contribute. The sharp upturn at the largest reverse electric potential differences is reverse breakdown, outside the unextended Shockley diode equation; the plot alone does not identify a unique microscopic breakdown mechanism. The original horizontal axis duplicates the final decade label, so a precise breakdown electric potential difference cannot be read reliably. Neither issue prevents estimating the gap from the intermediate-bias saturation region.

Band-gap estimate. Use plateau electric currents at a common intermediate reverse bias, away from both the small-bias rise and the breakdown upturn. Approximate readings are $I_{\mathrm{sat}}(298\mathrm{K})\sim 2.5\times 10^{-6}\mathrm{A}$, $I_{\mathrm{sat}}(273\mathrm{K})\sim 1.5$–$2\times 10^{-7}\mathrm{A}$, and $I_{\mathrm{sat}}(248\mathrm{K})\sim 10^{-8}\mathrm{A}$. Kelvin temperatures are required in the activation law.

For fixed effective masses, $n_i^2\propto T^3{e}^{-E_g/(k_{B}T)}$. If the remaining transport prefactor is approximately constant, extracting a semiconductor band gap from diode saturation current therefore usesUsing the widest temperature separation and the rounded readings givesNeglecting all algebraic prefactors and fitting $\ln I_{\mathrm{sat}}$ instead gives about $0.70\mathrm{eV}$. These differ by roughly $0.07\mathrm{eV}$, a material correction on the graph's precision scale. Thus an honest graph-based conclusion isThe nonflat low-temperature plateau, rough electric current readings, unprovided temperature dependence of $D/L$, and possible gap variation prevent a more precise extraction. If depletion-region generation dominated rather than the specified $I_{\mathrm{sat}}\propto n_i^2$ mechanism, its activation slope could involve a different energy scale; the displayed estimate explicitly uses the diffusion-dominated saturation model requested here.

A junction field-effect transistor has a conducting channel between source and drain, with gate regions forming reverse-biased p-n junctions to that channel. In an n-channel device, a more negative gate-source electric potential difference increases the reverse bias and widens the depletion region. The conducting cross-section shrinks, reducing the drain electric current. The gate ideally draws only a small leakage electric current, giving a high input resistance; the source-drain supply provides the controlled output power. Carrier motion in a p-channel device reverses the relevant polarities.

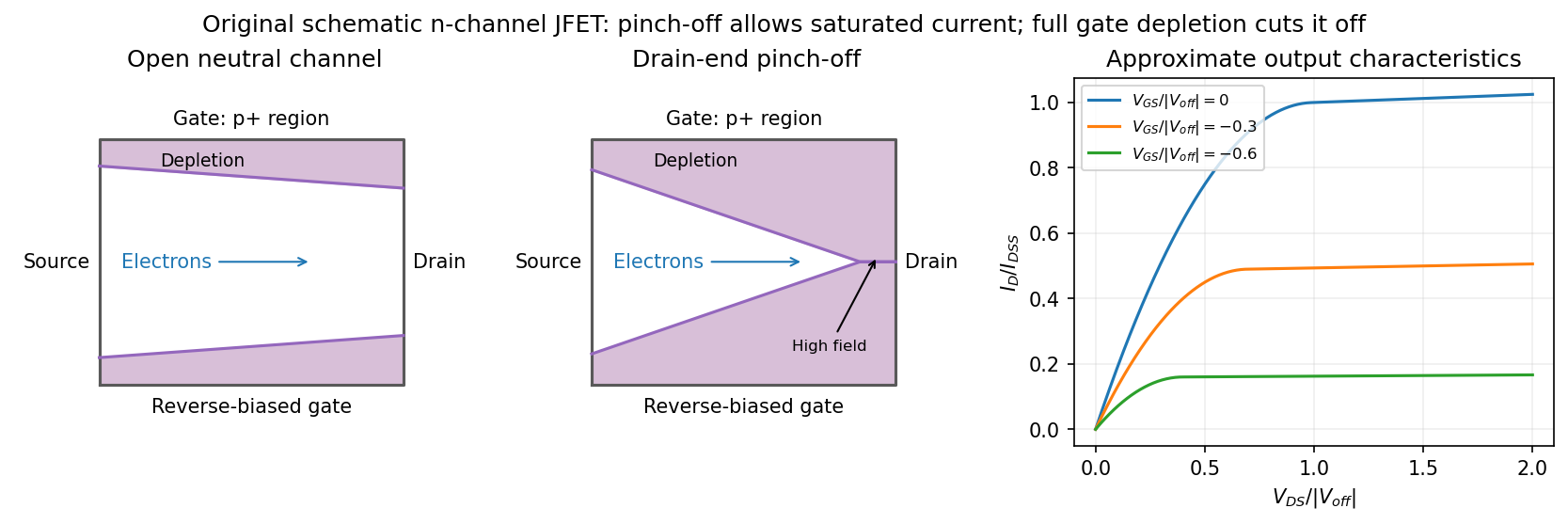

At small positive $V_{DS}$, the channel conducts approximately as a resistor. As the potential rises from source to drain, the local gate-channel reverse bias increases toward the drain. The depletion layers are therefore thicker there. For a symmetric n channel of half-thickness $a$, uniformly doped at density $N_D$, the one-sided depletion approximation giveswhere $w$ is the depletion width from each side and $V_{\mathrm{bi}}$ the built-in junction potential. The neutral channel closes locally when $w=a$. Define the positive geometrical depletion electric potential difference $U_P=e{N}_D{a}^2/(2{\epsilon }_s)$. The approximate drain-end pinch-off condition isMore negative gate bias makes this saturation occur at a smaller drain electric potential difference.

Pinch-off in a junction field-effect transistor does not mean that the drain electric current vanishes. Electrons arriving through the remaining neutral channel are swept across the high-field depleted region into the drain. Further increases in $V_{DS}$ mostly fall across that region, so the electric current changes only weakly: this is the saturation regime used for amplification. Channel shortening gives a finite output slope in real devices. Excessive reverse electric potential difference eventually causes breakdown, beyond the normal saturation model.

A sufficiently negative gate electric potential difference can instead deplete the entire channel from the source end and produce cutoff. In the simplified geometry its threshold is $V_{GS,\mathrm{off}}\simeq V_{\mathrm{bi}}-U_P<0$. A commonly used approximate transfer law in saturation isHere $I_{DSS}$ is the saturated drain electric current at zero gate-source bias. The square law is a useful device approximation, not an exact result for arbitrary channel profiles. It connects field control of depletion to a measurable transfer characteristic while keeping drain-end pinch-off distinct from complete gate cutoff.

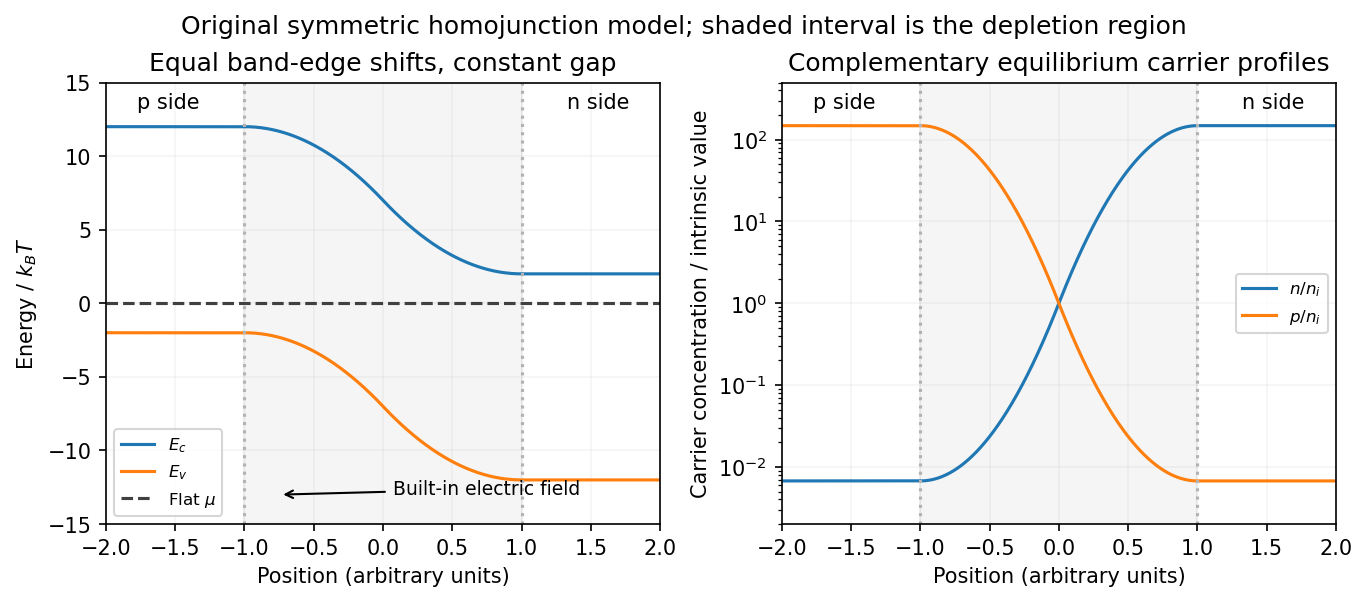

At equilibrium, majority electrons undergo diffusion from n to p, while majority electron holes diffuse from p to n. Their departure exposes positive donors on the n side and negative acceptors on the p side. The resulting electric field points from n to p and opposes further diffusion. Equilibrium is reached when the chemical potential is constant across the junction. The built-in potential is this electrostatic adjustment, not a discontinuity of the material's band gap.

Since electronic band energies shift by $-eV(x)$, both the conduction band and valence band undergo band bending down from p to n by $e{V}_b$ at zero applied bias. Their separation remains the same gap. In the nondegenerate thermal equilibrium limit the built-in voltage can also be expressed using neutral-edge densities as $e{V}_b=k_{B}T\log (n_n/n_p)=k_{B}T\log (n_n{p}_p/n_i^2)$.

Take the n-contact potential and its electrochemical potential as reference. Applying $V_{\mathrm{ext}}$ to the p side changes the total depletion-layer drop toThus $V_{\mathrm{ext}}<0$ is reverse bias: it increases the barrier and widens the depletion region. The bands have horizontal tangents at the neutral edges in this approximation and a smooth cubic bend within the linearly graded layer.

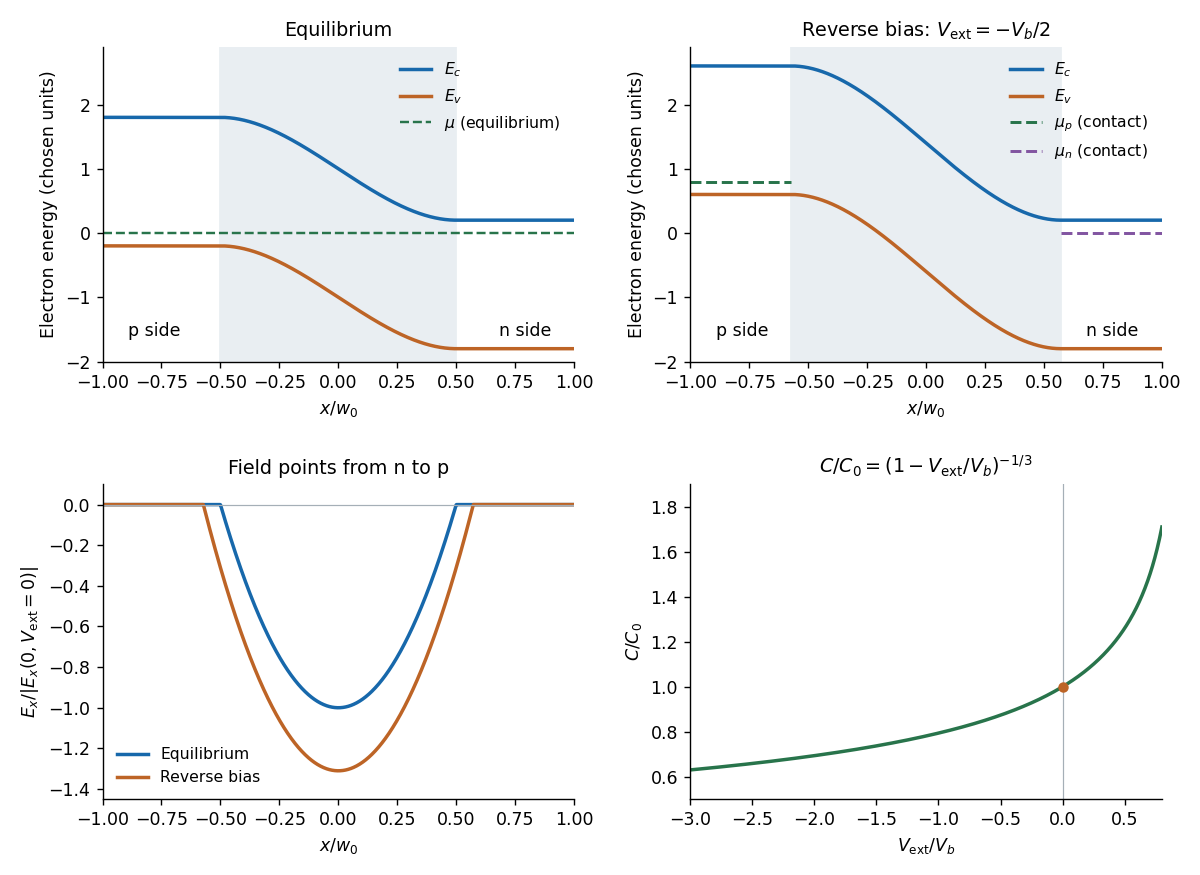

A biased junction is not in global thermal equilibrium. Its contact electron electrochemical potentials obeyUnder reverse bias the p-contact level is higher by $e|V_{\mathrm{ext}}|$. A single horizontal equilibrium chemical potential cannot describe this state; electron and hole quasi-Fermi levels describe the nonequilibrium populations. The sketch marks the contact levels. Detailed spatial quasi-Fermi profiles require transport and recombination information beyond the electrostatic doping profile.

At equilibrium the diffusion currents and drift currents cancel separately for each carrier species. Electron diffusion is from n to p, while the electric field drives electrons from p to n; hole diffusion is from p to n, while hole drift is from n to p. The net current is zero, although these opposing microscopic fluxes are present. In conventional-current signs, both majority diffusion contributions point p to n and the balancing drift contributions point n to p.

Forward bias, $V_{\mathrm{ext}}>0$, reduces the barrier and enhances majority-carrier diffusion and minority carrier injection. The ideal low-injection Shockley diode equation giveswhere positive current is p to n. For reverse bias, majority diffusion is suppressed and the field sweeps thermally supplied minority carriers across the junction, giving approximately $J=-J_s$. This saturation is limited by carrier supply rather than a current proportional to the field. Depletion-layer generation, recombination and eventual diode reverse breakdown modify the ideal result.

Photodiode saturation is a departure from the intended proportional response of a photodiode as incident radiation becomes too large for the detector's operating conditions. The simple relation $i=RP$, or its pulse-integrated counterpart $Q=RU$, then fails with a constant spectral responsivity $R$. The observed readout can also be limited by amplifier clipping or other circuit effects, so a flattened trace alone does not locate the nonlinearity inside the diode.

Robert E. Vest and collaborators characterized silicon-photodiode response under pulsed illumination, reporting dependence on reverse bias and illuminated area. Their study extends pulse-length characterization and compares a pulsed-radiation calibration with continuous-wave conditions at a synchrotron.^[ref] Low average optical power does not by itself ensure that an individual pulse remains within the detector's proportional-response range.

An original toy response makes the energy bias explicit. Suppose the collected pulse charge isThis chosen compression law is not Vest's detector model. At low pulse energy it approaches $RU$; at high energy it approaches $R{U}_s$. With $R=0.40\mathrm{C}{\mathrm{J}}^{-1}$, $U_s=100\mathrm{nJ}$ and true $U=100\mathrm{nJ}$, it gives $Q=20\mathrm{nC}$. Blindly applying the low-level calibration $U=Q/R$ would infer50nanojoules, only half the stipulated energy.

A detector linearity test varies incident energy while holding wavelength, illumination geometry, bias and readout settings fixed. In the toy law, halving the true energy from100to50nanojoules changes charge from20toabout13.3nanocoulombs, rather than to10nanocoulombs. Comparing these ratios with known optical changes can expose compression. Actual attenuation and reference measurements require their own measurement calibration.

The appropriate limit depends on pulse shape, area, bias and readout, not on one universal optical-power number. Detector baseline subtraction can correct an additive offset but cannot reconstruct charge lost through an unknown nonlinear response. Establishing linear operation or characterizing that response is therefore a prerequisite for trustworthy pulse energy measurement with a photodiode.

A p-n junction joins regions of a semiconductor with opposite majority charge carriers: electrons on one side and electron holes on the other. It provides the junction modeled by the Shockley diode equation.

Near an unbiased p-n junction, diffusion leaves exposed ionized donor impurities and acceptor impurities. Their electric field opposes further majority-carrier transfer. At thermal equilibrium, drift and diffusion balance; there is no net electric current. Forward bias reduces the barrier to carrier injection; reverse bias enlarges it. A heavily doped tunnel diode adds a different transport route, quantum tunnelling, that the ordinary Shockley diode equation omits.

Pulse energy measurement with a photodiode estimates incident laser pulse energy from collected signal electric charge. At fixed wavelength, suppose a photodiode has constant calibrated spectral responsivity $R$ in amperes per watt and remains in its linear operating range. If $P(t)$ is the incident radiant flux, the signal photocurrent is $i_{\mathrm{sig}}(t)=RP(t)$. Integrating over the complete response givesThe units agree because amperes per watt equal coulombs per joule. Spectral responsivity must apply at the measurement wavelength; a broadband pulse requires accounting for its spectrum.

In an original example, let $R=0.40\mathrm{A}{\mathrm{W}}^{-1}$ and let the baseline-corrected collected charge be $Q_{\mathrm{sig}}=12\mathrm{nC}$. Then $U=30\mathrm{nJ}$. An ideal charge amplifier with feedback capacitance $C_f=100\mathrm{nF}$ would produce an output change of magnitude $Q_{\mathrm{sig}}/C_f=0.12\mathrm{V}$. The amplifier's polarity depends on its circuit convention.

A practical apparatus needs a calibrated detector, a charge-sensitive readout and a measurement window containing the full response. Detector baseline subtraction removes the estimated background, including dark current. A residual constant current of1microampere integrated over10microseconds contributes10picocoulombs; with the example responsivity this is a25picojoule energy error. Extending the window can capture a missing signal tail but also accumulate more background error.

Photodiode saturation invalidates the assumed constant response. Robert E. Vest and collaborators measured pulsed silicon-detector behavior and reported dependencies on applied reverse bias and illuminated area.^[ref] A low average optical power therefore does not by itself establish linear response to individual pulses.

Rodney W. Leonhardt's calibration report describes a complementary reference method: a slow thermal standard measures accumulated energy, while pulse count and a calibrated beam splitter ratio determine average energy in the test beam.^[ref] This connects a fast photodiode readout to an energy reference without requiring the thermal standard to resolve every pulse.

Collected charge measures energy under the stated assumptions; it does not alone determine peak power. A flat30nanojoule pulse lasting100nanoseconds has power0.30watts, whereas a flat pulse of the same energy lasting1microsecond has power0.030watts. Those stipulated rectangular profiles illustrate why pulse shape and pulse duration are additional information.

Robert E. Vest is a researcher in optical-radiation metrology associated with the National Institute of Standards and Technology. His institutional profile describes work on ultraviolet detector characterization and measurement calibration, including leadership of the far- and extreme-ultraviolet detector-calibration program from1998. The scientific focus is relating a detector's electrical response to incident radiation under specified conditions.^[ref]

Vest's2009 paper with collaborators examines pulse energy measurement with a photodiode. Its motivating problem is that a source with modest average power can still drive a detector outside its linear range during a short pulse. The reported experiments find that pulsed silicon-photodiode response depends on the applied reverse bias and the illuminated area.^[ref] An energy estimate based on a single constant spectral responsivity must therefore be checked against operating conditions, rather than assumed from average power alone.

An original pulse-accounting example shows the scale separation. Suppose a source produces identical rectangular pulses at $f=10^4{\mathrm{s}}^{-1}$ with average optical power $P_{\mathrm{avg}}=1\mathrm{W}$. Their energy isIf each pulse duration is $\tau =100\mathrm{ns}$, then its flat-top peak power isThe detector encounters kilowatt-scale instantaneous power in this chosen example even though the time average is one watt. These are illustrative values, not a measured threshold or a performance specification from Vest's paper.

His contribution highlights the experimental distinction between energy integrated over a pulse and detector response during the pulse. Photodiode saturation, charge collection and the readout's behavior enter that comparison. An institutional profile provides a primary biographical reference.

A tunnel diode is a p-n junction with sufficiently heavy semiconductor doping on both sides to make a thin depletion region and permit substantial interband tunnelling. The neutral regions are degenerate semiconductors. Its distinctive forward current-voltage characteristic contains a peak followed by a valley: over part of the curve, increasing the applied electric potential difference decreases the electric current. The Esaki tunnel-diode experiment made this behavior experimentally concrete.

The useful quantity is the local slope, not the ratio of total voltage to total electric current. With conventional electric current $I$ entering the positive-voltage terminal, defineNegative differential resistance means $g_d<0$, hence $r_d<0$ where defined. A forward operating point can still have $V>0$, $I>0$ and absorbed power $VI>0$. A small voltage increase then gives a negative current increment; this does not make the total electric current negative or turn the device into an unlimited source of energy. The external supply sets the operating point and supplies the energy available for an electronic amplifier.

An original idealized construction explains the shape. Put the n-type semiconductor on the left and the p-type semiconductor on the right. Take $q>0$ as the elementary charge and $V=V_p-V_n$. Increasing forward bias lowers the right-hand electron energy levels relative to the left. Denote the two reservoir electrochemical potentials by ${\mu }_n,{\mu }_p$, so that ${\mu }_n-{\mu }_p=qV$. At zero temperature, occupied left-hand conduction band states extend up to ${\mu }_n$; empty right-hand valence band states start at ${\mu }_p$. For transfer conserving electron energy, the available interval isIt is nonempty only when its upper endpoint exceeds its lower endpoint. Both an occupied initial quantum state and an empty final quantum state must exist at the same energy. The Pauli exclusion principle prevents transfer into an already occupied final quantum state.

For the original diagram, choose arbitrary energy units with $E_{c,n}=-0.5$, ${\mu }_n=0$, ${\mu }_p=-u$ and $E_{v,p}=0.5-u$, where $u$ is $qV$ in those units. The available interval has widthThus $L(0.25)=0.25$, $L(0.50)=0.50$, $L(0.70)=0.30$, and $L(1.15)=0$. Initially forward bias opens a transfer window; further forward bias closes it by moving the right-hand valence band edge below the left-hand conduction band edge. This is a state-counting illustration, not a formula for a measured electric current.

For reverse bias, the transfer direction changes: occupied right-hand valence band states can feed empty left-hand conduction band states. In the same construction, $u=-0.70$ opens the interval $0<E<0.70$ for this reverse transfer. A narrow depletion region allows a large reverse quantum tunnelling electric current at small electric potential difference, whereas the ordinary Shockley diode equation predicts only a small reverse saturation electric current before diode reverse breakdown. At zero biasing, equal reservoir occupations give zero net electric current; quantum tunnelling does not require a net equilibrium flow.

A finite-temperature refinement replaces sharp occupation cutoffs with the Fermi-Dirac distribution. An illustrative weak-transfer expression isHere $\mathcal{W}\ge 0$ describes allowed initial/final quantum states and their coupling, and $f_n,f_p$ are Fermi-Dirac distributions with the respective electrochemical potentials. The occupation difference follows by subtracting the reverse transfer factor from the forward one: $f_n(1-f_p)-f_p(1-f_n)=f_n-f_p$. An overlap interval alone does not determine $\mathcal{W}$: transmission probability, density of states, crystal momentum selection and phonons can matter. A complete germanium calculation is more demanding than multiplying two constant density of states factors. At larger forward bias, ordinary carrier injection and diffusion supply a rising current branch even after direct band overlap is lost.
