A stable charge-stabilized dispersion has an interaction barrier large compared with $k_{B}T$. In DLVO theory, the total pair potential combines attractive Van der Waals forces with repulsion from overlapping electric double layers. Similar surface charges raise the free energy of overlap; a sufficiently high positive barrier prevents thermally diffusing particles from reaching the deep primary minimum near contact.

Other stabilization mechanisms include steric stabilization by solvated surface chains and combined electrosteric protection by charged chains. Such contributions are additional to the simplest DLVO pair potential. Increasing salt shortens the Debye length, so double-layer repulsion becomes shorter-ranged and the protective barrier can decrease.

A useful five-part classification is electrostatic double-layer, dispersion, steric, depletion force and solvent-mediated interactions. It is a practical classification rather than a unique exhaustive list.

Electrostatic double-layer forces arise from surface charge and mobile-ion redistribution. Like-charged surfaces often repel; opposite charges can attract. Their range changes with salt screening. London dispersion forces comes from correlated electronic fluctuations and is one contribution to Van der Waals force; its sign and strength across a medium depend on dielectric response.

steric stabilization occurs when adsorbed or grafted layers overlap, increasing chain confinement and/or local osmotic free energy. depletion force arises when smaller nonadsorbing solutes are excluded from a narrow gap: their greater accessible volume outside favors bringing the large particles together. Structured-solvent forces include short-range hydration force and hydrophobic attraction; their microscopic origin differs from the depletion force of an added solute.

The original sketches show double-layer overlap, a polymer-coated gap, depletion force exclusion and solvent structure, alongside a dispersion-potential curve. A realistic suspension can experience several simultaneously. Charge neutrality of a particle does not remove dispersion, steric or solvent-mediated interactions.

charge stabilization of colloids supplies repulsion when like-charged surfaces and their electric double layers approach. steric stabilization uses attached or adsorbed molecular layers whose overlap costs conformational and osmotic free energy. Combining both gives electrosteric stabilization; a solvated coating must remain attached and well solvated. A viscous medium slows encounters but does not by itself create an equilibrium repulsive barrier.

DLVO theory adds screened electrostatic repulsion to Van der Waals force. A representative close-gap form isfor equal spheres of radius $a$, with Hamaker constant $A_H$ and inverse Debye–Hückel screening length $\kappa$. The formula is schematic near molecular contact, where hydration, surface roughness and finite ion size matter. A repulsive barrier many $k_{B}T$ high produces kinetic stability even if the primary attractive minimum is deeper than the dispersed state. Entry into that primary minimum generally gives strongly bound aggregation; a shallow secondary minimum can give reversible flocculation.

Adding electrolyte increases $\kappa$, shortens the repulsion and can remove the barrier, enabling fast diffusion-limited aggregation. The critical coagulation concentration is the approximate salt concentration at which this rapid-coagulation regime begins under specified conditions. It is not a universal property of the salt alone. Test the prediction using time-resolved dynamic light scattering or turbidity at controlled particle concentration, pH and temperature; check that added ions do not specifically adsorb or change the surface chemistry.

Use steric stabilization: attach or strongly adsorb a dense layer of polymer chains or compatible ligands, with tails well solvated by the nonpolar liquid. Overlap of these layers costs osmotic and conformational free energy and prevents particle cores reaching the strongly attractive contact region. The anchoring groups must bind the particle while the exposed chains prefer the solvent; sufficient coverage and a good solvent are essential. Nonpolar media do not make charging impossible, but electrostatic stabilization there requires an appropriate ion-generation and charge-stabilization mechanism, rather than assuming aqueous dissociation behaviour.

Adsorbed or grafted polymers stabilize a colloid through steric stabilization when coverage is high and the solvent keeps the chains extended. Charged chains can add electrostatic repulsion, giving electrosteric stabilization.

They can destabilize it through polymer bridging flocculation when a chain adsorbs onto two particles, especially at incomplete coverage; through depletion force when nonadsorbing polymer is excluded from the gap and the surrounding solution's osmotic pressure pushes particles together; or through collapse of an adsorbed layer in a poor solvent. Polymer identity, molecular size, solvent quality, adsorption and concentration determine which mechanism dominates.

For this self-assembly into a colloidal crystal, four useful elements are building blocks, interactions, environment and reversible dynamics. The building blocks here are nearly monodisperse polymer spheres; their shape and size distribution constrain the accessible packing. Their interactions include excluded volume, Van der Waals forces and electrostatic or steric stabilization, which set the free energy landscape. The aqueous environment supplies temperature, viscosity, ionic strength, confinement and concentration controls. Finally, Brownian motion and rotation must let particles encounter one another and rearrange or detach from incorrect contacts. Attractions that bind every collision irreversibly favour an amorphous aggregate rather than an annealed colloidal crystal. These four categories include both thermodynamic selection and the transport/kinetic access needed to realize it.

Flocculation indicates that the attraction/kinetic balance has changed: electrolyte may screen a double-layer barrier; pH may reduce surface charge; multivalent ions can promote aggregation; added polymer can bridge particles or cause depletion force; poor solvent conditions can collapse stabilizing layers. Rapid evaporation concentrates both particles and salts and can force contacts faster than they anneal. Aggregates then sediment much faster because their effective buoyant size has grown.

Check ionic strength, pH, surface charge and the particle size distribution before and during assembly. Dialyse or reduce salt where appropriate, restore surface charge, add a nonbridging steric stabilization with a compatible solvent, and slow the concentration step. Compare untreated and deliberately salt-screened controls. Restoring repulsion after irreversible aggregation may not redisperse the particles, so prevention is preferable to assuming all settled material can be recovered.

For smooth uncharged spheres, the basic attraction is the Van der Waals force, arising from correlated electric fluctuations. The Hamaker constant $A_H$ incorporates the particles and intervening medium. For equal spheres of radius $a$ separated by a surface gap $h\ll a$, the near-contact van der Waals attraction of spheres isHere positive force means repulsion, and the attractive case has $A_H>0$. At molecular separation, strong short-range repulsion prevents overlap and replaces the continuum divergence with a deep primary minimum. The energy approaches zero from below at large separation; an uncoated, uncharged attractive pair has no electrostatic barrier.

For illustration, $A_H=10^{-20}\mathrm{J}$, $a=100\mathrm{nm}$ and $h=1\mathrm{nm}$ give $|U|\simeq 8.3\times 10^{-20}\mathrm{J}\simeq 20k_{B}T$ at $300\mathrm{K}$. These are chosen scales, not universal material constants. Such a well can trap particles after a thermal encounter and cause particle aggregation, unless another mechanism such as steric stabilization intervenes. The neutral curve in the figure below shows the attraction regularized by an illustrative contact repulsion.

DLVO theory combines the attractive Van der Waals force with repulsion between overlapping electrical double layers. A charged colloid attracts counterions; their electrostatic and osmotic response screens its field over the Debye length. Adding salt generally shortens this range and can lower the repulsive aggregation barrier, allowing particles to reach the strongly bound primary minimum. A shallow secondary minimum can instead give weak reversible association. Whether Brownian encounters cause rapid aggregation depends on barrier heights relative to $k_{B}T$, not just on the sign of the force at one separation.

Adsorbed or grafted polymer layers can provide steric stabilization: overlap costs chain entropy and increases the local osmotic pressure. Nonadsorbing smaller particles or polymers can create a depletion force, because bringing large surfaces together increases the volume accessible to the smaller species. Polymer bridging can be attractive when one chain binds more than one particle. A useful comparison experiment varies salt concentration while monitoring scattered light or aggregation, then repeats with a sterically protected suspension. Charge, solvent quality, polymer coverage and particle size determine which interaction dominates; none is a universal constant of all colloids.

DLVO theory adds attractive Van der Waals forces and electric double layer repulsion to obtain an effective colloid pair potential. For two identical spheres of radius $b$ at a surface gap $h\ll b$, a useful schematic form isHere $A_H$ is the Hamaker constant. For a symmetric monovalent electrolyte with number density $n$ of each ionic species, ${\kappa }_D^2=2n{e}^2/(ϵk_{B}T)$. The exponential is a simplified screened repulsion; its amplitude depends on electric potential at the surface, charge regulation and geometry. Constant-charge and constant-potential boundary conditions need not produce the same close-approach law.

A primary attractive minimum near contact may be separated from dispersed configurations by an energy barrier; a shallower secondary minimum can produce loose reversible aggregation. A barrier much larger than $k_{B}T$ can give long-lived kinetic stabilization without making the dispersed state the global free-energy minimum. Adding salt shortens the Debye–Hückel screening length and can lower the barrier, allowing colloidal coagulation. Changing pH can alter surface ionization, so screening alone does not determine stability.

One can vary salt concentration while holding particle concentration, temperature and pH fixed, then follow particle aggregation using light scattering or microscopy. A solvent-only control and an independently measured surface-charge indicator help distinguish a change of screening from adsorption or charge reversal. Classical DLVO theory omits steric stabilization, hydration forces and strong ionic correlations; the formal attraction diverging at contact is cut off by molecular-scale physics.

Write $s$ for the number of grafted chains per unit area and $\Sigma =s{a}^2$ for its dimensionless form; this separates the physical grafting density from a dimensionless coverage. A free dilute chain has size $R_0\sim a{N}^{\nu }$, with $\nu =1/2$ in a theta solvent and approximately $3/5$ in a good solvent. An isolated end-grafted chain loses translations and configurations that cross the substrate, but retains the same leading size exponent if the surface is nonadsorbing. When the lateral graft spacing $D\sim s^{-1/2}$ exceeds $R_0$, the layer consists of polymer mushrooms. When coils overlap, crowding stretches the chains away from the surface into a polymer brush.

The polymer mushroom-to-brush crossover isFor the stipulated statistical-segment interpretation of $N$ and $a$, the scaling estimates areThus ${\Sigma }_{\ast }\simeq 2.50\times 10^{-3}$ and $7.54\times 10^{-4}$ respectively. The numerical constants are scaling conventions: using a radius of gyration rather than an end-to-end size changes order-one amplitudes, not the powers of $N$.

In the Alexander-de Gennes brush model, take blobs of lateral size $D$. Within a blob, $D\sim a{g}^{\nu }$; beyond it, the $N/g$ blobs are aligned away from the wall. ThusWith coarse-grained segment volume $a^3$, conservation gives the polymer-brush volume fraction through $\varphi H\sim N{a}^{3}s$, henceThe theta-solvent brush height includes three-segment repulsion even though the effective two-segment interaction vanishes. These are scaling estimates for a roughly uniform brush, not an assertion that every chain end lies at the same height in an actual brush.

The many-segment-blob requirement $g\gg 1$ gives $D\gg a$, or $\Sigma \ll 1$. Together with overlap, the regime is $N^{-2\nu }\ll \Sigma \ll 1$. At the dense-brush packing limit, $\varphi \sim 1$, $g\sim 1$ and $H\sim Na$. Here $s\sim a^{-2}=2.04\mathrm{n}{\mathrm{m}}^{-2}$ and $H\sim 280\mathrm{nm}$. If one formally continues a dense incompressible layer above this boundary, conservation would instead giveThis is the requested formal dense-layer expression, but for $\Sigma >1$ it gives $H>Na$, which violates finite extensibility of a polymer chain. There is no physically admissible continuation above this limit in the stated segment-volume model. A Kuhn length segment is not necessarily a cube of material: with an independently specified material volume $v_0$ per counted segment, the dense-layer law is $H=N{v}_{0}s$, and the packing bound is $s\le a/v_0$. The data do not determine $v_0$ separately. The simple model therefore establishes its own breakdown, rather than a universal microscopic maximum grafting density.

grafting-to uses preformed chains whose lengths and dispersities can be characterized before attachment. As coverage rises, each incoming coil must penetrate a crowded brush and lose conformational entropy to bring its end to the surface; the growing insertion barrier limits achievable coverage. grafting-from supplies small monomers to surface-bound growing chains and avoids insertion of a whole coil. Choose grafting-from for high grafting density. Initiator coverage and reaction control still matter, and inaccessible active sites, termination and unequal growth can broaden the resulting chain-length distribution. Neither route removes the elastic and packing costs of the final brush.

A generic application is steric stabilization of synthetic colloids in a good solvent. Bringing coated particles together compresses and interpenetrates their brushes, increasing osmotic pressure and conformational free-energy cost. This repulsion can oppose aggregation. The chains must remain attached and sufficiently cover the surface; poor-solvent collapse, sparse coverage or interparticle bridging can defeat stabilization.

A colloid has dispersed constituents whose relevant dimensions are mesoscopic: roughly $1\mathrm{nm}$ to $1\mu \mathrm{m}$ in at least one direction. Interfaces and Brownian motion are consequently important. The size range is a useful convention, not a sharp boundary separating all physical behaviour. A sol of fine silicon dioxide particles in water illustrates solid in liquid; an oil-in-water emulsion illustrates liquid in another immiscible liquid; and a foam illustrates gas dispersed in a liquid, with thin intervening films supplying the small structural dimension. A colloid need not be a thermodynamic equilibrium state.^[ref]

Unprotected particles attract through Van der Waals forces. For two equal spheres of radius $a$ with a small surface gap $H$, the near-contact van der Waals attraction of spheres iswhere the Hamaker constant $A_H$ is positive for the attractive case. The large number of interacting constituent molecules can give a well much deeper than $k_{B}T$, even though individual molecular attractions are weak. Brownian motion brings particles together, and a sufficiently deep attractive well makes separation unlikely. This gives particle aggregation; solid particles can remain distinct within a cluster rather than merging into one continuous solid. Emulsion droplets can additionally coalesce if the separating film ruptures.

Charge stabilization of colloids supplies a repulsive barrier. Like-charged surfaces carry compensating counterions and electric double layers; bringing the layers together costs free energy. DLVO theory combines this repulsion with Van der Waals forces. A barrier large compared with $k_{B}T$ can make aggregation slow, even when sticking would lower the final free energy. Adding salt generally shortens the Debye–Hückel screening length and can lower the barrier; surface charge regulation and specific ion interactions also matter. A negatively charged particle and a positively charged particle need not repel.

Steric stabilization instead coats each particle with adsorbed or grafted polymer chains. In a good solvent, overlap and compression of these layers raise the osmotic pressure and reduce chain entropy, opposing close contact. Electrosteric stabilization combines the two mechanisms. Dense, securely bound layers matter: incomplete adsorption can allow polymer bridging, while nonadsorbing dissolved polymers can create an attractive depletion force. Poor solvent quality can collapse a protective layer. Reducing the density mismatch slows sedimentation but does not remove the interparticle attraction, so uniform suspension and resistance to aggregation are different requirements.

The left panel is an original qualitative potential with arbitrary coefficients: it illustrates a barrier and its reduction by shorter-ranged repulsion, without fitting an experimental DLVO theory curve or extrapolating the continuum attraction to molecular contact. The right panel plots the derived quasi-steady concentration profile in dimensionless variables.

In diffusion-controlled growth, attachment is rapid and delivery through the surrounding medium is the bottleneck. The growing surface depletes the neighboring solute, so a substantial concentration gradient develops. In reaction-controlled growth, arrival is fast compared with incorporation; many arrivals fail to attach, and the surface concentration stays near the reservoir value. The analogous distinction for particle aggregation is between near-unit sticking probability in diffusion-limited cluster aggregation and barrier-suppressed sticking in reaction-limited cluster aggregation. Here the subsequent calculation concerns accretion onto one growing particle, rather than a collision kernel for two mobile clusters.

The printed time-dependent equation is the diffusion equation, not the usual Poisson equation. For constant diffusion coefficient $D$, no bulk sources and negligible advection, Fick's laws give the number flux $\mathbf{j}=-D\nabla c$. Local conservation of mass, expressed here as conservation of the accreting constituent, then givesAn arbitrary time-independent exterior profile does not solve the full moving-boundary problem exactly. The required elementary result uses a quasi-steady approximation: diffusion establishes the exterior profile much faster than the particle radius changes. At each instantaneous radius $a$, set $\partial c/\partial t\simeq 0$. Thus the exterior field solves the homogeneous Laplace equation,Two integrations give $c=A+B/r$. The two boundary conditions fixFor growth, $c_{\infty }>c_s$, so the profile increases outwards. Its radial flux is negative, and the positive inward arrival rate isA material density is needed to turn an arrival rate into a radial velocity. Introduce the constant constituent number density $c_p$ inside the particle, using the same units as $c_s,c_{\infty }$. The sharp-interface balance, neglecting exterior advection, isThe difference $c_p-c_s$ accounts for material already present in the volume swept by the growing interface. In the usual dilute-feed approximation $c_s\ll c_p$, it can be replaced by $c_p$. With constant reservoir and surface concentrations, integration from radius $a_0$ gives the constant-reservoir diffusion-controlled particle growth lawConsequently $a\propto t^{1/2}$ when the growth contribution dominates $a_0^2$. For a finite seed at the literal limit $t\to 0$, the increment $a-a_0$ is instead initially proportional to $t$. Here “early time” means before appreciable reservoir depletion or interactions with other particles, while already beyond the rapid initial establishment of the diffusion field. Indeed, the ratio of diffusion-adjustment time $a^2/D$ to radial-growth time $a/\dot{a}$ is $(c_{\infty }-c_s)/(c_p-c_s)$; small supersaturation relative to the particle density makes the quasi-steady approximation self-consistent. No initial concentration field was specified, so an exact transient solution is not uniquely determined.

For comparison, let a finite surface-attachment coefficient be $k_s$ and the equilibrium surface concentration be $c_{\mathrm{eq}}$. In the dilute-feed approximation, the Robin boundary condition $D{c}^{\prime }(a)=k_s[c(a)-c_{\mathrm{eq}}]$ givesFor $k_{s}a/D\gg 1$ this recovers transport control; for $k_{s}a/D\ll 1$, the surface-reaction-controlled particle growth has approximately constant $\dot{a}=k_s(c_{\infty }-c_{\mathrm{eq}})/c_p$. Thus reaction control gives $a-a_0\propto t$, in contrast to the diffusion-controlled square-radius law. No numerical $c_p$ or $k_s$ is supplied or needed for these scaling results.

For an ideally dissociated electrolyte, the Debye–Hückel screening length isHere $n_i$ is ionic number density, $z_i$ the charge in units of the elementary charge, and $c_i$ is molar concentration. Conversion between $I$ and number density cancels in a ratio. At fixed relative permittivity, ${\lambda }_D\propto \sqrt{T/I}$.

In $0.01\mathrm{M}$ sodium chloride, $c_{\mathrm{N}{\mathrm{a}}^{+}}=c_{\mathrm{C}{\mathrm{l}}^{-}}=0.01\mathrm{M}$, giving $I_1=0.01\mathrm{M}$. Complete dissociation of $0.1\mathrm{M}$ aluminium chloride gives $c_{\mathrm{A}{\mathrm{l}}^{3+}}=0.1\mathrm{M}$ and $c_{\mathrm{C}{\mathrm{l}}^{-}}=0.3\mathrm{M}$, soThe factor is sixty, not ten: the squared charge and the three counterions per formula unit both matter. Using the given $5\mathrm{nm}$ reference length directly, and $T_1\simeq 298\mathrm{K}$, $T_2=323\mathrm{K}$,The modest temperature increase raises the screening length by only about $4\%$ at fixed concentration; the large increase in ionic strength shortens it by almost an order of magnitude overall.

Under charge stabilization of colloids, the electrostatic double-layer repulsion now has a much shorter range. Attractive Van der Waals forces can then dominate at closer separations, reducing the barrier to particle aggregation in DLVO theory. Thus an electrostatically stabilized colloid is likely to be destabilized, with aggregation more likely than in the original dispersion.

This is a conditional physical prediction, not a proof of instability from a length alone. No particle radius, surface potential, attractive interaction strength or steric coating is specified. Steric stabilization could preserve stability, and trivalent-ion adsorption can alter the surface charge. Moreover, ideal screening theory is only an estimate at $I\simeq 0.6\mathrm{M}$, where ion association, hydrolysis and activities can matter. The numerical result uses the supplied reference length and the stipulated unchanged permittivity, rather than replacing either with an unprovided calibration.

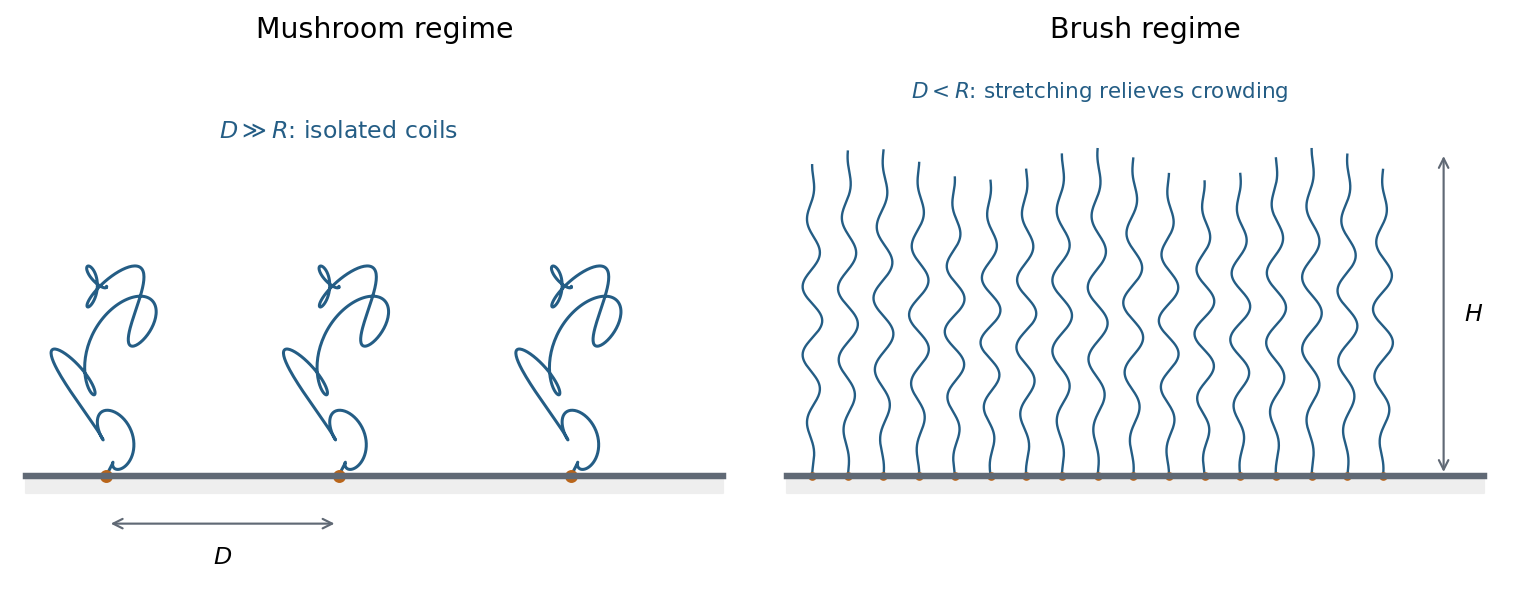

A grafted polymer chain is tethered to a surface at one end. Let its isolated coil size be $R\sim b{N}^{\nu }$, where $N$ is the number of statistical units and $b$ their statistical segment length. For a good solvent, the Flory approximation gives $\nu \simeq 3/5$; an ideal chain has $\nu =1/2$. Let ${\sigma }_g$ be the number of tethers per unit area, distinct from the membrane tension in Question 1. Their typical lateral separation is $D\sim {\sigma }_g^{-1/2}$.

At low coverage, $D\gg R$, the chains hardly overlap. Each forms a polymer mushroom, retaining roughly the isolated-coil conformation apart from the constraint of the solid surface. Raising coverage until $D\sim R$ makes neighboring coils overlap. The crossover criterion isFor $D<R$ in a good solvent, maintaining isolated coil shapes would crowd segments into the same lateral regions, increasing excluded-volume and osmotic free energy. Chains stretch predominantly away from the surface to relieve that crowding, at the cost of their conformational entropy. The resulting dense tethered layer is a polymer brush.

A simple scaling estimate makes the balance explicit. For brush height $H$, the monomer concentration is of order $N{\sigma }_g/H$. The free energy per chain in units of $k_{B}T$ iswhere $v>0$ is the effective segment excluded volume. The first term is Gaussian stretching; the second is the cost of segment crowding in a good solvent. Minimizing with respect to height givesWhen $v\sim b^3$, this is $H\sim Nb({\sigma }_g{b}^2{)}^{1/3}$. Height increases with chain length and grafting density, while the lateral spacing is fixed by the attachment points. The estimate assumes stretching strong compared with an isolated coil but still much smaller than contour length $Nb$; it does not describe fully extended chains. Poor-solvent attraction can instead collapse the layer, so solvent quality must be specified before using the good-solvent formula.

The mushroom-to-brush change is a crowding crossover for finite chains, rather than automatically a sharp thermodynamic phase transition. A swollen brush can provide steric stabilization: bringing two coated surfaces together further compresses and crowds their chains, producing a repulsive free-energy cost. The controlling comparison is tether separation versus isolated coil size, and the brush height follows from competition between chain stretching and segment interactions.

Two stabilization mechanisms. Steric stabilization coats each colloid with adsorbed or grafted polymer layers. Bringing two particles close overlaps or compresses those layers, increasing their free energy through loss of chain conformations and, in a suitable solvent, increased local osmotic pressure. The resulting repulsion can keep the cores apart. A well-solvated nonionic coating can remain effective when added salt would screen electrostatic forces. Coatings can fail through desorption, poor solvent conditions or bridging, so simply adding arbitrary free polymer does not guarantee stabilization.

Charge stabilization of colloids instead uses similarly charged surfaces and their diffuse electric double layers. Their approach costs electrostatic and ionic free energy. In DLVO theory, that repulsion competes with attractive Van der Waals forces. It is particularly sensitive to salt concentration, counterion valence and surface ionization.

Bjerrum length. The standard Bjerrum length is the separation at which the Coulomb interaction energy of two elementary charges equals thermal energy:At $T\simeq 298\mathrm{K}$ and ${\epsilon }_r=78$, this isIt compares ionic electrostatic coupling with thermal agitation. For ions of signed valences $z_1,z_2$, $U/(k_{B}T)=z_1{z}_2{\ell }_B/r$. The standard reference length uses $e$, not the whole colloid charge: assigning a colloid charge $Ze$ does not change the solvent's tabulated ${\ell }_B$.

Screening and the printed normalization. In a symmetric $z:z$ electrolyte, $z$ is the ionic valence magnitude, $e$ the elementary electric charge, $n_{\infty }$ the bulk number density of each ionic species, ${\epsilon }_0$ the vacuum permittivity, ${\epsilon }_R$ the solvent's relative permittivity, $k_B$ the Boltzmann constant and $T$ absolute temperature. Mobile ions rearrange around a charged surface; the Debye–Hückel screening length ${\kappa }^{-1}$ sets the range of the resulting weak potential.

There is an SI normalization error in the original PDF. Combining the Boltzmann distribution $n_{\pm }=n_{\infty }{e}^{\mp ze\psi /(k_{B}T)}$ with the SI Poisson equation and linearizing at $|ze\psi |\ll k_{B}T$ givesThe extra $4\pi$ in the PDF denominator is inconsistent with those SI charge, permittivity and density conventions. Keeping the printed algebra would make its screening length $\sqrt{4\pi }$ times the SI value at the same ion density. No numerical screening length is required here, and the qualitative dependence ${\kappa }^{-1}\propto n_{\infty }^{-1/2}$ is the same in either normalization. Added salt shortens the range of repulsion, allowing the attractive potential to capture particles more readily.

Interaction-potential sketches. Let $h$ be the surface separation between two spheres of radius $a$. A useful schematic DLVO theory potential has the formaway from the microscopic contact region. Here $A_H>0$ is a Hamaker constant; excluded-core repulsion and molecular details regularize contact. The exponential is the double-layer repulsion and the inverse-gap term the short-gap Van der Waals force contribution. A fixed $B$ illustrates the changing screening range; actual charge regulation can change the repulsive amplitude as well.

At low salt there is a high positive barrier between a deep primary minimum near contact and the dispersed state at $U(\infty )=0$. A shallow secondary minimum can occur outside the barrier and support weak reversible association. Increasing salt narrows the repulsive range and lowers the barrier. Thermally activated primary aggregation becomes appreciable when the barrier is only a few $k_{B}T$; the idealized barrier-free condition defines the fast-aggregation threshold associated with the critical coagulation concentration. Above that threshold, collisions can result in rapid capture in the primary minimum.

Aggregate structures. Well above the critical coagulation concentration, the sticking probability is close to one. In diffusion-limited cluster aggregation, the first encounter attaches particles or clusters at accessible outer branches before they can explore many alternative configurations. The result is an open, tenuous structure. Typical ideal three-dimensional cluster models have mass fractal dimension $d_f\simeq 1.8$.

Near the threshold on its lower-salt, slow-aggregation side, a remaining barrier makes most encounters unsuccessful. Reaction-limited cluster aggregation then permits repeated approaches and orientations before attachment, commonly giving denser clusters with $d_f\simeq 2.1$. Since particle count scales as $N\propto (R_g/a{)}^{d_f}$, the larger exponent means more particles at a given large cluster size. This explanation does not require already formed bonds to rearrange: unsuccessful encounters themselves alter which configurations eventually bind.

The side of the threshold matters. At the ideal barrier-free threshold itself, or just above it, aggregation can already be diffusion limited; proximity to the critical coagulation concentration alone does not universally imply a denser reaction-limited structure. The quoted dimensions are typical of irreversible approximately isotropic cluster models, not exact values for every colloid. Strong bond rearrangement or anisotropic attractions can change this comparison.

One method is to give every particle a sufficiently large surface charge density of the same sign. For example, attach ionizable sulfonate groups covalently to the surface. Dissociation leaves negatively charged surface groups and releases mobile positive counterions into the water. A surfactant with a strongly bound head group can provide another charging route, provided it does not desorb during the experiment.

Each charged particle is surrounded by an electric double layer. As two such particles approach, overlap of these ionic clouds raises the electrostatic and ionic free energy, producing repulsion. In a dilute electrolyte, the range is set by the Debye–Hückel screening length,For identical weakly charged spheres a representative screened Coulomb pair potential isIts sum with the Van der Waals force attraction is the DLVO theory pair potential. Choose the charging level so that the repulsive barrier is many $k_{B}T$ high; particles then rarely reach the primary attractive well during the observation time. This is kinetic stabilization rather than removal of all attraction.

Deionized water is useful because low added ionic strength gives a long-ranged repulsion. It does not mean that the charged dispersion contains no ions: the surface's own counterions are unavoidable and contribute to screening. Surface dissociation, contamination and particle concentration therefore matter even without added salt. An alternative valid route is a dense, firmly attached layer of water-soluble polyethylene glycol, producing steric stabilization without relying on a large electrostatic barrier.

For dissolved, nonadsorbing polyethylene glycol, the usual new interaction is a depletion force. Polymer centres are excluded from a layer of thickness of order their radius of gyration $R_g$ around each particle. When the particles approach, their exclusion layers overlap. This increases the volume accessible to polymer and its translational entropy, lowering the colloid pair free energy. Equivalently the surrounding polymer osmotic pressure pushes the particles together.

In the dilute-polymer Asakura-Oosawa model, let $h=R-2a$ be the surface gap and $R_e=a+R_g$. Thenfor $2a\le R<2R_e$, and $U_{\mathrm{dep}}=0$ for $R\ge 2R_e$. Here ${\Pi }_p\simeq n_p^{(\mathrm{polymer})}{k}_{B}T$ is the reservoir polymer osmotic pressure. The overlap-volume formula follows by adding two equal spherical cap volumes with height $R_e-R/2$. Thus the added attraction has range about $2R_g$ and grows with polymer concentration. The total interaction is approximately hard exclusion plus screened electrostatic repulsion plus Van der Waals force and depletion attractions.

Increasing polymer concentration therefore creates a family of phase diagrams, rather than a unique shift determined by polymer size alone. Where the attraction overcomes repulsion, colloid-poor fluid can coexist with a colloid-rich phase, and fluid–crystal coexistence generally broadens. For sufficiently long-ranged attraction, stable fluid–fluid separation can occur. For the stipulated small polymer, the attraction is short-ranged: fluid–fluid separation can be metastable to crystallization, and a rapid attraction increase can instead produce an arrested colloidal gel. Residual long-ranged repulsion can oppose bulk separation. Simulations and free-volume calculations confirm that longer-ranged electrostatic repulsion can counteract depletion-driven separation.^[ref]

The nonadsorption assumption matters. If the polyethylene glycol adsorbs to the particles, a dense attached layer can give steric stabilization, whereas chains attaching to two particles can produce polymer bridging. The paper does not specify surface affinity or polymer concentration, so depletion is the standard conditional answer, not a prediction of an inevitable particular final phase.

Polyethylene glycol is a water-soluble polymer with repeating ethylene oxide units. Nonadsorbing dissolved chains can cause a depletion force between larger colloids. Chains attached to a surface can instead give steric stabilization. Which effect occurs depends on surface affinity, chain size and concentration.

Polymer bridging occurs when one polymer chain attaches to more than one particle, producing an effective attraction or network connection. Surface affinity and incomplete coverage are essential to this mechanism. It should be distinguished from both steric stabilization by densely coated particles and the depletion force produced by nonadsorbing chains.

Steric stabilization is resistance to particle aggregation supplied by attached or adsorbed molecular layers. Bringing two coated particles close compresses or overlaps the layers, increasing their free energy through conformational and osmotic effects. It differs from the depletion force of nonadsorbing dissolved chains.
