Past exam of the physics course of the year 4 of the natural sciences course of the University of Cambridge / 2014

Original paper: Public original PDF, physical pages 619–626; cover on page 619 and questions on pages 620–626.

The solar flux at Earth is $\sigma T_{\odot }^4{R}_{\odot }^2/L^2$. A spherical Earth intercepts sunlight over its cross section but radiates over its whole surface, givingThis is below the observed mean surface temperature. Atmospheric infrared absorption and emission produce a greenhouse effect that raises the surface temperature relative to the effective radiating temperature. Including reflected sunlight alone would lower the estimate further; albedo does not explain a warmer surface.^[ref]

Let $a$ be the cube's side and $z$ a small upward displacement. Its displaced water volume decreases by $a^{2}z$, so the change in buoyancy is $-{\rho }_{w}g{a}^{2}z$. With cube mass $m=0.9{\rho }_w{a}^3$,The displacement must be small enough that the upper face remains above water and the bottom remains submerged. This buoyancy estimate neglects fluid added mass, damping and melting.

For the photopion threshold on a photon background, write $M=m_p{c}^2$ and $m=m_{\pi }{c}^2$ in energy units. For a head-on photon of energy $ϵ$ and a highly relativistic proton of total energy $E$, the invariant squared centre-of-momentum energy is approximately $M^2+4Eϵ$. At threshold the final proton and pion are at rest relative to one another, soUsing a typical CMB photon energy $ϵ\simeq 2.70k_{B}T=6.28\times 10^{-4}\mathrm{eV}$ givesThus photopion losses suppress the arrival of protons of order $10^{20}\mathrm{eV}$ from sufficiently distant sources. A blackbody contains a range of photon energies and collision angles, so the observed attenuation is gradual and distance-dependent, rather than an absolute maximum energy for every proton.

The central value is $S=150\cos 45^{\circ }=106.07$. Treating the stated errors as independent standard uncertainties, convert the angular uncertainty to radians and propagate derivatives:The two measured values differ by $10.8/\sqrt{6.0^2+5.6^2}=1.32$ combined standard deviations. Our prediction differs from them by $0.19$ and $1.07$ combined standard deviations respectively. All three values are statistically compatible. If the input errors are strict bounds instead, the first-order bound on the calculated value is about $\pm 9.0$; consistency remains possible, but a Gaussian significance test then has no stated justification.

Moving one Michelson mirror changes optical path difference by twice its displacement. ThereforeFor two-wavelength Michelson rephasing, start from a position where both colours are bright: the next simultaneous bright centre requires $2\Delta d$ to be a common integer multiple of both wavelengths. The smallest is $6(500\mathrm{nm})=5(600\mathrm{nm})=3.00\mu \mathrm{m}$, giving an additional mirror movement of $1.50\mu \mathrm{m}$.

Zero-point energy is the ground-state energy above the classical minimum, remaining even at zero temperature. For a harmonic oscillator it is $\hslash \omega /2$; simultaneous vanishing position and momentum fluctuations is forbidden by the uncertainty principle.

A concrete test is the Casimir interaction: changing conducting boundaries changes electromagnetic ground-state modes and produces a measurable force. Ideal parallel plates have pressureA torsion-pendulum experiment measured the attraction of closely spaced conducting surfaces, testing this boundary-dependent interaction.^[ref] Such measurements test changes in ground-state energy, not an arbitrary absolute additive vacuum energy; real-material and thermal corrections must be included when comparing precision data.

For nonequivalent p-s and p-p term counting, the closed $3s^2$ shell has $L=S=0$. For $3p4s$, the open orbitals give $L=1$ and $S=0,1$, henceHund's rules predict the order ${}^3{P}_0<{}^3{P}_1<{}^3{P}_2<{}^1{P}_1$.

For $3p4p$, the electrons are in nonequivalent orbitals. All $L=0,1,2$ and $S=0,1$ combinations are allowed:Applying maximum spin first, maximum orbital angular momentum next, and smallest $J$ first for these less-than-half-filled open subshells gives the qualitative orderingThe state counts are $12$ for $3p4s$ and $36$ for $3p4p$. Imposing the equivalent-$p^2$ restrictions would incorrectly discard allowed terms. These are Hund-rule predictions; exact interleavings in a real excited configuration require the actual Coulomb and spin-orbit matrix elements.

In the rigid-rotor approximation, $E_J={\hslash }^{2}J(J+1)/(2I)$ and electric-dipole absorption has $\Delta J=+1$. A line labelled $J^{\prime }$ therefore hasThe original graph gives adjacent spacing about $0.115\mathrm{THz}$; for example the $J^{\prime }=5$ line is near $0.575\mathrm{THz}$. Thus $I\simeq 1.46\times 10^{-46}\mathrm{kg}{\mathrm{m}}^2$. Using the reduced mass,Centrifugal distortion of a nonrigid molecule explains small departures from equal spacing at higher $J$.

Approximate the beam as uniform over its circular cross section. Its mean intensity is $I=P/[\pi (D/2{)}^2]=1.27\times 10^6\mathrm{W}{\mathrm{m}}^{-2}$. For the root mean square magnetic field from beam power in a vacuum electromagnetic wave, $I=c{B}_{\mathrm{rms}}^2/{\mu }_0$, soThis is an rms field, not the peak sinusoidal amplitude. A Gaussian-beam peak would need a stated diameter convention.

The point-dipole interaction isHere ${\mathbf{p}}_1\cdot \hat{\mathbf{r}}=0$. For parallel axes, ${\mathbf{p}}_1\cdot {\mathbf{p}}_2=p^2$, henceThis side-by-side parallel arrangement is repulsive in the point-dipole model.

The first dipole remains perpendicular to the separation and is now also perpendicular to the second dipole. Both terms in the point-dipole interaction vanish, giving $U=0$. This is the electrostatic point-dipole contribution, not a claim that real finite water molecules have no other intermolecular interaction.

For an isolated system with equally probable accessible microstates, Boltzmann entropy is $S=k_B\ln \Omega$. The second law states that an isolated system's total entropy cannot decrease; it remains constant in a reversible process and increases in an irreversible one.

The insulated mixture exchanges no heat with its surroundings. At constant pressure, with only pressure-volume work, its enthalpy is conserved. Constant and equal specific heat capacities therefore give $T_f=(T_1+T_2)/2$. Calculate each entropy change along a hypothetical reversible temperature path:The surroundings gain no entropy through heat exchange; ideal mechanical work carries no entropy. The arithmetic-geometric mean inequality gives $\Delta S\ge 0$, with equality only for $T_1=T_2$. Mixing unequal temperatures is irreversible even though total energy is conserved.

Perturbation theory expands known eigenvalues and eigenfunctions about a solvable Hamiltonian. Small corrections require appropriate energy-gap and matrix-element scales; degeneracies must first be diagonalized within their subspace. The variational method instead minimizes a normalized trial state's energy expectation. It gives an upper bound on the ground energy without requiring a small perturbation; excited-state bounds need orthogonality constraints or an appropriate symmetry subspace.

Normalize the unperturbed oscillator states:For the Gaussian perturbation of a quantum harmonic oscillator, the first-order shifts are its expectation values:For $\beta \gg \alpha$, they scale as $V_0\alpha /\beta$ and $V_0(\alpha /\beta {)}^3$ respectively: a narrow central perturbation couples weakly to the odd state's central node. For $\beta \ll \alpha$, both approach $V_0$ because the perturbation is nearly constant over the wavefunctions. The leading corrections are $V_0[1-{\beta }^2/(2{\alpha }^2)]$ and $V_0[1-3{\beta }^2/(2{\alpha }^2)]$.

For an improved variational estimate, replace the fixed width $\alpha$ by an adjustable positive width $s$ in each even/odd Gaussian. Their energy functionals areMinimize each separately. At $s=\alpha$ they recover the unperturbed energy plus the first-order shift, so optimization cannot raise those trial estimates. For this even one-dimensional potential the lowest odd state is the first excited state, making its odd-sector minimum an upper bound on $E_1$. Enlarging each parity-preserving trial basis can improve the estimates further.

For noninteracting particles, a many-particle configuration has $E={\sum }_j{n}_j{ϵ}_j$ and $N={\sum }_j{n}_j$. Summing independently over allowed occupations therefore factorizes the grand partition function:At fixed $T,V$, differentiating the original state sum gives ${\partial }_{\mu }\ln \Theta =\beta ⟨N⟩$ and ${\partial }_{\mu }^2\ln \Theta ={\beta }^2\mathrm{Var}N$, soFor one level, write $q=e^{-\beta (ϵ-\mu )}$. Fermions allow $n=0,1$, giving ${\Theta }_F=1+q$ and $\bar{n}=q/(1+q)$. Bosons allow all nonnegative integers, giving ${\Theta }_B=1/(1-q)$ and $\bar{n}=q/(1-q)$, with $q<1$. ThusThe grand-canonical single-level occupation variance follows from the same derivative identity applied to one level:In the high-temperature nondegenerate regime, $\bar{n}\ll 1$ and both approach classical Poisson-like fluctuations, $\mathrm{Var}n\simeq \bar{n}$. At low temperature, nearly filled or empty fermion levels have strongly suppressed fluctuations; only the Fermi-surface window changes occupation. Highly occupied low-energy boson levels can instead have $\mathrm{Var}n\sim {\bar{n}}^2$, showing bosonic enhancement. This last statement depends on occupation and reservoir chemical potential, not temperature alone; grand-canonical condensate fluctuations must not be confused with a fixed-total-number ensemble.

In the instantaneous mirror frame the incident frequency is $f_m=\gamma (1-\beta )f$. Ideal reflection reverses propagation without changing that frame's frequency. Transforming the backward photon to Earth gives another factor $\gamma (1-\beta )$:This uses a classical mirror with negligible recoil per individual photon.

A photon reaching spacecraft position $x(t)$ at Earth time $t$ was emitted at $t_e=t-x(t)/c$. Differentiating gives $d{t}_e/dt=1-\beta$. Since $Rd{t}_e$ photons arrive in $dt$,The emission rate and impact rate refer to different events, even though both are expressed in Earth coordinate time.

For proper-time acceleration by reflected laser light, the spacecraft receives momentum $(hf+h{f}_r)/c=2hf/[c(1+\beta )]$ per incident photon. Combining with the impact rate givesBecause $dt/d\tau =\gamma$ and $d(\gamma \beta )/d\beta ={\gamma }^3$,Integrating from rest gives $1/(1-\beta )-1=\tau /{\tau }_0$, henceThe mirror's rest mass is assumed constant and the laser illuminates it continuously; diffraction losses, incomplete interception and microscopic recoil are neglected.

The method of images replaces conductors by fictitious charges outside the physical solution domain. Choose images so the real-plus-image potential obeys the specified conductor boundary values. The electrostatic uniqueness theorem then identifies that potential in the physical domain; fields inside the replaced conductor are not physical predictions.

Put the cylinder axis at the origin, real line at $(2a,0)$ and image at $(a/2,0)$. Let $r_1,r_2$ be distances from these lines. The exterior potential can be writtenOn the surface, $r_1^2=a^2(5-4\cos \theta )$ and $r_2^2=r_1^2/4$, so $\varphi =0$ everywhere as required. The additive constant is essential for a grounded cylinder; the two-dimensional potential need not also be zero at infinity.

The physical line feels the image field at separation $3a/2$. Its force per unit length is attractive:Measure $\theta$ from the radius toward the real line, as in the original diagram. The radial field just outside the surface isSince the interior field is zero,Integrating $a\sigma (\theta )$ around the circumference gives total induced charge $-\lambda$ per unit length.

A normal mode is a motion in which all generalized coordinates oscillate at one frequency with fixed amplitude ratios. Small oscillations about stable equilibrium in a time-independent conservative system give $\mathsf{M}\ddot{\mathbf{\theta }}+\mathsf{K}\mathbf{\theta }=0$, with positive mass matrix and symmetric stiffness matrix, allowing a generalized normal-mode eigenproblem.

For the three-to-one mass double-pendulum modes, the angles are absolute displacements from vertical, as printed. To quadratic order,For $\mathbf{\theta }=\mathbf{A}\cos \omega t$ and $q={\omega }^2\ell /g$, the determinant isThusThe low mode has the strings leaning together, with the lower angle twice as large; the high mode has opposite angular signs. Both reverse together after half their respective periods.

For the specified release, decompose $(\alpha ,\alpha )=(3\alpha /4)(1,2)+(\alpha /4)(1,-2)$. Thereforeand the lower mass's horizontal displacement isThis is the supremum of two incommensurate harmonic modes, conventionally described as the maximum-amplitude estimate. Strictly, ${\omega }_{+}/{\omega }_{-}=\sqrt{3}$ is irrational, so the opposite cosine extrema are approached arbitrarily closely but never coincide at a finite time. The quoted value is a supremum of the ideal linearized motion.

Fresnel diffraction retains quadratic aperture-dependent propagation phases and generally depends on both aperture and screen distance. Fraunhofer diffraction neglects those phases and gives the Fourier transform of the aperture in angle space, either sufficiently far away or in a suitable lens's focal plane.

The calculations below use the Fraunhofer, paraxial approximation. For an overall aperture scale $D\sim 1000\lambda$, free propagation requires $L\gg D^2/\lambda \sim 10^6\lambda$. The printed $L\gg 1000\lambda$ alone only makes the separation small relative to distance; it is not by itself the full far-field condition.

The relative slit-centre phase is $2\pi d\sin \theta /\lambda$. Near the optical axis, $x\simeq L\theta$, so adjacent interference maxima have spacingSlow diffraction-envelope variation can slightly shift the exact local maxima.

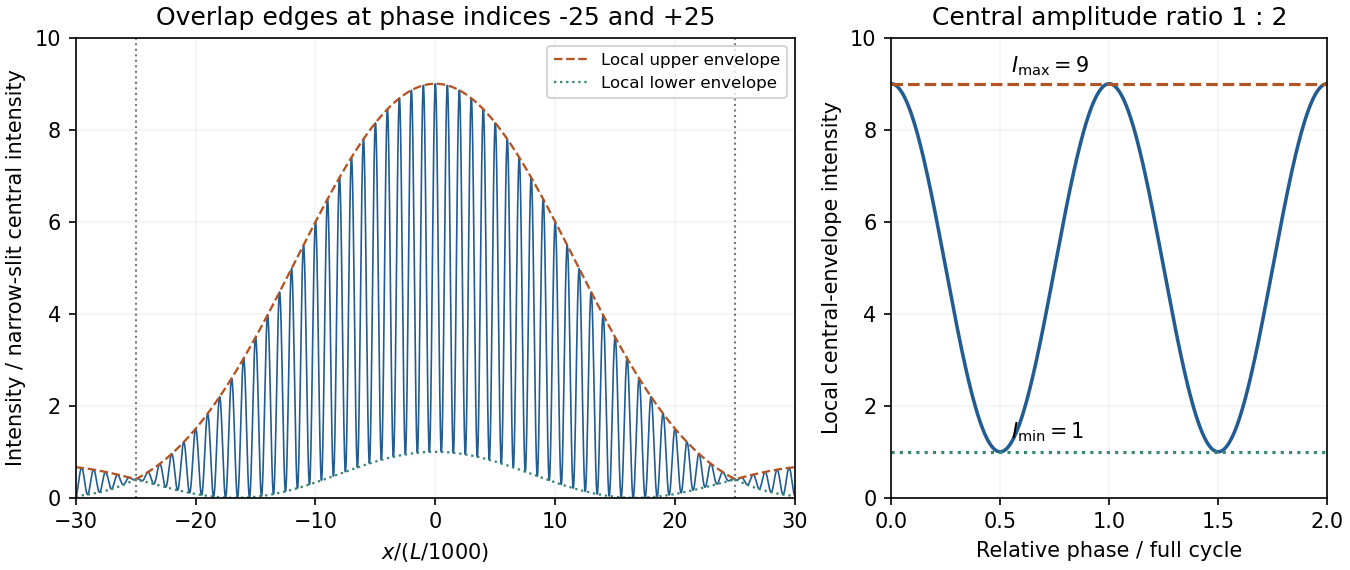

A slit of width $w$ has its first zeros at $\sin \theta =\pm \lambda /w$. Thus the full central-envelope widths areThe narrower envelope determines the overlap, so it spansThis is the usual approximate “50 fringes” count. If counting nominal bright fringe centres strictly inside both first zeros, they have indices $-24,\dots ,24$, giving 49 centres. The endpoints $\pm 25$ lie at the wider slit's first zeros, where two-slit visibility vanishes; they should not be counted as fully interfering bright centres.

At the centre, equal illumination gives slit amplitudes proportional to widths, so $A_2=2A_1$. The local interference extrema are $(A_1+A_2{)}^2$ and $(A_2-A_1{)}^2$, givingThese are the central-envelope extrema as relative phase varies, or equivalently the near-centre fringe limits where the envelope is nearly constant.

Treat the transparent plate as a phase plate at normal incidence. Its extra optical path is $(n-1)50\lambda$. An unchanged interference pattern requires an integer number of full phase cycles:For full-cycle phase-plate invisibility in an ordinary nontrivial material with $n>1$, the two smallest are $n=1.02$ and $1.04$. If the optically null case $n=1$ is admitted, the first two nondecreasing-$n\ge 1$ values are $1$ and $1.02$. A different allowed range of refractive indices would need to be specified before calling these the absolute smallest possibilities.

Here $\mathbf{H}$ is magnetic field intensity, $\mathbf{J}$ free electric current density, and $\mathbf{D}$ electric displacement. In vacuum, $\mathbf{B}={\mu }_0\mathbf{H}$ and $\mathbf{D}={ϵ}_0\mathbf{E}$. Integrating the equation gives Ampère's circuital law with displacement current; in a steady state the displacement term vanishes.

Take $z$ upward and define $V={\varphi }_{\mathrm{upper}}-{\varphi }_{\mathrm{lower}}=V_0\sin \omega t$. Neglect fringing and use the low-frequency thin-capacitor approximation. ThenInside the gap, a circular Ampère loop encloses only displacement current:Because $\hat{\mathbf{z}}\times \hat{\mathbf{\varphi }}=-\hat{\mathbf{r}}$, the Poynting vector isIt points inward while the electrical energy is increasing and outward while it decreases. The net power entering the curved side isThis is the leading quasistatic energy balance. The time-averaged field energies areFor the axisymmetric high-frequency capacitor field when $\omega a/c$ is not small, induction and radial propagation prevent a spatially uniform $E_z$. In an ideal axially uniform axisymmetric interior model, Faraday's and Ampère's equations giveThe solution regular at the axis and normalized to the central voltage is approximatelyAt $\omega =\pi c/a$, the radial profile is $J_0(\pi r/a)$: its first zero is at $r\simeq 0.765a$, and the edge has opposite phase, $J_0(\pi )\simeq -0.304$. This is an illustrative thin-disc interior profile; the exact driven high-frequency field also depends on the feed and edge/radiation boundary conditions. Continuing the uniform quasistatic field would be inconsistent.
