Alfred Kastler developed optical pumping, using selective absorption and emission of light to redistribute populations among atomic Zeeman sublevels. Angular momentum selection rules make some transitions accessible and others forbidden, so repeated illumination can produce a strongly unequal population. A subsequent magnetic resonance changes that distribution and therefore the detected light. Optical preparation and optical readout connect a weak radio frequency excitation with a sensitive optical signal.^[ref]

A physicist.^[ref]

In 1990, Wayne M. Itano, Daniel J. Heinzen, J. J. Bollinger and David J. Wineland reported inhibited transitions in about 5,000 ${}^9{\mathrm{Be}}^{+}$ ions held in a cylindrical Penning trap. Trapped magnesium ions, illuminated at 280 nm, kept the beryllium ions cold. A 320.7 MHz radio frequency field coupled two ground-state hyperfine structure sublevels during a 256 ms pulse adjusted for complete transfer. Up to 64 intervening 313 nm pulses addressed an optical transition from level 1: scattering distinguished it from level 2. Afterward, calibrated fluorescence counts over 100 ms measured the final quantum state population. This ensemble readout did not select ions that remained in the initial quantum state at every check; departure followed by return also contributes. The apparatus made inhibition by repeated quantum measurements experimentally accessible.^[ref]

Cross-polarization (nuclear magnetic resonance) transfers nuclear spin nuclear spin polarization between different nuclear populations, commonly from abundant hydrogen nuclei to dilute carbon-13 nuclei in a solid. Applied radio frequency fields bring the two spin populations into a condition that permits polarization exchange through magnetic dipolar coupling.^[ref]

For on-resonance spin locking, an ideal matching condition is $|{\gamma }_I|B_{1I}=|{\gamma }_S|B_{1S}$, where $\gamma$ is the gyromagnetic ratio and $B_1$ is the applied transverse field amplitude for each population. The fields match motion in the respective rotating frames, even though the nuclei have different laboratory resonance frequencies. This can enhance a weak carbon signal, but intensity also depends on transfer and relaxation, so peak areas need not directly count atoms without further controls.^[ref]

A cyclotron repeatedly passes ions through an alternating electric field between two hollow electrodes called cyclotron dees. A nearly uniform magnetic field perpendicular to their plane bends the charged particles back toward the gap. Inside each cyclotron dee, ideal shielding suppresses the accelerating electric field, so each segment is a constant-speed circular motion. The next gap crossing increases the speed and the radius of curvature. The complete path consists of connected, progressively larger arcs, rather than one circle or a smooth spiral with continuous acceleration everywhere.

The striking feature is a timing cancellation: the longer arc traveled by a faster particle takes the same time. This cyclotron resonance condition lets one fixed radio frequency accelerate many successive gap crossings. The following construction and cyclotron energy and orbit radius example describe an ideal model; the Lawrence-Livingston cyclotron experiment explains what the builders actually measured.

Edward O. Stejskal was a physical chemistry researcher known for nuclear magnetic resonance methods. His Illinois doctoral work used nuclear spin relaxation to investigate molecular motion in solids. At Wisconsin he developed pulsed field gradient NMR with his first doctoral student, John E. Tanner; later he worked at Monsanto and became a professor at North Carolina State University.^[ref]

Their 1965 apparatus measured proton spin echoes at $20.00\mathrm{MHz}$ using opposed gradient coils. Keeping the applied magnetic field gradient small during the radio frequency pulses and echo detection removed two limitations of continuously strong gradients: difficult excitation across a broad resonance and an echo too narrow to measure easily. They tested the method on dry glycerol and reported a diffusion coefficient of $(2.5\pm 0.2)\times 10^{-8}\mathrm{c}{\mathrm{m}}^2{\mathrm{s}}^{-1}$ at $26\pm 1{}^{\circ }\mathrm{C}$. This is their reported measurement, rather than a general reference value for all glycerol samples.^[ref]

The Stejskal-Tanner equation gives a useful ideal prediction. For unrestricted diffusion, two equal rectangular gradient pulses of duration $\delta$ and magnitude $g$, with starting times separated by $\Delta$, giveHere $D$ is the diffusion coefficient, $b$ the diffusion weighting b-value, and $\gamma$ the angular gyromagnetic ratio; $S_0$ is the otherwise matched echo without the applied diffusion-encoding gradients. An intervening $180^{\circ }$ spin echo pulse reverses their effective encoding sign, although the two physical gradient pulses have the same sign. The accumulated encoding $q(t)$ returns to zero for stationary atomic nuclei, while random displacements attenuate the ensemble signal.^[ref]

The finite-duration correction can be checked directly. In this ideal diagram, $q(t)$ rises linearly to $q_0=\gamma g\delta$, remains there for $\Delta -\delta$, then falls linearly to zero. Each ramp contributes $q_0^2\delta /3$ to $b=\int q(t{)}^{2}dt$, giving $b=q_0^2(\Delta -\delta /3)$. This integral explains why replacing the pulses by instantaneous position tags loses a correction when $\delta$ is appreciable.

At Monsanto, Stejskal and Jacob Schaefer combined cross-polarization (nuclear magnetic resonance) with magic angle spinning to obtain high-resolution solid-state nuclear magnetic resonance. In cross-polarization magic-angle spinning, polarization transfer strengthens weak nuclear responses while sample rotation averages appropriate anisotropic interactions; the two operations address different experimental obstacles.^[ref]

Let $S$ be the SWAP gate. If the drift Hamiltonian operator and every allowed control Hamiltonian operator commute with $S$, every reachable time-evolution operator also commutes with $S$. Indeed, $SUS$ satisfies the same initial-value Schrödinger equation as $U$ and starts at $I$, so uniqueness gives $SUS=U$. Yet $S(Z\otimes I)S=I\otimes Z\ne Z\otimes I$. An individual Pauli Z gate is consequently unavailable within that symmetric control model. Equal nuclear resonances, isotropic exchange interaction, and identical coupling to a common homogeneous radio frequency field provide an example. An added interaction that breaks this symmetry can remove the obstruction.

Fedor Jelezko works on solid-state quantum optics and spin control in diamond. His Ulm University CV identifies him in full and lists the exact 2004 nuclear-spin paper whose first-author byline is F. Jelezko, verifying the connection between the full name and the abbreviated record.^[ref]

That experiment addressed an electron spin coupled to a single Carbon-13 nuclear spin at a nitrogen-vacancy center. A laser initialized and read out the electron-spin-dependent signal, while microwave and radio frequency pulses manipulated the coupled levels. Nuclear-state changes were detected through the electron spin. The team observed nuclear Rabi oscillations and demonstrated a conditional two-qubit gate, providing a physical test of coherent control of an individually addressed spin system.^[ref]

For an original ideal pulse example, let a selected transition have resonant Rabi frequency $f_R=100\mathrm{kHz}$ and start entirely in one level. The two-level model gives transition probabilityA $2.5\mu \mathrm{s}$ pulse gives $P=1/2$, while a $5.0\mu \mathrm{s}$ pulse gives $P=1$. Scanning the pulse duration reveals an oscillation rather than a single population change. These are chosen ideal values; detuning, relaxation and readout noise limit a real measurement.

Individual quantum control of spins by exploiting different resonance frequencies. A sufficiently narrow-band radio frequency pulse can predominantly affect one resonance when the separation is large compared with the excitation bandwidth and coupling effects are accounted for. Equal resonance frequencies remove this frequency-based distinction. Whether individual gates remain possible then depends on other available interactions, spatial resolution, or differences in control coupling; frequency equality alone is not a universal impossibility theorem.

Jacob Schaefer was a physical chemistry researcher who developed methods for studying complex solid materials using solid-state nuclear magnetic resonance. After his 1964 doctorate he worked at Monsanto, then joined Washington University in 1986. His contributions included cross-polarization magic-angle spinning with Edward O. Stejskal and rotational-echo double resonance with Terry Gullion.^[ref]

The materials in the 1976 cross-polarization magic-angle spinning demonstration made the method's reach tangible. They included polysulfone, ebony wood and a cylinder cut from an ivory billiard ball. Schaefer's father and grandfather were billiards champions; a familiar object became a specimen for measuring carbon-13 responses in a complex solid. Combining polarization transfer with magic angle spinning made weak and broadened solid-state responses much more accessible.^[ref]

REDOR addresses another measurement problem. Magic angle spinning averages interactions that broaden spectra, but some of those interactions carry structural information. Appropriately timed radio frequency pulses restore sensitivity to NMR dipolar coupling between different nuclear species. Comparing a reference echo with a deliberately dephased echo then probes that coupling, with structural interpretation supplied by a suitable spin model.^[ref]

Schaefer reproduced a laboratory record from 29 May 1987 in which Gullion measured carbon-13 spectra of nitrogen-15-labelled alanine. Carbon remained at natural isotopic abundance. The record compares full and dephased echoes at a carbon frequency of $50.3\mathrm{MHz}$, using magic angle spinning at $3.2\mathrm{kHz}$ and 10 rotor periods of dipolar evolution. The corresponding duration isThe reproduced record does not give sample mass or number of accumulated scans. Later use of XY8 NMR phase cycling suppressed pulse-train amplitude and phase errors, enabling measurements of weaker couplings over longer pulse trains.^[ref]

Jean Brossel and Alfred Kastler developed optical preparation and detection of atomic magnetic resonance. Selectively absorbed light creates unequal populations among Zeeman sublevels; a radio frequency transition redistributes those populations. The resulting change in absorption or fluorescence supplies a visible signal of the resonance. The light thus has two distinct jobs: optical pumping prepares the initial quantum state distribution, while optical detection reads out the effect of a much weaker magnetic excitation.^[ref]

A physicist.^[ref]

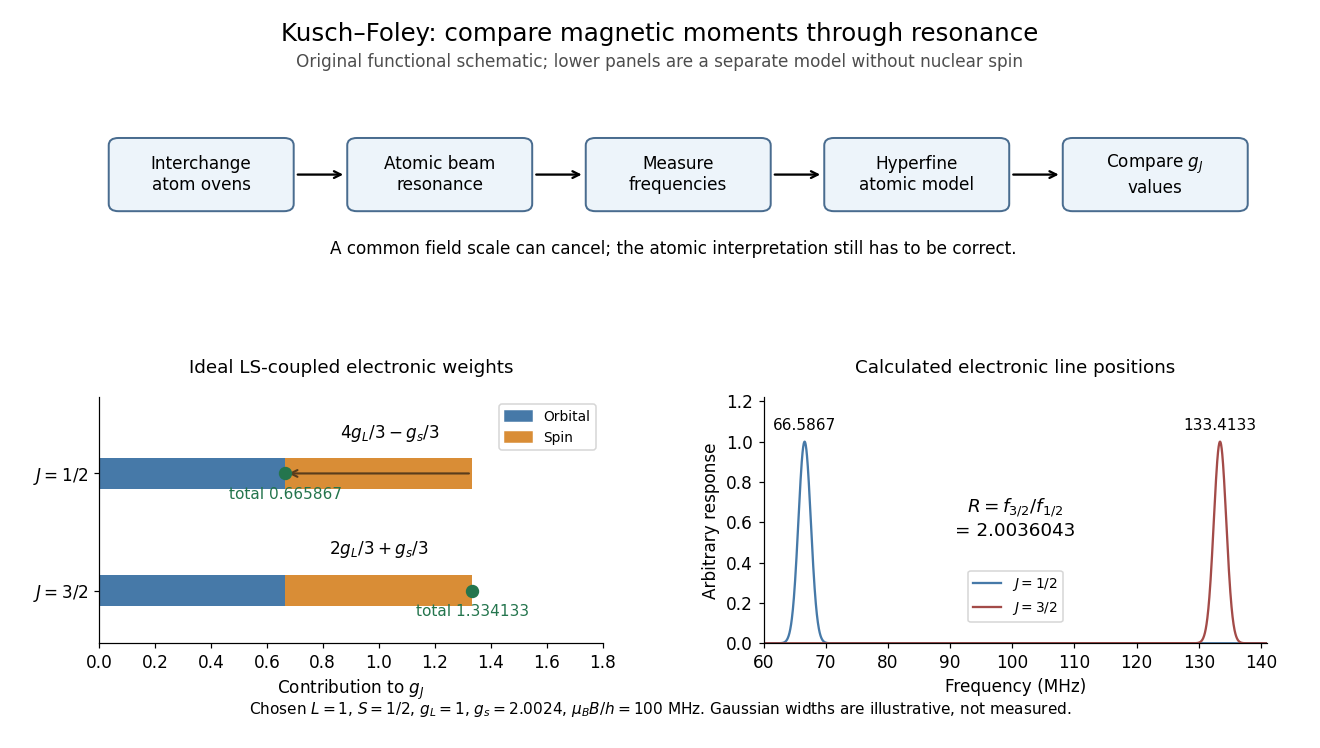

Polykarp Kusch and Henry Michael Foley compared hyperfine structure resonance frequencies for different electronic states of gallium, indium and sodium. Their 1948 paper reports mutually consistent departures from the ratios expected with orbital factor $1$ and spin factor $2$. Comparing several states constrained the alternative explanation of perturbed atomic levels.^[ref]

The Rabi molecular beam magnetic resonance experiment explains the readout principle: a resonant transition changes an atom's magnetic response, and hence its transmitted beam signal. Kusch describes rapidly interchangeable ovens, several radio frequency oscillators and careful field homogenization. Measurements taken during monotonic field drift were reduced to a common field.^[ref]

Real hyperfine structure lines are not simply bare electronic $g_J$ times field. Nuclear magnetic moments, known interaction constants and nonlinear field dependence enter the inference.^[ref] Field homogeneity controls line broadening; alternating species addresses drift. Neither control removes an error in the atomic model. The beauty of the comparison is the separation of two problems: cancelling a shared calibration scale and testing whether several physical systems imply the same electron spin g-factor.

A nitrogen-vacancy center is a point defect in diamond consisting of a nitrogen atom occupying a carbon lattice site next to a vacancy defect. The surrounding diamond remains the host crystal; the adjacent impurity and missing atom create a localized electronic system. Its electron spin and optical response make individual defects accessible to quantum control.^[ref]

A2004 experiment coupled the defect's electron spin to one nearby carbon-13 nuclear spin. Laser pulses provided optical preparation/readout, while microwave and radio frequency pulses manipulated the spin system. The researchers observed coherent nuclear-spin oscillations and implemented a conditional two-qubit operation.^[ref] Detecting fluorescence thus provided access to a spin experiment inside a solid, rather than requiring electrical contact to the individual defect.

For an ideal resonantly driven two-state model, a Rabi oscillation gives transition probability $P(t)={\sin }^2(\Omega t/2)$, where $\Omega$ is the angular Rabi frequency. A pulse lasting $\pi /\Omega$ ideally transfers the population, while $2\pi /\Omega$ returns it. This illustrates controlled coherent evolution; actual fluorescence counts and gate accuracy also depend on preparation, readout and loss of coherence.

The NMR flip angle is the angle of a spin rotation produced by a radio frequency pulse under specified resonance and axis conditions. For an ideal resonant rectangular pulse with constant effective transverse axis,Here ${\omega }_1$ is the angular NMR nutation frequency, $t_p$ is duration and $B_1$ is the co-rotating field amplitude. The angular gyromagnetic ratio is in radians per second per tesla. A linearly oscillating laboratory field and its co-rotating component must not be assigned the same amplitude without checking conventions.^[ref]

An original numerical example uses $f_1={\omega }_1/(2\pi )=25\mathrm{kHz}$. The durations for $90^{\circ }$ and $180^{\circ }$ rotations areSubstitution of the angular rate $2\pi \times 25000rad/s$ gives $\pi /2$ and $\pi$. Confusing the rate in hertz with the angular rate would change the result by a factor of $2\pi$.

For a vector initially along $+z$, choose the positive-$x$ rotation convention. Its final components are $M_z=M_0\cos \beta$ and $M_y=-M_0\sin \beta$. An ideal $180^{\circ }$ pulse therefore gives no transverse component while leaving the vector inverted along $-z$; a transverse-signal null does not mean that the magnetization vanished.^[ref]

NMR pulse calibration can vary duration and follow the resulting sinusoidal signal. Finding the inversion null, then halving its duration at unchanged amplitude, supplies a nominal $90^{\circ }$ pulse in the ideal model.^[ref] In the invented25kHz example, a10-percent amplitude increase with the10microsecond duration held fixed produces $99^{\circ }$ and $M_z/M_0\approx -0.156$. This illustrates an NMR pulse error, not a measured instrument performance.

The simple pulse-area formula assumes resonance and a fixed axis. Off-resonance or phase-modulated pulses generally require the full effective-field rotation or propagator, rather than interpreting one integrated amplitude as a complete description.

The resonant NMR nutation frequency is the rate at which a driven spin rotates about the effective transverse radio frequency field in the rotating frame. With $B_1$ the co-rotating field amplitude and $\gamma$ the angular gyromagnetic ratio, its magnitude isThe angular rate ${\omega }_1$ is in radians per second, while $f_1$ is in hertz. It differs from the resonance carrier frequency set mainly by the static field.^[ref]

For a resonant constant-axis rectangular pulse, the NMR flip angle is $\beta ={\omega }_1{t}_p$. An original example assigns $f_1=25\mathrm{kHz}$, giving ${\omega }_1=2\pi \times 25000rad/s$. A10microsecond pulse then rotates by $\pi /2$. Reducing $f_1$ to12.5kHz and extending the duration to20microseconds gives the same ideal angle. Amplitude and duration enter as a product in this model.

A measured inversion duration supplies a way to infer the rate. If a calibration gives a20microsecond $180^{\circ }$ pulse, then ${\omega }_1=\pi /(20\mu \mathrm{s})$ and $f_1=1/(40\mu \mathrm{s})=25\mathrm{kHz}$. Describing this as a25kHz RF field strength is frequency shorthand; the underlying magnetic field amplitude still has units of tesla.^[ref]

The simple interpretation assumes resonance and a fixed pulse axis. With an offset, the effective field also has a longitudinal component, so the spin rotates about a tilted axis. Increasing a nominal pulse duration then need not reproduce the resonant trajectory. A linearly oscillating laboratory field must also be decomposed before identifying its co-rotating amplitude with $B_1$.

NMR pulse calibration connects the rate to an observed response, rather than relying only on a transmitter setting. Spatial field variation and pulse imperfections can give different nuclei different rotations even when one nominal rate is assigned to the experiment.

NMR phase cycling systematically changes radio frequency pulse phases and the receiver phase across repeated nuclear magnetic resonance acquisitions so that selected signals reinforce while unwanted contributions cancel. Pulse phase controls the rotation axis in the rotating frame; receiver phase controls how transverse magnetization is represented in the recorded complex signal. A phase change does not mean changing the resonant nucleus or physically rotating the sample.^[ref]

An original two-acquisition example makes the subtraction explicit. Suppose changing an excitation pulse by $\pi$ reverses the desired contribution $S$ while leaving an unwanted background $B$ unchanged. Before correcting the receiver phases, the two measurements areApplying the corresponding receiver sign and averaging gives $(s_1-s_2)/2=S$. With invented values $S=5$ and $B=2$, the recorded values7 and−3 yield5. Adding them without the intended sign would instead retain the background.

The assumptions matter. If the background changes between acquisitions, the residual is $(B_1-B_2)/2$. Nor does a two-step cycle separate contributions that transform in exactly the same way under its phase changes. More elaborate cycles select particular changes in NMR coherence, rather than indiscriminately removing every source of error.^[ref]

Phase patterns can also be built into a train of refocusing pulses. XY8 is an important example for controlling cumulative NMR pulse errors. Within-train pulse compensation and across-acquisition selection are related uses of phase control, but the eight pulses of an XY8 block do not by themselves specify a complete receiver cycle.

An NMR pulse error is a difference between an intended spin rotation and the rotation actually produced by a radio frequency pulse. A pulse can have the wrong NMR flip angle, the wrong rotation-axis phase, or a tilted effective axis because the irradiation is off resonance. These discrepancies differ from changes occurring during free evolution or spin relaxation.

For an ideal resonant rectangular pulse, the magnitude of its NMR flip angle is $\theta =|\gamma |B_1{t}_p$, where $\gamma$ is the angular gyromagnetic ratio, $B_1$ is the co-rotating transverse field amplitude and $t_p$ is pulse duration. A fixed amplitude miscalibration can therefore produce a reproducible angle error. Using the co-rotating amplitude explicitly avoids an ambiguous factor of two for a linearly oscillating field.

An original pulse-only calculation illustrates accumulation. Start with a unit magnetization vector along $z$, and apply $N$ instantaneous rotations about the same $x$ axis, each with angle $\pi +\epsilon$. Ignore free evolution, relaxation and every other error. Their product is a rotation by $N\pi +N\epsilon$, givingFor even $N$, ideal pulses return $M_z$ to one. With an invented systematic error of $1^{\circ }$ per pulse, ten pulses give $\cos 10^{\circ }\approx 0.985$, whereas one hundred give $\cos 100^{\circ }\approx -0.174$. Small systematic errors can accumulate coherently and even reverse the component being measured. These are not measured decay data, nor does $N\epsilon$ describe arbitrary independently varying errors.

Alternating rotation-axis phases can control accumulation. A 1990 study experimentally compared compensated pulse trains designed to protect all three magnetization components; its applications included REDOR.^[ref] The XY8 pattern is one important example. An ideal product equal to the identity verifies its nominal net rotation, but a robustness claim requires calculating imperfect pulses in a stated error model.

A useful teaching experiment would compare phase patterns while varying a calibrated pulse-amplitude offset and keeping preparation, readout and nominal evolution window controlled. The REDOR retrospective supplies historical motivation: XY8 reduced off-resonance amplitude and phase distortions in long pulse trains.^[ref]

Nuclear magnetic resonance detects the response of atomic nuclei with a magnetic moment to a radio frequency magnetic field in a steady magnetic field. Its striking possibility is to measure a nuclear property through an ordinary electrical signal from a bulk sample: an enormous number of tiny magnetic moments can produce a measurable change in a receiving circuit.

For a nucleus with spin angular momentum $\mathbf{J}$, define its gyromagnetic ratio by $\mathbf{\mu }=\gamma \mathbf{J}$. Throughout this article $\gamma$ is angular, measured in radians per second per tesla; $\gamma /(2\pi )$ is the corresponding value in cycles per second per tesla. With ${\mathbf{B}}_0=B_0\hat{\mathbf{z}}$, the Hamiltonian is $H=-\gamma B_0{J}_z$. Adjacent energy levels differ byThus a measured resonance frequency and a calibrated magnetic field determine $|\gamma |$. Converting that into a nuclear magnetic moment also requires the spin quantum number: the maximum projection has magnitude $|\gamma |\hslash I$. This simple experiment does not by itself determine the sign of $\gamma$.

The Rabi molecular beam magnetic resonance experiment detects transitions through changes in a selected molecular beam. The bulk experiments below instead detect electrical consequences of nuclear magnetization in matter at ordinary density. A small Boltzmann distribution population imbalance is multiplied by a very large number of nuclei. For noninteracting spin one-half nuclei of number density $n$ and positive $\gamma$, their equilibrium magnetization isThis follows by weighting the two projections $\pm \gamma \hslash /2$ with their Boltzmann distribution probabilities. It explains both the smallness of the bulk polarization at ordinary temperature and the value of many nuclei contributing to one receiving circuit.

NMR spectroscopy measures resonant responses of atomic nuclei to applied electromagnetic radiation in a magnetic field. In residual-group monitoring of polyurethane formation, distinguishable signal integrals supply a relative residual-group readout; overlap or very weak signals can limit that inference.

The rubidium experiment used laser cooling, a magneto-optical trap and magnetic trapping of neutral atoms with a rotating bias field. Radio frequency transitions removed energetic atoms; elastic collisions restored thermal equilibrium. Before absorption imaging, the trap was decompressed, then nearly released with a gradient supporting against gravity. Varying the final evaporation cut revealed a narrow anisotropic core within an isotropic thermal cloud. The broad component supplied a simultaneous comparison through the same optics. Resolution and size calibration limited inference; interactions broadened the core relative to an ideal gas.^[ref]

The 1995 sodium experiment combined laser cooling with a magnetic quadrupole trap and a repulsive optical plug protecting its field zero. Radio frequency evaporation preceded release and absorption imaging after time of flight. Lowering the evaporation cut produced broad thermal wings and a narrow core. Moving the plug changed the core's expansion orientation while the thermal distribution remained spherical: a control connecting the feature to confinement. Overlap of the two trapped pockets and residual switch-off acceleration limited quantitative shape comparisons; repulsive interactions affected expansion.^[ref]

Set ${\omega }_1={\omega }_2=\omega$. Define the quantum rotating frame byThe isotropic Heisenberg model coupling commutes with the total $z$ spin angular momentum, so $[H_Z,C]=0$. The transformed Hamiltonian operator is thereforeHere removal of the common Zeeman energy is exact; the exchange is resonant and cannot be discarded using the weak coupling condition for two NMR spins.

Put $a=Jt$, $c=\cos a$, and $s=\sin a$. Exponentiating the parallel-spin entries and the middle $2\times 2$ matrix gives the time-evolution operatorFor example, at $a=\pi /2$ this equals the SWAP gate times $e^{-i\pi /4}$, which checks both the exchange angle and the overall phase.

The printed network reads from left to right as $U$, a Pauli Z gate on the upper spin only, $U$, and another upper-spin Pauli Z gate. LetIts total time-evolution operator, with the first operation on the right, is $W=PUPU$. For this Heisenberg exchange echo,The three paired Pauli operators $X\otimes X$, $Y\otimes Y$, $Z\otimes Z$ commute pairwise: for example both products $(X\otimes X)(Y\otimes Y)$ and $(Y\otimes Y)(X\otimes X)$ equal $-Z\otimes Z$. Thus $P{H}_{\mathrm{r}}P$ commutes with $H_{\mathrm{r}}$, andThe spin echo cancels the $XX+YY$ exchange terms and retains the Ising coupling. Equivalently, over the total free-evolution time $2t$ it produces the effective Hamiltonian operator $JZ\otimes Z/2$ exactly for ideal instantaneous gates. It is generally not the identity. A physical $\pi$ rotation about $z$ is $e^{-i\pi Z/2}=-iZ$; using two such pulses instead of the ideal $Z$ gates changes $W$ only by a physically irrelevant global phase of minus one.

The implementation requires frequency-selective spin control. Under the usual common-radio frequency NMR assumptions, equal resonance frequencies give no way to apply a pulse to the first spin while leaving the second untouched. For equally coupled spins in a spatially uniform control field, the transverse control Hamiltonian operator has the formBoth this control and the drift Hamiltonian operator commute with the SWAP gate $S$. Every reachable time-evolution operator consequently commutes with $S$. But $SPS=I\otimes Z\ne P$: the individual pulse required by the diagram fails this symmetry test. This is the exchange symmetry obstruction to individual spin control. Applying simultaneous $Z$ gates gives $Q=Z\otimes Z$, which commutes with $H_{\mathrm{r}}$ and instead yields $QUQU=U^2$; it does not refocus the exchange. A common change of the RF phase reference also supplies only a collective rotation.

This obstruction assumes the usual common-RF control with no extra handle distinguishing the spins. Equal resonance frequencies do not universally forbid individual addressing: a spatially selective field, unequal control couplings, or another symmetry-breaking interaction could alter controllability. Such resources are absent from the specified equivalent-spin NMR model.
