The anode is the electrode at which the net electrode chemical reaction is oxidation: the reacting chemical species loses Electrons. This definition is independent of terminal sign. See IUPAC Gold Book: anode.

During Daniell cell discharge, a zinc chemical atom becomes a ${\mathrm{Zn}}^{2+}$ cation, leaving two Electrons in the electrode; those Electrons leave through the external electrical circuit. The zinc anode is the negative terminal. In an externally driven electrolytic cell, Electrons instead leave the anode through the lead to the source's positive terminal. Conventional current in that lead points toward the anode, opposite to Electron motion. The anode can therefore be positive while still being the site of oxidation. See Daniell cell for the balanced half-reaction and electrode for the operating-mode sign conventions.

A Daniell cell uses the zinc/${\mathrm{Zn}}^{2+}$ and ${\mathrm{Cu}}^{2+}$/copper pairs. In the separated-compartment teaching version, a zinc electrode contacts an aqueous chemical solution containing ${\mathrm{Zn}}^{2+}$, and a copper electrode contacts one containing ${\mathrm{Cu}}^{2+}$. A salt bridge supplies an ionic connection; a wire and load supply an electronic connection. During discharge,The zinc electrode loses material and copper is deposited at the cathode. Each half-reaction conserves chemical atom counts and electric charge: the first has net charge zero on each side, the second $+2e-2e=0$ on the left and zero on the right. The net reaction has $+2e$ on both sides, with no Electrons left in its chemical equation. The Zn/Cu teaching cell and these half-reactions are described in Florida State University, Redox Reactions in Voltaic Cells: Construction of a Potential Series, lab background.

Creating one mole of ${\mathrm{Zn}}^{2+}$ adds $2F$ of positive electric charge to the anode compartment's ionic inventory; consuming one mole of ${\mathrm{Cu}}^{2+}$ removes $2F$ of positive electric charge from the cathode compartment. Here $F$ is the Faraday constant. In an ideal bookkeeping example using a potassium nitrate salt bridge, two moles of nitrate anions entering the anode compartment compensate the first change, and two moles of potassium cations entering the cathode compartment compensate the second. Other ions in the cell can share the actual transport. The two compensating inventory changes do not mean that $4F$ flowed through the load: the same series electric current transports $2F$ through each cross-section of the circuit per mole of net reaction. See salt bridge.

Under standard-state conditions near $298\mathrm{K}$, tabulated reduction potentials give a cell electromotive force of approximately $1.10\mathrm{V}$. This is a reversible reference value, not a promised loaded reading; actual composition matters through thermodynamic activity. The tabulated copper and zinc values and their subtraction are given in Purdue University, Electrochemical Reactions: standard-state reduction potentials. For the net chemical equation as written, the molar Gibbs free energy change obeysThus $\mathcal{E}=1.10\mathrm{V}$ corresponds to about $-212\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ of net reaction. At fixed temperature and pressure, $-{\Delta }_{r}G$ is the maximum reversible electrical work per mole for this cell reaction. It is not automatically all the heat released by a finite-current cell. See 17.4 Potential, Free Energy, and Equilibrium (§17.4: cell potential and free energy).

The motivating observation is that a chemical reaction can produce a signed electrical reading even when its reacting materials occupy separate vessels. UC San Diego's teaching demonstration places a copper strip in $0.1\mathrm{mol}{\mathrm{L}}^{-1}$ $\mathrm{CuS}{\mathrm{O}}_4$ and a zinc strip in $0.1\mathrm{mol}{\mathrm{L}}^{-1}$ $\mathrm{ZnS}{\mathrm{O}}_4$, using two $400\mathrm{mL}$ beakers with about $300\mathrm{mL}$ of chemical solution in each. The strips connect to a voltage meter. Initially there is no ionic connection; the demonstration specifies a zero reading. A filter-paper salt bridge containing aqueous $\mathrm{N}{\mathrm{a}}_2\mathrm{S}{\mathrm{O}}_4$ then connects the chemical solutions. With the meter's positive lead on copper and negative lead on zinc, its reported readings are about $+1.1\mathrm{V}$; exchanging the leads reverses the reading. These are observations reported by the university, not data generated for this article. See UC San Diego, demonstration 9B: apparatus, bridge control and meter polarity.

The controls answer different questions. Exchanging only the meter leads checks the sign convention; it does not reverse the chemical reaction or swap the anode and cathode. Interrupting only the salt bridge tests the need for an ionic return path. Its absence prevents sustained cell electric current, but a very high-input-resistance meter may still show a transient or unstable reading while interfaces store electric charge. The zero reading specified for the university's apparatus is therefore not a universal theorem for every meter. Reconnecting the same salt bridge distinguishes a reversible interruption from a disconnected wire or exhausted chemical solution. This interpretation follows from electric charge conservation in a model allowing interfacial electric charge storage; see IUPAC Gold Book: integral capacitance of an electrode for the capacitance associated with electrode charge.

To distinguish terminal electric potential difference from delivered power, compare the nearly open-circuit reading with readings across a known resistor load. In the nearly open-circuit condition, a meter with input electrical resistance much larger than the cell's effective internal electrical resistance draws little electric current. With a load, measure its terminal electric potential difference $V$ and infer $I=V/R$ using Ohm's law; track the readings over time and repeat the nearly open-circuit reading afterwards. Keep the temperature, chemical solution compositions, immersed electrode areas, bridge geometry and electrical contacts comparable. This is a model-based extension of the documented demonstration, not a claim that UC San Diego published a load sweep. A finite-current drop can reflect ionic electrical resistance, changes of interfacial reaction rates, or depletion near an electrode; a single voltage reading cannot identify which dominates. The interfacial and composition contributions are distinguished in IUPAC Gold Book: overpotential and ^[ref].

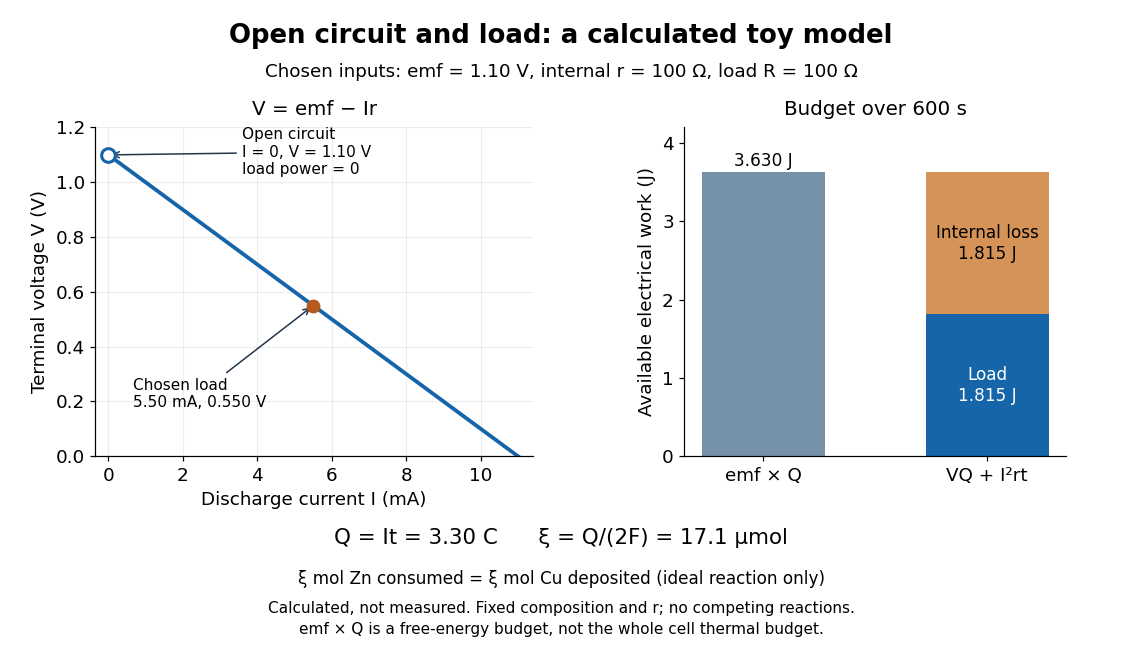

For a deliberately simplified calculation, model the cell by a constant electromotive force $\mathcal{E}$ in series with a constant internal electrical resistance $r$, and a passive load $R>0$. Take $I$ positive from the cathode through the load to the anode. ThenThe nearly open-circuit limit $R\to \infty$ gives $V\to \mathcal{E}$ but $I\to 0$ and $P_{\mathrm{load}}\to 0$. A straight $V$-versus-$I$ line is a prediction of constant $r$, not a general law for electrochemistry. See Ling, Sanny and Moebs, University Physics II, §10.1: internal resistance, terminal voltage and load.

For the chosen values, $I=5.50\mathrm{mA}$ and $V=0.550\mathrm{V}$. Holding these toy parameters fixed for $600\mathrm{s}$ gives transported electric charge $Q=It=3.30\mathrm{C}$ and an extent of reaction $\xi =Q/(2F)\simeq 17.1\mu \mathrm{mol}$, assuming all the electric current serves the two specified half-reactions. The same $\xi$ counts zinc consumed and copper deposited, rather than equal masses. The energy budget isThe load's electrical work also becomes Joule heating when the load is a resistor. Here $\mathcal{E}Q$ accounts for the reaction's available reversible electrical work; a full cell thermal budget would also require its thermodynamic entropy contribution. Real measurements need uncertainty estimates, a specified meter input electrical resistance and calibration, and allowance for changing composition and unwanted chemical reactions. The toy value $r=100\Omega$ is not a measured property of the university's cell.

An electrode is an electronic electrical conductor in contact with an electrolyte. In a cell carrying sustained redox electric current, chemical reactions at this interface exchange Electrons with chemical species. An electrode can participate in the chemical reaction, as the dissolving zinc anode of a Daniell cell does, or provide a conducting surface without appearing in the net chemical equation. This distinction is illustrated by active and inert electrodes in Flowers, Theopold, Langley and Robinson, Chemistry 2e, §17.2.

The interface connects two kinds of electric charge transport: Electrons in the external electrical circuit and ions in the electrolyte. The same Electron does not travel through the wire, swim through the salt bridge, and complete a circuit! The half-reactions account for how electronic and ionic transport meet. This is the useful idea behind both obtaining electrical work in a galvanic cell and supplying electrical work in an electrolytic cell.

Name an electrode from its net chemical reaction: oxidation means anode, and reduction means cathode. State the operating mode before assigning terminal signs. For a galvanic cell supplying a passive load, the anode is negative and the cathode positive; for an ordinary two-terminal electrolytic cell driven by a source, the anode is positive and the cathode negative. Here positive means higher terminal electric potential than the other electrode, not a claim that the bulk material has a large positive net electric charge. See Pingarrón et al., Terminology of electrochemical methods of analysis (IUPAC Recommendations 2019), §§3.1 and 3.4.

A galvanic cell supplies electrical work from a spontaneous redox chemical reaction under the specified conditions. In discharge through a passive load, oxidation occurs at its negative anode and reduction at its positive cathode. Separating the reacting compartments makes the Electrons take an external route, where their transport can deliver useful work. See Flowers et al., Chemistry 2e, §17.2: separated reactions and electrical work.

In the metallic external electrical circuit, Electrons move from anode to cathode, while conventional current goes from cathode through the load to anode. Inside the cell, net ionic conventional current closes the loop from the anode compartment toward the cathode compartment. Oppositely moving cations and anions can both contribute to that direction; see electrolyte for the signed current density calculation. A cell can maintain a nonzero terminal electric potential difference near open circuit while delivering almost no power; the Daniell cell voltage and load experiment makes this distinction concrete.
