A disulfide bond is the single covalent bond between the two adjacent sulfur chemical atoms in a disulfide, conventionally written $\mathrm{R}-\mathrm{S}-\mathrm{S}-{\mathrm{R}}^{\prime }$. Here $R$ and $R^{\prime }$ stand for the attached organic groups; they may belong to the same molecule or to initially separate molecules. A disulfide bond is a chemical bridge, rather than a hydrogen bond or a mere contact between nearby groups. Two thiols, $\mathrm{R}-\mathrm{SH}$ and ${\mathrm{R}}^{\prime }-\mathrm{SH}$, can supply its two sulfur endpoints. ^[ref]

The stoichiometry of forming a disulfide bond is especially revealing. Written as an oxidation half-reaction, it isThe reverse reduction half-reaction consumes two Electrons and two hydrogen ions to restore two thiols. Both sides contain two sulfur chemical atoms; the two hydrogen chemical atoms have moved into the two hydrogen ions, and the net electric charge remains zero because $+2-2=0$. Thus one disulfide bond corresponds to two thiol groups and two transferred Electrons. These half-reactions describe redox bookkeeping, not a complete standalone chemical reaction: an accompanying reactant must accept or supply the Electrons, and pH affects the actual protonation of the groups. Mercaptoethanol can promote reduction through exchange of disulfide bonds, but adequate excess and appropriate conditions are needed; adding it does not by itself prove complete reduction. ^[ref]

In a protein disulfide bond, the endpoints are normally the amino acid side chains of two cysteine amino acid residues. An intrachain protein disulfide bond closes an intramolecular bridge within one polypeptide chain; an interchain protein disulfide bond connects different polypeptide chains, and can arise by intermolecular crosslinking of initially separate molecules. Forming or reducing these bridges changes covalent bond connectivity and can change protein structure, while preserving the order of amino acid residues and the peptide bonds in the protein backbone. A complete chemical account of protein primary structure includes crosslinks as well as sequence, so preservation of sequence does not imply preservation of every covalent bond. Mature insulin has two interchain protein disulfide bonds and one intrachain protein disulfide bond. ^[ref]

A bridge is useful because it constrains which parts of a polypeptide chain can move apart without breaking a covalent bond. Its placement therefore matters as well as its presence. The ribonuclease A refolding experiment provides the existing experimental example: breaking and reforming four protein disulfide bonds can accompany loss and recovery of function. Counting four bridges alone cannot tell whether their endpoints have the native pairing. This is an attractive connection between simple chemical counting and the richer problem of protein folding.

How can an experiment reveal an initially hidden disulfide bond? Ellman's reagent, also called DTNB, measures free thiols by producing a yellow absorbing species. Its reactive disulfide bond undergoes exchange with the conjugate base $\mathrm{R}-{\mathrm{S}}^{-}$ of a thiol, producing a mixed disulfide attached to $R$ and one released 2-nitro-5-thiobenzoate species, abbreviated TNB. At the assay pH, the strongly colored form is the dianion $\mathrm{TN}{\mathrm{B}}^{2-}$: one negative charge is on sulfur and the other is on the carboxylic acid-derived $\mathrm{CO}{\mathrm{O}}^{-}$ group. With excess DTNB and complete reaction, one released TNB reports one reacted thiol. George L. Ellman's 1959 paper introduced the tissue assay; it was subsequently reexamined quantitatively. ^{[ref] [ref]}

The modern apparatus can be simple: tubes, pipettes, a buffer solution, cysteine standards, DTNB, and an instrument that measures absorbance through a cuvette at wavelength $412\mathrm{nm}$. The Pierce protocol uses $50\mu \mathrm{L}$ of a $4\mathrm{mg}\mathrm{m}{\mathrm{L}}^{-1}$ DTNB stock, $2.50\mathrm{mL}$ of buffer solution, and $250\mu \mathrm{L}$ of sample. Its buffer solution is $0.1\mathrm{mol}{\mathrm{L}}^{-1}$ sodium phosphate at pH 8.0 with a metal-binding additive. After 15 minutes at room temperature, measure absorbance against a buffer solution plus DTNB blank; run known cysteine concentrations in parallel. The observable is increased yellow color and increased blank-corrected absorbance as more accessible thiols react, rather than direct imaging of disulfide bonds. These are published protocol conditions, not measurements performed for this article. ^[ref]

For a before/after test, split a purified protein sample into matched aliquots. Measure accessible free thiols in one aliquot; subject the other to complete reduction of its disulfide bonds, remove the reducing reagent, then measure the resulting thiols with fresh DTNB. Process the unreduced aliquot through a matching cleanup. Normalize to recovered protein and known dilution, since cleanup can change both. To estimate all reducible protein disulfide bonds, expose buried groups using matching protein denaturation conditions in both aliquots and calibrate in that same chemical solution; a native-accessibility measurement answers a different question. A larger corrected reading after reduction supports conversion of previously unreactive groups into detectable thiols. Attribution to disulfide bonds requires excluding other reducible sulfur modifications. This is a proposed comparison based on the detection principles, not a reconstruction of Ellman's original tissue measurements. ^[ref]

Under the Beer-Lambert law, the blank-corrected absorbance is $A=\epsilon lc$, where $l$ is the cuvette path length, $c$ is the released TNB concentration, and $\epsilon$ is its molar absorption coefficient. Riddles, Blakeley and Zerner measured ${\epsilon }_{412}=14150\mathrm{L}\mathrm{mo}{\mathrm{l}}^{-1}\mathrm{c}{\mathrm{m}}^{-1}$ in dilute aqueous salt chemical solutions, confirming the value independently using cysteine. It must not be applied indiscriminately to other solvents or protein denaturation mixtures. ^[ref] For aliquots compared on the same final volume and protein concentration basis, the ideal estimate isThe factor of two follows from the reduction stoichiometry; ${\bar{n}}_{\mathrm{S}-\mathrm{S}}$ is the number of disulfide bonds per protein molecule, or an average for a mixed population. If the aliquots have different dilutions or recoveries, convert each reading to a common sample basis before subtracting.

As a hypothetical calculation, choose $c_{\mathrm{protein}}=10\mu \mathrm{mol}{\mathrm{L}}^{-1}$ in each final cuvette, two free thiols and two disulfide bonds per protein molecule, and $l=1\mathrm{cm}$. Before reduction, $c_{\mathrm{SH}}=20\mu \mathrm{mol}{\mathrm{L}}^{-1}$ gives $A=0.283$; complete reduction adds four thiols per protein molecule, so $c_{\mathrm{SH}}=60\mu \mathrm{mol}{\mathrm{L}}^{-1}$ gives $A=0.849$. The difference $0.566$ gives $c_{\mathrm{S}-\mathrm{S}}=20\mu \mathrm{mol}{\mathrm{L}}^{-1}$ and ${\bar{n}}_{\mathrm{S}-\mathrm{S}}=2$. The published tube volumes imply a dilution factor $2.80/0.250=11.2$; reversing that dilution multiplies both thiol and protein concentrations by 11.2 and leaves the bridge count per protein molecule unchanged.

Controls determine whether that arithmetic has chemical meaning. Use fresh cysteine standards and a processed blank without protein to detect color generated by residual reducing reagent. Even a reducing reagent containing no thiols can interfere: Han and Han showed that tris(2-carboxyethyl)phosphine, abbreviated TCEP, reduces DTNB to two TNB equivalents per TCEP. ^[ref] In the hypothetical model, $5\mu \mathrm{mol}{\mathrm{L}}^{-1}$ residual TCEP in only the reduced cuvette would add $A=0.1415$ and falsely add $0.5$ bridge per protein molecule. A stable endpoint and agreement after a further reduction treatment help check completion. A sample without DTNB checks its own color; cloudy samples can also attenuate light without producing TNB. Match pH, temperature, accessibility and calibration chemical solution, and minimize delay that permits reoxidation. If two already-free but buried thiols become accessible only in the reduced aliquot, they mimic one new disulfide bond per protein molecule. Finally, bulk absorbance supplies a count under these assumptions: it does not locate the cysteine endpoints, distinguish intrachain from interchain bridges, or establish the native pairing of a protein disulfide bond.

The Henderson-Hasselbalch equation estimates buffer solution pH using a weak acid's acid dissociation constant and the conjugate base to weak acid concentration ratio.

Its activity form is an exact rearrangement of the chosen chemical equilibrium relation. Write the acid dissociation step as $\mathrm{HA}\rightleftharpoons {\mathrm{H}}^{+}+{\mathrm{A}}^{-}$, with hydrated hydrogen ions understood in water and the solvent convention incorporated into the acid dissociation constant. For consistent standard states,Here each $a_i$ is a dimensionless thermodynamic activity at chemical equilibrium. Exactness refers to this specified acid dissociation constant relation and the chosen single-ion thermodynamic activity convention, not to identifying the ratio with quantities initially mixed. If water is instead written explicitly as a reactant, its thermodynamic activity must be treated consistently. See Hippler and Metcalfe, Using activities to correct the Henderson-Hasselbalch equation (2020), equations 3–4.

For a toy weak acid with stipulated pKa $5$, use the ideal dilute concentration approximation and put $r=[{\mathrm{A}}^{-}]/[\mathrm{HA}]$. The Henderson-Hasselbalch equation becomes $\mathrm{pH}\approx 5+{\log }_{10}r$:More conjugate base relative to weak acid means higher pH. Each tenfold increase in the ratio contributes exactly one to the calculated pH. The stipulated pKa is not a tabulated value for an identified substance.

The distinction between thermodynamic activity and concentration is explicit when $a_i={\gamma }_i[i]/c^{\circ }$, where ${\gamma }_i$ is an activity coefficient and $c^{\circ }$ is the reference concentration:Neglecting the final term gives the usual approximate Henderson-Hasselbalch equation. It is justified when the ratio of activity coefficients is sufficiently close to one, as in a suitable dilute ideal approximation. Ionic strength, including contributions from other dissolved ions, affects activity coefficients; a nominally dilute weak acid alone does not establish that all corrections are small. The ratio must use chemical equilibrium concentrations. Replacing these by prepared amounts or post-neutralization inventories is a further approximation, suitable only when subsequent redistribution is small. See Hippler and Metcalfe, concentration, activity, and analytical-concentration approximations.

The short derivation is to solve the acid dissociation constant relation for $a_{{\mathrm{H}}^{+}}$, take a negative base-ten logarithm, and use the definitions of pH and pKa. Its useful beauty is that a chemical equilibrium becomes a simple rule about a ratio: select a weak acid with pKa near the desired pH, then adjust the partner ratio. Scaling both partner concentrations equally leaves the ideal pH prediction unchanged, while changing buffer capacity. In practical buffer solutions, temperature, ionic strength, and the available inventories still matter.

The concentration-based ionic strength is $I_c=\frac{1}{2}{\sum }_i{c}_i{z}_i^2$, where $c_i$ is each dissolved ion's concentration and $z_i$ its signed electric charge number. It has the same units as $c_i$; some formulas instead use the dimensionless ratio $I_c/c^{\circ }$. All dissolved ions contribute, including those that balance the electric charge of a buffer solution's conjugate base. Ionic strength helps describe the interactions represented by activity coefficients. See Hippler and Metcalfe, activity coefficients and dimensionless ionic strength.

A neutralization is a chemical reaction between a chemical acid and a chemical base. In the buffer solution example, hydroxide takes a proton from the weak acid to form water and the conjugate base. The stoichiometry updates the partner inventories before the approximate chemical equilibrium calculation. The name does not require the resulting pH to be $7$.

The pKa is the negative base-ten logarithm of the dimensionless acid dissociation constant. A lower pKa means a larger acid dissociation constant and a stronger tendency to donate a proton under the same standard state, solvent, and temperature conventions. The Henderson-Hasselbalch equation places equal weak acid and conjugate base thermodynamic activities at pH equal to pKa. See Flowers et al., Chemistry 2e, the Henderson-Hasselbalch equation.

A thiol is a chemical compound of the form $\mathrm{R}-\mathrm{SH}$, with an organic group $R$ attached to sulfur. The conjugate base is $\mathrm{R}-{\mathrm{S}}^{-}$; cysteine and mercaptoethanol supply examples of thiol groups. Two thiol groups can undergo oxidation to form a disulfide bond. ^[ref]

A weak acid establishes a chemical equilibrium between its proton-donating form and its conjugate base in water. For a neutral monoprotic acid $\mathrm{HA}$, the aqueous chemical equation isWater accepts a proton to become hydronium; ${\mathrm{A}}^{-}$ is the conjugate base. The double arrow denotes reversible exchange at chemical equilibrium, not equal populations. The acid dissociation constant and composition determine the hydronium concentration; substituting total chemical acid concentration into the pH formula is generally incorrect.

“Weak” describes the tendency to transfer a proton in a specified solvent, rather than how much chemical acid was dissolved. A weak acid can be concentrated, and a strong acid can be dilute. Even the same weak acid can have a large weak acid dissociation fraction after sufficient dilution, while its acid dissociation constant stays fixed at the same temperature and standard state conventions.^[ref]

For a monoprotic acid with analytical concentration $C_T=[\mathrm{HA}]+[{\mathrm{A}}^{-}]$, define the dimensionless weak acid dissociation fractionThis counts acid units in the conjugate base form. Identifying it with $[{\mathrm{H}}_3{\mathrm{O}}^{+}]/C_T$ additionally requires negligible self-ionization of water and no other sources of electric charge. In the ideal dilute chemical solution model, with $h=[{\mathrm{H}}_3{\mathrm{O}}^{+}]/c^{\circ }$, the acid dissociation constant gives $\alpha =K_a/(K_a+h)$. Thus lowering hydronium thermodynamic activity favors the conjugate base.

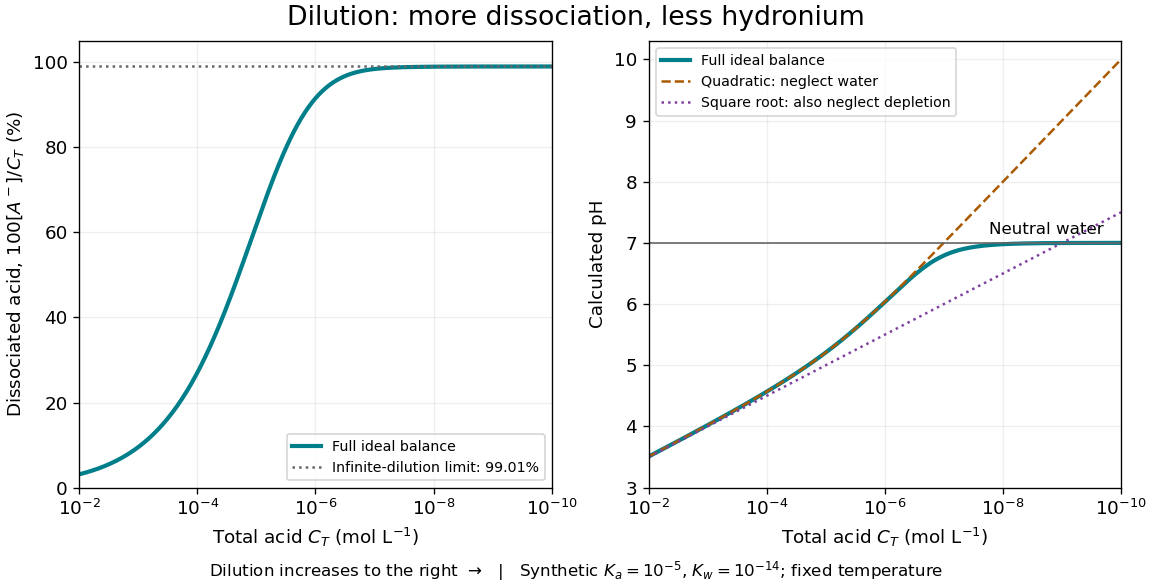

The diagram uses stipulated dimensionless acid dissociation constant $K_a=10^{-5}$ and self-ionization of water ion product $K_w=10^{-14}$ at fixed temperature; these are model inputs, not measurements of a named substance. It solves the weak acid mass and charge balances. At $C_T=0.010\mathrm{mol}{\mathrm{L}}^{-1}$, the calculated weak acid dissociation fraction is about $3.11\%$ and pH about $3.51$; at $C_T=10^{-4}\mathrm{mol}{\mathrm{L}}^{-1}$, they are about $27.0\%$ and $4.57$. More acid units are dissociated as a fraction of the total, yet fewer hydronium ions occur per volume.

At extreme dilution, self-ionization of water makes $h$ approach $\sqrt{K_w}$, so pH approaches $7$ for the chosen model. The limiting weak acid dissociation fraction is $K_a/(K_a+\sqrt{K_w})\approx 0.9901$, rather than exactly one. The calculation assumes pure added water, a neutral monoprotic acid, and no competing chemical reactions; actual contamination becomes increasingly important as $C_T$ falls.

Consider only neutral $\mathrm{HA}$ added to pure water, at fixed temperature, with ideal dilute thermodynamic activities, water thermodynamic activity approximated by one, and no added salts or other chemical species. Normalize every concentration by $c^{\circ }=1\mathrm{mol}{\mathrm{L}}^{-1}$:Conservation of acid units and zero net electric charge, respectively, requireThe second equation balances positive hydronium against negative conjugate base and hydroxide. It would need all additional ions if salts or a chemical base were added. Together with acid dissociation constant $K_a=hx/y$ and the self-ionization of water relation $K_w=ho$, these giveThis is exact within the stated ideal model, including depletion and self-ionization of water. Multiplication by $h(K_a+h)$ yields the cubic equationFor positive $K_a,K_w,c$, the unmultiplied left-hand side increases strictly from negative to positive values as $h$ increases from zero to infinity; its derivative is $1+K_w/h^2+K_{a}c/(K_a+h{)}^2>0$. There is therefore exactly one positive root of a polynomial. A bisection method can find it without choosing an unphysical root of a polynomial.

If $K_w/h^2\ll 1$, neglect hydroxide, so $h\approx x$ and the quadratic equation retaining acid depletion givesThe last form avoids subtracting nearly equal numbers. If also $x/c\ll 1$, neglect depletion to obtainCheck both conditions after computing: $x/c$ measures the fraction lost from the initial undissociated weak acid inventory, while $K_w/h^2$ measures the omitted hydroxide contribution to electric charge balance. A $5\%$ depletion criterion is a chosen tolerance, not a universal boundary. Keeping depletion does not cure the neglect of self-ionization of water. These weak acid mass and charge balances also explain why the square root estimate cannot be extended to arbitrarily dilute chemical solutions.
