The mean-field approximation replaces interactions with a self-consistent average field, neglecting correlated fluctuations around that average.

This is a use of mean-field theory, whose general framework also applies beyond a Landau free-energy model.

Mean-field theory replaces fluctuating interactions with a self-consistent average field. For example, an Ising spin feels a field determined by the average neighboring spin magnetization; a self-consistency equation approximates the interacting Ising model. Neglecting correlated fluctuations can fail near a continuous phase transition. The mean-field approximation in Landau theory is a particular use of this general framework.

The Van der Waals equation is a simple real gas equation of state that can also describe a liquid-gas critical point. With particle count $N$ fixed, write the volume per particle as $v=V/N$:or equivalently $(p+a{N}^2/V^2)(V-Nb)=N{k}_{B}T$. Here $p$ is pressure, $T$ is absolute temperature, and $k_B$ is the Boltzmann constant. In SI, $v$ and $b$ have units ${\mathrm{m}}^3$ per particle, $a$ has units $\mathrm{Pa}{\mathrm{m}}^6=\mathrm{J}{\mathrm{m}}^3$, and $k_B$ has units $\mathrm{J}{\mathrm{K}}^{-1}$; the particle count is dimensionless. The pole at $v=b$ excludes smaller volume values from this model.

The $b$ correction represents excluded volume; the attraction term lowers pressure at fixed temperature and particle number density $1/v$. This is a mean-field theory, replacing detailed intermolecular structure by two parameters. At $v\gg b$ with $a/v^2\ll k_{B}T/v$, it approaches the ideal gas law $pv=k_{B}T$. It supplies a useful qualitative route from a dilute gas to phase coexistence, without a claim of quantitative accuracy for every fluid.^[ref]

Do not mix this particle convention with the molar volume convention elsewhere in this article. With amount of substance $n_{\mathrm{mol}}=N/N_A$, Avogadro constant $N_A$, and molar gas constant $R=N_A{k}_B$, one has $v_m=N_{A}v$, $b_m=N_{A}b$, and $a_m=N_A^{2}a$, so $p=RT/(v_m-b_m)-a_m/v_m^2$. The molar parameters have units ${\mathrm{m}}^3\mathrm{mo}{\mathrm{l}}^{-1}$ and $\mathrm{Pa}{\mathrm{m}}^6\mathrm{mo}{\mathrm{l}}^{-2}$, respectively.

Johannes Diderik van der Waals introduced this equation of state in 1873, connecting molecular attraction with departures from the dilute ideal gas law. Its historical significance is the unified treatment of gases and liquids, rather than a universally exact fit.^[ref]

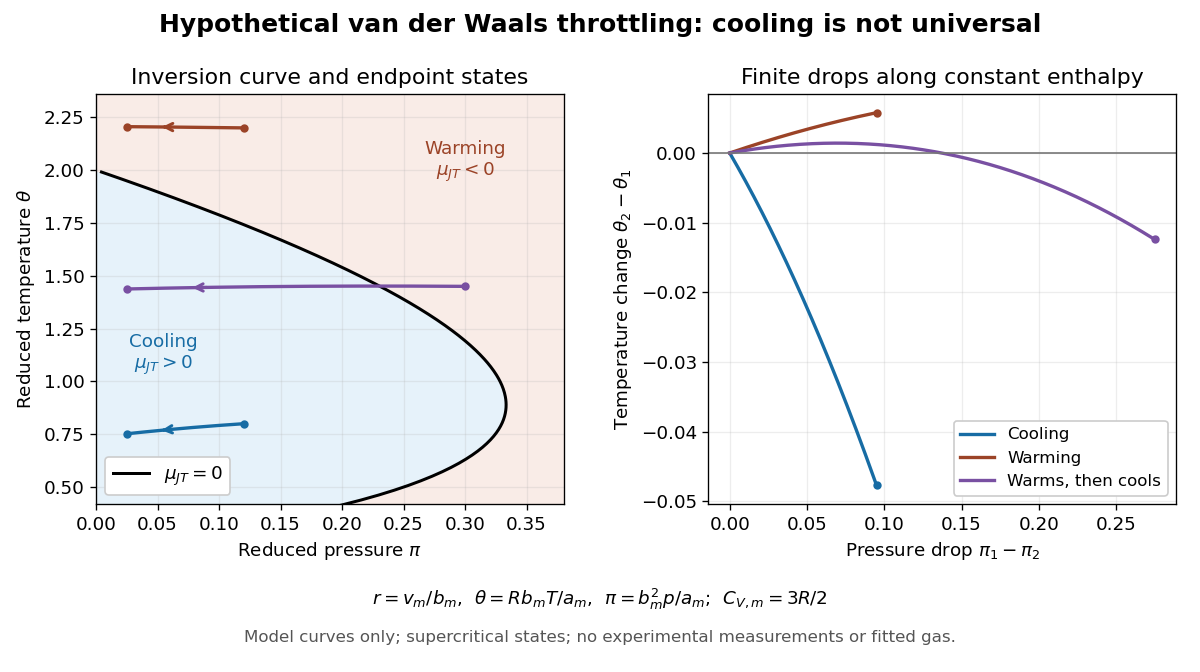

A hypothetical Van der Waals equation model illustrates positive and negative Joule-Thomson coefficient regions and a finite throttle that first warms, then cools. Use the molar convention already distinguished in Van der Waals equation:Here $v_{\mathrm{m}}$ is molar volume, $R$ the molar gas constant, $u_{\mathrm{m}}$ internal energy per mole, and $C_{V,\mathrm{m}}$ the stipulated constant molar heat capacity at fixed volume. The second equation is an additional caloric assumption: an equation of state alone does not specify the temperature dependence of internal energy. It satisfies the equilibrium identity $(\partial u_{\mathrm{m}}/\partial v_{\mathrm{m}}{)}_T=T(\partial p/\partial T{)}_{v_{\mathrm{m}}}-p=a_{\mathrm{m}}/v_{\mathrm{m}}^2$. The arbitrary energy reference is set to zero.

Define dimensionless variables $r=v_{\mathrm{m}}/b_{\mathrm{m}}$, $\theta =R{b}_{\mathrm{m}}T/a_{\mathrm{m}}$, $\pi =b_{\mathrm{m}}^{2}p/a_{\mathrm{m}}$ and $\eta =b_{\mathrm{m}}{h}_{\mathrm{m}}/a_{\mathrm{m}}$, where $h_{\mathrm{m}}$ is molar enthalpy. These differ from the critical-value scaling in Van der Waals law of corresponding states. The throttle calculation reduces toThus a prescribed inlet fixes $\eta$, and solving the first and last equations at the outlet pressure gives the final temperature. For an inlet $({\theta }_1,{\pi }_1)=(0.8,0.12)$ and outlet ${\pi }_2=0.025$, the model gives ${\theta }_2\simeq 0.752287$, a decrease of $0.047713$. The inlet $(2.2,0.12)$ instead gives ${\theta }_2\simeq 2.205786$, an increase of $0.005786$. The purple inlet $(1.45,0.30)$ initially warms but ends at ${\theta }_2\simeq 1.437585$ for the same outlet pressure. These are reduced toy values, not kelvin readings or experimental evidence. No physical gas parameters were fitted.

For a short inversion derivation, implicit differentiation of the Van der Waals equation at fixed pressure givesInsert this into $T(\partial v_{\mathrm{m}}/\partial T{)}_p=v_{\mathrm{m}}$ and substitute back into the equation of state. The Joule-Thomson inversion curve isPositive inversion pressure requires $r>3/2$. Its maximum pressure is $\pi =1/3$ at $r=3$, while the upper dilute limit is ${\theta }_{\mathrm{inv}}\to 2$. Using Van der Waals critical point values, the latter is $T_{\mathrm{inv},\max }/T_c=27/4$. The inversion locus depends on the equation of state; the chosen molar heat capacity additionally determines how much temperature changes along each finite throttle.^[ref]

The displayed region has $\theta >8/27$, above the model's critical temperature, and uses only $r>1$, $p>0$, $(\partial p/\partial v_{\mathrm{m}}{)}_T<0$ and positive $C_{p,\mathrm{m}}$. Subcritical calculations require attention to phase coexistence, metastability and the Maxwell construction; an unstable homogeneous continuation is not an equilibrium throttle endpoint. Even on a stable branch, this mean-field theory with constant $C_{V,\mathrm{m}}$ is a qualitative model, not an accurate inversion map for a particular real gas. Phase transitions, changing composition, appreciable heat leakage or bulk kinetic energy changes require a different property calculation or steady-flow energy balance. At phase coexistence, the smooth single-thermodynamic phase coefficient formula cannot replace a balance involving the phase fraction.
