Past exam of the physics A course of the University of Cambridge / 2021 / Paper 2

For the deep-water gravity wave, the phase velocity and group velocity follow from its dispersion relation:The wave packet travels at $v_g$, while the individual crests travel at $v_p$. Let its effective length be $D\simeq 5\lambda$, where $\lambda =2\pi /k$ is the carrier wavelength. A fixed observer is inside the wave packet for $\Delta t=D/v_g$, and crests arrive with wave period $\lambda /v_p$. ThusCrests enter the rear of the moving wave packet and disappear at its front, so the five visible at one instant are not five permanently identifiable crests. The count uses the intended narrow-band, approximately unchanged wave packet and neglects the precise visibility of its end crests.

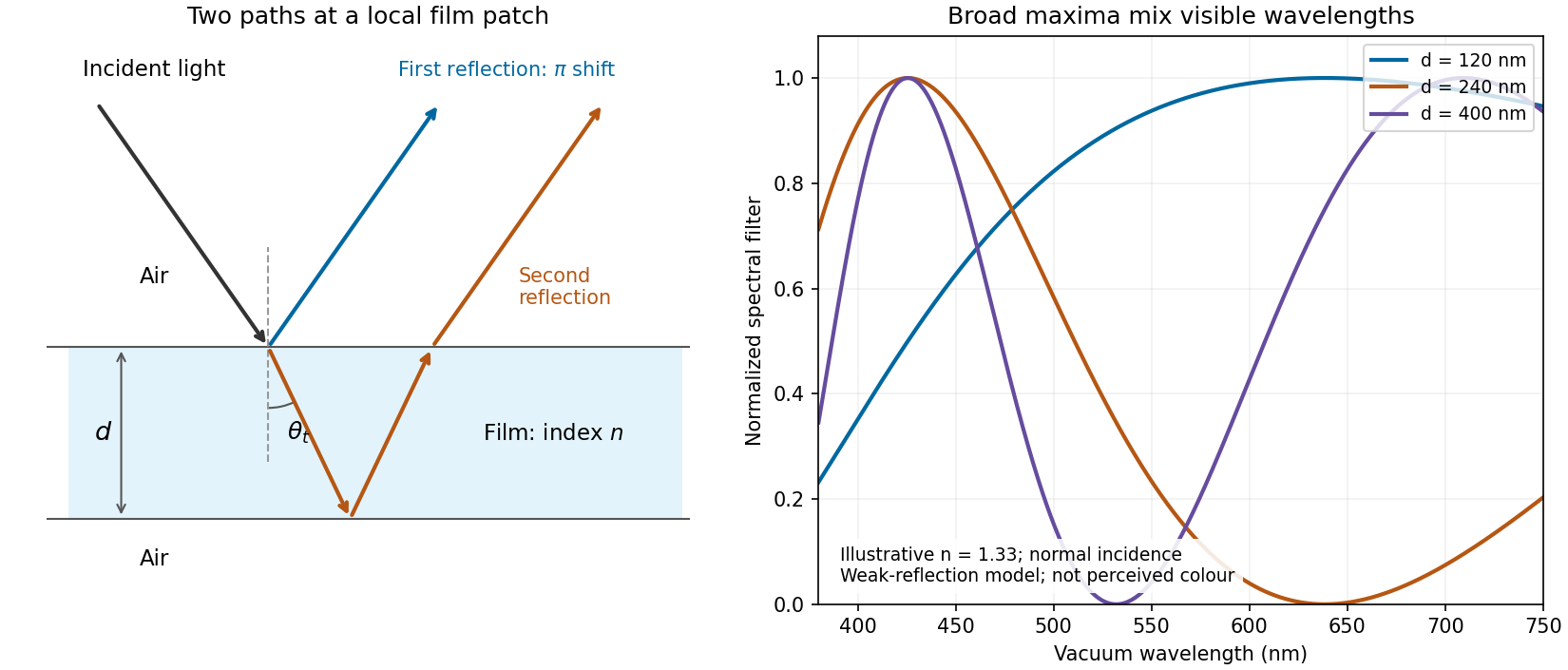

A bubble is a thin water layer surrounded by air. At a locally flat patch, let its thickness be $d$, its refractive index be $n$, and the internal angle of refraction be ${\theta }_t$. The two principal reflected light contributions are the reflection at the first surface and the contribution that enters the layer, reflects at its second surface and leaves again. The first reflection, from lower to higher refractive index, introduces a $\pi$ phase shift; the second does not. Their optical path difference is $2nd\cos {\theta }_t$, so their phase difference is, modulo $2\pi$,where ${\lambda }_0$ is the vacuum wavelength. Constructive interference in reflected light therefore occurs approximately whenDestructive interference occurs at $2nd\cos {\theta }_t=m{\lambda }_0$. In the weak-reflection approximation, the reflected light intensity at each wavelength is proportional to ${\sin }^2(2\pi nd\cos {\theta }_t/{\lambda }_0)$. This is a smooth spectral filter, with broad maxima and minima: it does not select three pure wavelengths corresponding to display primaries. Ordinary illumination contains many visible wavelengths, and the eye combines their remaining contributions through color vision. The result is a mixture of colours, often pastel or desaturated.

The layer thickness varies over the bubble because of drainage and flow; the bubble's curvature also changes the local angle of refraction and the viewed optical path difference. The spectral filter therefore changes continuously across the surface and in time. Very thin regions become dark because the two reflected contributions nearly cancel across the visible optical spectrum. Thin-film interference explains both the changing colours and this dark limit.

The ray sketch shows a local patch and is not to scale. The plotted curves use a chosen constant $n=1.33$ at normal incidence and illustrative thicknesses; they show the spectral filter rather than calibrated perceived colours.

Model the room's decaying acoustic waves as a weakly damped resonator. The quality factor from ringdown is related to stored energy $E$ bywhere $A$ is the pressure wave amplitude and $\omega =2\pi f$. The measured frequency $f=440\mathrm{Hz}$ gives $\omega \simeq 2.76\times 10^3{\mathrm{s}}^{-1}$. If the stated $5\mathrm{s}$ is interpreted as an approximate wave amplitude exponential relaxation time,an estimate of order $10^4$. Taking $5\mathrm{s}$ as an energy exponential relaxation time instead gives $Q\simeq 1.4\times 10^4$.

There is a real convention ambiguity: “heard to die away” gives neither an initial sound level nor an audibility threshold, so it does not determine either exponential relaxation time. More generally, if the energy falls by a factor $E(0)/E(t_d)$ in $t_d$,In room acoustics, a reverberation time $T_{60}$ usually denotes a decibel drop of $60\mathrm{dB}$, or an energy factor $10^6$. If $5\mathrm{s}$ means $T_{60}$, the corresponding estimate is instead $\boxed{Q\simeq 2\pi (440)(5)/(6\ln 10)\simeq 1.0\times 10^3}$. The simple decay-time estimate and the conventional reverberation time estimate should not be silently equated.

The three primitive lattice translation vectors join a cube corner to the three adjacent face centres. Thus the Bravais lattice is a face-centered cubic lattice, with conventional cubic side $a$.

Write the given primitive lattice translation vectors as ${\mathbf{a}}_1,{\mathbf{a}}_2,{\mathbf{a}}_3$. Their primitive unit cell volume isThe reciprocal lattice convention ${\mathbf{a}}_i\cdot {\mathbf{b}}_j=2\pi {\delta }_{ij}$ then givesEach reciprocal lattice vector has units ${\mathrm{m}}^{-1}$ when $a$ is in metres. Integer combinations generate a body-centered cubic lattice of conventional cubic side $4\pi /a$; the point $(2\pi /a)(1,1,1)$ is its body centre. Directly taking the nine dot products checks the signs and the $2\pi$ normalization.

Let $N=L/a$ be the integer number of primitive unit cells. A Bloch state can be written as ${\psi }_k(x)=e^{ikx}{u}_k(x)$, with $u_k(x+a)=u_k(x)$. The periodic boundary condition ${\psi }_k(x+L)={\psi }_k(x)$ therefore requiresThe spacing of allowed wavevectors is $\Delta k=2\pi /L$. The first Brillouin zone has width $2\pi /a$, soFor an exact endpoint convention take a half-open Brillouin zone, such as $[-\pi /a,\pi /a)$. Its two endpoints differ by a reciprocal lattice vector and must not both be counted as distinct values of crystal momentum. There are exactly $N$ inequivalent integers $j$ modulo $N$, irrespective of whether $N$ is even or odd. This is state counting in a Bloch band: one allowed wavevector per primitive unit cell per energy band. A separate twofold spin multiplicity gives $2N$ electronic states per energy band, without doubling the number of wavevectors.

Use transverse displacement $y(x,t)$, small slopes and constant tension $T$. For a short string element of length $dx$, Newton's second law gives ${\rho }_{L}dx{y}_{tt}=T[y_x(x+dx)-y_x(x)]$. Hence the wave equation on a string iswhere ${\rho }_L$ is the linear mass density, in $\mathrm{kg}{\mathrm{m}}^{-1}$.

The mechanical impedance of a rightgoing travelling wave is the transverse driving force divided by the transverse velocity at the driven section. Choose the force exerted by the material to the left on the material to the right, $F_y=-T{y}_x$. For $y=f(x-c_{L}t)$, the transverse velocity is $v_y=y_t=-c_L{y}_x$. Thus the positive characteristic impedance of a stretched string isA leftgoing component has $F_y/v_y=-Z_L$ with this fixed orientation of force. Specifying the orientation avoids confusing that propagation sign with a negative material mechanical impedance.

Place the junction at $x=0$ and use the complex amplitude convention $e^{-i\omega t}$. With incident displacement wave amplitude $A_i$, writeHere $r$ and $t$ are displacement wave reflection and transmission coefficients, and $k_j=\omega /c_j$. The junction is assumed massless, with no externally applied transverse force, and both strings have the common equilibrium tension $T$. Continuity of displacement and transverse force givesSince $T{k}_j=\omega Z_j$, these become $1+r=t$ and $Z_L(1-r)=Z_{R}t$. Solving,A larger right-hand mechanical impedance produces a reflected displacement with reversed sign, as expected in the fixed-end limit $Z_R\to \infty$. Equal mechanical impedances give $r=0$ and $t=1$.

The instantaneous rightward energy flux along a string is the transverse force times the transverse velocity,For a rightgoing time-harmonic wave of peak displacement wave amplitude $|A|$, averaging over a wave period givesA leftgoing time-harmonic wave has the opposite signed energy flux. The positive ratios of reflected and transmitted power to incident power are thereforeAll explicit angular frequency factors cancel. In the ideal wave equation on a string, $T$ and the two linear mass densities are constant, so the mechanical impedances have no frequency or wavelength dependence. Consequently $\mathcal{T}$ is independent of wavelength even though the two string wavelengths generally differ.

Finally,This is conservation of energy at a lossless, massless junction. The transmitted displacement wave amplitude can exceed the incident one when $Z_R<Z_L$; the factor $Z_R/Z_L$ is essential when comparing power.

Let the middle segment occupy $0<x<l$. Normalize the incident displacement complex amplitude to one, suppress the common time factor $e^{-i\omega t}$, and chooseHere $r$ is the reflected complex amplitude at $0$, $a$ and $b$ are the rightgoing and leftgoing middle-segment complex amplitudes referenced to $0$, and $t$ is the outgoing complex amplitude referenced to $l$. The middle wavenumber is $k_M=\omega /c_M$, andis the propagation phase factor across the lossless middle segment.

At each junction, continuity of displacement and transverse force means continuity of $y$ and $T{y}_x$. Using $T{k}_j=\omega Z_j$ givesThese boundary conditions also include all multiple reflections inside the middle segment: $a$ and $b$ are the total travelling components, not just the first waves to cross a junction.

Put $\delta =k_{M}l$. Eliminating the middle-segment complex amplitudes using the right-hand boundary conditions givesHence the displacement reflection coefficient isFor finite positive real mechanical impedances, its denominator cannot vanish at real $\delta$. The real and imaginary parts of the numerator must therefore vanish separately:This gives all three possibilities.

If the exterior strings differ, $Z_L\ne Z_R$, then $\cos \delta =0$, so $\sin \delta \ne 0$ andThe middle segment is a quarter-wave impedance transformer. Its two reflected contributions cancel at these odd quarter-wavelength thicknesses. Here ${\lambda }_M=2\pi /k_M$ is specifically the wavelength in the middle string; the matching is not generally valid at every frequency.

If $Z_L=Z_R$ but $Z_M$ differs, the second condition requires $\sin \delta =0$, givingA whole number of half-wavelengths reproduces the exterior mechanical impedance at the input. The formal $n=0$ limit is zero frequency or zero segment length, rather than a finite-wavelength resonance.

Finally, if $Z_L=Z_M=Z_R$, both conditions hold identically: $\boxed{r=0\text{ at every wavelength}}$. Since the system is lossless, each of these cases also gives unit transmitted power.

The expression is a scalar diffraction theory integral for a monochromatic wave. The complex quantity ${\psi }_P$ represents a field complex amplitude, with physical field obtained by taking the real part after multiplication by $e^{-i\omega t}$. The light intensity is proportional to $|{\psi }_P{|}^2$. The coordinates $x,y$ label transverse positions in the aperture plane, $\Sigma$ is its transmitting region, and $h(x,y)$ is the incident field multiplied by the aperture's complex transmission. The wavenumber is $k=2\pi /\lambda$ in the propagation medium, and $R$ is the axial propagation distance if $h$ already includes the incident field.

To derive the Fresnel diffraction, start from Huygens-Fresnel principle contributions with propagation factor $e^{iks}/s$. With the coordinate origin at the projection of $P$ into the aperture plane,The paraxial approximation requires $\rho /R\ll 1$, where ${\rho }^2=x^2+y^2$. Replace the slowly varying $1/s$ and the obliquity factor by their axial values, but retain the quadratic variation of wave phase. Neglect of the next wave phase term requires $k{\rho }^4/(8R^3)\ll 1$ over the relevant aperture. Thus, apart from a common constant,The quadratic wave phase may be of order one or much larger; setting it to zero would require the stronger conditions for Fraunhofer diffraction. The scalar treatment also neglects the detailed vector field at aperture edges and assumes dimensions large enough compared with wavelength for this approximation to be useful.

For a finite-distance axial point source at distance $p$ and an observer at distance $q$, the incident field contributes its own quadratic wave phase. If $h$ instead denotes only the aperture transmission, the combined curvature is described by an effective distanceThese are two equivalent conventions for distributing the incident wave phase between $h$ and the exponential. Both distances must be included in the later calculation.

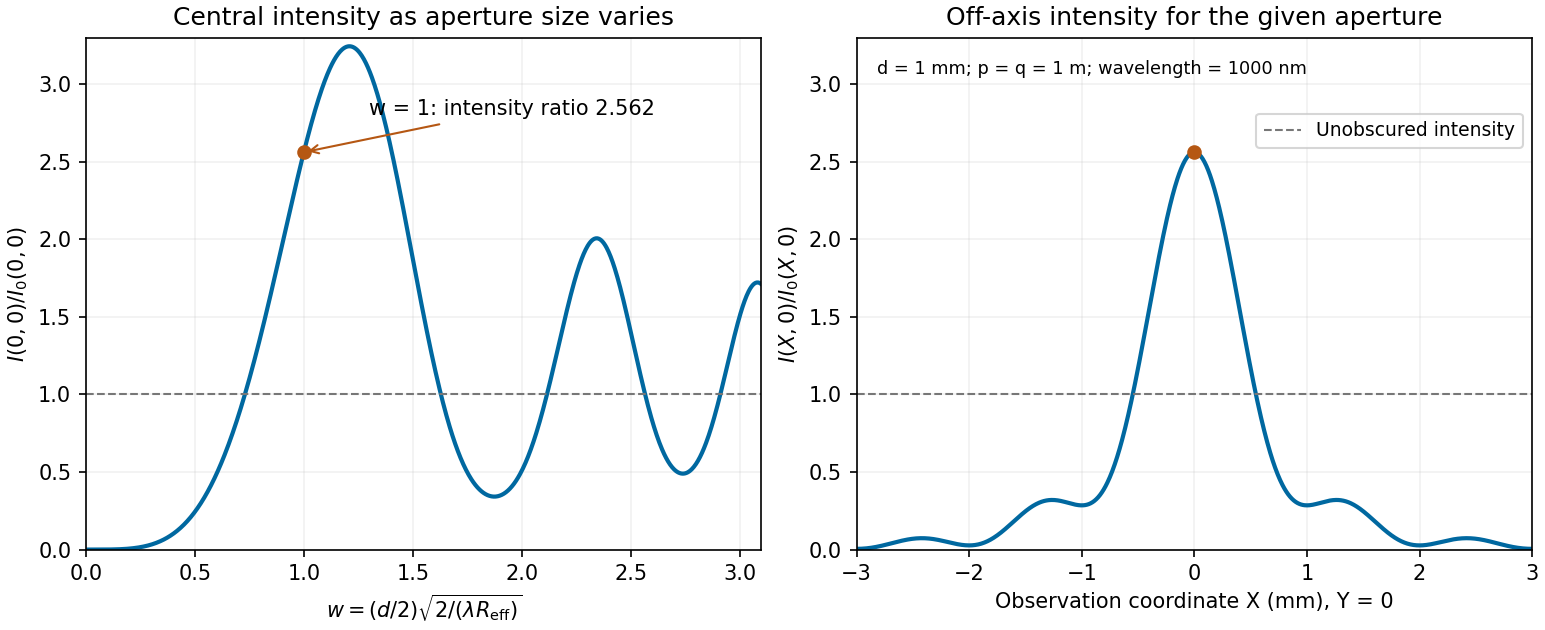

Write $p$ and $q$ for the axial source and observation distances, and put $R_{\mathrm{eff}}=pq/(p+q)$. The aperture is $-d/2<x,y<d/2$. Under the Fresnel diffraction, the spherical incident wave amplitude is effectively constant over this small aperture, while its quadratic wave phase must be retained. Therefore the two transverse integrals separate:where $K$ contains the source strength, the propagation distances and a common phase factor.

Use the dimensionless variable $u=x\sqrt{2/(\lambda R_{\mathrm{eff}})}$ and define the optical normalization of Fresnel integralsThe oddness of $F$ makes the bracket $\sqrt{2\lambda R_{\mathrm{eff}}}F(w)$, soThis square-aperture Fresnel diffraction normalization is especially useful for comparing with no aperture. In the same Fresnel diffraction, the unrestricted one-dimensional Fresnel integral is $\sqrt{\lambda R_{\mathrm{eff}}}{e}^{i\pi /4}$; its square is $i\lambda R_{\mathrm{eff}}$. Thus, writing ${\psi }_0$ for the unobscured field at the same point,The normalization has the correct no-aperture limit because $C(\infty )=S(\infty )=1/2$ in this convention.

Use SI units throughout: $d=1.0\times 10^{-3}\mathrm{m}$, $\lambda =1.0\times 10^{-6}\mathrm{m}$, and $p=q=1.0\mathrm{m}$. The effective propagation distance is $R_{\mathrm{eff}}=0.50\mathrm{m}$, givingIn the supplied Cornu spiral, the endpoint at $w=1$ is approximately $(C,S)=(0.78,0.44)$. HenceMore accurate Fresnel integrals, $C(1)=0.7798934$ and $S(1)=0.4382591$, give $I_P/I_0=2.562$. The central light intensity is increased to about $2.6$ times the unobscured value, an increase of roughly $160\%$.

There is no violation of conservation of energy: the aperture reduces the total transmitted power, while removing contributions that partly cancel the central field redistributes the transmitted power across the observation plane. In particular, the square aperture does not give the same central field as a circular aperture of a superficially similar size.

Let the source remain at $(0,0,-p)$ and let the observation point be $(X,Y,q)$. The paraxial approximation to the source-to-aperture-to-observer optical path length isCompleting the squares givesThe point $(x_0,y_0)$ is where the straight source-observer line intersects the aperture. Define the four dimensionless edge positionsOn the Cornu spiral $F(u)=C(u)+iS(u)$, draw the directed chord from $F(u_{x,-})$ to $F(u_{x,+})$, and a second directed chord from $F(u_{y,-})$ to $F(u_{y,+})$. Denote their complex differences by $D_x$ and $D_y$. The complex amplitude is proportional to their product: multiply their lengths and add their arguments, including the common propagation phase factor.

More explicitly, normalize by the unobscured field ${\psi }_0(X,Y)$ at this same observation point. The constant wave phase from completing the square is then already included in ${\psi }_0$, andEach directed chord is a one-dimensional Fresnel diffraction factor. One must multiply the two factors, rather than add the chords or use just one chord length for the square aperture. Setting $X=Y=0$ recovers $D_x=D_y=2F(w)$ and the on-axis answer.

The crystal has periodic potential $V(x+a)=V(x)$. By Bloch's theorem, an energy eigenstate may be chosen asExpand the periodic factor in a Fourier series:Multiplication by $e^{ikx}$ gives the stated plane-wave expansion. Here $x$ is position, $a$ is the primitive unit cell length, $G_1$ is the primitive reciprocal lattice wavenumber, $n$ runs over every integer, and $C_{k,n}$ are complex numbers specifying the component wave amplitudes. The wavevector $k$ labels the Bloch state modulo $G_1$; $\hslash k$ is its crystal momentum, rather than generally its measured free-space momentum.

The component $e^{i(k+n{G}_1)x}$ is a plane wave of wavevector $k+n{G}_1$. All these components acquire the same phase factor $e^{ika}$ under $x\mapsto x+a$, since $e^{in{G}_{1}a}=1$. Their mixing therefore respects the crystal's translation symmetry. The coefficients and energy eigenvalue follow from the Schrödinger equation; the expression is not a claim that the coefficients are equal or that only finitely many are nonzero. The energy band index is suppressed in the notation, so different energy bands at a common $k$ generally have different coefficient sets.

Choose the Fourier series conventionFor a real potential energy, $V_{-1}=V_1^{\ast }$. The symbol $V(G_1)$ means the Fourier coefficient $V_1$, with units of energy, rather than the pointwise value of $V(x)$ at a position $G_1$.

Retain the two plane waves $|1⟩=L^{-1/2}{e}^{ikx}$ and $|2⟩=L^{-1/2}{e}^{i(k-G_1)x}$ in the nearly-free electron model. Their kinetic energies are ${ϵ}_1={\hslash }^2{k}^2/(2m)$ and ${ϵ}_2={\hslash }^2(k-G_1{)}^2/(2m)$. The matrix representation of a linear map for the Quantum Hamiltonian projected onto this two-dimensional basis isThus $\det (H-EI)=0$ givesSolving this quadratic equation yieldsChoosing the zero of potential energy so that its spatial average is $V_0=0$ reproduces the requested expression. If that average has not been removed, both energy bands are shifted by $V_0$; no band gap, group velocity or effective mass is changed by this constant shift.

The two kinetic energies coincide at $k=G_1/2$. Their coupling gives an avoided crossing with band gap $2|V_1|$. The result is exact within the projected two-wave Quantum Hamiltonian. It is an approximation to the full crystal problem, appropriate near this crossing for a weak periodic potential whose other Fourier coefficients do not cause strong mixing with remote plane waves. Small $|V_1|$ alone would not justify ignoring arbitrarily large other Fourier coefficients.

Set $G=G_1$, $\kappa =\Delta k$, $U=|V_1|>0$ and $E_B={\hslash }^2{G}^2/(8m)$. The two kinetic energies satisfyConsequently the nearly-free electron dispersion near a one-dimensional band gap becomesThe Taylor expansion $\sqrt{U^2+s^2}=U+s^2/(2U)+O(s^4/U^3)$ givesFor the paper's energy convention, set $V_0=0$. There is no linear or cubic term because each branch is an even function of displacement from the crossing in this two-wave approximation. Each coefficient multiplying $(\Delta k{)}^2$ has units of energy times length squared, as required.

The expansion requiresa more restrictive condition than merely $|\Delta k|\ll G$ when the band gap is small. If $U=0$, the square root is proportional to $|\Delta k|$ and this analytic expansion of the energy-ordered branches is unavailable.

Twice the quadratic coefficient from the previous part is the band curvature $E_{\pm }^{\prime \prime }(G_1/2)$. Thus the band effective masses areHere $U=|V(G_1)|$ and $E_B={\hslash }^2{G}_1^2/(8m)$. In the weak-potential regime $U\ll E_B$,Both have units of mass; their magnitudes are much smaller than $m$ in this asymptotic regime. The upper energy band has a local minimum and positive effective mass, while the lower energy band has a local maximum and negative effective mass. The exact lower-branch sign changes at $U=2E_B$ in the two-wave formula; the intended weak-coupling limit lies below that threshold.

The physical meaning follows from the semiclassical equations for an Electron wave packet in one energy band:An upper-band Electron near its minimum accelerates in the direction of the applied force, whereas a lower-band Electron near its maximum accelerates opposite to it. At the extremum itself the group velocity is zero. A nearly filled lower energy band is conveniently described by electron holes with positive electric charge $+e$ and positive effective mass $m_h^{\ast }=-m_{-}^{\ast }$. Negative curvature is a response of a crystal energy eigenstate, not a negative bare electron mass. These statements assume slow forcing that does not induce transitions across the band gap.

In a metal, a partially filled energy band or overlapping energy bands supplies Electrons with nearby unoccupied states. At thermal equilibrium, oppositely directed group velocities are equally populated and the net electric current vanishes. An applied electric field distorts the occupation distribution, producing a small mean drift velocity. A filled energy band alone has no such low-field intraband response because its velocity contributions cancel over the entire Brillouin zone.

In the Drude model, let $n$ be the mobile Electron number density, let $e>0$ be the elementary charge, and let $\tau$ be the momentum relaxation time. The mean motion obeysThe steady state is ${\mathbf{v}}_d=-e\tau \mathbf{E}/m$. The current density is opposite to the Electron drift velocity:This gives microscopic Ohm's law, with electrical conductivity $\sigma$ in $\mathrm{S}{\mathrm{m}}^{-1}$ and electrical resistivity ${\rho }_{\mathrm{el}}$ in $\Omega \mathrm{m}$. For a uniform wire of length $\ell$ and cross-sectional area $A$, its electrical resistance is $R={\rho }_{\mathrm{el}}\ell /A$. The dissipated power per volume is $\mathbf{J}\cdot \mathbf{E}=\sigma E^2$, the Joule heating supplied by the external source.

The free electron model with Fermi-Dirac statistics improves the microscopic picture. The Pauli exclusion principle fills states up to the Fermi energy at low temperature. For a spherical, parabolic energy band with two spin states,Only states near the Fermi surface change their occupation in a weak-field response; the large equilibrium Fermi velocity is not the small drift velocity. The same $n{e}^2\tau /m$ formula results for this isotropic parabolic model when $\tau$ is evaluated for transport near the Fermi surface. In a crystal, the energy band group velocity, effective mass and possibly direction-dependent scattering replace the simplest bare-particle picture. The mean free path is approximately ${\ell }_{\mathrm{mfp}}=v_F\tau$.

A perfectly periodic static lattice is already included in Bloch states and does not by itself give a finite electrical resistivity. Momentum relaxation comes from defects, impurities, boundaries, and electron-phonon scattering. Independent scattering mechanisms approximately add their rates, giving Matthiessen's rule,The approximately temperature-independent ${\rho }_0$ is the residual resistivity. In ordinary simple metals, the phonon contribution is approximately proportional to temperature at high temperature; a three-dimensional acoustic-phonon transport model gives a $T^5$ contribution well below the relevant Debye temperature. Other mechanisms can dominate in particular materials or regimes, so neither power law is universal.

The classical Drude model incorrectly treats the equilibrium carrier statistics. Fermi-Dirac statistics explains the small electronic heat capacity, while electrons carrying both charge and heat give the approximate Wiedemann-Franz law ${\kappa }_e/(\sigma T)={\pi }^2{k}_B^2/(3e^2)$ for degenerate carriers with appropriate nearly elastic scattering. Both the simple electrical conductivity formula and this thermal relation depend on the assumptions about energy bands and scattering, rather than being exact for all metals.

The Debye model approximates a three-dimensional crystal as an elastic continuum supporting quantized normal modes, or phonons. At long wavelengths, the acoustic phonon branches have approximately linear dispersion relations ${\omega }_s(k)=v_{s}k$: one longitudinal branch and two transverse branches. Replace their complicated actual spectra by these linear forms, then introduce a cutoff chosen to preserve the total $3N$ vibrational degrees of freedom for $N$ atoms. This is an approximation to the spectrum, not a claim that a real crystal has no non-acoustic branches.

For periodic boundary conditions in volume $V$, each allowed wavevector occupies $(2\pi {)}^3/V$ in the space of wavevectors. Counting a spherical shell for each branch gives the density of states per unit angular frequencyAn effective speed of sound $v_D$ can be defined by $3/v_D^3=1/v_l^3+2/v_t^3$. In the single-speed Debye model, choose ${\omega }_D=v_D{k}_D$ so thatThus the Debye wavevector, Debye frequency and Debye temperature satisfyHere $g$ has units of seconds when angular frequency is measured in ${\mathrm{s}}^{-1}$; its integral is the dimensionless number of normal modes. The spherical cutoff replaces the real Brillouin zone by an equal-count continuum construction.

Each phonon mode is a quantum harmonic oscillator. Since phonon number is not conserved at thermal equilibrium, the chemical potential is zero and its Bose-Einstein distribution gives mean thermal energy $\hslash \omega /[e^{\hslash \omega /(k_{B}T)}-1]$. The zero-point energy is independent of temperature in the harmonic, fixed-volume approximation and does not contribute to the heat capacity at constant volume. Excluding that constant term,Differentiating the first integral at fixed volume avoids losing the temperature-dependent upper limit in the second one. The resulting Debye heat capacity isFor $T\ll {\Theta }_D$, extend the upper limit to infinity. Expanding $1/(e^x-1)={\sum }_{r\ge 1}{e}^{-rx}$ and integrating term by term gives ${\int }_0^{\infty }{x}^3/(e^x-1)dx=6\zeta (4)={\pi }^4/15$. ThereforeThis $T^3$ law follows from the three-dimensional ${\omega }^2$ density of states and the availability only of low-frequency modes at low temperature. It is a central success of the Debye model.
