Charge conservation says that the total signed electric charge of an isolated collection stays constant. More generally, a collection closed to electric charge exchange has constant total electric charge, even if energy crosses its boundary. This is the charge bookkeeping relevant to a closed system or an isolated system; isolation from energy exchange is not required. Positive and negative electric charge count with opposite signs. Creating or removing an Electron and a Positron together is compatible with charge conservation, because their combined electric charge is zero. ^[ref].

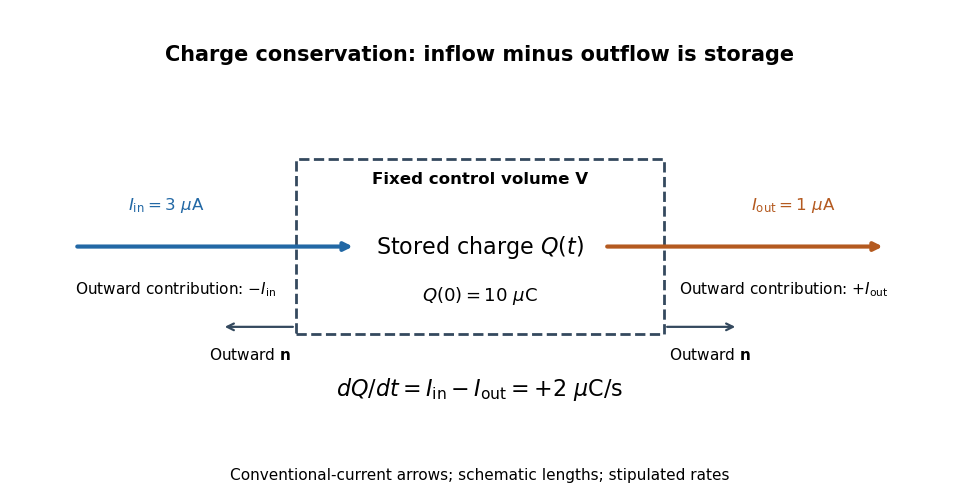

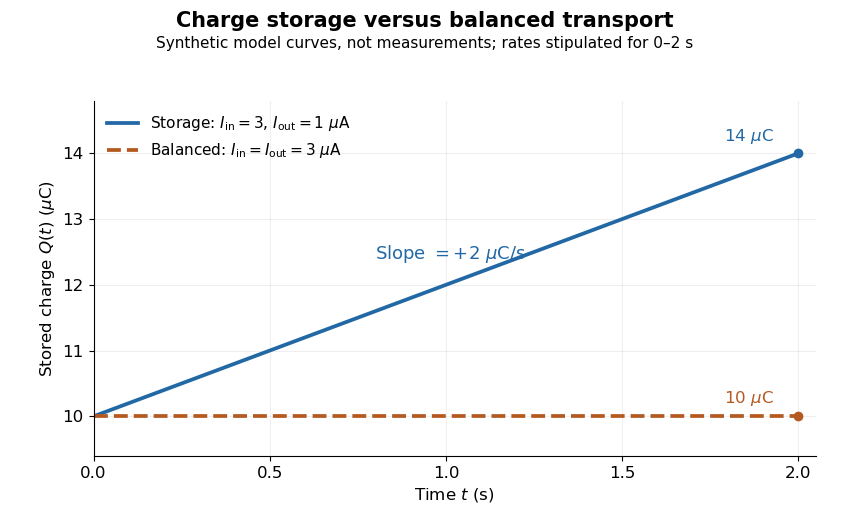

Imagine a fixed box initially containing electric charge $Q(0)=10\mu \mathrm{C}$. Stipulate incoming conventional current $I_{\mathrm{in}}=3\mu \mathrm{A}$ and outgoing conventional current $I_{\mathrm{out}}=1\mu \mathrm{A}$ throughout $0\le t\le 2\mathrm{s}$, with no other boundary transport. Since one ampere is one coulomb per second, the stored electric charge grows at $2\mu C/s$:If instead the outgoing electric current also equals $3\mu \mathrm{A}$, the stored electric charge remains $10\mu \mathrm{C}$ while electric charge passes through. These are stipulated transport examples; constant terminal electric currents alone do not guarantee a time-independent interior charge density.

Locally, charge conservation is the charge continuity equation, an instance of the general continuity equation:Here $\rho (\mathbf{r},t)$ is signed volume charge density and $\mathbf{J}(\mathbf{r},t)$ is current density. A positive divergence of current density means net outward transport from a small neighborhood, so its charge density decreases. For a fixed control volume $V$ with closed surface $\partial V$ and outward unit normal $\mathbf{n}$, the equivalent integrated balance isThe surface integral is signed: incoming positive electric charge contributes negatively to outward electric current, and outgoing positive electric charge contributes positively. Integrate the charge continuity equation over fixed $V$ and apply the divergence theorem to obtain this balance. Zero net boundary transport gives constant $Q_V$; the global and local statements describe the same conservation law at different scales. ^[ref].

In a steady transport state, charge density and current density are time-independent, so the charge continuity equation reduces to $\nabla \cdot \mathbf{J}=0$. At an electrical circuit junction, choose each terminal electric current $I_k$ positive outward and assume the terminals account for all boundary transport. ThenKirchhoff's current law, ${\sum }_k{I}_k=0$, follows when accumulation of electric charge at the junction is negligible. During storage, retain the same balance with its nonzero derivative; charge conservation continues to hold. This makes charge conservation useful for checking electrical circuit models and for tracking the charging of a capacitor. ^[ref].

The beautiful consistency with Maxwell equations is that the electric field and magnetic field already enforce this transport balance. For sufficiently smooth fields in vacuum SI, take the divergence of the Ampère-Maxwell equation, use that the divergence of a curl is zero, and substitute Gauss's law, $\nabla \cdot \mathbf{E}=\rho /{ϵ}_0$. Constant vacuum permittivity ${ϵ}_0$ givesThe displacement current term supplies the part needed when electric charge accumulates. Historically, Maxwell added that term to extend the steady-current equation; see the existing charge conservation from Maxwell equations for this connection. ^[ref].

A conductor in electrostatic equilibrium is an electrical conductor at rest whose mobile charge carriers have finished redistributing, with no maintained bulk electric current. In the ideal macroscopic model,A residual bulk electric field would drive further electric charge redistribution. The electric potential difference between any two points joined through the metal is $-\int \mathbf{E}\cdot d\mathbf{l}=0$, so each connected piece is an equipotential. Gauss's law then gives zero net bulk charge density. This is a statement about net macroscopic electric charge, not the absence of positive atomic nuclei and negative Electrons. Excess electric charge is represented by surface charge density; atomic surface structure is outside this continuum model. ^[ref].

The word inside must distinguish metal from a cavity in a conductor. A completely enclosed, charge-free cavity in a conductor has constant boundary electric potential $V_c$. The constant solution of Laplace's equation and Uniqueness of the Dirichlet problem give $\Phi =V_c$ and $\mathbf{E}=0$ throughout the cavity in a conductor, regardless of its shape or external electric charges. Grounding is unnecessary for this inward electrostatic shielding; an isolated enclosure can change its overall electric potential without producing an internal electric field. Zero enclosed net electric charge alone would only give zero electric flux. A positive and negative pair inside a cavity in a conductor can have zero total electric charge and a nonzero electric field. ^[ref].

If fixed electric charges inside a cavity in a conductor sum to $q$, a Gaussian surface lying entirely in the metal and enclosing that cavity in a conductor has zero electric flux. Thus the total induced inner-wall electric charge is $-q$. For one such cavity in a conductor and an isolated enclosure with total metal electric charge $Q_c$, the outer-wall electric charge is $Q_c+q$. In particular, an initially neutral isolated enclosure generally has an exterior electric field when $q\ne 0$. For fixed internal sources, external changes only shift the constant electric potential inside an isolated enclosure, leaving the internal electric field unchanged. ^[ref].

A grounded enclosure fixes $V_c=0$ and can acquire metal electric charge $-q$; with no exterior sources and $\Phi \to 0$ at infinity, Uniqueness of the Dirichlet problem gives zero exterior electric field. With external sources present, the exterior electric field need not vanish, but it is independent of the internal sources at fixed grounded boundary electric potential. ^[ref].

Faraday's ice pail experiment makes the distinction between redistribution and transfer visible. In his letter of 4 February 1843, Faraday described an insulated pewter pail connected by wire to a gold-leaf electrometer, and a brass ball suspended on a long dry silk thread to reduce the hand's influence. He discharged the pail and charged the ball away from it. Lowering the ball without contact produced leaf divergence, which grew during entry and became approximately independent of further depth; withdrawing it collapsed the leaves. Contact with the bottom transferred electric charge, and the withdrawn ball was discharged. The readout was leaf divergence, not a direct map of the internal electric field. These observations distinguish electrostatic induction from contact transfer of electric charge. ^[ref].

For a modern version of Faraday's ice pail experiment, connect an insulated inner metal pail to the signal input of a high-input-impedance electrometer, with its reference lead and an outer shield grounded. Zero and momentarily ground the pail, then isolate the signal side. Lower a charged paddle deeply without touching and record the electric potential difference; withdraw it and check return to zero. Repeat with contact, then withdrawal: a residual reading indicates transferred electric charge. Reverse the paddle's sign and repeat. The electrometer reads volts; inferring electric charge requires the effective capacitance of pail, cable and input, so a stable reading at fixed geometry is a relative measure, not automatically a value in coulombs. Keep supports clean, nearby charged objects distant, and the operator grounded; humidity can cause leakage. ^[ref].

A complementary electrostatic shielding demonstration uses a charged hollow metal enclosure, a small metal sampling ball on an insulating handle, and an electrometer. Discharge the sampling ball between trials; touch it to the exterior, withdraw it, and transfer its collected electric charge to the electrometer. Repeat by touching the inner wall without touching the exterior during withdrawal. The exterior sample produces a response, whereas the inner sample gives a null within instrument sensitivity. This compares accessible surface responses rather than assuming a perfectly spherical enclosure. ^[ref]. Useful additional controls are an uncharged enclosure baseline, a repeat exterior sample to verify sensitivity, and repeated trials at different depths. An access hole, charged handle, leakage or disturbed surface charge density limits the inference; a null bounds detectable transfer, rather than proving an exactly zero electric field. An open pail's depth plateau tests good enclosure empirically. Neither demonstration establishes shielding of arbitrary time-dependent electromagnetic fields.

The coulomb is the SI unit of electric charge. A constant electric current of $1\mathrm{A}$ transports $1\mathrm{C}$ in a time of $1\mathrm{s}$; a constant current of $2\mathrm{A}$ for $3\mathrm{s}$ transports $6\mathrm{C}$. The prefix in $1\mathrm{nC}=10^{-9}\mathrm{C}$ explains the much smaller charge scale used in the worked Coulomb's law example. ^[ref]

Electric charge is an additive, signed property of matter that determines its coupling to the electromagnetic field. Write a particle's electric charge as $q$, or a collection's total electric charge as $Q$; the SI unit is the coulomb, $\mathrm{C}$. A stationary test particle in an electric field experiences electric force $\mathbf{F}=q\mathbf{E}$, while motion adds the magnetic part of the Lorentz force. Electric charge both produces an electric field and determines the response to one. For two stationary point particles in vacuum, Coulomb's law makes like signs repel and opposite signs attract. The choice of which sign to call positive is a convention, used consistently: protons carry $+e$ and Electrons carry $-e$, where $e$ is the elementary charge. ^[ref].

Additivity means adding signed electric charges, rather than their magnitudes:for ordinary matter containing $N_p$ protons, $N_e$ Electrons, and electrically neutral neutrons. A toy collection with seven protons and ten Electrons has $Q=-3e$, however much neutral material accompanies it. Charge neutrality means $Q=0$; it does not mean an absence of charged constituents. Nor does it guarantee an absence of electric force: the spatial arrangement of positive and negative electric charges matters, as illustrated by an electric dipole. This makes a tiny imbalance in an otherwise nearly neutral object physically important. ^[ref].

Charge conservation states that a collection closed to transport of electric charge keeps its total signed $Q$. If $n$ Electrons move from object A to object B without other exchange, then $\Delta Q_A=+ne$ and $\Delta Q_B=-ne$; the sum is unchanged. The amount of positive electric charge alone need not be conserved: creation of an Electron and a Positron adds opposite electric charges with zero sum. These bookkeeping rules let us distinguish separation or transport of electric charge from creation of net electric charge. ^[ref].

A simple motivating experiment uses two charge-producing paddles, a conducting pail on an insulating support, a grounded outer shield and a high-input-impedance electrometer. Zero the pail, then isolate it. Rub the initially neutral paddles together, keeping their charged surfaces away from other objects. Lower each deeply into the pail without touching: the electrometer gives opposite signs. Inserting both together tests cancellation. For a separate contact test, insert one charged paddle without touching and withdraw it: the reading returns to zero. Repeat after zeroing, this time touching the inner wall before withdrawal: a residual reading shows transfer of electric charge. Zero the pail and reinsert the paddle to test how much electric charge remains on it. PASCO describes these procedures in Basic Electrostatics System manual, demonstrations 1A and 1B, printed pp. 13–16.

The crucial control is withdrawal without contact: a response during insertion can come from electrostatic induction, which redistributes the pail's existing electric charge. In the fixed-geometry approximation, the electrometer measures electric potential difference proportional to enclosed electric charge, with conversion set by effective capacitance; a voltage reading is not already a measurement in coulombs. Opposite readings and their cancellation test additivity and charge conservation within resolution. Leakage or accidental contact spoils that interpretation, and contact need not transfer all the paddle's electric charge. This macroscopic experiment cannot resolve elementary charge steps: that requires the much smaller particles of the oil drop experiment.

An electric current measures how quickly signed electric charge crosses a chosen fixed oriented surface $S$. Choose its unit normal $\mathbf{n}$; positive electric charge crossing along $\mathbf{n}$ counts positively, while crossing against it counts negatively. If $Q_{\mathrm{cross}}(t)$ is the accumulated signed electric charge transported through $S$, thenHere $\mathbf{J}$ is the current density; the surface integral collects its local normal contributions. Reversing the unit normal reverses $I_S$. The electric current is a signed scalar associated with the whole chosen oriented surface, whereas current density is a vector at each point. The SI unit is the ampere, one coulomb per second. ^[ref]; ^[ref].

For a constant electric current of $2\mathrm{A}$ over a time interval of $3\mathrm{s}$, the transported electric charge is $6\mathrm{C}$. This need not be electric charge accumulating in the wire: in steady transport, electric charge enters and leaves. For a closed oriented surface with outward unit normal, electric charge conservation instead gives $I_{\mathrm{out}}=-d{Q}_{\mathrm{inside}}/dt$. Keeping transported and enclosed electric charge distinct connects electrical circuit bookkeeping to the local continuity equation.

The electric dipole moment measures the first spatial moment of signed electric charge. For localized point charges $q_i$ at positions ${\mathbf{r}}_i$, or an integrable charge density $\rho (\mathbf{r})$ with a finite first moment, define^[ref].

The electric dipole moment is a vector with SI units $\mathrm{C}\mathrm{m}$: coulombs times length in metres. Opposite electric charges can cancel in $Q$ while contributing in the same direction to $\mathbf{p}$. For a neutral pair with positive electric charge $q>0$ at ${\mathbf{r}}_{+}$ and negative electric charge $-q$ at ${\mathbf{r}}_{-}$,Thus the electric dipole moment points from negative to positive electric charge, not along the attraction between the two point charges. ^[ref].

Changing the coordinate origin changes the position vectors, not the physical electric charge distribution. If the new origin is at $\mathbf{a}$ relative to the old origin, ${\mathbf{r}}_i^{\prime }={\mathbf{r}}_i-\mathbf{a}$, so direct substitution givesConsequently charge neutrality makes the electric dipole moment independent of the origin. For a system with nonzero total electric charge, always specify the origin: a single point charge at the old origin has $\mathbf{p}=0$ but ${\mathbf{p}}^{\prime }=-Q\mathbf{a}$. This is coordinate bookkeeping, not a newly created electric dipole. The full electric potential stays the same at the same physical point; the terms of its electric multipole expansion and the observation coordinates change together.

As a stipulated numerical example, put $+2\mathrm{nC}$ at $(1,0,0)\mathrm{mm}$ and $-2\mathrm{nC}$ at $(-1,0,0)\mathrm{mm}$. Their total electric charge is zero and $\mathbf{p}=(4\times 10^{-12},0,0)\mathrm{C}\mathrm{m}$. Translating the origin by $(3,-2,0)\mathrm{mm}$ leaves this electric dipole moment unchanged. Adding $+1\mathrm{nC}$ at the old origin instead gives $Q=1\mathrm{nC}$ and ${\mathbf{p}}^{\prime }=(1,2,0)\times 10^{-12}\mathrm{C}\mathrm{m}$. Distinguishing these two cases prevents the mistaken claim that every electric dipole moment is independent of the origin.

The usefulness of the electric dipole moment is compression: many internal electric charges determine one vector governing the leading distant electric potential of a neutral localized object when $\mathbf{p}\ne 0$. ^[ref]. A polar molecule need not literally contain two point charges; its atomic nuclei and electron density collectively give an electric dipole moment. For example, the chemical polarity of water reflects its bent molecular geometry, whereas the symmetric linear molecular geometry of carbon dioxide makes its permanent electric dipole moment vanish. ^[ref]. A collection of such electric dipole moments per unit volume gives electric polarization. ^[ref].

Electric flux measures how much electric field crosses a chosen oriented surface, with a sign distinguishing the two crossing directions. A strong electric field running along a surface contributes nothing to its electric flux: only the normal component counts. This lets Gauss's law turn a potentially complicated electric field into one number recording the net enclosed electric charge.

For a surface $S$ with chosen unit normal $\mathbf{n}$, the electric flux is the surface integralHere $dA$ is positive surface area, while $d\mathbf{S}$ is the vector area element. The dot product makes electric flux a signed scalar, rather than a vector like the electric field. Its SI unit is $\mathrm{N}{\mathrm{m}}^2/C$: electric field measured using the newton per coulomb, multiplied by surface area in square metres. Reversing the orientation of a surface replaces $\mathbf{n}$ by $-\mathbf{n}$ and reverses the electric flux. Calling it electric flux does not imply that electric charge is moving through the surface. ^[ref].

For an open patch in a plane, with surface area $A$ and a constant electric field, the unit normal is constant and the surface integral simplifies toThe angle $\theta$ is between the electric field and the chosen unit normal, not between the electric field and the plane. The cosine describes the signed projected surface area seen by the electric field. Thus electric flux is positive for $0\le \theta <90^{\circ }$, zero at $90^{\circ }$, and negative for $90^{\circ }<\theta \le 180^{\circ }$. ^[ref].

For example, take $E=100N/C$ and $A=0.02{\mathrm{m}}^2$, so $EA=2\mathrm{N}{\mathrm{m}}^2/C$. Three choices of angle giveKeeping the $60^{\circ }$ patch fixed and reversing its unit normal gives $120^{\circ }$ and changes $+1$ to $-1\mathrm{N}{\mathrm{m}}^2/C$. The electric field and physical patch have not changed. If the electric field is instead tangent to the patch, its dot product with the unit normal vanishes: electric flux is zero even though $E=100N/C$.

For a closed surface enclosing a volume $V$, choose the outward unit normal. Gauss's law givesHere ${\epsilon }_0$ is the vacuum permittivity, and $Q_{\mathrm{enclosed}}$ is the signed total electric charge inside. The electric field in the surface integral includes all sources, including external electric charges. Assume no ideal point charge lies on the integration surface. Zero enclosed electric charge implies zero total electric flux; it does not imply zero electric field everywhere on the closed surface or inside it. Positive and negative contributions to the surface integral can cancel. ^[ref].

To see the cancellation with sources inside, place point charges $+q$ at $(-a,0,0)$ and $-q$ at $(a,0,0)$, where $q>0$, $a=0.30\mathrm{m}$, and both lie inside the sphere of radius $R=1\mathrm{m}$ centered at the origin. This separated pair has the electric dipole geometry. Its enclosed electric charge is $q-q=0$, so its total outward electric flux is zero. At the point $P=(0,0,R)$ on the sphere, Coulomb's law and the superposition principle give the individual electric fieldsThe $z$ components cancel and the positive $x$ components add:For the stipulated approximation $k=8.99\times 10^9\mathrm{N}{\mathrm{m}}^2/{\mathrm{C}}^2$ and $q=1\mathrm{nC}$, this is about $4.740N/C$ along positive $x$. At $P$, the outward unit normal is $\hat{\mathbf{z}}$, so this nonzero electric field is tangent to the sphere. At other points of the sphere, its normal component can be positive or negative. The source-field formula applies away from the two point charges, where the electric field has zero divergence; it is singular at the sources. ^[ref].

The diagram shows streamlines of the three-dimensional electric field in the section $y=0$. The circle is a cross-section of the sphere, not the integration surface: Gauss's law uses the entire three-dimensional surface integral. A two-dimensional line integral of outward field around that circle would be a different quantity, with units $\mathrm{N}m/C$ rather than the electric flux units $\mathrm{N}{\mathrm{m}}^2/C$.

An electric potential difference compares the electric potentials at two points. In an electrical circuit it is the voltage across the terminals of a component. A vertex potential in an electrical network is specified relative to a reference vertex; terminal differences are independent of an additive change of reference.

Faraday's ice pail experiment distinguishes redistribution of electric charge by electrostatic induction from transfer of electric charge by contact. Lower a charged body into an initially neutral isolated metal pail: an externally connected electrometer responds even though the body never touches the metal. Withdraw the body without contact and the response disappears. Repeat with conductive contact before withdrawal and a residual response can remain. The striking point is that an exterior response does not establish that the pail has gained net electric charge.

Apparatus and readout. A modern implementation uses two concentric wire-mesh cylinders: a 10 cm diameter, 15 cm high inner pail on insulating rods and a grounded outer shield. Connect the electrometer's signal lead to the inner pail and its reference lead to the shield. Momentarily ground and zero the signal assembly, then isolate it; the shield remains grounded. A charged disk on an insulating handle goes into the lower half without touching. The electrometer measures electric potential difference in volts, with sign determined by the lead connections. It does not directly measure electric charge in coulombs.^[ref]

A charge ledger before contact. To separate exact reasoning from the open apparatus, first idealize the pail as a closed cavity in a conductor with one internal body of total electric charge $q$. Let the isolated metal have total electric charge $Q_0$. The metal's electric field is zero at electrostatic equilibrium.^[ref] A Gaussian surface enclosing the cavity in a conductor but lying wholly in the metal therefore has zero electric flux. Gauss's law and charge conservation giveFor $Q_0=0$ and $q>0$, the inner-wall total is $-q$ and the outer-wall total is $+q$: the metal remains neutral. The exterior electric field can therefore be nonzero without any transfer from the body. The connected electrometer and signal cable belong to the same isolated conducting assembly and share its exterior electric charge. The zero-electric field assertion concerns metal, not the occupied cavity in a conductor.

This ledger fixes totals, not the local surface charge density. Moving an off-center body changes the inner-wall distribution while its integral remains $-q$. With fixed outer geometry, fixed $Q_0+q$ and unchanged exterior sources, Uniqueness of the Dirichlet problem together with the fixed total outer electric charge determines the same exterior solution: the outside cannot reveal the body's position or detailed internal distribution. For example, internal bodies with stipulated electric charges $+2q$ and $-q$ give the same total exterior response as a single body with $+q$. Internal bodies with $+q$ and $-q$ can give a null exterior response while retaining a nonzero internal electric field. This is why a null reading cannot establish an empty cavity in a conductor.

Withdrawal is the control. Record a baseline, insert without contact, withdraw, and check return to baseline. After a fresh zero, repeat with the charged disk touching the inner wall, then withdraw and record the residual response. Finally zero the pail and reinsert the disk without contact to test remaining electric charge. Keep the operator grounded, discharge unwanted handle electric charge, and keep the unused charged disk distant. Dirty supports and humidity promote leakage. These controls separate transfer from electrostatic induction and stray coupling.^[ref]

In the ideal contact test, the internal body is itself an electrical conductor and makes a conducting connection to the wall. After charge relaxation, body and enclosure become a single equipotential; the remaining charge-free void has zero electric field. The body then carries no excess electric charge on surfaces facing that void. Withdrawal without subsequent charging leaves total metal electric charge $Q_0+q$. A coated paddle can retain electric charge on insulating patches, so merely touching it does not guarantee complete transfer. A residual reading establishes some transfer under the controls; the disk retest checks the stronger claim of complete transfer. The ideal argument assumes no leakage and no relevant contact-generated charging.

Grounding changes the ledger. With no exterior sources and zero electric potential at infinity, a closed grounded enclosure has zero exterior electric field, inner-wall electric charge $-q$ and zero outer-wall electric charge.^[ref] Consequently, disconnecting ground before withdrawal retains total metal electric charge $-q$, which moves to the exterior after withdrawal. Keeping ground connected during withdrawal instead restores zero electric charge. A lasting opposite-sign response can therefore arise through grounding without body–wall contact.

For the real open pail, no Gaussian surface lying wholly in metal closes over the mouth. Increasing insertion depth and seeking a stable response tests whether enclosure is a good approximation; mesh openings, rim proximity and nearby objects limit it. In a fixed-geometry approximation, the positive insertion response obeys $\Delta V\simeq q/C_{\mathrm{eff}}$, where $C_{\mathrm{eff}}$ is the effective capacitance of the pail, shield, cable and electrometer input. Changed geometry changes that conversion. Wait for charge relaxation and instrument settling at each step, while keeping the observation short compared with leakage. The experiment probes settled electrostatics; it does not establish shielding against arbitrary changing electromagnetic fields.

The volt is the SI unit of electric potential and electric potential difference: $1\mathrm{V}=1J/C$, one joule per coulomb. A positive electric charge of $2\mathrm{C}$ moved through a potential increase of $3\mathrm{V}$ gains $\Delta U=q\Delta \Phi =6\mathrm{J}$ of potential energy; the electric field does $-6\mathrm{J}$ of work. ^[ref].
