Adiabatic compression decreases the volume of a sample without heat transfer across its boundary. For the fixed-composition ideal gas and endpoint assumptions in adiabatic process, compression work increases internal energy; positive heat capacity at constant volume then means a higher final temperature. The effect comes from supplied work, even though no heat enters. The amount of temperature increase depends on the work actually delivered to the gas, not on the adiabatic process condition alone.

The reversible ideal-gas adiabat supplies a particularly useful quantitative benchmark. Assume a fixed amount of substance $n$, a quasistatic process, negligible friction, only pressure-volume work, and constant heat capacity ratio $\gamma =C_p/C_V>1$. Here $C_p$ and $C_V$ are the whole sample's heat capacity at constant pressure and heat capacity at constant volume. With $R$ the molar gas constant, Mayer's relation gives $C_V=nR/(\gamma -1)$. The proof outline is $C_{V}dT=-pdV$ from the first law of thermodynamics, followed by $p=nRT/V$ from the ideal gas law and integration. The result isThese finite power laws belong to this reversible, constant-$\gamma$ ideal gas model. If heat capacity ratio varies, use the integral relation in heat capacity ratio; if the compression is irreversible, use the actual work balance, as in irreversible adiabatic piston compression. A short stroke by itself justifies neither power law. ^[ref]

Writing $r=V_1/V_2>1$ for the compression ratio, the reversible model predictsAll temperatures in these ratios are absolute. The larger pressure rise than in an isothermal compression, where $p_2/p_1=r$, explains the greater local stiffness described by isentropic compressibility.

For an original stipulated example, set $\gamma =7/5$, $p_1{V}_1=nR{T}_1=1\mathrm{kJ}$ and $r=2$. Then $T_2/T_1=2^{0.4}\simeq 1.31951$ and $p_2/p_1=2^{1.4}\simeq 2.63902$. The input work and internal energy increase are both $0.79877\mathrm{kJ}$, while $Q_{\mathrm{in}}=0$. No initial temperature or apparatus performance is implied by the chosen energy scale. Independent integration gives the signed outward workwhich is negative during compression and agrees with $-\Delta U$. This integral uses equilibrium gas pressure only because the path is reversible.

In the sensor experiment of adiabatic process, compare the pressure-volume integral with $C_V\Delta T$ as an energy check only when internal pressure is sufficiently uniform and piston dynamics permit that boundary-work estimate. Account for friction separately before comparing it with hand input work. PASCO's manual supplies a compression procedure and an illustrative logarithmic-slope result $1.39$, compared with the model value $1.40$ for a diatomic gas; that is its sample result, not new measurements here. ^[ref]

An adiabatic process has no heat transfer across the chosen boundary throughout the process: $\delta Q=0$, rather than merely zero net heat after incoming and outgoing transfers cancel. It is a condition on energy transfer, whereas an isothermal process holds temperature constant. A sealed cylinder can approach an adiabatic process through insulation or through motion short compared with the time needed for appreciable heat transfer. Its temperature can nevertheless change because work crosses the boundary.^[ref]

Take the trapped gas as a closed system, with fixed amount of substance and composition and no net change in bulk kinetic energy or potential energy between the endpoints. Define $Q_{\mathrm{in}}>0$ as heat entering and $W_{\mathrm{out}}>0$ as work delivered to the surroundings. The first law of thermodynamics givesHere $U$ is internal energy. An adiabatic compression normally supplies work, so $W_{\mathrm{out}}<0$; an adiabatic expansion against a resisting load delivers work, so $W_{\mathrm{out}}>0$. An adiabatic process need not preserve internal energy and need not make the closed system an isolated system. ^[ref]

For a reversible thermodynamic process, $dS=\delta Q_{\mathrm{rev}}/T$ at positive absolute temperature $T$. A reversible adiabatic process therefore has $dS=0$: it is an isentropic process. Irreversible adiabatic processes can instead generate entropy; free expansion is the existing counterexample, with its calculation in entropy change in free expansion. Conversely, constant entropy alone does not certify an adiabatic process or reversibility: outward heat can export the entropy generated internally. For a closed system the macroscopic entropy balance iswhere $T_b$ is the absolute boundary temperature where each heat transfer occurs and $S_{\mathrm{gen}}$ is internal entropy production. With no heat transfer, this reduces to $\Delta S=S_{\mathrm{gen}}$; reversibility makes $S_{\mathrm{gen}}=0$. ^[ref]

A motivating experiment measures the gas temperature directly during compression and expansion, instead of inferring it from how warm a cylinder feels. PASCO's authored TD-8565 manual describes a sealed piston cylinder, a fine nickel-wire thermometer, an absolute pressure sensor and a position readout for volume. A computer records all three channels together. The wire's electrical resistance changes with temperature; its small size permits a rapid response. ^[ref]

Use ordinary trapped air and the apparatus's designed travel stops; mount the base securely, close the valve during a stroke, and record the actual volume limits. John Hart's university demonstration uses a large transparent cylinder with a low-heat capacity thermocouple, a pressure sensor, a travel gauge and a safety stop. It explicitly keeps the release valve closed during the demonstration. The basic observable is a rise in temperature on compression and a fall on loaded expansion, alongside the corresponding pressure and volume changes. Hart discusses wall thermal conduction, sensor response and leakage as reasons real records differ from the reversible model. ^[ref]

For a proposed rapid-versus-slow comparison, let the air and walls return to the same initial thermal equilibrium before each run, then compare the same starting and finishing volume values with different stroke durations. Read temperature, absolute pressure and position continuously, including the hold after motion stops. A rapid compression gives a temporary temperature rise; holding the smaller volume lets heat leave and the temperature approach the surroundings again. Slow compression in good thermal contact allows that heat transfer during the stroke and approaches an isothermal compression. Loaded expansion reverses the signs: the rapid stroke cools, while heat entering during slow motion reduces the cooling. PASCO explicitly supports rapid nearly adiabatic processes and slow isothermal processes; the matched-run controls here are a proposed extension, not a reported set of measurements. ^[ref]

Insulation suppresses thermal conduction; it does not prove that heat transfer vanishes. As proposed controls, repeat the matched strokes with and without a removable insulating jacket, record room and wall temperatures, measure fixed-position drift, and check valve closure and seal leakage. Calibrate the thermometer and position readout independently, including any connected dead volume; account for the heat capacity of the probe rather than treating it as a passive observer. Hart explicitly identifies the small air sample relative to the probe and walls, sensor inertia and seal leakage as limitations. A fast display cannot eliminate those physical effects. ^[ref]

There are two distinct timing requirements. Let ${\tau }_{\mathrm{eq}}$ describe internal equilibration, ${\tau }_{\mathrm{probe}}$ the thermometer response, $t_{\mathrm{move}}$ the stroke duration and ${\tau }_{\mathrm{heat}}$ the effective heat transfer time constant. A useful sufficient window for a resolved, nearly reversible adiabatic process iswith negligible friction. The left inequality permits a quasistatic process and a usable readout; the right limits heat leakage. A violent stroke may satisfy only the right inequality. PASCO reports a roughly $30$–$50\mathrm{ms}$ lag of its temperature channel behind the other channels, so apparent simultaneous samples require care. If no such window exists, analyze equilibrium endpoints with the first law of thermodynamics, and regard the path as approximate. ^[ref]

The diagram's model is deliberately a hold after the stroke, when boundary work is zero. For constant whole-sample heat capacity at constant volume $C_V$ and effective thermal conductance $K>0$, it assumesThis is Newton's law of cooling with one uniform gas temperature and a fixed surrounding temperature; actual wall and probe dynamics can require more than one time constant. At $t/{\tau }_{\mathrm{heat}}=0.1$, the fraction of the initial temperature anomaly erased is $1-e^{-0.1}\simeq 0.0952$; at one time constant it is about $0.6321$. These are analytical fractions, not experimental tolerances or evidence that the preceding stroke was reversible. Measuring the hold helps estimate heat leakage independently of the motion.

The usefulness of an adiabatic process is that it separates mechanical work from heat transfer. Its reversible limit connects temperature changes, mechanical stiffness and entropy in one model: Rüchardt experiment and Clément-Desormes experiment already use that connection to measure heat capacity ratio. The contrast with free expansion explains the deeper point: suppressing heat does not determine how much work is exchanged or how much entropy is produced.

Enthalpy is the state function obtained by adding pressure times volume to internal energy:Here $U$ denotes internal energy, also written $E$ in some references. Like internal energy, enthalpy is measured in joules and is an extensive variable. Its definition packages the internal energy change and expansion work into one useful quantity for fixed-pressure calculations. It does not define a body's stored heat. ^[ref]

For a fixed amount and composition of a simple compressible system, the relation between neighboring equilibrium states isHere $T$ is absolute temperature and $S$ is entropy. Thus entropy and pressure are the natural variables of this thermodynamic potential, with partial derivatives $T=(\partial H/\partial S{)}_p$ and $V=(\partial H/\partial p{)}_S$. Fixed composition matters: changing composition adds further terms. The formula follows in one line from the equilibrium first law of thermodynamics identity:The cancellation of $pdV$ is the reason enthalpy replaces volume with pressure as a natural variable. This identity concerns equilibrium states; it does not identify $TdS$ with actual irreversible heat transfer. ^[ref]

For a closed system undergoing a quasistatic process at constant pressure, require fixed amount and composition, only pressure-volume work, no friction, and unchanged bulk kinetic energy and potential energy. Then the actual first law of thermodynamics balance givesThe symbol $Q_p$ means transferred heat for this fixed-pressure process. If the piston example in heat additionally meets these conditions, its $20\mathrm{kJ}$ of incoming heat equals $\Delta H$, while $\Delta U=15\mathrm{kJ}$ and $p\Delta V=W=5\mathrm{kJ}$. The example shows exactly what enthalpy adds to internal energy: the expansion work required at the imposed pressure.

Within a single thermodynamic phase, heat capacity at constant pressure giveswith the amount and composition fixed. Constant $C_p$ gives $\Delta H=C_p\Delta T$; dividing by mass gives specific heat capacity at constant pressure. At equilibrium melting, enthalpy can instead change through latent heat while temperature stays fixed. The sensible heat example therefore adds two single-thermodynamic phase enthalpy changes and one latent heat contribution.

The usefulness of enthalpy lies in matching the imposed constraint: a fixed-pressure experiment naturally reports $\Delta H$, while fixed-volume heating with no other work reports $\Delta U$. Neither equality is universal. Additional work or changing pressure alters the relation between supplied heat and $\Delta H$; irreversible entropy production also prevents identifying actual $\delta Q$ with $TdS$. The separate Joule-Thomson coefficient branch uses enthalpy to describe throttling under its own assumptions.

Free expansion occurs when a gas spreads into an initially evacuated region without driving an external load. The standard idealization uses a rigid, insulated vessel: initially a partition confines the gas to volume $V_1$, while the remaining compartment contains vacuum. Open a passage and wait for thermodynamic equilibrium; the same fixed amount of substance $n$ now occupies the larger accessible volume $V_2$. The outer vessel never changes size. This simple release separates three questions: what energy is conserved, whether temperature changes, and why entropy increases. ^[ref]

Choose the gas as the closed system, neglect heat exchange with the walls, and assume negligible changes in bulk kinetic energy and potential energy between the equilibrium endpoints. Insulation gives $Q_{\mathrm{in}}=0$; no moving outer boundary or external load receives work, so $W_{\mathrm{out}}=0$. The first law of thermodynamics therefore givesThe gas can develop internal motion during the release; this does not supply external work. The intermediate state need not have one equilibrium pressure or temperature, so there is no actual quasistatic process curve $p(V)$ to integrate. In particular, substituting the equilibrium ideal gas law into $\int pdV$ would describe a different process. ^[ref]

For an ideal gas, internal energy of an ideal gas depends only on temperature. With positive heat capacity at constant volume, $U(T_2)=U(T_1)$ implies $T_2=T_1$, and the ideal gas law gives $p_2/p_1=V_1/V_2$. Doubling the accessible volume thus halves the final pressure without changing the final temperature. This is an endpoint statement; it does not assert a spatially uniform, constant temperature during the rush. Insulation alone does not imply constant temperature: a reversible adiabatic expansion cools an ideal gas because it supplies work. ^[ref]

For a real gas, $U(T,V)$ can depend on volume as well as temperature, so unchanged internal energy need not mean unchanged temperature. For a fixed-composition simple compressible system in a single thermodynamic phase, equilibrium identities using a Maxwell relation giveHere $C_V$ is the whole sample's heat capacity at constant volume. The sign depends on the equation of state; for an ideal gas the numerator vanishes. For a finite free expansion, solve $U(T_2,V_2)=U(T_1,V_1)$, or integrate this slope along equilibrium states of equal internal energy; that mathematical curve does not describe the actual release. ^[ref]

Free expansion is useful because it tests how internal energy depends on number density while eliminating external expansion work. Its beautiful surprise is that an ideal gas can finish with the same temperature and internal energy but greater entropy: a thermometer alone cannot diagnose reversibility. See entropy change in free expansion for the calculation and temperature sensitivity of a free-expansion experiment for the experimental qualification. The continuous-flow throttling associated with the Joule-Thomson coefficient has a different balance: under its usual assumptions it preserves enthalpy, whereas the gas-only idealization here preserves internal energy. ^[ref]

Heat capacity measures the heat supplied per small temperature increase along a specified process:The subscript $X$ records the constraint, such as fixed volume or fixed pressure. The units are $\mathrm{J}{\mathrm{K}}^{-1}$. The symbol $\delta Q$ emphasizes that heat is a transfer along a path, rather than a state function with a differential $dQ$. Consequently, an unspecified heat capacity does not determine the required heat.

For a closed system of fixed composition undergoing a quasistatic process, assume that only pressure-volume work occurs, with no friction and no change in bulk kinetic energy or potential energy. The first law of thermodynamics and $H=U+pV$, where $U$ is internal energy and $H$ is enthalpy, then giveThese partial derivatives define heat capacity at constant volume and heat capacity at constant pressure, with the amount and composition also held fixed. Integrating along the selected constraint gives $Q={\int }_{T_1}^{T_2}{C}_X(T)dT$ within a single thermodynamic phase; $Q=C_X\Delta T$ requires constant $C_X$. ^[ref]

For a computed example, take a monatomic gas in the classical ideal gas regime, with amount of substance $n=1\mathrm{mol}$ and stipulated molar gas constant $R=8.314\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}{\mathrm{K}}^{-1}$. The equipartition theorem gives $U=3nRT/2$, and the ideal gas law gives $pV=nRT$. ThusFor the same temperature increase $\Delta T=10\mathrm{K}$, the two processes requireHere work done by the gas is positive. At fixed pressure, the extra heat supplies expansion work; the internal energy increase is the same because internal energy of an ideal gas depends only on temperature. Their final volume values differ. ^[ref]

The practical value of heat capacity is that a measured heat input and temperature response can determine it. Once its constraint and temperature dependence are known, it predicts heating requirements and supplies entropy changes through entropy from heat capacity. ^[ref]

For a fixed-composition closed system, the heat capacity at fixed pressure is $C_p=(\partial H/\partial T{)}_p$, with enthalpy $H$. Under the quasistatic process assumptions in heat capacity, only pressure-volume work is permitted, so $dp=0$ gives $\delta Q=dH=C_{p}dT$. Thus supplied heat is $Q=\Delta H$, or $Q=C_p\Delta T$ within a single thermodynamic phase when $C_p$ is constant. For an ideal gas, the expansion work explains why this exceeds the required heat at fixed volume for the same temperature increase. Its per-unit-mass counterpart is specific heat capacity at constant pressure.

For a fixed-composition closed system, the heat capacity at fixed volume is $C_V=(\partial U/\partial T{)}_V$, with internal energy $U$. Under the quasistatic process assumptions in heat capacity, only pressure-volume work is permitted, so $dV=0$ gives $\delta Q=dU=C_{V}dT$. A rigid vessel therefore needs $Q=\Delta U$, or $Q=C_V\Delta T$ when $C_V$ is constant. Its per-unit-mass counterpart is specific heat capacity at constant volume.

An isothermal process is a thermodynamic change at constant temperature. In a reversible isothermal step, the working substance remains in thermal equilibrium with a reservoir while exchanging heat.

A quasistatic process is an ideal limit in which a changing thermodynamic system passes through a sequence of states arbitrarily close to thermodynamic equilibrium. Its intermediate pressure, temperature and volume are therefore well defined and obey its equation of state. Driving must be slow compared with the system's own equilibration, rather than merely taking a long time on a clock. A reversible thermodynamic process additionally allows both system and surroundings to be restored without net change; friction can produce entropy even in a quasistatic process.^[ref]

For a computed example, take a fixed amount of substance $n$ of ideal gas in a sealed cylinder with a frictionless piston, in contact with a heat bath at absolute temperature $T$. Reduce the external load in infinitesimal steps so that the piston expands from $V_0$ to $2V_0$. In the reversible limit, the gas pressure exceeds the external pressure by an infinitesimal amount during expansion, and the heat transfer occurs across an infinitesimal temperature difference. Exact mechanical equilibrium would give no driving force; the limiting imbalance supplies motion while preserving equilibrium intermediate states.^[ref]

Along this reversible isothermal expansion, the ideal gas law givesHere $R$ is the molar gas constant; specifying $nRT$ fixes an energy scale, without choosing $n$ and $T$ separately. The initial and final equilibrium states are $(V_0,p_0,T)$ and $(2V_0,p_0/2,T)$. Count work delivered to the surroundings as positive. The reversible work is the shaded area beneath the pressure-volume curve:The integral of $1/V$ supplies the natural logarithm. Since internal energy of an ideal gas depends only on temperature, $\Delta U=0$; the first law of thermodynamics, $\Delta U=Q_{\mathrm{in}}-W_{\mathrm{out}}$, gives $Q_{\mathrm{in},\mathrm{rev}}=0.693147\mathrm{kJ}$ to the displayed precision. The heat bath replaces the energy delivered as work.^[ref]

Now start from the same initial state, but abruptly lower the external pressure to the constant value $p_{\mathrm{ext}}=p_0/2=0.5\mathrm{MPa}$. There is a finite initial pressure imbalance, so this is an irreversible expansion rather than a quasistatic process. Assume the piston begins and ends at rest, has no net change in stored energy, and has no external friction; relaxation occurs within the gas and its heat bath. After motion has settled and the heat bath has restored temperature $T$, mechanical equilibrium and the ideal gas law give $V_f=nRT/p_{\mathrm{ext}}=2V_0$. The work delivered to the constant load isThis work follows directly from load force times piston displacement, using $dV=Adx$ for piston area $A$. Intermediate gas states need not have a single equilibrium pressure or temperature. In particular, neither $p(V)=nRT/V$ at the bath temperature nor $p(V)=p_{\mathrm{ext}}$ describes the actual gas during this irreversible motion. The rectangle below plots the known external load; its upper edge is not an equilibrium gas path.

The entropy accounting makes the difference precise. Because entropy is a state function, both expansions have the same gas entropy change, computed along the reversible isothermal expansion:The thermal reservoir stays at $T$ and loses heat $Q_{\mathrm{in}}=W_{\mathrm{out}}$, so $\Delta S_{\mathrm{bath}}=-W_{\mathrm{out}}/T$. Assume the ideal load stores work without an entropy change. The combined entropy production is thereforeNo numerical entropy unit is implied by $nRT=1\mathrm{kJ}$ alone: $nR$ or $T$ must also be specified. The lost work opportunity is $T\Delta S_{\mathrm{total}}=0.193147\mathrm{kJ}$ for this comparison. This calculation uses equilibrium endpoints and the reservoir's temperature, without assigning equilibrium intermediate states to the irreversible gas. ^[ref]

For another boundary choice, let the same ideal gas expand into an initially evacuated compartment of volume $V_0$ inside a rigid, insulated vessel of total volume $2V_0$. Removing the partition causes free expansion: no load is moved and no heat crosses the outer boundary, so $W_{\mathrm{out}}=Q_{\mathrm{in}}=0$ and $\Delta U=0$. After equilibration the temperature is again $T$, the pressure is $p_0/2$, and the gas entropy has increased by $nR\ln 2$. The outer vessel has fixed volume; the gas's accessible volume doubles. Restoring the initial gas state requires compression and removal of heat, changing the surroundings. Equal endpoints do not make free expansion reversible. ^[ref]

A slowly moving piston with dry friction supplies a different caution: its gas can remain arbitrarily close to thermodynamic equilibrium, yet rubbing still converts work into heat and produces entropy. If the frictional force has a nonzero slow-motion limit, its dissipated energy over a fixed travel does not vanish with speed. Reversing the motion reverses friction, so infinitesimally changing the external load cannot retrace the same operation and restore the surroundings. The heat capacity calculations additionally exclude friction and other dissipative work.^[ref]

The usefulness of a quasistatic process is that it replaces detailed motion by a readable sequence of equilibrium states. An equation of state and an integral then turn a pressure-volume drawing into an energy budget. The beautiful distinction is that internal energy and entropy depend on the endpoints, while heat and work record how the change was performed. Reversible benchmarks expose how much work an irreversible device sacrifices, while entropy production explains why simply making it slower need not recover that opportunity.

Sensible heat is transferred heat associated with a temperature change within a single thermodynamic phase. By contrast, latent heat can change the phase fraction while the temperature stays fixed during equilibrium phase coexistence. Neither name denotes an additional stored substance: both describe how transferred heat participates in a process.

For fixed mass $m$ and composition, use the heat capacity appropriate to the heating constraint. Under the quasistatic process assumptions in heat capacity, with only pressure-volume work and unchanged bulk kinetic energy and potential energy, fixed-pressure heating givesHere $c_p$ is specific heat capacity at constant pressure; fixed-volume heating instead uses specific heat capacity at constant volume $c_V$. A cooling step has negative $Q_{\mathrm{sens}}$ with the sign convention in heat. A temperature difference has the same numerical value in units of the kelvin or degree Celsius. The integral follows by adding the small transfers $\delta Q=m{c}_p(T)dT$, rather than assuming a constant heat capacity.

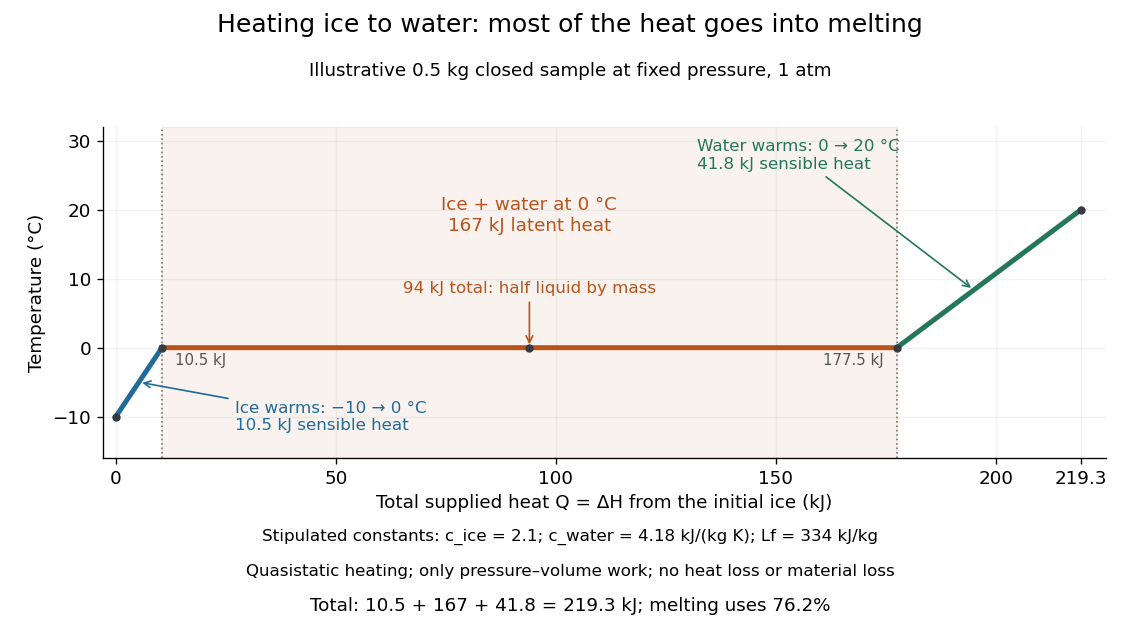

As a stylized ice-to-water example for a fixed-composition closed system at fixed pressure $1\mathrm{atm}$, take $m=0.5\mathrm{kg}$, an initial temperature of $-10{}^{\circ }\mathrm{C}$, melting at $0{}^{\circ }\mathrm{C}$, and a final temperature of $20{}^{\circ }\mathrm{C}$. Assume constant specific heat capacity at constant pressure values $c_{\mathrm{ice}}=2.1\mathrm{kJ}\mathrm{k}{\mathrm{g}}^{-1}{\mathrm{K}}^{-1}$ and $c_{\mathrm{water}}=4.18\mathrm{kJ}\mathrm{k}{\mathrm{g}}^{-1}{\mathrm{K}}^{-1}$, and latent heat of fusion $L_f=334\mathrm{kJ}\mathrm{k}{\mathrm{g}}^{-1}$. These are stipulated, rounded model values; ignore the container and heat losses, retain all the material, and assume only pressure-volume work under the quasistatic process conditions above. The three steps areOnly the first and third terms are sensible heat; the middle term is latent heat. The plateau begins after $10.5\mathrm{kJ}$ and ends after $177.5\mathrm{kJ}$ of total supplied heat. At $94\mathrm{kJ}$ total input, half the mass is liquid water and the temperature remains $0{}^{\circ }\mathrm{C}$. The equilibrium phase transition temperature depends on pressure; this example stipulates a single fixed pressure. ^[ref]

This split makes heating budgets easy to interpret: melting consumes $167/219.3\approx 76.2\%$ of the supplied heat in this model despite causing no temperature rise. Within either single thermodynamic phase, the heating curve slope is $dT/dQ=1/(m{c}_p)$; a larger heat capacity makes the slope shallower. A flat interval represents changing phase fraction, so it cannot be modeled by applying $Q=m{c}_p\Delta T$ across the phase transition. The complementary constructed example in latent heat tracks that phase fraction explicitly.
