An atomic basis of a crystal is the motif of chemical species $s_j$ and relative positions $r_j$ attached identically to every lattice point $R$ of a Bravais lattice $\Lambda$. The ideal periodic structure is the labeled setThe primitive lattice translation vectors generate $R$ by integer combinations; the atomic basis lists what is repeated at $R$. These are different meanings of the word basis. In particular, the offsets $r_j$ need not be linearly independent vectors, and one of them may be zero. A primitive unit cell represents $N$ motif sites, even though it represents only one lattice point.

Changing the origin, choosing another primitive unit cell, or moving a motif site by a Bravais lattice translation changes the coordinates used to describe the same infinite crystal structure. The grouping into a motif does not, by itself, identify bonded molecules. In solid sodium chloride, grouping one sodium cation and one chlorine anion into an atomic basis does not create a collection of discrete NaCl molecules; the ionic crystal has an extended network of equivalent neighboring ions.

The oxidizing capacity of a bleaching material expressed as the equivalent mass of chlorine.

The historical commercial material made by exposing calcium hydroxide to chlorine. Its useful oxidizing content is described by available chlorine; it should not be identified unconditionally with pure calcium hypochlorite.

A Born-Haber cycle uses Hess's law to infer a lattice energy from measurable enthalpy differences and isolated-species data. The motivating difficulty is that separating a mole of an ionic crystal into mutually separated gaseous ions is not a convenient direct calorimetry experiment. Instead, compare two accounting routes between the same elemental reference states and the same solid. Because enthalpy is a state function, the signed differences close exactly when all inputs describe compatible states. These routes do not assert a reaction mechanism or a temporal sequence of reaction intermediates.^[ref]

For one mole of sodium chloride formula units, the overall formation reaction isThe stoichiometry requires half a mole of diatomic chlorine molecules, supplying one mole of chlorine chemical atoms. A half coefficient counts an amount of substance; it does not describe half of an individual molecule. Write each auxiliary chemical reaction with its own sign:Here $S$ is the sublimation enthalpy, $B$ the enthalpy of atomization of chlorine per mole of chemical atoms, and $I$ the molar ionization enthalpy represented by the ionization energy input in elementary treatments. If the bond-dissociation energy table gives the compatible molar enthalpy for ${\mathrm{Cl}}_2(g)\to 2\mathrm{Cl}(g)$, use half that number for $B$. Both ions in the last step are gaseous, and no aqueous hydration of ions belongs in that step.

Adding these equations cancels the gaseous chemical atoms, the gaseous ions and the free electron, leaving precisely the overall formation reaction. ThusThe closed traversal returns from the solid to the elemental reference states, adding $-F$; therefore $S+B+I+A+L_{\mathrm{form}}-F=0$. Notice that the signed attachment term $A$ is negative. Substituting a positive spectroscopic electron affinity for $A$ would reverse the attachment contribution.

The diagram deliberately uses invented, internally consistent inputs in $\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$: $S=100$, $B=120$, $I=500$, $A=-350$ and $F=-400$. Preparation of separated gaseous ions raises the enthalpy by $370$, so $L_{\mathrm{form}}=-770$ and $L_{\mathrm{diss}}=+770$. The closure check is $100+120+500-350-770+400=0$. These numbers are not measured sodium chloride data and do not replace the source's $769\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ example in lattice energy. Every level retains one sodium nucleus, one chlorine nucleus and zero total electric charge; the ionization level explicitly retains the free electron.

A chloride-derived ligand connecting more than one centre. chlorine lone-pair donation permits a different electron count from an electron-deficient alkyl bridge.

A chemical formula uses symbols of chemical elements and numerical subscripts to record composition. In the molecular formula ${\mathrm{H}}_2\mathrm{O}$ of water, the subscript $2$ counts two hydrogen chemical atoms, and the omitted subscript after $\mathrm{O}$ means one oxygen chemical atom. A molecular formula describes one molecule; a chemical formula need not describe a discrete molecule.

Read a preceding coefficient separately from the subscripts. One ${\mathrm{H}}_2\mathrm{O}$ contains two hydrogen and one oxygen chemical atom; $2{\mathrm{H}}_2\mathrm{O}$ contains four hydrogen and two oxygen chemical atoms distributed between two water molecules. In ${\mathrm{H}}_2{\mathrm{O}}_2$, the second subscript instead puts two oxygen chemical atoms into each hydrogen peroxide molecule. Thus $2{\mathrm{H}}_2\mathrm{O}\ne {\mathrm{H}}_2{\mathrm{O}}_2$: the coefficient scales the whole chemical formula, while a subscript specifies its composition. See Flowers et al., Chemistry 2e, §2.4: chemical formulas.

For crystalline $\mathrm{NaCl}$, the chemical formula specifies a $1:1$ ratio of sodium ions ${\mathrm{Na}}^{+}$ to chlorine ions ${\mathrm{Cl}}^{-}$. Its formula unit is the accounting entity; the ordinary crystal is an extended arrangement of ions, rather than a collection of discrete $\mathrm{NaCl}$ molecules. Specifying the entity matters when assigning an amount of substance. See formula unit and 2.6 Ionic and Molecular Compounds (§2.6: ionic and molecular compounds).

A molecular formula gives an atom inventory, not the full arrangement of chemical bonds or the molecular geometry. For example, ${\mathrm{C}}_6{\mathrm{H}}_{12}{\mathrm{O}}_6$ counts six carbon, twelve hydrogen, and six oxygen chemical atoms in a glucose molecule, but does not specify the pattern shown by its Fischer projection. Different structures can share a molecular formula. This compact inventory is useful for chemical equation accounting precisely because it leaves the structural detail to other representations.

The choice of letters has an early explanation in Jöns Jacob Berzelius, Essay on the Cause of Chemical Proportions (1813–1814), §III, transcribed by Carmen Giunta: letters made chemical signs easier to write and print, and formulas compressed information about composition. His numerical notation differed from modern subscripts; the lasting idea was to make proportions readable in ordinary text.

The radical $\mathrm{ClO}$ formed when a chlorine atom reacts with ozone. Its reaction partners and reservoirs depend on altitude and temperature; the chlorine monoxide dimer cycle is important under cold, activated polar conditions.

A low-temperature catalytic ozone destruction pathway involving ClO association to ClOOCl, photodissociation of the dimer and regeneration of chlorine atoms. Combined with two Cl + O3 reactions its net effect is $2{\mathrm{O}}_3\to 3{\mathrm{O}}_2$. Low temperature suppresses thermal dimer dissociation, while sunlight is needed for the photolytic step. Polar stratospheric clouds can activate reservoir chlorine before the sunlit cycle becomes rapid.

The reservoir species $\mathrm{ClON}{\mathrm{O}}_2$, formed from ClO and NO2 with third-body stabilization. Heterogeneous reaction with hydrogen chloride can produce molecular chlorine and nitric acid, activating chlorine while removing reactive nitrogen from the gas phase. It belongs to the wider reactive nitrogen family, not to the narrow NO-plus-NO2 definition of NOx.

The peroxy-linked chlorine oxide $\mathrm{ClOOCl}$, often written $\mathrm{C}{\mathrm{l}}_2{\mathrm{O}}_2$ in a chlorine monoxide dimer cycle. Thermal return to two chlorine monoxide radicals competes with a photolytic pathway that ultimately yields two chlorine atoms. The formula alone should not be taken as specifying every possible dichlorine-dioxide isomer.

A compound composed of carbon, chlorine and fluorine, with no hydrogen. Many such fully halogenated molecules resist lower-atmospheric attack but release reactive chlorine after stratospheric photodissociation, contributing to catalytic ozone destruction.

The chlorine peroxide structure formed by association of two ClO radicals with collisional stabilization. Its low-temperature stability and photodissociation provide a route for catalytic ozone destruction. In a laboratory flow system, changing among three ClO precursors and examining infrared spectra helped distinguish the predominant ClOOCl product from an alternative ClOClO isomer. Product assignment and ultraviolet absorption support the proposed intermediate, but do not alone measure an entire atmospheric cycle's ozone-loss rate.^[ref]

Electrochemistry studies how chemical reactions, transport, and chemical equilibrium couple to electric charge and electric potential. In a cell, electrons travel through the external circuit, while mobile ions carry electric current through the electrolyte. At the electrodes, redox reactions connect these two forms of electric charge transport. This connection makes it possible both to obtain electrical work from a chemical reaction and to use electrical work to drive a chemical reaction.

An anode is an electrode where oxidation occurs; a cathode is an electrode where reduction occurs. These definitions refer to the chemical reactions, rather than universal positive or negative terminal signs. In a galvanic cell delivering electrical work, the anode is negative and the cathode positive. In an electrolytic cell driven by an external source, the anode is positive and the cathode negative. See Pingarrón et al., Terminology of electrochemical methods of analysis (IUPAC Recommendations 2019), §§3.1 and 3.4 and Flowers et al., Chemistry 2e, §17.2: galvanic cells.

For a worked example, consider an electrolytic cell containing molten sodium chloride, with the anode connected to the positive terminal and the cathode to the negative terminal of an external source. At the cathode, sodium cations gain electrons; at the anode, chlorine anions lose electrons:The first line has net electric charge zero on each side; the second has $-2e$ on each side. Adding the lines cancels the transferred electrons and preserves both chemical atom counts and net electric charge. The sodium product is neutral, and the chlorine product is a diatomic molecule. These equations specify molten sodium chloride; aqueous chemical solutions introduce competing water reactions. See 17.7 Electrolysis (§17.7: electrolysis of molten sodium chloride).

Electrochemistry underlies battery charging and the manufacture of chemicals by electrolysis. Its particularly useful idea is that an electron inventory in a balanced chemical equation also accounts for transported electric charge. Transport alone is a different question from an electrode chemical reaction: an ion may carry electric current through the electrolyte without itself being consumed at an electrode.

Historically, Michael Faraday introduced the terms electrode, electrolyte, anion, cation, and ion in the terminology section of his 1834 paper, Experimental Researches in Electricity, Seventh Series by Michael Faraday (§§662–667). His §667 explicitly treats the direction assigned to electric current as a convention. His ion language predates the modern electron and atomic nucleus picture used in the charge-counting example above.

For an electrolyte near chemical equilibrium, a Poisson-Boltzmann equation can approximate the distribution of ions in an electric potential. Such an equilibrium model does not by itself describe a cell carrying sustained electric current.

Electron affinity measures how strongly an isolated neutral species binds an additional electron. In the spectroscopic convention used here, it is the positive energy required to detach that electron from a bound anion. With the free electron at rest assigned zero energy,The quantum states of $X$ and $X^{-}$ must be specified, usually their ground states. Positive $A_{\mathrm{ea}}$ means that attachment lowers the energy; a signed attachment energy is then negative. This convention agrees with the IUPAC definition and with the atomic tables used for Mulliken electronegativity.^[ref]

For chlorine, a published photodetachment threshold is $A_{\mathrm{ea}}/(hc)=29138.59(22)\mathrm{c}{\mathrm{m}}^{-1}$, approximately $3.612725\mathrm{eV}$ per chemical atom. Here $h$ is the Planck constant, $c$ the speed of light, and the inverse-length unit expresses an energy through a spectroscopic wavenumber. The parentheses give the reported uncertainty in the last digits, not a range of possible sign conventions.^[ref]

An electron affinity is neither an electronegativity nor a lattice energy. The first describes a specified isolated-species energy difference, electronegativity compares attraction for electron density in a chemical bond, and lattice energy refers to an entire ionic crystal and separated gaseous ions. A stable anion can therefore help explain ionic bonding without describing the full energy balance for making a salt.

An electron attachment enthalpy is the signed molar enthalpy change for a stated attachment reaction,For favourable attachment such as chlorine's first attachment, the electron attachment enthalpy is negative. Its leading isolated-ground-state energy contribution is $-N_{\mathrm{A}}{A}_{\mathrm{ea}}$, where $N_{\mathrm{A}}$ is the Avogadro constant. At finite temperature, consistent thermal populations, translational contributions and the $pV$ term in enthalpy must also be included, together with the same gaseous-electron reference used in the corresponding ionization energy term. Consequently a measured spectroscopic electron affinity is not automatically an exact $298.15\mathrm{K}$ attachment enthalpy with a minus sign. A Born-Haber cycle must use compatible enthalpies throughout.

Electronegativity describes a chemical atom's tendency to attract electron density towards itself in a chemical bond. It helps answer a useful question: when two different chemical atoms share electrons, which end of the chemical bond tends to be richer in electron density? For hydrogen chloride, the answer is chlorine: the covalent bond is a polar covalent bond, conventionally written ${\mathrm{H}}^{\delta +}-{\mathrm{Cl}}^{\delta -}$. The symbols indicate partial atomic charges, not isolated ions carrying whole elementary electric charges.^[ref]

Electronegativity is a comparison scheme, not the number of electrons on a chemical atom. A partial atomic charge depends on how the electron density is partitioned; formal charge instead follows an integer allocation in a Lewis structure. Neither is numerically equal to electronegativity. Nor is electronegativity identical to electron affinity, which concerns adding an electron to an isolated species. Different electronegativity scales use different measured inputs and conventions; compare numbers only after specifying the scale.^[ref]

For a concrete comparison, the Royal Society of Chemistry lists Pauling electronegativities ${\chi }_{\mathrm{P}}(\mathrm{H})=2.20$ and ${\chi }_{\mathrm{P}}(\mathrm{Cl})=3.16$. Their difference is $0.96$, so the electronegativity rule predicts bond polarization towards chlorine in hydrogen chloride. An isolated molecular hydrogen molecule has identical ends and zero electronegativity difference. These examples explain a direction of unequal sharing, not a quantitative partial atomic charge.^[ref][ref]

A larger electronegativity difference often suggests stronger bond polarization, but there is no universal numerical boundary where a covalent bond suddenly becomes ionic bonding. Tables of cutoffs are classification aids with exceptions. Hydrogen fluoride, for example, is described by a polar covalent bond even when its electronegativity difference exceeds a textbook's nominal ionic threshold. The actual electron density, physical setting, and chemical substance's structure matter.^[ref]

The distinction from ionization energy is equally useful: an ionization energy measures the cost of removing an electron from a specified isolated species, whereas electronegativity compares attraction for electron density in a bonded environment. Neither the removal cost alone nor the attachment release alone supplies a unique bonded-atom electronegativity. A scale combines selected measured inputs with a model and a convention.^[ref]

For an original relative comparison, stipulate fictitious bonded sites $A,B,C$ on one chosen dimensionless electronegativity scale:The electronegativity heuristic predicts bond polarization towards $B$ in $A-B$, towards $C$ in $B-C$, and towards $C$ in $A-C$. Shifting ${\chi }_0$ leaves every comparison unchanged. Although the $A-C$ difference is twice the $A-B$ difference, this does not make its partial atomic charge or bond dipole twice as large: those require additional information about electron density and bond length. These symbols describe a stipulated ordering, not a table of measured chemical elements.

Keep the chemical context attached to that ordering. A chemical atom in a molecule has neighbours and an electron configuration; an isolated-atom energy scale and a bonded-atom comparison are different constructions. The chemical environment dependence of electronegativity explains why a table is a useful approximation rather than an immutable property of every site. Furthermore, an applied electric field can induce bond polarization even between identical chemical atoms, through electric polarizability; equal tabulated electronegativity does not forbid that response.

An enthalpy of atomization is the enthalpy change for making one mole of separated gaseous chemical atoms from a specified starting chemical substance. For sodium, the relevant step is sublimation to monatomic gas; for diatomic chlorine, it is half the compatible molar bond-dissociation energy expressed as an enthalpy.

The contrast between Pauling electronegativity and Mulliken electronegativity becomes clearer by following the measurements into the formulas. A Pauling bond-energy excess compares three compatible bond-dissociation energies; Mulliken electronegativity takes the arithmetic mean of an ionization energy and an electron affinity. The former asks how much stronger an unlike-atom chemical bond is than a stipulated baseline; the latter combines two different isolated-species energy gaps.

Actual readouts precede those model choices. In the nitrogen dissociation threshold from fragment images, fitted squared image radii versus assigned excitation energies reveal a threshold after accounting for the product quantum states. In the chlorine photodetachment threshold experiment, mass-selected anions overlap a tunable laser, and neutral-atom counts reveal the onset of electron detachment. Opposite laser directions control the Doppler shift. That second threshold supplies an electron affinity, not an electronegativity; the Mulliken scale still needs an independent ionization energy.^[ref][ref]

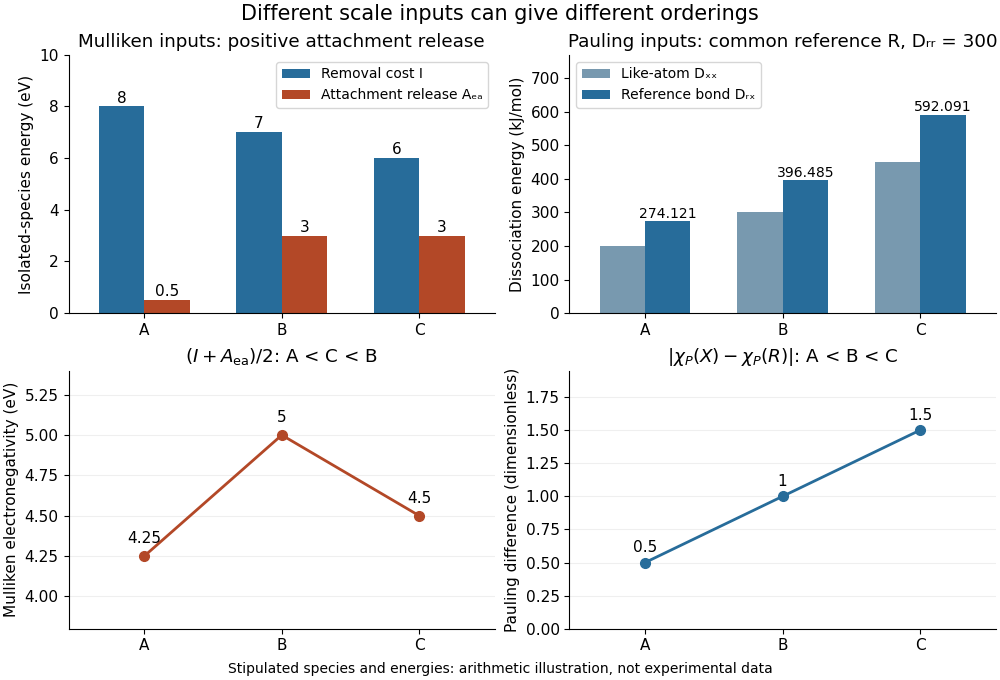

For an original arithmetic comparison, stipulate isolated-species $I=(8,7,6)\mathrm{eV}$ and positive attachment-release $A_{\mathrm{ea}}=(0.5,3,3)\mathrm{eV}$ for fictitious species $A,B,C$. Their Mulliken electronegativities are $(4.25,5,4.5)\mathrm{eV}$. The largest ionization energy belongs to $A$, while the largest Mulliken electronegativity belongs to $B$: accepting an electron matters as well as retaining one. Using signed attachment energies $(-0.5,-3,-3)\mathrm{eV}$ in $(I-\Delta E_{\mathrm{attach}})/2$ gives exactly the same results.

Independently stipulate $D_{RR}=300$ and $D_{XX}=(200,300,450)\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ for $X=A,B,C$, with unlike-atom valuesThus $D_{RX}=(274.12125,396.485,592.09125)\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$, and the Pauling scale differences from $R$ are $(0.5,1,1.5)$. If all three fictitious species are placed above $R$ on that scale, their ordering is $A<B<C$, whereas the stipulated Mulliken scale gives $A<C<B$. The bond-dissociation energies and isolated-species energies were invented independently: this demonstrates what the formulas do, not a measured disagreement for actual chemical elements. A unit conversion cannot force these two input models to agree.

A formula unit is a specified compositional accounting entity for a chemical substance that need not consist of discrete molecules. For ordinary crystalline $\mathrm{NaCl}$, one formula unit counts one sodium ion ${\mathrm{Na}}^{+}$ and one chlorine ion ${\mathrm{Cl}}^{-}$; it does not identify an isolated pair within the crystal. Cohen et al., IUPAC Green Book, 3rd ed., §2.10.1(iii)(b), p. 51 defines a formula unit as a specified group of chemical atoms, rather than a unit of measurement. An amount of substance of one mole of $\mathrm{NaCl}$ formula units therefore corresponds to one mole of each kind of ion.

A periodic group is a vertical column of the periodic table. For example, fluorine and chlorine are in periodic group 17, with seven valence electrons in each neutral ground state chemical atom. A shared outer electron configuration supports similarities in chemical reactions, rather than equality of every property.
