Past exam of the MPhil in nuclear energy course of the University of Cambridge / 2021

All four printed alternatives are represented. Questions occupy physical pages 44–47. The solutions use the stipulated idealized equations and state their assumptions.

The lighter product receives the fraction $1/(1+m/M)$ of the two massive products' kinetic energy. Neglecting photon momentum, conservation of momentum gives equal and opposite daughter momenta, ${\mathbf{p}}_m=-{\mathbf{p}}_M$. In the nonrelativistic approximation,Hence $K_{\mathrm{products}}=K_m(1+m/M)$ andThis partitions kinetic energy after any stipulated photon energy has been removed from the available Q value. It does not assign the complete mass-defect energy to the light particle.

The stipulated decay branch gives $K_{\alpha }\simeq 4.51\mathrm{MeV}$. Using the supplied atomic masses, the mass defect isso the total Q value is $Q\simeq 0.00580(931.494)=5.4027\mathrm{MeV}$. The photon carries away the stated $0.802\mathrm{MeV}$, leavingApplying the recoil partition,The daughter recoil takes approximately $0.0877\mathrm{MeV}$. Atomic electron counts balance in the neutral-atom mass difference; small electronic binding corrections and photon recoil are neglected consistently with the problem. These values follow the branch specified in the examination, rather than an assumed average over every physical decay branch.

Over $N$ half-lives, the duration is $T=N{t}_{1/2}=N\ln 2/\lambda$. The time-averaged thermal power isSince $\lambda T=N\ln 2$ and $e^{-\lambda T}=2^{-N}$,This is a time average, not the arithmetic mean of the initial and final powers. It follows directly from the assumed constant nuclear decay constant and constant recovered energy per decay.

After three half-lives, $P(T)=P_0/8$. Therefore the minimum initial thermal power isEquality gives the stated terminal power exactly in the idealized exponential decay model. The associated duration is $415.2$ days. No thermal-to-electrical efficiency is needed because both specified powers are thermal.

The idealized isotope mass is $1.63\times 10^{-2}\mathrm{kg}$, about $16.3\mathrm{g}$. Both the alpha particle and daughter recoil energy are recovered in the stipulated heat balance. Thus the recovered energy per transformation isand the nuclear decay constant isWith $N_0=(m/M_{\mathrm{mol}})N_A$, thermal power is $P_0=\lambda N_0{E}_h$. ConsequentlyThe conversion of $210\mathrm{kg}\mathrm{kmo}{\mathrm{l}}^{-1}$ to $0.210\mathrm{kg}\mathrm{mo}{\mathrm{l}}^{-1}$ is essential. This is an isotope-only energy-accounting result under the paper's prescribed branch and perfect heat-recovery assumptions; it is not the mass or design of a complete generator.

Alpha decay releases energy in charged particles with short stopping ranges in matter, so much of their kinetic energy becomes local heat. An appropriate radioisotope thermoelectric generator can use a predictable radioactive decay heat source without requiring sunlight or a sustained nuclear chain reaction. Low penetrating photon and neutron output is desirable, but being an alpha emitter does not by itself establish the complete radiation spectrum.

The isotope's half-life must suit the mission. A short half-life gives high initial specific activity but a rapid decline in useful thermal power; a much longer one gives a steadier output but less activity per atom. Selection also depends on recoverable decay energy, specific power, daughter emissions, chemical and thermal stability, compatibility with the power-conversion system, availability and cost. Practical containment and radiological acceptability remain separate system-level requirements.

A thermoelectric generator converts a temperature difference into electrical output through the Seebeck effect; not all decay heat becomes electricity. NASA's operational account describes this heat-to-electricity distinction and the need to match source lifetime to long space missions.^[ref]

For the assumed three-half-life mission, the thermal power falls by a factor of eight. That large decline is the important disadvantage of this particular half-life even though the initial specific thermal power is high.

Delayed neutrons are emitted after precursor radioactive transformations, rather than promptly at fission. Some neutron-rich fission products undergo beta decay into excited daughter states that can emit a neutron. The waiting time is governed chiefly by the precursor's radioactive lifetime, not by a neutron moving unusually slowly after it has already been emitted.

Although their fraction is small, delayed neutrons introduce a much slower population timescale into the nuclear chain reaction. In the delayed-neutron-controlled regime, changes can therefore develop over times comparable with precursor lifetimes rather than only the prompt neutron generation time. That timescale separation is central to qualitative reactor controllability. It does not imply that every positive-reactivity transient is slow.

The point kinetics model replaces the spatially and spectrally distributed neutron field by a single amplitude $n(t)$, effectively assuming a fixed or sufficiently slowly varying flux shape. The source amplitude is $s$. A single effective delayed neutron precursor population $c(t)$, delayed neutron fraction $\beta$ and decay rate $\lambda$ stand in for many precursor species with different lifetimes. $\Lambda$ is the prompt neutron generation time and $\rho$ the specified reactor reactivity.

The displayed equations omit explicit thermal-hydraulic, fuel-temperature and isotope-composition feedback. For the stated constant-coefficient transients, $\rho ,\beta ,\Lambda ,\lambda$ are prescribed rather than being solved as evolving fields. The model is useful for an elementary timescale calculation; it does not establish the spatial stability or operating limits of an actual core.

At equilibrium, precursor production balances precursor decay:ThereforeThe delayed neutron precursor population can exceed the instantaneous neutron population even when the delayed neutron fraction is small: the delayed neutron precursor reservoir persists much longer than an individual prompt-neutron generation.

Multiply the supplied inhour equation by $\omega +\lambda$ and collect powers of the inverse period:With the stipulated constants this becomeswith roots ${\omega }_{+}=0.0165064{\mathrm{s}}^{-1}$ and ${\omega }_{-}=-12.1165{\mathrm{s}}^{-1}$. The negative root describes a rapidly decaying component. The positive root governs the late-time growth, givingThe growing-mode e-folding time is not the precursor mean lifetime, and the negative root is a legitimate transient mode rather than an unphysical negative time.

After the short prompt adjustment, the prompt jump approximation takes the neutron amplitude to remain nearly in balance with the slowly changing delayed neutron precursor reservoir. For the source-free model,Substitute this quasi-steady relation into the precursor equation:For constant coefficients,The approximation is meaningful in the stated delayed-neutron regime with $\rho <\beta$ and a separated fast transient. The delayed neutron precursor reservoir remains continuous across an idealized instantaneous reactivity step; the approximation does not resolve the short prompt adjustment itself.

Differentiating the supplied relation givesThus the tangent approximation is $\rho \simeq \omega (\Lambda +\beta /\lambda )$ andIt is about $16.4\%$ longer than $60.58\mathrm{s}$ and therefore predicts slower growth. For this positive step it is not conservative as a growth-rate estimate. The local expansion needs $|\omega |\ll \lambda$; here the actual ratio is approximately $0.165$, so its error is appreciable.

The precursor exponential from part (e) has inverse period $\rho \lambda /(\beta -\rho )$. HenceThis is approximately $0.96\%$ shorter than the exact dominant period, so it slightly overestimates growth for these stipulated constants. Neglecting the small $\Lambda$ contribution is more accurate here than replacing the complete frequency dependence by its tangent at the origin.

With no delayed neutrons, set $\beta =0$ and omit the precursor equation. The source-free model reduces to $\dot{n}=(\rho /\Lambda )n$, givingThe delayed-neutron model's dominant e-folding time is about $121$ times larger. This comparison illustrates why a small delayed neutron fraction strongly alters the kinetics. It is a comparison of the supplied idealized models at the same imposed positive reactivity, not a control prescription or a claim that every transient has the same timescale.

Cadmium acts as an energy-selective neutron absorber in the stated comparison. Its large thermal capture collision cross-section preferentially reduces the thermal neutron field reaching the source material, while its much lower fast-neutron capture probability allows more of the emitted fast neutrons to escape. This limits thermal neutron-induced changes in the source while retaining its qualitative role as a neutron emitter.

The point is selectivity between incoming thermal and outgoing fast components, rather than a claim that cadmium is transparent to every neutron or that capture produces no secondary radiation. This explains the stated material choice at a conceptual level; no source construction, cladding dimensions or irradiation specification follows from it.

For the prescribed homogeneous one-group model, number balance isUse steady state, $\partial n/\partial t=0$, and the diffusion approximation $\mathbf{J}=-D\nabla \varphi$. A spatially constant $D$ givesFor a spherically symmetric scalar field,Dividing by $D$ reproduces the requested radial equation. The assumptions are a steady source, spherical symmetry, homogeneous effective coefficients, a single energy-group description and a diffusion closure. In particular, replacing the general production term by the supplied $(\eta -1){\Sigma }_a\varphi$ is a model assumption, not a general identity for heterogeneous reactor materials.

This part is a radial differential-equation identity. Expanding the spherical derivative givesPut $\psi =r\varphi$. Since ${\psi }^{\prime \prime }=r{\varphi }^{\prime \prime }+2{\varphi }^{\prime }$, multiplication of the equation by $r$ yields ${\psi }^{\prime \prime }+B^2\psi =0$. Its real solution isFor a regular field at the centre, the cosine-over-radius contribution must vanish. The sine-over-radius term is regular because $\sin (Br)/r\to B$ as $r\to 0$.

Write $R_e=R^{+}$ and apply the stated constant-coefficient boundary value problem. A constant particular solution is $-S/(D{B}^2)$. Regularity at the origin removes $\cos (Br)/r$, soThe outer boundary condition gives $A=S{R}_e/[D{B}^2\sin (B{R}_e)]$, henceAt $r=0$, use the limit $\sin (Br)/r\to B$ rather than substitute into the apparent $0/0$. The result satisfies both the differential equation and $\varphi (R_e)=0$ provided $\sin (B{R}_e)\ne 0$. This is the ideal extrapolated-boundary model specified in the question; a separately resolved outer transport layer would need its own matching conditions.

At the stated threshold the idealized system admits a self-sustaining neutron mode. Production and losses balance without the external source. A nonzero continuing source then makes the assumed linear, time-independent response singular rather than selecting a finite equilibrium amplitude.

An apparent infinite steady flux is therefore a failure of that steady linear approximation at the threshold, not a physical prediction that an actual neutron population instantly becomes infinite. Time dependence and feedback must be considered to discuss subsequent behaviour.

The first balance treats the fertile parent as being removed by neutron absorption. The second has a production contribution associated with capture in the parent and a removal contribution from absorption in the fissile population. Capture and total absorption are not interchangeable: in general absorption includes capture and fission, and a capture channel is the one that feeds the specified transmutation chain.

The lumped description assumes spatially averaged populations and flux, fixed effective reaction coefficients, no transport of material into or out of the system, and a shortened chain in which intermediate decay delays are neglected. It omits explicit precursor accumulation, competing reaction chains and the changing neutron spectrum. It also prescribes flux rather than solving a coupled power-and-composition feedback problem. Neglecting intermediate lifetimes requires them to be short relative to the variation being modelled; that assumption can fail during a rapid change in irradiation.

The first equation is a prescribed first-order removal law. For a constant absorption coefficient,Integrating from the initial condition givesand henceThe neutron fluence $\Phi$ is the time integral of scalar neutron flux; it has inverse-area units, making $\sigma \Phi$ dimensionless. Constant flux is not needed for this integration, but a constant effective coefficient is.

Use neutron fluence $\Phi$ as the independent variable and abbreviate $a={\sigma }_{a\mathrm{Th}}$, $b={\sigma }_{a\mathrm{U}}$ and $c={\sigma }_{c\mathrm{Th}}$. Substituting the parent solution into the second linear differential equation givesThe integrating factor is $e^{b\Phi }$. Integrating from the initial state yieldsThe first term is survival of the initial population; the second accumulates production at earlier exposures, weighted by subsequent survival. For $b=a$, the continuous limit is $(N_{U0}+c{N}_{Th0}\Phi )e^{-a\Phi }$. The same formula applies to a time-varying prescribed flux through $\Phi (t)$; intervals of zero flux leave both populations unchanged.

The production rate is ${\sigma }_{c\mathrm{Th}}\varphi N_{\mathrm{Th}}$, while depletion includes both capture and fission of the fissile population, ${\sigma }_{a\mathrm{U}}\varphi N_{\mathrm{U}}$. Thus the conversion ratio in this stipulated model isAt zero instantaneous flux this expression describes the limiting ratio of the two reaction rates. The total absorption coefficients are $a=3.08+0.02=3.10\mathrm{b}$ and $b=7.10+57.10=64.20\mathrm{b}$, soIt is below one: fissile nuclei are initially removed slightly faster than this simplified chain replaces them. Consequently this model is not initially self-replacing in fissile inventory. Inventory replacement is distinct from the instantaneous neutron balance that determines criticality.

At this point $N_{\mathrm{Th}}/N_{Th0}=0.95$, so $a\Phi =-\ln 0.95$ and $e^{-b\Phi }=0.95^{b/a}=0.345671$. The solution from part (c) givesThereforeThe fissile population has declined by about $4.51\%$ from its initial value, while the conversion ratio has decreased slightly from $0.9595$. The replacement shortfall persists over this interval. Maintaining a specified long-term fuel inventory would require replenishment or a different balance of reactions; the prescribed-flux equations alone do not establish a constant-power operating state. Intermediate decay delays and the changing neutron spectrum were excluded by the original lumped model.

Original paper: Released original PDF, physical pages62–67.

Nuclear fuel cladding has to retain the nuclear fuel and its fission products, transfer heat to the coolant, and preserve a usable mechanical geometry throughout irradiation. Those functions impose several coupled requirements.

Its neutron absorption cross section should be small: absorption in a structural tube removes neutrons without producing useful fuel fission. This is a major attraction of zirconium alloys in a thermal-spectrum nuclear reactor. Low absorption alone is insufficient, because the material must also tolerate its coolant and irradiation environment.

The tube needs adequate yield strength, fracture toughness and ductility to withstand pressure differences, handling, thermal cycling and fuel expansion. Resistance to material creep and mechanical fatigue limits progressive deformation and cracking. The design must accommodate changes in pressure and contact with the expanding fuel, including pellet-cladding mechanical interaction.

The coolant-facing surface should resist corrosion and loss of protective oxide integrity. Hydrogen uptake and hydrogen embrittlement matter for zirconium alloys; chemical compatibility with the fuel and released fission products matters on the inner surface. Resistance to stress corrosion cracking is particularly important when chemical attack and tensile loading act together.

The material should transfer heat without an excessive temperature drop, retain mechanical integrity at the relevant temperatures, and remain dimensionally acceptable under radiation damage in materials. Irradiation growth, irradiation creep, void swelling and irradiation hardening can alter clearance, stresses and coolant passages even when the unirradiated tube meets its specification.

Finally, the alloy should be manufacturable as thin, reproducible, leak-tight tubing with reliable end joints and inspectable defects. Material selection balances these requirements: increasing strength by alloying, for example, can change corrosion, neutron absorption and irradiation behavior. A high melting point by itself does not establish suitability.

For zirconium alloys, the practical upper temperature is governed by time-dependent corrosion, material creep and loss of ductility, well before bulk melting. In ordinary water-reactor service, cladding surfaces are commonly in the several-hundred-degree range, with normal operation around the low-to-mid $300{}^{\circ }\mathrm{C}$ range in a pressurized water reactor. A quoted service limit must specify alloy, coolant chemistry, exposure time, stress and accumulated hydrogen; there is no universal temperature at which every zirconium tube abruptly fails.

Increasing temperature accelerates zirconium-steam oxidation and creep. Oxide growth increases thermal resistance, and hydrogen uptake can leave a hydride-containing cladding with reduced resistance to cracking. A transient can also cause ballooning or rupture as hot material loses strength under internal pressure. Oxygen absorbed beneath the oxide stabilizes a brittle oxygen-rich region; a tube that survives the hot part of a transient can still have poor ductility during cooling and quenching.

For scale, the established US emergency-core-cooling criterion discussed by the United States Nuclear Regulatory Commission fuel-damage criteria limits peak cladding temperature to $2200{}^{\circ }\mathrm{F}$, about $1204{}^{\circ }\mathrm{C}$, together with an oxidation criterion. This is an accident-analysis criterion, rather than a proposed continuous service temperature.^[ref]

These material constraints limit allowable fuel heat flux and temperature excursions and require adequate heat removal and thermal margin. A small increase in coolant temperature or oxide thermal resistance can raise the underlying metal temperature and accelerate degradation. Alloy changes, protective coatings and alternative claddings aim to improve that margin, while still satisfying the neutronic and mechanical requirements.

The low-temperature zirconium matrix has a hexagonal close packing structure. Its crystallographic $a$ and $c$ directions therefore have different elasticity, thermal expansion and available slip systems. Producing tubing also develops a crystallographic texture, so averaging over grains does not necessarily remove these directional effects.

Different expansion along the crystal axes produces intergranular thermal stresses during temperature changes. Under load, easy dislocation glide modes may accommodate some strains much more readily than others; additional slip or crystal twinning is needed for general compatibility. Consequently strength and ductility can depend on the axial, circumferential and radial orientation of the tube.

Irradiation creates vacancies and self-interstitials that cluster into dislocation loops with different crystallographic orientations. Their anisotropic accumulation can produce irradiation growth even without external stress. Different directions can elongate or contract while the net volume change remains small. Texture turns these grain-scale strains into macroscopic length and diameter changes, bowing and stresses between constrained components. This mechanism is distinct from the added cavity volume of void swelling.

The crystallographic character of irradiation loops matters: atomistic calculations by Rory Hulse and Christopher P. Race examine several possible loop types and show that loop energy and shape depend on orientation and size. A single generic spherical-defect description therefore misses important aspects of zirconium's dimensional response.^[ref]

Hydrogen also produces direction-sensitive damage. Zirconium hydrides are brittle precipitates whose preferred orientation depends on crystal texture and stress history. Radially oriented hydrides can offer crack paths across a thin tube wall under circumferential tension. Controlling texture, hydrogen pickup and hydride orientation helps manage that risk; changing the hexagonal structure's orientation cannot by itself eliminate corrosion or irradiation damage.

At low accumulated displacements per atom, a stainless steel can undergo substantial microscopic damage while its macroscopic volume changes little. Irradiation-generated vacancies and self-interstitials recombine, reach defect sinks, or form small clusters and dislocation loops. These processes can harden the steel before a large population of growing cavities appears. Thus dimensional stability during this interval does not imply an undamaged microstructure.

Void swelling commonly has an incubation interval, a transition into appreciable swelling, and a later interval with an approximately steady swelling rate per unit dose. The transition reflects the evolution of both stable cavity nuclei and the competing sink population. Gas atoms can help stabilize small cavities, but a vacancy void need not be filled with high-pressure gas.

The driving imbalance is a vacancy supersaturation. Dislocations generally capture interstitial defects more efficiently than vacancies, giving an interstitial bias. Once stable voids exist, the resulting excess vacancy supply can enlarge them. Growing and evolving dislocation structures compete with the cavities for defects. A roughly steady balance can give an approximately linear volume increase with dose over part of the exposure range, rather than proving indefinite linear growth.

If cavities occupy a fraction $f$ of the current volume and the matrix volume is otherwise unchanged, the void swelling volume fraction relation isSince cavity volume scales as radius cubed, numerous tiny clusters and a smaller population of larger voids can have very different dimensional consequences.

The original Cawthorne-Fulton observation of voids in irradiated steel used thin-foil electron microscopy on type316 stainless steel exposed in the Dounreay Fast Reactor. It connected microscopic cavities with the dimensional-instability problem that had emerged during fast-reactor fuel development.^[ref]

Temperature controls the competition between defect creation, diffusion, recombination, sink absorption and thermal vacancy emission. Consequently void swelling is normally largest in an intermediate temperature window, whose location depends on alloy, dose rate and exposure history.

At low temperature, many generated defects lack sufficient mobility to feed a growing cavity. Considerable irradiation hardening can still occur through small defect clusters, while large-scale void growth remains limited.

At intermediate temperature, vacancies and interstitials migrate sufficiently to establish the biased defect fluxes described above. Cavity nuclei can survive and receive a net vacancy flux, producing strong swelling.

At sufficiently high temperature, thermal vacancy emission, recombination, recovery and changes in sink populations compete more strongly with vacancy absorption. Stable nucleation and net cavity growth can become less favorable. This does not imply that every radiation effect disappears: material creep, precipitation, segregation and gas-bubble evolution can remain important.

For austenitic stainless steels, the relevant range is typically several hundred degrees Celsius; an alloy-independent peak temperature is not justified. Raising the displacement dose rate changes the balance between production and thermally activated processes and can shift both the temperature window and the incubation dose. Temperatures from accelerated ion or electron experiments should therefore be interpreted together with dose rate, implantation, specimen thickness and surface-sink effects.

Reducing void swelling means delaying stable cavity growth and reducing its rate after incubation. Several approaches act on different parts of that mechanism.

Choose an alloy and initial microstructure with favorable defect sink populations. Grain boundaries, stable interfaces, precipitates and a controlled dislocation structure can remove mobile defects and promote recombination before they feed voids. The relevant quantity is sink efficiency and bias, rather than the number of visible microstructural features alone.

Cold working can increase the starting dislocation density and prolong incubation in suitable austenitic steels. Irradiation and thermal recovery can later change that structure, so an initial benefit need not persist indefinitely. Solute additions and controlled precipitation can also change vacancy mobility, defect trapping and cavity nucleation. Their effectiveness must be assessed together with corrosion, ductility and irradiation-assisted changes in composition.

Where other constraints permit, choose a more swelling-resistant material family, such as an appropriate ferritic-martensitic steel, rather than assuming every stainless steel has the response of an austenitic grade. This introduces its own tradeoffs in toughness, temperature window and compatibility.

Manage the operating temperature and accumulated dose to avoid the most unfavorable swelling regime, and account for transmutation-gas production. Neither simply minimizing temperature nor adding gas traps guarantees an improved component: the former can increase hardening and embrittlement, and gas-stabilized cavities can become nuclei for later swelling.

Useful comparisons require specimens with controlled composition and heat treatment, measured dose and temperature histories, and both dimensional measurements and transmission electron microscopy. Matching final dose alone does not establish that two irradiation conditions produce the same swelling.

An energetic neutron can collide with a lattice atom and create a primary knock-on atom. That recoil transfers energy to other atoms in a displacement cascade. Some atoms leave their normal lattice sites, creating Frenkel pairs: a vacancy and an extra atom at an interstitial position.

Many nearby defects recombine during the cascade and its thermal relaxation. The surviving point defects are therefore fewer than a simple count of all displacement events. Some defects are already clustered within the cascade; others migrate and aggregate later.

A collection of vacancies can collapse into a platelet bounded by a vacancy-type dislocation loop. An aggregation of self-interstitial atoms can create an extra atomic platelet bounded by an interstitial-type dislocation loop. The boundary is a line defect because a circuit around it has a nonzero Burgers vector. The allowed Burgers vectors and habit planes depend on the material's crystal structure and fault energies.

Loops can grow by absorbing mobile point defects, shrink by emitting or absorbing the opposite defect type, and interact with existing dislocations. Some remain faulted, while suitable loops can unfault or become part of a larger dislocation network. Repeated cascades and subsequent defect transport therefore create a population of extended defects even in material with a low initial dislocation density.

This describes the main displacement-damage mechanism. Ionizing energy deposited in a material does not automatically create the same defect population as a neutron recoil cascade; recoil spectrum, displacement thresholds and material response matter.

The resulting dislocation density reflects competing production, growth and recovery rates. The irradiation spectrum and displacement dose rate set the supply of recoil cascades and surviving point defects. Cascade structure controls the fraction born as isolated defects or clusters; equal nominal displacements per atom can therefore give different defect populations.

Temperature sets vacancy and interstitial mobilities and the rates of thermal emission and recovery. A simple radiation damage rate theory model illustrates the competition using number densities $c_i,c_v$:Here $G$ is the surviving mobile-pair production rate per volume, $K_{\mathrm{rec}}$ is the recombination coefficient, $D_i,D_v$ are diffusion coefficients, and $k_i^2,k_v^2$ are sink strengths. The model omits explicit cluster-size populations and thermal-equilibrium emission; those must be added for a quantitative description of a particular exposure.

The initial dislocation density, grain size, free surfaces, precipitates and existing cavities all change sink strengths. Dislocations can have an interstitial bias, so their capture rates for the two defect types differ. Solutes and transmutation gases alter defect binding and mobility. Crystal structure, elastic anisotropy and applied stress affect which loop orientations survive and grow.

For a number density $N_{\ell }$ of circular loops of radius $R$, their contribution to line length per volume isThus loop nucleation and loop growth both increase dislocation density, while shrinkage, annihilation and absorption at other sinks can decrease it. A change in loop count alone does not determine the change in total line density.

Schematically, ${\dot{\rho }}_d$ is a production-and-growth contribution minus recovery and annihilation. An initial rise followed by approximate saturation is possible when these balance, but the saturation value and approach rate depend on the evolving microstructure. There is no universal dislocation density fixed by dose alone.

Mixed oxide fuel begins as a specified mixture of uranium and plutonium oxides. A fuel pin develops strong radial temperature gradients during operation. The components and oxygen need not remain spatially uniform: their chemical potentials depend on temperature, local composition and oxygen-to-metal ratio.

Actinide redistribution in oxide fuel can involve thermally driven solid-state diffusion and evaporation–condensation transport across pores or a central cavity. Oxygen redistributes as well, changing local oxidation states and the relative thermodynamic tendencies of uranium- and plutonium-bearing species. Pore migration, grain growth and central-void formation couple compositional redistribution to fuel restructuring. Differential local burnup also changes composition over time.

The direction and magnitude of plutonium migration cannot be inferred from a temperature gradient alone. In particular irradiated fast-reactor pins, enrichment around a central cavity has been observed, but the result depends on stoichiometry and operating history. M. Bober and colleagues investigated thermal-diffusion and evaporation–condensation effects using autoradiographs of sections of fuel irradiated in RAPSODIE.^[ref]

Redistribution changes the radial heat generation rate and material properties. Concentrating more fissile material near an already hot region can raise local heat generation; changes in thermal conductivity and local melting behavior modify the temperature response. Gas release, pore formation and fuel–cladding contact can also change thermal resistance and mechanical loading. A spatially averaged composition can therefore underestimate a local temperature or chemical interaction.

Segregated fission products add another concern: mobile species can accumulate at colder interfaces or react with the cladding, while insoluble products form separate phases. Fuel performance must therefore track composition, temperature and microstructure together, rather than treating segregation as merely a cosmetic change in an otherwise fixed fuel.

Mitigation should reduce the driving gradients and keep the resulting material response within a demonstrated range. A uniform starting mixture and controlled pore and grain structure reduce pre-existing local compositional and thermal variations. Control of the oxygen-to-metal ratio matters because oxygen chemistry changes both transport and fuel–cladding compatibility.

Reducing peak temperature and unnecessary thermal gradients limits thermally activated redistribution and evaporation–condensation. Possible design responses include improving heat transfer, choosing suitable fuel geometry and thermal properties, and limiting local power peaking. Their benefit has to be checked against neutronic performance, mechanical constraints and changing properties during burnup.

Materials selection and interface design can reduce harmful fuel–cladding chemical interaction. Retaining a suitable gap, limiting cladding attack and accommodating gas and swelling are coupled requirements; simply suppressing one transport pathway can leave other degradation mechanisms.

Finally, use post-irradiation composition profiles and microstructural examinations to test the fuel-performance model. Measurements at different radii and axial positions can reveal whether an assumed homogeneous composition remains adequate. An observed redistribution in one fuel history does not establish a universal correction for all mixed oxide fuel. Mitigation aims at acceptable temperature, integrity and lifetime, rather than promising that every atom remains at its original radial position.

For the 2021 context, candidate improvements include modified oxide fuels and several higher-density or higher-conductivity alternatives. Their attraction and limitations should be stated together.

Doped uranium dioxide aims to improve the microstructure and behavior of a familiar oxide fuel. Controlled dopants and larger grains can change gas retention, creep and cracking. This preserves much of the oxide-fuel experience while still requiring qualification of the modified material.

Uranium silicide and uranium nitride offer high uranium loading and potentially improved thermal conductivity, which can reduce the temperature rise needed to remove a given power. Their chemical compatibility with water, irradiation stability, swelling and fission-gas behavior require assessment; a favorable fresh-fuel conductivity alone does not establish a better fuel system.

TRISO fuel uses multiple coating layers around small fuel kernels to retain fission products, particularly for high-temperature gas-cooled systems. Coating integrity, irradiation effects and heat transfer through the coated-particle compact remain central requirements. It is a different fuel architecture, rather than a simple drop-in replacement for every water-reactor pin.

The contemporary accident-tolerant fuel program also studied combinations such as doped oxide or silicide pellets with chromium-coated zirconium cladding, and silicon-carbide cladding concepts. The fuel and cladding improvements act on different failure mechanisms and must be qualified as a coupled system.^[ref]

The common aim is improved retention and thermal/mechanical performance under normal and off-normal conditions while preserving acceptable neutronics, coolant compatibility, manufacturability and end-of-life behavior. No candidate is superior on every property, and the question supplies no basis for declaring one universally optimal.

Original worked solutions cover all four printed questions, including the optional choices. The source is the University of Cambridge release at physical PDF pages 90–95; the questions occupy pages 91–94. ^[ref]

The chemical-separation answer is deliberately conceptual. Numerical answers state their accounting and gas-residence assumptions at the affected parts.

The distinction is between partitioning reusable fuel constituents from fission-product waste, and subsequently partitioning uranium from plutonium. In the first operation, chemical selectivity transfers selected actinides into a different stream while most fission products remain in the waste stream. In the second, differences in chemical speciation allow the two recovered elements to follow different streams. Neither operation separates uranium isotopes: uranium enrichment and chemical element separation are different tasks.

At a conceptual level, solvent extraction exploits unequal affinities of dissolved species for immiscible liquid phases. complexation changes those affinities, while a change in oxidation state can change an element's preferred phase without changing its identity. This explains why a stream bearing actinides can first be separated from much of its accompanying waste, and why uranium and plutonium need not subsequently remain together. Dissolved and undissolved residues, contaminated solvents and off-gases remain waste-management obligations; a recovery percentage alone is not a complete material balance.

Equipment must provide phase contact and phase disengagement within shielded, confined systems. Remotely maintained contactors and settlers are equipment categories serving those functions; sealed transfer systems, shielded cells and monitored off-gas handling limit contamination and exposure. Cooling manages residual decay heat, and nuclear material accountancy follows inventories and losses. criticality control in radioactive waste is essential because solvent extraction can redistribute fissile constituents. Scoped limitation: this answer gives the chemical principles and equipment functions; operational fissile-separation recipes, reagent sequences, contactor design details and process conditions are intentionally not supplied.

burnup refers to thermal energy per initial heavy-metal mass. Correct the electrical rating for thermal efficiency before using it, and apply the capacity factor once:Consequently the annual initial heavy-metal fuel requirement isLet $F,P,W$ be feed, enriched product and enrichment tails masses, all measured as uranium, and $x_f,x_p,x_w$ the corresponding uranium-235 mass fractions. The isotopic mass balance givesWith $P=M$, the uranium oxide concentrate requirement is thereforeThese are uranium or heavy-metal masses, not tonnes of uranium oxide. The check $327.394(0.007)=35.394(0.040)+292.000(0.003)$ closes the uranium-235 balance as well as the total mass balance.

Use the recovered uranium inventory, rather than the initial fuel mass, as the recycle feed. Its available mass isAssuming the same enrichment tails assay and the specified higher recycled-fuel assay, the isotopic mass balance givesTreat this fuel as replacing the same heavy-metal mass of ordinary fresh fuel: the stipulated higher uranium-235 content compensates for uranium-236. The displaced natural feed isabout 12.63% of the once-through natural-uranium requirement. The residual natural feed demand is $286.052\mathrm{t}\mathrm{U}\mathrm{y}{\mathrm{r}}^{-1}$.

For separative work accounting defineUsing kilograms in this expression gives kg-SWU. For ordinary fresh fuel the work per product kilogram isThe fresh work avoided by substituting $P_r$ is $23896.3\mathrm{kg}\text{-}\mathrm{SWU}\mathrm{y}{\mathrm{r}}^{-1}$, but producing that recycled product still requiresHence the net saving isThe work saving is only about 0.786% of the original annual separative work. Crediting the whole avoided fresh-fuel work without charging the recycle work would substantially overstate the saving. This is an annual resource account at the supplied assays, with no isotope-separation equipment model.

An economic threshold requires all unit costs to have an explicit mass basis. Let $p_U$ be the concentrate price per kilogram of uranium, and let $C_{\mathrm{net}}$ denote the annual incremental fabrication-and-disposal cost of the closed cycle relative to the open cycle. The break-even annual cash balance iswhere $M_{\mathrm{rep}}$ is the charged nuclear fuel reprocessing throughput in kilograms of initial heavy metal. Use $M_{\mathrm{rep}}=35393.9394$: the stated $33$ tonnes is the remaining uranium inventory, not the whole initial heavy-metal throughput. ThusIf the quoted combined $400$ dollars per kilogram is a net additional charge on that same reprocessed-HM basis, $C_{\mathrm{net}}=400M_{\mathrm{rep}}$, giving 1,196.77 dollars per kg U. Under this explicit convention, the saving in purchased separative work is small and the resource saving must pay nearly all the additional nuclear fuel reprocessing cost.

The wording does not identify the mass basis or counterfactual sign of the combined recycled-fuel and spent-fuel-disposal term. If instead $400$ dollars is a net charge per kilogram of the $4469.4375$ kg recycled product, the same balance gives 897.56 dollars per kg U. If it denotes a net avoided charge of $400$ dollars per kilogram of discharged HM, the threshold is 511.87 dollars per kg U. These are alternative accounting conventions, not three simultaneous economic thresholds; the general balance makes the ambiguity visible.

All prices here are per uranium mass, not per gross concentrate mass. This simplified comparison assigns no plutonium credit, financing, conversion-cost difference or change in repository liability, and takes the quoted charges as incremental. A closed fuel cycle can save natural uranium without being the cheaper option: at a price below the threshold under the chosen cost convention, the additional charges exceed the resource credit. No contemporary uranium-market price is needed for that conclusion.

evaporation transfers water to a vapour stream and retains mainly nonvolatile solutes in a concentrate. It can give substantial volume reduction and works across many dissolved-solute compositions. Its disadvantages are heat demand, scaling and corrosion; aerosols, entrainment or volatile radioactive species can contaminate the condensate. Condensate must therefore be sampled or monitored rather than assumed releasable, while the concentrate requires radioactive waste conditioning. A demister limits droplet carryover but does not remove a genuinely volatile contaminant.

ion exchange transfers dissolved radioactive ions to an exchanger, often an ion-exchange resin. It is useful for polishing relatively dilute aqueous streams and can provide selective removal without evaporating the bulk water. Competing inactive ions consume capacity, suspended particles foul the bed, and a neutral or poorly retained species may pass through. Breakthrough measurements determine when the exchanger ceases to meet its target; exhausted resin or regeneration liquors become secondary radioactive waste. Separation performance must be established for the actual feed chemistry, not inferred from the name of the radionuclide alone.

Chemical precipitation with solid–liquid separation uses precipitation, coprecipitation and adsorption to carry contaminants into solids, followed by settling or filtration. It can treat substantial volumes and complex feeds at moderate equipment cost. Its disadvantages are a relatively bulky sludge, incomplete removal of soluble species, and sensitivity to pH, complexation and competing ions. The sludge must be dewatered and conditioned, and the clarified liquid checked for residual radioactive activity. Polishing by another method may still be needed.

In each case, measure both the treated stream and the residue so that the radioactive inventory balance can be checked. Treatment transfers or concentrates radioactive activity; only radioactive decay reduces the number of radioactive parent nuclei. These methods and the distinction between treatment and conditioning are set out in the institutional waste-management framework.^[ref]

The useful mechanism is radioactive decay during retention, not chemical destruction of carbon dioxide. With the time in seconds,Here $a$ is a radioactive activity concentration; the supplied units are per volume rather than per mass. The original plot follows this concentration over four hours.

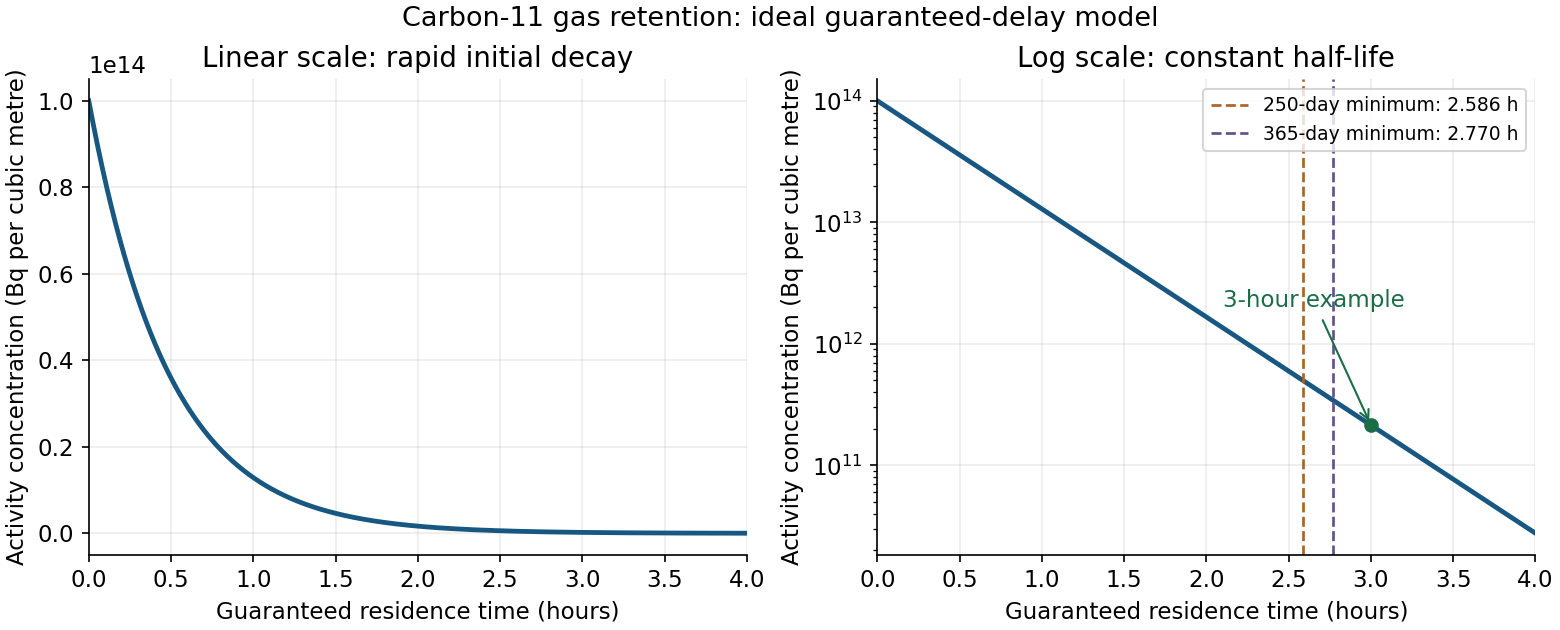

A practical illustrative choice is a three-hour guaranteed residence time, at which $a/a_0=0.00214175$, giving about a factor $467$ reduction. On a plug-flow basis, the carbon-dioxide-equivalent hold-up volume isUse a contained delay line or a validated retention arrangement that prevents early breakthrough, followed by monitored discharge. A retention bed could instead hold the radioactive carbon dioxide, but its capacity and breakthrough performance would have to be established. Gas retention and monitored discharge are waste-treatment functions, independent of the eventual use of the isotope.^[ref]

The $4.00$ L result is a flow-delay volume, not a fill-and-immediately-dump tank specification. It credits radioactive decay during the guaranteed transit time and no subsequent storage after discharge from the delay system. Gas entering a filling tank near the end of filling has not aged for the entire filling time. For a literal tank filled for $T$ and immediately emptied, the radioactive activity at emptying is insteadThat alternative must not be analysed by multiplying the whole collected inventory by $e^{-\lambda T}$. If “no post filling radioactive decay” is intended to prescribe this literal fill-and-dump arrangement, the three-hour calculation does not establish compliance for it.

The nitrogen fraction is also unspecified. If $y$ is the carbon dioxide volume fraction at the stated volume reference conditions, a gas delay line requires $V_{\mathrm{mixture}}=V_{\mathrm{C}{\mathrm{O}}_2}/y$, not necessarily $4.00$ L of physical vessel volume. The graph alone does not define a unique optimum: a cost objective, operating calendar and residence-time model are needed. Parts (c) and (d) quantify the discharge constraint for the stated guaranteed-delay design.

For six hours of operation at the maximum stated carbon-dioxide-equivalent flow, the daily input volume and untreated radioactive activity inventory areFor the three-hour guaranteed delay, every element of the incoming stream acquires the same radioactive decay factor. The radioactive activity released per operating day, attributing the delayed tail to its production day, isEven on the conservative assumption of operation on all $365$ days,so the annual discharge is below the supplied $10^{12}$ Bq limit. For $250$ operating days it is $4.279\times 10^{11}$ Bq. This sums radioactive activity inventories discharged over the year; it does not credit radioactive decay in the environment after release. It also retains the final delayed gas after production stops, rather than bypassing the retention system to empty it.

The residence-time qualification matters numerically. A single tank filled for six hours and released immediately, with radioactive decay during filling but no later hold, would containRepeating that operation on $250$ days releases $1.625\times 10^{13}$ Bq, above the limit. A well-mixed or fill-and-dump system therefore cannot inherit the plug-flow compliance result just because its nominal volume divided by flow equals the selected delay time. The total nitrogen flow and any unretained radioactive carbon species must also be included in a real measured release account.
