Barkla characteristic X-ray experiment 2026-10-18
Charles Glover Barkla's 1911 paper describes irradiating a target with an X-ray tube and observing secondary X-rays using an electroscope. For soft Characteristic X-rays from tin, he used a soft primary beam and placed the electroscope close to the target to limit loss in air. Successive aluminium absorbers changed the gas-ionization signal. Thick absorbers suppressed the soft component; a carbon radiator supplied a comparison for the surviving scattered component. Subtracting this estimated contribution left approximately equal fractional losses through successive sheets, evidence for a nearly homogeneous component. Changing primary-beam hardness could suppress excitation of the more penetrating characteristic component.[ref]
The Spectra of the Fluorescent Röntgen Radiations by Charles Glover Barkla. Barkla, The spectra of the fluorescent Röntgen radiations (1911), p. 396: soft tube, nearby electroscope, aluminium sheets, carbon comparison and subtraction
An electroscope reads loss of stored electric charge; ionization in its detecting gas enables discharge. An ionization chamber with an electrometer instead measures the collected electric charge or electric current. These are integrating readouts: neither directly assigns an energy to each arriving photon. The diagram separates these functions without claiming a surviving apparatus drawing.
The K and L components were distinguished by their penetrating power and dependence on the emitting chemical element. Barkla's Nobel lecture, delivered on 3 June 1920 for the 1917 prize, explains that absorber-defined K radiation had seemed homogeneous, whereas later diffraction experiments resolved neighbouring spectral lines in both K and L groups. Absorber tests therefore distinguished groups without resolving every line.[ref]
Characteristic Röntgen Radiation by Charles Glover Barkla. Nobel Lectures, Physics 1901–1921; Barkla, Characteristic Röntgen radiation, printed pp. 392 and 395, PDF pp. 132 and 135: lecture date and limitations of absorption analysis
Henry Gwyn Jeffreys Moseley subsequently related the frequencies of corresponding spectral lines to atomic number. The approximate relation , with series-dependent constants , is Moseley's law; its discovery should be distinguished from Barkla's identification of characteristic secondary radiation.[ref]
Moseley and X Rays by University of Oxford Department of Physics. University of Oxford Department of Physics, Moseley and X rays: Moseley's graph and the story of Moseley and X-rays
A continuous incident frequency spectrum can contribute a continuous scattered background alongside discrete Characteristic X-rays. Here “scattered” identifies a production process, not a universal spectral shape: scattering of a narrow incident line need not make a continuum. In particular, the characteristic component is photon emission after vacancy creation, rather than simply the primary beam redirected. Source hardness, target substitution and absorber thickness probe different parts of that distinction. A surviving signal alone establishes neither an additional electron shell nor a fully resolved spectral line.
Conductor in electrostatic equilibrium Created 2026-09-24 Updated 2026-10-20
A conductor in electrostatic equilibrium is an electrical conductor at rest whose mobile charge carriers have finished redistributing, with no maintained bulk electric current. In the ideal macroscopic model,A residual bulk electric field would drive further electric charge redistribution. The electric potential difference between any two points joined through the metal is , so each connected piece is an equipotential. Gauss's law then gives zero net bulk charge density. This is a statement about net macroscopic electric charge, not the absence of positive atomic nuclei and negative electrons. Excess electric charge is represented by surface charge density; atomic surface structure is outside this continuum model. [ref].
The word inside must distinguish metal from a cavity in a conductor. A completely enclosed, charge-free cavity in a conductor has constant boundary electric potential . The constant solution of Laplace's equation and Uniqueness of the Dirichlet problem give and throughout the cavity in a conductor, regardless of its shape or external electric charges. Grounding is unnecessary for this inward electrostatic shielding; an isolated enclosure can change its overall electric potential without producing an internal electric field. Zero enclosed net electric charge alone would only give zero electric flux. A positive and negative pair inside a cavity in a conductor can have zero total electric charge and a nonzero electric field. [ref].
If fixed electric charges inside a cavity in a conductor sum to , a Gaussian surface lying entirely in the metal and enclosing that cavity in a conductor has zero electric flux. Thus the total induced inner-wall electric charge is . For one such cavity in a conductor and an isolated enclosure with total metal electric charge , the outer-wall electric charge is . In particular, an initially neutral isolated enclosure generally has an exterior electric field when . For fixed internal sources, external changes only shift the constant electric potential inside an isolated enclosure, leaving the internal electric field unchanged. [ref]
https://arxiv.org/abs/1609.04248. Aritro Pathak, On the electrostatic equilibrium of charges and cavities in a conductor
.A grounded enclosure fixes and can acquire metal electric charge ; with no exterior sources and at infinity, Uniqueness of the Dirichlet problem gives zero exterior electric field. With external sources present, the exterior electric field need not vanish, but it is independent of the internal sources at fixed grounded boundary electric potential. [ref]
https://www.feynmanlectures.caltech.edu/II_05.html#Ch5-S10. Feynman, Leighton and Sands, II.5.10: shielding by a closed grounded enclosure
.Faraday's ice pail experiment makes the distinction between redistribution and transfer visible. In his letter of 4 February 1843, Faraday described an insulated pewter pail connected by wire to a gold-leaf electrometer, and a brass ball suspended on a long dry silk thread to reduce the hand's influence. He discharged the pail and charged the ball away from it. Lowering the ball without contact produced leaf divergence, which grew during entry and became approximately independent of further depth; withdrawing it collapsed the leaves. Contact with the bottom transferred electric charge, and the withdrawn ball was discharged. The readout was leaf divergence, not a direct map of the internal electric field. These observations distinguish electrostatic induction from contact transfer of electric charge. [ref]
https://physics.kenyon.edu/EarlyApparatus/Static_Electricity/Faradays_Ice_Pail/Faraday_Ice_Pail.html. Thomas B. Greenslade Jr., Faraday Ice Pail, reproducing Faraday's 1843 letter
.For a modern version of Faraday's ice pail experiment, connect an insulated inner metal pail to the signal input of a high-input-impedance electrometer, with its reference lead and an outer shield grounded. Zero and momentarily ground the pail, then isolate the signal side. Lower a charged paddle deeply without touching and record the electric potential difference; withdraw it and check return to zero. Repeat with contact, then withdrawal: a residual reading indicates transferred electric charge. Reverse the paddle's sign and repeat. The electrometer reads volts; inferring electric charge requires the effective capacitance of pail, cable and input, so a stable reading at fixed geometry is a relative measure, not automatically a value in coulombs. Keep supports clean, nearby charged objects distant, and the operator grounded; humidity can cause leakage. [ref]
https://cdn.pasco.com/product_document/Basic-Electrostatics-Sys-Manual-ES-9080B1.pdf#page=13. PASCO, Basic Electrostatics System manual, equipment description and demonstration 1A
.A complementary electrostatic shielding demonstration uses a charged hollow metal enclosure, a small metal sampling ball on an insulating handle, and an electrometer. Discharge the sampling ball between trials; touch it to the exterior, withdraw it, and transfer its collected electric charge to the electrometer. Repeat by touching the inner wall without touching the exterior during withdrawal. The exterior sample produces a response, whereas the inner sample gives a null within instrument sensitivity. This compares accessible surface responses rather than assuming a perfectly spherical enclosure. [ref]
https://www.feynmanlectures.caltech.edu/II_05.html#Ch5-S8. Feynman, Leighton and Sands, II.5.8: inner and outer sampling of a charged conductor
. Useful additional controls are an uncharged enclosure baseline, a repeat exterior sample to verify sensitivity, and repeated trials at different depths. An access hole, charged handle, leakage or disturbed surface charge density limits the inference; a null bounds detectable transfer, rather than proving an exactly zero electric field. An open pail's depth plateau tests good enclosure empirically. Neither demonstration establishes shielding of arbitrary time-dependent electromagnetic fields. Curie ionization-current measurement 2026-10-18
Marie Curie's thesis describes powdered material on the lower plate of a capacitor, biased by a battery. Radiation made the intervening air conduct. The upper plate connected to an electrometer and a loaded piezoelectric crystal of quartz. Adjusting the load supplied a known compensating electric charge while keeping the electrometer at zero; charge divided by elapsed time determined the electric current. Voltage scans identified a collection plateau. Contact potentials affected weak-field readings; excessively strong fields could instead introduce additional ionization. Fixed geometry and plateau operation made comparisons meaningful.[ref]
The null method turns a weak signal into a balance against a known quantity. In the diagram's chosen constant-current model, for givesSupplying over the same interval leaves zero net electric charge at the sensing node. The electrometer detects imbalance; the compensating-charge calibration supplies the numerical measurement.
This electric current measures collected charge produced by ionization. Converting it to becquerels additionally requires the energy deposition and charge-collection response per transformation. The apparatus can compare preparations without already possessing that complete source-to-signal calibration.
Electric charge Created 2026-09-24 Updated 2026-10-20
Electric charge is an additive, signed property of matter that determines its coupling to the electromagnetic field. Write a particle's electric charge as , or a collection's total electric charge as ; the SI unit is the coulomb, . A stationary test particle in an electric field experiences electric force , while motion adds the magnetic part of the Lorentz force. Electric charge both produces an electric field and determines the response to one. For two stationary point particles in vacuum, Coulomb's law makes like signs repel and opposite signs attract. The choice of which sign to call positive is a convention, used consistently: protons carry and electrons carry , where is the elementary charge. [ref]
https://www.feynmanlectures.caltech.edu/II_01.html. Feynman, Leighton and Sands, II.1: electrical forces, fields and the Lorentz force
.Additivity means adding signed electric charges, rather than their magnitudes:for ordinary matter containing protons, electrons, and electrically neutral neutrons. A toy collection with seven protons and ten electrons has , however much neutral material accompanies it. Charge neutrality means ; it does not mean an absence of charged constituents. Nor does it guarantee an absence of electric force: the spatial arrangement of positive and negative electric charges matters, as illustrated by an electric dipole. This makes a tiny imbalance in an otherwise nearly neutral object physically important. [ref]
https://www.feynmanlectures.caltech.edu/II_01.html#Ch1-S1. Feynman, Leighton and Sands, II.1.1: neutrality, imbalance and residual electrical forces
.Charge conservation states that a collection closed to transport of electric charge keeps its total signed . If electrons move from object A to object B without other exchange, then and ; the sum is unchanged. The amount of positive electric charge alone need not be conserved: creation of an electron and a Positron adds opposite electric charges with zero sum. These bookkeeping rules let us distinguish separation or transport of electric charge from creation of net electric charge. [ref]
https://www.feynmanlectures.caltech.edu/I_04.html#Ch4-S4. Feynman, Leighton and Sands, I.4.4: conservation of net charge
.A simple motivating experiment uses two charge-producing paddles, a conducting pail on an insulating support, a grounded outer shield and a high-input-impedance electrometer. Zero the pail, then isolate it. Rub the initially neutral paddles together, keeping their charged surfaces away from other objects. Lower each deeply into the pail without touching: the electrometer gives opposite signs. Inserting both together tests cancellation. For a separate contact test, insert one charged paddle without touching and withdraw it: the reading returns to zero. Repeat after zeroing, this time touching the inner wall before withdrawal: a residual reading shows transfer of electric charge. Zero the pail and reinsert the paddle to test how much electric charge remains on it. PASCO describes these procedures in Basic Electrostatics System manual, demonstrations 1A and 1B, printed pp. 13–16.
Electric charge redistribution versus transfer in a conducting pail

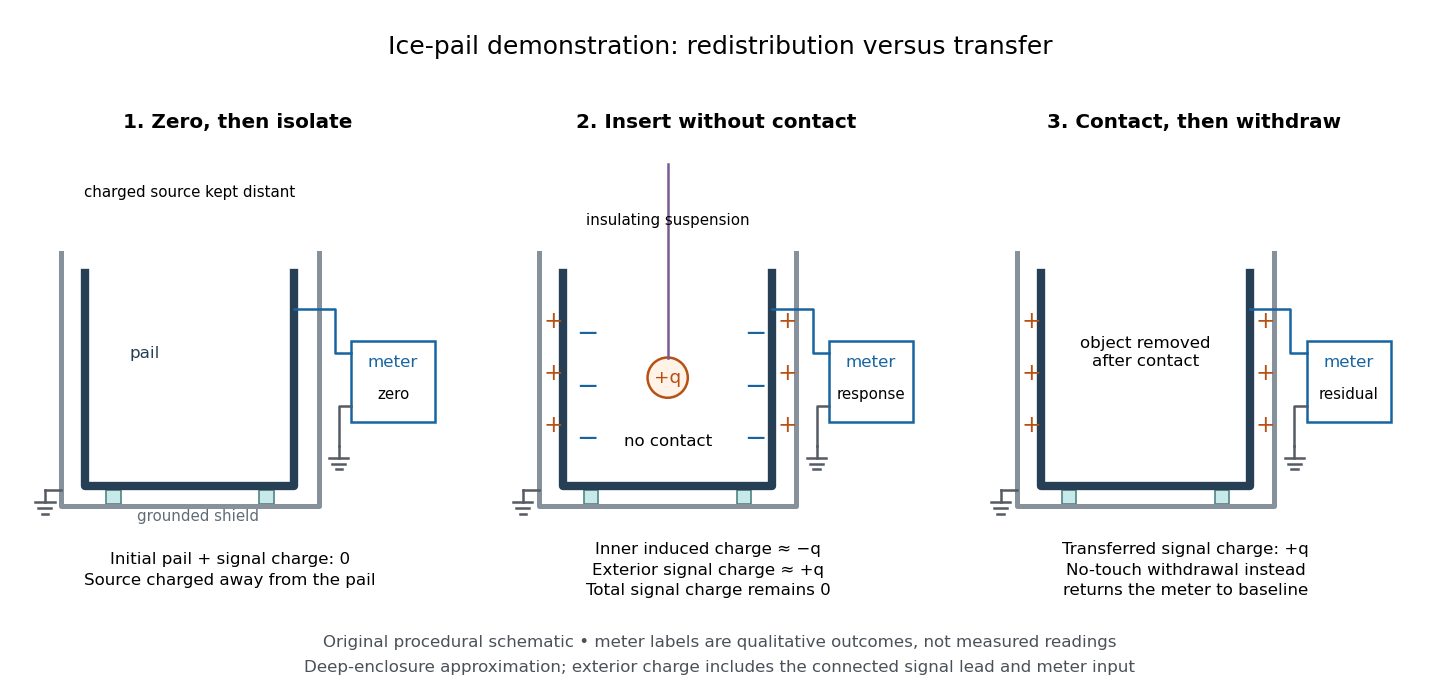

. Original qualitative schematic for a positively charged inserted object. Without contact, electrostatic induction separates negative inner-surface and positive outer-surface electric charges, while the pail's total remains zero. Contact can leave net positive electric charge after withdrawal. Symbols are not particle counts; no measured readings are plotted. Source. Details.The crucial control is withdrawal without contact: a response during insertion can come from electrostatic induction, which redistributes the pail's existing electric charge. In the fixed-geometry approximation, the electrometer measures electric potential difference proportional to enclosed electric charge, with conversion set by effective capacitance; a voltage reading is not already a measurement in coulombs. Opposite readings and their cancellation test additivity and charge conservation within resolution. Leakage or accidental contact spoils that interpretation, and contact need not transfer all the paddle's electric charge. This macroscopic experiment cannot resolve elementary charge steps: that requires the much smaller particles of the oil drop experiment.
Electrometer Created 2026-10-14 Updated 2026-10-18
An electrometer measures small electric potential differences or electric charges while drawing very little electric current. The conducting-pail experiment in electric charge uses a voltage response to infer electric charge with a fixed effective capacitance.
Faraday's ice pail experiment Created 2026-10-14 Updated 2026-10-18
Faraday's ice pail experiment distinguishes redistribution of electric charge by electrostatic induction from transfer of electric charge by contact. Lower a charged body into an initially neutral isolated metal pail: an externally connected electrometer responds even though the body never touches the metal. Withdraw the body without contact and the response disappears. Repeat with conductive contact before withdrawal and a residual response can remain. The striking point is that an exterior response does not establish that the pail has gained net electric charge.
Apparatus and readout. A modern implementation uses two concentric wire-mesh cylinders: a 10 cm diameter, 15 cm high inner pail on insulating rods and a grounded outer shield. Connect the electrometer's signal lead to the inner pail and its reference lead to the shield. Momentarily ground and zero the signal assembly, then isolate it; the shield remains grounded. A charged disk on an insulating handle goes into the lower half without touching. The electrometer measures electric potential difference in volts, with sign determined by the lead connections. It does not directly measure electric charge in coulombs.[ref]
Basic Electrostatics System (ES-9080B), Instruction Manual 012-07227G by Cecilia Hernandez. Basic Electrostatics System, instruction manual 012-07227G, printed pp. 9–10, 13–15, Figure 1.1 and Procedure 1A
Faraday's ice pail experiment: apparatus and isolated versus grounded electric charge accounting
. Original qualitative schematics. The open pail approximates enclosure; the two closed cavity in a conductor panels stipulate exact enclosure, electrostatic equilibrium, no exterior sources and zero electric potential at infinity. Signs denote total electric charges, not a measured or uniform surface charge density. Details.A charge ledger before contact. To separate exact reasoning from the open apparatus, first idealize the pail as a closed cavity in a conductor with one internal body of total electric charge . Let the isolated metal have total electric charge . The metal's electric field is zero at electrostatic equilibrium.[ref]
Ideal Conductors. Richard Fitzpatrick, Ideal Conductors, equations 2.124–2.126: zero field and constant potential in metal
A Gaussian surface enclosing the cavity in a conductor but lying wholly in the metal therefore has zero electric flux. Gauss's law and charge conservation giveFor and , the inner-wall total is and the outer-wall total is : the metal remains neutral. The exterior electric field can therefore be nonzero without any transfer from the body. The connected electrometer and signal cable belong to the same isolated conducting assembly and share its exterior electric charge. The zero-electric field assertion concerns metal, not the occupied cavity in a conductor.This ledger fixes totals, not the local surface charge density. Moving an off-center body changes the inner-wall distribution while its integral remains . With fixed outer geometry, fixed and unchanged exterior sources, Uniqueness of the Dirichlet problem together with the fixed total outer electric charge determines the same exterior solution: the outside cannot reveal the body's position or detailed internal distribution. For example, internal bodies with stipulated electric charges and give the same total exterior response as a single body with . Internal bodies with and can give a null exterior response while retaining a nonzero internal electric field. This is why a null reading cannot establish an empty cavity in a conductor.
Withdrawal is the control. Record a baseline, insert without contact, withdraw, and check return to baseline. After a fresh zero, repeat with the charged disk touching the inner wall, then withdraw and record the residual response. Finally zero the pail and reinsert the disk without contact to test remaining electric charge. Keep the operator grounded, discharge unwanted handle electric charge, and keep the unused charged disk distant. Dirty supports and humidity promote leakage. These controls separate transfer from electrostatic induction and stray coupling.[ref]
Basic Electrostatics System (ES-9080B), Instruction Manual 012-07227G by Cecilia Hernandez. Basic Electrostatics System, instruction manual 012-07227G, printed pp. 4–5 and 14–15, Procedure 1A steps 3–8: handle charge, withdrawal, contact and disk retest
In the ideal contact test, the internal body is itself an electrical conductor and makes a conducting connection to the wall. After charge relaxation, body and enclosure become a single equipotential; the remaining charge-free void has zero electric field. The body then carries no excess electric charge on surfaces facing that void. Withdrawal without subsequent charging leaves total metal electric charge . A coated paddle can retain electric charge on insulating patches, so merely touching it does not guarantee complete transfer. A residual reading establishes some transfer under the controls; the disk retest checks the stronger claim of complete transfer. The ideal argument assumes no leakage and no relevant contact-generated charging.
Grounding changes the ledger. With no exterior sources and zero electric potential at infinity, a closed grounded enclosure has zero exterior electric field, inner-wall electric charge and zero outer-wall electric charge.[ref]
The Feynman Lectures on Physics, Volume II by Richard Feynman and others. II.5, §5–10, final shielding argument: a closed grounded conducting shell separates the two electrostatic problems
Consequently, disconnecting ground before withdrawal retains total metal electric charge , which moves to the exterior after withdrawal. Keeping ground connected during withdrawal instead restores zero electric charge. A lasting opposite-sign response can therefore arise through grounding without body–wall contact.For the real open pail, no Gaussian surface lying wholly in metal closes over the mouth. Increasing insertion depth and seeking a stable response tests whether enclosure is a good approximation; mesh openings, rim proximity and nearby objects limit it. In a fixed-geometry approximation, the positive insertion response obeys , where is the effective capacitance of the pail, shield, cable and electrometer input. Changed geometry changes that conversion. Wait for charge relaxation and instrument settling at each step, while keeping the observation short compared with leakage. The experiment probes settled electrostatics; it does not establish shielding against arbitrary changing electromagnetic fields.
Gas-efflux test of charge neutrality 2026-10-18
A sensitive charge neutrality test lets nominally neutral gas escape from an electrically isolated vessel connected to an electrometer. A net charge per escaping molecule would leave a measurable opposite charge on the vessel. Removing stray ions and charged particles is essential. Hydrogen and helium measurements constrain charge imbalance despite different particle binding and internal motions, providing evidence for velocity-independent additive charge rather than a charge proportional to relativistic particle energy. The 1960 experiment used this efflux principle. [ref]
Hess cosmic-ray balloon experiment 2026-10-18
Victor Franz Hess's 1912 series used two sealed, 3-mm-walled ionization chambers with Theodor Wulf's fiber electrometers. Karl Bergwitz suggested internal plating; Günther & Tegetmeyer improved focusing. Basket-mounted ground comparisons, insulation-loss measurements, simultaneous detectors and barograph-derived heights supplied checks. The highest flight reached 5350 m; its comparisons came from Vienna and after landing, without a launch-site baseline.[ref]
Über Beobachtungen der durchdringenden Strahlung bei sieben Freiballonfahrten by Victor Franz Hess. 1912, pp.1084-1085 apparatus and preparations; pp.1087-1088 seventh flight; English primary-text translation arxiv.org/pdf/1808.02927 pp.1-2, 5-6
A third, thin-walled chamber admitted ambient air. Hess multiplied its readings by , with pressure in millimeters of mercury, warning that vessel-wall contributions might violate this scaling. He recorded outside temperature but applied no absolute-temperature correction. Night flights, an eclipse and weather observations constrained alternatives to radiation from above; the eclipse argument addressed directly propagating solar radiation.[ref]
Über Beobachtungen der durchdringenden Strahlung bei sieben Freiballonfahrten by Victor Franz Hess. 1912, p.1085 pressure reduction; p.1086 eclipse; p.1088 temperature footnote; pp.1090-1091 inference; English translation pp.2-3, 6-8
The electrometers read gradual electric potential loss caused by continuing air ionization. The low-altitude dip and strong high-altitude rise favored an extraterrestrial contribution, without measuring proton composition.[ref]
Über Beobachtungen der durchdringenden Strahlung bei sieben Freiballonfahrten by Victor Franz Hess. 1912, pp.1089-1091 altitude averages and interpretation; English translation pp.7-8
An ionization chamber integrates electric charge: one energetic particle may create many ion pairs, several particles may contribute to one reading, and a photon can create charged particles in the gas or walls. A voltage-loss reading is therefore neither a count of primary cosmic rays nor a chemical analysis of them.Domenico Pacini supplied independent evidence: in June 1911 he compared a copper-box-enclosed electroscope at the sea surface and 3 m underwater, more than 300 m offshore above an 8-m-deep seabed. Reduced underwater ionization, stable electrical loss between runs, and a lake comparison supported an external contribution independent of soil radioactive decay. Water provided shielding; this established a different constraint from Hess's altitude comparison.[ref]
La radiazione penetrante alla superficie ed in seno alle acque by Domenico Pacini. Pacini's 1912 report, English translation pp.3-5, especially surface/underwater comparison and residual-ionization discussion; original Italian facsimile pp.9-14
From air ionization to electrometer discharge
. Original functional schematic and invented readout example for the ionization-chamber charge-loss model. The chamber drawing is not a dimensional reconstruction, and the plotted voltage traces are not Hess's measurements. Details. Ionization-chamber charge-loss model 2026-10-18
An elementary ionization-chamber charge-loss model makes the inference explicit. Let a positively charged electrode and its electrometer have effective capacitance , electric potential difference , and enclosed gas volume . Assume constant , a short enough interval that collection conditions remain stable, and no multiplication of charge in the gas. If ionization produces ion pairs per unit volume per unit time and a fraction is collected, thenHere is the elementary charge and is the parasitic electric current through imperfect insulation. Each fully collected ion pair transfers one elementary charge through the measuring circuit; counting its two opposite carriers as two transfers would introduce a factor-of-two error. The relation follows from charge conservation, rather than from a model of the incoming particle's identity.
For an invented example, take , , , a measured fall of , and a separately determined leakage-equivalent fall of . The leakage-subtracted fall is , soThis is about collected ion pairs per second throughout the chamber, not that many primary cosmic rays. Unknown collection losses make another uncertainty; changes in capacitance would require differentiating with both factors variable.
Gas density is a separate issue. Under a fixed radiation field, fixed gas composition and approximately constant energy deposited per unit gas mass, the volume-based ionization rate scales as . For a vented ionization chamber, the ideal gas law gives the illustrative correctionwhere is absolute temperature. A pressure-only correction presumes equal temperature. A sealed rigid chamber instead fixes gas number density as it rises: its internal pressure may change with temperature without losing gas. This does not make its insulation, electrometer calibration or collection efficiency insensitive to temperature. Nor can dividing by gas density correct arbitrary radiation from the vessel walls or changing particle energies. Those are distinct effects, not a universal normalization recipe.
Lawrence-Livingston cyclotron experiment Created 2026-10-18 Updated 2026-10-20
Ernest Orlando Lawrence and Milton Stanley Livingston reported repeated ion acceleration in 1932. Their evacuated brass chamber used one driven hollow cyclotron dee; the grounded box and slotted divider supplied the other electrode. Filament electrons ionized hydrogen near the gap. A perpendicular magnetic field bent the ions; a high-frequency oscillator drove the gap. Deflecting plates and slits selected particles for a Faraday cup, read by an electrometer.[ref]
The Production of High Speed Light Ions Without the Use of High Voltages by Ernest Orlando Lawrence and Milton Stanley Livingston. Lawrence and Livingston, 1932, pp. 25–28, Figs. 2–4: actual accelerating electrode, source, collector and oscillator
Scanning the magnetic field produced narrow resonance peaks. The optimum deflecting voltage tracked the kinetic energy predicted from field and orbit radius, supporting the reported protons. Source width and slit geometry limited this check; it was not a direct energy measurement of every particle.[ref]
The Production of High Speed Light Ions Without the Use of High Voltages by Ernest Orlando Lawrence and Milton Stanley Livingston. pp. 31–33, Figs. 7–9: resonance scans, field and wavelength measurements, deflection-voltage energy check and geometric uncertainty; p. 19: maximum reported proton energy
This combination distinguishes producing a circulating electric current from establishing its kinetic energy. The electrometer measures collected electric charge per unit time; it cannot by itself tell whether the collected particles are fast. The separate deflection selection supplies a speed-dependent test. Agreement of two consequences of the model, the cyclotron resonance condition and the cyclotron energy and orbit radius relation, makes the inference stronger than either a current signal or a predicted orbit alone.
Milton Stanley Livingston built the early cyclotrons with Ernest Orlando Lawrence; the 1939 Nobel Prize in Physics went to Ernest Orlando Lawrence. His lecture, The evolution of the cyclotron, was delivered on 11 December 1951.[ref]
More Timelines by Lawrence Livermore National Laboratory. Ernest Lawrence entry: 1939 prize and delayed lecture on 11 December 1951
[ref]M. Stanley Livingston by Fermilab. M. Stanley Livingston: co-inventor of the cyclotron and early Berkeley work
Millikan photoelectric experiment Created 2026-10-18 Updated 2026-10-20
Robert Andrews Millikan's 1916 experiment used a magnetically turned wheel and rotary knife to expose sodium or lithium in vacuum. A surrounding copper-gauze/solid-copper collector caught electrons; an electrometer recorded accumulated electric charge over thirty seconds at each applied voltage. He located endpoints graphically from photocurrent curves. Mercury spectral lines, selected by a monochromator and filters, controlled frequency; rejecting shorter-wavelength contamination protected the endpoint. An oxidized collector suppressed reverse emission for selected lines. A copper test plate measured the contact potential difference by a displacement-null method; a certified voltmeter set the electrical scale. He compared stable-surface sweeps with rapid alternating-frequency measurements to control drift. The slope tested ; the threshold required the contact correction. His gauge did not measure mercury vapor. Confirmation of the equation coexisted with his continued skepticism about localized light quanta.[ref]
A Direct Photoelectric Determination of Planck's h by Robert Andrews Millikan. §§2–3, pp. 361–367, Figs. 1–3; §4, pp. 372–375, Figs. 5–6; §5, p. 380; Theories of photo emission, pp. 383–385; publication verified by Caltech record 45t7b-bvc23: March 1916, Physical Review 7(3), 355–388
What Millikan photoelectric experiment controls and reads out
. Original functional reconstruction of the 1916 apparatus. Successive operations are separated and geometry rearranged; this is not a scale drawing. Source. Details.For a modern repetition of the logic, first establish electrical zero with the illumination blocked, characterize leakage, and verify the voltmeter scale independently of the presumed Planck constant. Scan several voltages near each endpoint rather than calling one noisy zero a cutoff. Hold the illuminated area and surface state fixed when varying light intensity; vary frequency independently when testing the slope. Repeating a reference frequency between other readings reveals time-dependent offsets. Agreement of a slope with tests an energy relation; it does not alone identify every microscopic step of photon absorption and escape.
Past exam of the optics and electrodynamics course of the University of Cambridge 2018 Section B B4 Four-vectors and experimental charge invariance Created 2026-10-18 Updated 2026-10-20
A Lorentz four-vector is a set of four components transforming as under a Lorentz transformation. Examples include the four-position and four-velocity. A Lorentz invariant is a quantity unchanged by that transformation. With metric signature , the scalar product is invariant. The components of a four-vector are generally not individually invariant.
The proton's total electric charge is taken to be a scalar: it does not acquire a factor when the proton moves. Experimental evidence comes from sensitive charge neutrality tests of matter. Hydrogen molecules and helium atoms remain neutral despite different binding and internal electron and nuclear motions. If constituent charge scaled with kinetic energy as relativistic mass does, the same cancellation of fixed numbers of proton and electron charges would generally fail in different bound systems.
In a gas-efflux test of charge neutrality, gas escapes from an electrically isolated vessel connected to an electrometer. Any net charge per escaping molecule would leave a measurable opposite vessel charge, after residual ions and charged contaminants are removed. The hydrogen/helium efflux experiment supports velocity-independent additive charge. [ref]
https://doi.org/10.1103/PhysRevLett.5.562. Search for a Small Charge Carried by Molecules (1960), hydrogen and helium efflux measurements
This is evidence for charge invariance, not merely conservation of electric charge: the latter concerns constancy during a process, while invariance compares descriptions or internal motions without rescaling charge by a boost factor. Net-matter neutrality constrains combinations of constituent charges; it should not be described as an exact proof covering every possible velocity-dependent microscopic model.
Past exam of the physics B course of the University of Cambridge 2015 Paper 1 Section B B7 Solution 2026-10-20
The differential form of Faraday's law of induction isBy Stokes theorem, for a stationary oriented circuit it becomes , where is magnetic flux and is electromotive force. Circuit orientation and surface normal obey the right-hand rule. Lenz's law is the physical meaning of the minus sign: the induced current's magnetic field opposes the change in linked magnetic flux. For a moving circuit, the force per unit electric charge is , and its line integral is the corresponding electromotive force. Motion through a static magnetic field can therefore induce a voltage even when .
Let be the wire's angle from the downward vertical, , and choose and upward, as in the figure. The motional term along the wire has radial component at cylindrical radius . In steady electrical equilibrium, integrating from the grounded axis to the bob givesThe Lorentz force on this positive electric charge is radially outward. Its ratio to the required centripetal term is , so the stated heavy-bob condition makes its effect on the zero-field conical pendulum geometry negligible. With wire tension , and , giving . Hence the magnetically charged conical pendulum hasA nonzero-radius orbit requires . Reversing the sense of rotation or the magnetic field reverses the sign of .
The response to the added electric field requires an electrical convention. In the usual mechanical approximation, treat the pre-existing electric charge as , include its upward electric force , and neglect all magnetic-force feedback. ThenThis predicts an increased radius for . It is the result when the newly applied field is used only as a probe force on the original electric charge.
There is a first-order qualification if the bob remains electrically connected to the grounded pivot and the uniform added field's potential is included consistently. Put and set the external electric potential to zero at the pivot. The external potential at the bob is then , so the charging relation and full force balance becomeThe second equation follows by eliminating the wire tension between vertical balance and radial balance, including the outward magnetic Lorentz force. Expanding both equations to first order in , and to leading order in , with , givesThe extra factor arises from the added field changing by and therefore changing the radial magnetic force. That term is linear in too; the heavy-bob assumption alone does not justify retaining while dropping it. The two expressions refer to the two electrical approximations just specified. The expansion requires a small change relative to the initial radius and is nonuniform as that radius tends to zero.
For an electrical measurement, route the grounded connection through a sensitive electrometer operated near zero input voltage, and integrate the charging electric current when or is changed. Starting with the field off, the transferred electric charge is in this ideal capacitance model. Reversing separates the induced signal from offsets. Alternatively, isolate the charged bob briefly and measure its electric potential with a high-input-impedance electrometer, accounting for the instrument's extra capacitance and for the fact that isolation changes the electrical boundary condition.
Pierre Curie Created 2026-10-18 Updated 2026-10-31
A physicist who investigated magnetism, piezoelectricity and radioactivity. He built delicate balances, electrometers and piezoelectric crystals; this work on instruments helped make weak electrical effects measurable. With Marie Curie, he investigated radioactive substances under difficult laboratory conditions. The Curie ionization-current measurement illustrates how such instrumentation can turn a small signal into a quantitative comparison.[ref]
Pierre Curie - Biographical. Nobel Lectures, Physics 1901–1921; Biographical identity and professional specialization
Portrait of Pierre Curie
. Source. Pycnometer density measurement 2026-10-14
A pycnometer makes the distinction between mass and mass density experimentally tangible. NIST's 1994 report describes a glass vessel with filling capillaries, wire plugs and a covered overflow bowl in a controlled water bath. The operators soaked a pure-water filling to establish the bath temperature, dried the outside, then left it overnight in the balance enclosure to reach thermal equilibrium before weighing. Empty and full force-restoration balance readings, together with known water mass density, calibrated its capacity at the bath temperature. A tin-oxide coating suppressed stray electric charge; an electrometer detected none during use. The authors distinguish bath and weighing temperatures and correct for buoyancy and changes of displacement volume. Capacity and water-reference uncertainties carry into later liquid mass density determinations. Their pycnometer data were not yet analyzed, so this account provides no measured density or achieved precision.[ref]
The Electronic Balance and Some Gravimetric Applications (The Density of Solids and Liquids, Pycnometry and Mass) by Randall M. Schoonover and others. The Electronic Balance and Some Gravimetric Applications (The Density of Solids and Liquids, Pycnometry and Mass), NISTIR 5375, printed pp. 313–316, “Pycnometer Calibration”, Figure 5 and “Pycnometer Application”; p. 315 states that pycnometer data had not yet been analyzed
The ideal accounting behind this measurement calibration can be derived without numerical observations. Let denote corrected masses of the empty vessel, water-filled vessel and sample-filled vessel. At the same filling temperature, with known reference water mass density and reproducibly filled volume ,The empty-vessel subtraction removes vessel mass; the water filling sets volume. Doubling for the same uniform sample doubles the sample mass increment but preserves . Uncorrected balance indications, trapped bubbles, incomplete filling or unequal filling temperatures break the simple identification with corrected mass and a common . This explains why replication is a statement about comparable states rather than arbitrary instrument readings.
