For the routine examples here, assign all bonding Electrons between different chemical elements to the more electronegative partner; divide bonding Electrons between identical chemical elements equally. Retain each lone pair on its original chemical atom. Subtract the assigned valence electron count $N_i^{\mathrm{assigned}}$ from the neutral chemical atom's valence electron count $v_i$. The IUPAC convention uses Allen electronegativity, based on free-chemical atom valence electron energies. Close electronegativity comparisons and some reversibly bound chemical compounds require care beyond this simple rule.^[ref]

The examples explain exceptions to memorized rules:

These drawings record allocations, not molecular geometry or a physical process of breaking the chemical bonds. In particular, the O–O line in the molecular oxygen panel only marks the connection; it does not assert a complete Lewis structure or spin state.

Before calculating electronic energy, ask a simpler question: where can the available valence electrons go? A Lewis structure makes that budget visible, and nitrate shows why a correct budget can still require several resonance structures.

A Lewis structure records which chemical atoms are connected in a molecule or ion and how its valence electrons are allocated. One line represents one bond pair, two lines two bond pairs, and three lines three bond pairs; two dots beside a chemical atom represent one lone pair. The marks are a counting language, rather than measured Electron positions. See the IUPAC Gold Book, Lewis formula.

For water, ${\mathrm{H}}_2\mathrm{O}$, the budget is $6+2\times 1=8$ valence electrons. Two O–H lines use four Electrons; the other four form two lone pairs on oxygen. For ammonia, ${\mathrm{NH}}_3$, $5+3\times 1=8$ valence electrons give three N–H lines and one lone pair on nitrogen. Both molecules contain four electron pairs, but their allocations differ. Each shared bond pair is counted once in the total budget, even though both endpoints count it when checking the octet rule.

A practical construction method is:

For carbon dioxide, $4+2\times 6=16$ valence electrons. Starting with two single C–O connections leaves twelve Electrons, enough for three lone pairs on each oxygen, but only four Electrons around carbon. Converting one lone pair from each oxygen into a second bond pair gives $\mathrm{O}=\mathrm{C}=\mathrm{O}$. Eight Electrons are in the four bond pairs, and eight are in four lone pairs, two on each oxygen. Carbon has no lone pair; all three chemical atoms satisfy the octet rule, and all three formal charges vanish.

For the nitrate ion, ${\mathrm{NO}}_3^{-}$, the valence electron budget isNitrogen contributes five, the three oxygen chemical atoms contribute eighteen, and the negative electric charge adds one Electron. Start with nitrogen connected to each oxygen by one bond pair: those three lines use six Electrons. Put the remaining eighteen Electrons into three lone pairs on each oxygen. Each oxygen now satisfies the octet rule, but nitrogen counts only six Electrons. Reassign one oxygen lone pair as a second bond pair on its N–O connection. This changes the allocation without adding an Electron; it applies the construction procedure in Flowers et al., Chemistry 2e, 7.3: drawing Lewis structures.

The resulting nitrate Lewis structure has one N=O connection and two N–O connections. Its four bond pairs use eight Electrons, and its eight lone pairs use sixteen: $8+16=24$. The doubly connected oxygen has two lone pairs; each singly connected oxygen has three; nitrogen has none. All four chemical atoms satisfy the octet rule. Any of the three oxygen chemical atoms can supply the additional bond pair, giving the three equivalent resonance structures below.

Why not draw three N=O connections to make the ion look symmetric? With two lone pairs on each oxygen, that drawing still spends $12+12=24$ Electrons and has the right total formal charge, but places twelve Electrons around nitrogen. It fails the octet rule for this second-period chemical element. Three equivalent resonance structures express the symmetry without that invalid local count.

The economy is beautiful: a handful of dots and lines rules out many impossible counts and identifies lone pairs that can participate in acid-base chemistry. A Lewis structure helps choose rational candidate connections before a detailed quantum chemistry calculation. It does not specify a complete many-Electron wavefunction, actual electron density, or molecular geometry. Adding the separate VSEPR model, described in Chemistry 2e, 7.6: molecular structure and polarity, predicts bent water and pyramidal ammonia; the layouts above alone make no such prediction. Molecular orbital theory supplies a richer electronic description, including the unpaired Electrons of molecular oxygen that an all-paired Lewis structure misses.

In 1916 Gilbert N. Lewis proposed two-dot notation for the shared Electrons of a chemical bond and fuller dot formulae for the outer Electrons, explicitly relating a shared pair to the existing single-line notation. See Lewis, The Atom and the Molecule, JACS 38, 762–785 (1916), pp. 777–778, available as an ^[ref]; the relevant passage is also readable in a ^[ref]. The modern quantum mechanics interpretation should be distinguished from his historical model of fixed outer Electrons.

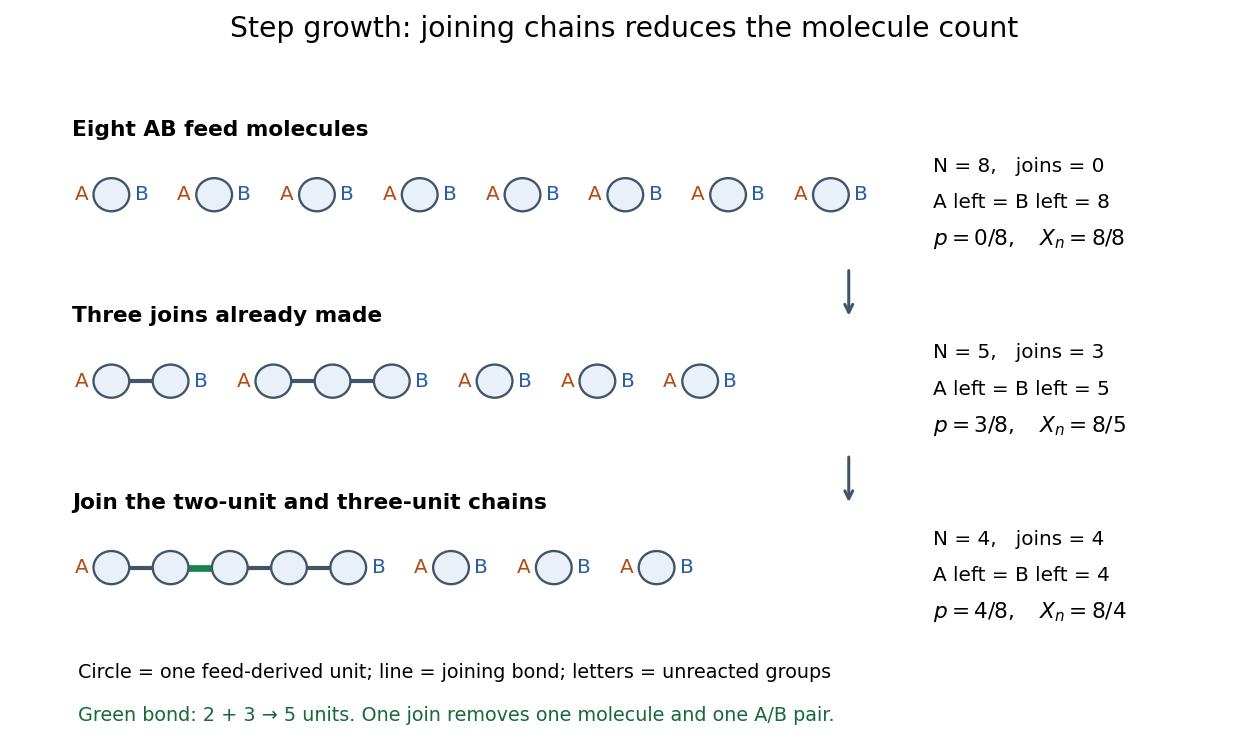

Use an ideal feed in which every starting molecule has exactly two suitable functional groups: either one $A$ and one $B$, or two $A$ groups mixed with two $B$ groups. Only an $A$–$B$ pairing can form a joining chemical bond. Assume no loss of feed-derived material, no splitting of chains, no competing consumption of the counted functional groups, no branching, and no cyclization in step-growth polymerization. Linear here describes connectivity; a chain can bend in space. Small byproducts of polycondensation do not enter the chain-bearing molecule count.

Let $N_0$ count all initial feed molecules, $J$ the number of intermolecular joins, and $N$ all remaining chain-bearing molecules, including unreacted monomers. Each join turns two molecules into one, so $N=N_0-J$ exactly. If chain $i$ contains $j_i$ feed-derived monomeric units, conservation gives ${\sum }_{i=1}^N{j}_i=N_0$. Consequently the number-average degree of polymerization isThis is a count of both feed species' monomeric units, rather than a count of interior constitutional repeating units. For $AA+BB$ chemistry an interior repeat often contains two feed-derived units, as explained in monomer. Equal functional group reactivities are not needed for this bookkeeping at a specified $J$; predicting a time course or a chain-length probability distribution requires additional assumptions.

For the figure's eight $AB$ feed molecules, three joins can give lengths $(2,3,1,1,1)$, so $N=5$ and $X_n=8/5$. Joining the first two chains gives $(5,1,1,1)$: the incorporated total stays eight, $N$ becomes four, and $X_n=2$. A graph makes the bookkeeping visible: each starting monomer molecule is a vertex of a graph, and each intermolecular joining chemical bond connects two previously distinct connected components of a graph. The connected pieces are the counted molecules.

Molecular dipole cancellation occurs when nonzero contributions to a molecule's electric dipole moment cancel under vector addition. In a bond dipole model, use ${\mathbf{p}}_{\mathrm{mol}}={\sum }_b{\mathbf{p}}_b$; adding magnitudes instead discards the molecular geometry. A symmetric linear molecule with two equivalent opposed bond dipoles has ${\mathbf{p}}_1=p_0\hat{\mathbf{x}}$ and ${\mathbf{p}}_2=-p_0\hat{\mathbf{x}}$, hence zero total electric dipole moment even though each chemical bond is polarized. Carbon dioxide provides the familiar molecular example; water's bent molecular geometry permits a nonzero total.^[ref]

For an original geometry calculation, give a fictitious three-site model $A{B}_2$ a central effective electric charge $+2q$ at the origin and two terminal electric charges $-q$ atHere $r$ is the stipulated bond length, $\theta$ the angle between the two connections, and $q>0$ is independent of any electronegativity scale. Equivalently, split the central $+2q$ into two colocated $+q$ contributions, one for each neutral bond dipole. With $p_0=qr$, the physical electric dipole moments point from the terminal sites towards the central site:The sideways components cancel; the components along the angle bisector add. Thus $|{\mathbf{p}}_{\mathrm{mol}}|=2p_0\cos (\theta /2)$. At $\theta =180^{\circ }$ the result is zero; at the stipulated $\theta =120^{\circ }$ it is exactly $p_0$. This is an angle example for a model, not the measured angle or electric dipole moment of water.

Opposition alone is insufficient: a linear molecule with unequal opposed bond dipoles of magnitudes $p_1$ and $p_2$ retains magnitude $|p_1-p_2|$. Conversely, symmetry can enforce exact cancellation beyond a particular bond dipole partition. If the complete charge density invariant under point reflection about the origin satisfies $\rho (\mathbf{r})=\rho (-\mathbf{r})$, contributions to $\int \mathbf{r}\rho (\mathbf{r})d^{3}r$ cancel in pairs. That proof uses the whole electric charge distribution, including lone pairs and atomic nuclei. It explains why molecular symmetry is stronger evidence for zero permanent electric dipole moment than a rule based only on tabulated electronegativity differences.

A permanent molecular electric dipole moment is specified relative to the molecule's orientation. An ensemble with random orientations can have zero mean laboratory vector while each molecule is polar. That orientational average differs from internal molecular dipole cancellation. The Stark effect and molecular beam electric resonance probe molecular electric dipole moments through state-dependent responses to an electric field.

A molecular formula gives the number of chemical atoms of each chemical element in a molecule. For urea, ${\mathrm{CH}}_4{\mathrm{N}}_2\mathrm{O}$ counts one carbon, four hydrogen, two nitrogen and one oxygen chemical atom. It records composition rather than the arrangement of chemical bonds.

Why do methane, ammonia, and water have different shapes when each central chemical atom is surrounded by eight valence electrons? The answer separates the positions of atomic nuclei from the electron domains used in a VSEPR model.

Molecular geometry describes the three-dimensional arrangement of the atomic nuclei in a molecule, including bond lengths and bond angles. For a larger molecule, a shape name often describes just the neighbours of one central chemical atom. A Lewis structure records connections and electron bookkeeping; its flat layout does not fix molecular geometry.

In the VSEPR model, electron pair geometry includes both bonding electron domains and lone pairs, whereas molecular geometry counts only the chemical atoms. In methane, four bond pairs and no lone pairs give tetrahedral molecular geometry. In ammonia, three bond pairs and one lone pair give trigonal pyramidal molecular geometry. In water, two bond pairs and two lone pairs give bent molecular geometry. All three use the same ideal tetrahedral electron pair geometry; this does not make their actual bond angles equal. See Flowers, Theopold, Langley and Robinson, Chemistry 2e, §7.6: electron-pair and molecular geometries.

A static drawing also needs a physical interpretation. The atomic nuclei undergo oscillations; an arrangement at a minimum of potential energy and an experimentally averaged arrangement need not have identical bond lengths or bond angles. This distinction matters when comparing measurements with quantum mechanics calculations; see the IUPAC Gold Book: experimental bond-length conventions. Gas electron diffraction gives a concrete route from a laboratory signal to molecular geometry rather than inferring shape from a drawing alone.

Molecular orbital theory describes the electronic arrangement of a molecule using molecular orbitals: one-Electron spatial wavefunctions extending over the combined atomic nuclei. Filling bonding molecular orbitals can stabilize a chemical bond; filling antibonding molecular orbitals opposes that stabilization. A molecular orbital is a building block of a many-Electron description, rather than the entire many-Electron wavefunction. See Robert W. Field, MIT 5.61, lecture 24, pp. 1–4: molecular orbitals and the LCAO approximation.

First make the interference visible with an exactly normalized one-dimensional toy. Replace the three-dimensional $1s$ atomic orbitals of the hydrogen atom by two Gaussian functions centred at $x=\pm a$, with dimensionless $x$ and $a>0$:The normalized sum and difference are ${\psi }_{\pm }=({\varphi }_A\pm {\varphi }_B)/\sqrt{2(1\pm S)}$, following the same linear combination of atomic orbitals algebra. At $a=1$, the orbital overlap is $S=e^{-1}\approx 0.367879$. At the midpoint, ${\varphi }_A(0)={\varphi }_B(0)\approx 0.455581$, givingBoth probability densities have total integral one: interference redistributes probability, rather than creating an extra Electron. These are toy wavefunctions, not actual hydrogen atom orbitals or predictions of molecular hydrogen energies.

Now fill the two $1s$-derived molecular orbitals in the minimal model. The lower bonding molecular orbital is labelled ${\sigma }_g$; the upper antibonding molecular orbital is ${\sigma }_u^{\ast }$. The Pauli exclusion principle permits at most two Electrons in each spatial molecular orbital, with opposite spin projections along a chosen axis. For the lowest electron configuration in this model, fill ${\sigma }_g$ first. The subscripts $g$ and $u$ denote even and odd behaviour under inversion through the midpoint; the star marks an antibonding molecular orbital. See Flowers et al., Chemistry 2e, 8.4: occupancy and bond order and Field, MIT 5.61, lecture 25, pp. 1–3: bonding, antibonding, and symmetry labels.

With $N_b$ Electrons in bonding molecular orbitals and $N_a$ in antibonding molecular orbitals, the model's bond order is $b=(N_b-N_a)/2$. The three elementary counts are:

The zero bond order says this minimal model gives no net covalent bond for ${\mathrm{He}}_2$. It does not rule out every bound pair of helium chemical atoms: a very weak Van der Waals force can bind a neutral helium dimer, which has been observed experimentally. See Zeller et al., Imaging the He2 quantum halo state using a free electron laser, PNAS 113, 14651–14655 (2016), p. 14651: van der Waals binding and Luo et al., The weakest bond: Experimental observation of helium dimer, Journal of Chemical Physics 98, 3564–3567 (1993). The bond order count does not include that weak binding mechanism.

The useful surprise is that sharing alone does not determine a chemical bond: the relative quantum phase and the occupancy matter together. The same two shapes explain why adding an Electron to a bonding molecular orbital increases the model's bond order, while adding one to an antibonding molecular orbital decreases it. Molecular orbital theory also accounts for the unpaired Electrons and paramagnetism of molecular oxygen, which its all-paired Lewis structure misses. See Chemistry 2e, 8.4: the molecular orbital description of oxygen.

Molecular vibration changes internal separations and bond angles, unlike the fixed internal molecular geometry of a rigid rotor. Its coupling to molecular rotation makes measured rotational constants depend on the vibrational quantum state.

A diatomic molecule has one internal stretching coordinate: its two atomic nuclei approach and separate about an equilibrium bond length. The diatomic bond stretch turns this motion into a particularly useful model. The local potential energy curvature supplies the restoring force, while the reduced mass accounts for both moving partners. Thus the same chemical bond can vibrate more slowly after an isotope substitution even when its electronic structure is nearly unchanged.

This separation makes infrared spectroscopy informative: transition frequencies constrain chemical bond stiffness, and isotope scaling of diatomic vibration tests the mass dependence. The University of Florida HCl and DCl FTIR experiment illustrates the measurement. Detectability also requires vibrational infrared activity; having vibrational energy eigenvalues alone does not guarantee an infrared absorption line.

A molecule, using the International Union of Pure and Applied Chemistry (IUPAC) convention, is an electrically neutral entity containing two or more chemical atoms. Its constituents form a bound unit through chemical bonds; merely drawing a boundary around neighboring particles does not make a molecule. The neutrality requirement concerns total electric charge, not the absence of internal charge separation: water is a polar molecule with zero total electric charge.^[ref]

One water molecule, ${\mathrm{H}}_2\mathrm{O}$, contains two hydrogen and one oxygen chemical atom. One molecular oxygen molecule, ${\mathrm{O}}_2$, contains two oxygen chemical atoms; a molecule need not contain different chemical elements. One carbon dioxide molecule, $\mathrm{C}{\mathrm{O}}_2$, contains one carbon and two oxygen chemical atoms. The molecular formula records these inventories, while molecular geometry describes their arrangement. Water and carbon dioxide are chemical compounds; molecular oxygen is a form of one chemical element.

Ordinary crystalline sodium chloride, $\mathrm{NaCl}$, contains an extended arrangement of sodium cations $\mathrm{N}{\mathrm{a}}^{+}$ and chlorine anions $\mathrm{C}{\mathrm{l}}^{-}$. Its formula unit specifies one of each for compositional accounting, without selecting a unique isolated pair. Bulk neutrality therefore does not imply a material consists of neutral molecules. This statement concerns the ionic crystal; the physical state and conditions matter when deciding what particles a chemical formula represents.^[ref]

A polyatomic ion is a charged bound group of chemical atoms, such as hydronium, ${\mathrm{H}}_3{\mathrm{O}}^{+}$. A molecular ion formed by removing an Electron from intact water, ${\mathrm{H}}_2{\mathrm{O}}^{\bullet +}$, retains the same atom inventory but has net electric charge $+e$. Neither satisfies the neutral-molecule definition. Distinguishing these entities makes molecular count and amount of substance and mass spectrometry interpretable: say whether the count is of chemical atoms, neutral molecules, ions, or formula units.

The useful surprise is that a molecule can be treated as one particle for motion and counting while retaining internal structure. Its molar mass connects a particle inventory to bulk mass; molecular rotation and molecular vibration reveal internal organization. The continuum approximation uses bulk fields in place of individual molecular positions and motions.

Four water molecules contain eight hydrogen and four oxygen chemical atoms, twelve constituent chemical atoms altogether. Counting the constituents does not mean they have been separated by breaking chemical bonds. The same sample has different counts because the specified entities differ.

For $N$ water molecules, their amount of substance is $n=N/N_{\mathrm{A}}$, while the constituent hydrogen and oxygen inventories correspond to $2n$ and $n$ respectively. The exact Avogadro constant is $N_{\mathrm{A}}=6.02214076\times 10^{23}\mathrm{mo}{\mathrm{l}}^{-1}$. The mole applies to specified entities, including chemical atoms, molecules, and ions.^[ref] Thus four water molecules correspond to approximately $6.6422\times 10^{-24}\mathrm{mol}$ of water, but twice that amount of substance of constituent hydrogen chemical atoms. A macroscopic conversion through measured mass additionally needs the relevant molar mass, as in water mass to molecular count.

A monomer is a chemical substance whose molecules can undergo polymerization and contribute units to the essential structure of a polymer. A monomer molecule is the individual reactant; its incorporated monomeric unit is the portion identifiable as derived from that reactant. Incorporation can change chemical bonds and release small byproducts, so the unit in the chain need not have the complete molecular formula of the feed molecule. See IUPAC: monomer molecule and IUPAC, A brief guide to polymer terminology: monomeric units.

Three different counts answer three different questions. Monomer molecules describe the feed; monomeric units trace that feed's contributions to the product; a constitutional repeating unit describes the smallest chemical pattern repeating along a regular chain. In Nylon 6,10, two different monomers supply one interior constitutional repeating unit,Its molecular formula is ${\mathrm{C}}_{16}{\mathrm{H}}_{30}{\mathrm{N}}_2{\mathrm{O}}_2$. The diamine feed is ${\mathrm{C}}_6{\mathrm{H}}_{16}{\mathrm{N}}_2$, and the diacid-chloride feed is ${\mathrm{C}}_{10}{\mathrm{H}}_{16}\mathrm{C}{\mathrm{l}}_2{\mathrm{O}}_2$; subtracting two $\mathrm{HCl}$ gives the interior-repeat budget. For a finite linear chain made from $n$ of each reactant, there are $2n-1$ joining connections, hence $2n-1$ formal $\mathrm{HCl}$ eliminations, rather than $2n$. One amine end and one acid-chloride end remain in that ideal unmodified chain. This is a stoichiometry check on the depicted reaction, not a claim that the washed experimental thread retains those ends. The reacting end-group chemistry is documented in Hammond, lecture 5, p. 4; the specified Nylon 6,10 reactant pair is reported in Polymer Day, nylon demonstration.

Ethene shows the reverse counting mismatch. One $\mathrm{C}{\mathrm{H}}_2=\mathrm{C}{\mathrm{H}}_2$ monomer molecule contributes a two-carbon $-\mathrm{C}{\mathrm{H}}_2-\mathrm{C}{\mathrm{H}}_2-$ monomeric unit to ideal linear polyethylene, without a small byproduct in that growth step. But the smallest constitutional repeating unit of its uniform backbone is just $-\mathrm{C}{\mathrm{H}}_2-$: a chain containing $m$ incorporated ethene monomeric units contains $2m$ such interior one-carbon repeats. End groups are additional bookkeeping. The frequently drawn $[-\mathrm{C}{\mathrm{H}}_2-\mathrm{C}{\mathrm{H}}_2-{]}_m$ is useful for tracing the feed, although it is not the smallest constitutional repeat. The minimum-pattern definition is given in IUPAC: constitutional repeating unit; the ethene growth chemistry is described by ^[ref].

A segment of a freely jointed chain or Gaussian chain instead belongs to a statistical model. It can represent many chemical bonds and several constitutional repeating units; its length and the segment count are chosen to describe chain conformation at the intended scale. The three-repeats-per-segment drawing in Figure "From two liquid layers to a Nylon 6,10 thread: monomers, a constitutional repeating unit, and statistical segments" is a deliberately arbitrary coarse-graining example, not a measured Kuhn length. Always state the counting convention before substituting a segment count for a degree of polymerization. This separation lets chemistry track which chemical atoms entered the material while statistical models track how the material bends and extends.

The octet rule is a useful empirical guide: many Lewis structures of chemical compounds containing carbon, nitrogen, and oxygen give each of those chemical atoms eight Electrons when nonbonding Electrons and all incident bonding Electrons are counted. Hydrogen instead normally counts two Electrons. These are local counts, not independent budgets: a shared bond pair counts at both endpoints but only once in the molecule's valence electron total.

In water, oxygen counts $4+4=8$ Electrons; in ammonia, nitrogen counts $2+6=8$; in $\mathrm{O}=\mathrm{C}=\mathrm{O}$, carbon counts $0+8=8$ and each oxygen counts $4+4=8$. The charge-separated carbon dioxide drawing also satisfies the octet rule, so the octet rule alone cannot select the dominant contributor. Formal charge provides another check.

The octet rule is a heuristic rather than a theorem about every chemical bond. Odd valence electron totals cannot be partitioned entirely into electron pairs, and some valid Lewis structures have fewer or more than eight Electrons around a chemical atom. See Chemistry 2e, 7.3: exceptions to the octet rule. The capacity of the $s$ and $p$ electron subshells, $2+6=8$, helps motivate the guide for these chemical elements, but does not prove universal compliance. Lewis discussed a stable outer group of eight, together with a two-Electron arrangement for hydrogen, in The Atom and the Molecule (1916), pp. 768 and 774.

A Pauling bond-energy excess subtracts a chosen like-atom baseline from the unlike-atom bond-dissociation energy. For an unequal-input arithmetic example, stipulate $D_{AA}=200$, $D_{BB}=450$ and $D_{AB}=421.485\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$, all with one dissociation convention. The arithmetic mean baseline and excess areThe arithmetic-baseline Pauling scale model therefore gives $|{\chi }_{\mathrm{P}}(A)-{\chi }_{\mathrm{P}}(B)|=\sqrt{96.485/96.485}=1$. The bond-dissociation energy $421.485$ is not itself the excess: subtracting the baseline is essential. All three numbers are stipulated, not experimental values for named chemical elements.

Changing the baseline changes the model. For the same stipulated inputs, a geometric mean baseline would be $\sqrt{200\times 450}=300\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$, yielding an excess of $121.485\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ and a difference of approximately $1.122$. It is a different construction, even though both start from the same bond-dissociation energies. State which baseline is used before comparing electronegativity differences.

The arithmetic-baseline Pauling scale also has a useful inverse: a difference of $0.5$ corresponds to an excess of $24.12125\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$, and a difference of $2$ corresponds to $385.94\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$. Doubling the electronegativity difference quadruples the modeled excess. Interchanging the endpoint labels changes neither quantity; the square root alone cannot choose the direction of bond polarization.

In The Nature of the Chemical Bond. IV. The Energy of Single Bonds and the Relative Electronegativity of Atoms (printed pp. 3576–3578, Table II and equation (1)), Linus Pauling organized excess energies for chemical bonds into an approximately additive map of their square roots. He also identified a limitation: his H–F map separation of $2$ predicted an excess of $4.00\mathrm{eV}$, exceeding his table's value by $1.23\mathrm{eV}$. Those are historical values and a historical model discrepancy, not modern recommended inputs.^[ref]

Pauling electronegativity is a relative, dimensionless scale motivated by bond-dissociation energies. The interesting observation is that a chemical bond between unlike chemical atoms can be stronger than a simple baseline inferred from the corresponding like-atom chemical bonds. An empirical excess energy can then be associated with an electronegativity difference. The 1932 paper The Nature of the Chemical Bond. IV. The Energy of Single Bonds and the Relative Electronegativity of Atoms built such a map; its original coordinates used hydrogen as zero, so those coordinates should not be mistaken for the modern tabulated Pauling electronegativities.^[ref]

One arithmetic-baseline version of the Pauling scale relation isHere $D_{AB}$, $D_{AA}$ and $D_{BB}$ are consistently defined bond-dissociation energies per molecule, and the arithmetic mean is the chosen baseline. With molar energies instead, write $\sqrt{{\Delta }_D/(96.485\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1})}$, approximately $0.102\sqrt{{\Delta }_D/(1\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1})}$. The denominator makes the result dimensionless; the factor $0.102$ is not a unit-independent magic constant. This is an empirical relation with a specified baseline, not a definition valid for every chemical bond.^[ref]

For an explicitly synthetic example, suppose $D_{AA}=D_{BB}=300\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ and $D_{AB}=396.485\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ with the same temperature and dissociation convention. Then ${\Delta }_D=96.485\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ and the model gives an electronegativity difference of $1$. Replacing $D_{AB}$ by $300\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ gives zero; a negative excess would make this real square-root model inapplicable, not produce a negative electronegativity difference. These invented inputs illustrate the formula and are not measurements of named chemical substances.

Only differences appear, so adding the same constant to every Pauling electronegativity leaves this relation unchanged. A reference value must fix the origin. The bond-dissociation energies alone also do not tell which endpoint attracts electron density more strongly, because interchanging $A$ and $B$ leaves the formula unchanged. Chemical comparisons fix that direction. Thus Pauling electronegativity is useful as a compact ordering, while the underlying measured energies and approximations remain essential.
