Raman scattering is inelastic scattering of light in which the outgoing photon has a different frequency because matter gains or loses internal energy. Molecular vibration is a particularly useful recipient: a visible photon can reveal an internal energy spacing normally associated with infrared frequencies. Rayleigh scattering supplies the much stronger, approximately unchanged-frequency reference. The distinction concerns the transferred energy, rather than merely a change of direction or the colour of the illuminating beam.
The elementary bookkeeping is conservation of energy:Here is the Planck constant, and are the incident and scattered photon frequencies, and are initial and final internal molecular energies. This expression neglects translational recoil and Doppler broadening; those can matter in sufficiently precise gas measurements. A positive internal energy change gives Stokes Raman scattering, and a negative one gives Anti-Stokes Raman scattering. The energy difference determines a possible line position, but it does not by itself establish that a transition is optically allowed or predict its strength.
The spontaneous molecular process developed here has a connection to the Raman transition used in atomic measurement methods: two photon interactions transfer an internal energy difference. Coherently driving that process with two applied light fields is a different experimental regime from collecting weak spontaneous Raman scattering beside an illuminating beam.
Chandrasekhara Venkata Raman and Kariamanikkam Srinivasa Krishnan jointly reported the effect in 1928. Their letter describes light from the Sun concentrated by an -aperture, -focal length telescope objective and a second optical lens onto a liquid purified by repeated vacuum distillation. With blue-violet and yellow-green optical filters together in the incident beam, the visible track disappeared; moving the yellow-green optical filter between liquid and observer restored it. The complementary arrangement rejected unchanged-colour scattering of light while admitting newly generated light. Persistence after purification and strong wave polarization in many liquids argued against ordinary fluorescent contamination.[ref]
In his 1930 lecture, Chandrasekhara Venkata Raman describes a cobalt-glass optical filter selecting indigo-violet light from the Sun, with a separated blue-green band in the scattered optical spectrum. Substituting a quartz mercury arc and condenser gave sharp new spectral lines. Small Hilger quartz spectrographs recorded them photographically; Kariamanikkam Srinivasa Krishnan obtained more precise records with a larger instrument and established violet-displaced lines. The optical prism disperses wavelengths for spatial readout; it does not create the Raman shift. The diagram gives functional optical paths rather than a reconstruction of a specific Hilger instrument.[ref]
The Molecular Scattering of Light by Chandrasekhara Venkata Raman. Nobel Lectures, Physics 1922–1941; Raman, The molecular scattering of light, Nobel lecture, 11 December 1930, printed pp. 271–273, spectroscopic examination and photographic recording; inspected in a reproduction of the complete lecture
Complementary optical filters and a dispersive readout test different parts of the Raman scattering evidence
. Original functional schematic of the filter test and later spectral test. Side collection is unfolded for readability. The optical prism, spectrograph slit and photographic plate indicate dispersion and recording; the sketch supplies no historical distances, exact optical prescription or measured colour intensities. Source. Details.Their May 1928 report strengthens the comparison: filtered mercury illumination of toluene produced extra spectral lines. Removing the incident line removed its associated longer-wavelength group; a quinine filter removing the , and group removed a different shifted group while preserving the one associated with . These are actual selective-excitation controls, rather than inferred colours.[ref]
The Optical Analogue of the Compton Effect by Chandrasekhara Venkata Raman and Kariamanikkam Srinivasa Krishnan. Raman and Krishnan, The Optical Analogue of the Compton Effect, Nature 121, p. 711, Fig. 1 description and removal of individual incident-line groups
The inference has limits. A complementary-filter test alone establishes newly admitted wavelengths, not their precise spacing or a unique microscopic mechanism. Fluorescence can also survive purification when intrinsic to the liquid, and fluorescence can be polarized. Useful distinctions therefore combine resolved spectral lines, excitation dependence, wave polarization and sample preparation. A proposed modern extension is to change a single incident frequency: a molecular Raman shift should follow the same internal energy gap, whereas ordinary relaxed molecular fluorescence usually retains approximately its emission-band positions. This is a diagnostic under stated conditions, not a universal theorem about every fluorescent material or resonant scattering process. Raman scattering need not involve a populated, relaxed electronic excited state as ordinary molecular fluorescence does; neither a redder photon nor the word Stokes identifies the mechanism by itself.
The 1930 Nobel Prize in Physics went to Chandrasekhara Venkata Raman alone for his work on scattering of light and the discovery of the effect. That award allocation should be distinguished from the joint experimental report with Kariamanikkam Srinivasa Krishnan.[ref]
The Nobel Prize in Physics 1930 by Nobel Foundation. Nobel Foundation prize record: sole laureate and award motivation, Physics 1930
The signed Raman shift subtracts scattered from incident spectroscopic wavenumber:Here is the speed of light, and both wavelengths are in vacuum. Positive shifts denote Stokes Raman scattering; negative shifts denote Anti-Stokes Raman scattering. Some plots reverse the horizontal direction or report separate unsigned magnitudes, so check the convention. Spectroscopic wavenumber has no factor, unlike the common angular wavenumber . A shift of means , not a frequency of .
For a one-quantum change of molecular vibration with ordinary frequency , the magnitude is . This makes Raman spectroscopy attractive: the same molecular energy spacing can be read using different visible excitation wavelengths. Equal and opposite Raman shifts are not equal and opposite changes measured in nanometres, because wavelength is the reciprocal of spectroscopic wavenumber.
A Raman shift as a probe of bond stiffness interprets a measured vibrational frequency through a mechanical model of the assigned mode. For one stretching coordinate modeled as a harmonic oscillator,where is an effective spring constant and an effective mass. For an isolated diatomic stretch the latter is the reduced mass. A collective normal mode can involve many atoms, so its effective stiffness is not automatically the force constant of one selected bond.
An original same-mode example shifts from to . If the effective mass is unchanged, the harmonic model givesor a increase in effective stiffness. The small-change version isA ten-percent mass increase at fixed stiffness would instead reduce the frequency by . This reduced-mass ambiguity in a Raman stiffness inference is why a frequency change alone does not uniquely measure a stiffness change.
Mechanical strain can shift Raman bands by changing the local vibrational dynamics. HORIBA's application documentation illustrates stress mapping in microfabricated silicon, including shallow-trench regions, and describes a correlation between applied stress and peak shift.[ref]
Stress imaging of Si microfabricated structures by HORIBA. Stress distribution analysis using Raman images; silicon stress/peak-shift discussion
That calibrated material response is more specific than treating every shift as a direct scalar bond-stiffness measurement.A motivating experiment would track the same assigned band while varying a known load, holding temperature, excitation and polarization conditions fixed and measuring the wavelength reference. Heating, isotopic composition, mode mixing and structural changes can also alter frequencies. The Raman shift gives an energy spacing; mechanical interpretation additionally needs the mode assignment, mass model and appropriate stress/strain calibration.
Reduced-mass ambiguity in a Raman stiffness inference means that a measured frequency ratio does not determine a stiffness ratio without a mass model. In the assigned harmonic oscillator approximation used in Raman shift as a probe of bond stiffness, the vibrational wavenumber obeys . ThusThe reduced mass of an isolated two-body oscillator is . An effective mass for a collective normal mode additionally depends on which atoms move and their relative displacements. Keeping the same peak label does not establish that this effective mass stayed fixed.
For an original example, a band moves from to , giving . With unchanged effective mass, the inferred stiffness ratio is , a reduction. With an effective-mass ratio , the same observed shift instead gives : stiffness has increased by about . The two interpretations satisfy the same measured frequency ratio.
This ambiguity matters when comparing compositions, isotopes or changing mode assignments. Identifiability of stiffness from isotope-resolved Raman shifts requires additional constraints on the mass model and assignment; a frequency shift alone supplies one equation for two ratios. A controlled experiment can compare a known composition under load, stabilize temperature and optical conditions, and measure the spectral reference while checking that the same normal mode is followed.
HORIBA's silicon microstructure application maps stress using a material-specific relationship between stress and the Raman peak shift.[ref]
Stress imaging of Si microfabricated structures by HORIBA. Stress distribution analysis using Raman images; silicon peak-shift/stress discussion
That experiment motivates an independently calibrated response. It does not make every redshift a universal direct measurement of a reduced spring constant.Identifiability of stiffness from isotope-resolved Raman shifts asks which stiffness parameters become determined once the moving masses are independently constrained. In the assigned harmonic oscillator model of reduced-mass ambiguity in a Raman stiffness inference,Here is the speed of light, the vibrational wavenumber and the mode's known effective mass. Known masses and identified modes make each effective stiffness identifiable within this model. Unknown masses still permit the simultaneous rescaling without changing a frequency; knowing only mass ratios determines only stiffness ratios.
Controlled isotope substitution is useful because it changes nuclear mass while approximately preserving the interatomic force model. In a pure-carbon mode for which every moving mass changes by the same ratio, unchanged stiffness predictsThe mass numbers here are an explicit approximation. They replace a full normal mode calculation only for the stipulated uniform mass scaling.
For an original numerical test, a chosen carbon-12 reference band at predicts about after uniform carbon-13 replacement with unchanged stiffness. If a hypothetical carbon-13 band is instead , its isotope-corrected Raman stiffness ratio isThe residual inferred change is about , not the several-percent softening one would infer by ignoring mass. This is a chosen calculation, not a quoted experimental peak pair.
The primary graphene study measured several Raman bands at different carbon-13 concentrations and laser excitation energies; its measured mass-dependent frequencies followed the harmonic-oscillator relation.[ref]
Probing carbon isotope effects on the Raman spectra of graphene with different ¹³C concentrations by Bruno R. Carvalho and others. Abstract, Raman bands D, G, G* and 2D and isotope-mass dependence
Such a controlled series tests the mass model. It does not by itself rule out changes in strain, temperature or mode mixing in a different sample. Uncertainty in isotope composition, spectral calibration and mode assignment must accompany any small residual stiffness inference.An isotope-corrected Raman stiffness ratio removes the stipulated mass contribution before interpreting a vibrational frequency change as a stiffness change. For corresponding harmonic modes,The identifiability of stiffness from isotope-resolved Raman shifts article explains why the effective masses and mode assignment are required. The ratio does not by itself validate those assumptions.
For an original calculation, take hypothetical pure-carbon bands at for carbon-12 and for carbon-13. Uniform isotope replacement with the mass-number approximation gives and . The inferred stiffness reduction is about , despite the decrease in wavenumber. These chosen values are not a published experimental pair.
Uncertainty in the ratio follows fromWith exact masses in the model and independent wavenumber standard uncertainties , the relative standard uncertainty of is approximately . A single common multiplicative spectral-scale error cancels exactly in the frequency ratio. A common additive offset does not: its first-order effect is , giving only about relative uncertainty for a offset uncertainty. The relative calibration error in an isotope-corrected stiffness ratio therefore depends on the spectral calibration model and correlations, not just each peak's marginal error bar.[ref]
The primary graphene experiment varied carbon-13 concentration and laser excitation energy and observed Raman-frequency dependence following the harmonic-oscillator mass relation.[ref]
Probing carbon isotope effects on the Raman spectra of graphene with different ¹³C concentrations by Bruno R. Carvalho and others. Abstract, mass dependence of D, G, G* and 2D peak frequencies
A residual stiffness comparison additionally needs controlled strain, temperature and composition. Mode mixing or uncertain isotope distribution can dominate the small residual even when fitted peak centres are precise.Relative calibration error in an isotope-corrected stiffness ratio is the fractional error remaining when spectral calibration affects the two compared bands differently. Write the model of isotope-corrected Raman stiffness ratio as , where and the positive denote vibrational wavenumbers. For small errors,The mass correction does not remove differential spectral calibration error.
A useful calibration model is , with common and separate gain errors and offsets . Its spectral contribution becomeswith the mass term added if uncertain. A single multiplicative scale cancels exactly when no additive error is present. Separate gains do not: comparing two spectra calibrated independently can lose that cancellation.
For an original example, take and . A differential gain creates about relative error in . A common offset instead contributes about . If the separate gains each have independent standard uncertainty, their combined contribution to the relative standard uncertainty of is .
The separate spectral-calibration gains in isotope stiffness inference must therefore be distinguished from a shared reference error. Covariance propagation keeps precisely those shared and separate influences.[ref] Recording both samples with the same validated spectral scale can help, but drift or changed dispersion can still produce differential errors.
The primary graphene isotope experiment measured Raman bands over isotope concentrations and laser excitation energies and found the harmonic-oscillator mass dependence.[ref]
Probing carbon isotope effects on the Raman spectra of graphene with different ¹³C concentrations by Bruno R. Carvalho and others. Abstract, isotope-mass dependence of Raman frequencies
Small residual stiffness changes require the additional calibration and mode-model checks above; the numerical errors here are chosen examples, not quoted experimental uncertainties.Separate spectral-calibration gains in isotope stiffness inference arise when the two Raman spectra retain different multiplicative calibration errors. Let the corrected wavenumbers satisfy . For , small residual gains giveThe relative calibration error in an isotope-corrected stiffness ratio article treats the accompanying offset terms. Here the important quantity is the gain difference, not either gain alone.
If the two residual gains have standard uncertainties and correlation , their contribution isThis follows by applying the full covariance propagation rule.[ref]
Guidelines for Evaluating and Expressing the Uncertainty of NIST Measurement Results by Barry N. Taylor and Chris E. Kuyatt. Appendix A, equation A-3
A shared scale component cancels; independent session errors do not. The covariance of differential spectral-calibration gains therefore determines whether combining calibrations improves the ratio.For an original example, let . Independent calibrations give relative uncertainty about in . A justified correlation reduces it to about ; a correlation instead gives about . These are different calibration models, not alternative ways of adding the same independent errors.
A practical comparison can measure the same known reference line during each sample session. If raw readings are and reference readings , a purely multiplicative model givesBoth session gains cancel, but reference-reading noise, offsets and drift between reference and sample readings remain. Repeated readings do not automatically reveal an unknown common bias.
The primary graphene isotope experiment compared Raman bands over isotope concentrations and excitation energies, finding the harmonic-oscillator mass dependence.[ref]
Probing carbon isotope effects on the Raman spectra of graphene with different ¹³C concentrations by Bruno R. Carvalho and others. Abstract, isotope-mass dependence of Raman frequencies
The calibration model above concerns precision of the inferred residual stiffness ratio; it does not validate mode assignment or the effective-mass approximation.The covariance of differential spectral-calibration gains describes the joint errors of gain differences used in several spectral ratios. Let the calibration-error vector be with covariance , and form differences . ThenThis covariance identity is exact for the linear differences; no normal-distribution assumption is required. The first-order relation between gain differences and isotope stiffness ratios is given in separate spectral-calibration gains in isotope stiffness inference.[ref]
Guidelines for Evaluating and Expressing the Uncertainty of NIST Measurement Results by Barry N. Taylor and Chris E. Kuyatt. Appendix A, equation A-3, sensitivity and covariance propagation
For an original shared-reference model, take three gain errors , where is a common scale error and the are independent residual errors with variances . Two sample spectra are compared with the same reference spectrum:The common scale cancels, but the residual reference error remains in both differences:Cancellation of one common influence therefore does not establish independent comparisons.
Choose all three residual standard uncertainties as . Then , with correlation between the differences. Even a much larger common scale uncertainty cancels in this stipulated model. Each inferred log stiffness ratio has error approximately twice its gain difference. Averaging the two log-ratio estimates gives variance and standard uncertainty about . Incorrectly treating them as independent would give only .
This shared-reference floor in averaged isotope stiffness ratios matters when many sample spectra reuse one calibrated reference. Independent extra sample readings reduce their own errors, while a reference component shared by all comparisons remains. Assess covariance from the actual reference reuse, calibration drift and repeated acquisition protocol. The matrix calculation concerns multiplicative calibration errors; uncertain peak assignment, isotope composition and additive spectral offsets need their own contributions.
Reference-versus-sample allocation in repeated isotope-ratio measurements distributes a finite measurement budget between sample readings and the reference used to calibrate them. Suppose independent sample and reference readings have first-order gain-error variances and . Averaging sample readings and reference readings gives log stiffness-ratio variancewhere is the variance of a differential calibration error shared by all ratio estimates. The shared-reference floor in averaged isotope stiffness ratios explains why that last component does not average down. Covariance propagation must reflect which observations and calibration influences are actually shared.[ref]
Let one sample reading cost budget units and one reference reading cost , with . Treating counts continuously for the initial optimization, a constraint multiplier givesThe counts are proportional to standard uncertainty divided by the square root of cost, rather than simply to each variance. A budget-independent common component changes the attainable floor but not this optimum ratio under the stated model.
For an original example, take equal costs, , and 40 total readings. The optimum is 30 sample and ten reference readings. Without a common component, the predicted log-ratio standard uncertainty is about , compared with for twenty of each. A common standard uncertainty raises those values to about and , respectively.
An integer allocation near a continuous isotope-reference optimum must compare feasible neighboring count choices and any acquisition-order constraints. More reference readings help only to the extent that their errors are independent; repeatedly measuring an unchanged unknown calibration bias does not create independent references. If reference drift depends on elapsed time, a single constant cost and common-variance term may be inadequate.
In practice, record which reference observations calibrate which sample spectra and account for any correlated peak fitting, isotope-composition uncertainty and spectral offsets. The variance and cost model above is a chosen allocation problem, not an experimentally established precision specification for an isotope measurement system.
An integer allocation near a continuous isotope-reference optimum converts a real-valued budget solution into feasible counts of sample and reference observations. For the model in reference-versus-sample allocation in repeated isotope-ratio measurements, minimizewith positive integer counts. The shared component does not affect the choice when it is genuinely independent of the allocation. Counting new reference readings does not make a shared calibration error independent.[ref]
For equal unit costs and a budget of readings, put . With , the count-dependent objective hasIts continuous minimum is . Therefore an integer minimum lies among the feasible floor and ceiling of , clipped to . Comparing those candidates is sufficient because the function decreases before its minimum and increases after it. Rounding both continuous counts independently can violate the budget.
For an original example, let , and . The continuous sample count is12.75. Counts give variance before a common component, while give approximately . The latter is preferable, with log-ratio standard uncertainty about0.1941%. The nearby gives approximately .
Unequal costs introduce a stepped feasible boundary. One exact finite search enumerates positive and, for each, useswhen that value is positive. For fixed , using the largest feasible improves this stated objective. For an original , , , and in consistent planning units, the best pair is , consuming19 units. Its count-dependent expression is2.3; and both give2.5. An unused budget unit can be a legitimate integer remainder.
Acquisition ordering, paired exposures, minimum replicate counts or drift constraints can restrict the feasible set further. The continuous optimum remains a useful guide, but only comparisons among genuinely feasible integer designs establish the chosen discrete optimum.

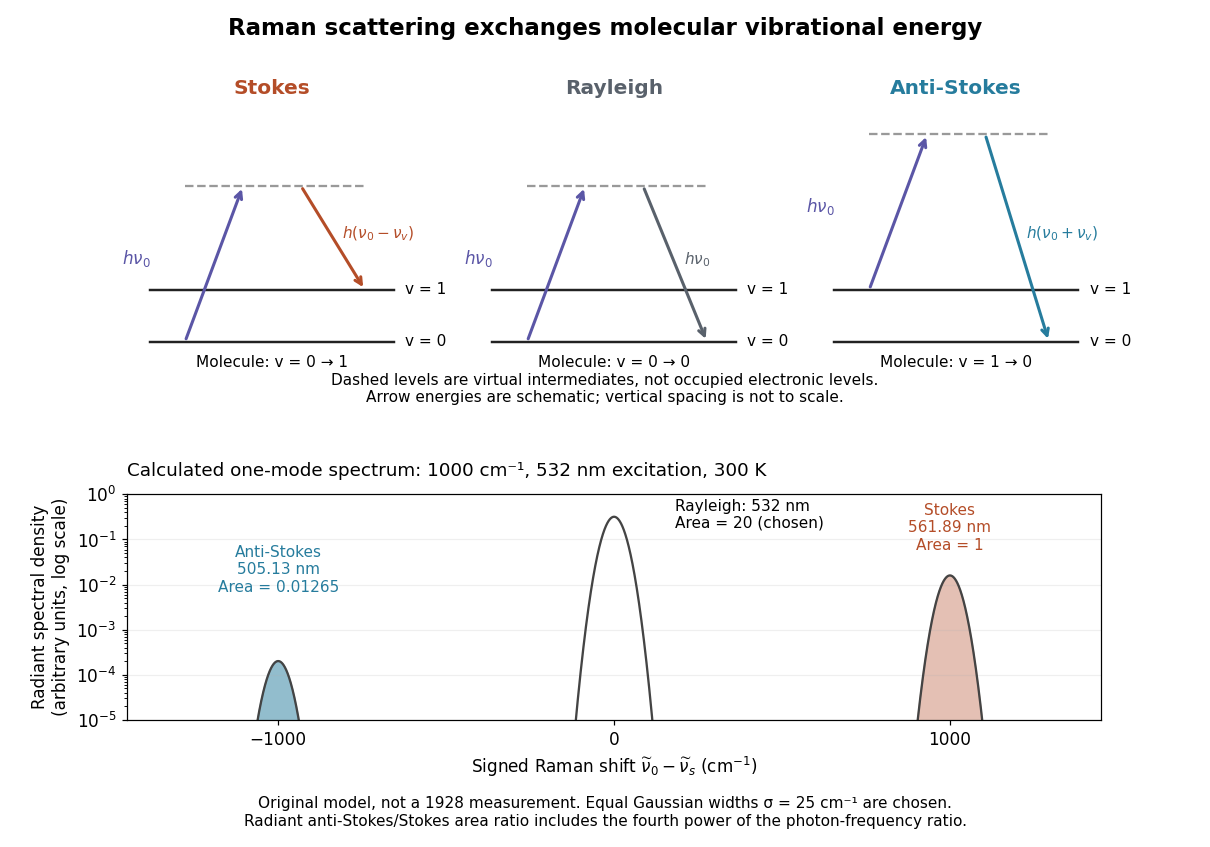

In Stokes Raman scattering, matter gains internal energy and the photon loses the same amount. For a quantum harmonic oscillator representing one molecular vibration, with . The transition gives , requiring for an outgoing photon. Even a molecule initially in its vibrational ground state can undergo this process. The shared name does not turn it into the absorption/emission-band Stokes shift used for fluorescence.
In Anti-Stokes Raman scattering, matter loses internal energy and the outgoing photon gains it. The harmonic transition requires , so an initially excited vibrational population must be available. At low temperature, high-frequency vibrational excitations are scarce and the corresponding anti-Stokes line is weak. The extra photon energy comes from the molecule; there is no conflict with conservation of energy.
The simplest off-resonant explanation is a vibrating polarizability. Let be a small normal mode coordinate of molecular vibration, and use one scalar component of polarizability, . For incident electric field , the induced electric dipole moment isThe product-to-sum formula produces the two displaced frequencies. A nonzero derivative gives vibrational Raman scattering in this linear model. Real polarizability is generally a tensor, and the selected components depend on incident and observed wave polarization. This condition differs from vibrational infrared activity, which requires a changing molecular electric dipole moment without an applied optical electric field. A vibration can therefore appear in one measurement and be absent in the other.
This classical modulation argument explains line locations but supplies equal sideband wave amplitudes; it does not explain their thermal asymmetry or the nonzero Stokes Raman scattering from a vibrational ground state. Those require the quantum harmonic oscillator population and transition strengths. The far-off-resonance drawing uses dashed virtual intermediate levels: they represent terms in a scattering probability amplitude, not a long-lived occupied electronic energy eigenstate. Near an electronic resonance, a more detailed treatment of the intermediate response is needed.
Assume one harmonic normal mode at thermal equilibrium, weak spontaneous excitation far from electronic resonances, the same collection solid angle and wave polarization, and matched response after instrumental correction. The Boltzmann distribution givesHere is the Boltzmann constant, is temperature, and is the probability of vibrational quantum number . Thus . Linear coupling to has squared oscillator matrix elements proportional to for Stokes Raman scattering and for Anti-Stokes Raman scattering. Summing over initial levels gives strengths proportional to and respectively; their ratio is , even when levels above are occupied.
Let and denote line-integrated radiant intensities, meaning power per collection solid angle. The off-resonant electric dipole radiation law adds the fourth power of emitted frequency:The photon rate divides each line's power by its own . Consequently, the ideal response-corrected anti-Stokes/Stokes count-rate ratio has the third power of the same frequency ratio. Peak heights alone do not give line-integrated radiant intensities if linewidths differ. Uncorrected detector counts can also include unequal detector response and unequal optical filter transmission. Resonant enhancement, overlapping spectral lines, nonthermal populations and local optical heating can invalidate a temperature inferred from this simple formula.
Choose a vibrational Raman shift magnitude , excitation vacuum wavelength and temperature . These are original illustrative inputs, not a measured 1928 optical spectrum or a claim about a particular liquid. They giveTake reciprocal lengths in consistent units before converting to nanometres. At , and . The predicted line-integrated radiant intensity ratio is , whereas the ideal photon count-rate ratio is . Thus the radiometric ratio is about percent, rather than the percent obtained by using the Boltzmann factor alone.
Raman spectroscopy measures shifted scattering of light to infer internal energy spacings and the molecular response that makes them visible. In a modern illustrative arrangement, narrowband laser illumination replaces the historical arc, an optical filter rejects the strong excitation line, and a spectrograph resolves the weak shifted spectral lines. The illumination, rejection and spectral dispersion are separate jobs. Increasing rejection can conceal small Raman shifts close to the excitation line.
A proposed measurement should record the excitation wavelength, a dark signal, a blank container and the liquid, then compare calibrated line positions and integrated signals under the same collection conditions. Measure optical filter transmission and detector response before using the Thermal Raman line ratio for temperature. Repeat at lower incident power to look for heating or altered sample response. These are suggested checks, not an assertion that the 1928 apparatus implemented modern calibration procedures.
Its appeal is the conversion of internal molecular energy differences into visible spectral lines: changing the excitation can move the whole pattern while preserving characteristic Raman shifts. Combined with vibrational infrared activity, Raman vibrational activity supplies complementary information about molecular vibration. A line pattern can constrain a material's identity or environment, but overlapping bands, fluorescence backgrounds and the finite spectral resolution element prevent an unqualified identification from one peak alone.
A Raman spectrum records the strength of Raman scattering as a function of scattered optical frequency or, usually, Raman shift relative to the excitation. For vacuum wavelengths in nanometres, a common wavenumber convention isHere the numerical wavelengths are in nanometres. Stokes Raman scattering has positive shift under this convention; Anti-Stokes Raman scattering has negative shift. The strong unshifted Rayleigh scattering line is not a vibrational Raman band.
For an original chosen excitation and a vibration, the Stokes wavenumber is , giving . The corresponding anti-Stokes wavelength is . Changing the excitation changes these optical wavelengths while the same assumed transition retains its Raman shift. The One-mode Raman spectrum example gives an existing level diagram and a separate numerical spectrum.
The vertical quantity must be stated too: detector counts per spectral bin, calibrated scattered power density and a stimulated gain ratio are different observables. Femtosecond stimulated Raman spectroscopy can plot the Raman pump-on pump-off gain ratio rather than spontaneous photon counts. Its primary apparatus disperses probe and reference beams onto an array and calibrates shifts with known solvent lines.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Materials and Methods, Instrumentation/Figure 2 and absolute-shift calibration; Data Collection, equation 4
Spectral-density conversion between wavelength and Raman shift also changes the density's units: rebadging the horizontal axis alone need not preserve a spectral integral. Background, excitation rejection, instrument response and spectral resolution affect observed band heights and widths. An integrated band area is not determined by peak height alone. A chemical inference should compare calibrated positions and responses under specified conditions, rather than identify a material from one unqualified peak.
Spectral-density conversion between wavelength and Raman shift preserves the integrated physical quantity while changing its horizontal coordinate. Fix the excitation wavelength , and let be the Raman shift. Using numerical vacuum wavelengths in nanometres and shifts in ,Let denote detected counts per nanometre and counts per unit Raman shift. Conservation of counts under a change of variables givesThe conversion factor carries the corresponding density-unit change. The same argument applies to calibrated power densities, provided both sides describe the same quantity.
For an original narrow bin centred at , a count density of per nanometre becomes per . A one-nanometre bin there spans approximately , so its integrated count remains about . At , the same wavelength density becomes per . Relabeling bin positions without adjusting the density would conceal this coordinate dependence.
For finite bins, use their exact transformed edges and preserve each bin's integral. Raman spectral rebinning with conserved integrated counts distinguishes this operation from interpolating peak heights onto a new grid. Instrument response correction is another step; the Jacobian alone does not calibrate detector sensitivity or remove background.
The primary FSRS apparatus calibrated Raman shifts using known solvent lines and dispersed the probe spectrum onto an array.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Instrumentation/Figure 2, spectral detection and absolute-shift calibration
Its dimensionless Raman pump-on pump-off gain ratio is a different observable: a ratio of matched spectral densities can cancel their common coordinate factor. It should not be treated as a count density merely because it is plotted against Raman shift.Raman spectral rebinning with conserved integrated counts redistributes finite-bin measurements onto a new spectral grid while preserving their summed quantity over the same covered range. It is different from relabeling bin centres or interpolating peak heights. The parent spectral-density conversion between wavelength and Raman shift derives the continuous Jacobian; finite bins require a stated assumption about unresolved variation inside each bin.
For an original piecewise-constant wavelength-density model, let old bin have width and count . Invert the new Raman-shift edges to wavelength intervals . Define the overlap matrixWhen the new bins partition the old covered range, , hence . Clipping the new range instead excludes the corresponding counts and must be reported.
For original old wavelength bins and with counts and , choose new edges corresponding to wavelengths , , and . ThenThe total remains . A different within-bin model can distribute that total differently; the original measurements do not resolve every sub-bin feature.
Covariance of count-conserving rebinned Raman channels transforms as for this fixed linear operation. Fractional rebinned estimates are therefore not automatically independent Poisson photon counts. Splitting one measured bin among neighbours creates shared uncertainty; finer output pixels do not create additional spectral resolution.
The primary FSRS instrument records a dispersed spectrum on an array and calibrates its Raman-shift axis.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Instrumentation/Figure 2 and absolute-shift calibration; Data Collection
The overlap algorithm above is an original illustrative reconstruction, not a claim about that instrument's published processing. Apply radiometric response and background corrections consistently with the quantity whose integral is being conserved.The covariance of count-conserving rebinned Raman channels records the shared noise created when one measured channel contributes to several output channels. For a fixed deterministic rebinning matrix and an input count vector with covariance matrix , the output is andThis identity needs finite second moments, not a Gaussian approximation. Raman spectral rebinning with conserved integrated counts describes the count-preserving map; retaining its full covariance matrix is necessary for uncertainties of sums and fitted spectral features.[ref]
Consider independent input counts with means and and Poisson distribution variances equal to those means. Split them deterministically usingThe three output means are . Their total has variance , exactly the original total variance, and standard deviation . Keeping only diagonal entries would give variance and standard deviation about , understating the uncertainty of the conserved total.
The rank deficiency from deterministic spectral upsampling is visible without matrix inversion: the vector has zero output contrast for every possible input. Three displayed channels therefore contain at most two independent degrees of freedom in this model. Fractional redistribution creates correlated numerical channels; it is different from physically assigning each detected photon randomly to one new channel.
The primary stimulated-Raman apparatus records spectra with array detectors and calibrates their spectral coordinates.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Instrumentation, array detection and frequency-shift calibration; Data Collection, equation 4
When those data are placed on a new spectral grid, the original detector counts remain the source of statistical information. Additional interpolation points do not supply independent photon measurements.Rank deficiency from deterministic spectral upsampling occurs because a deterministic map cannot manufacture independent measurements. For and input covariance matrix ,When the output has more channels than the input, its covariance matrix is necessarily singular. Covariance of count-conserving rebinned Raman channels gives the conserved-count example and its full propagated uncertainty.[ref]
Using that parent's two-to-three channel map, the output always satisfies . If the input readings are and , the rebinned vector is . Recovering the original readings as and shows that the third displayed number is not a third independent observation.
For an original fitting example, suppose both input means equal an unknown and their independent measurement-error variances are known to be . Fitting in the original channels gives , with variance . A correct generalized least squares fit after rebinning gives the same result and uncertainty. It must use the singular covariance on its supported range, for example through the Moore-Penrose inverse, together with the exact linear constraints.
The range restriction in singular-covariance spectral fitting matters if a proposed output model fails those constraints. A residual along cannot arise from this rebinning model at all. Merely inserting a pseudoinverse into a quadratic objective would assign zero penalty to that impossible direction. Either enforce the range condition or supply a physically justified additional noise model; adding a small diagonal term solely to make the matrix invertible changes the statistical assumptions.
The motivating Raman apparatus measures detector-array spectra before any subsequent numerical grid change.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Instrumentation, array detection and spectral calibration; Data Collection, equation 4
Working on the original grid often avoids this singular fitting problem while retaining the actual measurement information.Range restriction in singular-covariance spectral fitting requires a residual to lie in the subspace where the measurement model allows random error. Let with zero-mean error covariance . Every vector in the kernel of satisfiesso almost surely. Thus a permissible residual obeyswhere is the Moore-Penrose inverse. The matrix is the orthogonal projector onto the range of the covariance.
Only after enforcing this condition should a generalized least squares objective use . The quadratic form alone assigns zero penalty to the forbidden directions and therefore cannot impose the condition. Rank deficiency from deterministic spectral upsampling gives its physical spectral-grid origin through . Covariance propagation preserves those exact dependencies.[ref]
For an original idealized two-channel example, take , mean and observation . The second channel has no random error in this stipulated model, so the range condition forces . The remaining squared residual is one. Minimizing only the pseudoinverse quadratic would instead choose and objective zero, while predicting the impossible second-channel value six.
Real measurements need not contain a perfect channel: deterministic rebinning produces exact noise-free combinations of otherwise noisy channels. Additional physical noise in such a combination must be modelled if present. If covariance ranges change with the parameters, pseudoinverse fitting with a parameter-dependent covariance range requires enforcing the appropriate support for each candidate; a single fixed projection need not apply.
Raman detector-array spectra are recorded before numerical redistribution onto another spectral grid.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Instrumentation, array detection; Data Collection, equation 4
Fitting the original independent measurement coordinates often makes these support restrictions explicit and avoids treating interpolation points as new observations.Pseudoinverse fitting with a parameter-dependent covariance range requires checking the allowed residual subspace separately for each fitted parameter. If the covariance is and the residual is , the range restriction in singular-covariance spectral fitting becomesThe Moore-Penrose inverse quadratic alone does not enforce this condition. A projector computed at one trial parameter need not describe another trial's allowed noise.
For an original example, let , zero mean and . Noise lies on a line that rotates with . With observation and , the model at permits the observation and gives quadratic value four. At , the pseudoinverse quadratic is zero, yet the observation is outside the allowed vertical line. Minimizing that quadratic without its range constraint would reward an impossible candidate.
The pinned SciPy documentation describes singular-covariance evaluation using pseudo-determinants, pseudoinverses and covariance rank; its implementation additionally applies a numerical support mask and returns zero density, or negative-infinite log density, off support.[ref]
SciPy 1.16.2 documentation. scipy.stats.multivariate_normal, Notes; v1.16.2 scipy/stats/_multivariate.py, _PSD._support_mask and multivariate_normal_gen.pdf/logpdf
Parameter-dependent supports also require care about which measure defines a density. Values defined on different subspaces are not automatically a common likelihood merely because each uses the same-looking formula.A physically justified transverse noise resolves the idealized singularity. With perpendicular unit vector , use . For , the two quadratic values become four and four hundred. The determinant is the same at these orientations, so this full-rank Gaussian model correctly disfavors the transverse observation.
The transverse-noise limit of a rotating rank-one covariance model is an inference about a stated physical noise model, not permission to add arbitrary diagonal noise for numerical convenience. In spectral work, distinguish a parameter-dependent physical noise direction from a fixed deterministic rebinning matrix; the latter has a fixed output range when its input covariance is positive definite.
The transverse-noise limit of a rotating rank-one covariance model describes how an ordinary two-dimensional noise distribution concentrates onto a line as one physical noise scale tends to zero. For orthonormal vectors , setA zero-mean Gaussian observation has densityThe pseudoinverse fitting with a parameter-dependent covariance range article explains the range restriction at the exactly singular endpoint.
For a fixed point off the line, , the exponential drives this density to zero as . On the line the two-dimensional density grows like . There is no finite pointwise two-dimensional density limit: probability concentrates onto a one-dimensional Gaussian measure. A density on that line uses a different reference measure. Simply substituting zero for in the full-rank density formula is invalid.
For an original angular example, let an observed vector have length along orientation , with and . At angular displacement ,At radians the density ratio is about . The angular resolution set by transverse spectral noise has characteristic small-angle scale radians, or , when the transverse noise is much smaller than the longitudinal noise.
SciPy's pinned implementation treats singular covariance using its rank and a separate numerical support check, rather than only discarding zero eigenvalues in a quadratic.[ref]
SciPy 1.16.2 documentation. scipy.stats.multivariate_normal, Notes; v1.16.2 scipy/stats/_multivariate.py, _PSD._support_mask and pdf/logpdf
Numerical support tolerance and actual transverse measurement noise are different quantities. Choose the latter from the detector and processing model; a tiny arbitrary regularization can otherwise imply unjustified angular precision.Angular resolution set by transverse spectral noise quantifies how sharply an observed spectral vector constrains the orientation of an anisotropic two-coordinate noise model. Use the covariance from transverse-noise limit of a rotating rank-one covariance model, with known longitudinal standard deviation and transverse standard deviation . For an observation of length aligned with orientation , the Gaussian density givesThe determinant is independent of orientation, so the angular dependence comes entirely from the covariance-weighted residual.[ref]
SciPy 1.16.2 documentation. scipy.stats.multivariate_normal, Notes, full-rank Gaussian density
Define a local half-width by a chosen log-density drop . For , the lobe around has half-widthWhen this angle is small and , it is approximately . If , even an orthogonal orientation fails to reach that drop, so this local-width criterion does not exclude any orientation. At or equal noise scales, the observation has no angular preference in this model.
For an original example, choose , and in consistent signal units. Then . A drop gives half-width about radians, or . Reducing only the transverse standard deviation to approximately halves the width. Increasing a numerical regularization parameter is not an experimental improvement in this noise scale.
The global orientation ambiguity in a rank-one covariance fit remains: orientations separated by give the same covariance. A narrow local lobe does not distinguish those two orientations. Nor is a fixed log-density drop automatically a confidence interval with a stated coverage probability. Multiple observations, unknown noise scales and experimental nuisance parameters require their corresponding inference model.
Repeated reference spectra under stable conditions can estimate the longitudinal and transverse noise components. Their covariance must include shared calibration effects, as required by the measurement-propagation rule.[ref]
Guidelines for Evaluating and Expressing the Uncertainty of NIST Measurement Results by Barry N. Taylor and Chris E. Kuyatt. Appendix A, equation A-3
The numerical example is a model calculation in spectral coordinates, rather than a specification of a particular optical instrument.Global orientation ambiguity in a rank-one covariance fit means that covariance identifies an axis without identifying its positive direction. For and ,because . Adding an isotropic transverse-noise term does not remove this equality. The angular resolution set by transverse spectral noise can make each local orientation lobe narrow while leaving the two directed orientations indistinguishable.
For an original example, let and . Both and giveThe eigenvalues are four and zero, and the principal eigenvector can be written as either or its negative. More samples can improve estimation of this matrix without choosing between those signs.
In a zero-mean Gaussian covariance model, equal covariance gives equal probability laws, including the supported line in the singular case.[ref]
SciPy 1.16.2 documentation. scipy.stats.multivariate_normal, mean/cov parameters and Notes on singular covariance
No fitting procedure using only that law can distinguish the two parameter labels. A fitting range removes duplicate labels by convention; it does not measure the sign of a physical direction.For example, local high-likelihood neighborhoods around and may each span only a few degrees. Reporting only the first as uncertainty in a directed angle discards an equally supported region unless additional information rules it out. A prior or coordinate convention that selects one sign should be distinguished from an experimental observation.
Sign-sensitive measurements that resolve a covariance-axis ambiguity can supply information outside the covariance-only model, such as an independently calibrated signed mean or phase reference. If the scientific quantity is genuinely an unoriented axis, an angle modulo is already the appropriate parameter. The interpretation of the parameter determines whether the ambiguity needs resolving.
Sign-sensitive measurements that resolve a covariance-axis ambiguity add an observable whose distribution changes when the fitted axis direction is reversed. In the global orientation ambiguity in a rank-one covariance fit, and give the same covariance. An independently calibrated signed projection can distinguish them.
Consider two candidates with an additional observation , where is known, has known positive sign and . Assume this calibration reading is independent of the covariance data conditional on the candidate. The Gaussian densities giveThe normal density and cumulative distribution function used here are documented in the pinned numerical reference.[ref] The likelihood-ratio expression follows by expanding the two squared residuals.
For an original example, let , and observe . The log likelihood ratio is 16, strongly favoring the positive candidate under this stated model. With equal prior probabilities and equal decision costs, the sign-threshold decision has repeated-measurement error probability . This decision-error probability is different from assigning a posterior error probability to that one observed value.
A practical calibration applies a known signed perturbation and records the signed detector-response component. Reversing the applied perturbation checks readout polarity. A calibrated phase-sensitive readout can provide such a projection; measuring only noise covariance does not supply its sign.
The failure of sign recovery from magnitude-only calibration data is important. For symmetric Gaussian noise, has the same distribution under means and . If is orthogonal to the axis, then and even the signed reading adds no separation. If the amplitude sign itself is unknown, reversing both amplitude and axis preserves the mean. The additional measurement resolves the ambiguity only when its reference sign and response model are independently established.
Failure of sign recovery from magnitude-only calibration data occurs when opposite signed calibration models induce exactly the same distribution of every recorded magnitude. Under this symmetry, more repetitions can estimate the magnitude distribution accurately without deciding the missing sign. This is the limitation relevant to sign-sensitive measurements that resolve a covariance-axis ambiguity.
Let with sign , known and symmetric noise having density . If the recorded value is , then for Symmetry gives . Independent repetitions multiply identical densities, so their likelihood ratio remains one. With equal sign priors and equal decision costs, no decision rule based solely on these magnitudes can have average sign-error probability below1/2.
For normal distribution noise with standard deviation , the magnitude has a folded normal distribution:where is the standard normal density. The formula depends on , not its sign. The pinned numerical reference provides the equivalent standardized folded-normal density and its scale transformation.[ref]
SciPy 1.16.2 documentation. scipy.stats.foldnorm, Notes, density and loc/scale convention
For the original calibration scale and , recording a signed value can distinguish the two models strongly, but recording only its magnitude cannot do so under the symmetric model. This is an information loss in the measurement map, rather than a shortage of averaging trials.
The symmetry assumption is essential. As an original counterexample, let noise equal−1 with probability2/3 and+2 with probability1/3, giving zero mean but an asymmetric distribution. With , the positive-sign magnitudes are0 or3, while the negative-sign magnitudes are2 or1. Their disjoint supports permit sign recovery if this asymmetric noise model is independently established. The calibrated asymmetry itself supplies sign-reference information absent from the symmetric case.
Similarly, a genuinely signed projection or a known phase reference can break the original ambiguity. An unverified readout polarity or unknown amplitude sign can preserve it. Specify which signed information the apparatus actually records before interpreting a magnitude fit as an oriented calibration.
Spatially offset Raman spectroscopy, or SORS, collects Raman scattering from a surface region laterally displaced from the illumination spot. In a diffusely scattering material, changing the offset changes the mixture of photon paths and the relative contributions of surface and buried layers. It is not simply a tightly focused measurement at a selected depth.
The2005 experiment of P. Matousek and colleagues used trans-Stilbene powder beneath a layer of PMMA powder. Its primary report describes a19-fold improvement in buried-layer contrast before numerical separation.[ref]
Subsurface Probing in Diffusely Scattering Media Using Spatially Offset Raman Spectroscopy by P. Matousek and others. Abstract, two-powder feasibility experiment and lateral collection geometry
The physical point is that an opaque-looking scattering overlayer need not contribute the same spectral proportion at every collection offset.An original two-component linear combination illustrates scaled subtraction of two spatially offset Raman spectra. Let and be fixed surface and buried Raman spectra, and suppose dark-corrected measurements giveIf a surface-specific band determines the scale , thenThe surface contribution cancels while a scaled buried spectrum remains. These coefficients are chosen examples, not the paper's measured mixing fractions.
A practical arrangement fixes an excitation spot, moves the collection region laterally, rejects the excitation line with an optical filter, and sends the collected light to a spectrograph. Record comparable exposure, incident radiant power, backgrounds and spectral response at each offset. If the offset changes each component's shape, rather than only its scale, the simple subtraction model fails. Strong absorption, fluorescence, overlapping bands and measurement noise also limit inference. Offset-dependent enrichment provides evidence for depth-dependent contributions; it is not an unqualified depth calibration or unique chemical identification.
Scaled subtraction of two spatially offset Raman spectra suppresses a common surface contribution by matching its amplitude between two measurements. The spatially offset Raman spectroscopy experiment establishes that collection offset can change surface and buried-layer proportions; numerical separation then needs a model of those contributions.[ref]
Subsurface Probing in Diffusely Scattering Media Using Spatially Offset Raman Spectroscopy by P. Matousek and others. Abstract, offset-dependent layer contributions and two-powder feasibility experiment
The following two-component subtraction is an original simplified case, not a claim that it reproduces the paper's full analysis.Let fixed Raman spectra and describe the surface and buried material. Writewith . ThenIf the two mixing proportions are identical, so , this cancels the buried component too. Offset diversity must supply different mixtures, not merely a weaker copy of the same spectrum.
For an original example, take and . The correct scale gives . Using instead gives : an incorrectly subtracted surface band can produce a negative residual even when both true spectra are nonnegative. A surface-specific reference band can estimate the scale only if the assumed common shape and response are adequate.
Noise remaining after scaled Raman subtraction is distinct from the cancelled mean signal. At a surface-only channel, suppose two independent acquisitions have Poisson photoelectron counts with means and . For fixed , the expected residual is zero, butgiving a standard deviation of about in the scaled count units. Subtraction has not erased shot noise. Correlated acquisitions and uncertainty in add further terms. Varying shape, wavelength-dependent attenuation or an unmatched fluorescence background can invalidate this simple linear separation.
Noise remaining after scaled Raman subtraction is the random uncertainty left when a surface contribution's mean has been cancelled. For two measured spectral channels and fixed scale , scaled subtraction of two spatially offset Raman spectra uses . Its exact variance isThe covariance term describes the actual acquisition relationship; numerical subtraction does not itself make the inputs correlated or independent. General measurement propagation retains such terms.[ref]
A focused extension allows an uncertain subtraction scale , independent of the pair , with mean and variance . Expanding the product's moments givesThe final term includes uncertainty in the reference scale, not just shot noise in the two spectra.
For an original surface-only example, let independent Poisson photoelectron counts have means and , with . The mean residual is zero. A perfectly known scale gives variance and standard deviation . If instead , the variance becomes , giving standard deviation in the scaled count units.
If is estimated from these same counts, the independence assumption needs replacement by the appropriate joint model. A scale shared across wavelengths can also produce correlated spectral residuals from a shared subtraction scale, leaving a structured band-like error rather than independent noise in each bin. The original SORS study demonstrates changing layer contributions with collection offset; the moment calculation here is an independent noise model for a simplified subtraction.[ref]
Subsurface Probing in Diffusely Scattering Media Using Spatially Offset Raman Spectroscopy by P. Matousek and others. Abstract, offset-dependent mixtures and numerical layer separation
A minimum-variance spectral contrast orthogonal to a reference shape estimates a desired signal amplitude while exactly rejecting one fixed nuisance shape. Let , with known shapes and a positive-definite noise covariance matrix . Choose to minimize , subject toThe constraints retain unit signal response and reject the reference amplitude, as in projection of shared-scale uncertainty onto a spectral contrast. The quadratic variance includes the full noise covariance.[ref]
Remove the reference component in the inverse-covariance geometry:For nonzero and , the minimizing contrast and its variance areFor a short proof, every other feasible contrast is with . Since is a linear combination of those shapes, the cross term vanishes, leaving the added nonnegative variance . This is a constrained best linear unbiased estimator.
In an original three-channel example, take , and . The optimum is , with variance . Equal subtraction of the two reference channels, , has variance . The quieter third channel receives more of the subtraction.
If the desired and reference shapes are proportional, and no unit-response rejecting contrast exists. The noise penalty from nearly parallel signal and reference shapes already becomes large as approaches zero. This construction assumes fixed known shapes and covariance; estimating them from the same noisy spectra requires additional uncertainty terms.
The noise penalty from nearly parallel signal and reference shapes is the precision lost when a spectral estimator must reject a nuisance pattern resembling its desired signal. For nonzero shapes and positive-definite noise covariance , define their inverse-covariance correlationThe Cauchy-Schwarz inequality gives . The minimum-variance spectral contrast orthogonal to a reference shape has varianceIf the nuisance amplitude were known and subtracted without uncertainty, the corresponding optimum variance would be . Exact nuisance rejection therefore multiplies variance by and standard uncertainty by .
The relevant angle is the noise-whitened angle between spectral signal and nuisance shapes: it is measured after a whitening transformation, not generally from the raw plotted spectra. A channel with large noise contributes little to separating the shapes even if their plotted curves differ there.
For an original example, let , and . Rejecting the reference forces the contrast to , with variance . With known nuisance amplitude, its variance would be . The rejection penalty is therefore in variance, about in standard uncertainty. Only the weak second-channel component distinguishes signal from nuisance.
The primary stimulated-Raman experiment reported systematic spectral noise above its calculated shot-noise limit and described pure-solvent subtraction of a common pattern.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Results and Discussion, theoretical shot-noise limit versus observed noise and pure-solvent subtraction
A reference can remove that shared pattern while also making an overlapping desired signal hard to estimate. Retain full covariance in the variance calculation.[ref]Guidelines for Evaluating and Expressing the Uncertainty of NIST Measurement Results by Barry N. Taylor and Chris E. Kuyatt. Appendix A, equation A-3
At exact proportionality, no unit-response rejecting contrast exists; a low-noise result obtained by suppressing the signal as well is not a valid amplitude estimate.The noise-whitened angle between spectral signal and nuisance shapes measures their separation in units of measurement noise rather than raw plotting units. For nonzero shapes and a positive-definite covariance , choose a square whitening transformation with . The angle isIt is the ordinary Euclidean angle after whitening. Both parallel and antiparallel shapes are indistinguishable up to an unknown nuisance amplitude; the precision penalty depends on , as in noise penalty from nearly parallel signal and reference shapes.
For an original example, take raw shapes , and . The plotted shapes are orthogonal, but whitening gives and . Thus and . The second channel, which separates their signs, is noisy. Rejecting the nuisance multiplies the optimum variance by , or standard uncertainty by .
The invariance of noise-whitened spectral angles to the whitening factor follows from . Different valid square whitening factors can rotate the whitened coordinates without changing the angle. Likewise an invertible change of measurement units transforms both shapes and covariance, leaving the inverse-covariance expression unchanged. Rescaling only the displayed curves while leaving their noise model fixed is a different operation.
The covariance must describe the actual measured channels and shared errors, using the full propagation rule.[ref]
Guidelines for Evaluating and Expressing the Uncertainty of NIST Measurement Results by Barry N. Taylor and Chris E. Kuyatt. Appendix A, equation A-3
If is singular, first restrict to its physically allowed range; an unrestricted inverse whitening factor does not exist.The primary stimulated-Raman experiment described systematic spectral noise and subtraction of a pure-solvent reference.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Results and Discussion, observed noise versus shot-noise limit and pure-solvent subtraction
The angle above assesses which desired patterns remain distinguishable after such nuisance rejection under a stated covariance. It does not establish that an estimated reference shape or noise model is itself accurate.Invariance of noise-whitened spectral angles to the whitening factor means that any two complete whitening transformations for the same positive-definite covariance give the same angles between transformed shapes. Suppose square invertible matrices satisfy . Put . Since ,Thus is orthogonal. It may rotate or reflect the whitened coordinates, but preserves their inner products, norms and angles. The noise-whitened angle between spectral signal and nuisance shapes is consequently a property of the shapes and covariance, not a particular whitening algorithm.
For an original example, chooseDirect multiplication gives . With and , the whitened shapes are and , meeting at . Using instead gives and , again at , although the coordinate components differ.
SciPy describes covariance whitening as transforming variables to unit covariance and illustrates it with a precision-matrix construction.[ref] The matrix proof above establishes the invariance independently of an implementation's chosen factor.
The same principle requires covariance-consistent rescaling of whitened spectral coordinates. If raw measurement units change by an invertible matrix , transform both shapes by and covariance by ; then reproduces the same whitened shapes. Changing a plotted channel's scale without transforming its noise model is not this invariant operation.
The claim assumes a full whitening of a positive-definite covariance. Truncating modes can remove information and change angles, while a singular covariance requires restriction to its supported range. Uncertainty in an estimated covariance is also separate from this exact algebraic invariance.
Covariance-consistent rescaling of whitened spectral coordinates changes measurement units or mixes coordinates while transforming their noise model at the same time. If an invertible matrix maps a spectral vector to , thenThe covariance follows directly from the expectation of the transformed error outer product. For positive-definite ,Thus the inverse-covariance inner product, its norms and the resulting whitened angle are invariant. Invariance of noise-whitened spectral angles to the whitening factor establishes the related freedom to rotate the fully whitened coordinates.
For an original example, let , and . Their noise-whitened angle has cosine , or angle about . Converting only the first raw coordinate's numerical units by a factor of 1000 gives and . Using that transformed covariance keeps the cosine exactly .
If the shapes are rescaled but the old covariance is mistakenly retained, the calculated cosine becomes approximately , suggesting an angle only about . A unit conversion would then appear to destroy the separation between signal and nuisance. That apparent change comes from inconsistent uncertainty accounting.
For any full whitening factor , the transformed factor satisfies and gives . The pinned SciPy documentation describes whitening and demonstrates a near-identity covariance after transformation.[ref] Measurement propagation likewise retains all covariance terms under a linear transformation.[ref]
The invertibility condition matters. Noninvertible spectral compression versus a coordinate change can discard information and need not preserve these angles. A transformation estimated from the same noisy observations also brings estimation uncertainty beyond the fixed-matrix identity proved here.
Noninvertible spectral compression versus a coordinate change distinguishes discarding spectral coordinates from expressing the same measurements in different units. The covariance-consistent rescaling of whitened spectral coordinates article assumes an invertible transformation. A compression with fewer independent rows than input coordinates instead has covariance and may lose information even when this covariance is propagated correctly.[ref]
For positive-definite and a known signal shape , compare the squared noise-weighted signal sizesassuming has independent rows. Put and . ThenThe matrix is an orthogonal projector. This proves that compression cannot increase this signal measure under the stated covariance model. The condition for preserving a spectral signal under linear compression is that its whitened shape lie entirely in the retained subspace.
For an original example, let , desired shape and nuisance shape . Keeping only the first channel, , reduces from two to one and makes both shapes the same scalar. An unknown nuisance amplitude can then imitate the desired signal exactly.
Summing instead, , gives desired response two, nuisance response zero and noise variance two. It retains for this particular signal while rejecting that nuisance. Thus a noninvertible map can preserve a chosen estimation task, but cannot in general be reversed to recover every original spectral component.
The primary Raman apparatus records array spectra before subsequent spectral processing.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Instrumentation, array detection; Data Collection, equation 4
Choose compression against the scientific signal and nuisance model, and propagate the full covariance. Correct uncertainty accounting does not restore a spectral distinction removed by the map.The condition for preserving a spectral signal under linear compression specifies when compression retains the covariance-weighted signal measure of a known shape. Let the mean be , with fixed positive-definite noise covariance , and compress by a full-row-rank matrix . The measures in noninvertible spectral compression versus a coordinate change obeyThus the rows of the compression must retain the noise-weighted signal direction, not necessarily the unweighted plotted shape.
For a short proof, whiten the shape as and put . The parent's orthogonal projection formula givesEquality holds exactly when lies in the row space of . Multiplying that subspace relation by yields the stated condition. Linear covariance propagation gives the compressed covariance .[ref]
One useful construction is the scalar matched filter statistic . Its mean is and variance , so has variance , the original optimal linear amplitude precision. In the Gaussian known-covariance model, this statistic also retains the likelihood's dependence on that single amplitude.
For an original example, choose and . Then and the retaining row is . Its signal response is two and noise variance two, giving . An unweighted sum instead has response three and variance five, giving : ten percent of this signal measure is lost.
Signal-subspace preservation for several spectral amplitudes requires retaining the corresponding family of weighted mean directions when all those amplitudes are to be preserved. Unknown nuisance shapes can also change the relevant estimation problem. A compression designed for one known shape does not automatically preserve every spectral question or uncertainty component.
Signal-subspace preservation for several spectral amplitudes requires a compression to retain every noise-weighted mean direction relevant to those amplitudes. Let have mean , fixed positive-definite noise covariance , and a full-column-rank shape matrix . Compress it as , with full row rank. The original and compressed amplitude-information matrices areFor Gaussian noise these are Fisher information matrices. Without that distributional assumption, they still describe the corresponding known-covariance linear estimation problem.
Whiten the shapes as and put . The orthogonal projection onto the row space of is , givingThis difference is positive semidefinite. It vanishes exactly when every column of lies in that row space, equivalentlyThus preserving one selected shape does not establish preservation of the whole signal subspace. Linear covariance propagation supplies for the compressed observations.[ref]
For an original example, take and shape columns and . Then . Choosinggives and , hence . Keeping only the first compressed row retains information2 for the first amplitude but destroys sensitivity to the second. An unweighted first row would instead reduce the first information entry to1.8.
At least independent compressed directions are needed to preserve independent shape amplitudes. One construction is , whose compressed signal has mean and covariance . When is invertible, has mean and covariance . In the fixed-covariance Gaussian model, expanding the likelihood function shows that its parameter dependence is retained through .
Unknown nuisance shapes, changing covariance or additional spectral parameters can alter the subspace that needs preservation. The proof concerns the specified family of mean shapes and fixed noise model, rather than guaranteeing that one compression preserves every future spectral question.
Femtosecond stimulated Raman spectroscopy, or FSRS, measures a Raman spectrum through gain induced in a short broadband probe by a narrowband Raman pump. At a molecular vibration frequency matching the pump–probe frequency difference, Stokes Raman scattering transfers energy from the pump into the probe. The narrow pump and spectrograph supply spectral selectivity while the short probe samples the system in time; the probe duration alone is not the spectral linewidth.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Introduction, Figure1 and frequency-resolution discussion
The2003 apparatus of David W. McCamant, Philipp Kukura and Richard A. Mathies filtered a Ti:sapphire amplifier output to make a narrowband pump near and generated a broadband probe in sapphire. Overlapped beams traversed the sample; a spectrograph dispersed probe and reference spectra onto a dual-diode array. The paper demonstrates gain bands in cyclohexane.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Materials and Methods, Instrumentation and Figure2; Data Collection, equation4
After dark correction, let and denote probe and reference counts. The Raman pump-on pump-off gain ratio isFor an original chosen spectral channel, take and . The normalized ratio is , a four-percent Raman gain; the unnormalized probe ratio would mistake a source fluctuation for additional gain. This assumes a linear detector and a reference that tracks that fluctuation.
A second original calculation uses an pump and a vibration. The Stokes probe channel is at wavenumber , or about . A broadband probe can sample many such differences simultaneously. Spatial and temporal overlap, wavelength calibration, probe chirp and non-Raman nonlinear backgrounds still require characterization. A short pulse label does not by itself establish the time resolution of a changing molecular response.
A Raman pump-on pump-off gain ratio compares the probe spectrum with and without the narrowband Raman pump, after correcting detector background and normalizing by a reference. For positive dark-corrected probe values and reference values ,Unity denotes no pump-induced change in this model; is the fractional gain. The primary FSRS experiment explicitly performs dark subtraction, reference normalization and the on/off division.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, equation 4; Instrumentation/Figure 2, separate probe/reference spectra
These operations define a measured optical gain observable, not a direct count of Raman photons alone.An original offset example has true probe readings with pump off and with pump on, with an unchanged reference ratio. The true gain is . A common unremoved detector offset of changes the raw ratio toReference normalization does not automatically remove an additive detector background. Uncertain subtraction also contributes uncertainty to the corrected ratio.
The shot-noise precision of a Raman gain ratio gives a separate statistical limit. If the four inputs are independent Poisson photoelectron counts with large means, first-order propagation givesFor weak gain and all four means approximately , . At , that is about : a one-percent gain is only about2.5times this standard uncertainty. These are chosen photoelectron-count assumptions, not an uncertainty specification for arbitrary digitized detector counts.
Shared laser fluctuations, read noise, uncertain references and non-Raman nonlinear effects require their own covariance and response model. The ratio can reveal a weak band only when the acquisition and background control justify its precision. The parent femtosecond stimulated Raman spectroscopy article explains the pump/probe apparatus and supplies a distinct reference-fluctuation example.
The shot-noise precision of a Raman gain ratio is the statistical precision expected from finite detected photoelectron numbers under a stated counting model. Write the Raman pump-on pump-off gain ratio as , where are pump-on probe/reference counts and pump-off probe/reference counts. For large independent Poisson counts, applying first-order propagation to givesThe parent article derives the equal-count limit. Independence, large counts and a calibrated conversion from readout units to photoelectrons are assumptions, not consequences of taking a ratio.
An original imbalanced example has and . The relative standard uncertainty is about . Increasing the three bright channels tenfold only reduces it to about : the weakest count channel dominates. Multiplicative detector-gain corrections can make the mean ratio appropriate to the optical experiment, but they do not create additional photoelectrons.
A simple photon-budget allocation for a Raman gain ratio makes the trade-off explicit. If the four mean counts sum to , the Cauchy-Schwarz inequality givesEquality in this ideal unconstrained budget requires equal counts. Near unity gain, four approximately equal means totalling give about relative precision. Actual optical ratios, reference splitting and exposure constraints may prevent exact equality.
The primary FSRS experiment explicitly compared its computed photoelectron shot-noise limit with observed baseline noise and found additional detector structure; it averaged repeated gain spectra and discussed pixel-dependent corrections.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection; Results and Discussion, solute spectra and shot-noise-limit discussion for Figure 3 spectra
A counting limit is therefore a useful benchmark, not a guarantee of achieved experimental sensitivity.Photon-budget allocation for a Raman gain ratio distributes measurement effort among the channels entering a ratio. For four large independent Poisson photoelectron counts with means , the shot-noise precision of a Raman gain ratio has approximate relative variance . With a freely allocatable fixed total expected count , the minimum is at equal counts. The constraint matters: fixed total exposure time is a different optimization problem.
Suppose channel has known photoelectron rate and an independently adjustable exposure . Estimate the optical ratios from exposure-normalized rates, so the known exposure factors are included. Then and a total time budget givesThe Cauchy-Schwarz inequality, or differentiation with a constraint multiplier, givesThis exposure-time allocation for a Raman gain ratio spends longer on weak channels without necessarily equalizing their final counts.
For an original one-second budget, let two rates be and two be photoelectrons per second. The optimal exposures are second for each bright channel and second for each weak channel. Expected counts are about and respectively, with relative standard uncertainty . Four equal exposures would give about instead. The gain comes from allocating the stated resource more efficiently, not creating additional information by normalizing counts.
The primary FSRS detector records probe and reference spectra together and alternates pump-on/off exposures.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, shutters, paired spectra, equation 4 and averaging
Such linked channels cannot have four independently chosen exposure times; the appropriate grouped constraints must replace the ideal model above. Read noise, dark uncertainty, saturation and sample change can alter the optimum as well.Exposure-time allocation for a Raman gain ratio must respect channels that are recorded together. The ideal photon-budget allocation for a Raman gain ratio permits four independently adjustable exposures. A probe/reference detector pair instead has a common pump-on exposure and a common pump-off exposure .
Let the four positive photoelectron rates be during pump-on and during pump-off. Form the gain ratio from exposure-normalized rates. For independent large counts limited by shot noise, its approximate relative variance isWith a fixed live-time budget , differentiation or the Cauchy-Schwarz inequality gives
For an original example, let both pump-on rates be and both pump-off rates be . Then , . A one-second live-time budget is best split into second on and second off. Its predicted relative standard deviation is , compared with for equal times.
The 2003 primary stimulated-Raman apparatus recorded probe and reference spectra together, using 97 ms exposures followed by 10 ms readout with the detector-exposure shutter closed. The Raman-pump shutter changed state during readout.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure/readout and shutter sequence preceding equation 4
These acquisition details motivate grouped exposure constraints and readout overhead in Raman exposure allocation. The optimization above uses live time, stationary rates and negligible read noise; a wall-clock budget, detector saturation or sample drift can change which exposures are feasible.Readout overhead in Raman exposure allocation is the detector time that consumes the acquisition budget without collecting useful probe/reference photons. For pump-on/off exposure pairs, let each frame require a fixed closed-shutter readout duration . A wall-clock budget leaves total live timeUnder the stationary-rate, independent shot noise model of exposure-time allocation for a Raman gain ratio, its minimum approximate relative variance at fixed isReadout changes the available live time, but not this optimum ratio when the overhead is fixed and independent of the on/off allocation. The live-time formula itself ceases to describe all constraints when exposures hit saturation limits or the number of pairs is variable.
The 2003 primary stimulated-Raman experiment used 97 ms exposures and 10 ms detector readout with the exposure shutter closed. The pump shutter switched state during readout, giving successive on/off measurements.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure/readout and S1/S2 shutter sequence preceding equation 4
These reported settings give an idealized two-frame cycle of , containing live time. The paper describes the practical full cycle as approximately 220 ms, so the two-duration sum need not include every system delay.For an original comparison at fixed wall time, the 214 ms idealization has live fraction . Relative to a hypothetical zero-overhead detector at the same rates and on/off allocation, the shot-noise variance is multiplied by , and its standard deviation by about . Using 10 ms rather than 97 ms exposures with the same 10 ms readout would give a live fraction and a variance penalty of two.
Longer frames reduce the fractional overhead but cannot be extended without limit. A maximum-exposure constraint in paired Raman acquisition can arise from saturation, while drift rejection can require frequent on/off alternation. Thus minimizing readout count alone is not a complete acquisition design; the applicable frame limits and switching cadence belong in the optimization.
A maximum-exposure constraint in paired Raman acquisition bounds each detector frame so that a bright channel stays below saturation. For pump-on/off pairs with common per-frame cap , the total live exposures satisfyFor a fixed pair count and wall-clock budget, readout overhead in Raman exposure allocation leaves . Using the full budget is feasible only if ; otherwise one must change the pair count, shorten the acquisition or allow unused time.
Under the independent large-count shot-noise model, minimize . The feasible on-exposure interval isThe objective is strictly convex for positive on/off exposures. Its unconstrained optimum is ; clip that value to the feasible interval, retaining positive time in both states. This follows from the derivative changing sign once, rather than requiring a new unconstrained allocation rule.
For an original model, set , , , and . With six pairs, and the unconstrained on total exceeds its cap . The constrained choice is , , with . Five and seven pairs give approximately and respectively under the same model. Six is preferable among these three choices.
The integer frame-count choice under a Raman saturation limit must also include switching cadence, drift and read noise when relevant. The primary apparatus used 97 ms exposures to avoid detector saturation and 10 ms shuttered readout.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure limit, S1/S2 shutter sequence and readout preceding equation 4
Those values motivate the stipulated numerical cap above; they are not universal detector specifications. A different optical flux or detector gain changes the usable exposure limit.Integer frame-count choice under a Raman saturation limit chooses the number of pump-on/off exposure pairs as well as their durations. More pairs incur more readout overhead; too few pairs can saturate before using the available wall-clock budget. Under the model of maximum-exposure constraint in paired Raman acquisition, for positive readout time and frame cap , each candidate integer with has usable live timeIts unused budget is . This wall-clock slack in saturation-limited Raman frame allocation is allowed: failure to consume the entire budget does not make a shorter acquisition physically impossible.
For each candidate, allocate with each total at most . Clip the unconstrained on total to , then evaluate . This solves the continuous subproblem; comparing the finitely many integer candidates solves the stated frame-count problem. Positive counts and no other costs make additional feasible live time beneficial.
In an original example, use , , , and . The relevant candidates areFour pairs are globally optimal in this model: one or two pairs use both states at their caps and improve as increases; three is evaluated explicitly; for every the unconstrained ratio is feasible and increases with . At four pairs the on/off totals are about and .
The primary Raman apparatus used 97 ms exposures to avoid saturation and 10 ms shuttered readout, motivating these stipulated example timings.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure limit and on/off shutter sequence preceding equation 4
Actual frame choice can also be constrained by read noise, drift and minimum switching cadence. Such costs must be included before treating this shot-noise-only optimum as an experimental operating prescription.Wall-clock slack in saturation-limited Raman frame allocation is time that remains unused when a fixed number of detector frames has already reached its permitted exposure caps. With pump-on/off pairs, per-frame cap and readout time per frame,assuming . The integer frame-count choice under a Raman saturation limit compares these possibilities over different pair counts. Slack at fixed does not imply that the continuous exposure allocation was optimized incorrectly.
If , both states can use their full live totals , and the shot-noise relative variance is . Increasing only the wall-clock allowance cannot improve it: the marginal value of unused time below a Raman frame cap is zero in this capped regime. Another frame pair changes both the overhead and the allowable division of live time.
For an original example, set , , and . The live time is , readout uses , and slack is . With and , equal capped totals give .
Three pairs increase readout time to , leaving only live time. Yet the larger per-state cap permits the preferred ratio two to one: and . Their variance is , lower despite less total live time. Relieving the weak state's cap outweighs the extra readout cost in this chosen model.
The primary Raman apparatus limited exposures to avoid detector saturation and alternated pump state during shuttered readout.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure limit, 10 ms readout and shutter sequence preceding equation 4
The timings above are separate illustrative choices. Read noise, sample drift and switching constraints can change the comparison; unused time and useful precision are different optimization quantities.The marginal value of unused time below a Raman frame cap measures how the optimum predicted Raman ratio variance changes with the allowed acquisition budget. Hold the pair count , readout time and per-frame exposure cap fixed. Put and . The wall-clock slack in saturation-limited Raman frame allocation becomes positive once ; additional budget then cannot increase exposure at that pair count.
For shot-noise coefficients , define . The unconstrained on fraction is . It reaches its cap when . The minimized variance is thereforeThis follows by using the unconstrained ratio, then holding the weaker on state at its cap while extending the off state, and finally holding both at their caps.
Away from the transition points, the positive marginal improvement per extra wall-clock second isThe slope agrees on both sides of the first transition. At the final cap it changes to zero, because new time is unused.
For an original example, choose , , , and . The wall-clock transitions are and :At the last setting, is slack. Optimizing the pair count as well introduces frame-count switching in Raman acquisition-budget sensitivity; the fixed-count slopes above need not describe that full integer optimization.
The primary Raman experiment capped exposures to avoid saturation and used shuttered readout between pump states.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure limit and shutter sequence preceding equation 4
The numerical timings here are illustrative. These marginal values concern the stated noise objective, without additional drift, read-noise or switching-cadence costs.Frame-count switching in Raman acquisition-budget sensitivity occurs when a different integer number of exposure pairs becomes optimal as the available time changes. For each feasible pair count , let be the minimum predicted ratio variance after optimizing its live exposures. The complete design isThe marginal value of unused time below a Raman frame cap gives slopes for a fixed . At a branch switch, those slopes need not be the derivative of the lower envelope on both sides.
A simple original example uses equal shot-noise coefficients , readout duration per frame and cap per exposure. Equal on/off totals are optimal, givingTake , and . Two pairs saturate their live-time capacity once . Three pairs have live time near this budget. Their variances agree atJust below this value the two-pair variance is the constant . Just above it the three-pair variance is and begins decreasing. One pair has lower exposure capacity, while four or more pairs incur more readout and have less useful live time near the switch, so these two branches determine the global optimum there.
The one-sided derivatives at an optimal Raman frame-count switch are zero on the left and on the right. The optimal variance is continuous at this switch, but has a kink. At two pairs give ; at three pairs give about . Extra time becomes useful again after the discrete design changes, despite the previous fixed-count plateau.
The primary Raman experiment's saturation-limited exposures and shuttered on/off readout motivate these competing resources.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure limit, readout and pump-shutter sequence preceding equation 4
The example uses chosen rounded timings. Read noise, drift and switching requirements can move the branch crossings and must be included when choosing an actual acquisition protocol.One-sided derivatives at an optimal Raman frame-count switch describe the change in the best acquisition variance when several integer designs tie. Let as in frame-count switching in Raman acquisition-budget sensitivity, and let be the active designs with . Suppose the relevant branches are differentiable near the tie and nonactive designs have a positive value gap.
Writing their slopes as givesIndeed, . Positive selects the smallest slope; negative selects the largest because multiplication reverses their ordering. A single derivative exists only when the selected left and right slopes agree. If an active branch itself has a kink, use its appropriate one-sided slope on each side.
For an original balanced-noise example, take , exposure cap and per-frame readout . Near the three-pair/four-pair switch,The branches tie at , with variance about . The three-pair branch has slope zero; the four-pair branch has slope . Thus these are the left and right optimum slopes. Smaller pair counts have less capacity and larger counts have more readout near this tie, so they do not change the local optimum.
Joint time-and-readout perturbations at a Raman design tie require following the direction in both resource coordinates; the scalar slopes above hold when only changes. They also quantify a local sensitivity, not a universal prescription to change exposure count whenever a small budget fluctuation occurs.
The primary stimulated-Raman apparatus limited exposures for saturation and switched pump state during shuttered readout.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure/readout and shutter sequence preceding equation 4
The rounded timings here are a separate mathematical example. Read noise, drift or switching costs can change the competing branches and their derivatives.Joint time-and-readout perturbations at a Raman design tie describe the directional response of the best acquisition variance when both available wall time and per-frame readout cost change. A tie generally has different derivatives on opposite sides, so there need not be one gradient for the optimum. The active branch derivatives must be combined along the actual perturbation direction.
Use the original balanced-noise model in one-sided derivatives at an optimal Raman frame-count switch. With , per-exposure cap and readout , the locally competing branches areThey tie along . At , define . The three-pair branch is locally constant, while the four-pair gradient is .
For a path , with , the optimum has directional derivativeThe sign of the net live-time change selects the improving branch. This conclusion assumes the branches remain feasible and nonactive designs have a positive value gap nearby.
For original finite examples, adding8ms of budget while adding1ms to each readout leaves exactly unchanged, so these two branches remain tied. Adding10ms while adding1ms per readout increases that live time by2ms: the four-pair variance becomes , below the three-pair value . The first-order improvement is . Adding only6ms with the same readout increase instead makes the four-pair branch worse; the three-pair optimum remains unchanged locally.
The resource distinction has a physical motivation. The primary stimulated-Raman experiment used alternating pump states and shuttered detector readout; its exposure and readout intervals were separate parts of the acquisition sequence.[ref]
Femtosecond Broadband Stimulated Raman: A New Approach for High-Performance Vibrational Spectroscopy by David W. McCamant and others. Data Collection, exposure/readout and shutter sequence preceding equation4
The rounded timings and noise parameter above are a mathematical planning example, not that instrument's measured values. Changing exposure caps, state-switching costs or noise terms requires the corresponding branch model to be recomputed.Raman spectroscopy enhanced by a nearby structured surface, commonly through local plasmonic fields and adsorbate-specific electronic interactions. Enhancement of a signal per molecule does not alone determine a detection limit.
A change in Raman response from adsorption-induced electronic coupling or charge-transfer resonance, distinct from enhancement of the external optical field alone.
Enhancement of molecular excitation and Raman emission by the local optical response of a nanostructure. Pump and emitted frequencies both enter the enhancement factor.
Articles by others on the same topic
Raman scattering is an inelastic scattering process that occurs when light interacts with molecular vibrations, phonons, or other low-frequency excitations in a material. This phenomenon is named after the Indian physicist C.V. Raman, who, along with his colleague, discovered it in 1928. In simple terms, when a monochromatic light source, typically a laser, shines on a sample, most of the light is elastically scattered, meaning it retains its original energy (or wavelength).
