Past exam of the MPhil in micro- and nanotechnology enterprise course of the University of Cambridge / 2017 / Paper 2

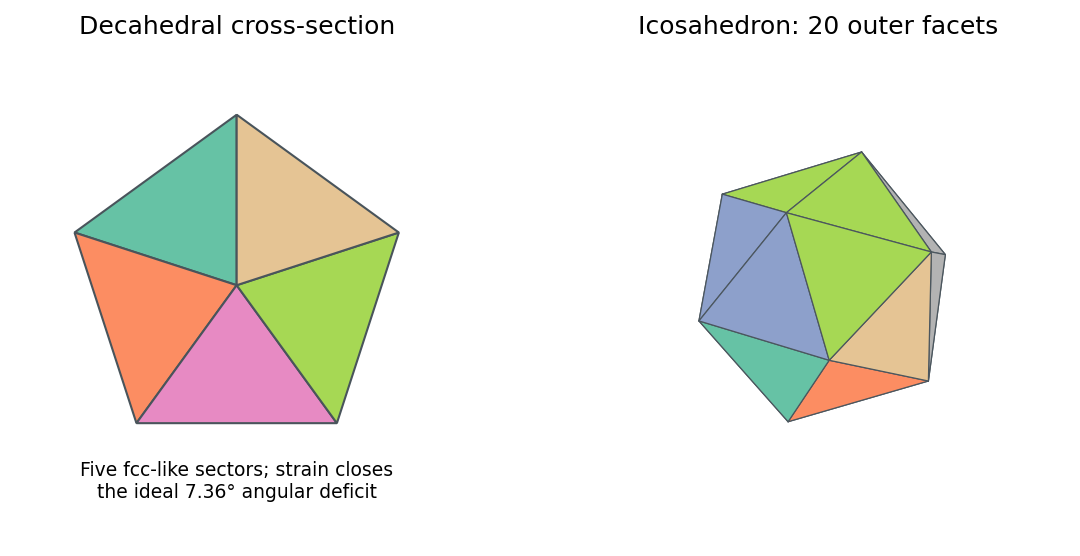

A decahedral nanoparticle is a multiply twinned nanoparticle: five fcc-like tetrahedral domains share a common fivefold axis and meet on coherent twin planes. The angle of an ideal fcc tetrahedral wedge is $\arccos (1/3)=70.53^{\circ }$, so five wedges leave about $7.36^{\circ }$ of angular deficit. Elastic distortion and defects accommodate closure. The external shape can be a pentagonal bipyramid or a truncated variant; it is not one unstrained, periodically repeated fcc crystal.

An icosahedral nanoparticle comprises twenty tetrahedral domains arranged around a common centre, with twenty approximately triangular outer facets, twelve vertices and thirty edges. Five domains meet around each radial fivefold direction. Coherent twinning exposes many low-energy close-packed facets, but fivefold symmetry cannot tile ordinary three-dimensional space periodically without strain. The competition between favourable surface/twin energies and volume-dependent elastic strain explains why such morphologies are especially plausible for small particles.

These labels describe the observed domain geometry; cobalt can adopt different crystal phases, so identifying fcc-like twinning also requires diffraction rather than assuming every cobalt particle is bulk fcc.

The Winterbottom construction extends the Wulff construction to a crystal supported on a substrate. It includes the particle-substrate interfacial energy and the substrate surface energy displaced by contact, so the equilibrium Wulff body is truncated by the support plane. The relevant contact contribution is $({\gamma }_{ps}-{\gamma }_s)A_{\mathrm{contact}}$; it determines wetting and contact geometry. The basic unsupported construction accounts only for orientation-dependent free surface energies.^[ref]

In cluster-beam deposition, evaporated or sputtered cobalt atoms cool in an aggregation gas, nucleate clusters and are carried to a substrate. Source temperature, gas pressure, aggregation length and residence time tune the mean size and distribution. A mass selector can narrow the delivered size range, at the cost of transmitted flux; an unfiltered beam does not automatically produce monodisperse particles.

Shape control is less direct. Growth kinetics and cluster temperature can favour particular structures, while multiple morphologies can coexist at one size. Landing energy, substrate interactions and post-deposition annealing can change the delivered shape or cause coalescence. Soft landing helps preserve gas-phase clusters. In solution, ligands, selective facet binding, seed-mediated growth and precursor feeding can give stronger chemical control over shape and size, but introduce ligand/solvent residues and require purification. Neither method guarantees a unique shape merely by selecting particle size.

A bulk fcc atom has twelve nearest neighbours, whereas surface atoms are undercoordinated: ideal (111) terrace atoms have nine and (100) terrace atoms eight. Steps, kinks, edges and corners can have still lower coordination and different bond-angle environments. These sites change electronic structure, adsorption energies and activation barriers, making geometrically different sites catalytically inequivalent.

In a Pt-Pd particle, a site's neighbours may be Pt, Pd or a mixture; surface segregation means surface composition need not equal overall composition. Alloying also changes strain and electronic interactions. Surface relaxation, reconstruction, adsorbed ligands, oxide or contamination can further alter accessibility and chemical state. A high nominal Pt fraction therefore does not establish either accessible Pt sites or a particular catalytic activity.

Use complementary composition, spatial and population measurements:

The strength of TEM is correlating structure, size and local chemistry; its limited sampling is why a representative bulk chemical assay remains valuable.

Let $x$ run along the wire and $y$ across it. In a separable approximation,Transverse confinement gives discrete levels $E_n^{\perp }$, but the long unconfined direction has a nearly continuous longitudinal wave vector and a plane-wave factor. The result is a family of one-dimensional subbands, not a completely discrete spectrum in both in-plane directions. For a hard-wall width $W$, $E_n^{\perp }={\hslash }^2{\pi }^2{n}^2/(2m^{\ast }{W}^2)$; an electrostatic confinement potential gives different thresholds. The suppressed out-of-plane degree of freedom is already frozen into the 2DEG subband.

One suitable platform is a monolayer molybdenum disulfide semiconductor. An electrostatic accumulation gate supplies conduction electrons whose motion is confined to the atomic sheet; source and drain contacts act as reservoirs. A clean insulating substrate and dielectric or encapsulation reduce disorder and prevent gate leakage. Two split gates deplete the adjacent sheet and leave a narrow conducting gap, thereby confining the in-plane transverse direction while retaining transport along the gap.

Apply a small source-drain voltage, measure the current and determine linear-response conductance while tuning the split-gate voltage and carrier density. A graphene sheet is another two-dimensional carrier system, but its lack of an ordinary gap complicates purely electrostatic confinement; etched boundaries or a suitable gapped architecture may be needed. A two-dimensional material does not by itself guarantee ballistic transport or resolved subbands.^[ref]

For a clean, adiabatically connected GaAs channel at low temperature and small bias, opening successive spin-degenerate subbands givesConductance therefore shows a staircase of plateaux, rather than the continuously geometry-dependent classical Ohmic result. Each fully transmitted mode contributes approximately $77.5\mu \mathrm{S}$. More positive, or less negative, depletion-gate voltage opens a conventional GaAs constriction; more negative voltage closes it.

Require subband spacings larger than thermal and bias broadening and a mean free path exceeding the constriction length. The general Landauer formula is $G=(e^2/h){\sum }_{\alpha }{T}_{\alpha }$ with each spin/valley channel counted separately. A material with additional valley degeneracy need not have the same step sequence as GaAs, and imperfect transmission or contact resistance blurs the ideal plateaux.

In a vibrating-sample magnetometer, a magnetized specimen vibrates sinusoidally in a nominally uniform applied field. Its motion changes the magnetic flux through stationary pickup coils, producing an induced voltage by Faraday's law of induction. The component at the vibration frequency is proportional to the sample magnetic moment times vibration amplitude and frequency, for a calibrated coil geometry.

A lock-in detector referenced to the vibration extracts this small signal. Calibrate with a known moment, stabilize the vibration amplitude and sweep the applied field to measure a magnetization loop. Dividing moment by film volume gives $M$ in $\mathrm{A}{\mathrm{m}}^{-1}$; the silicon substrate and holder background must be subtracted for such a thin film.^[ref]

Along the easy axis, expect an approximately rectangular loop: after saturation the remanent magnetization is close to $\pm M_s$, and reversal occurs near $\pm H_c$ through nucleation and domain-wall motion. Permalloy is magnetically soft, so $H_c$ is ordinarily small, although defects and growth conditions set its actual value.

The axes are $M$ in $\mathrm{A}{\mathrm{m}}^{-1}$ and applied ${\mu }_{0}H$ in $\mathrm{mT}$. $M_s,H_c,H_k$ are symbolic because their measured values are not supplied. The $50\mathrm{mT}$ deposition field establishes an axis; it is not the measured coercive or anisotropy field.

Along the in-plane hard axis, the ideal uniform-magnetization model gives reversible rotation from the easy direction toward the applied field. With uniaxial anisotropy energy density $K_u{\sin }^2\theta$, minimization givesfollowed by saturation at $\pm M_s$. The right panel of the preceding figure therefore has a nearly linear central section, essentially zero remanence and ideally no hysteresis. Actual domains, misalignment and defects can produce rounding or a small loop. This is an in-plane hard axis; the much larger out-of-plane demagnetizing field is a different effect.

TODO: biology deferred by the user.

TODO: biology deferred by the user.

TODO: biology deferred by the user.

A charged colloid in a polar electrolyte is surrounded by an electric double layer. For a negatively charged surface, counterions are positive and co-ions negative; their distributions reverse for a positive surface. A compact Stern layer contains specifically adsorbed or closely approaching ions, followed by a diffuse layer where electrostatic attraction competes with thermal motion. Mobile charge integrated over the surroundings balances the particle charge in an overall neutral system.

For a mean-field dilute electrolyte, $n_i(r)=n_{i,\infty }\exp [-z_{i}e\psi (r)/(k_{B}T)]$ with Poisson's equation relates charge density and potential. At weak potential, the diffuse potential outside a sphere decays approximately as $\psi (r)\propto e^{-\kappa (r-a)}/r$. The inverse screening length obeys ${\kappa }^2=e^2{\sum }_i{z}_i^2{n}_{i,\infty }/(ϵk_{B}T)$: added salt shortens the Debye length. The zeta potential is the potential at the hydrodynamic slip plane, not necessarily the surface potential. The simple model neglects ion size, correlations and chemical charge regulation; a polar solvent with almost no dissociated ions need not provide a short screening length.

Two examples are poly(3-hexylthiophene), P3HT, a conjugated polymer commonly used as an electron donor, and PCBM, a soluble fullerene derivative commonly used as an electron acceptor. Both are organic semiconductors; “organic” does not imply that their transport properties are identical. Their blend is a familiar donor-acceptor photovoltaic model system.

An exciton is a Coulomb-correlated electron-hole pair, electrically neutral overall. Three useful properties are:

In many molecular organic semiconductors, limited screening and localization make exciton binding important, so absorption need not immediately produce collectable free charges.

A suitable donor-acceptor heterojunction provides an energetically favourable route from a bound excitation to an interfacial charge-transfer state and then separated carriers. The electron is preferentially transported in the acceptor and the hole in the donor. The interface facilitates dissociation that is inefficient in a single strongly excitonic material; it must also avoid excessive energy loss and rapid interfacial recombination.

An idealized bulk heterojunction places most generated excitons within roughly a diffusion length of an interface while maintaining continuous donor paths to the hole contact and acceptor paths to the electron contact. Domain dimensions should therefore be comparable to the material's exciton transport scale, not arbitrarily large. The total absorbing thickness should capture substantial light yet remain within the charge-collection capability set by mobility, field and recombination. Excessive mixing can impair transport or increase recombination; very coarse domains waste excitons before they reach an interface.^[ref]

Relative to conventional crystalline-silicon technology, many organic absorbers offer low-temperature thin-film processing and lightweight flexible devices, but have more strongly bound excitons and more disorder-limited charge transport. These are common material trends, not universal statements about every organic or inorganic device.

Relevant semiconductor properties include the absorption spectrum and optical gap, donor/acceptor energy levels and offsets, dielectric screening and exciton dissociation, electron/hole mobilities, recombination lifetimes, traps and morphological stability. Contacts must extract the appropriate carrier selectively. These properties determine the device quantities inA favourable gap alone does not fix efficiency: current generation, voltage loss and fill factor must all be controlled.

In floating-catalyst CNT growth, a controlled sulfur additive acts as a growth promoter for the catalyst, commonly iron. Sulfur modifies catalyst surface composition, carbon uptake and the strength of the catalyst-carbon interaction; it can facilitate cap formation/lift-off and sustained tube growth instead of complete catalyst encapsulation. It also changes catalyst-particle evolution and hence tube yield, diameter and wall-count distributions.

There is an optimum range: excessive sulfur can occupy active sites or form an insufficiently active sulfide-rich catalyst and reduce growth. The additive is not simply a constituent that must be incorporated into every carbon wall. Its detailed action depends on catalyst, carbon source and process conditions; a single universal melting-point explanation is insufficient.^[ref]

The circumference is the length of the graphene wrapping vector:For $(12,12)$,Approximating the closest wall-to-wall separation by the graphite interlayer spacing $d_{002}=c/2=0.3355\mathrm{nm}$ gives the nearest-neighbour axis separation in a triangularly packed bundle:This assumes undeformed circular tubes with a graphitic contact gap. Faceting, flattening, adsorbates or pressure can alter a real bundle's spacing.

Each concentric shell has a different circumference, so it generally needs a different integer wrapping vector $(n,m)$. Different vector lengths do not force different chiral angles, but exact atomic registry between all curved shells is geometrically restrictive. The shells can nucleate with different wrapping orientations, and strong covalent bonding within each shell dominates the weaker intershell interaction.

Consequently, it is usually unnecessary to strain every shell into a common orientation and registry; many multiwall tubes have incommensurate shells with different chiral angles. Identical chiral angles are possible, for example among suitable members of one armchair family, and should not be ruled out purely because the radii differ. Atomic indices, chiral angle and interwall commensurability are distinct descriptions.

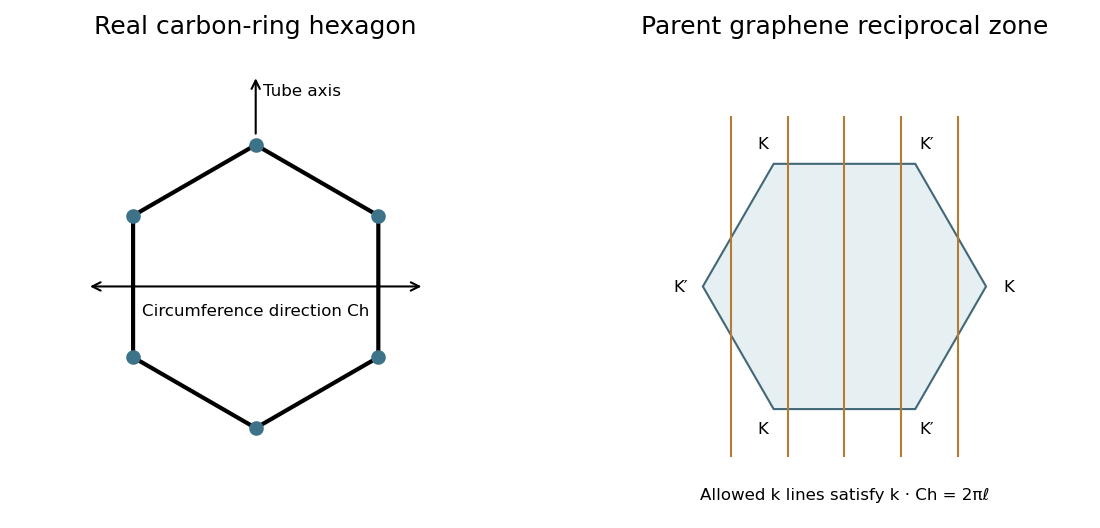

The real-space carbon honeycomb has two atoms in a primitive cell of its triangular Bravais lattice. The reciprocal lattice is also triangular, and its Wigner-Seitz cell is a hexagonal first Brillouin zone. With a consistent orientation convention, the reciprocal-zone hexagon is rotated by $30^{\circ }$ relative to a real-space carbon-ring hexagon; reciprocal lengths scale inversely with the direct lattice spacing.

Rolling into a tube imposes $\mathbf{k}\cdot {\mathbf{C}}_h=2\pi \ell$, leaving parallel allowed lines in graphene's two-dimensional reciprocal space. They run along the tube-axis direction, perpendicular to the circumferential wrapping vector. The nanotube's actual one-dimensional Brillouin zone is an interval of axial wave vectors with period $2\pi /|\mathbf{T}|$, where $\mathbf{T}$ is its axial translation. The parent hexagon is therefore a zone-folding construction, not a literal two-dimensional Brillouin zone for the finished one-dimensional tube.

For a $(10,0)$ tube, $C=10a=2.46\mathrm{nm}$. A cut normal to its axis crosses ten axial load-bearing C-C bonds in the ideal unstrained honeycomb geometry. Assuming equal load sharing and simultaneous failure at $8\mathrm{nN}$ per bond,The graphene areal mass is ${\sigma }_m=0.75\mathrm{mg}{\mathrm{m}}^{-2}=7.5\times 10^{-7}\mathrm{kg}{\mathrm{m}}^{-2}$, giving linear mass densitysince the tex unit has $1\mathrm{tex}=10^{-6}\mathrm{kg}{\mathrm{m}}^{-1}$. Thus the ideal carbon nanotube tenacity isThis neglects vacancies, curvature-induced changes in bond strength, thermal activation, imperfect load sharing and structural relaxation at failure. An aligned macroscopic fibre is a network of finite tubes or bundles: sliding, weak intertube shear transfer, imperfect alignment, defects and unequal load participation limit its strength. The nominal $10\mu \mathrm{m}$ fibre diameter alone does not turn it into one defect-free covalent cylinder, explaining why a value near $2N/tex$ can be much lower than this ideal single-tube estimate.

Take $0<E<V_0$ and equal electron mass in all regions. Define $k=\sqrt{2mE}/\hslash$ and $\kappa =\sqrt{2m(V_0-E)}/\hslash$. ThenThere is no wave incident from the far right. Region I contains oscillatory incident and reflected waves; region II is evanescent, with real exponentials rather than propagating plane waves. Both exponential terms are allowed in a finite barrier; deleting the growing term before boundary matching is generally incorrect. A complex superposition in the barrier can carry a nonzero conserved tunnelling current.

For a finite potential step and constant mass, $\psi$ and ${\psi }^{\prime }$ are continuous. A finite jump of ${\psi }^{\prime }$ would require a delta-function contribution in the integrated equation, while a jump of $\psi$ would be still more singular. Matching the preceding amplitudes givesThe transmission probability is $|F/A{|}^2$ because the incident and transmitted regions have equal wave vector and mass; in unequal leads a velocity ratio is also required. These matching conditions do not apply unmodified to infinite walls, delta barriers or mass discontinuities.

Between two barriers, region III becomes a finite intermediate well containing both right- and left-moving oscillatory components, $P{e}^{ikx}+Q{e}^{-ikx}$. Repeated reflection produces standing-wave-like enhancement and quasi-bound levels with finite escape lifetimes. At resonant energies, the multiple transmitted amplitudes add constructively: an ideal symmetric lossless pair can have transmission approaching unity even when a single barrier transmits poorly. Away from resonance the pair strongly suppresses transmission.

A useful phase condition is $2k\ell +{\phi }_{r1}+{\phi }_{r2}=2\pi n$, where $\ell$ is the intermediate-well width and the reflection phases account for penetration into the barriers. The printed figure starts the second barrier at $a+L$, so its well width is $L$; if the prose's second-barrier position $L$ is used instead, the width is $L-a$. The resonance argument is unchanged once that geometrical convention is fixed.

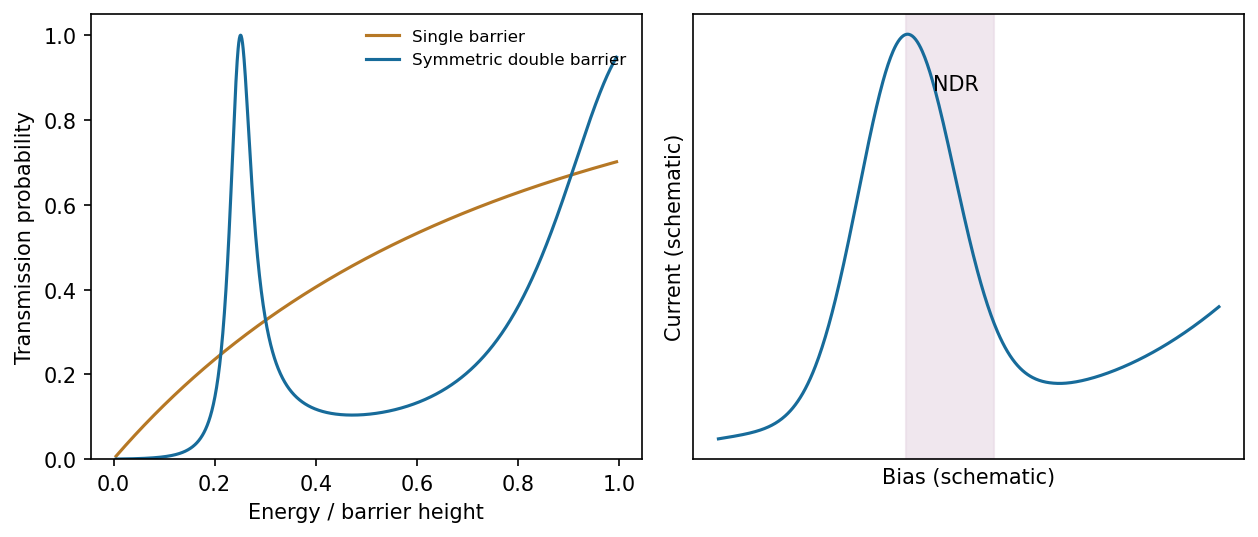

The intended double-barrier resonant-tunnelling diode has a bias-dependent well level. Initially increasing bias can bring a quasi-bound level into alignment with available occupied emitter states, sharply increasing current. At larger bias the resonant level moves out of the effective injection window, for example below the emitter conduction-band edge, so resonant transmission and current decrease despite increasing voltage. This produces a peak-to-valley interval with $dI/dV<0$. Further bias can increase nonresonant or higher-level current again.

The right panel of the preceding figure is a qualitative example. The device can supply small-signal negative differential conductance to an appropriate oscillator circuit while its current and voltage remain positive. A bias-independent transmission function alone does not guarantee NDR: the voltage-dependent potential profile, contacts and carrier supply must be included. The source's reference to part (ii) appears to point to the earlier barrier matching; the resonant device mechanism uses the added barrier of part (iii).

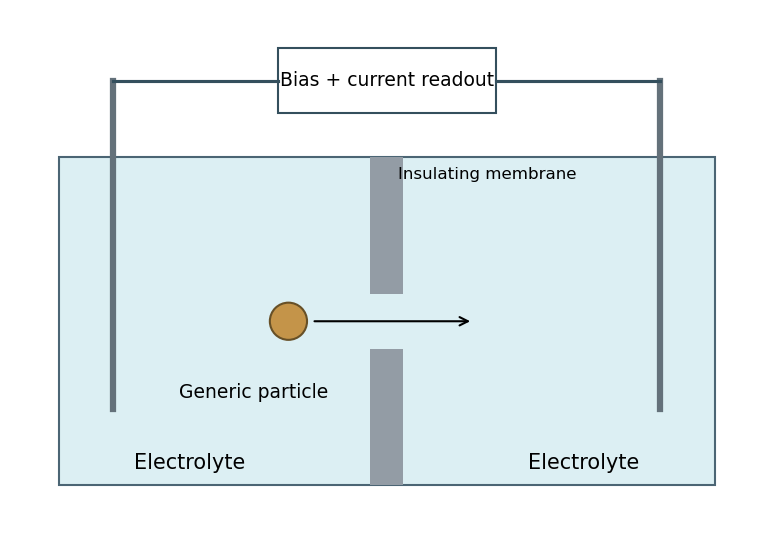

In generic resistive-pulse sensing, two electrolyte reservoirs are connected through a small aperture. Electrodes apply a bias and a low-noise current amplifier records the pore current. Passage of a weakly charged insulating particle excludes conducting liquid, usually increasing resistance and giving a transient current decrease at fixed voltage. Pulse amplitude, duration and event rate contain size-, transport- and concentration-dependent information, subject to calibration.

Advantages include label-free single-particle counting, electrical readout and small active volume. Limitations include clogging, electrode/pore noise, finite bandwidth, uncertain particle trajectories and surface-conduction effects; a pulse is not intrinsically chemically specific. Strong particle charge or concentration polarization can complicate, or even reverse, the simple blockade signal. The schematic below uses only generic nonbiological particle transport.

Ignoring access effects and wall charge, the cylindrical conducting liquid hasThe corresponding conductance is approximately $0.982\mathrm{nS}$. A charged surface can contribute mobile counterions and change this estimate. Surface conduction is important when its conductance is comparable with the bulk contribution: for surface conductance $K_s$, their ratio in a cylinder is $2K_s/(\sigma r)$, twice the Dukhin number convention $K_s/(\sigma r)$. Double-layer overlap, when the Debye length is comparable with the pore radius, is another warning that uniform bulk conductivity is inadequate. No surface-charge or ionic-strength data are supplied to quantify those corrections.

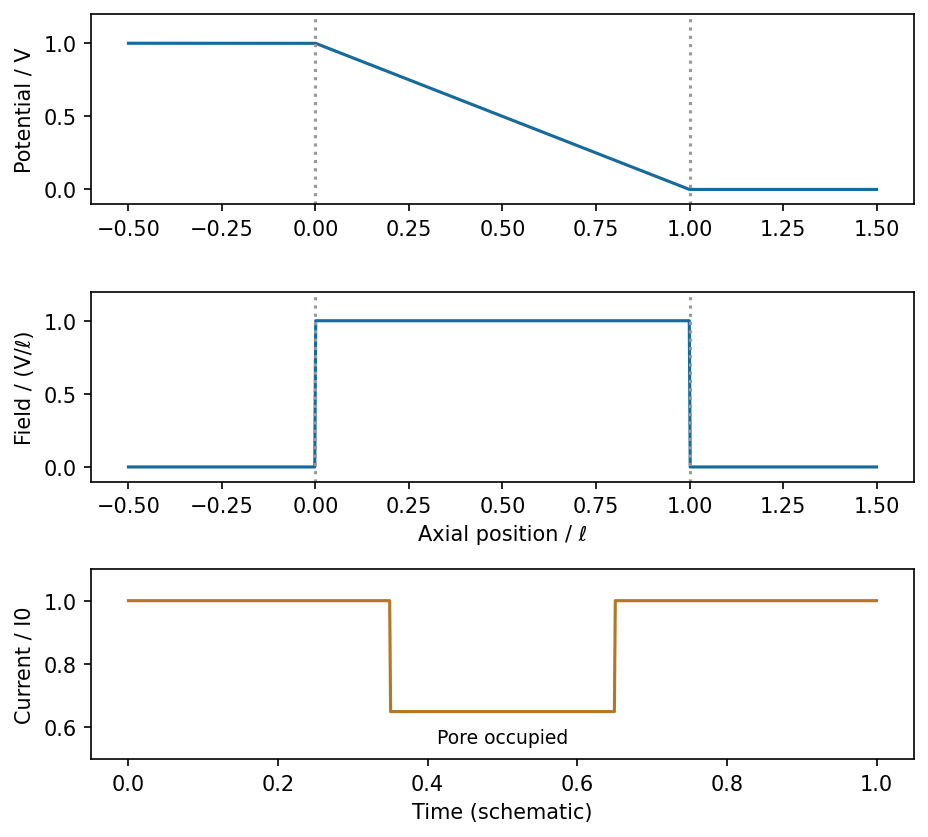

With the left reservoir at $V$ and the right at zero, let the pore run from $x=0$ to $x=\ell$. In the stated idealization the reservoir potentials are flat, the pore potential is $\varphi (x)=V(1-x/\ell )$, and its electric field is $E_x=-d\varphi /dx=V/\ell$, directed from high to low potential. The field is zero in the ideal equipotential reservoirs; real access regions would round these abrupt boundaries.

For constant-speed passage and an approximately position-independent in-pore obstruction, the current has a rectangular downward pulse from $I_0$ to $I_0-\Delta I$ during occupation. Entry, exit, filtering and nonuniform fields round real pulses. This describes a physical particle signal without inferring any biological identity or charge.

TODO: biology deferred by the user.

TODO: biology deferred by the user.

Self-assembly is organization of interacting building blocks into a larger structure without individually placing every component. Static self-assembly approaches an equilibrium free-energy minimum under fixed conditions; a resulting structure may subsequently become kinetically trapped. Dynamic self-assembly maintains a nonequilibrium organized state through continuing energy or matter throughput and dissipation, and can change or disappear when that drive is removed.

For nanofabrication, parallel assembly of many small components can generate fine periodicity, hierarchical structures and adaptive or self-repairing arrangements with limited direct patterning. Building-block chemistry encodes interactions. However, access to a desired morphology depends on kinetics and competing states; assembly does not automatically eliminate defects or provide arbitrary device geometry.

Relevant interactions include van der Waals attraction, electrostatic attraction or screened repulsion, hydrogen bonding, and hydrophobic/solvophobic association. Coordination bonding, magnetic dipole interactions and capillary forces can also organize suitable building blocks. Entropic effects, including depletion attraction and packing entropy, can drive ordering even without a new chemical bond. Which contribution favours assembly depends on solvent, temperature, concentration and surface chemistry; the complete balance is a free-energy change, not a requirement that every interaction be attractive.

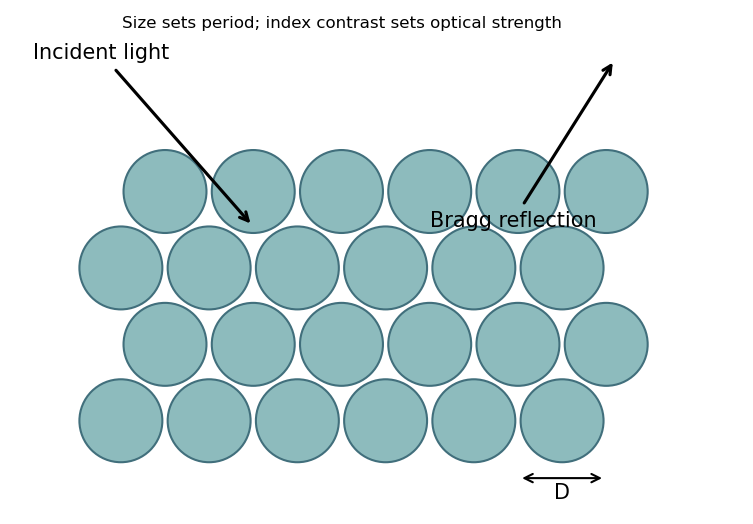

Consider a colloidal photonic crystal assembled from nearly monodisperse dielectric spheres. Spherical geometry and approximately isotropic interactions favour close-packed arrays, although fcc, hcp and stacking-disordered structures can compete. Sphere diameter $D$ sets the periodic optical length scale. For an ideal close-packed fcc array,at normal incidence in the simple effective-index picture. Thus changing the building-block size tunes the reflected wavelength; refractive-index contrast affects stop-band strength. Surface charge and screening control colloidal stability and rearrangement during assembly, while polydispersity, roughness and stacking defects broaden the optical response and increase scattering.

This connects sphere-level geometry and material response to collective periodic optical behaviour. The Bragg reflection estimate does not establish a complete three-dimensional photonic band gap.

Brownian motion is the fluctuating motion of a suspended particle produced by thermal molecular collisions. Using the standard Brownian displacement conventions, in a uniform fluid without external drift, mean displacement is zero but mean-square displacement grows with time. For overdamped diffusion, $⟨\Delta x^2⟩=2Dt$ in one coordinate and $⟨|\Delta \mathbf{r}{|}^2⟩=6Dt$ in three dimensions, with $D=k_{B}T/\zeta$ and Stokes friction $\zeta =6\pi \eta a$ for a no-slip sphere.

Brownian transport brings nanoparticles into encounters and allows them to explore configurations during self-assembly. Reversible interactions permit rearrangement toward low-free-energy structures; interactions that are too strong can instead trap disordered aggregates. Thermal fluctuations also oppose localization in shallow traps. The symbol $\zeta$ avoids confusing friction with an unrelated chemical potential.

For radius $a=10\mathrm{nm}$ and gold density $2.0\times 10^4\mathrm{kg}{\mathrm{m}}^{-3}$, $m=8.38\times 10^{-20}\mathrm{kg}$. The supplied Stokes model gives $\zeta =3.96\times 10^{-12}\mathrm{kg}{\mathrm{s}}^{-1}$ and $D=1.05\times 10^{-9}{\mathrm{m}}^2{\mathrm{s}}^{-1}$ at $300\mathrm{K}$. Therefore the standard one-second diffusive rms distances are $45.7\mu \mathrm{m}$ in one coordinate and $79.2\mu \mathrm{m}$ in three dimensions.

Using the source's supplied shorthand literally with $m⟨v^2⟩=3k_{B}T$ instead gives $\sqrt{3k_{B}Tt/\zeta }=56.0\mu \mathrm{m}$. That shorthand lacks the factor two in the standard long-time mean-square displacement; it should not be identified with either of the preceding standard rms conventions. None of these rms values is a cumulative path length.

An ideal drag-free fall from rest gives $g{t}^2/2=4.91\mathrm{m}$. Actual gravitational settling in the assumed viscous model is much smaller: ${\tau }_p=m/\zeta =2.12\times 10^{-8}\mathrm{s}$, $u_t=mg/\zeta =0.208\mu \mathrm{m}{\mathrm{s}}^{-1}$, and displacement in one second is approximately $0.208\mu \mathrm{m}$. Thus diffusion overwhelms settling, even though ideal vacuum fall exceeds the rms diffusion distance. For rarefied-gas nanoparticle drag, at a 20-nm size in argon, continuum no-slip drag may require a rarefaction/slip correction; pressure and gas mean-free-path data are absent, so these numerical transport estimates are conditional on the supplied Stokes model.

For fluid density ${\rho }_f$, speed $U$ and characteristic length $d$, inertial kinetic energy scales as ${\rho }_f{d}^3{U}^2$ while viscous work over distance $d$ scales as $\eta U{d}^2$. Their ratio is the Reynolds number,Smaller particles at a fixed speed have smaller Re, so viscous stresses dominate fluid inertia when $\mathrm{Re}\ll 1$. Increasing speed increases Re and eventually makes inertia more important, rather than making viscous dominance stronger.

Particle inertia is a separate issue. Its particle velocity-relaxation time is ${\tau }_p={\rho }_p{d}^2/(18\eta )$; comparing it with a travel time $d/U$ gives a Stokes number ${\tau }_{p}U/d$. This uses particle density ${\rho }_p$, whereas the fluid Reynolds number uses fluid density ${\rho }_f$.

Interpreting the nominal size as diameter $d=10\mathrm{nm}$, fluid viscous dominance requireswith ${\rho }_f$ in $\mathrm{kg}{\mathrm{m}}^{-3}$. The liquid density is not supplied, so the conventional fluid-Reynolds crossover is not numerically fixed. As an explicitly additional illustrative assumption, ${\rho }_f=870\mathrm{kg}{\mathrm{m}}^{-3}$ gives $\mathrm{Re}=1$ near $69\mathrm{m}{\mathrm{s}}^{-1}$; ordinary much slower nanoparticle motion is well within the viscous regime.

If instead the supplied gold density is inserted into the dimensionless ratio ${\rho }_{p}Ud/\eta$, that ratio reaches one at $3.0\mathrm{m}{\mathrm{s}}^{-1}$. It is not the fluid Reynolds number. Including the spherical Stokes prefactor, the particle relaxation criterion ${\tau }_{p}U/d=1$ occurs at $54\mathrm{m}{\mathrm{s}}^{-1}$. These quantify different inertia comparisons. The wording's speed direction is reversed: viscous dominance is obtained by making speed sufficiently small. If 10 nm denotes radius, the length-based thresholds halve.

A tightly focused laser produces a strong intensity gradient. A small polarizable particle experiences a gradient force toward increasing intensity when the real polarizability has the appropriate positive sign; radiation pressure from scattering and absorption pushes predominantly along the beam. A high-numerical-aperture objective creates lateral confinement and a sufficiently strong opposing axial gradient for a three-dimensional optical trap. Equilibrium is generally shifted from the intensity maximum by radiation pressure.

For a Rayleigh sphere, $\alpha =4\pi {ϵ}_m{a}^3({ϵ}_p-{ϵ}_m)/({ϵ}_p+2{ϵ}_m)$ in an absolute-permittivity convention, and ${\mathbf{F}}_{\mathrm{grad}}\simeq \frac{1}{4}\mathrm{Re}\alpha \nabla |E{|}^2$ for peak complex field amplitude. Near a stable point, $F_x\simeq -k_{x}x$; the trap depth must exceed thermal fluctuations sufficiently to retain the particle. Viscous drag opposes motion, Brownian forcing produces fluctuations, and gravity/buoyancy are normally small at this scale.

For absorbing gold, use its complex wavelength-dependent permittivity: scattering, absorption and heating can frustrate trapping. The existence of an ideal dielectric gradient-force trap does not guarantee stable trapping of every metal nanoparticle at every wavelength or power.^[ref]
