An amphiphile contains a solvent-compatible head and a solvent-avoiding tail. In water, aggregation can lower the Gibbs free energy by reducing exposed hydrocarbon area through the hydrophobic effect. This competes with loss of translational entropy, head-group repulsion and the cost of deforming the tails. Above the critical micelle concentration, added amphiphiles mainly enter aggregates rather than continuing to increase the isolated-molecule concentration proportionally.

The amphiphile packing parameter $P=v/(a_0{\ell }_c)$ compares tail volume $v$, preferred head area $a_0$ and tail length ${\ell }_c$. Rough geometric ranges favor spherical micelles for $P<1/3$, cylindrical aggregates for $1/3<P<1/2$, and lipid bilayers for $1/2<P<1$. These are organizing estimates rather than universal sharp phase boundaries. A bilayer can close into a vesicle to eliminate exposed edges; concentration, salt and temperature can change the preferred aggregate.

A simple experimental test varies concentration and measures surface tension: its slope against log concentration changes near the critical micelle concentration, while light scattering detects the appearance of larger aggregates. These observations distinguish the concentration threshold from an assumption that every molecule forms an aggregate at arbitrarily low concentration.

In water, the strongly poor solvent favours a compact polymer globule. A site-volume estimate givesThe exact numerical conversion between globule radius and rms end-to-end distance depends on its density and shape; this calculation supplies the characteristic size scale.

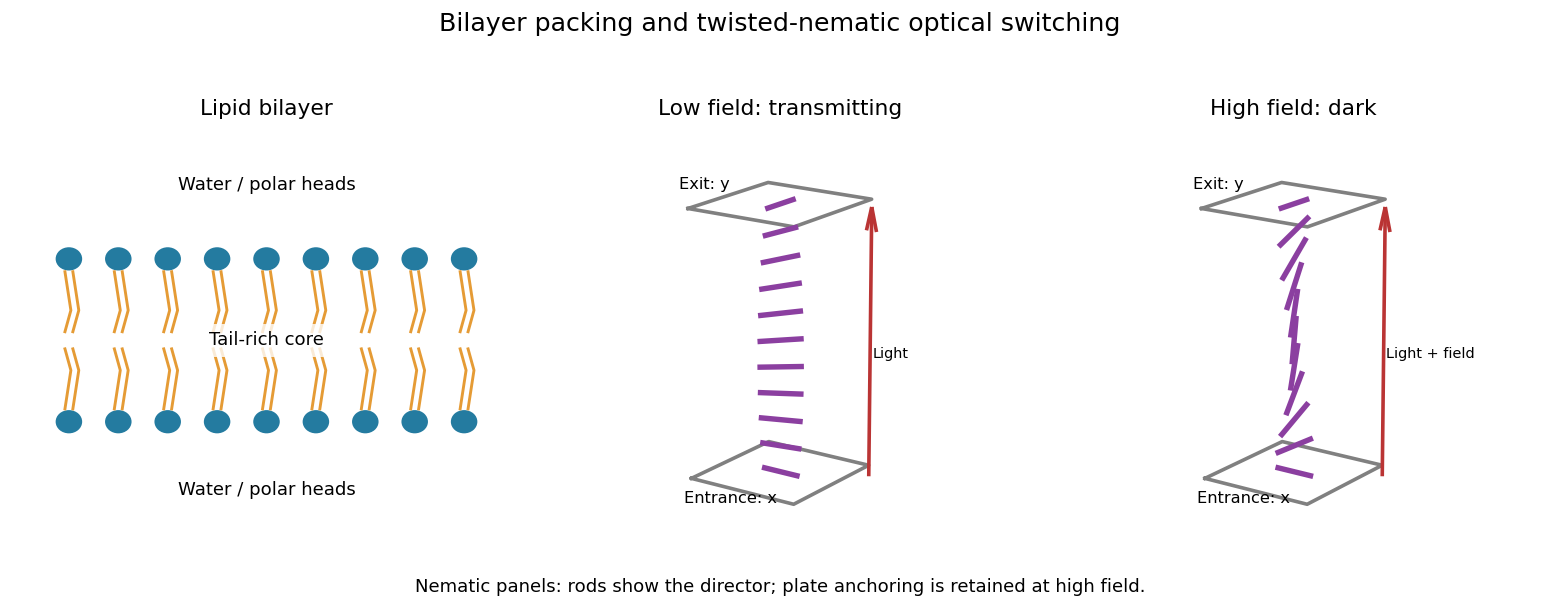

A lipid bilayer has two opposed leaflets: hydrophilic heads contact the water on either side, while hydrophobic tails meet in its interior. This arrangement reduces exposure of the tails to water through the hydrophobic effect. Approximately cylindrical molecular packing favors a lipid bilayer; a strongly wedge-shaped amphiphile can instead form a micelle. Closing a sheet into a lipid vesicle removes its costly exposed edge.

Within a fluid membrane, lipids diffuse laterally, while transfer of a polar head through the hydrophobic core is much slower without assistance. The core limits passive transport of ions and many polar solutes; membrane proteins provide selective routes. Bending costs free energy but does not require the large area compression associated with stretching the molecular packing, so a thin membrane can bend readily while strongly resisting area change. Cholesterol and tail saturation alter packing and fluidity. In a cell, the bilayer also supports embedded proteins and a difference of electric potential across the membrane.

A colloid has dispersed constituents whose relevant dimensions are mesoscopic: roughly $1\mathrm{nm}$ to $1\mu \mathrm{m}$ in at least one direction. Interfaces and Brownian motion are consequently important. The size range is a useful convention, not a sharp boundary separating all physical behaviour. A sol of fine silicon dioxide particles in water illustrates solid in liquid; an oil-in-water emulsion illustrates liquid in another immiscible liquid; and a foam illustrates gas dispersed in a liquid, with thin intervening films supplying the small structural dimension. A colloid need not be a thermodynamic equilibrium state.^[ref]

Unprotected particles attract through Van der Waals forces. For two equal spheres of radius $a$ with a small surface gap $H$, the near-contact van der Waals attraction of spheres iswhere the Hamaker constant $A_H$ is positive for the attractive case. The large number of interacting constituent molecules can give a well much deeper than $k_{B}T$, even though individual molecular attractions are weak. Brownian motion brings particles together, and a sufficiently deep attractive well makes separation unlikely. This gives particle aggregation; solid particles can remain distinct within a cluster rather than merging into one continuous solid. Emulsion droplets can additionally coalesce if the separating film ruptures.

Charge stabilization of colloids supplies a repulsive barrier. Like-charged surfaces carry compensating counterions and electric double layers; bringing the layers together costs free energy. DLVO theory combines this repulsion with Van der Waals forces. A barrier large compared with $k_{B}T$ can make aggregation slow, even when sticking would lower the final free energy. Adding salt generally shortens the Debye–Hückel screening length and can lower the barrier; surface charge regulation and specific ion interactions also matter. A negatively charged particle and a positively charged particle need not repel.

Steric stabilization instead coats each particle with adsorbed or grafted polymer chains. In a good solvent, overlap and compression of these layers raise the osmotic pressure and reduce chain entropy, opposing close contact. Electrosteric stabilization combines the two mechanisms. Dense, securely bound layers matter: incomplete adsorption can allow polymer bridging, while nonadsorbing dissolved polymers can create an attractive depletion force. Poor solvent quality can collapse a protective layer. Reducing the density mismatch slows sedimentation but does not remove the interparticle attraction, so uniform suspension and resistance to aggregation are different requirements.

The left panel is an original qualitative potential with arbitrary coefficients: it illustrates a barrier and its reduction by shorter-ranged repulsion, without fitting an experimental DLVO theory curve or extrapolating the continuum attraction to molecular contact. The right panel plots the derived quasi-steady concentration profile in dimensionless variables.

In diffusion-controlled growth, attachment is rapid and delivery through the surrounding medium is the bottleneck. The growing surface depletes the neighboring solute, so a substantial concentration gradient develops. In reaction-controlled growth, arrival is fast compared with incorporation; many arrivals fail to attach, and the surface concentration stays near the reservoir value. The analogous distinction for particle aggregation is between near-unit sticking probability in diffusion-limited cluster aggregation and barrier-suppressed sticking in reaction-limited cluster aggregation. Here the subsequent calculation concerns accretion onto one growing particle, rather than a collision kernel for two mobile clusters.

The printed time-dependent equation is the diffusion equation, not the usual Poisson equation. For constant diffusion coefficient $D$, no bulk sources and negligible advection, Fick's laws give the number flux $\mathbf{j}=-D\nabla c$. Local conservation of mass, expressed here as conservation of the accreting constituent, then givesAn arbitrary time-independent exterior profile does not solve the full moving-boundary problem exactly. The required elementary result uses a quasi-steady approximation: diffusion establishes the exterior profile much faster than the particle radius changes. At each instantaneous radius $a$, set $\partial c/\partial t\simeq 0$. Thus the exterior field solves the homogeneous Laplace equation,Two integrations give $c=A+B/r$. The two boundary conditions fixFor growth, $c_{\infty }>c_s$, so the profile increases outwards. Its radial flux is negative, and the positive inward arrival rate isA material density is needed to turn an arrival rate into a radial velocity. Introduce the constant constituent number density $c_p$ inside the particle, using the same units as $c_s,c_{\infty }$. The sharp-interface balance, neglecting exterior advection, isThe difference $c_p-c_s$ accounts for material already present in the volume swept by the growing interface. In the usual dilute-feed approximation $c_s\ll c_p$, it can be replaced by $c_p$. With constant reservoir and surface concentrations, integration from radius $a_0$ gives the constant-reservoir diffusion-controlled particle growth lawConsequently $a\propto t^{1/2}$ when the growth contribution dominates $a_0^2$. For a finite seed at the literal limit $t\to 0$, the increment $a-a_0$ is instead initially proportional to $t$. Here “early time” means before appreciable reservoir depletion or interactions with other particles, while already beyond the rapid initial establishment of the diffusion field. Indeed, the ratio of diffusion-adjustment time $a^2/D$ to radial-growth time $a/\dot{a}$ is $(c_{\infty }-c_s)/(c_p-c_s)$; small supersaturation relative to the particle density makes the quasi-steady approximation self-consistent. No initial concentration field was specified, so an exact transient solution is not uniquely determined.

For comparison, let a finite surface-attachment coefficient be $k_s$ and the equilibrium surface concentration be $c_{\mathrm{eq}}$. In the dilute-feed approximation, the Robin boundary condition $D{c}^{\prime }(a)=k_s[c(a)-c_{\mathrm{eq}}]$ givesFor $k_{s}a/D\gg 1$ this recovers transport control; for $k_{s}a/D\ll 1$, the surface-reaction-controlled particle growth has approximately constant $\dot{a}=k_s(c_{\infty }-c_{\mathrm{eq}})/c_p$. Thus reaction control gives $a-a_0\propto t$, in contrast to the diffusion-controlled square-radius law. No numerical $c_p$ or $k_s$ is supplied or needed for these scaling results.

Two examples are sodium dodecyl sulfate, with a negatively charged sulfate head and a hydrocarbon tail, and cetrimonium bromide, with a positively charged ammonium head and a hydrocarbon tail. Both are amphiphiles: one region is hydrophilic and another is hydrophobic.

In water, the hydrophobic effect favors association of the tails into a core, reducing their exposed area while the hydrated heads remain outside. This can lower the total Gibbs free energy despite loss of translational entropy. Head-group repulsion, interfacial cost and chain-packing constraints oppose unlimited growth, so finite micelles are favored under suitable conditions above the critical micelle concentration.

The appropriate geometric measure is the amphiphile packing parameter:For a spherical micelle with $n$ tails and core radius $r_c$, the volume and area relations are $nv=4\pi r_c^3/3$ and $n{a}_0=4\pi r_c^2$. Dividing gives $r_c=3v/a_0$, so a sphere fits without overextending a tail if $P\le 1/3$. Here $P<1/3$ andThus the packing model predicts spherical micelles. This is a preferred aggregate geometry, not a claim that concentration, temperature or ionic conditions can never alter the morphology.

A hydrophobic surface is poorly wetted by water: on a smooth surface its equilibrium contact angle, measured through the liquid, exceeds $90^{\circ }$. A drop therefore tends to bead up, limiting its contact area. Hydrophobicity does not mean that the surface exerts a mysterious repulsive force on every water molecule.

The waxy coating has a largely nonpolar exterior. Water molecules form favorable hydrogen bonds with one another, whereas a hydrocarbon-rich wax surface offers few suitable hydrogen bond donors or hydrogen bond acceptors. Water–surface adhesion is weak relative to water's cohesion. The drop shape minimizes the combined solid–air, solid–water and water–air interfacial free energies, not merely the liquid's exposed area.

In terms of Young's equation, ${\gamma }_{SV}-{\gamma }_{SL}={\gamma }_{LV}\cos \theta$. A contact angle greater than $90^{\circ }$ corresponds to ${\gamma }_{SL}>{\gamma }_{SV}$: replacing dry surface by wetted surface has an interfacial cost. The balancing liquid interface then favors a small wetted patch. Microscopic leaf texture can amplify the apparent hydrophobicity, especially when it traps air under the drop as a Cassie–Baxter state; the chemistry of a smooth wax layer alone does not guarantee an extremely large apparent angle.

On Teflon, the water drop has an obtuse contact angle and beads up, whereas the oil drop has an acute contact angle and spreads into a shallower patch. For small drops with negligible Bond number, both can be drawn as spherical caps.

To compare shape at equal volume $V$, let $R$ denote the generating sphere radius. The cap height and footprint radius areFor a fixed $V$, these relations give a taller, narrower drop for the larger contact angle. The angles are measured inside the liquid, including the obtuse angle of the water drop.

The relevant comparison is between gravity and surface tension. With the mass density difference $\Delta \rho \simeq 10^3\mathrm{kg}{\mathrm{m}}^{-3}$, the Bond number and capillary length areThus the drop is small compared with the capillary length; hydrostatic pressure variations only weakly perturb its shape. The Young–Laplace equation then gives approximately constant interfacial mean curvature, and an axisymmetric drop on a uniform flat substrate is a spherical cap. The substrate selects the contact angle, measured through the water.

Write $R$ for the radius of the generating sphere, $s$ for the contact-circle radius, and $h$ for the apex height. Elementary trigonometric identities giveTaking the stated droplet radius to mean its radius of curvature, $R=r$, givesThere is no diagram or explicit radius convention in the original PDF. If $r$ instead denotes the contact-circle radius, the answer is $h=r\tan 27.5^{\circ }=0.260\mathrm{mm}$. If it denotes the radius of an equal-volume free sphere, use the volume of a spherical cap, $\pi h^2(3R-h)/3=4\pi r^3/3$, to obtain $h=r[4(1-\cos \theta )/(2+\cos \theta ){]}^{1/3}=0.436\mathrm{mm}$. The spherical cap approximation is justified in all three conventions; a unique numerical height requires specifying which radius is meant.

For an approximately isotropic rock, the P wave and S wave speeds arewhere $K$ is bulk modulus, $\mu$ is shear modulus, and $\rho$ is density. Five important controls are:

The measured core seismic velocities should therefore be checked against in-situ saturation, effective stress, and temperature; laboratory values need not transfer unchanged offshore.

The normal-incidence acoustic impedance is $Z=\rho V_p$, with units $\mathrm{kg}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$. ThusDefine the pressure-amplitude reflection coefficient and pressure-amplitude transmission coefficient for incidence downwards from layer $i$ into layer $j$ byHere $p$ denotes compressional normal-stress amplitude; in the water it is the acoustic pressure. Continuity of normal traction and normal particle velocity gives these expressions. They describe each interface separately, before any layer layer reverberation.

For a lossless normal-incidence plane wave, intensity is proportional to $p^2/Z$, soA transmitted pressure amplitude exceeding unity is therefore compatible with conservation of energy. If instead the coefficient is defined for particle velocity measured along the same downward coordinate, $r_v=-r_p$ and $t_v=2Z_i/(Z_i+Z_j)=1-r_p$: the two transmitted velocity coefficients are $0.8000$ and $18/29=0.62069$. Upward incidence reverses the sign of $r_p$, interchanges the transmitted pressure and velocity coefficients, and leaves $R_E,T_E$ unchanged. At normal incidence between these ideal isotropic layers there is no P-to-S seismic mode conversion.

Take horizontal interfaces, water depth $h_w=50\mathrm{m}$, and sediment thickness $h_s=20\mathrm{m}$. Both source and receiver are just below the sea surface. Every angle below is measured from the vertical interface normal. Snell's law preserves the horizontal seismic ray parameterA basement seismic head wave of speed $V_h$ has horizontal propagation at the basement interface, so $p=1/V_h$. The two possibilities are:

The water supports only P waves. At oblique incidence the seabed can convert a P wave into an SV-wave in the sediment, and the return SV-wave can convert back to a P wave in the water. Further seismic mode conversion can occur at the basement. Thus the down-going and up-going sediment legs can independently be P or S. The S entries refer to SV-waves; a fluid P wave source in this two-dimensional isotropic geometry does not excite the decoupled SH-wave sector.

Let $L_h\ge 0$ be the distance travelled along the basement interface. For sediment legs $a,b\in \{P,S\}$,The first-appearance distance is the limiting value at $L_h=0$:

For example, the unconverted P branch gives $2(50+20)\tan 36.870^{\circ }=105\mathrm{m}$. The earliest geometrically permitted basement P seismic head wave is the doubly converted path with sediment S legs, at approximately $90\mathrm{m}$. The corresponding basement S family first appears at approximately $297\mathrm{m}$. These limiting distances describe existence of ray branches; a finite detectable wave amplitude also depends on conversion efficiency and acquisition noise.

There is no separate finite-distance P head wave at the water–sediment interface: $V_{p,w}=V_{p,s}=1500\mathrm{m}{\mathrm{s}}^{-1}$, so the nominal critical angle is $90^{\circ }$, and a ray from a source 50 m above the interface cannot reach it at finite horizontal distance. Nor can the slower sediment S speed, $900\mathrm{m}{\mathrm{s}}^{-1}$, support a seismic head wave launched from water: it would require $\sin {\theta }_w=1500/900>1$. A seismic reflection still exists at the seabed because the densities, hence the acoustic impedances, differ.

First appearance and first arrival differ. For each permitted branch the travel time isThe all-P basement P branch has $t_h=x/2500+0.0746667\mathrm{s}$. It overtakes the direct water P wave, $t_d=x/1500$, only at $x=280\mathrm{m}$. The converted P-head branches have larger seismic intercept times, so even where they exist at shorter offsets they are later arrivals. The S-head branches are likewise later than the all-P P-head branch wherever they exist in this model. Reflections and layer reverberations can supply additional later phases.

A gravity anomaly is the difference between observed gravitational acceleration and a specified reference prediction after defined reductions. A free-air gravity anomaly, a Bouguer gravity anomaly, and a residual local gravity anomaly differ because they remove different reference contributions. State the reference ellipsoid, datum, reference density, and regional trend before interpreting an anomaly as a subsurface geophysical density contrast.

On land, tie gravimeter observations to a gravity base, calibrate them, correct instrumental drift and Earth tides, and determine station latitude and elevation accurately. Subtract latitude-dependent normal gravity $\gamma (\phi )$. Reduce to the reference elevation using a positive free-air correction for a station above that datum: about $+0.3086h\mathrm{mGal}$ for $h$ in metres. A simple Bouguer gravity anomaly then subtracts attraction of the intervening rock slab and adds the conventional terrain correction:with all acceleration terms expressed consistently. In SI units $1\mathrm{mGal}=10^{-5}\mathrm{m}{\mathrm{s}}^{-2}$.

At sea, also correct vessel-motion effects, especially the Eötvös correction from east–west vessel motion and Earth rotation, and vertical ship acceleration; average or filter the moving-platform data appropriately. GPS navigation and tide information specify position and measurement height. Sea-surface measurements give a marine free-air gravity anomaly after motion, latitude, tide and height reductions. A marine Bouguer gravity anomaly additionally allows for measured bathymetry and the replacement of low-density water by reference rock; the simple water-column replacement correction is positive, $2\pi G({\rho }_{\mathrm{ref}}-{\rho }_w)H$, relative to the sea-surface free-air value. A consistent three-dimensional bathymetric correction is preferable near irregular coasts. Remove a justified broad regional field if the intended quantity is a residual anomaly of the local body.

Let $S_g$ be the fraction of the pore space occupied by gas, and let $\varphi$ be the porosity. At fixed porosity and unchanged rock framework, the bulk density isReplacing water with much less dense gas therefore decreases the bulk density approximately linearly, as in Figure 1. The liquid and gas densities here are those at reservoir conditions.

A pore fluid has negligible static shear modulus, so the rock framework chiefly controls the effective shear modulus $\mu$. If $\mu$ changes little, $V_s=\sqrt{\mu /\rho }$ increases gently as the density falls. This does not imply that S waves travel through the pore gas itself: their restoring force comes from the connected solid framework.

The P wave speed depends on both bulk modulus and shear modulus:Gas is much more compressible than water. Even a small connected gas fraction can strongly reduce the effective fluid bulk modulus, approximately through the compliance average ${\kappa }_f^{-1}\simeq (1-S_g)/{\kappa }_w+S_g/{\kappa }_g$ for a pressure-equilibrated mixture. The saturated rock's effective bulk modulus consequently falls rapidly at first, overwhelming the smaller density reduction and causing the sharp initial fall in $V_p$. Once the fluid is already very compliant, further gas replacement changes the stiffness less; the continuing density decrease can then make $V_p$ rise again. Figure 1 assumes a particular saturation response: patchy fluids, changing effective pressure, and frequency-dependent fluid motion can alter it. The plotted $V_s$ is only nearly constant, so the plot should not be interpreted as an exact fixed-$\mu$ constitutive model.

Healthy green vegetation has strong visible absorption in the blue, around $0.43$–$0.47\mu \mathrm{m}$, and red, around $0.65$–$0.68\mu \mathrm{m}$, mainly from chlorophylls and other photosynthetic pigments. Weaker absorption around green wavelengths produces a relative reflectance maximum near $0.55\mu \mathrm{m}$ and the familiar green appearance. The red edge is the steep reflectance rise around $0.68$–$0.75\mu \mathrm{m}$. In the near-infrared, weak pigment absorption and multiple scattering at internal leaf tissue–air interfaces produce high reflectance, commonly a broad plateau. This plateau is primarily a structural scattering effect, rather than chlorophyll reflecting the light.^[ref]

Leaf water produces absorption troughs in the shortwave infrared, especially near $1.4$ and $1.9\mu \mathrm{m}$, with weaker features near $0.97$ and $1.2\mu \mathrm{m}$. Atmospheric water vapor also strongly absorbs near $1.4$ and $1.9\mu \mathrm{m}$, so satellite bands usually avoid the centres of those deep troughs. Drying, senescence, pigment loss and changes in canopy structure alter the spectrum; measured canopy reflectance also includes shadows and the soil background.

To highlight vegetation, assign the near-infrared band to the red display channel, red to green and green to blue: vigorously vegetated areas appear bright red in this conventional false-colour composite. Alternatively calculate the normalized difference vegetation index from atmospherically corrected, spatially registered red and near-infrared reflectances:Large positive values indicate a strong vegetation-like red/NIR contrast. For example, ${\rho }_{\mathrm{NIR}}=0.50$ and ${\rho }_{\mathrm{red}}=0.05$ give about $0.82$. Mask clouds, their shadows and invalid low-signal pixels. Bare soil usually has a smaller contrast, while water often has negative values; fixed universal thresholds are inappropriate, and dense vegetation can saturate the index. A band ratio improves contrast but is not a direct count of plants or a unique measure of physiological health.^[ref]

The photic zone is the illuminated layer supporting photosynthesis; its euphotic depth is conventionally associated with about 1% of surface photosynthetically active radiation, integrated over approximately $400$–$700\mathrm{nm}$. This is a useful convention rather than a universal organism-specific compensation depth. Spectral filtering can be represented locally bywhere $K_d$ is the wavelength-dependent diffuse attenuation coefficient. It includes effects of absorption and scattering and is not simply equal to the absorption coefficient $a$.

In clear, low-chlorophyll water, pure water removes red light strongly, while weak blue pigment and CDOM absorption permits blue light, typically around $450$–$490\mathrm{nm}$, to penetrate furthest. The deepest usable light is consequently dim and blue-rich, and the euphotic zone can extend relatively deep. At high pigment concentrations, phytoplankton pigments preferentially remove blue and red light; associated detritus or CDOM can remove still more blue. The remaining transmission window commonly shifts toward blue-green or green wavelengths, roughly $500$–$570\mathrm{nm}$, and the total light falls off faster, so the euphotic depth is shallower. Exact window and depth depend on the full particle/dissolved mixture, not chlorophyll alone. The diagram normalizes the two deep spectra separately to show their different shapes, not equal absolute light at a common depth.

This confines photosynthetic growth to a thinner illuminated interval in high-chlorophyll water and allows a deeper potential habitat in clear low-chlorophyll water, subject also to nutrient supply, mixing and the organism's compensation requirement. Cells near the base benefit from low-light acclimation and pigment systems that capture the remaining wavelengths. In blue-rich deep ocean water, blue-absorbing pigments and some low-light-adapted picoplankton can be favored; where the surviving light is greener, groups with effective green-absorbing accessory pigments, such as certain phycobilins, gain an advantage. A pigment appears coloured by light it fails to absorb, so green-absorbing accessory pigments need not themselves look green. There is no universal deep species determined by chlorophyll concentration alone. A deep chlorophyll maximum can partly reflect increased pigment per cell rather than a proportional maximum in carbon biomass.^[ref]

Use the pressure correction to a mineral reaction for the solids, with $P_0=1\mathrm{bar}$. The water contribution must instead use its chemical fugacity. For pure solid phases and water vapour treated as an ideal gas, $f_{{\mathrm{H}}_2\mathrm{O}}=P$, givingThe last term already accounts for the gas-pressure contribution; adding another gas-volume correction would double count it. The pressure ratio inside the logarithm is dimensionless.

With pressure expressed in bars, the solid correction is $-2.28(4500-1)=-10257.72\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}$. ThusUsing $4500$ rather than $4499$ for the solid pressure increment would silently shift the specified one-bar reference.

PCR controls are scientific controls that separate different explanations for a readout. A no-template reaction contains the PCR primers and copying reagents but replaces the added template with water or sample buffer. Amplification there can indicate carried-over DNA or a primer dimer; a clean result does not exclude contamination confined to one sample.^[ref]

Different comparisons answer different questions. A known amplifiable template tests whether the PCR primers, DNA polymerase and thermal cycler can produce the expected amplicon. An extraction blank follows sample preparation without adding the sampled material. A separate amplifiable interval in the sample can test whether recovered DNA supports copying, although success there does not guarantee success at the target. A length standard calibrates gel electrophoresis; it is not a control for the copying reaction. These comparisons are an analytical design extension to the teaching example below, not a claim that its student protocol includes every comparison.

A PCR thermal cycle separates three jobs. During PCR denaturation, heating separates the paired DNA strands without intentionally cutting their phosphodiester bonds. During PCR annealing, cooling permits base pairing between PCR primers and templates. During PCR extension, the chosen interval supports DNA polymerase synthesis from the paired $3^{\prime }$ ends. Each new nucleotide is supplied as a deoxynucleoside triphosphate; its incorporation lengthens the strand. The DNA polymerase is a catalyst, while these nucleotides are consumed substrates.^[ref]

Taq polymerase withstands repeated high-temperature strand separation better than a heat-sensitive DNA polymerase. Its extension activity still depends on temperature, buffer solution and magnesium ions. Heat resistance does not mean constant activity at every stage: the separation temperature serves the DNA, whereas the extension temperature serves the copying enzyme. As one institutional example, Addgene's Basic PCR Program specifies $94^{\circ }\mathrm{C}$ separation, $55^{\circ }\mathrm{C}$ primer binding and $72^{\circ }\mathrm{C}$ extension. These are example settings, not universal properties of all PCR primers or DNA polymerases.^[ref]

For timing arithmetic alone, those stipulated holds give $20+25+45=90\mathrm{s}$ per PCR thermal cycle, and three cycles give $270\mathrm{s}$. Adding an assumed $90\mathrm{s}$ initial separation and $180\mathrm{s}$ final extension gives $540\mathrm{s}=9\min$ of holds. A real thermal cycler also takes time to move between temperatures. The schedule tells us when conditions favour PCR denaturation, PCR annealing or PCR extension; it does not measure the fraction of DNA copied.

An actual institutional protocol makes the distinction concrete. New England Biolabs specifies mixing templates and PCR primers with its OneTaq master mix in a thin-walled tube; a quick spin collects liquid at the bottom. Its $25\mu \mathrm{L}$ preparation uses $12.5\mu \mathrm{L}$ of the twice-concentrated mix and $0.5\mu \mathrm{L}$ of each $10\mu \mathrm{M}$ PCR primer stock, with water completing the volume. Tubes enter a thermal cycler preheated to $94^{\circ }\mathrm{C}$; mineral oil is specified if there is no heated lid. The program gives thirty cycles of $94^{\circ }\mathrm{C}$ separation, $45$–$68^{\circ }\mathrm{C}$ binding and $68^{\circ }\mathrm{C}$ extension, with extension time scaled to product length. The binding setting must be selected for the PCR primers; the range is not a continuously swept setting.^[ref]

The dilution can be checked independently: each PCR primer has final concentration $10\times 0.5/25=0.2\mu \mathrm{M}$, while the mix is diluted twofold. For an endpoint readout, Addgene specifies examining a product aliquot by gel electrophoresis.^[ref] Pair that size comparison with the existing PCR controls: a known template and a no-template tube test different explanations of success or failure. Those comparisons are an analytical addition, not controls documented in the OneTaq schedule. An expected-sized band supports production of a length-compatible amplicon; it does not establish its nucleotide sequence, ideal PCR efficiency or successful separation during every cycle. Neither protocol supplies a measured temperature or yield curve for the schematic above.

The University of Oklahoma K20 Center's handout describes three sealed vial-and-pipette respirometers in each temperature bath: soaked, germinating peas; nongerminating peas plus inert plastic beads; and beads alone. Displaced water establishes equal occupied volumes. Absorbent cotton holds potassium hydroxide, which removes carbon dioxide; nonabsorbent cotton separates it from the peas. The source equilibrates the vials before submersion and again before the initial reading. Colored water makes the boundary visible in each calibrated pipette. Readers then record positions every five minutes for twenty minutes.^[ref]

Bath temperature, vial position and seal integrity matter. The beads-only respirometer detects common temperature or atmospheric pressure drift; its change is subtracted from each pea reading. Nongerminating peas provide a biological comparison, not an assumption of zero cellular respiration. A larger corrected uptake slope for germinating peas would support greater molecular oxygen consumption by that sample under the tested conditions.^[ref]

Equal displaced volumes help match the gas spaces; they do not establish equal living mass or equal developmental state. Comparing uptake per seed and uptake per dry mass asks different questions. Leaks, incomplete carbon dioxide absorption, gas dissolution and changing water-vapour contributions can distort the respirometer inference. A blank correction cannot repair a sample-specific leak. These are consequences of the respirometer gas balance, rather than measurements reported in the handout.

The apparatus and motivating measurement are described in permanganate-iron titration; the following is an original account of its possible errors. Assume correct titrant standardization, the acidic permanganate-iron balance, quantitative conversion of the sampled ${\mathrm{Fe}}^{2+}$, and additive contributions expressed as equivalent titrant volumes. WriteHere $V$ is the sample titre, $V_b$ the titration blank, $B_s,B_b$ background reagent consumption, and $D_s,D_b$ signed offsets of the observed titration endpoints from the respective stoichiometry conditions after background consumption. The subscripts distinguish sample and blank. $I$ is additional sample-specific permanganate demand, absent from the blank; $A$ is apparent delivery used to fill an initially air-containing burette tip rather than enter the flask. Assume the blank's tip is already filled; the sample should also have $A=0$ after proper preparation. These terms are a diagnostic model, not measured components of the stipulated $0.10\mathrm{mL}$ blank.

Subtracting the two accounts proves the error relationThe simple inference is valid when this residual is negligible. Matching water and sulfuric acid tests the background terms, but does not by itself establish $D_s=D_b$: flask composition and viewing conditions can differ. A coloured sample can mask residual permanganate, changing the assigned titration endpoint without a corresponding redox consumption. A sample-specific reducing agent instead contributes positive $I$ by consuming permanganate. A reagent titration blank cannot measure either effect just by omitting the sample.

A transient purple streak before mixing is not the mixed-flask titration endpoint. Conversely, the equivalence point is the five-to-one inventory match, without a promised visible flag. In the ideal selective model, a persistent excess colour requires some permanganate beyond that match. No particular drop size, waiting time or endpoint offset is stipulated here; the same stated colour criterion must be applied to sample and blank, and its transferability checked.

The model also predicts error direction. If a tip bubble disappears during sample delivery, $A>0$ makes the inferred amount of substance too high because final minus initial burette reading includes liquid that stayed in the tip. Conditioning the tip before the first reading prevents this particular discrepancy; subtracting a separate titration blank is not an instrument repair. Repeated aliquots test scatter, a known added ${\mathrm{Fe}}^{2+}$ inventory tests the five-to-one response, and an independent titrant standardization tests $c$. These are the proposed controls from permanganate-iron titration, with distinct diagnostic roles; none alone proves absence of all sample interference.
