Dipole evidence for bond polarization 2026-10-13
A permanent electric dipole moment gives evidence of separated positive and negative electric charge in an overall neutral molecule. This is a more direct probe of chemical polarity than an electronegativity table. For hydrogen chloride, NIST lists about debye for the lowest vibrational state and debye for the equilibrium value. They describe different averaging conventions, not two contradictory measurements. The NIST WebBook traces the vibrational value debye to molecular-beam electric-resonance measurements in 1970.[ref][ref]
How does molecular beam electric resonance reveal an electric dipole moment? A source and apertures form a beam of molecules in vacuum. A first nonuniform electric field, A, selects quantum states through their different Stark effects. In a central region, C, electrodes supply a nearly uniform electric field and applied radiation drives transitions at selected frequencies. A second nonuniform electric field, B, analyzes the outgoing quantum states; a detector measures the rate of arriving molecules. In a transmission-loss arrangement, resonant radiation transfers some molecules to a quantum state rejected by B, so the measured arrival rate dips. The observable is a change in detected molecules as the radiation frequency is scanned, rather than light absorption itself. This general apparatus description is documented in a later experimental thesis; it is not a reconstruction of the exact 1970 HCl instrument.[ref]
Molecular beam electric resonance: schematic state selection and a synthetic Stark effect signal from a rigid rotor model; neither apparatus dimensions nor signal curves are measured HCl data
. Details. The inference comes from how transition frequencies change with the known electric field. The interaction couples the electric dipole moment to the electric field; fitting the quantum mechanics of the relevant rotational states extracts its magnitude. A free rotating molecule need not show a first-order shift proportional to : the weak-field Stark effect can be quadratic. The diagram uses a simplified rigid rotor, with an energy constant, to illustrate this behavior. It omits the fine details of actual spectra.
Useful controls include scans with the radiation off to measure the baseline arrival rate, repeated scans at several calibrated electric fields, and agreement between independently assigned transitions. These are methodological checks, not claims about undocumented steps of the 1970 experiment. Field calibration and state assignment limit the inferred electric dipole moment. The published 1970 abstract confirms analysis of HCl and DCl beam-resonance spectra and combination with infrared spectroscopy intensities to obtain a distance-dependent electric dipole moment; its full apparatus and calibration record were unavailable here.[ref]
Dipole Moment and Hyperfine Parameters of H35Cl and D35Cl by E. W. Kaiser. pp. 1686–1703, authored abstract; full text unavailable
Even an accurately measured electric dipole moment is not an absolute partial atomic charge. Replacing a hydrogen chloride molecule by two point electric charges separated by bond length gives . Using debye and gives times the elementary electric charge. This is an effective two-point model, combining a vibrationally averaged electric dipole moment with an equilibrium bond length, not a unique partition of the actual electron density or a measured “18.1 percent ionic bond”.[ref]
For a molecule with several chemical bonds, molecular geometry can cancel opposing contributions to the total electric dipole moment. Carbon dioxide illustrates why an overall nonpolar molecule need not have unpolarized individual chemical bonds. An electronegativity comparison helps anticipate local bond polarization; the measured molecular electric dipole moment tests the entire electric charge distribution.
Hydrogen bond acceptor 2026-10-13
A hydrogen bond acceptor supplies the electron-rich atom or group interacting with the attached hydrogen of a hydrogen bond donor in . An oxygen lone pair in water is the familiar example. Acceptance describes the association, not necessarily acquisition of a proton. A single molecule, such as water or ammonia, can offer both hydrogen bond donor and hydrogen bond acceptor sites. See Glasfeld: water and nitrogen-containing accepting sites.
A lone pair drawn in a Lewis structure is a useful clue, not a universal test. At an ordinary neutral amide nitrogen, the nominal lone pair participates in chemical resonance with the carbonyl group, so this nitrogen is ordinarily excluded from lists of hydrogen bond acceptors; the carbonyl group's oxygen remains an accepting site. Protonation changes the test again: has four N–H covalent bonds and no nitrogen lone pair, whereas ammonia has three and one. These distinctions follow the actual chemical form, and accepting ability also depends on the partner and whether it can approach the site. See McMurry: amide resonance and protonation and Glasfeld: limitations of nitrogen accepting sites.
Conversely, an accepting group need not supply an atom-centred lone pair. The following phenol–benzene experiment probes an O–H donor interacting with the ring's distributed electron density.
Infrared spectroscopy distinguishes free and associated phenol: schematic experimental logic, no plotted or simulated spectra
. Original toy layout of the comparisons reported by Saggu, Levinson and Boxer (2011). The connector identifies an O–H donor and a ring accepting region; it does not specify a measured bond length or the calculated contact geometry. Details.Saggu, Levinson and Boxer (2011) used infrared spectroscopy to compare phenol in different solvents. The O–H stretching peak was at in and in benzene. To distinguish association from a general solvent effect, they diluted the ring-containing chemical solutions with : two peaks appeared, with the free peak nearly fixed while the associated peak depended on the partner. Replacing the O–H hydrogen with deuterium reproduced the ordering of shifts for different partners. Thus the perturbed O–H group identifies the hydrogen bond donor; the ring supplies the hydrogen bond acceptor. A peak shift alone does not specify a unique molecular geometry. [ref]
https://pmc.ncbi.nlm.nih.gov/articles/PMC3202663/. Saggu, Levinson and Boxer, Direct measurements of electric fields in weak OH···π hydrogen bonds, JACS 133 (2011), Figure 1, Table 1 and dilution controls
The roles make recognition between molecules intelligible: exposed hydrogen bond donors need compatible hydrogen bond acceptors in reachable positions. A count of sites is a starting description, not a prediction of binding strength. In water, forming a contact between two partners can also replace their existing hydrogen bonds to water; the Gibbs free energy of association concerns the whole change. See Glasfeld, pp. 15–16: competition with solvent interactions.
Infrared Created 2026-10-05 Updated 2026-10-13
Infrared is electromagnetic radiation with wavelengths longer than the red end of ordinarily visible light. A useful named convention is the CIE range to ; the approximate visible range – used in some teaching texts puts the boundary nearer . [ref]
https://openstax.org/books/astronomy-2e/pages/5-2-the-electromagnetic-spectrum. Andrew Fraknoi, David Morrison and Sidney C. Wolff, Astronomy 2e, §5.2: approximate visible range
. Neither number is a sharp physical cutoff of human vision. The CIE divisions IR-A, IR-B and IR-C are respectively –, – and –; the boundaries of near-, middle- and far-infrared vary between applications. [ref]https://cie.co.at/eilvterm/17-21-004. CIE, International Lighting Vocabulary (2020), infrared radiation: ranges and boundary caveats
.Use vacuum wavelength when comparing these ranges. With frequency , speed of light , Planck constant and photon energy ,Thus the CIE infrared interval corresponds approximately to – and – per photon, with the smaller energy at the longer wavelength. A infrared photon has , whereas a ultraviolet photon has . These are calculations from , not measurements of a particular source. A television remote is a familiar approximately source; its information is carried by variations in the emitted radiant flux. [ref]
https://science.nasa.gov/ems/07_infraredwaves/. NASA Science Mission Directorate, Infrared Waves: remote controls and thermal imaging
.Detection and visual perception answer different questions. A photodetector can respond to infrared even when an observer perceives no light; a thermometer detects an increase in temperature after photon absorption. Conversely, a small readout can reflect a small spectral responsivity, rather than absence of incident electromagnetic radiation. Images made from infrared readouts use display colors chosen by the imaging system; those colors are not the colors of the incoming infrared.
The important microscopic mechanisms also differ. In infrared spectroscopy, photon absorption often increases the energy of a normal mode in which chemical bonds stretch or bend. The corresponding optical spectrum helps distinguish molecules by their motions. For the usual electric dipole mechanism, the motion must change the electric dipole moment; matching the frequency alone is not sufficient. [ref]
https://ocw.mit.edu/courses/5-35-introduction-to-experimental-chemistry-fall-2012/3f54ecef6f159a0a11dd60251491e075_MIT5_35F12_Mod1_Background.pdf. MIT 5.35, Fundamentals of Spectroscopy, p. 6: electric-dipole condition for infrared absorption
. Electronic processes can also emit or absorb infrared, so it is not exclusively radiation from molecular motion. [ref]https://openstax.org/books/organic-chemistry/pages/12-6-infrared-spectroscopy. John McMurry, Organic Chemistry, §12.6: molecular motions and infrared absorption
; [ref]https://openstax.org/books/college-physics-2e/pages/24-3-the-electromagnetic-spectrum. Paul Peter Urone and Roger Hinrichs, College Physics 2e, §24.3: sources of infrared radiation
.Infrared is especially useful for observing thermal radiation from objects near everyday temperatures. For an ideal blackbody, Wien's displacement law gives a wavelength peak near . A thermal camera's readout nevertheless depends on emissivity, reflected surroundings and transmission along the path, as well as temperature. [ref]
https://www.flir.com/discover/professional-tools/how-does-emissivity-affect-thermal-imaging/. Teledyne FLIR, How Does Emissivity Affect Thermal Imaging?: emitted and reflected contributions
. A source emitting infrared need not be hot: an infrared remote is useful precisely because a photodetector can distinguish its signal from a background. Visible light and ultraviolet can also cause heating when absorbed; “infrared” names a wavelength range, not a unique form of heat.Herschel's 1800 discovery made the distinction between sight and detection experimentally concrete. His report describes a optical prism spreading sunlight across a white, ruled receiving surface, with three thermometers at different positions near the end of the visible optical spectrum. He observed heating beyond the red edge where no visible color appeared. The result established that sunlight contained invisible radiation less strongly refracted by that optical prism than the visible red; it did not measure a photon energy or establish today's infrared boundaries. [ref]
https://makingscience.royalsociety.org/items/l-and-p_11_125/paper-experiments-on-the-refrangibility-of-the-invisible-rays-of-the-sun-by-william-herschel. William Herschel, Experiments on the refrangibility of the invisible rays of the sun (1800), Royal Society manuscript record
; [ref]https://en.wikisource.org/wiki/Page:Proceedings_of_the_Royal_Society_of_London_Vol_1.djvu/42. Royal Society proceedings, contemporary abstract of Herschel's experiment: apparatus and observations
.A documented modern version by Caltech/IPAC uses a glass optical prism, white paper in a shaded box and three blackened liquid-filled thermometers. Initial readings in shade provide each thermometer's baseline; subsequent readings compare blue, yellow and just beyond red after the bulbs have had time to warm. The measured quantity is the rise in temperature, not a “temperature of a color”. The lesson reports the expected largest rise beyond visible red and specifically discusses matching the bulb coatings and thermometer calibration. Clouds and changes in the projected optical spectrum affect the comparison. [ref]
https://coolcosmos.ipac.caltech.edu/page/lesson_herschel_experiment. Caltech/IPAC Cool Cosmos, The Herschel Experiment (2022): apparatus, readout and calibration controls
.For a stronger modern interpretation, an additional shaded thermometer would monitor ambient drift, exchanging bulbs between positions would test differences between thermometers, and blocking the incident beam would distinguish beam-dependent heating from warmed supports or air. These are suggested controls, not claims about Herschel's historical procedure. Thermal conduction through the mounting and convection can change the readout. A broad bulb also samples a range of wavelengths; the optical prism's transmission and optical dispersion, the bulb's absorption and heat loss all affect the position of the largest rise. In particular, the result does not show that an infrared photon carries more energy than a visible photon.
A simple analytical illustration makes those limitations explicit. Let be the bulb's excess temperature, its heat capacity, its effective heat-loss coefficient in , and the absorbed power. Assume one uniform bulb temperature, constant ambient temperature, constant , and losses linear in . Thenfor a beam switched on at with . After switching the beam off at , . The exponential function follows by solving this linear differential equation. The steady excess temperature measures ; it is not a direct measurement of the optical spectrum. With illustrative and , . Absorbed powers of and give steady rises of and , regardless of which wavelengths supplied that absorbed power.
Detecting infrared by a temperature rise: a Herschel-style schematic and an analytical thermal-response model
. Details. The upper schematic represents the logic of the optical prism experiment; its light ray positions are not a calibrated wavelength scale. The lower curves use the illustrative heat-balance model, with the beam blocked at ; they are not historical or modern measured data. The beauty of the experiment is that a simple change of detector extends observation beyond what the eye can perceive.
Infrared spectroscopy 2026-10-13
Infrared spectroscopy measures a sample's response to infrared electromagnetic radiation. Absorption associated with stretching or bending motions of chemical bonds helps identify groups and their environments. Peak positions are commonly reported as reciprocal wavelength, in ; a lower value means lower frequency. [ref]
https://openstax.org/books/organic-chemistry/pages/12-6-infrared-spectroscopy. McMurry: infrared spectroscopy and its wavelength convention
Ultraviolet Created 2026-10-05 Updated 2026-10-13
Ultraviolet is electromagnetic radiation with wavelengths shorter than the violet end of ordinarily visible light. The CIE convention uses –, subdivided into UV-A at –, UV-B at – and UV-C at –. These divisions name intervals; they do not mark universal changes in every material's response. The boundary with visible light is not sharp, and other fields use near-, far-, vacuum- and extreme-ultraviolet divisions. [ref]
https://cie.co.at/eilvterm/17-21-008. CIE, International Lighting Vocabulary (2020), ultraviolet radiation: ranges and boundary caveats
. For example, NASA's Solar Dynamics Observatory observes extreme-ultraviolet bands below ; the CIE interval is therefore not the full extent of astronomical ultraviolet usage. [ref]https://sdo.gsfc.nasa.gov/data/channels.php. NASA, Solar Dynamics Observatory HMI and AIA channels: the Atmospheric Imaging Assembly's ultraviolet and extreme-ultraviolet bands
.The CIE ultraviolet interval corresponds to frequencies about – and photon energies –, using vacuum wavelength and with Planck constant and speed of light . Shorter wavelength means larger energy per photon; larger irradiance means more incident power per area. These are different comparisons. At the same incident power, a ultraviolet beam has fewer photons per second than a infrared beam, even though each ultraviolet photon has more energy.
A common ultraviolet mechanism is photon absorption promoting an Electron from a ground state to an excited state of a chemical atom or molecule. By contrast, many infrared absorption bands involve stretching or bending chemical bonds. For either mechanism, both the energy difference and the coupling to the incident electromagnetic field matter. One concrete example is the absorption discussed for butadiene: an Electron moves between molecular orbitals, and the position of the absorption reveals their energy separation. Ultraviolet absorption can therefore probe molecular orbitals, while infrared spectroscopy probes many molecular motions. [ref]
https://openstax.org/books/organic-chemistry/pages/14-7-ultraviolet-spectroscopy. John McMurry, Organic Chemistry, §14.7: ultraviolet excitation and the 217 nm butadiene example
.Subsequent chemical reactions depend on the absorbing chemical substance and its environment; the label ultraviolet alone does not predict a reaction rate. At sufficiently short wavelength, a photon can cause photoionization if its energy exceeds the relevant ionization energy. There is no single wavelength that separates all ionizing from all nonionizing behavior for every chemical substance. Likewise, eventual heating after photon absorption is possible in both ultraviolet and infrared. The distinction is useful because different optical spectra expose different processes, not because the two ranges obey different laws of electromagnetism.
Ritter's 1801 observation used a chemical readout rather than a thermometer. In Caltech/IPAC's account, sunlight passed through a glass optical prism and silver chloride was placed in different parts of the optical spectrum. Darkening was weak toward red, stronger toward violet, and pronounced beyond the visible violet edge. The measured evidence was a change in the chemical substance's appearance at a spatial location with no visible color, establishing radiation beyond the eye's ordinary range. It was not a calibrated measurement of a universal ultraviolet optical spectrum. [ref]
https://coolcosmos.ipac.caltech.edu/page/lesson_ritter_experiment. Caltech/IPAC Cool Cosmos, The Ritter Experiment (2022): the historical silver-chloride observation
.A controlled modern interpretation of such a chemical test would compare equal exposure durations and matched fresh samples, keep an unexposed sample in darkness, monitor temperature, and distinguish scattered visible light from the intended short-wavelength beam with characterized filtering. These are proposed controls, not an assertion that Ritter performed them. Unequal sample preparation or heating can change a reaction rate. The optical prism, terrestrial atmosphere and sample response restrict which wavelengths the test detects. Darkening is a detector-weighted response, so its spatial maximum is not automatically the maximum of incoming radiant flux or of photon energy.
Thomas Larason and Jeanne Houston's NIST report documents a quantitative ultraviolet detector comparison. An argon source feeds a double-diffraction grating spectrometer; a shutter and mirrors deliver the selected band to a working-standard or test photodiode, successively at the same position. A beam splitter supplies a monitor photodiode. Amplifiers and voltmeters record detector and monitor simultaneously; shutter-closed readings provide dark baselines. The – scan, typically with bandpass, measures spectral responsivity. Monitor normalization suppresses source drift; known spectral lines calibrate wavelength. The report assesses temperature effects and unwanted light outside the band, weighted by detector response. The latter need not cancel between different spectral responsivities. [ref].
This determines electrical response without visual perception. Bandpass and spatial nonuniformity limit the calibration; aging and changed temperature can affect later use. The scan includes visible light and ultraviolet; no response below follows from it.
For a narrow beam, the idealized substitution calculation isHere is spectral responsivity; and are dark-subtracted detector and monitor electric currents. This follows by writing for each detector and using the monitor to track changes in radiant flux. It assumes linear response, unchanged beam splitting and collection geometry, and a sufficiently narrow band. For an illustrative standard with , ratios and give . These invented arithmetic inputs illustrate the method; they are not NIST measurements.
An independent photon-counting model connects spectral responsivity to quantum efficiency. If is the number of collected Electrons per incident photon, there is no internal multiplication, and is the elementary charge, thenAt illustrative constant and , this gives about at and at . The ultraviolet readout is smaller in this model because there are fewer incident photons, not because their individual energies are smaller. Real quantum efficiency depends on wavelength, windows, absorption and carrier collection; a detector's band gap and construction determine its usable range. Constant across these two wavelengths is an analytical comparison, not a claimed specification of a real photodiode.

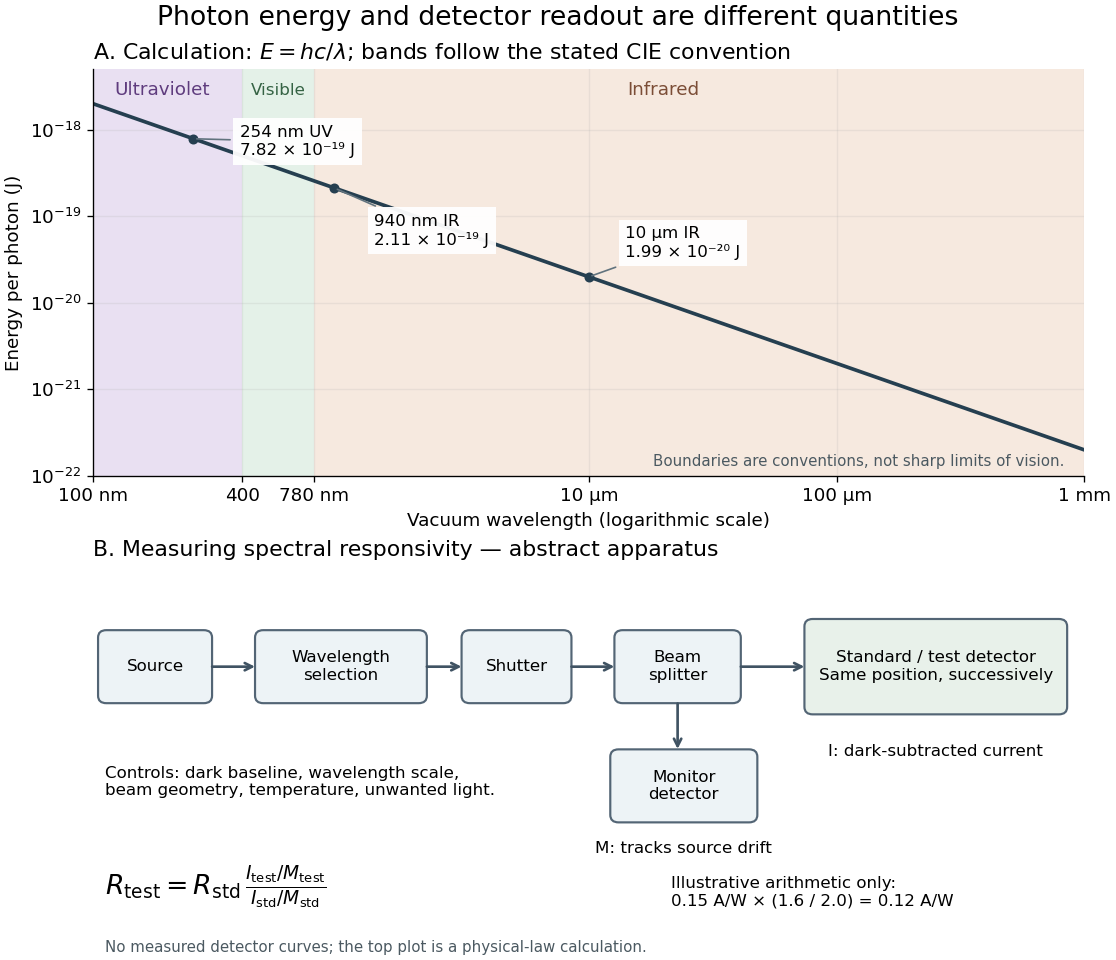

Photon energy across conventional ultraviolet and infrared ranges, with a schematic detector-substitution experiment
. Details. The curve is the calculated relation , and the shaded ranges use the stated CIE conventions. The lower diagram abstracts the detector comparison rather than reproducing an instrument drawing. Together with the infrared heat-balance illustration, it shows why a calibrated detector response, rather than what looks bright to an observer, is the bridge between invisible radiation and a quantitative measurement.
