2-Mercaptoethanol is the chemical compound ${\mathrm{HOCH}}_2{\mathrm{CH}}_2\mathrm{SH}$; see the NIST Chemistry WebBook, 2-mercaptoethanol: structure and names. In the ribonuclease A refolding experiment, it breaks protein disulfide bonds, while the peptide bonds of the protein backbone remain intact. This separates a change in crosslinks from cutting the polypeptide chain.

Here an amide means a carbonyl group whose carbon is bonded directly to nitrogen; each of $R$, $R^{\prime }$ and $R^{\prime \prime }$ may be hydrogen or a group attached through carbon. A peptide bond contains this linkage. Chemical resonance distinguishes its nitrogen from that of an amine. ^[ref] and ^[ref]

Protein denaturation is the loss of a protein's native spatial organization, often with loss of biological function. Changes in temperature, pH or surroundings can disrupt protein secondary structure, protein tertiary structure or protein quaternary structure. Protein denaturation ordinarily preserves the peptide bonds and protein primary structure; it is different from cutting the chain. Recovery by protein folding is possible in some cases, but removing the denaturing conditions does not guarantee that every protein recovers. See Clark, Douglas and Choi: denaturation, environmental conditions and loss of function.

In the diagram, unfolding preserves all eleven peptide bonds. Cleaving the connection between positions 6 and 7 leaves two six-residue fragments: each contains five peptide bonds, so there are $5+5=10$ in total. Simply cooling or otherwise restoring suitable conditions cannot recover the original chain by protein folding alone; the missing covalent bond would have to be remade. Conversely, protein aggregation can impede recovery without breaking any peptide bond. These distinctions explain why loss of function does not by itself reveal whether a protein unfolded, associated with other chains, or suffered chemical damage.

A disulfide bond is the single covalent bond between the two adjacent sulfur chemical atoms in a disulfide, conventionally written $\mathrm{R}-\mathrm{S}-\mathrm{S}-{\mathrm{R}}^{\prime }$. Here $R$ and $R^{\prime }$ stand for the attached organic groups; they may belong to the same molecule or to initially separate molecules. A disulfide bond is a chemical bridge, rather than a hydrogen bond or a mere contact between nearby groups. Two thiols, $\mathrm{R}-\mathrm{SH}$ and ${\mathrm{R}}^{\prime }-\mathrm{SH}$, can supply its two sulfur endpoints. ^[ref]

The stoichiometry of forming a disulfide bond is especially revealing. Written as an oxidation half-reaction, it isThe reverse reduction half-reaction consumes two Electrons and two hydrogen ions to restore two thiols. Both sides contain two sulfur chemical atoms; the two hydrogen chemical atoms have moved into the two hydrogen ions, and the net electric charge remains zero because $+2-2=0$. Thus one disulfide bond corresponds to two thiol groups and two transferred Electrons. These half-reactions describe redox bookkeeping, not a complete standalone chemical reaction: an accompanying reactant must accept or supply the Electrons, and pH affects the actual protonation of the groups. Mercaptoethanol can promote reduction through exchange of disulfide bonds, but adequate excess and appropriate conditions are needed; adding it does not by itself prove complete reduction. ^[ref]

In a protein disulfide bond, the endpoints are normally the amino acid side chains of two cysteine amino acid residues. An intrachain protein disulfide bond closes an intramolecular bridge within one polypeptide chain; an interchain protein disulfide bond connects different polypeptide chains, and can arise by intermolecular crosslinking of initially separate molecules. Forming or reducing these bridges changes covalent bond connectivity and can change protein structure, while preserving the order of amino acid residues and the peptide bonds in the protein backbone. A complete chemical account of protein primary structure includes crosslinks as well as sequence, so preservation of sequence does not imply preservation of every covalent bond. Mature insulin has two interchain protein disulfide bonds and one intrachain protein disulfide bond. ^[ref]

A bridge is useful because it constrains which parts of a polypeptide chain can move apart without breaking a covalent bond. Its placement therefore matters as well as its presence. The ribonuclease A refolding experiment provides the existing experimental example: breaking and reforming four protein disulfide bonds can accompany loss and recovery of function. Counting four bridges alone cannot tell whether their endpoints have the native pairing. This is an attractive connection between simple chemical counting and the richer problem of protein folding.

How can an experiment reveal an initially hidden disulfide bond? Ellman's reagent, also called DTNB, measures free thiols by producing a yellow absorbing species. Its reactive disulfide bond undergoes exchange with the conjugate base $\mathrm{R}-{\mathrm{S}}^{-}$ of a thiol, producing a mixed disulfide attached to $R$ and one released 2-nitro-5-thiobenzoate species, abbreviated TNB. At the assay pH, the strongly colored form is the dianion $\mathrm{TN}{\mathrm{B}}^{2-}$: one negative charge is on sulfur and the other is on the carboxylic acid-derived $\mathrm{CO}{\mathrm{O}}^{-}$ group. With excess DTNB and complete reaction, one released TNB reports one reacted thiol. George L. Ellman's 1959 paper introduced the tissue assay; it was subsequently reexamined quantitatively. ^{[ref] [ref]}

The modern apparatus can be simple: tubes, pipettes, a buffer solution, cysteine standards, DTNB, and an instrument that measures absorbance through a cuvette at wavelength $412\mathrm{nm}$. The Pierce protocol uses $50\mu \mathrm{L}$ of a $4\mathrm{mg}\mathrm{m}{\mathrm{L}}^{-1}$ DTNB stock, $2.50\mathrm{mL}$ of buffer solution, and $250\mu \mathrm{L}$ of sample. Its buffer solution is $0.1\mathrm{mol}{\mathrm{L}}^{-1}$ sodium phosphate at pH 8.0 with a metal-binding additive. After 15 minutes at room temperature, measure absorbance against a buffer solution plus DTNB blank; run known cysteine concentrations in parallel. The observable is increased yellow color and increased blank-corrected absorbance as more accessible thiols react, rather than direct imaging of disulfide bonds. These are published protocol conditions, not measurements performed for this article. ^[ref]

For a before/after test, split a purified protein sample into matched aliquots. Measure accessible free thiols in one aliquot; subject the other to complete reduction of its disulfide bonds, remove the reducing reagent, then measure the resulting thiols with fresh DTNB. Process the unreduced aliquot through a matching cleanup. Normalize to recovered protein and known dilution, since cleanup can change both. To estimate all reducible protein disulfide bonds, expose buried groups using matching protein denaturation conditions in both aliquots and calibrate in that same chemical solution; a native-accessibility measurement answers a different question. A larger corrected reading after reduction supports conversion of previously unreactive groups into detectable thiols. Attribution to disulfide bonds requires excluding other reducible sulfur modifications. This is a proposed comparison based on the detection principles, not a reconstruction of Ellman's original tissue measurements. ^[ref]

Under the Beer-Lambert law, the blank-corrected absorbance is $A=\epsilon lc$, where $l$ is the cuvette path length, $c$ is the released TNB concentration, and $\epsilon$ is its molar absorption coefficient. Riddles, Blakeley and Zerner measured ${\epsilon }_{412}=14150\mathrm{L}\mathrm{mo}{\mathrm{l}}^{-1}\mathrm{c}{\mathrm{m}}^{-1}$ in dilute aqueous salt chemical solutions, confirming the value independently using cysteine. It must not be applied indiscriminately to other solvents or protein denaturation mixtures. ^[ref] For aliquots compared on the same final volume and protein concentration basis, the ideal estimate isThe factor of two follows from the reduction stoichiometry; ${\bar{n}}_{\mathrm{S}-\mathrm{S}}$ is the number of disulfide bonds per protein molecule, or an average for a mixed population. If the aliquots have different dilutions or recoveries, convert each reading to a common sample basis before subtracting.

As a hypothetical calculation, choose $c_{\mathrm{protein}}=10\mu \mathrm{mol}{\mathrm{L}}^{-1}$ in each final cuvette, two free thiols and two disulfide bonds per protein molecule, and $l=1\mathrm{cm}$. Before reduction, $c_{\mathrm{SH}}=20\mu \mathrm{mol}{\mathrm{L}}^{-1}$ gives $A=0.283$; complete reduction adds four thiols per protein molecule, so $c_{\mathrm{SH}}=60\mu \mathrm{mol}{\mathrm{L}}^{-1}$ gives $A=0.849$. The difference $0.566$ gives $c_{\mathrm{S}-\mathrm{S}}=20\mu \mathrm{mol}{\mathrm{L}}^{-1}$ and ${\bar{n}}_{\mathrm{S}-\mathrm{S}}=2$. The published tube volumes imply a dilution factor $2.80/0.250=11.2$; reversing that dilution multiplies both thiol and protein concentrations by 11.2 and leaves the bridge count per protein molecule unchanged.

Controls determine whether that arithmetic has chemical meaning. Use fresh cysteine standards and a processed blank without protein to detect color generated by residual reducing reagent. Even a reducing reagent containing no thiols can interfere: Han and Han showed that tris(2-carboxyethyl)phosphine, abbreviated TCEP, reduces DTNB to two TNB equivalents per TCEP. ^[ref] In the hypothetical model, $5\mu \mathrm{mol}{\mathrm{L}}^{-1}$ residual TCEP in only the reduced cuvette would add $A=0.1415$ and falsely add $0.5$ bridge per protein molecule. A stable endpoint and agreement after a further reduction treatment help check completion. A sample without DTNB checks its own color; cloudy samples can also attenuate light without producing TNB. Match pH, temperature, accessibility and calibration chemical solution, and minimize delay that permits reoxidation. If two already-free but buried thiols become accessible only in the reduced aliquot, they mimic one new disulfide bond per protein molecule. Finally, bulk absorbance supplies a count under these assumptions: it does not locate the cysteine endpoints, distinguish intrachain from interchain bridges, or establish the native pairing of a protein disulfide bond.

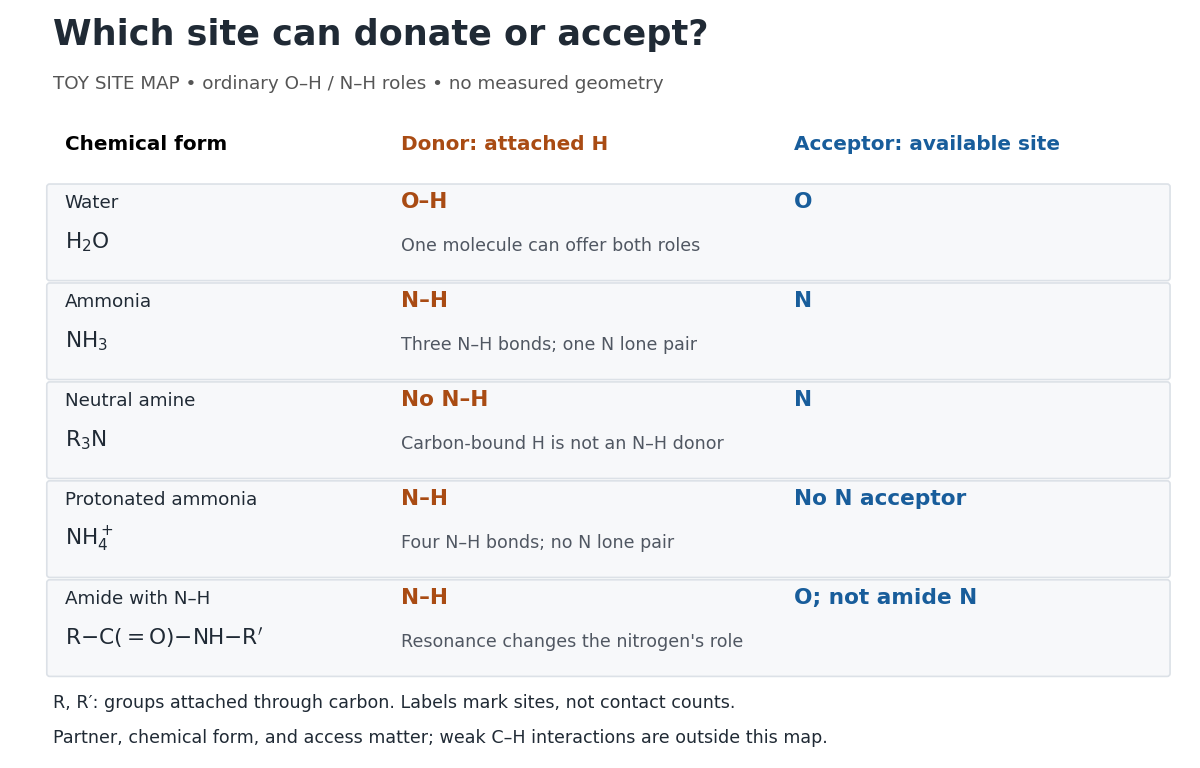

A hydrogen bond donor is the $X-\mathrm{H}$ group supplying the attached hydrogen in a hydrogen bond $X-\mathrm{H}\cdots Y$. The donor atom $X$, or the whole molecule containing it, may also be called the donor. The terminology does not imply transfer of a free proton: in the ordinary water pair, the O–H covalent bond remains. Familiar donors include O–H groups in water and N–H groups in ammonia. See Andrew Glasfeld, Intermolecular Attraction, pp. 12–13: donor and acceptor roles.

The attached hydrogen is essential to this role. At the nitrogen site, an unprotonated amine $R_3\mathrm{N}$ can be a hydrogen bond acceptor, but has no N–H hydrogen bond donor. Protonation gives $R_3{\mathrm{NH}}^{+}$: the new N–H group can donate, while that nitrogen no longer has the accepting lone pair. This is a change of chemical form, not a permanent label attached to a chemical element. Here $R$ denotes a group attached through carbon; the statement concerns the nitrogen site and does not rule out weaker C–H associations elsewhere. See McMurry, Organic Chemistry, 24.3: amine protonation and Glasfeld: protonated amines as donors.

An amide with an N–H covalent bond can donate even though its nitrogen is ordinarily not an accepting site. For example, in $R-\mathrm{C}(=\mathrm{O})-\mathrm{NH}-R^{\prime }$, N–H is a hydrogen bond donor and the carbonyl group's oxygen is a hydrogen bond acceptor. Replacing the remaining N–H by another group attached through carbon removes this N–H donor without removing the accepting oxygen. The analogous division of roles in a peptide bond helps explain protein structure. See Glasfeld: amide roles and biological interactions. The useful question is therefore which site supplies the hydrogen, rather than whether the whole substance is simply “hydrogen bonding”.

A peptide bond is the covalent bond between the carboxyl carbon of one amino acid residue and the amino nitrogen of the next. The displayed group shows the usual linkage, with the central carbon–nitrogen connection being the peptide bond. In an intact unbranched chain of $n$ amino acid residues, adjacent positions supply $n-1$ peptide bonds. Cutting one internal peptide bond produces two fragments; merely changing the chain's shape need not cut it. See Clark, Douglas and Choi, Biology 2e: peptide bonds and protein structure.

A polypeptide is a chain of amino acid residues linked by peptide bonds. The term describes chain chemistry; calling a chain a polypeptide alone does not establish that it is folded or functional. The gene expression example N–methionine–alanine–C contains two amino acid residues and one peptide bond; the twelve-residue example under protein contains eleven peptide bonds. See IUPAC-IUB: amino-acid symbols and representation of residues in chains.
