Define side $P$ as the higher proton electrochemical potential reservoir and side $N$ as the synthesis-side reservoir. For transfer $P\to N$ at common temperature $T$, define the positive downhill proton-motive force magnitude $\Delta p_{\mathrm{drive}}$ byHere $a$ is thermodynamic activity, $\psi$ is electric potential, $R$ is the molar gas constant and $F$ is the Faraday constant. Thus both a higher proton thermodynamic activity and a more positive electric potential on side $P$ contribute to the driving magnitude. This definition fixes the sign; conventions for a signed proton-motive force differ. The calculation under chemiosmosis separates these two contributions numerically.

Assume fixed reservoirs, tight mechanical energy coupling, one transported proton per $c$ subunit per revolution, and three ATP produced per revolution. Neglect leaks, slipping and membrane transport of the chemical reagents. Let $g_{\mathrm{ATP}}>0$ be the local molar Gibbs free energy cost of ATP formation at the stipulated composition, pH and magnesium-binding convention. It is not necessarily the standard state value. Adding changes in the state function gives, per mole of complete turns,For this model net synthesis is thermodynamically favoured when $\Delta G_{\mathrm{turn}}<0$. Equality is a reversible balance, not a promise of a useful reaction rate. A negative value establishes an available driving margin; it does not specify how fast the enzyme runs.

Choose $n=10$, $g_{\mathrm{ATP}}=50.0\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$, $F=96485\mathrm{C}\mathrm{mo}{\mathrm{l}}^{-1}$ and $\Delta p_{\mathrm{drive}}=0.180\mathrm{V}$. These are illustrative inputs, not measurements of the preparation in the experiment below. Thenand $\Delta G_{\mathrm{turn}}=-23.673\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$. Per ATP, the ideal input is $57.891\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$, leaving a driving margin of $7.891\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$. The balance point isAt $0.140\mathrm{V}$ the same synthesis cycle instead has $\Delta G_{\mathrm{turn}}=+14.921\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$: the chosen reservoirs favour its reverse.

The machine is reversible: sufficient ATP hydrolysis can drive opposite rotation and pump protons uphill. Actual direction also depends on inhibition and available substrates; a weak proton-motive force need not make every intact enzyme immediately run backward. Respiratory uncoupling supplies a different failure mode: a parallel proton leak dissipates the gradient without productive shaft rotation.^[ref]

The motor budget $10/3$ is not the whole cost of ATP delivered outside a mitochondrion. Import of ADP and inorganic phosphate, and export of ATP, also draw on the electrochemical gradient.^[ref] For a deliberately simplified system budget, assign these transports together one additional downhill-proton equivalent per delivered ATP, valued at the same $F\Delta p_{\mathrm{drive}}$. This is a chosen accounting convention, not a claim of one extra literal proton through $F_0$, nor a universal transport stoichiometry. The total becomes $10/3+1=13/3$ equivalents and $75.258\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ of gradient expenditure per delivered ATP at $0.180\mathrm{V}$. The ratio of stored chemical free energy to that expenditure is $50/75.258\approx 66.4\%$, compared with $50/57.891\approx 86.4\%$ for the motor alone. This system budget changes the resource expenditure, not the motor's balance point $\Delta p_{\ast }$. Real transport terms require their own electrochemical potentials, and leaks add further cost.

Chemiosmosis couples transmembrane ion movement down an electrochemical gradient to a chemical transformation. For mitochondrial ATP synthesis, protons return from the intermembrane space to the mitochondrial matrix through ATP synthase.^[ref]

An original thermodynamic example separates the electrical and chemical contributions. At fixed temperature $T$, use ideal dilute thermodynamic activities $a$ and the electric potential $\psi$ on each side. The molar electrochemical potential difference for inward transfer of a singly charged proton isHere $R$ is the molar gas constant, $F$ the Faraday constant, and $\ln$ the natural logarithm. The sign convention is destination minus origin: a negative difference makes inward transfer favourable. Both lower proton activity and a more negative electric potential inside favour inward movement.

Stipulate $T=300\mathrm{K}$, $a_{\mathrm{matrix}}/a_{\mathrm{outside}}=0.1$, ${\psi }_{\mathrm{matrix}}-{\psi }_{\mathrm{outside}}=-0.12\mathrm{V}$, $R=8.314\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}{\mathrm{K}}^{-1}$ and $F=96485\mathrm{C}\mathrm{mo}{\mathrm{l}}^{-1}$. These illustrative inputs give approximately $-5.743$ and $-11.578\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ for the chemical and electrical terms, hence $-17.321\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ per transferred proton. For a hypothetical device coupling three inward protons per ATP to an ATP-formation cost of $45\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$,The sign follows by adding changes in the state function Gibbs free energy. It establishes thermodynamic feasibility for this chosen model, not its reaction rate. Three is a stipulated coupling count, not a universal ATP synthase stoichiometry; transport costs and leaks can also consume the available free energy.

A Daniell cell uses the zinc/${\mathrm{Zn}}^{2+}$ and ${\mathrm{Cu}}^{2+}$/copper pairs. In the separated-compartment teaching version, a zinc electrode contacts an aqueous chemical solution containing ${\mathrm{Zn}}^{2+}$, and a copper electrode contacts one containing ${\mathrm{Cu}}^{2+}$. A salt bridge supplies an ionic connection; a wire and load supply an electronic connection. During discharge,The zinc electrode loses material and copper is deposited at the cathode. Each half-reaction conserves chemical atom counts and electric charge: the first has net charge zero on each side, the second $+2e-2e=0$ on the left and zero on the right. The net reaction has $+2e$ on both sides, with no electrons left in its chemical equation. The Zn/Cu teaching cell and these half-reactions are described in Florida State University, Redox Reactions in Voltaic Cells: Construction of a Potential Series, lab background.

Creating one mole of ${\mathrm{Zn}}^{2+}$ adds $2F$ of positive electric charge to the anode compartment's ionic inventory; consuming one mole of ${\mathrm{Cu}}^{2+}$ removes $2F$ of positive electric charge from the cathode compartment. Here $F$ is the Faraday constant. In an ideal bookkeeping example using a potassium nitrate salt bridge, two moles of nitrate anions entering the anode compartment compensate the first change, and two moles of potassium cations entering the cathode compartment compensate the second. Other ions in the cell can share the actual transport. The two compensating inventory changes do not mean that $4F$ flowed through the load: the same series electric current transports $2F$ through each cross-section of the circuit per mole of net reaction. See salt bridge.

Under standard-state conditions near $298\mathrm{K}$, tabulated reduction potentials give a cell electromotive force of approximately $1.10\mathrm{V}$. This is a reversible reference value, not a promised loaded reading; actual composition matters through thermodynamic activity. The tabulated copper and zinc values and their subtraction are given in Purdue University, Electrochemical Reactions: standard-state reduction potentials. For the net chemical equation as written, the molar Gibbs free energy change obeysThus $\mathcal{E}=1.10\mathrm{V}$ corresponds to about $-212\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ of net reaction. At fixed temperature and pressure, $-{\Delta }_{r}G$ is the maximum reversible electrical work per mole for this cell reaction. It is not automatically all the heat released by a finite-current cell. See 17.4 Potential, Free Energy, and Equilibrium (§17.4: cell potential and free energy).

The molar electrochemical potential combines the molar chemical potential ${\mu }_{\mathrm{m}}$ with the electrical contribution $z{F}_{\mathrm{Far}}\psi$, where $z$ is the signed charge number of an ion, $F_{\mathrm{Far}}=N_{\mathrm{A}}e$ is the Faraday constant and $\psi$ is electric potential. Both terms have units $\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}$. In the particle convention the corresponding expression is ${\tilde{\mu }}_{\mathrm{particle}}={\mu }_{\mathrm{particle}}+ze\psi$, with elementary charge $e$; multiplying it by the Avogadro constant gives the molar form. Transfer between locations at the same temperature and pressure is driven by differences in electrochemical potential. The membrane transport examples use it to distinguish neutral solute transfer from ion transfer.

Electrolysis uses an external source of electrical work to drive redox chemical reactions at the electrodes of an electrolytic cell. Its characteristic application is forcing a chemical reaction in a direction that is nonspontaneous under the specified conditions: a discharging galvanic cell supplies electrical work, whereas electrolysis consumes electrical work. This makes electrolysis useful for producing otherwise difficult-to-obtain chemical substances, charging a rechargeable battery, and depositing a metal coating on a conducting object.^[ref]

Always identify the anode by oxidation and the cathode by reduction. In ordinary driven two-terminal operation, the source withdraws electrons from the positive anode and delivers electrons to the negative cathode. In a discharging galvanic cell, the anode is negative and the cathode positive. Thus terminal signs change with operating mode, while the reaction definitions remain valid. Through the electrolyte, ions transport electric charge; they need not all be consumed at an electrode. The electrolyte and electrolytic cell articles explain this transport and its conventional current direction.

For a net chemical equation transferring $z$ electrons per reaction event, the molar reaction Gibbs free energy obeyswhere $F$ is the Faraday constant and $E_{\mathrm{chem}}$ is the reversible cell electromotive force for the reaction in the written direction. A nonspontaneous direction has ${\Delta }_{r}G>0$ and $E_{\mathrm{chem}}<0$ at fixed temperature and pressure. The ideal opposing voltage magnitude is ${\Delta }_{r}G/(zF)$; sustaining a finite electric current generally needs additional drive because of electrical resistance and finite electrode reaction rates. This thermodynamic voltage concerns the actual composition, rather than necessarily standard conditions.^[ref] Not every use of electrolysis increases bulk chemical Gibbs free energy: transferring copper between equivalent surfaces can have zero bulk ${\Delta }_{r}G$ while the source still supplies dissipated electrical work. See the existing electrolytic cell example.

A particularly revealing experiment measures copper transfer instead of merely looking for a coating. Two separated copper electrodes stand in aqueous $\mathrm{CuS}{\mathrm{O}}_4$ electrolyte in a vessel, with insulated leads to a regulated direct-current power supply, a series ammeter and a switch. A balance reads each electrode's mass before and after a timed run. The Institute of Physics describes copper cells with ammeters, adjustable current and removable cathodes; its comparison uses three similar cells at $1\mathrm{A}$ for ten minutes, $0.5\mathrm{A}$ for ten minutes, and $0.5\mathrm{A}$ for twenty minutes. The specified observation to test is that deposited copper mass is proportional to electric current times time. These are documented experimental settings, not measurements generated here.^[ref]

The ideal half-reactions areEach deposited copper chemical atom requires two electrons, so $z=2$. The anode loses copper and the cathode gains it; ideally their mass changes have equal magnitudes, and the bulk copper cation inventory stays constant. Local concentrations near the electrodes can nevertheless differ. The sulfate anions participate in ionic transport without appearing in these net half-reactions; electronic electric current in the wires becomes ionic electric current in the electrolyte through the two interfaces.^[ref]

Clean, rinse, dry and identify the electrodes before their initial weighing. After interrupting the electric current, rinse away adhering electrolyte, dry again and weigh without rubbing off the deposit. KIT's university practical explicitly calls for distilled-water rinsing, careful drying and weighing both electrodes; it warns that loose copper grains can be lost during handling.^[ref] Useful additional controls are repeated drying and weighing until the reading stabilizes, and a matched unpowered immersion followed by the same rinse/dry cycle. These controls test retained liquid, residual dissolved salts, handling loss and chemical changes unrelated to passed electric charge; they are proposed checks, not additional observations reported by KIT. Keep immersed electrode area, spacing, electrolyte composition and temperature comparable across runs, and keep the electrodes from touching.

Record the electric current as a function of time, together with the exact switch-on and switch-off times. Taking $I(t)\ge 0$ in the chosen deposition direction, the transported electric charge isFor constant electric current, $Q=I(t_1-t_0)$; with sampled readings, use numerical integration rather than assuming that one ammeter reading remained constant. The two equal-charge Institute of Physics settings each give $600\mathrm{C}$, while its shorter $0.5\mathrm{A}$ setting gives $300\mathrm{C}$. With $M_{\mathrm{Cu}}=63.546\mathrm{g}\mathrm{mo}{\mathrm{l}}^{-1}$, the mass per amount of substance tabulated by KIT, and $F\approx 96485.33212\mathrm{C}\mathrm{mo}{\mathrm{l}}^{-1}$, ideal Faraday's laws of electrolysis predictThese are calculated predictions for complete conversion of the measured electric charge into retained copper, not experimental results. For a stable process, doubling the electric charge doubles the deposited mass; equal electric charge gives equal deposited mass even when the electric current and duration differ.

The balance reading is a test of the whole model. Competing reduction of water or other chemical species can divert electric current from copper deposition; transient electrode capacitance can also consume part of a short pulse without producing copper. A fragile deposit can detach even when its formation used the expected electric charge. Conversely, retained electrolyte or salts can increase an apparent mass gain. Comparing anode loss with cathode gain helps detect such problems but does not identify every cause. A slope below $M_{\mathrm{Cu}}/(2F)$ alone cannot distinguish competing chemical reactions from lost deposit. Current efficiency measures the fraction of transported electric charge assigned to a specified electrode reaction, rather than the fraction of electrical energy stored chemically.^[ref]

The beautiful connection is that an electrical measurement counts chemical events: integrating electric current and reading a balance provide two ways of following the same electron stoichiometry. This makes electrolysis useful for controlling coating quantity and for testing a charge-to-amount of substance relation. It does not determine coating uniformity, adhesion or the required voltage, which depend on transport and electrode chemical kinetics as well.

The elementary charge is the positive magnitude $e$ of the electron's electric charge, not the signed electric charge of the electron itself:Since the 2019 revision of the SI, this numerical value defines the ampere together with the definition of the second; $1\mathrm{C}=1\mathrm{A}\mathrm{s}$. Thus today's numerical exactness is a choice of units, whereas measured electric charges still have experimental uncertainty. An oil drop experiment can test charge quantization and the apparatus calibration; it does not supply a new uncertain defining value of $e$ in today's SI. ^[ref].

For ordinary isolated chemical atoms, ions and charged objects whose net electric charge is counted through protons and electrons, charge quantization gives $Q=ne$ with signed integer $n$. A neutral chemical atom that loses two electrons becomes an ion of electric charge $+2e$. A toy object with $10^9$ excess electrons has $Q=-0.1602176634\mathrm{nC}$. Conversely, the scale $1\mathrm{nC}/e\simeq 6.24\times 10^9$ explains why laboratory electric charge often looks continuous: billions of microscopic increments fit into a small macroscopic amount. Averaged charge density is a continuum description, not a claim that each particle has an arbitrarily divisible electric charge.

The ordinary-matter qualifier matters. In the Standard Model, quarks have electric charges $+2e/3$ or $-e/3$, and antiquarks have the opposite signs. Confinement means these are constituents of hadrons, not isolated fractionally charged particles collected by an oil drop experiment. The usual valence quark sums give $2(2e/3)-e/3=e$ for a proton and $2e/3-2(e/3)=0$ for a neutron. Thus elementary charge should not be defined as the smallest nonzero electric charge of every constituent in particle theory. ^[ref].

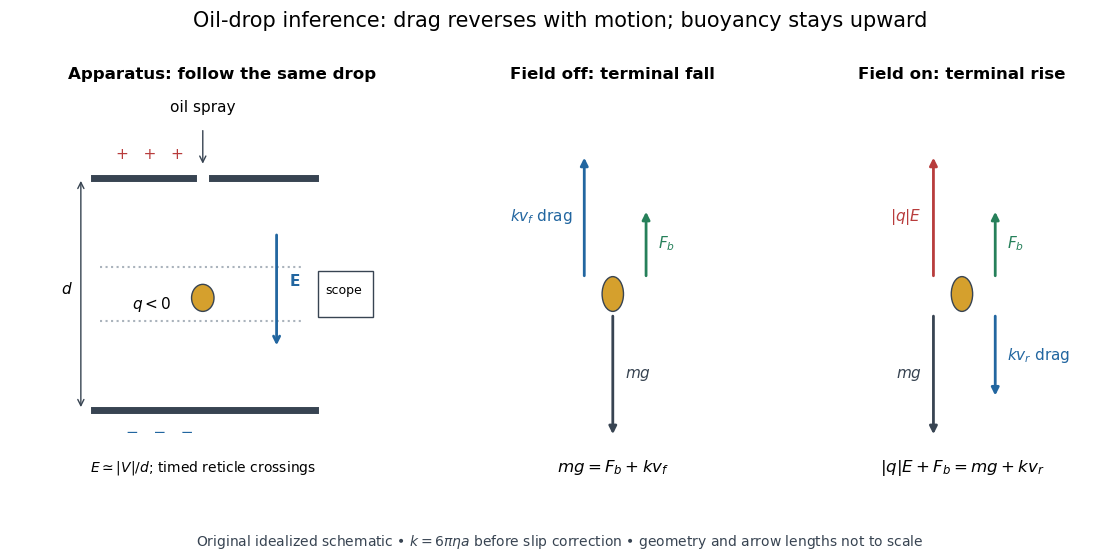

The beautiful experimental idea behind the oil drop experiment is to determine a microscopic electric charge by watching a visible carrier move. In his 1913 paper, Millikan timed the descent and electrically driven ascent of individual oil drops, repeatedly changing a drop's electric charge through capture of air ions. His apparatus used parallel plates separated by $16\mathrm{mm}$, a roughly $5300\mathrm{V}$ source, and an optical scale to measure travel distances. He reported multiple relationships among a given drop's inferred electric charges. He also found that uncorrected Stokes's law gave a size-dependent inferred elementary unit, and introduced a pressure-dependent slip correction. These were measured relationships with calibration and model uncertainties, not exact readings of today's defined $e$. ^[ref].

A modern instructional implementation sprays low-volatility oil of known density through a plate aperture, illuminates the drops, and follows one through a calibrated optical scale. Measure the plate spacing $d$, electric potential difference $V$, air temperature and pressure. Time a fixed distance $L$ with the electric field off to get a terminal falling speed $v_f=L/t_f$. Then choose the field polarity to drive the same drop upward and measure $v_r=L/t_r$. Repeat timings at a fixed electric charge, and compare before and after an ion-capture event. The same drop is especially useful because its radius and mass need not be inferred anew for each charge state. ^[ref].

Here is the leading continuum model, retaining buoyancy. Assume a drop shaped as a sphere of radius $a$, oil and air densities ${\rho }_o$ and ${\rho }_a$, air dynamic viscosity $\eta$, and gravitational acceleration $g$. Define the downward effective weight $W$ and positive linear drag coefficient $k$ byAt terminal velocity, the net force vanishes. Falling with no electric field, the upward drag force balances weight minus buoyancy. Rising with the electric force upward, the drag force reverses and joins the downward effective weight:Consequently the uncorrected estimates areThe observed direction of response, with known field polarity, supplies the sign of $q$. A suspended drop gives the alternative balance $|q|E=W$, but it still requires a determination of $W$: balancing a drop alone does not determine its electric charge.

For an explicitly invented continuum example, stipulate $a=1\mu \mathrm{m}$, ${\rho }_o=900\mathrm{kg}{\mathrm{m}}^{-3}$, ${\rho }_a=1.2\mathrm{kg}{\mathrm{m}}^{-3}$, $\eta =1.8\times 10^{-5}\mathrm{Pa}\mathrm{s}$, $g=9.81\mathrm{m}{\mathrm{s}}^{-2}$, $q=-5e$ and a downward $E=10^5\mathrm{V}{\mathrm{m}}^{-1}$. The balances predict $W\simeq 3.69\times 10^{-14}\mathrm{N}$, $v_f\simeq 0.109\mathrm{mm}{\mathrm{s}}^{-1}$ and $v_r\simeq 0.127\mathrm{mm}{\mathrm{s}}^{-1}$. Substituting those speeds recovers $|q|=5e$ within rounding. This checks the algebra; it is not a precision prediction for real micrometre drops, which need a slip correction.

The inference has two distinct parts. Compare inferred electric charges or charge changes with a common unit, seeking $q_i\simeq n_{i}e$ within uncertainty, rather than demanding exact ratios of rounded measurements. Then establish the absolute scale through electric field, density, dynamic viscosity and distance/time calibration. If the observed steps are all even multiples, their common spacing alone cannot exclude an unobserved smaller unit. Air motion, evaporation and mistimed crossings can alter inferred electric charge without an ion-capture event. Small Reynolds number supports Stokes's law, but does not by itself justify its no-slip continuum coefficient: a significant ratio of air mean free path to drop radius requires a slip correction. Millikan's comparison of different drop sizes and pressures addressed that systematic limitation; the modern PASCO manual also includes the correction. Agreement supports charge quantization for the observed carriers within experimental resolution, rather than proving a universal statement about every possible particle.

Multiplying $e$ by the Avogadro constant gives the Faraday constant, $F=N_{A}e$, the electric charge per mole of singly charged carriers. This connects counting individual electric charges with bulk electrochemistry. ^[ref].

The Faraday constant is the electric charge associated with one mole of elementary charges, $F=N_{\mathrm{A}}e\approx 96485.33212\mathrm{C}\mathrm{mo}{\mathrm{l}}^{-1}$. The product of the Avogadro constant and elementary charge is exact under the SI definitions; the displayed decimal is rounded. For ions with signed charge number $z$, the molar electrical contribution to an electrochemical potential is $zF\psi$, where $\psi$ is electric potential. ^[ref].

Faraday's laws of electrolysis state that the mass of material formed or consumed by a specified electrode reaction is proportional to the transported electric charge, and that equal electric charge produces masses proportional to $M/z$ for different reactions. Here $M$ is the product's mass per mole, and $z$ is the positive number of electrons transferred per product entity. For complete use of the electric charge in that reaction,The first relation uses the Faraday constant; the second uses half-reaction stoichiometry; the third converts amount of substance to mass. For equal transported electric charge in two ideal cells,The number $z$ belongs to the balanced half-reaction, rather than to the metal's name alone: copper deposited from ${\mathrm{Cu}}^{2+}$ needs $z=2$. These modern forms of both laws are given in KIT's practical.^[ref]

If other same-direction electrode reactions share the measured electric current, define an integrated current efficiency $\eta =Q_{\mathrm{product}}/Q$. Provided the product is neither subsequently consumed nor lost, the retained mass isHere $0\le \eta \le 1$ follows from the specified same-direction partition of electric current. It is not a universal bound on every signed partial-current convention: IUPAC notes that simultaneous oxidation and reduction at one electrode can produce a current-efficiency ratio above one.^[ref] When efficiency varies during a run, use the charge-weighted ratio above, rather than an unweighted average over time. If deposition removes material from a multicomponent chemical solution, specify which chemical species is being counted and balance its half-reaction before choosing $z$.

Michael Faraday's accessible 1834 paper, Experimental Researches in Electricity, Seventh Series, §783 states proportionality between chemical action and the quantity of electricity passed. In §§789–791 he describes connecting a molten tin-chloride cell in series with a water-decomposition charge indicator, weighing the receiving electrode before and after, and comparing the deposited metal with the indicator's gas readout. The common series electric current makes these two readouts comparable. This was a quantitative test of chemical equivalents, rather than merely an observation that a deposit appeared. It is historical evidence, not a suggested classroom procedure; the modern electron-counting derivation above uses concepts unavailable to Faraday.^[ref]

A battery's charge reservoir means a finite amount of electric charge can pass through the external electrical circuit before its usable chemical state is depleted. It does not mean a large net electric charge is sitting inside the casing. For one net cell chemical reaction transferring $n$ electrons per reaction event, an ideal reaction inventory obeyswhere $F$ is the Faraday constant and $\xi$ the extent of reaction in moles, assuming all the electric current serves that reaction. At fixed temperature and pressure, its reversible electromotive force obeys ${\Delta }_{r}G=-nF\mathcal{E}$: a decrease in Gibbs free energy provides the maximum reversible electrical work per mole. The electromotive force also depends on composition; the Daniell cell illustrates this with thermodynamic activity.^[ref]

As an original finite-reservoir exercise, stipulate usable $Q_{\max }=360\mathrm{C}$ and hold the preceding $3\mathrm{V}$, $1\Omega$, $4\Omega$ parameters constant until an abrupt cutoff. Then $t=Q_{\max }/I=600\mathrm{s}$, available electrical work is $\mathcal{E}{Q}_{\max }=1080\mathrm{J}$, load work is $V_L{Q}_{\max }=864\mathrm{J}$, and internal dissipation is $216\mathrm{J}$. This explicitly finite idealization predicts ten minutes, not an experimentally measured runtime. Real accessible charge depends on discharge conditions and the chosen terminal-voltage cutoff. Charge alone is also not an energy: converting it to delivered work requires the terminal electric potential difference throughout discharge.

Membrane transport is the passage of substances across a cell membrane. For the small solutes considered here, distinguish the available route from its driving force: a lipid bilayer, ion channel, or carrier protein determines how passage can occur, while differences in chemical potential and membrane potential determine which direction is energetically downhill. A large driving force cannot make an unavailable route conduct. See Alberts et al.: principles of membrane transport.

For an ideal dilute chemical solution at uniform temperature and pressure, with the same reference molar chemical potential on both sides, the molar electrochemical potential change for transferring a solute from compartment A to B isHere $c_{\mathrm{A}},c_{\mathrm{B}}$ are concentrations, $T$ is absolute temperature, $R$ is the molar gas constant, $z$ is signed ion charge number, $F$ is the Faraday constant, and $V_{\mathrm{B}}-V_{\mathrm{A}}$ is the electric potential difference. The natural logarithm contains a dimensionless ratio. The electrical term vanishes for an uncharged solute. More generally, use thermodynamic activities in place of the ideal concentration ratio. This combines the ideal-solution chemical potential difference with electrical energy per mole; see IUPAC Gold Book: electrochemical potential. For a biological cell, taking B inside and A outside makes the voltage term use the existing membrane potential convention.

The Nernst equilibrium potential is the inside-minus-outside membrane potential at which one ion species has equal electrochemical potential on both sides of a cell membrane. At uniform temperature $T$, using the same reference chemical potential on both sides, $z\ne 0$ is the signed ion charge number, $R$ the molar gas constant, $F$ the Faraday constant, and $a$ the dimensionless thermodynamic activity of that ion. For an ideal dilute chemical solution, the activity ratio becomes the concentration ratio. See Purves et al.: the forces that create membrane potentials and the Nernst equation.

The short derivation is to set the outside-to-inside electrochemical potential change from membrane transport to zero: $RT\ln (a_{\mathrm{inside}}/a_{\mathrm{outside}})+zFV=0$, and solve for $V$. An open pathway carrying only this species by passive transport then has this reversal potential. A balance of several nonzero ion electric currents does not establish this equilibrium condition for each species.

Animal cells conserve part of the free energy from nutrient oxidation in ATP and electrochemical gradients, then couple their consumption to synthesis, transport and movement. The relevant quantity is the actual Gibbs free energy change,where $Q$ is the appropriate reaction quotient, $R$ the molar gas constant and $T$ the absolute temperature. A reaction with a positive free-energy change can proceed when physically coupled to one whose negative change makes the combined process favourable. Merely placing an exergonic reaction nearby does not accomplish coupling: an enzyme, shared intermediate or molecular machine must link the processes.

Oxidation of carbohydrates and fats supplies NADH and other reducing equivalents. In the mitochondrial electron transport chain, transfer towards oxygen releases free energy. Complexes I, III and IV couple electron transfer to proton translocation from the matrix to the intermembrane space; complex II transfers electrons without directly pumping protons. The inner mitochondrial membrane retains the resulting proton-motive force. For movement of one mole of protons from outside to inside, defineHere $F$ is the Faraday constant and $\psi$ is the electrical potential. Both the relatively negative matrix potential and its relatively alkaline pH favour inward movement. An inward driving voltage of magnitude $0.18\mathrm{V}$ corresponds to approximately $17.4\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ per mole of protons. This is an illustrative calculation, not a universal mitochondrial measurement.

Proton movement through ATP synthase drives rotation and conformational changes that couple ADP and phosphate to ATP formation. Several protons are required per ATP, and transport of phosphate and adenine nucleotides adds energetic costs; there is no universal whole-number ATP yield for every animal cell. Reconstitution of a light-driven proton pump with ATP-synthesizing machinery in lipid vesicles showed that an independently generated gradient can support ATP formation. This experiment used an artificial mixture of components, providing a mechanistic test rather than a model of animal-cell photosynthesis.^[ref] In mitochondria, respiratory inhibitors, an ATP-synthase inhibitor and a protonophore give distinct predictions for oxygen consumption, ATP production and the gradient, helping distinguish electron transfer from coupling.

ATP then supplies a mobile chemical coupling intermediate. Transfer of a phosphate group can make an otherwise unfavourable biosynthetic step favourable through a common intermediate. sodium-potassium ATPase couples ATP hydrolysis to ion pumping; sodium-dependent cotransport uses the stored gradient for secondary active transport. Myosin couples its ATPase cycle to force and displacement on actin. Substrate-level phosphorylation also generates ATP directly during glycolysis and other reactions without an obligatory respiratory gradient. ATP hydrolysis is favourable because of the free-energy difference between the full reactant and product states under cellular conditions, not because breaking a bond alone releases energy.

Conversion is never perfectly efficient: heat is produced, proton leak can bypass ATP synthase, and controlled uncoupling can favour heat production. ATP concentration and the ATP/ADP/phosphate ratio reflect a maintained nonequilibrium state. Energy transduction is therefore a chain of coupled chemical, electrical, osmotic and mechanical changes, sustained by metabolism and constrained by thermodynamics.

A plausible hypothesis is that broad specificity emerges from a flexible, chemically heterogeneous binding cavity containing overlapping recognition sites, coupled to an energy-driven cycle that exports many different bound molecules. The cavity recognizes combinations of physical properties rather than one unique chemical structure. Different substrates can use different subsets of contacts and different routes through the same multidrug efflux pump. This is a testable mechanism, not a claim that every pump has identical architecture.

The hypothesis has three parts. First, a large cavity contains patches providing hydrophobic contacts, aromatic contacts, hydrogen bonds and electrostatics. A chemically diverse set of substrates may share an aromatic region, a charged group or the ability to partition into the lipid bilayer. Each can make a favorable but different combination of contacts. Internal water can mediate alternative interactions rather than requiring a rigidly preorganized set of donors and acceptors. Second, local side-chain and backbone flexibility allows several cavity shapes. Third, the large-scale transport cycle changes accessibility and affinity so that occupancy of a permissive binding region can be converted into release on the far side.

These ideas have structural precedents. X-ray crystallography of AcrB identified an aromatic, multisite drug-binding region and different conformations in its three subunits, consistent with a functional rotation through binding and export states.^[ref] Further structures distinguished an access pocket and a deeper binding pocket separated by a flexible switch loop.^[ref] The observation supports overlapping recognition and staged movement; the proposed energetic and kinetic roles of each contact still require testing. AcrB is the proton-coupled inner-membrane component of a larger bacterial export assembly, rather than an ATP-powered pump by itself.

A conformational ensemble makes the hypothesis quantitative. Let the unbound pump occupy conformations $j$ with probabilities $p_j$, and let substrate $s$ have an association constant $K_{a,j,s}$ in conformation $j$. If these states equilibrate rapidly before significant transport, a simple equilibrium binding polynomial givesThe expression follows by adding the bound population contributed by each unbound state at low free substrate concentration. Distinct substrates can bind well overall even when their favorable conformations are different. For example, with $p_1=0.9$, $p_2=0.1$, $K_{a,1,s}=10^4{\mathrm{M}}^{-1}$ and $K_{a,2,s}=10^7{\mathrm{M}}^{-1}$, the apparent constant is $1.009\times 10^6{\mathrm{M}}^{-1}$. A minority state dominates the binding contribution. These are illustrative numbers, not measured pump parameters. A working pump is driven and may not equilibrate rapidly, so its transport kinetics cannot in general be reduced to this binding expression.

Permissive recognition is compatible with directional transport only when the cycle is coupled to a driving reaction. For an ATP-binding cassette transporter, ATP binding and ATP hydrolysis couple rearrangement of nucleotide-binding and transmembrane regions. For a proton-driven pump such as AcrB, proton movement down its electrochemical gradient couples to structural changes. Neither substrate affinity alone nor random thermal motion supplies sustained uphill transport. In a tightly coupled model exporting one drug molecule while importing $n$ protons, the molar cycle Gibbs free energy iswhereHere $a$ denotes dimensionless thermodynamic activity, $F$ the Faraday constant, $\psi$ electric potential, and $z_D$ the charge of the transported drug species. Forward operation requires $\Delta G_{\mathrm{cycle}}<0$; equilibrium stall has equality. This states an energetic bound under the stated coupling assumption, not a measured proton-to-drug ratio for AcrB. Mixed protonation states, coupling slippage and alternative pathways require a more detailed model.

Several predictions distinguish flexible multisite recognition from an indiscriminately sticky cavity. A mutation removing one aromatic contact should disproportionately affect a subset of substrates that use that region, while leaving others relatively intact. Altering a common gating element may impair many substrates despite preserving some equilibrium binding. Rigidifying a flexible recognition loop could narrow the range even when transport of a favored substrate survives. Different drugs may compete strongly, weakly or asymmetrically depending on overlap and pathway occupancy; failure of simple competitive kinetics would not alone prove distinct sites in a driven, multi-state system.

Test these predictions with a chemically varied panel, including transported compounds and matched nontransported controls. Measure direct transport in lipid vesicles or another defined system while controlling orientation, pump amount, membrane leak and the driving gradient. For a proton-coupled pump, vary pH and membrane potential separately where possible and include an energy-collapse control; establish that the collapse does not merely destroy membrane integrity. For an ATP-driven pump include no-ATP and hydrolysis-defective controls. Measure binding and driving-energy consumption independently, because drug-stimulated ATP hydrolysis or proton flow can be uncoupled from productive export. Growth-based resistance alone is insufficient: altered drug uptake, metabolism and expression also change survival.

Use cryo-electron microscopy or X-ray crystallography with several chemically different drugs to test different contact maps and cavity shapes, then validate those differences by targeted mutations. Confirm expression, assembly, membrane localization and protein folding for every altered pump. molecular dynamics can predict alternative entry routes and local reorganization, but force-field choices, drug protonation and limited sampling must be varied or checked; a docking score alone is not evidence of transport. single-molecule Förster resonance energy transfer or electron paramagnetic resonance can test whether different drugs stabilize different dynamic states and whether the driving reaction changes state occupancy.

Finally, membrane partitioning may explain part of the apparent range: a pump can collect chemically varied compounds that share access to the same membrane-facing route. Measure drug partitioning and free aqueous concentration, since equal added concentrations need not give equal local exposure at the pump. The strongest support would be substrate-specific contact and dynamics changes, preserved transport energetics, and direct export measurements showing that one adaptable recognition apparatus feeds a shared directional cycle.

Photosynthetic exoelectrogenesis is measurable electron export, but the complete physiological export pathway is not established as one universal mechanism. Experiments must distinguish the intracellular source of reducing power, passage across the cell envelope and the final electrochemical reaction at an external acceptor. A light-dependent current alone does not identify all three steps.

In oxygenic photosynthesis, photosystem II oxidizes water and supplies electrons to a transport chain. plastoquinone, a cytochrome complex, photosystem I and downstream carriers connect charge separation to production of NADPH. In cyanobacteria, respiratory and photosynthetic electron-transfer pathways can share components; reducing power can therefore reach the relevant pools from both light reactions and metabolism of stored carbon. In a eukaryotic microalga, chloroplast and cell-surface membranes introduce additional compartment barriers. Electron export by one organism should not be assigned automatically to the architecture of another.

A biophotovoltaic device couples such cells to an electrode. At an anode, oxidation of an exported reductant or a cell-associated redox component transfers electrons into the external circuit. At least three broad mechanisms are possible: direct transfer through cell-associated components at the interface; soluble endogenous redox mediators; or added artificial mediators that access internal or surface-accessible carriers. A fourth practical possibility is release from damaged cells. These routes may coexist, and their relative contributions depend on electrode material, potential, growth state and preparation.

Evidence for a soluble route includes current from separated cell medium, loss of activity after removal of a candidate reductant and restoration by an appropriate add-back. In a cyanobacterial bioelectrochemical system, extracellular NADPH accumulated under illumination and device operation, its removal suppressed current, and addition of NADP+ enhanced current generation.^[ref] Those observations support a mediated route in the tested system. They do not prove that freely released NADPH is the principal mediator in every cyanobacterium or electrode arrangement. The process releasing it, its physiological relevance and possible leakage must be tested separately.

Cell-envelope experiments help locate a barrier. Comparing cyanobacteria with systematically removed outer layers showed that the periplasm and bacterial outer membrane strongly influence the photocurrent response.^[ref] Greater current after permeabilization can indicate that a previously internal reductant or carrier has become accessible; it does not establish that intact cells normally export through the same route. Measure viability, photosynthetic competence and leakage of cytoplasmic markers, normalize to active cell material, and compare the time dependence. A damaged-cell preparation can make a useful bioelectrode while being a poor model of normal physiology.

Artificial mediators provide mechanistic probes but can create a new pathway. A membrane-impermeant acceptor such as ferricyanide reports reduction at an accessible site, whereas a membrane-permeant quinone may intercept electrons deeper in the photosynthetic apparatus. Ultrafast spectroscopic experiments showed that an added quinone can extract charge on very short timescales from photosynthetic reaction-center systems in living cells.^[ref] This changes what is physically accessible for engineered extraction. It does not demonstrate that unmodified microorganisms use that compound or that the complete external current follows the same rapid timescale: intracellular interception and extracellular transport remain distinct steps.

Photosynthetic inhibitors and mutants can constrain the electron source. If inhibition of photosystem II decreases photocurrent, that supports a contribution from water-derived electron flow under those conditions. Persistence of current in darkness can reflect oxidation of stored carbon or previously reduced mediator rather than a failure of the light-reaction model. Conversely, acute inhibition can change the redox balance of the shared chain and secondary metabolism, so a decrease does not uniquely identify the terminal export carrier. Use more than one perturbation, independently confirm target inhibition and monitor oxygen evolution or another photosynthetic readout.

A strong electrochemical design includes an abiotic electrode under identical illumination, cell-free medium, killed-cell controls and fresh versus conditioned medium. Control electrode polarization and distinguish sustained faradaic current from capacitive transients when switching light on and off. Compare a washed cell pellet with its separated medium, test molecular-size fractions, and identify active molecules analytically. An added compound that increases current might be an electron shuttle, a nutrient, a membrane perturbant or an antioxidant; reversible redox behavior and mass balance are needed to classify it as a mediator.

Charge accounting is especially useful. For integrated faradaic charge $Q$,where $F$ is the Faraday constant. A two-electron oxidation of one reduced NADP molecule can supply at most $2F$ coulombs per mole for a single pass. Thus $1\mathrm{nmol}$ can supply about $0.193\mathrm{mC}$ before regeneration. If a measured charge greatly exceeds that amount, the reductant must be replenished, recycled, underestimated or supplemented by another source. This is an illustrative bookkeeping test, not a measured mediator concentration in any cited device.

It is also important to distinguish extraction efficiency from cell performance. A larger photocurrent after physiological stress may reflect diversion from carbon fixation, altered permeability or increased damage. Measure biomass production, carbon balance and sustained current over time. A useful engineered route must remain compatible with sufficient energy conservation and repair, while an ecological explanation requires evidence that extracellular acceptors are encountered and beneficial outside an electrode experiment.

Photosynthetic and respiratory reducing pools can supply current through condition-dependent export routes. The envelope gates accessibility, and mediators can connect internal redox chemistry to an electrode. Native carriers and export steps still require identification in each system.

Treat the membrane as a capacitor, and count the additional positive charge on its inner surface. With radius $r=10^{-6}$ m and length $\ell =10^{-4}$ m, including both end caps givesThe membrane capacitance is $C=C_{m}A=6.3460$ pF. Thus $\Delta Q=C\Delta V=5.3941\times 10^{-13}$ C, corresponding to $\Delta N=\Delta Q/e=3.3667\times 10^6$ monovalent sodium ions. Converting charge to amount of substance using the Faraday constant,Omitting the ends changes the answer to $0.01762$ mM, a one-percent correction. A large membrane potential change therefore requires only about $0.12\%$ of the intracellular sodium population to enter. The bulk liquid remains nearly electrically neutral; excess charge resides chiefly near the cell membrane. This explains why an action potential need not exhaust the concentration difference that drives it, and why fixed reversal potentials are a useful approximation during one spike. This membrane capacitive ion budget assumes sodium supplies the minimum net charging requirement. Simultaneous opposing electric currents can require more sodium entry; repeated spikes eventually require the sodium-potassium ATPase to maintain the gradients.

Including both end faces of the perfect cylinder, with $r=1\mu \mathrm{m}$ and $\ell =100\mu \mathrm{m}$,The membrane capacitance is $C=0.01\mathcal{A}=6.346\times 10^{-12}\mathrm{F}$. The required net inward electric charge is $Q=C\Delta V=5.394\times 10^{-13}\mathrm{C}$, or $Q/e\simeq 3.37\times 10^6$ monovalent ions. If sodium supplies that net electric charge, Faraday constant $F=N_{A}e$ givesThe final concentration is about $15.0178\mathrm{mM}$, only $0.119\%$ above the starting value. Neglecting the end faces changes the estimate by $1\%$, giving about $17.6\mu \mathrm{M}$. Over $2\mathrm{ms}$ the capacitive electric charge corresponds to mean net electric current $Q/\Delta t\simeq 0.270\mathrm{nA}$; the duration does not otherwise enter the total electric charge.

This is a net capacitive estimate, not a measurement of total sodium influx. Simultaneous outward potassium electric current makes actual sodium entry larger, and most bulk ions remain near their original concentrations during one spike. Long-term pumps restore gradients after repeated firing; they are not required to replace the entire intracellular sodium pool during the two-millisecond voltage rise.

For an ideal dilute chemical solution, moving one mole of a species with signed ion charge number $z$ from outside to inside changes its electrochemical potential byHere $R$ is the molar gas constant, $T$ the uniform absolute temperature, $F$ the Faraday constant, and $c$ the concentration. This assumes the same reference chemical potential on both sides. At thermodynamic equilibrium, $\Delta \tilde{\mu }=0$, henceThe Nernst equilibrium potential uses thermodynamic activities in the general case; replacing them by concentrations is an ideal-solution approximation.

Choose an original passive model: only ${\mathrm{K}}^{+}$ permeates ($z=+1$), other ions cannot cross, there are no pumps or imposed electric currents, and there is no net water transfer. Stipulate reservoir concentrations $c_{\mathrm{in}}=140\mathrm{mM}$ and $c_{\mathrm{out}}=5\mathrm{mM}$, with $T=310\mathrm{K}$, $R=8.314\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}{\mathrm{K}}^{-1}$ and $F=96485\mathrm{C}\mathrm{mo}{\mathrm{l}}^{-1}$. Treat reservoir concentrations as effectively unchanged by charging. ThenThe concentration ratio is dimensionless; $J/C=\mathrm{V}$ supplies the voltage unit. At $V_m=0$, $\Delta \tilde{\mu }>0$ for inward transport, so outward transport is favored. At $V_m=E_{\mathrm{K}}$ it vanishes. A more negative $V_m$ favors inward transport. These sign checks explain the result physically.

Keeping the other chosen inputs fixed, doubling $c_{\mathrm{out}}$ to $10\mathrm{mM}$ raises $E_{\mathrm{K}}$ by $(RT/F)\ln 2\approx 18.52\mathrm{mV}$. Equal inside and outside concentrations give $E_{\mathrm{K}}=0$; reversing their ratio reverses its sign. In finite reservoirs, transport changes both concentrations; the exact final thermodynamic equilibrium must also satisfy material conservation. The fixed-reservoir calculation is useful when only a small fraction of the available ions moves.

The change in overpotential per decade of current density in the activation-controlled regime of a Tafel equation. In a single-step Butler-Volmer equation with constant transfer coefficient, the anodic slope is $b_a=RT\ln 10/({\alpha }_{a}nF)$, where $T$ is temperature, $R$ is the molar gas constant, $n$ is the number of transferred electrons and $F$ is the Faraday constant. The magnitude of the cathodic slope is $b_c=RT\ln 10/({\alpha }_{c}nF)$. Inferring one from the other requires the model's relation between the two coefficients; the equality ${\alpha }_a+{\alpha }_c=1$ applies to this effective single-step model and need not describe a multistep reaction.
