Past exam of the atomic and Optical Physics course of the University of Cambridge

2016 paper: Public original PDF, physical page 779. Student-answer availability for this paper remains unverified.

Original source: Released original, physical PDF pages 779–782. All three questions and every essay option are covered.

Take the field along $z$ and write $x={\mu }_{B}B$, with Bohr magneton ${\mu }_B$. The printed Hamiltonian uses dimensionless angular-momentum operators, with eigenvalues $L(L+1)$ and $m_L$; physical angular momenta carry an additional $\hslash$. Thus $\beta$ and $x$ are energies. Assume the usual positive spin-orbit interaction coefficient $\beta >0$. Reversing its sign reverses the zero-field ordering but not the state count.

An electron has $S=1/2$. addition of angular momentum givesThe coupled angular-momentum state count can be checked directly. The product basis contains $(2L+1)\times 2=4L+2$ states. The coupled basis containsCoupling therefore reorganizes the states rather than creating or losing them. There is no hyperfine multiplicity because $I=0$.

Use $\mathbf{J}=\mathbf{L}+\mathbf{S}$ to obtainThe two spin-orbit interaction energies are $\beta L/2$ and $-\beta (L+1)/2$. In a weak field, project the Zeeman effect onto a fixed $J$ multiplet:This is the first-order energy formula, not a statement that $H_Z$ has no matrix elements between different $J$ values. For a common $m=m_J$ and a conventional choice of relative phase, its complete coupled-basis block isThe inter-multiplet Zeeman coupling terms give second-order weak-field corrections because the two spin-orbit interaction multiplets are already separated.

In the strong-field basis the Zeeman part is diagonal, $E_Z=x(m_L+2m_S)$. WriteIts diagonal matrix elements are $\beta m_L{m}_S$. Its off-diagonal matrix elements connect $(m_L,+1/2)$ to $(m_L+1,-1/2)$ with coefficientand the reverse spin change has $m_L+1$ replaced by $m_L-1$ in the corresponding ladder coefficient. These terms preserve $m_J$ but mix the two product states. To first order in $\beta /x$, the energy correction is simply $\beta m_L{m}_S$.

For the P state, $L=1$. Measured relative to its gross-structure centroid, the six low-field levels areThus the upper quartet starts at $\beta /2$ with slopes $+2,+2/3,-2/3,-2$ in a plot against $x$; the lower doublet starts at $-\beta$ with slopes $\pm 1/3$. Their zero-field separation is $3\beta /2$.

At high field all six product-state energies, retaining the term linear in $\beta$, areThe two zero-slope levels have different $m_J$ and no mutual matrix element, so their first-order degeneracy does not require an additional degenerate perturbation. At finite field they split at order ${\beta }^2/x$.

An exact interpolation makes the requested whole-field sketch unambiguous. The stretched levels areFor $m=\pm 1/2$, use product states $|m-1/2,+1/2⟩$ and $|m+1/2,-1/2⟩$. Their Hamiltonian block issoThese energies reduce to the quartet and doublet at zero field and to the six strong-field expressions above. Within a fixed $m_J$, the nonzero off-diagonal element prevents a crossing of the two branches. Levels in different $m_J$ sectors can cross without hybridizing. For the S state, $L=0$ and the spin-orbit interaction term vanishes, leavingthroughout this Hamiltonian's range of validity.

For electric dipole transitions at low field, $\Delta J=0,\pm 1$ and $\Delta m_J=0,\pm 1$ apply, with the usual exclusion of $J=0\to 0$. Each P state has opposite parity to the S state. The $P_{1/2}\to S_{1/2}$ transition has four allowed sublevel pairs. For $P_{3/2}\to S_{1/2}$, the two stretched upper states each have one destination and the other two each have two, giving six. Hence there are 10 allowed state-to-state channels at weak nonzero field. Relative to the two zero-field transition energies, their Zeeman shifts are

In the decoupled high-field limit, an electric dipole acts on orbital coordinates, so $\Delta m_S=0$. Each of the six P product states connects to the S state with the same spin and $m_L^{\prime }=0$. Thus there are 6 allowed channels in the limiting product-state description. Their photon energies areThis Paschen-Back transition-channel count is not the count of distinct frequencies: to first order in $\beta$ the two $m_L=0$ channels coincide, giving 5 distinct frequencies, with shifts $0,\pm (x+\beta /2),\pm (x-\beta /2)$. If the residual spin-orbit interaction splitting is unresolved there are the three usual orbital Zeeman groups.

The apparent loss of four channels is a change in eigenstate mixing, not a change in Hilbert-space dimension. At finite large field, four weak spin-forbidden Paschen-Back lines arise from small opposite-spin admixtures, with intensities vanishing as $(\beta /x{)}^2$. A generic finite-field calculation therefore retains ten nonzero channels; six carry finite strength in the complete-decoupling limit. Observation direction and polarization select which of these channels a detector actually receives.

evaporative cooling removes atoms selectively from the high-energy tail of a trapped gas. The remaining sample has less energy per atom; elastic collisions then redistribute energy and restore a thermal distribution at lower temperature. Random atom loss would generally remove average energy and would not provide the same cooling mechanism. Repeated energy selection and rethermalization, rather than one removal event, is the essential cycle.

Using the evaporation truncation parameter $\eta$, let the escape threshold be ${ϵ}_{\mathrm{cut}}=\eta k_{B}T$. As the gas cools, a fixed threshold is populated by fewer atoms, so evaporation stalls. In forced evaporative cooling the threshold is lowered during the sequence. In a magnetic trap, a radiofrequency evaporation knife flips trapped weak-field-seeking atoms into untrapped spin states where the Zeeman splitting matches the photon energy. Energetic atoms reach that resonance surface; sweeping the radiofrequency lowers the energy knife. In an optical dipole trap, lowering the trap depth offers a different implementation, although it usually also weakens confinement.

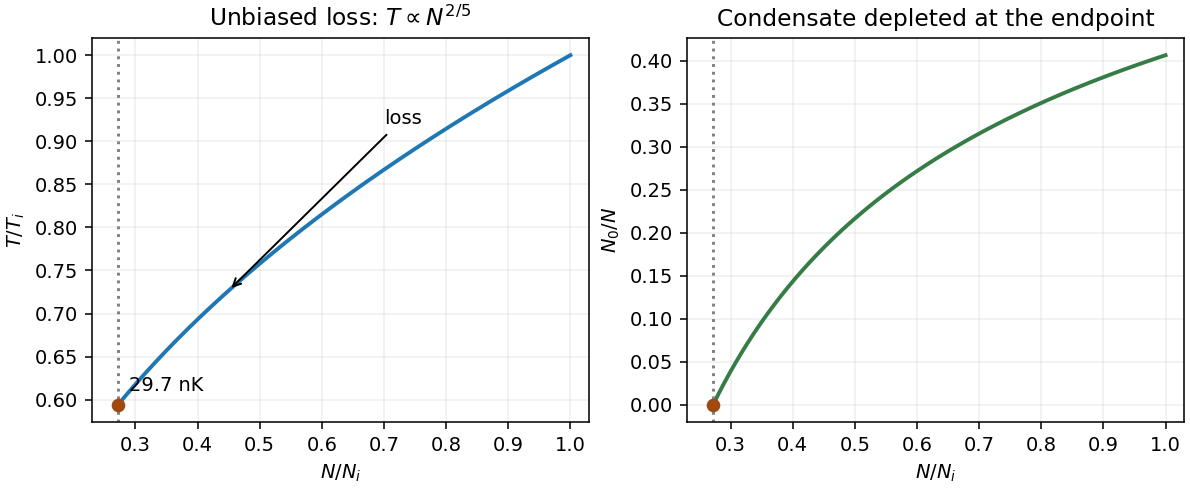

A simple evaporative cooling energy balance shows when atom loss is useful. For a classical gas in a three-dimensional harmonic trap of fixed frequencies, equipartition gives $E=3N{k}_{B}T$, counting both kinetic and potential energy. Suppose escaping atoms remove average energy ${ϵ}_{\mathrm{ev}}=(\eta +\kappa )k_{B}T$, with $\kappa$ a distribution-dependent excess above the threshold. For $dN<0$,Thus preferential removal cools when the removed energy exceeds $3k_{B}T$. More stringently, cooling must raise the phase-space density of an atomic gas, not merely lower the temperature:For this harmonic-trap phase-space density, with fixed geometric-mean trap frequency $\bar{\omega }$, $d\ln \mathcal{D}/d\ln N=1-3\alpha$. Therefore phase-space density rises during atom loss if $\alpha >1/3$. The numerical factors here belong to the stated harmonic-trap model, not every evaporative apparatus.

There must be enough elastic collisions to repopulate the tail: ${\Gamma }_{\mathrm{el}}\sim n\sigma \bar{v}$ should exceed damaging loss and heating rates, and the ramp should allow rethermalization. Increasing density can improve elastic collisions but also enhances inelastic and three-body losses. Very rapid removal can leave a nonequilibrium cloud; very slow removal exposes it to background-gas losses. Lowering an optical trap can reduce density and collision rate, so a falling temperature is not by itself evidence of efficient evaporation.

The dilute-gas condensation experiments made this tradeoff concrete. Eric A. Cornell and Carl Wieman's account explains how selective escape and contraction of a trapped cloud raise phase-space density, while the need for rapid two-body equilibration and slow three-body loss restricts usable density. It also describes expansion imaging as an experimental diagnostic.^[ref] Useful controls compare different knife ramps and hold times, measure both atom number and expansion temperature, and check trap-frequency calibration. Pure adiabatic expansion can cool without increasing phase-space density. Successful evaporation pays an atom-number cost to increase the remaining gas's phase-space occupancy.

For an ideal weakly driven two-level atom, opposing red-detuned beams give velocity-dependent absorption and a friction force near zero velocity. Random photon recoils also cause momentum diffusion. Their balance gives the minimum Doppler temperatureat detuning $\Delta =-\Gamma /2$ in the low-saturation model, where $\Gamma$ is the spontaneous population-decay rate, equivalently the natural full linewidth expressed as an angular frequency. This limit assumes the atom has no useful ground-state internal structure.

Real atoms possess magnetic sublevels. In a suitable multilevel transition, position-dependent polarization gives different optical couplings and different AC Stark energy shifts for those sublevels. Counterpropagating beams with orthogonal linear polarizations have nearly uniform total intensity but a periodically varying polarization. Thus spatially varying light shifts can exist even without an intensity standing wave.

In Sisyphus cooling, an atom on one ground-state branch climbs a light-shift hill and loses kinetic energy. Near the upper part of the hill, optical pumping tends to transfer population to a lower branch. spontaneous emission makes this transfer dissipative and randomizes the emitted photon direction. The atom can then climb another hill. Finite pumping time is essential: instantaneous local equilibration would remove the delayed internal-state response that produces friction. The original multilevel analysis relates these optical-pumping cycles to the spatially displaced light shifts.^[ref]

For large detuning compared with the natural linewidth, useful scales areup to angular-coupling and Rabi-frequency convention factors. Here $\Omega$ is the optical Rabi angular frequency. The slow-atom capture range is of order $kv\lesssim {\Gamma }_{\mathrm{op}}$. Typical energies in the Sisyphus regime track the light-shift scale rather than only $\hslash \Gamma$, so reducing intensity can lower temperature below the Doppler limit. Capture becomes narrower, however, and recoil heating, imperfect polarization, magnetic fields and scattered light eventually matter. Define recoil energy $E_r=(\hslash k{)}^2/(2m)$; this is an important scale, not a claim that every sub-Doppler method has the same universal final temperature.^[ref]

The experimental test must establish a narrow velocity distribution independently of fluorescence brightness. William D. Phillips's account describes moving a time-of-flight probe above and below the cloud, deliberately heating the atoms to check a previously absent signal, and release-and-recapture comparisons that included gravity and finite beam geometry. These tests separated very cold atoms from an insensitive detector or a faulty thermometer.^[ref] In a modern implementation, field cancellation and polarization checks test the mechanism, while independent expansion thermometry checks the inferred temperature. sub-Doppler cooling exploits internal-state dynamics omitted from the two-level Doppler model; it does not contradict that model within its assumptions.

A two-photon transition transfers population through two interactions with the electric-dipole operator. For absorption of two photons,The intermediate atomic states enter a second-order amplitude rather than necessarily being populated. Suppressing field-normalization factors, its structure isBoth time orderings contribute coherently. Close to a real intermediate resonance, linewidths and intermediate-state population must be treated explicitly; an off-resonant virtual-state approximation then ceases to be adequate. Well away from saturation the absorption rate scales as $I_1{I}_2$, or as $I^2$ for a single applied frequency.

Each electric-dipole interaction reverses parity, so two such interactions connect states of the same parity. The product operator contains angular tensor ranks $0,1,2$, subject to triangle and polarization selection rules. Under the degenerate two-photon selection rule, identical equal-frequency photons have no antisymmetric rank-one contribution cancels; ranks zero and two remain. This permits a $J=0\to 0$ transition and excludes $J=0\to 1$ in that degenerate E1-E1 case. It does not universally forbid every $\Delta J=1$ transition, because a rank-two tensor can also connect some such pairs. For a single orbital electron, the corresponding orbital changes are $\Delta L=0,\pm 2$, with spin unchanged in the nonrelativistic electric-dipole approximation.

In Doppler-free two-photon absorption, counterpropagating equal-frequency photons give first-order Doppler cancellation when one photon is absorbed from each beam:The laser frequency is half the transition frequency. Same-beam two-photon events can still produce a broader Doppler-shifted background; residual beam-angle errors, unequal frequencies, AC Stark shifts and finite transit time limit precision. Thus a narrow two-photon resonance requires control of beam geometry and intensity, not just high laser power.

A stimulated Raman transition is the absorption-emission version: the atom absorbs from one beam and emits into the other, transferring between two long-lived states through an off-resonant upper state. It instead obeysCounterpropagation now enhances momentum transfer rather than cancelling it. With single-photon Hamiltonian matrix elements $\hslash {\Omega }_i/2$ and a common large angular detuning $\Delta$, eliminating the excited state givesThe two-photon detuning must include differential AC Stark and recoil shifts. Large detuning suppresses spontaneous scattering but also reduces coherent coupling at fixed optical power.

The coherent Raman route is useful for atomic beam splitters and mirrors. Mark Kasevich and Steven Chu demonstrated a laser-cooled sodium matter-wave interferometer using stimulated Raman transitions; its controlled internal-state changes accompanied separated external wave packets.^[ref] Testing this interpretation requires scanning the two-photon detuning, controlling relative laser phase and checking output populations against pulse timing. A two-photon process is defined by its coherent two-interaction pathway; absorption-absorption and absorption-emission have different resonance and recoil conditions.

Write ${ϵ}_k={\hslash }^2{k}^2/(2m)$, $E_k=\hslash \omega$, and take $\mu >0$. The Bogoliubov spectrum is gapless and positive for $k\ne 0$. Its small- and large-momentum limits areThe low-energy excitations are collective sound modes; high-energy excitations approach particles with a mean-field energy offset. With healing length $\xi =\hslash /\sqrt{2m\mu }$ and $q=|k|\xi$,The crossover occurs at $q$ of order one, not at an additional energy gap.

The critical velocity of a homogeneous condensate follows because the Landau criterion compares an excitation energy with the energy that flow can release by transferring its momentum. Creating a mode is energetically possible when $E_k-\hslash \mathbf{k}\cdot \mathbf{v}\le 0$. For this isotropic spectrum,The infimum is the long-wavelength speed of sound. This tests energetic stability against the stated excitations; it is not a calculation of a dissipation rate or a universal vortex-nucleation threshold.

For an external potential varying slowly on the healing scale, the Thomas–Fermi approximation for a condensate neglects density-gradient kinetic energy in the stationary Gross–Pitaevskii equation. In occupied regions it givesHere $\rho$ is the appropriate local number density; in the ring it is a linear density and $g$ is the one-dimensional coupling. This is the local-density sound speed of a condensate. The formula applies where $\mu >V$, not in an empty region where its square root would be imaginary.

Normalize the condensate order parameter to the atom number:up to an arbitrary constant phase. A wavefunction normalized to one instead has amplitude $1/\sqrt{2\pi R}$, with $N|\psi {|}^2$ then providing density. Acting with $L_z=-i\hslash {\partial }_{\theta }$ gives angular momentum $n\hslash$ per atom and $Nn\hslash$ in total for the uniform ring. The superfluid velocity isThe interaction chemical potential is ${\mu }_0=gN/(2\pi R)$; a flowing uniform state also has the constant kinetic contribution ${\hslash }^2{n}^2/(2m{R}^2)$ to its total chemical potential. Its speed of sound is set by the interaction term. Applying $|v|<\sqrt{{\mu }_0/m}$ givesFor a uniform ring condensate, this is the continuum phonon criterion used here. Quantization of the available excitation wavelengths in a very small ring can modify a finite-size threshold.

For the nonrotating equilibrium with a raised left half, let ${\rho }_L$ and ${\rho }_R$ be the bulk linear densities. Within the same Thomas–Fermi approximation for a condensate,When both halves are occupied, normalization fixesand thereforeThese expressions require $V_0<2{\mu }_0$. Beyond that threshold, extending them would give a negative left density and is unphysical. Instead the left bulk empties, all $N$ atoms occupy a segment of length $\pi R$, andAt equality the left bulk just reaches zero density. kinetic energy rounds the interface and produces tails beyond the Thomas–Fermi approximation for a condensate, so an exactly empty half is the idealized bulk result.

A nonconstant $V(\theta )$ breaks rotational symmetry:Consequently angular momentum is no longer a good quantum number, and an eigenfunction need not be $e^{in\theta }$ times a constant amplitude. Nevertheless, while the order parameter is nonzero around the whole ring, single-valuedness requiresThe integer is a phase winding of a condensate, not an assertion that the inhomogeneous state remains an angular-momentum eigenstate. A superfluid phase slip can change it if the amplitude vanishes locally.

Conservation of particles gives ${\partial }_t\rho +{\partial }_s(\rho v)=0$. For steady density the one-dimensional particle current $j=\rho v$ is constant. Since the two halves have equal lengths,The current bottleneck in an inhomogeneous condensate occurs because a lower-density region has faster flow at the same current; it also has a smaller speed of sound. This makes the raised half the limiting region.

For $V_0=2{\mu }_0/3$ the equilibrium approximation givesThe winding condition and equal lengths requireThus the left-hand sound-speed test isThe right-hand condition is only $n^2<3m{R}^2{\mu }_0/{\hslash }^2$, so it is less restrictive.

This local sound-speed estimate for ring-flow stability uses the step-potential equilibrium in a ring condensate densities together with the local sound-speed test, as suggested by the preceding approximations. A quantitatively self-consistent finite-current solution also includes $m{v}^2/2$ and the quantum pressure of a condensate in the stationary Gross–Pitaevskii equation, allowing flow to change the density. Smooth steps suppress reflection but do not alone remove those terms. The $3/8$ result is the stated local-density estimate; it should not be promoted to an exact stability theorem for every finite interacting ring.

Original paper: Major Topics, Paper 1/AOP, 14 January 2015; physical PDF pages 710–712.

Use the ordered basis $(|1⟩,|2⟩)$ and ${\sigma }_z=\mathrm{diag}(1,-1)$, withA pure quantum superposition $|+x⟩=(|1⟩+|2⟩)/\sqrt{2}$ has $\mathbf{R}=(1,0,0)$ on the Bloch sphere. In contrast, a mixed state $\rho =p|1⟩⟨1|+(1-p)|2⟩⟨2|$ has $\mathbf{R}=(0,0,2p-1)$, inside the sphere for $0<p<1$. At equal populations its vector is zero. Equal populations alone therefore do not distinguish a coherent superposition from a mixture; their off-diagonal density matrix elements differ.

Choose the drive phase so the rotating-frame Hamiltonian is $H_{\mathrm{rot}}=\hslash (\Omega {\sigma }_x+\delta {\sigma }_z)/2$, where $\delta =\omega -{\omega }_0$ as specified. The Rabi vector is the angular-velocity vectorHere $\Omega$ is the on-resonance population oscillation angular frequency, not the unhalved coefficient of a cosine coupling. From $\mathbf{R}(0)=\hat{z}$, rotation about $\mathbf{W}$ at $W=\sqrt{{\Omega }^2+{\delta }^2}$ givesFor $\Omega \gg |\delta |$, the rotation axis is nearly transverse, the trajectory nearly a great circle, and transfer is almost complete. For $\Omega =\delta >0$, the axis bisects $+x$ and $+z$, the orbit lies in $R_x+R_z=1$, and $p_2=\frac{1}{2}{\sin }^2(\sqrt{2}\Omega t/2)$ never exceeds $1/2$. Each member remains a pure state in this coherent evolution.

For the Ramsey free interval, let atom $j$ have detuning ${\delta }_j=\delta +{\eta }_j$. Instantaneous ideal pulses give the Ramsey ensemble coherence factor $\chi (T)=⟨e^{i{\eta }_{j}T}⟩$. Averaging the free-evolution vector obtained in step (ii) givesDifferent atoms fan out around the equator, shortening the ensemble Bloch vector even though every individual's vector remains unit length. A broad smooth detuning distribution usually makes the average spiral towards the centre and damps the Ramsey fringes towards $1/2$. The dephasing time is of order $1/\Delta {\omega }_0\sim 5/\delta$. inhomogeneous ensemble dephasing is not necessarily irreversible decoherence of individual atoms; an appropriate spin echo can rephase static frequency offsets.

The given spread does not specify a probability distribution or whether it denotes an RMS width. An exact envelope is therefore not determined. The figure illustrates, rather than infers, a Gaussian distribution with RMS ${\sigma }_{\delta }=0.2\delta$, for which $\chi =e^{-{\sigma }_{\delta }^2{T}^2/2}$. A uniform distribution would instead give a sinc envelope and side lobes. Both have the same qualitative initial loss of contrast on the quoted inverse-spread scale.

In the rubidium-87 ground-state hyperfine structure, $J=1/2$ and $I=3/2$, so $F=1,2$. Taking $H_{\mathrm{hf}}=A\mathbf{I}\cdot \mathbf{J}/{\hslash }^2$ givesThe zero-field splitting is ${\Delta }_{\mathrm{hf}}=2A\simeq h\times 6.8\mathrm{GHz}$. Ignoring the small nuclear magnetic term, the weak-field Landé g-factors are $g_{F=1}\simeq -1/2$ and $g_{F=2}\simeq +1/2$. The diagram labels all three $F=1$ and five $F=2$ substates, with linear shifts $g_F{\mu }_B{m}_{F}B$.

The pair $|1⟩=|F=1,m_F=0⟩$ and $|2⟩=|F=2,m_F=0⟩$ is connected by a magnetic dipole transition with $\Delta F=1$, $\Delta m_F=0$, driven with its oscillating magnetic component along the quantization axis. Both first-order shifts vanish, giving the rubidium-87 clock transition first-order insensitivity near zero field. Its insensitivity does not imply absence of quadratic shifts.

For these two $m_F=0$ levels the Breit-Rabi formula gives the quadratic Zeeman shift of a clock transition:where the last expression neglects the nuclear term and sets $g_J\simeq 2$. HenceThis uses ${\mu }_B/h\simeq 1.40MHz/G$ and the supplied $A/h\simeq 3.4\mathrm{GHz}$. With physical moments defined by ${\mu }_i=-\partial E_i/\partial B$, the differential magnetic moment is ${\mu }_2-{\mu }_1\simeq -8.2\times 10^{-3}{\mu }_B$. If effective magnetic moment denotes the positive energy slope instead, that slope difference is positive. The magnitude and physical frequency sensitivity are the same. Retaining the full atomic factors gives the familiar quadratic clock-frequency coefficient about $575Hz/{\mathrm{G}}^2$; the simplified supplied parameters give about $576Hz/{\mathrm{G}}^2$.^[ref]

Use a far-detuned optical dipole trap, such as a red-detuned focused-beam trap, to confine both clock states. Their first-order magnetic moments vanish; their residual quadratic magnetic slopes are opposite, so a simple static magnetic-field minimum does not confine both in the same way. An optical potential acts through the electronic polarizability and can trap both ground hyperfine states. It is not perfectly state independent: differential AC Stark shifts, intensity noise and residual magnetic gradients still need control during Ramsey evolution.

During a short pulse, detuning is negligible relative to $\Omega$. Rotation through angle $\Omega \Delta t=\pi /2$ about $+x$ takes the initial north-pole Bloch vector toThe corresponding state is $(|1⟩-i|2⟩)/\sqrt{2}$, since $U_x=\exp (-i\pi {\sigma }_x/4)$. The phase of this equatorial superposition is defined relative to the oscillator that will supply the second pulse.

With the coupling off, $\mathbf{W}=\delta \hat{z}$. Precession during the dark interval givesThe populations remain $p_1=p_2=1/2$ during the dark interval; only their relative phase changes. For $T=2\pi /\delta$, the vector makes one complete equatorial circuit and returns to $(0,-1,0)$.

The second pulse has the same phase and area as the first, so another $+x$ rotation by $\pi /2$ givesAt $T=2\pi /\delta$, the final vector is the south pole and all population is in $|2⟩$. The complete path consists of a north-to-equator quarter turn, a full equatorial loop, and an equator-to-south quarter turn. At $\delta T=\pi$ the pulses instead return the population to $|1⟩$. Finite-pulse detuning corrections are small in $\delta /\Omega$; the result is the stated short-pulse Ramsey limit.

Interpret the box as a hard-wall cube. Its one-particle levels are ${ϵ}_{n_x{n}_y{n}_z}={\pi }^2{\hslash }^2(n_x^2+n_y^2+n_z^2)/(2m{L}^2)$ for positive integers, giving $E_0=3{\pi }^2{\hslash }^2/(2m{L}^2)$. Counting lattice points in a positive octant and differentiating the large-radius count gives the supplied continuum density of states. Expressing its prefactor through $E_0$ yieldsHere $\mathcal{A}$ denotes the dimensionless constant requested in this question, to distinguish it from the unrelated hyperfine constant of question 1. Periodic boundary conditions would have zero ground energy and would not permit this parametrization by a nonzero $E_0$.

Separate the ground-state occupation from excited particles. The finite-box ground-energy convention in Bose condensation makes the chemical potential approach the ground energy from below as that occupation becomes macroscopic. In the thermodynamic continuum approximation one shifts the energy zero to the ground state and sets the limiting chemical potential to zero in the excited-state integral. The difference between the exact shifted density and its $\sqrt{ϵ}$ bulk form gives finite-size corrections; at the transition $k_B{T}_c/E_0\sim N^{2/3}\gg 1$. ThusThe identity follows by expanding $(e^x-1{)}^{-1}={\sum }_{r\ge 1}{e}^{-rx}$ and integrating each term. The excited states have a finite saturation capacity. Setting that capacity equal to $N$ determines condensation:Equivalently $k_B{T}_c=(2\pi {\hslash }^2/m)[n/\zeta (3/2){]}^{2/3}$, with $n=N/L^3$.

At fixed $N$, below $T_c$ the chemical potential is pinned to its limiting value andAbove $T_c$, $N^{\prime }\simeq N$ and there is no macroscopic $N_0$; the chemical potential adjusts rather than allowing the saturation expression to exceed the available particles. At fixed $T$, put $N_c=N_{\max }^{\prime }(T)$. For $N<N_c$, $N^{\prime }\simeq N$ and $N_0$ is not macroscopic; for $N>N_c$, $N^{\prime }=N_c$ saturates while $N_0=N-N_c$ grows linearly. This is particle saturation in a homogeneous Bose gas; the sharp threshold is a thermodynamic-limit approximation to finite-box occupations.

The interaction scale compares differently with confinement and transition energies:Thus the stated range makes interactions dominate the ground-state confinement energy while remaining small on the thermal scale controlling $T_c$. This is an interaction-dominated ground state with nearly ideal condensation temperature. It also gives the dilute-gas parameter $n{a}^3=N(a/L{)}^3\ll 1$. A contact model has $g=4\pi {\hslash }^{2}a/m$ and $\mu \simeq gn$; the question's $E_I$ suppresses order-one factors, and the uniform ground energy per particle is $gn/2$, rather than exactly $gn$. Weak interactions can shift $T_c$ slightly, but their dimensionless strength $a{n}^{1/3}\ll 1$ makes that a small relative effect. In a hard-wall box, boundary healing layers do not overturn bulk interaction dominance when their thickness is small compared with $L$.

At $k_{B}T\ll \mu$, thermally occupied Bogoliubov modes have $E_k\simeq \hslash c_{s}k$, with $c_s=\sqrt{\mu /m}$. There is one acoustic branch for this spinless gas. Its thermal energy determines the phonon heat capacity of a dilute Bose gas:The zero-temperature interaction energy does not itself contribute to this leading temperature derivative at fixed $N,V$. This bulk power law also requires $k_{B}T\gg \hslash c_s/L$ so that the phonon spectrum may be treated as continuous; a strictly finite box eventually has discrete-level activated behaviour.

For the noninteracting condensed Bose gas, the ideal Bose-gas heat capacity below condensation follows by integrating $ϵg(ϵ)f(ϵ)$:Its limiting value at $T_c^{-}$ is about $1.926N{k}_B$. At very low temperature the interacting phonon curve is suppressed relative to the ideal curve, has slope three on logarithmic axes, and crosses over towards particle-like $T^{3/2}$ behaviour around $k_{B}T\sim \mu$. Since $\mu \ll k_B{T}_c$, most of the interval below $T_c$ is approximately ideal at leading weak-coupling order. The figure marks a qualitative extrapolation near the transition: a zero-temperature Bogoliubov spectrum does not determine precise interacting critical heat capacity or its small transition shift. The illustrative fixed-$\mu$ interpolation is not claimed as a controlled critical-region calculation.

In the ideal point-nucleus Dirac-Coulomb problem, hydrogen levels depend on $n$ and $j$, so $2S_{1/2}$ and $2P_{1/2}$ are degenerate despite their different orbital angular momenta. The Lamb shift removes this degeneracy: the $2S_{1/2}$ level lies about $h\times 1.06\mathrm{GHz}$ above $2P_{1/2}$, an energy of roughly $4.4\mu \mathrm{eV}$. This is distinct from the much larger $2P_{3/2}-2P_{1/2}$ fine-structure splitting.

quantum electrodynamics changes the electron's interaction with the Coulomb field. electron self-energy and vacuum polarization give state-dependent radiative corrections; a complete prediction also keeps specified recoil and nuclear-size contributions. An $S$ wave samples the nucleus differently from a $P$ wave, so equal $n,j$ no longer ensures equal energy. A leading-log estimate for an $nS$ radiative contribution scales as $\alpha (Z\alpha {)}^4{m}_e{c}^2\ln [(Z\alpha {)}^{-2}]/n^3$, with a numerical prefactor and further state-dependent terms. This is a scale estimate, not a replacement for renormalized bound-state QED. The measurable shift is a difference relative to a specified reference Hamiltonian, rather than an unregulated absolute vacuum energy.^[ref]

The original microwave experiment used a tungsten oven to dissociate hydrogen, an electron beam to populate metastable $2S$ atoms, and electron ejection from a metal target to measure surviving metastable atoms. Microwaves transferred population to rapidly decaying $2P$, reducing detector current. At a fixed microwave frequency, interruption of the radiation and a scan of static magnetic field revealed Zeeman-tuned resonances. Comparing resonance locations with the Dirac-level prediction showed the $S$ level shifted upward. Field calibration and homogeneity, excessive microwave intensity, unresolved hyperfine structure and stray-electric-field quenching limit the measurement; the signal is not direct absorption by a large equilibrium excited population.^[ref]

A two-photon transition is a second-order atom-field process. For two-photon absorption, energy conservation requires $E_f-E_g=\hslash ({\omega }_1+{\omega }_2)$. A virtual intermediate state in two-photon absorption need not be populated as a real stationary state. In the electric dipole approximation, the two time orderings give an amplitude proportional toThe electric-field amplitudes multiply this expression. Far from intermediate resonance, the denominators are large relative to linewidths and one-photon couplings, keeping real intermediate occupation small. Near an intermediate resonance, sequential absorption, linewidths and saturation require a fuller treatment. For weak unsaturated absorption the rate scales as $I_1{I}_2$, or $I^2$ when both photons come from one field. Absorption followed by stimulated emission instead gives a difference-frequency Raman transition; it is not two-photon absorption at the sum frequency.
