An acid-base titration adds measured quantities of a standardized chemical acid or chemical base to determine an initially unknown acid or base inventory through neutralization. Monitoring pH also constrains chemical equilibrium parameters such as the acid dissociation constant.

The added reagent is the titrant; a pipette selects an aliquot of the sample and a burette measures the added volume. Known stoichiometry converts this volume into amount of substance. This separates two questions that a single pH reading cannot answer: how much chemical acid is present, and how readily it donates a proton. A large inventory of weak acid can consume more titrant than a small inventory of strong acid despite having a higher initial pH.

Adiabatic compression decreases the volume of a sample without heat transfer across its boundary. For the fixed-composition ideal gas and endpoint assumptions in adiabatic process, compression work increases internal energy; positive heat capacity at constant volume then means a higher final temperature. The effect comes from supplied work, even though no heat enters. The amount of temperature increase depends on the work actually delivered to the gas, not on the adiabatic process condition alone.

The reversible ideal-gas adiabat supplies a particularly useful quantitative benchmark. Assume a fixed amount of substance $n$, a quasistatic process, negligible friction, only pressure-volume work, and constant heat capacity ratio $\gamma =C_p/C_V>1$. Here $C_p$ and $C_V$ are the whole sample's heat capacity at constant pressure and heat capacity at constant volume. With $R$ the molar gas constant, Mayer's relation gives $C_V=nR/(\gamma -1)$. The proof outline is $C_{V}dT=-pdV$ from the first law of thermodynamics, followed by $p=nRT/V$ from the ideal gas law and integration. The result isThese finite power laws belong to this reversible, constant-$\gamma$ ideal gas model. If heat capacity ratio varies, use the integral relation in heat capacity ratio; if the compression is irreversible, use the actual work balance, as in irreversible adiabatic piston compression. A short stroke by itself justifies neither power law. ^[ref]

Writing $r=V_1/V_2>1$ for the compression ratio, the reversible model predictsAll temperatures in these ratios are absolute. The larger pressure rise than in an isothermal compression, where $p_2/p_1=r$, explains the greater local stiffness described by isentropic compressibility.

For an original stipulated example, set $\gamma =7/5$, $p_1{V}_1=nR{T}_1=1\mathrm{kJ}$ and $r=2$. Then $T_2/T_1=2^{0.4}\simeq 1.31951$ and $p_2/p_1=2^{1.4}\simeq 2.63902$. The input work and internal energy increase are both $0.79877\mathrm{kJ}$, while $Q_{\mathrm{in}}=0$. No initial temperature or apparatus performance is implied by the chosen energy scale. Independent integration gives the signed outward workwhich is negative during compression and agrees with $-\Delta U$. This integral uses equilibrium gas pressure only because the path is reversible.

In the sensor experiment of adiabatic process, compare the pressure-volume integral with $C_V\Delta T$ as an energy check only when internal pressure is sufficiently uniform and piston dynamics permit that boundary-work estimate. Account for friction separately before comparing it with hand input work. PASCO's manual supplies a compression procedure and an illustrative logarithmic-slope result $1.39$, compared with the model value $1.40$ for a diatomic gas; that is its sample result, not new measurements here. ^[ref]

An adiabatic process has no heat transfer across the chosen boundary throughout the process: $\delta Q=0$, rather than merely zero net heat after incoming and outgoing transfers cancel. It is a condition on energy transfer, whereas an isothermal process holds temperature constant. A sealed cylinder can approach an adiabatic process through insulation or through motion short compared with the time needed for appreciable heat transfer. Its temperature can nevertheless change because work crosses the boundary.^[ref]

Take the trapped gas as a closed system, with fixed amount of substance and composition and no net change in bulk kinetic energy or potential energy between the endpoints. Define $Q_{\mathrm{in}}>0$ as heat entering and $W_{\mathrm{out}}>0$ as work delivered to the surroundings. The first law of thermodynamics givesHere $U$ is internal energy. An adiabatic compression normally supplies work, so $W_{\mathrm{out}}<0$; an adiabatic expansion against a resisting load delivers work, so $W_{\mathrm{out}}>0$. An adiabatic process need not preserve internal energy and need not make the closed system an isolated system. ^[ref]

For a reversible thermodynamic process, $dS=\delta Q_{\mathrm{rev}}/T$ at positive absolute temperature $T$. A reversible adiabatic process therefore has $dS=0$: it is an isentropic process. Irreversible adiabatic processes can instead generate entropy; free expansion is the existing counterexample, with its calculation in entropy change in free expansion. Conversely, constant entropy alone does not certify an adiabatic process or reversibility: outward heat can export the entropy generated internally. For a closed system the macroscopic entropy balance iswhere $T_b$ is the absolute boundary temperature where each heat transfer occurs and $S_{\mathrm{gen}}$ is internal entropy production. With no heat transfer, this reduces to $\Delta S=S_{\mathrm{gen}}$; reversibility makes $S_{\mathrm{gen}}=0$. ^[ref]

A motivating experiment measures the gas temperature directly during compression and expansion, instead of inferring it from how warm a cylinder feels. PASCO's authored TD-8565 manual describes a sealed piston cylinder, a fine nickel-wire thermometer, an absolute pressure sensor and a position readout for volume. A computer records all three channels together. The wire's electrical resistance changes with temperature; its small size permits a rapid response. ^[ref]

Use ordinary trapped air and the apparatus's designed travel stops; mount the base securely, close the valve during a stroke, and record the actual volume limits. John Hart's university demonstration uses a large transparent cylinder with a low-heat capacity thermocouple, a pressure sensor, a travel gauge and a safety stop. It explicitly keeps the release valve closed during the demonstration. The basic observable is a rise in temperature on compression and a fall on loaded expansion, alongside the corresponding pressure and volume changes. Hart discusses wall thermal conduction, sensor response and leakage as reasons real records differ from the reversible model. ^[ref]

For a proposed rapid-versus-slow comparison, let the air and walls return to the same initial thermal equilibrium before each run, then compare the same starting and finishing volume values with different stroke durations. Read temperature, absolute pressure and position continuously, including the hold after motion stops. A rapid compression gives a temporary temperature rise; holding the smaller volume lets heat leave and the temperature approach the surroundings again. Slow compression in good thermal contact allows that heat transfer during the stroke and approaches an isothermal compression. Loaded expansion reverses the signs: the rapid stroke cools, while heat entering during slow motion reduces the cooling. PASCO explicitly supports rapid nearly adiabatic processes and slow isothermal processes; the matched-run controls here are a proposed extension, not a reported set of measurements. ^[ref]

Insulation suppresses thermal conduction; it does not prove that heat transfer vanishes. As proposed controls, repeat the matched strokes with and without a removable insulating jacket, record room and wall temperatures, measure fixed-position drift, and check valve closure and seal leakage. Calibrate the thermometer and position readout independently, including any connected dead volume; account for the heat capacity of the probe rather than treating it as a passive observer. Hart explicitly identifies the small air sample relative to the probe and walls, sensor inertia and seal leakage as limitations. A fast display cannot eliminate those physical effects. ^[ref]

There are two distinct timing requirements. Let ${\tau }_{\mathrm{eq}}$ describe internal equilibration, ${\tau }_{\mathrm{probe}}$ the thermometer response, $t_{\mathrm{move}}$ the stroke duration and ${\tau }_{\mathrm{heat}}$ the effective heat transfer time constant. A useful sufficient window for a resolved, nearly reversible adiabatic process iswith negligible friction. The left inequality permits a quasistatic process and a usable readout; the right limits heat leakage. A violent stroke may satisfy only the right inequality. PASCO reports a roughly $30$–$50\mathrm{ms}$ lag of its temperature channel behind the other channels, so apparent simultaneous samples require care. If no such window exists, analyze equilibrium endpoints with the first law of thermodynamics, and regard the path as approximate. ^[ref]

The diagram's model is deliberately a hold after the stroke, when boundary work is zero. For constant whole-sample heat capacity at constant volume $C_V$ and effective thermal conductance $K>0$, it assumesThis is Newton's law of cooling with one uniform gas temperature and a fixed surrounding temperature; actual wall and probe dynamics can require more than one time constant. At $t/{\tau }_{\mathrm{heat}}=0.1$, the fraction of the initial temperature anomaly erased is $1-e^{-0.1}\simeq 0.0952$; at one time constant it is about $0.6321$. These are analytical fractions, not experimental tolerances or evidence that the preceding stroke was reversible. Measuring the hold helps estimate heat leakage independently of the motion.

The usefulness of an adiabatic process is that it separates mechanical work from heat transfer. Its reversible limit connects temperature changes, mechanical stiffness and entropy in one model: Rüchardt experiment and Clément-Desormes experiment already use that connection to measure heat capacity ratio. The contrast with free expansion explains the deeper point: suppressing heat does not determine how much work is exchanged or how much entropy is produced.

The Avogadro constant converts amount of substance into a dimensionless entity count: $N=n{N}_{\mathrm{A}}$. Its value is exact under the SI definition of the mole. ^[ref]

A Born-Haber cycle uses Hess's law to infer a lattice energy from measurable enthalpy differences and isolated-species data. The motivating difficulty is that separating a mole of an ionic crystal into mutually separated gaseous ions is not a convenient direct calorimetry experiment. Instead, compare two accounting routes between the same elemental reference states and the same solid. Because enthalpy is a state function, the signed differences close exactly when all inputs describe compatible states. These routes do not assert a reaction mechanism or a temporal sequence of reaction intermediates.^[ref]

For one mole of sodium chloride formula units, the overall formation reaction isThe stoichiometry requires half a mole of diatomic chlorine molecules, supplying one mole of chlorine chemical atoms. A half coefficient counts an amount of substance; it does not describe half of an individual molecule. Write each auxiliary chemical reaction with its own sign:Here $S$ is the sublimation enthalpy, $B$ the enthalpy of atomization of chlorine per mole of chemical atoms, and $I$ the molar ionization enthalpy represented by the ionization energy input in elementary treatments. If the bond-dissociation energy table gives the compatible molar enthalpy for ${\mathrm{Cl}}_2(g)\to 2\mathrm{Cl}(g)$, use half that number for $B$. Both ions in the last step are gaseous, and no aqueous hydration of ions belongs in that step.

Adding these equations cancels the gaseous chemical atoms, the gaseous ions and the free electron, leaving precisely the overall formation reaction. ThusThe closed traversal returns from the solid to the elemental reference states, adding $-F$; therefore $S+B+I+A+L_{\mathrm{form}}-F=0$. Notice that the signed attachment term $A$ is negative. Substituting a positive spectroscopic electron affinity for $A$ would reverse the attachment contribution.

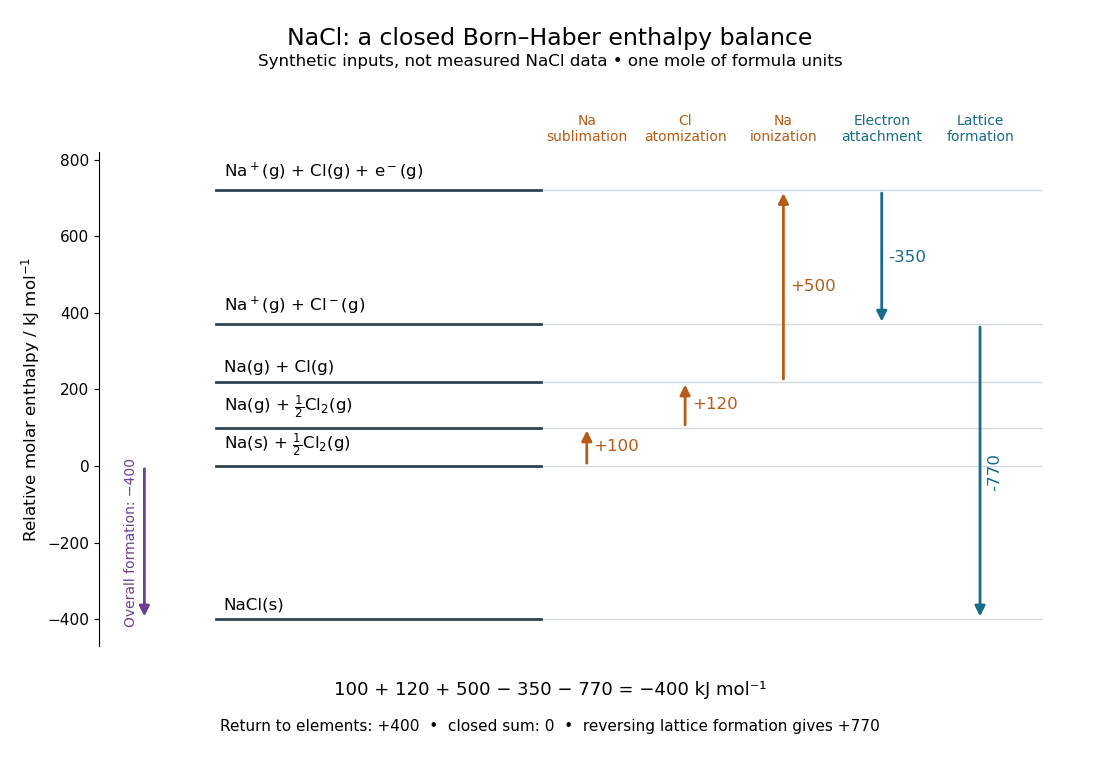

The diagram deliberately uses invented, internally consistent inputs in $\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$: $S=100$, $B=120$, $I=500$, $A=-350$ and $F=-400$. Preparation of separated gaseous ions raises the enthalpy by $370$, so $L_{\mathrm{form}}=-770$ and $L_{\mathrm{diss}}=+770$. The closure check is $100+120+500-350-770+400=0$. These numbers are not measured sodium chloride data and do not replace the source's $769\mathrm{kJ}\mathrm{mo}{\mathrm{l}}^{-1}$ example in lattice energy. Every level retains one sodium nucleus, one chlorine nucleus and zero total electric charge; the ionization level explicitly retains the free electron.

Boyle's law states that a fixed amount of substance of an ideal gas at constant absolute thermodynamic temperature has constant product of absolute pressure and total volume:Here $p$ is measured relative to a vacuum, not relative to the surrounding atmospheric pressure. Halving the volume doubles the absolute pressure; doubling the volume halves it. A real gas approximately follows Boyle's law when it is sufficiently dilute and far from a phase transition.^[ref]

For an original calculated example, suppose a sealed gas sample has $p_1=100\mathrm{kPa}$ and $V_1=100\mathrm{c}{\mathrm{m}}^3$. After isothermal compression to $V_2=50\mathrm{c}{\mathrm{m}}^3$,Both states have $C=10000\mathrm{kPa}\mathrm{c}{\mathrm{m}}^3=10\mathrm{J}$, since $1\mathrm{kPa}\mathrm{c}{\mathrm{m}}^3=10^{-3}\mathrm{J}$. The volume ratio is dimensionless, so using the same volume units in numerator and denominator leaves the pressure in kilopascals. Although $pV$ has units of energy, its value is not the compression work: isothermal ideal-gas work involves an integral along the path.

The blue curves show calculated ideal gas states, not measurements. The left panel is a branch of a hyperbola; the right panel plots exactly the same absolute pressures against $1/V$. The dashed line uses gauge pressure with a stipulated constant atmospheric pressure of $100\mathrm{kPa}$. Its displaced intercept explains why absolute pressure in Boyle's law matters.

A short derivation starts from the ideal gas law, $pV=nRT$. Fixing the amount of substance $n$ and absolute thermodynamic temperature $T$ fixes $C=nRT$, where $R$ is the molar gas constant. The microscopic picture in ideal gas pressure from wall collisions is equally appealing: at fixed temperature, the typical particle kinetic energy stays fixed, while compression increases the number density and wall momentum transfer per unit surface area and time. A larger absolute pressure follows without requiring hotter particles.

The constraints are essential. A leak changes the amount of substance. Rapid compression can raise the temperature before heat transfer restores thermal equilibrium, as in the isothermal gas syringe experiment. Molecular size and interactions in a dense real gas invalidate the ideal gas approximation; the Van der Waals equation describes one such correction. Equal endpoint temperatures allow an endpoint test of Boyle's law, but do not establish that every intervening state lies on an isothermal process.

For fixed mass $m$, mass density satisfies $\rho =m/V=mp/C$, so it is proportional to absolute pressure. In a dilute bubbly flow, Boyle's law allows bubble volume and its contribution to buoyancy to increase as hydrostatic pressure decreases, provided gas mass is retained, dissolution is negligible, and the temperature stays approximately fixed. Its usefulness is that a simple ratio predicts a substantial size change without tracking individual molecules.

A proposed modern measurement extends the weak acid dissociation measurement by estimating the local slope of an acid-base titration. Transfer a measured sample with a pipette into a stirred vessel; clamp a combination glass electrode/reference electrode clear of the stirring magnet and place a temperature probe nearby. A calibrated burette delivers a chemical base of independently standardized concentration $c_T$, such as sodium hydroxide. Record the initial sample volume $V_0$, cumulative delivered volume $v$, stable pH, and temperature after each small addition. Use a separate fresh portion for an acidward series. These are proposed measurement conditions, not reported experimental results.

For the instrument calibration, use fresh standard buffer solutions bracketing the measured pH range, with values appropriate to the actual temperature. The Hanna manual specifies separate rinse and calibration portions, gentle stirring, and approximately $4\mathrm{cm}$ immersion of the probe tip. It calls for stable readings; the sensing bulb and reference electrode junction must remain immersed. Rinse between standards and samples and avoid carrying rinse water into the measured portion.^[ref]

The readout pairs each added amount of substance with the measured pH. With negligible added volume, neighboring readings give the finite difference estimateassigned to the interval's midpoint. High buffer capacity appears as a small change of pH for a measured reagent dose. Choose increments small enough to resolve changing buffer capacity, but large enough that the change of pH exceeds measurement noise. Repeat with a fresh portion and different increment sizes; remeasure a standard afterward to check drift. A water blank can reveal contamination, but its pH must not be subtracted from the sample pH. These controls are proposed tests of the measurement and model assumptions.

If additions appreciably increase volume, even the analytical concentration changes: $C(v)=C_0{V}_0/(V_0+v)$. Merely dividing the added moles by the current volume does not restore the constant-volume derivative. One alternative is explicitly to report a changing-volume convention. For $c(v)=c_{T}v/(V_0+v)$, defineThis definition includes the reagent's changing concentration and differs from the constant-volume buffer capacity defined above.^[ref]

To compare with the constant-volume theory, fit the changing-volume chemical equilibrium model instead of treating the observed slope as $\beta$. In the same ideal monoprotic acid system, define $S_0=[{\mathrm{A}}^{-}{]}_0+[{\mathrm{OH}}^{-}{]}_0-[{\mathrm{H}}^{+}{]}_0$. For baseward additions, the electric charge balance at each reading isUse a minus sign before $c_{T}v$ for the corresponding acidward series. From the model parameters, evaluate the constant-volume buffer capacity at the chosen analytical concentration and pH. The fit also tests whether one acid dissociation constant describes the observations.

Limitations include incomplete mixing, slow glass electrode response, uncertain reagent concentration, and changes in temperature or ionic strength. Dissolved atmospheric carbon dioxide introduces an additional chemical acid system; comparable exposure and freshly prepared samples help distinguish it from the intended monoprotic acid response. Additional reacting chemical species and nonideal activity coefficients invalidate the simple formula. Especially when pH increments are tiny, measurement noise can dominate the inferred derivative; reporting the dose, pH interval, volume convention, and repeatability is part of reporting a meaningful buffer capacity.

A burette delivers an adjustable measured volume of a chemical solution; the change in its reading gives the delivered volume in an acid-base titration.

Its downward-increasing scale measures a change in reading, not the initial liquid inventory. For initial reading $R_i$ and final reading $R_f$ without refilling, the nominal delivered volume is $v=R_f-R_i$. An illustrative $2.35\mathrm{mL}$ to $12.35\mathrm{mL}$ reading therefore represents $10.00\mathrm{mL}$. There is no requirement to start at zero. An air bubble disappearing from the tip uses part of the apparent delivery to fill the tip, and a hanging drop has not yet entered the sample; both break the intended volume account.

For transparent aqueous samples, read the bottom of the liquid meniscus at eye level; viewing from above or below shifts its apparent alignment. The mark is a comparison between a curved liquid surface and a scale, not a direct measure of amount of substance. Eye-level reading and the distinction between contained and delivered volumes are part of solution preparation and volumetric calibration.^[ref]

Both readings contribute measurement uncertainty. If each has independent standard deviation ${\sigma }_R$, their difference has standard deviation $\sqrt{2}{\sigma }_R$; a common additive reading offset cancels, while a scale-factor error remains. For the inventory $n=c_{B}v$, uncertainty in titrant concentration remains even with perfect readings. This is why repeat delivery, independent volume calibration, and titrant standardization answer different questions.

Consider an original geometric model of $N$ separate nonporous solid spheres, each with radius $r$. Hold their total volume $V_s$ fixed. The sphere formulas giveAt fixed mass density, fixed $V_s$ also means fixed total mass. Halving $r$ requires eight times as many particles and doubles their total external surface area $S$; this follows by eliminating $N$, without any assumption about chemical kinetics.

For example, take one sphere of radius $1.00\mathrm{mm}$, so $V_s=4\pi /3\mathrm{m}{\mathrm{m}}^3$. Eight spheres of radius $0.50\mathrm{mm}$ have the same $V_s$. Their total surface areas are respectively $4\pi \mathrm{m}{\mathrm{m}}^2$ and $8\pi \mathrm{m}{\mathrm{m}}^2$, approximately $12.57$ and $25.13\mathrm{m}{\mathrm{m}}^2$. Sixty-four particles of radius $0.25\mathrm{mm}$ would instead give $16\pi \mathrm{m}{\mathrm{m}}^2$, four times the original area.

To obtain a kinetic prediction, add assumptions explicitly. Let $f$ be the accessible fraction of external surface area, $\sigma$ the amount of substance of catalytic surface sites per unit accessible area, and $\nu$ the mean number of completed conversions per site per unit time under the chosen conditions. Then the model's reaction product formation rate isHere $\nu$ has units ${\mathrm{s}}^{-1}$ and $\sigma$ has units $\mathrm{mol}{\mathrm{m}}^{-2}$, giving $\mathrm{mol}{\mathrm{s}}^{-1}$ overall. Halving $r$ doubles this predicted rate only if $f$, $\sigma$ and $\nu$ remain unchanged. Particle contact can hide area; pores can add area; diffusion, altered surface structure and catalyst deactivation can change the other factors. Consequently, twice the calculated external area is not a universal promise of twice the measured reaction rate. The geometric argument changes contact, not the net Gibbs free energy or the equilibrium constant of the same overall chemical reaction.

A chemical equation represents a chemical reaction using chemical formulas, with reactants on the left and reaction products on the right. A balanced chemical equation has the same number of chemical atoms of each chemical element on both sides. For molecular hydrogen and molecular oxygen forming water,The coefficients $2,1,2$ give the relative numbers of molecules; the coefficient $1$ is normally omitted. Count hydrogen as $2\times 2=4$ on the left and $2\times 2=4$ on the right, and oxygen as $1\times 2=2$ on the left and $2\times 1=2$ on the right. See Flowers et al., Chemistry 2e, §4.1: writing and balancing chemical equations.

To balance the initial expression ${\mathrm{H}}_2+{\mathrm{O}}_2⟶{\mathrm{H}}_2\mathrm{O}$, first put $2$ before water to match the two oxygen chemical atoms. This creates four hydrogen chemical atoms on the right, so put $2$ before molecular hydrogen. Changing a coefficient multiplies the entire chemical formula. Changing a subscript changes composition and usually the chemical substance: $2{\mathrm{H}}_2\mathrm{O}$ is two water molecules, whereas ${\mathrm{H}}_2{\mathrm{O}}_2$ is one hydrogen peroxide molecule. Never balance a chemical equation by changing its subscripts.

The bookkeeping follows from conservation of the atomic nuclei in ordinary, non-nuclear chemical reactions; chemical bonds and the distribution of electrons can change. For a chemical equation involving ions, total electric charge must also match. For example, the existing self-ionization of water equation has zero total electric charge on each side, since the $+1$ of hydronium cancels the $-1$ of hydroxide. See 2.6 Ionic and Molecular Compounds (§2.6: nuclei and ions).

The same $2:1:2$ ratio relates changes in amount of substance: two moles of molecular hydrogen consumed per mole of molecular oxygen correspond to two moles of water formed. A mole is a defined unit, not one molecule; the little whole-number picture is an abstract counting model, not a claim that a macroscopic sample contains just five molecules. See molecular count and amount of substance for the exact conversion and SI base unit: mole by Bureau International des Poids et Mesures for the definition.

This is why a balanced chemical equation is useful: stoichiometry turns the same atom accounting into relations between measurable quantities. It does not determine reaction rate, the final conversion set by chemical equilibrium, or the actual yield of recovered reaction products. The limiting reagent gives an upper bound under the specified chemical reaction.

At chemical equilibrium, a reversible chemical reaction has equal forward and reverse reaction rates, so its macroscopic composition stays constant. Individual molecules can keep changing identity: the reaction has not stopped. This dynamic balance is the definition described by the ^[ref]. Equal reaction rates also need not mean equal concentrations. A small population converting rapidly can balance a large population converting slowly.

This distinction gives two useful questions. Which composition is favored at the specified temperature and other constraints? Thermodynamics answers through chemical potentials and an equilibrium constant. How quickly does a prepared mixture approach that composition? Chemical kinetics answers through reaction rates. Knowing the destination does not determine the journey's duration. A composition that barely changes during observation may reflect extremely slow chemical kinetics, so constancy alone does not establish chemical equilibrium.

Consider the idealized elementary chemical reactionAssume a well-mixed closed system at fixed temperature and volume, with first-order law of mass action rates in both directions and no competing chemical reactions. Write $a=[\mathrm{A}]$ and $b=[\mathrm{B}]$ for concentrations in $\mathrm{M}=\mathrm{mol}/\mathrm{L}$. The total $a+b=C=1\mathrm{M}$ is conserved because each conversion replaces one molecule by one molecule. This conservation is special to the chosen stoichiometry.

The forward and reverse reaction rates, measured as conversions per unit volume per unit time, are $J_f=k_{f}a$ and $J_r=k_{r}b$. HenceSetting this derivative to zero givesWith $a(0)=1\mathrm{M}$ and $b(0)=0$, solving the ordinary differential equation yieldsAt $t=5\mathrm{s}$, these are approximately $0.3515\mathrm{M}$ and $0.6485\mathrm{M}$. Initially $J_f=0.3M/s$ and $J_r=0$. At chemical equilibrium, both are $0.075M/s$, while the net reaction rate $J_f-J_r$ is zero. The persistent exchange is visible in the lower panel even after the upper panel has nearly flattened.

Why does chemical equilibrium also involve a free energy minimum? For a closed system at fixed temperature and pressure, without imposed non-expansion work, stable equilibrium minimizes Gibbs free energy over compositions allowed by conserved elemental inventories. See W. C. Carter, MIT thermodynamics notes, sections 2-1.14 and 2-1.19. This is constrained Gibbs minimization for chemical equilibrium: freely minimizing over unrelated species amounts would change the inventory. At fixed temperature and volume, the appropriate potential is Helmholtz free energy. In either setting, varying an allowed extent of reaction gives the corresponding free energy slope ${\sum }_i{\nu }_i{\mu }_i$, with molar chemical potentials and signed stoichiometric vector entries. An interior equilibrium has zero slope; stability requires a minimum. For A converting to B, this says ${\mu }_{\mathrm{B}}={\mu }_{\mathrm{A}}$.

The beauty of this connection is that molecular exchange, a macroscopic composition, and a geometric minimum describe the same balance. In the ideal concentration model, let $x=b/C$ and choose the standard molar chemical potential difference consistent with $K=3$. Up to a composition-independent constant, the fixed-volume Helmholtz free energy then obeyswhere $n$ is the conserved total amount of substance and $R$ the molar gas constant. Its derivative is $\ln [x/(1-x)]-\ln 3$, vanishing at $x=3/4$. Its second derivative is $1/x+1/(1-x)>0$ inside $0<x<1$, so this balance is the unique minimum. The mixing entropy terms explain why the favored composition still contains A.

A chemical formula uses symbols of chemical elements and numerical subscripts to record composition. In the molecular formula ${\mathrm{H}}_2\mathrm{O}$ of water, the subscript $2$ counts two hydrogen chemical atoms, and the omitted subscript after $\mathrm{O}$ means one oxygen chemical atom. A molecular formula describes one molecule; a chemical formula need not describe a discrete molecule.

Read a preceding coefficient separately from the subscripts. One ${\mathrm{H}}_2\mathrm{O}$ contains two hydrogen and one oxygen chemical atom; $2{\mathrm{H}}_2\mathrm{O}$ contains four hydrogen and two oxygen chemical atoms distributed between two water molecules. In ${\mathrm{H}}_2{\mathrm{O}}_2$, the second subscript instead puts two oxygen chemical atoms into each hydrogen peroxide molecule. Thus $2{\mathrm{H}}_2\mathrm{O}\ne {\mathrm{H}}_2{\mathrm{O}}_2$: the coefficient scales the whole chemical formula, while a subscript specifies its composition. See Flowers et al., Chemistry 2e, §2.4: chemical formulas.

For crystalline $\mathrm{NaCl}$, the chemical formula specifies a $1:1$ ratio of sodium ions ${\mathrm{Na}}^{+}$ to chlorine ions ${\mathrm{Cl}}^{-}$. Its formula unit is the accounting entity; the ordinary crystal is an extended arrangement of ions, rather than a collection of discrete $\mathrm{NaCl}$ molecules. Specifying the entity matters when assigning an amount of substance. See formula unit and 2.6 Ionic and Molecular Compounds (§2.6: ionic and molecular compounds).

A molecular formula gives an atom inventory, not the full arrangement of chemical bonds or the molecular geometry. For example, ${\mathrm{C}}_6{\mathrm{H}}_{12}{\mathrm{O}}_6$ counts six carbon, twelve hydrogen, and six oxygen chemical atoms in a glucose molecule, but does not specify the pattern shown by its Fischer projection. Different structures can share a molecular formula. This compact inventory is useful for chemical equation accounting precisely because it leaves the structural detail to other representations.

The choice of letters has an early explanation in Jöns Jacob Berzelius, Essay on the Cause of Chemical Proportions (1813–1814), §III, transcribed by Carmen Giunta: letters made chemical signs easier to write and print, and formulas compressed information about composition. His numerical notation differed from modern subscripts; the lasting idea was to make proportions readable in ordinary text.

The chemical potential measures how a thermodynamic potential changes when matter is added under specified constraints. It plays for matter exchange the role that temperature plays for heat exchange: a difference supplies a direction, and equality characterizes thermodynamic equilibrium when the corresponding exchange is allowed. This connects diffusion, phase coexistence and chemical equilibrium through one quantity.

For a single component, the particle convention iswhere $U$ is internal energy, $N$ counts particles, $S$ is entropy and $V$ is volume. This partial derivative holds entropy and volume fixed; it measures an incremental change rather than the average energy per particle. See David Tong, Statistical Physics, section 1.4.

In chemistry the molar convention instead uses amount of substance $n$, measured in moles:Here $G$ is Gibbs free energy, $T$ is temperature, $p$ is pressure and $N_{\mathrm{A}}$ is the Avogadro constant. The units are $\mathrm{J}$ per particle versus $\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}$. For several chemical species, define each chemical potential by varying only its own particle count or amount of substance, with all other components' counts or amounts fixed. Many texts use $\mu$ for either convention, so the units and the variable being differentiated must identify it.

For a simple compressible system with variable component inventories, the fundamental differentials areThey describe changes between states in thermodynamic equilibrium with only pressure-volume work. If every component inventory is fixed, the sums vanish. The Gibbs free energy form follows by differentiating $G=U-TS+pV$ and using $d{N}_i=N_{\mathrm{A}}d{n}_i$; this is why the two definitions describe the same chemical potential in different units.

A chemical potential can be negative. Holding entropy fixed while adding matter need not increase internal energy; Tong explains this explicitly for a classical ideal gas in Statistical Physics, section 2.2.4. Its absolute sign also depends on the reference energy: replacing $U$ by $U+{ϵ}_{0}N$ shifts ${\mu }_{\mathrm{particle}}$ by ${ϵ}_0$. A common reference shift cancels from differences for the same chemical species, which are what determine exchange. Thus “energy cost” means a signed increment, not an always positive amount that must be supplied.

Rigid compartments impose a different constraint: fixed volume rather than fixed pressure. With Helmholtz free energy $F=U-TS$,This follows immediately by differentiating $F=U-TS$ in the chemical potential differential above. It expresses the same chemical potential through the thermodynamic potential appropriate to fixed temperature and volume.

Consider a closed system consisting of two rigid compartments of equal volume $V$, maintained at a common fixed temperature $T$. A valve permits exchange of the same ideal gas; the partition stays in place. Initially $n_A=9\mathrm{mol}$ and $n_B=3\mathrm{mol}$, with conserved total amount of substance $n_{\mathrm{tot}}=12\mathrm{mol}$. These are macroscopic moles, modeled continuously, not twelve individual particles. By the ideal gas law, $p_B/p_A=n_B/n_A=1/3$, so initiallyAt $300\mathrm{K}$ with the stipulated $R$, this is approximately $-2740.311\mathrm{J}\mathrm{mo}{\mathrm{l}}^{-1}$, favoring transfer from A to B.

At fixed $T$ and equal $V$, integrating the ideal-gas chemical potential gives the total Helmholtz free energy, up to a term independent of the allocation,Here $n_{\mathrm{ref}}$ is a positive reference amount of substance; any omitted common term linear in $n_A+n_B$ is constant along this exchange. Let $x=n_A/n_{\mathrm{tot}}$ be the dimensionless fraction in A. The relative Helmholtz free energy then takes the particularly simple formIts derivative along the allowed transfer and its second derivative areThus the Helmholtz free energy is a strictly convex function of the allocation for positive amounts. Its unique minimum has $x=1/2$, or $n_A=n_B=6\mathrm{mol}$, and equal chemical potentials. Initially its excess above this minimum is $n_{\mathrm{tot}}RT[\frac{3}{4}\ln (3/2)+\frac{1}{4}\ln (1/2)]\simeq 3915.474\mathrm{J}$ at $300\mathrm{K}$. Relaxation decreases the total Helmholtz free energy by this amount in the model; the final pressures are also equal because both compartments have the same volume.

The beautiful connection is that the direction of matter exchange and the slope of a free energy curve are the same calculation. The entropy gained by redistributing the ideal gas makes equal allocation favorable here. As with chemical equilibrium, a free energy minimum identifies the favored state, while transport properties determine how quickly it is reached. The fixed-temperature, fixed-pressure Gibbs free energy criterion is summarized in 16.4 Free Energy; the rigid experiment instead uses Helmholtz free energy.

Consider two internally equilibrated reservoirs A and B at the same imposed temperature and pressure. They may have different compositions or represent different phases. Transfer a small positive amount of substance $\delta n$ of the same chemical species from A to B, holding the other inventories fixed. To first order, their total Gibbs free energy changes byHence exchange toward lower chemical potential lowers Gibbs free energy. If transfer is allowed in both directions and the two reservoirs contain the exchangeable component, thermodynamic equilibrium requires equal chemical potentials for that component. See MIT 5.60, Lecture 14, pages 1–2.

An impermeable partition can maintain unequal chemical potentials; equality is a condition on an allowed exchange. Two pure samples of the same ideal gas already have equal chemical potentials at the same temperature and pressure. Different compositions at a common pressure can instead give different chemical potentials for one component through its thermodynamic activity.

Equality concerns the same exchangeable component in different places, not all different chemical species. For a permitted chemical reaction, the corresponding interior chemical equilibrium criterion is ${\sum }_i{\nu }_i{\mu }_{\mathrm{m},i}=0$, with signed stoichiometric vector entries ${\nu }_i$. The existing chemical equilibrium and constrained Gibbs minimization for chemical equilibrium sections develop those composition constraints.

Chemistry connects the composition and structure of chemical substances to their properties and transformations. Its central surprise is that rearranging the same chemical atoms can produce a different substance: molecular hydrogen and molecular oxygen can become water without changing which chemical elements are present. Chemical bonds explain the connections; chemical reactions describe the transformations; stoichiometry makes quantitative predictions from the bookkeeping.

This gives a useful route from an invisible world to measurable quantities. A molecule has a definite composition, such as two hydrogen chemical atoms and one oxygen chemical atom in water. A sample contains an enormous number of such molecules. Counting them through amount of substance, measured in moles, lets the same small-number ratios describe a macroscopic sample. The beauty is that the bookkeeping survives this huge change of scale.

For a dilute solute distributed between two liquid regions at local chemical equilibrium, define the chromatographic partition coefficient asHere $c_m,c_s$ are concentrations expressed in the same units, $V_m,V_s$ specify accessible volume in the chromatographic mobile phase and immobilized liquid chromatographic stationary phase, respectively, $n$ is total solute amount of substance, and $f_m$ is the fraction of that amount of substance in the chromatographic mobile phase. Assume a constant chromatographic partition coefficient, rapid exchange, unchanged phases and temperature, and no chemical reaction. A chemical equilibrium population still exchanges molecules; it is not permanently divided into two sets.

The amount of substance balance proves the expression for $f_m$. Increasing either $K$ or $V_s/V_m$ reduces the mobile fraction, illustrating why a concentration ratio alone cannot determine retention. For surface adsorption, specify an adsorption storage law instead of assigning an arbitrary liquid volume to the solid.

An original discrete model makes the separation visible. In each identical cell, first establish local chemical equilibrium, then advance only the mobile fraction by one cell; let the stationary fraction wait. Repeat twelve times, without any additional spreading. With $V_s=V_m$, stipulated chromatographic partition coefficients $K_A=1/3$ and $K_B=3$ give $f_A=3/4$ and $f_B=1/4$. Each cycle contributes mean displacement $f_m$ cells, so the mean positions after twelve cycles are nine cells and three cells. Redistribution itself broadens each band: the cell positions have a binomial distribution with parameters $12,f_m$. These dimensionless chosen values illustrate transport, not measurements of any particular substances.

Net stoichiometry does not identify individual chemical atoms. In the ordinary forward citric acid cycle, neither entering acetyl group carbon is released in that same first turn: both released carbon dioxide carbon chemical atoms came from the starting oxaloacetate. The entering carbon remains in regenerated intermediates.^[ref]

Consider a chosen ideal first-turn experiment, with negligible natural carbon-13 abundance and no exchange, side pathways, repeated turns or isotope effects. Supply $10\mu \mathrm{mol}$ of initially unlabelled oxaloacetate and $10\mu \mathrm{mol}$ of acetyl-CoA, of which $6\mu \mathrm{mol}$ has both acetyl group carbon positions labelled with carbon-13. The other $4\mu \mathrm{mol}$ has neither position labelled. The label refers only to the acetyl group, not to coenzyme A.

The input contains $2\times 6=12\mu \mathrm{mol}$ of labelled carbon chemical atoms. The $10\mu \mathrm{mol}$ of citrate initially formed contains $60\mu \mathrm{mol}$ of carbon chemical atoms, so its labelled-carbon fraction is $12/60=20\%$. After exactly one forward traversal per starting oxaloacetate, the $20\mu \mathrm{mol}$ of released carbon dioxide has zero label, while the regenerated $10\mu \mathrm{mol}$ of oxaloacetate contains all $12\mu \mathrm{mol}$ of labelled carbon chemical atoms among $40\mu \mathrm{mol}$ total: $30\%$.

The conservation check is $60=20+40$ for total carbon and $12=0+12$ for label. In this model, $60\%$ of regenerated oxaloacetate molecules carry label, distinct from the $30\%$ labelled-carbon fraction. The regenerated oxaloacetate is the same chemical species and the same amount of substance as the initial acceptor pool, but its chemical atom identities have changed. Saying that the cycle oxidizes an acetyl group to two carbon dioxide is a net ledger, not a claim that those exact two incoming chemical atoms immediately leave. Later-turn label release requires positional tracking and mixing assumptions; the first-turn balance alone does not determine it.

The Clément-Desormes experiment infers heat capacity ratio from a rapid pressure reduction followed by reheating. Use a rigid bottle, pump or bellows, a quick release valve, and a U-tube pressure gauge connected to the bottle and atmosphere. First pump to a small excess pressure, close the inlet, and wait for thermal equilibrium with the room at $T_0$. Measure $p_1>p_a$, where $p_a$ is local absolute atmospheric pressure. Briefly open the release valve until the bottle reaches $p_a$, then close it promptly. The remaining gas is cooler than the room. As it warms back to $T_0$ at fixed bottle volume, its pressure rises to $p_3$, with $p_a<p_3<p_1$ in the ideal procedure. The rebound reveals cooling during release. ^[ref]

The bottle loses molecules while the valve is open: it is not a closed system whose geometrical volume expands. In the well-mixed, negligible-heat transfer discharge model with constant heat capacity ratio, the remaining gas obeys $T_2/T_0=(p_a/p_1{)}^{(\gamma -1)/\gamma }$. Subsequent heating at fixed amount of substance and bottle volume gives $p_3/p_a=T_0/T_2$ by the ideal gas law. Eliminating the unmeasured $T_2$ yieldsThe logarithms use absolute pressure ratios. The approximation requires small gauge pressures $\Delta p_i\ll p_a$; $h_i$ are signed height differences between the two liquid surfaces, and the final equality uses the same liquid in both readings with hydrostatic equilibrium. It is not an instruction to insert gauge readings into the logarithmic formula. For synthetic states generated with $p_a=100000\mathrm{Pa}$, $p_1=102000\mathrm{Pa}$ and $\gamma =1.4$, the model gives $p_3\simeq 100567.39\mathrm{Pa}$. The logarithmic inference recovers $1.4$; the small-pressure approximation gives approximately $1.3961$.

Wait for a stable initial pressure after pumping and for a stable final pressure after closing. Vary the valve-open interval and initial excess pressure across repeated trials: closing too early leaves residual excess pressure, while leaving the valve open during warming lets more gas escape and suppresses the rebound. Test the seal for leaks, and read both liquid levels consistently. In a variant with incomplete release, measure the actual immediate post-release absolute pressure $p_2$ and replace the numerator by $\ln (p_1/p_2)$. The Zurich laboratory manual explains that liquid-column oscillations can delay this reading until appreciable reheating has occurred; its proposed backward extrapolation assumes an exponential thermal relaxation and must be checked against the recorded readings. These controls separate a thermal signal from valve timing, instrumental lag and leakage. ^[ref]

Diffusion is net transport associated with random microscopic motion. A localized patch of a dilute solute can spread through a stationary solvent: individual molecules move in both directions, but more cross from the crowded side of an imaginary surface than from the less crowded side. This imbalance gives a net diffusive flux down the concentration gradient; the molecules do not need to sense which direction has lower concentration. At uniform concentration, microscopic exchanges continue even though the net diffusive flux vanishes. ^[ref]

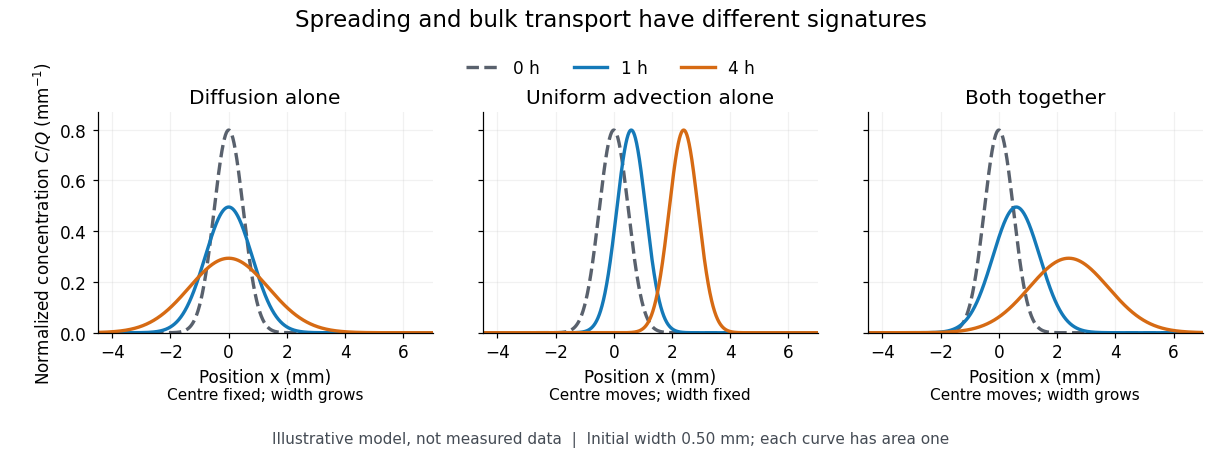

The distinction from advection is easiest to see in a dye patch. Uniform bulk motion carries its centre downstream; diffusion broadens it relative to that centre. Both can happen together. A moving or spreading patch by itself does not identify the mechanism: a nonuniform velocity field can also stretch a patch. ^[ref]

For a dilute nonreacting solute in a uniform medium at fixed temperature, Fick's first law models the relative diffusive flux as $\mathbf{j}=-D\nabla C$, with scalar diffusion coefficient $D>0$ of units ${\mathrm{m}}^2{\mathrm{s}}^{-1}$. Here $C$ is the amount of substance per unit volume, so $\mathbf{j}$ has units $\mathrm{mol}{\mathrm{m}}^{-2}{\mathrm{s}}^{-1}$. With carrier velocity field $\mathbf{u}$, the total flux is $C\mathbf{u}+\mathbf{j}$. The continuity equation, with no sources or chemical reactions, givesFor constant $D$ and incompressible flow, this reduces to $C_t+\mathbf{u}\cdot \nabla C=D{\nabla }^{2}C$, where ${\nabla }^2$ is the Laplacian. In a stationary carrier it is the diffusion equation. These assumptions matter: variable $D$ must remain inside the divergence, and changing sources require extra terms. ^[ref]

The useful surprise is the common mathematics: thermal conduction smooths temperature through the analogous heat equation, while molecular diffusion smooths composition. This analogy already motivated the original formulation of Fick's laws. ^[ref] However, the thermal diffusivity and the solutal diffusivity need not be equal. A diffusive time scale $t_D\sim L^2/D$ means that crossing ten times the distance requires roughly one hundred times the time. This is why molecular diffusion is especially effective across thin layers, and why chaotic advection can assist mixing by making those layers thinner. Physical diffusion is a transport mechanism, distinct from the broader probabilistic class of Markov diffusion.
