For hydrostatic volume strain from Young's modulus and Poisson's ratio in isotropic linear elasticity, the bulk modulus is $K=E/[3(1-2\nu )]=5.56\mathrm{GPa}$. Hydrostatic compression therefore givesHere $p=101325\mathrm{Pa}$ is the pressure increase, and the negative sign denotes contraction. Equivalently each normal strain is $-(1-2\nu )p/E$ and the three strains add. This is the small-strain isotropic model; concrete's microstructure is represented only through the supplied elastic constants.

Put line charges $+\lambda$ and $-\lambda$ on the two axes. For $d\gg a_1,a_2$, the surface potentials differ byThus the capacitance per unit length in vacuum isThe two logarithms belong to one potential difference, not two independent capacitances in parallel. A homogeneous dielectric replaces ${ϵ}_0$ by its absolute permittivity; finite radii and proximity corrections are neglected.

With the standard liquid-water approximation $\rho \simeq 10^3\mathrm{kg}{\mathrm{m}}^{-3}$, each portion has mass $100\mathrm{kg}$. The equal heat capacities give final temperature $T_f=310\mathrm{K}$ by energy conservation. For an insulated mixing process with no other changes,The reversible integrals $mc\int dT/T$ evaluate entropy differences between equilibrium states; the actual heat transfer is irreversible. These are two portions of the same substance, so there is no additional ideal-mixture compositional entropy.

Let absorbed solar flux per unit surface area be $F_{\odot }=\sigma T_0^4$. The single-layer greenhouse model emits infrared upward and downward. Top-of-atmosphere balance gives $\sigma T_a^4=F_{\odot }$, hence $T_a=T_0$. Surface balance is $\sigma T_s^4=F_{\odot }+\sigma T_a^4$, soThe layer simultaneously satisfies $\sigma T_s^4=2\sigma T_a^4$. This ideal radiative model excludes convection, spectral windows and atmospheric temperature structure; it is not a quantitative prediction for the real atmosphere.

For the tangent-axis inertia of a spherical shell, subtract the missing solid core from a solid sphere:The parallel axis theorem shifts the axis a distance $R_2$:It tends to $7M{R}_2^2/5$ for a solid sphere and $5M{R}_2^2/3$ for a thin spherical shell.

The image charge construction replaces conductor-induced charge by fictitious sources outside the physical domain. Match the conductor potentials and the far-field condition; uniqueness then fixes the potential in the physical region. For a grounded plane, reflect a charge and reverse its sign, giving attraction $q^2/(16\pi {ϵ}_0{h}^2)$. For a grounded sphere of radius $a$, a charge at distance $R>a$ has image $-qa/R$ at radial distance $a^2/R$. These are examples with prescribed zero potential, not arbitrary isolated conductors.^[ref]

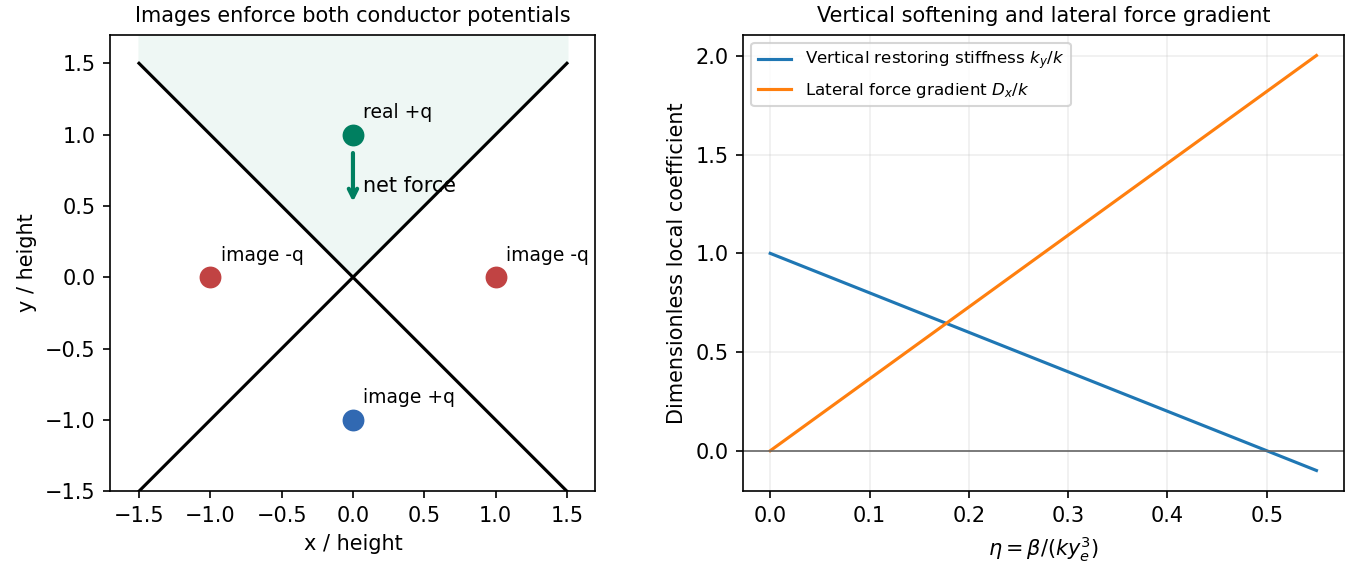

Use horizontal $x$ and upward $y$ in the upper right-angle wedge. The sheets meet electrically, so take their common potential as zero and assume no externally imposed field. For a real charge at $(0,y)$, the image charges in a right-angle conducting wedge are $-q$ at $(y,0)$ and $(-y,0)$, and $+q$ at $(0,-y)$. The first two contributions have cancelling horizontal components. With $K_e=1/(4\pi {ϵ}_0)$,Thus the force magnitude at the original height is $\beta /y_0^2$, directed down toward the intersection. The sphere is treated as a point charge, with size much smaller than its distances from the sheets.

Since gravity is already balanced in the uncharged equilibrium, the charged vertical equilibrium satisfies $k(y_e-y_0)+\beta /y_e^2=0$. For $\beta /(k{y}_0^3)\ll 1$, $y_e\simeq y_0-\beta /(k{y}_0^2)$. Differentiating the force givesThe electrostatic softening above a conducting wedge reduces the restoring force; the small-charge vertical equilibrium remains stable.

For the lateral stability of a spring-supported charge in a wedge, the off-axis images of $(x,y)$ are $-q$ at $(y,x)$ and $(-y,-x)$ and $+q$ at $(-x,-y)$. Expansion near the bisector givesSo the electrostatic force is laterally destabilizing: moving toward either sheet strengthens its attraction. In the simplified model where the spring supplies only a vertical force, the overall equilibrium is a saddle and is unstable.

A literal three-dimensional spring suspension also has geometrical transverse stiffness. If its charged-equilibrium tension is $T$ and length is $\ell$, a small sideways displacement gives spring force $-(T/\ell )x$, and stability requires $T/\ell >D_x$, with $T=mg+\beta /y_e^2$. TODO: neither the attachment length nor a lateral stiffness is specified, so an unconditional lateral-stability verdict for that full suspension is unavailable. The saddle verdict uses the intended vertical-force spring idealization.

For distributed inductance $L$ and capacitance $C$, a small segment obeys $V_z=-L{I}_t$ and $I_z=-C{V}_t$. Differentiation gives $V_{zz}=LC{V}_{tt}$ and $I_{zz}=LC{I}_{tt}$. For a forward wave,A backward voltage wave has current $I^{-}=-V^{-}/Z$. This sign matters at an impedance discontinuity.

The source figure is the stacked-strip parallel-plate transmission line geometry, despite its use of the word coplanar. Gauss's law gives $C={ϵ}_0{ϵ}_{r}a/d$. Opposite surface currents give magnetic field $B={\mu }_{0}I/a$ between the strips by Ampère's law; the magnetic flux per unit length is $Bd$, hence $L=Bd/I={\mu }_{0}d/a$. ThereforeNo numerical $a/d$ is given; the impedance is appropriately left in terms of that ratio. The line is taken to be nonmagnetic and lossless.

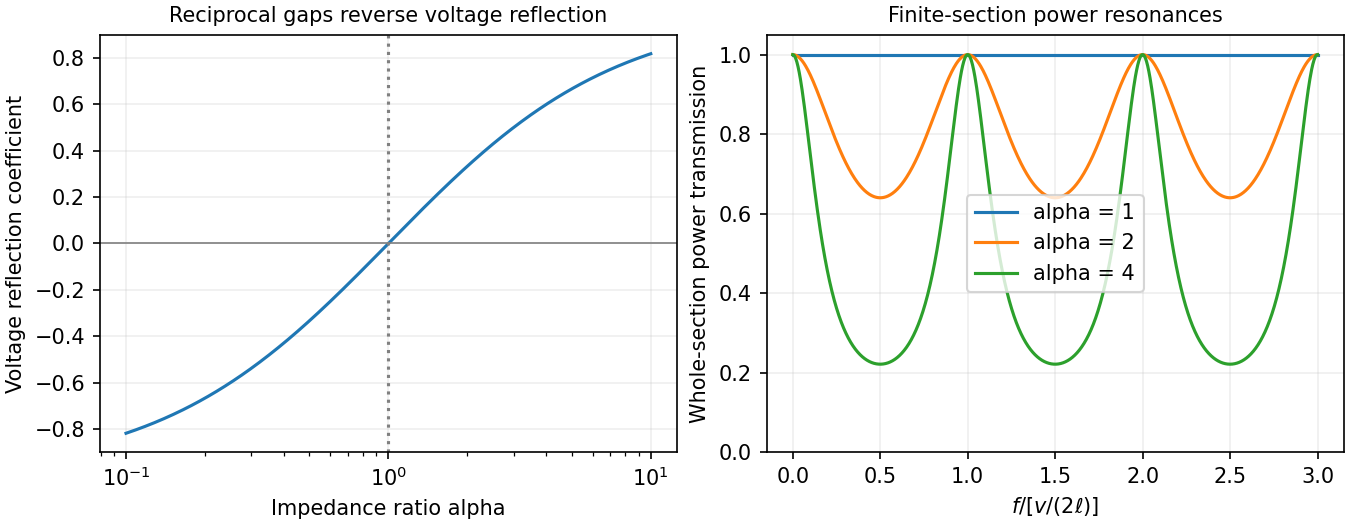

Increasing the gap by $\alpha$ changes $L$ to $\alpha L$ and $C$ to $C/\alpha$, so $Z_2=\alpha Z_1$ while $v$ is unchanged. voltage and current continuity at the step giveConsequently the voltage and energy-flux transmission coefficients areHere amplitudes are peak voltage amplitudes, with mean power $|V{|}^2/(2Z)$. The reciprocal gaps have $r_V(1/\alpha )=-r_V(\alpha )$: equal reflected energy but opposite voltage phase. A voltage transmission coefficient above one does not imply energy gain.

For a finite impedance section of a transmission line, put $\ell =l_2-l_1$ and $\delta =\omega \ell /v$. Multiple reflections inside the altered section interfere. Summing their geometric series, relative to the first boundary,Transmission is unity at $\delta =n\pi$ and minimal at $\delta =(n+1/2)\pi$, with minima $4{\alpha }^2/(1+{\alpha }^2{)}^2$. Resonances are separated by $\Delta f=v/(2\ell )$; the long-wavelength limit also transmits fully. Matching the far termination removes end echoes, not the two internal reflections.

For a moving loop, Faraday's law of induction is $\mathcal{E}=\oint (\mathbf{E}+\mathbf{u}\times \mathbf{B})\cdot d\mathbf{l}=-d{\Phi }_B/dt$, where $\mathbf{u}$ is the local wire velocity, ${\Phi }_B=\int \mathbf{B}\cdot d\mathbf{S}$, and the oriented boundary and surface follow the right-hand rule. For a fixed loop the motional term vanishes. Lenz's law is the minus sign: the induced response opposes the change of linked flux, not necessarily the applied field itself.

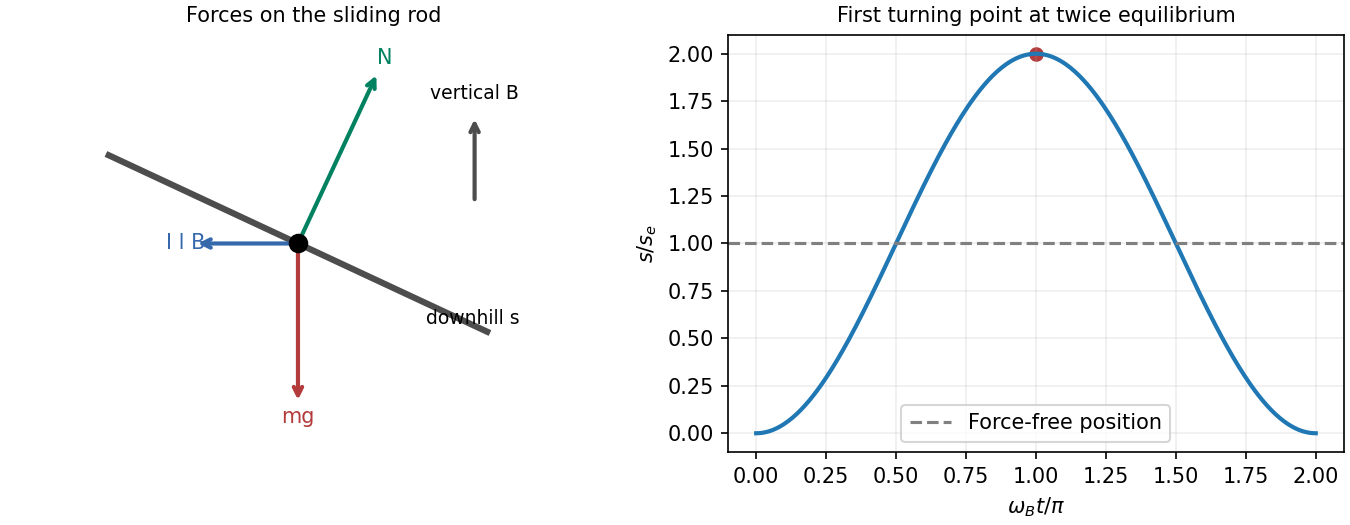

Let $s$ increase downhill and choose positive current $I$ to produce an uphill magnetic force. The normal component of the imposed field is $B\cos \theta$, so the changing external flux is $Bl\cos \theta s$. With initially zero current and no resistance, conservation of flux linkage gives $LI=Bl\cos \theta s$. The rod feels gravity vertically downward, a rail reaction normal to the slope, and magnetic force of magnitude $IlB$ horizontally uphill. Its downhill component is $-IlB\cos \theta$; its normal component presses the rod into the rails, giving $N=mg\cos \theta +IlB\sin \theta$.

The inductive oscillation of a sliding rod on inclined rails follows fromThe magnetic force is not itself parallel to the rails. Defining ${\omega }_B=Bl\cos \theta /\sqrt{mL}$ and $s_e=mg\sin \theta /(m{\omega }_B^2)$, release from rest givesThe first stop occurs at $t=\pi /{\omega }_B$; the rod then returns and oscillates between $0$ and $2s_e$. At $s_e$ the force is zero but the speed is maximal. Mechanical potential energy is reversibly exchanged with kinetic energy and $L{I}^2/2$; a perfectly conducting circuit provides no damping.

For the resistive long-time drift of an inductive sliding rod, with loop resistance $R>0$, useJoule heating damps the transient oscillation. On sufficiently long rails the asymptotic motion is steady sliding, not permanent rest:The zero-resistance model has persistent oscillations; its late-time limit cannot be interchanged with taking $R\to 0$. These results assume $B\cos \theta \ne 0$, smooth contacts, negligible rod self-inductance and constant geometry.

For cold, collisionless, unmagnetized electrons with stationary heavy ions, $-m_e{\omega }^2\mathbf{x}=-e\mathbf{E}$. Therefore $\mathbf{P}=-ne\mathbf{x}=-n{e}^2\mathbf{E}/(m_e{\omega }^2)$ andThis is the cold collisionless plasma dielectric response. For a propagating transverse wave, $\mathbf{B}=\mathbf{k}\times \mathbf{E}/\omega$, so $E/B=c$ in vacuum and $E/B=c/n_p$ in plasma, where $n_p=\sqrt{{ϵ}_r}$. Equivalently $E/H=Z_0$ and $Z_0/n_p$ for $\mu ={\mu }_0$.

Converting the density gives $n=10^{18}{\mathrm{m}}^{-3}$, so ${\omega }_p=5.64\times 10^{10}{\mathrm{s}}^{-1}$ and $f_p=8.98\mathrm{GHz}$. At $10\mathrm{GHz}$,At an interface without independently imposed surface charge or sheet current, tangential $\mathbf{E},\mathbf{H}$ and normal $\mathbf{B},\mathbf{D}$ are continuous, with the electron response included in the effective permittivity. Normal $E$ need not be continuous; the induced electron charge is represented by that response. In a convention treating it explicitly as a surface charge, the normal vacuum-displacement jump equals that charge instead.

For the downward transmitted wave, transversality gives $k_x{E}_x+k_z{E}_z=0$. The measured field therefore has $k_x/(-k_z)=3$, so $\tan {\theta }_t=3$ and $\sin {\theta }_t=3/\sqrt{10}$. Tangential phase matching givesFor inferring incident power from a transmitted plasma field, choose ${\mathbf{E}}_i=E_i(\cos {\theta }_i,0,\sin {\theta }_i)$ and ${\mathbf{E}}_r=E_r(\cos {\theta }_i,0,-\sin {\theta }_i)$. Their magnetic fields have opposite $y$ directions. The two tangential conditions areHence $E_i\simeq 1.2464\mathrm{V}{\mathrm{m}}^{-1}$ and $E_r\simeq -0.1458\mathrm{V}{\mathrm{m}}^{-1}$. Since these are peak phasor amplitudes,This is incident power per area perpendicular to its propagation. Per area of the interface the incoming normal flux is $⟨S_i⟩\cos {\theta }_i\simeq 1.87\times 10^{-3}\mathrm{W}{\mathrm{m}}^{-2}$. The reflected sign is a phase reversal, not negative reflected energy.

At $1\mathrm{GHz}<f_p$, the relative permittivity is negative and there is no propagating transverse bulk wave. The field decays evanescently into the plasma and the ideal collisionless half-space reflects all incoming normal power. Collisions would allow absorption; a complex refractive index here does not by itself imply dissipative heating.

A fictitious force is a term required when writing Newton's second law in an accelerating frame; it comes from the coordinate choice rather than a new interaction. For axes rotating at constant $\mathbf{\Omega }$ about a fixed inertial origin,Apply this identity twice to position to get ${\mathbf{a}}_I={\mathbf{a}}_R+2\mathbf{\Omega }\times {\mathbf{v}}_R+\mathbf{\Omega }\times (\mathbf{\Omega }\times \mathbf{r})$. Moving the last two terms to the right of $m{\mathbf{a}}_I=\mathbf{F}$ gives the stated Coriolis and centrifugal forces. An accelerating origin or changing rotation rate would add further terms.

A slowly rotating fluid planet follows an equipotential of gravitational plus centrifugal potential. The centrifugal potential is $-{\Omega }^2{r}^2{\cos }^2\lambda /2$, most negative at the equator. An outward equatorial shift raises gravitational potential and restores the balance, producing an oblate figure. Self-gravity also changes with the shape; no flattening coefficient follows from rotation alone without a density model.

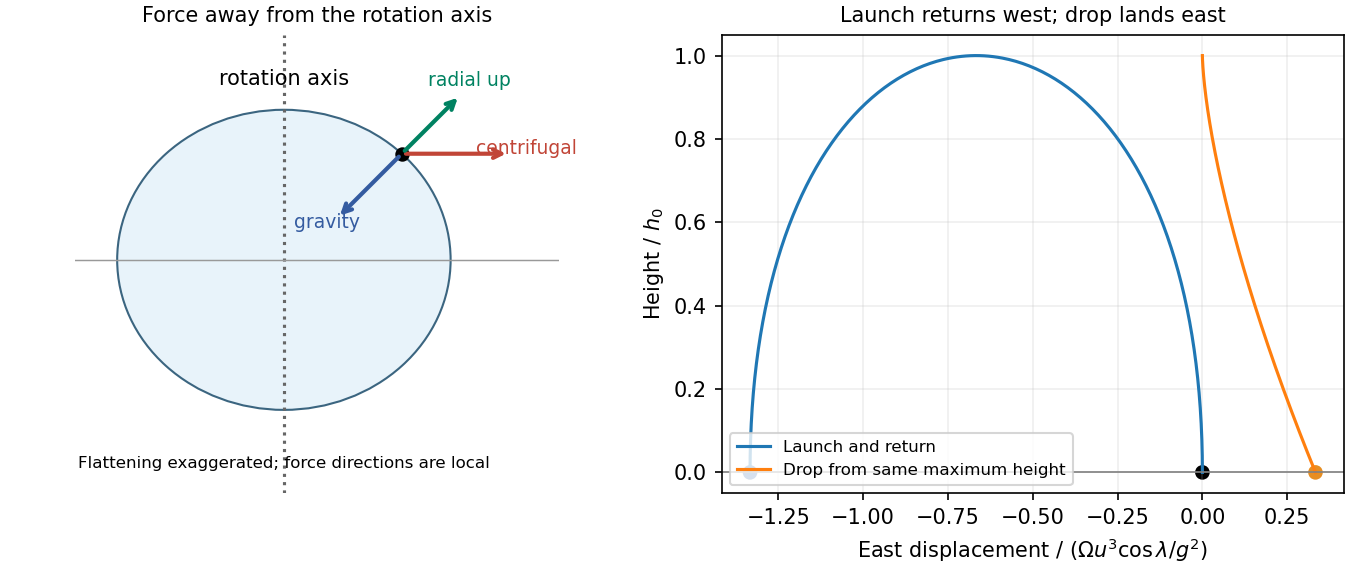

Using local north and radial-up unit vectors, the centrifugal acceleration on a stationary mass isIt points away from the rotation axis: upward and equatorward, at angle $\lambda$ to radial up in the northern hemisphere. Its vertical fraction of gravitational force isusing a $24\mathrm{h}$ day for this approximate number. The resultant effective weight tilts equatorward relative to radial down. A plumb-defined local vertical already follows effective gravity; the component calculation uses the spherical radial vertical. A supported stationary mass of course has zero net acceleration.

For the Coriolis deflection of vertical launch and drop, retain only first order in $\Omega$, use effective constant $g$, and neglect horizontal velocities in the Coriolis term as instructed. With east positive, vertical velocity gives $\ddot{x}=-2\Omega \cos \lambda \dot{z}$ and no northward acceleration. For launch, $z=ut-g{t}^2/2$ and the flight time is $2u/g$. Integrating with zero initial horizontal velocity givesThe landing is westward. The westward velocity accumulated on ascent is only recovered on descent, so the two displacement contributions do not cancel.

For release from rest at $h_0=u^2/(2g)$, $z=h_0-g{t}^2/2$, $t_{\mathrm{fall}}=u/g$, and $\ddot{x}=2\Omega gt\cos \lambda$. ThusThe drop lands eastward with one quarter the launch-return displacement magnitude. North–south corrections from horizontal Coriolis coupling are beyond the retained approximation.

The shell theorem gives enclosed halo mass $4\pi \rho r^3/3$. Define $\alpha =4\pi \rho /3$. Then $F_r=-GMm/r^2-\alpha Gmr$. Interior to the uniform halo its potential energy may be writtenOuter shells alter the additive constant, not this interior force. An actually infinite uniform mass distribution has no finite potential referenced to infinity; only local potential differences are needed here.

The central force has zero torque, so $\mathbf{J}=\mathbf{r}\times m\dot{\mathbf{r}}$ is conserved and the motion is planar. With $J=m{r}^2\dot{\varphi }$, the effective radial potential and equation areFor circular radius $r_0$, $J=m{r}_0^2\Omega$ givesSet $r=r_0+\xi$ at fixed $J$. The derivative of the right-hand side at equilibrium is $-3{\Omega }^2+2GM/r_0^3-\alpha G$, soBoth frequencies are positive, but radial and azimuthal motion no longer close with the Kepler ratio. At first order in eccentricity $e$, one may write $r=r_0(1-e\cos \omega t)$ and $\varphi =\Omega t+(2\Omega e/\omega )\sin \omega t$. For a weak halo this is a nearly Keplerian ellipse whose apsis rotates at angular rate $\Omega -\omega$.

Put ${\Omega }_K=\sqrt{GM/r_0^3}$ and $\epsilon =\alpha r_0^3/M\ll 1$. Expansion yieldsThe precession is retrograde. In cycles per unit time the precession frequency is $\dot{\varpi }/(2\pi )$; per radial period the apsidal shift is $2\pi (\Omega /\omega -1)\simeq -3\pi \epsilon$. This weak-halo interpretation avoids confusing a focus-centred Kepler ellipse with the centred ellipse of a purely harmonic potential.

A normal mode is a pattern in which all coordinates share one frequency and fixed relative amplitudes. For a conservative linear system, it solves a generalized eigenvalue equation with stiffness matrix $K$ and mass matrix $M$. For this free three-mass spring chain,Solving $K\mathbf{u}={\omega }^{2}M\mathbf{u}$, for $\alpha >0$, givesTheir overall normalization is arbitrary; distinct modes are orthogonal in the mass inner product. The zero mode is rigid translation because neither end is fixed. In the antisymmetric mode the middle mass stays still, so changing its mass cannot alter the frequency. The symmetric internal mode keeps the centre of mass fixed through its middle displacement $-2/\alpha$. Its frequency rises without bound as $\alpha \to 0$ and approaches $\sqrt{k/m}$ as $\alpha \to \infty$, becoming degenerate with the antisymmetric frequency in that limit.

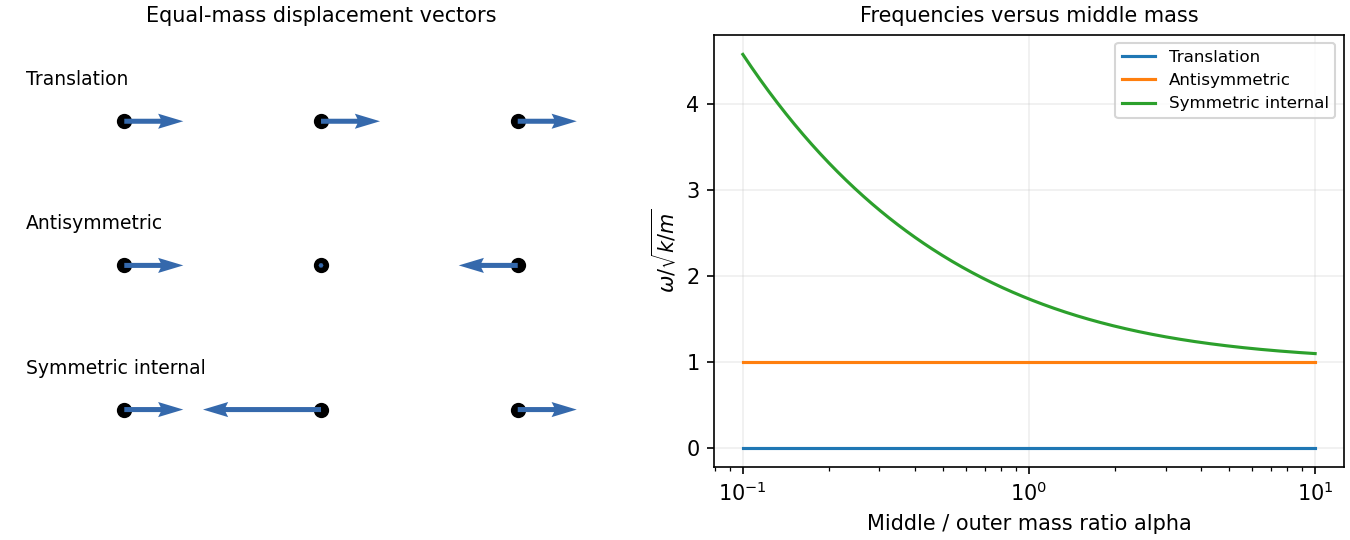

For equal masses put ${\omega }_1=\sqrt{k/m}$ and ${\omega }_2=\sqrt{3k/m}$. Positions are equilibrium positions plus displacementsThe translational mode needs the linear-in-time term; a cosine at zero frequency alone would miss arbitrary centre-of-mass velocity.

Taking the springs initially at equilibrium, the impulse gives $\dot{\mathbf{q}}(0)=(v,0,0)=(v/3){\mathbf{u}}_0+(v/2){\mathbf{u}}_1+(v/6){\mathbf{u}}_2$. Their squared Euclidean norms are $3,2,6$, so their initial kinetic energies are $m{v}^2/6,m{v}^2/4,m{v}^2/12$. Relative to total $m{v}^2/2$,Subsequent motion conserves each mode's total energy, exchanging its kinetic and spring contributions. The zero-mode share remains centre-of-mass kinetic energy.

Locally, zero curl permits $\mathbf{v}=\nabla \Phi$; for a global single-valued potential the circulation around every noncontractible loop must also vanish. incompressibility gives $\nabla \cdot \mathbf{v}={\nabla }^2\Phi =0$. The exterior of a cylinder is multiply connected, so local irrotationality alone does not exclude a circulating solution.

For inviscid constant-density flow under conservative gravity, Euler's equation is ${\partial }_t\mathbf{v}+(\mathbf{v}\cdot \nabla )\mathbf{v}=-\nabla (p/\rho +{\varphi }_g)$. The identity $(\mathbf{v}\cdot \nabla )\mathbf{v}=\nabla (v^2/2)-\mathbf{v}\times (\nabla \times \mathbf{v})$ gives, for irrotational flow,For steady flow, absorb the potential's time-only gauge term and obtain $p+\rho v^2/2+\rho {\varphi }_g=\mathrm{constant}$ throughout the connected fluid region. Without irrotationality the steady constant need only be common along each streamline.

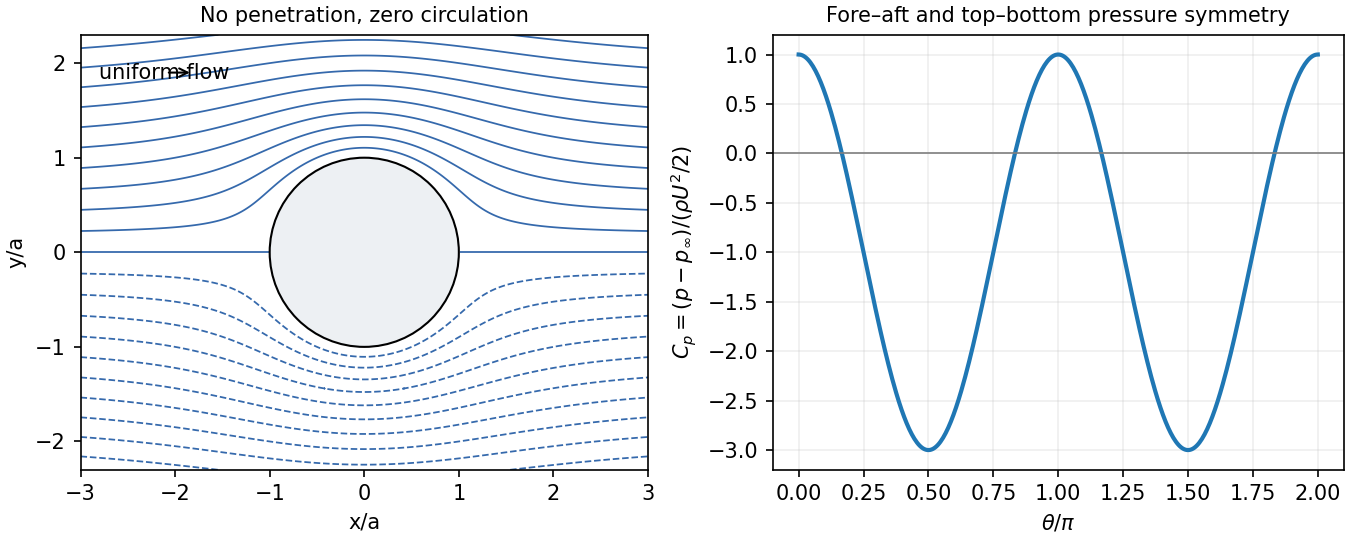

Use $U$ for the uniform upstream speed and take the flow along $+x$. The boundary conditions are $v_r(a,\theta )=0$ and $\mathbf{v}\to U{\mathbf{e}}_x$ at infinity. A perfect inviscid model imposes no penetration, not no slip. For the intended no-circulation solution, require a globally single-valued potential, so the coefficient of $\theta$ is zero. The logarithmic term would be a net source and violates no penetration, so its coefficient is also zero. Growing terms with $n\ge 2$ violate the uniform far field. For each remaining $n\ge 2$, the surface normal condition then forces its decaying coefficient to vanish. The $n=1$ terms satisfy $C_1=U$ and $D_1=U{a}^2$:An irrelevant additive potential constant is understood. At the same elevation, Bernoulli balance with the upstream stream givesThe force per unit height ispressure symmetry gives zero drag and zero lift in this zero-circulation idealization. D'Alembert's paradox is the failure of this inviscid model to represent real separated viscous wakes and their drag, not a claim that a real pole feels no force.

The zero-circulation assumption matters: $\Phi \to \Phi +\Gamma \theta /(2\pi )$ leaves the stated velocity boundary conditions intact but adds $\Gamma /(2\pi a)$ to the surface tangential speed. It produces $F_y^{\prime }=-\rho U\Gamma$ for positive counterclockwise circulation. Thus the boundary conditions alone do not justify excluding the angular term; an initially noncirculating inviscid start, or an explicitly single-valued potential, supplies the missing condition.^[ref]

For the force on a current loop in a bilinear magnetic field, the arrow gives current in the positive $y$ direction on the edge $x=a$, and in the negative $x$ direction on the edge $y=a$. Use $d\mathbf{F}=Id\mathbf{\ell }\times \mathbf{B}$. The edges on the coordinate axes contribute zero because the applied field vanishes there. The other two giveThus the force on the square itself, excluding the supply leads, isIt lies in the plane along the diagonal towards increasing $x$ and $y$, at $45^{\circ }$ to either positive axis.

In the ideal semidiurnal tide model, successive high tides occur after the Earth–Moon relative angle advances by $\pi$. Since the motions have the same sense, subtract their angular speeds:The lunar orbital period is sidereal, so the consistent terrestrial rotation period is $T_E=23.9345\mathrm{h}$. With $T_M=27.3\times 24\mathrm{h}$, this gives about 12 h 25 min. The sidereal terrestrial period is distinct from the 24-hour solar day.^[ref]

If the Earth's rotation is approximated as one revolution in 24 hours, the same calculation instead gives 12 h 27 min. That small difference is the day convention, not a change of sign in the relative angular speed. Actual coastal tide times also depend on ocean dynamics and the solar tide.

For the uniform magnetic field in an off-axis cylindrical cavity, let $\mathbf{b}$ point from the conductor's axis to the hole's axis and let the current flow in $+z$. Its uniform current density in the metal isSuperpose a complete cylinder carrying $\mathbf{J}$ and a cylinder occupying the hole carrying $-\mathbf{J}$. Inside a uniformly filled cylinder, Ampère's law gives $\mathbf{B}=({\mu }_0/2)\mathbf{J}\times \mathbf{r}$. For any point in the cavity,There is no remaining position dependence, so the field is uniform. Its magnitude is ${\mu }_{0}Ib/[2\pi (R^2-a^2)]$, perpendicular to the axis-offset vector in the cross-sectional plane. Reversing the current reverses the field.

Use the rotating reference frame equilibrium model, in which the centrifugal potential energy of a particle of mass $m_i$ is $U_i(r)=-m_i{\omega }^2{r}^2/2$. The Boltzmann distribution then givesDefine the concentration ratio as $c=n_1/n_2$. At the axis,Thus the axis favours the lighter species. The expression assumes a dilute classical mixture at one temperature, equilibrium in the rotating reference frame, and sampling sufficiently close to $r=0$.

Define $q=N_{+}-N_{-}$, where $N_{+}$ counts particles in the $+ϵ$ level. Then $N_{\pm }=(N\pm q)/2$, soThe binomial entropy of independent two-level particles follows from counting which of the $N$ independently labelled particles occupy each nondegenerate level. This is the usual distinguishable, or localized, two-level model; occupation constraints of a degenerate quantum gas would require different counting.

For large occupations, Stirling's approximation with $x=q/N$ givesAllowed $q$ runs from $-N$ to $N$ in steps of two. Entropy is largest near equal populations and is zero when all particles occupy one level; use $0\ln 0=0$ at the endpoints.

In vacuum, displacement current contributes the additional term ${ϵ}_0\partial \mathbf{E}/\partial t$:Taking the divergence and using Gauss law gives $\nabla \cdot \mathbf{J}+\partial \rho /\partial t=0$, the local conservation of charge. Without displacement current the curl equation would incorrectly require a divergence-free current even during charge accumulation.

For a charging capacitor, a surface cutting the wire carries conduction current while a surface passing through the gap carries changing electric flux. The displacement current term makes the circulation independent of the spanning surface. It is not transport of free charge across the vacuum gap. In matter the macroscopic equation is $\nabla \times \mathbf{H}={\mathbf{J}}_f+\partial \mathbf{D}/\partial t$, with electric polarization included in $\mathbf{D}$. Together with Faraday's law of induction, the vacuum equations give electromagnetic waves of speed $1/\sqrt{{\mu }_0{ϵ}_0}$.

An applied electric field displaces bound charges or reorients permanent dipoles, producing electric polarization $\mathbf{P}$, the dipole moment per unit volume. It gives bound charges ${\rho }_b=-\nabla \cdot \mathbf{P}$ and ${\sigma }_b=\mathbf{P}\cdot \mathbf{n}$. Definefor a linear isotropic dielectric. Then $\nabla \cdot \mathbf{D}={\rho }_f$ separates free charge from the bound-charge response. Electronic, ionic and orientational electric polarization respond on different timescales; real permittivity is frequency dependent, and its dissipative part describes dielectric loss.

A uniform dielectric filling a parallel-plate capacitor raises its capacitance to $ϵA/d$. At fixed charge this reduces field energy $Q^2/(2C)$; at fixed voltage the stored energy $C{V}^2/2$ increases because the voltage source supplies charge and energy. Insulation and energy storage are useful applications, limited by loss and dielectric breakdown. Static interface conditions are continuous tangential $\mathbf{E}$ and a jump in normal $\mathbf{D}$ equal to free surface charge.

A current in one circuit links magnetic flux through another. It produces magnetic flux linkage through another. With fixed geometry and a linear reciprocal medium, choose consistent winding orientations and writeThe shared coefficient is mutual inductance; reversal of one winding reverses its sign. Faraday's law of induction gives the mutual induced emf ${\mathcal{E}}_2=-M{\dot{I}}_1$ for fixed $M$. The minus sign expresses Lenz's law.

The magnetic energy isNonnegative energy for every current pair requires $|M|\le \sqrt{L_1{L}_2}$, motivating the coupling coefficient $M/\sqrt{L_1{L}_2}$. Transformers use strong common flux to exchange energy between circuits; leakage flux reduces coupling. A shared core increases linkage, but saturation, hysteresis and eddy-current losses limit the linear description. A moving geometry also contributes $-I_1\dot{M}$ to the mutual emf.

Find the potential from $\mathbf{E}=-\nabla \varphi$ and $\nabla \cdot (ϵ\nabla \varphi )=-{\rho }_f$. One must specify boundary data: a potential on each Dirichlet boundary, a normal displacement on each Neumann boundary, or an appropriate mixture. Conductors are equipotentials; at dielectric interfaces $\varphi$ is continuous and the normal displacement jumps by the specified free surface charge. With no singular dipole sheet, tangential electric field is continuous.

To establish uniqueness of Poisson equation, subtract two solutions with the same charge and boundary data, writing their difference as $u$. Integration by parts givessince $\nabla \cdot (ϵ\nabla u)=0$. The right side vanishes for identical Dirichlet data, identical Neumann data, or their usual mixed combination. Interface terms cancel under the homogeneous difference conditions. With positive permittivity, $\nabla u=0$: the field is unique, and the potential is unique if any suitable reference potential is fixed. For a pure Neumann problem an additive constant remains, and the prescribed outward displacement flux must equal the enclosed free charge. This theorem justifies image-charge solutions once their boundary data have been checked.

Magnetization $\mathbf{M}$ is magnetic dipole moment per unit volume. In SI units,in a linear isotropic response. The internal field matters: for a uniformly magnetized ellipsoid it is ${\mathbf{H}}_{\mathrm{int}}={\mathbf{H}}_{\mathrm{applied}}-{\mathbf{N}}_d\mathbf{M}$. Sample shape therefore affects an apparent magnetic susceptibility.

Diamagnetism opposes the applied field, giving small negative magnetic susceptibility from the induced orbital response. It is often only weakly temperature dependent. Paramagnetism aligns pre-existing moments and gives positive magnetic susceptibility; independent localized moments obey approximately $\chi =C/T$ in weak fields before saturating. Pauli paramagnetism of conduction electrons is a different, weakly temperature-dependent mechanism.

Ferromagnetism involves collective exchange-driven alignment and spontaneous magnetization below the Curie temperature. A specimen can nevertheless have nearly zero total moment because magnetic domains point in different directions. Field-driven domain-wall motion and rotation change the net magnetization. Antiferromagnets have compensating ordered sublattices below a Néel temperature; ferrimagnets have oppositely ordered but unequal sublattice moments and retain a net moment. Ferrites are useful examples of electrically resistive ferrimagnetic core materials.

Ferromagnetic response is nonlinear and history dependent. A hysteresis loop displays remanent magnetization, magnetic coercivity and saturation. A single constant magnetic permeability cannot describe the entire loop: differential magnetic permeability describes its local slope. The quasistatic energy loss per unit volume and cycle is the loop area $\oint HdB$. Soft magnetic materials have low magnetic coercivity and usually high useful magnetic permeability; hard magnetic materials retain magnetization and suit permanent magnets.

An electromagnet normally uses a soft, high-permeability core to guide flux generated by a coil. For a uniform-section core with length ${\ell }_c$ and air gap $g$, neglecting leakage and fringing,An air gap can dominate the magnetic reluctance even when the core magnetic permeability is large. Core saturation limits the improvement with current, while winding resistance causes heating. For alternating operation, laminations suppress eddy-current loops in metallic cores; high-resistivity ferrites also reduce those losses. Low hysteresis loss is important in repeatedly cycled cores, whereas high magnetic coercivity is valuable in a permanent magnet. Useful design therefore depends on the full magnetic response, electrical losses and operating frequency, rather than the largest quoted magnetic permeability alone.
