Year 3 of the earth sciences (geology) course of the University of Oxford (Part A2)

Core and optional courses, independent project and extended essay; BA exit after three years.

Source release: www.whatdotheyknow.com/request/earth_science_past_papers_and_ex/response/3419815/attach/4/Papers.zip?cookie_passthrough=1

Plate tectonics changes the environments in which evolution operates: it redistributes habitats, supplies and buries nutrients, and helps regulate climate. It does not prescribe the direction of evolution, and its presence neither guarantees life nor demonstrates that life could not persist under another tectonic regime.

Long-term environmental regulation. Seafloor spreading and subduction exchange material between the mantle, crust, ocean and atmosphere. Volcanism and metamorphism release carbon dioxide, while exposure of fresh silicate minerals by tectonic uplift and erosion can promote chemical weathering. Coupled silicate weathering and carbonate burial remove carbon dioxide from the surface system. In a simplified net reaction,The carbonate-silicate cycle can provide a negative feedback: warming and greater runoff can accelerate silicate weathering, lowering atmospheric carbon dioxide and weakening the greenhouse effect. This requires available fresh rock and liquid water; a supply-limited chemical weathering regime need not respond strongly to warming. Plate tectonics therefore helps sustain some long-lived habitable environments without acting as an infallible thermostat.^[ref]

Nutrients and oxygenation. Tectonic uplift, erosion and hydrothermal circulation supply nutrients such as phosphorus and iron to surface environments. Changes in continental configuration, continental shelf area and ocean circulation alter primary production, nutrient recycling and ocean anoxia. Burial of organic carbon and reduced sulfur can leave an oxidizing surface budget, whereas reduced volcanic gases and freshly exposed reduced rock consume oxidants. Thus plate tectonics can influence atmospheric oxygen and the ecological opportunities for aerobic respiration, but the sign depends on competing fluxes rather than simply on the amount of volcanism.

Geographical isolation and environmental diversity. Continental rifting separates populations, favoring allopatric speciation; continental collision and the emergence of land bridges can reconnect populations, enabling dispersal and competition. Opening or closing ocean gateways changes ocean circulation and heat transport. Mountain building creates elevational habitats and rain shadows; changing continental shelf area changes shallow-water habitat. These processes can promote diversification, eliminate habitats or both. A proposed biological response should be tested against independently dated paleogeography and the fossil record, accounting for unequal preservation.

Abrupt disturbances. Large episodes of volcanism, including a large igneous province, can rapidly perturb the carbon cycle, ocean acidification and ocean anoxia; sulfur dioxide aerosols can instead produce shorter cooling episodes. Such disturbances may cause mass extinction, followed by ecological release and diversification of survivors. A mantle plume need not originate at a plate boundary, so association with a tectonically active planet is not proof that horizontal plate motion directly caused every eruption. The relevant reasoning links a dated geological forcing to its environmental effects and then to biological selectivity, rather than attributing all biological crises to plate tectonics.

Over billions of years, plate tectonics can repeatedly create habitable environments and new selective pressures. Nevertheless, models allow carbon cycling and habitable climate on some stagnant-lid planets. This makes plate tectonics a plausible contributor to sustained environmental diversity, not a demonstrated universal requirement for evolution.^[ref]

Define the requirement before listing planetary properties. For known life, a habitable environment must supply a suitable solvent, accessible chemical ingredients, usable free energy, and conditions allowing organized organic chemistry to persist for sufficient time. Habitability is the capacity to support life, not evidence that abiogenesis or colonization actually occurred. Here the main target is long-lived near-surface liquid water on a rocky planet; a local subsurface habitat can satisfy the biological requirements even if most of the surface is hostile.

Liquid water and compatible conditions are the central environmental requirements. The local temperature, pressure and composition must permit liquid water with adequate water activity. The pure-water triple point, approximately $273.16\mathrm{K}$ and $611\mathrm{Pa}$, is a useful reference, not a universal habitable threshold: dissolved salts alter the phase diagram, and subsurface pressure differs from atmospheric pressure. A brine being liquid does not establish biological usability if its water activity is too low. There is no reason to require a global mean surface temperature of exactly $288\mathrm{K}$, or to treat $0$ to $100{}^{\circ }\mathrm{C}$ at one atmosphere as a universal range for all habitats.

Composition, nutrients and energy must be accessible together. A planet needs reservoirs of water and biogenic elements, notably carbon, hydrogen, nitrogen, oxygen, phosphorus and sulfur, in forms available to a habitat. Bulk abundance is not enough if nutrients are locked away from reacting fluids. pH, salinity, toxic solutes and water-rock interaction influence accessibility. Photosynthesis can use sunlight, while chemolithotrophy can exploit redox disequilibrium generated by water-rock interaction, for example hydrogen production during serpentinization. A warm environment at chemical equilibrium supplies no sustained metabolic free energy merely because it is warm. Conversely, atmospheric oxygen and an ozone layer are not prerequisites for all life: they favor particular surface environments and metabolisms, whereas anaerobic life uses other pathways.

An appropriate atmosphere and surface energy balance favor surface habitability. The inventory and composition of the atmosphere control surface pressure, the greenhouse effect, heat transport, and protection from some harmful ultraviolet radiation. Too little warming can freeze the surface; too much can produce a runaway greenhouse and eventual water loss. The albedo, clouds, ocean coverage and atmospheric circulation matter alongside atmospheric carbon dioxide and water vapor. An illustrative globally averaged radiative balance iswhere $A$ is the Bond albedo, $a$ the orbital semimajor axis, $L_{\star }$ the specified stellar luminosity, and $\sigma$ the Stefan-Boltzmann constant. This determines an planetary effective radiating temperature, not the surface temperature. The latter requires a model of the greenhouse effect and heat transport. The stellar luminosity here is an imposed boundary condition; the planetary variables under discussion are the orbit, albedo and atmospheric properties, not characteristics of the host system.

Mass and interior properties govern retention and replenishment. Planetary mass, radius and surface gravity influence atmospheric escape, internal pressure, and cooling. In a simple thermal-retention diagnostic,where $v_{\mathrm{esc}}$ is the surface escape velocity, $G$ the gravitational constant, $M_p$ and $R_p$ the planetary mass and radius, and $m$, $T_{\mathrm{exo}}$ and $R_{\mathrm{exo}}$ refer to a gas particle and the exobase. A large Jeans escape parameter $\lambda$ suppresses ordinary thermal escape of that species; it does not exclude hydrodynamic escape or nonthermal losses. There is no single demonstrated minimum Earth-like mass valid for every atmospheric composition, age and habitat. Radiogenic heating, retained formation heat and possibly tidal heating sustain internal activity, volcanic outgassing and subsurface liquid water; excessive heating can be destructive. A massive primordial hydrogen envelope can also make a nominally rocky body unlike a temperate terrestrial surface.

The orbit must supply a tolerable irradiation history. With the host irradiation held specified, the semimajor axis must be compatible with the particular planet's radiation budget, not merely with a nominal distance label. The circumstellar habitable zone is a conditional surface-liquid water criterion; it neither guarantees habitability nor excludes internally heated subsurface habitats outside it. Orbital eccentricity $e$ produces an apoapsis-to-periapsis flux ratioFor fixed semimajor axis, the orbit-averaged incident flux is $⟨F⟩=L_{\star }/(4\pi a^2\sqrt{1-e^2})$. Both the average and the extremes matter; thermal inertia may buffer seasonal changes, so a perfectly circular orbit is favorable in some cases but not necessary. Sustained orbital stability matters more than requiring $e=0$.

Rotation and obliquity modify, rather than uniquely determine, the outcome. Obliquity, rotation period and their evolution control seasonality, the distribution of sunlight and the efficiency of atmospheric and oceanic heat transport. Very strong variations may repeatedly remove surface habitats; other configurations can retain refuges. Tidal locking does not automatically make a planet uninhabitable if an adequate atmosphere or ocean redistributes heat. Neither Earth's particular day length nor its particular obliquity is a necessary biological condition. Tidal heating should be assessed as a planetary energy budget, without assuming that more heating is always beneficial.

Long-lived recycling is favorable; its mechanism need not be unique. Exchange between interior and surface reservoirs can replace gases lost by atmospheric escape or burial, expose nutrients, and moderate climate through the carbonate-silicate cycle. Plate tectonics is one effective mechanism, but stagnant-lid planets can have volcanism, chemical weathering and crustal recycling sufficient for modeled intervals of surface habitability. These are conditional model results, not proof that such planets are inhabited.^[ref]

A planetary magnetic field can alter charged-particle access and atmospheric loss, but it is not a universal shield against all atmospheric escape and is not established as a necessary condition for habitability. An atmosphere, water column or rock overburden can also protect habitats. Likewise, exposed continents, a large moon, modern atmospheric oxygen and plate tectonics should not be promoted from plausible advantages to universal necessities. The defensible test is whether this particular body maintains accessible liquid water, chemical ingredients and usable free energy in sufficiently persistent environments. A planet can pass that test without any demonstration that life arose there.

I would prioritize an accessible exposure of ancient, fine-grained lacustrine deposits associated with a river delta, preferably with nearby hydrothermal deposits or groundwater alteration that offer a second environmental window. A good target maximizes three separate probabilities: past habitability, preservation of a biosignature, and practical access to the preserved material. A spectacular former water channel alone need not score well on the second or third.

First choice: a stratigraphically resolved ancient lake basin. Look for a closed or formerly overflowing basin fed by an inlet valley, a river delta with coherent layering, and adjacent fine mudstone deposited below strong wave or channel disturbance. Delta foresets and bottomsets, channel relationships and laterally continuous lacustrine deposits provide a testable paleoenvironment, rather than relying on an isolated fan shape. An inlet plus an outlet and consistent shoreline elevations can constrain lake level and water throughput. Select Noachian or early Hesperian units where available, while avoiding the assumption that all younger environments were uninhabitable.

Quiet lacustrine deposits can concentrate material from a wider drainage area; clay minerals provide large surfaces for adsorption of organic matter. Rapid burial and limited exposure to oxidizing fluids favor preservation. Carbonate or silica cements can trap chemical or microscopic evidence, although later diagenesis may erase or redistribute it. A near-neutral, not excessively saline paleoenvironment is attractive for known life, but should be inferred from mineral assemblages and sedimentary context rather than assumed from the presence of water.

This strategy has direct primary-source precedents. An ancient lake mudstone investigated by a rover preserved evidence for near-neutral pH, low salinity and variable oxidation states, making a plausible habitat for chemolithotrophy. This established past habitability, not past life.^[ref] Independently, rover images of another basin established a delta-lake succession followed by high-energy floods. That distinction helps choose fine background deposits rather than assuming the coarsest flood layers are the best biosignature archive.^[ref]

Second choice: ancient water-rock reaction systems. Target exhumed hydrothermal deposits associated with old volcanic terrain, basin-floor alteration, or impact-generated hydrothermal circulation. Especially useful settings contain silica, clay minerals, carbonates and reduced iron or sulfur phases in a coherent geological association. Chemical gradients between reacted fluids and surrounding water can supply free energy for chemolithotrophy; rapid mineral precipitation may entomb biosignatures. Habitable cooler mixing zones are more promising than assuming the hottest vent was habitable. Mineralogical mapping of thick, ancient basin deposits on Mars has motivated a deep-water hydrothermal alteration interpretation, providing a physically grounded alternative to shallow lakes. The interpretation remains a hypothesis to test in situ, not a detection of life.^[ref]

Additional targets: protected groundwater archives. Old fractures, mineral veins and groundwater-fed sedimentary deposits exposed by recent erosion can sample former subsurface habitats protected from surface ultraviolet radiation. Evaporites can preserve inclusions and record water chemistry, but strongly acidic or hypersaline terminal brines may be poor habitats, and a salt deposit alone does not distinguish a long-lived ecosystem from brief evaporation. Choose a traverse that can test the relation between these deposits and the lake or hydrothermal alteration succession.

Preservation and sampling can overturn the apparent ranking. Favor ancient rocks that were buried for most of their history and only recently exhumed, with little thermal alteration, pervasive oxidation or recrystallization. Drill beneath weathered rinds and sample fresh bedrock; loose modern regolith mixes unrelated sources. Cosmic ionizing radiation penetrates deeper than ultraviolet radiation, so shallow abrasion is not complete protection. Laboratory work reported by National Aeronautics and Space Administration shows that survival depths depend on molecule, mineral matrix and accumulated dose; meter-scale burial or a short exposure history can be important, rather than one universal safe drilling depth.^[ref]

The landing ellipse needs safe terrain and a feasible traverse to several related exposures. Orbital spectroscopy, imaging and surface topography should establish the initial target; field observations must then test stratigraphy, sedimentary textures and alteration history. Combine organic chemistry, isotope ratios, mineral associations and microscopic structures in their geological context, using contamination controls and samples from neighboring noncandidate material. Organic molecules, carbon isotope fractionation or a cell-like shape alone can have abiotic explanations. A convergent suite of contextual observations is a stronger case for ancient life than any single signal.

At a convergent margin, the incoming oceanic lithosphere is a chemically and mechanically layered package: sediments, oceanic crust and lithospheric mantle. Subduction does not deliver this whole package unchanged to one destination. Solids can be accreted, underplated, exhumed or recycled deeply, while released fluids and melts carry selected components to the overriding plate. The outcome depends on incoming composition and hydration, slab age, convergence rate, thermal structure, interface coupling and subsequent tectonic history.

The incoming material already contains a history. Sediments include terrigenous debris, biogenic carbonates, siliceous deposits, clay minerals, pore water and organic matter. Oceanic crust consists mainly of basalt, sheeted dikes and gabbro; hydrothermal alteration can add water, carbonates and mobile elements before subduction. Beneath it, residual peridotite forms the lithospheric mantle. Faulting at a spreading environment, a transform boundary or an outer-rise bending region can let seawater enter and cause serpentinization. The lithospheric mantle is not uniformly hydrated to its full thickness. Consequently, sediment thickness alone does not measure the incoming volatile inventory.

Sediments: separation starts near the trench. Compaction and increasing effective pressure expel pore fluids, which can escape through the forearc, transport dissolved constituents and influence pore pressure on the plate interface. Some sediments are scraped off into an accretionary prism, shortened by thrusts and retained in the upper plate. Others pass beneath the leading edge, then detach and undergo tectonic underplating beneath the forearc. Deeper underplated material may return to the surface during tectonic exhumation, preserving a record of burial and deformation. At a sediment-starved erosive margin, little prism may form, and tectonic erosion can entrain material from the overriding plate as well. Thus net continental gain and net continental loss are both possible; they can even alternate at one margin.

Sediments that remain attached to the slab undergo metamorphism, dehydration, and potentially decarbonation or carbonate dissolution. The released fluids can transport boron, barium, strontium, lead and other soluble constituents. Carbon can leave as dissolved species, remain in carbonate, or occur as reduced carbon depending on redox conditions and reaction history. Along sufficiently hot paths, sediment-derived melts or mixtures of sediment and altered rock can transfer material into the mantle wedge; buoyant mixed material may rise as a mélange diapir. Cold paths can instead retain more solid material and some volatile-bearing phases to greater depths. These are alternative reaction and transport pathways, not a single compulsory sequence. A carbon-budget study explicitly includes fluid dissolution, sediment diapirism and storage in the upper plate, showing why volcanic carbon dioxide alone cannot close the whole subduction carbon budget.^[ref]

Oceanic crust: metamorphic transformation and chemical filtration. Altered basalt and gabbro are progressively buried. Depending on their pressure-temperature paths and reaction kinetics, they can pass through blueschist facies or warmer assemblages and eventually form eclogite, dominated by garnet and omphacite. Eclogitization increases density and can strengthen negative slab buoyancy, but a kinetic delay can leave metastable rock. It is incorrect to assign every slab the same sequence or the same fixed depths for these changes.

During burial, breakdown of hydrous phases releases water-rich fluids; different mineral assemblages retain different quantities of water. The fluids migrate through or along the interface and into the mantle wedge, where they cause metasomatism and lower the solidus of peridotite. Flux melting of the mantle wedge generates much of the primary magma feeding a volcanic arc. This is different from saying that the entire descending oceanic crust melts beneath the arc. Most of its refractory mass can remain solid. Partial melting of oceanic crust is more plausible for unusually hot or young slabs, or other favorable thermal conditions, and produces a distinct crustal contribution.

The depth of dehydration is controlled by thermal structure and composition. Global thermal-petrological calculations, for example, predict more efficient deep water transport in old, fast, cold slabs than in hot ones, with substantial differences between volcanic crust, gabbro and hydrated peridotite. Such a calculation supports conditional deep retention; its modeled proportions should not be imposed on every margin.^[ref]

Mechanical detachment adds more branches. Upper-crustal slices, seamounts or oceanic plateaus may be accreted or underplated instead of continuing down the slab. A complete or partial ophiolite can be emplaced onto another plate by obduction in suitable convergence histories. Most intact oceanic crust is not saved this way. High-pressure fragments may be entrained in an interface channel or mélange and exhumed; their small preserved volume should not be mistaken for the dominant global mass flux. Magma generated after slab-derived transfer may also pond and crystallize beneath the upper crust by magmatic underplating, which is a different process from mechanical tectonic underplating of solid slices.

Lithospheric mantle: residual rock and a variable water carrier. Most incoming lithospheric mantle is depleted peridotite left after extraction of ridge melts. Its cold, dense, mechanically coherent portion contributes to slab pull and generally sinks with the plate. Hydrated portions contain serpentine and possibly other hydrous minerals. Breakdown of these phases releases water at conditions that depend on the thermal path, feeding further metasomatism of the mantle wedge and sometimes dehydration embrittlement. The latter is a proposed contributor to intermediate-depth earthquakes, not an exclusive explanation for all such events. Very cold paths may transfer some water onward in high-pressure hydrous phases or as hydrogen incorporated in nominally anhydrous minerals.

Do not confuse the incoming hydrated lithospheric mantle with newly serpentinized forearc mantle in the overriding plate. The latter receives slab-derived fluids and can temporarily store their water. Hydrated, relatively buoyant interface material can facilitate return flow and tectonic exhumation, while the colder deeper bulk of the lithospheric mantle continues down. Some peridotite may also be accreted or obducted with an ophiolite. These exchanges mean that even an exposed serpentinite requires structural and chemical context before it can be assigned to its original plate.

Deep recycling and eventual return. The residual eclogite, remaining sediments and lithospheric mantle can enter the deeper mantle. A slab can temporarily stagnate around the mantle transition zone or penetrate into the lower mantle, depending on buoyancy, phase transformations, geometry and mantle viscosity. Crustal material can remain as compositionally distinct domains, mix, or react with surrounding peridotite; it need not retain the near-surface eclogite assemblage indefinitely as pressure rises. Subsequent mantle convection can return recycled components toward spreading regions or mantle plumes, where partial melting incorporates them into new basalt. A primary study of Hawaiian basalt illustrates a specific model in which melts derived from recycled crust react with peridotite to form a pyroxenite source. It is an interpretation of combined chemical evidence, not a unique label attached to every enriched basalt.^[ref]

How the pathways can be observed. Seismic reflection profiles, drilling, wedge geometry and balanced structural sections constrain accretion, fluid escape and tectonic erosion. High-pressure metamorphism, mineral zoning, radiometric dating and pressure-temperature-time paths in exhumed rocks reveal burial, reaction and return. Their reconstructable histories are especially useful when deformation and fluid inclusions are linked to the dated mineral growth. Earthquake distributions, seismic tomography, seismic attenuation and electrical conductivity constrain the geometry and physical state of the slab and mantle wedge, although fluids, melts and temperature can produce nonunique signals.

Arc magmas carry complementary chemical evidence: relatively mobile barium, boron, lead or strontium can trace fluid-mediated transfer, whereas sediment-sensitive thorium and isotope ratios can help identify other contributions. Element mobility changes with fluid composition and pressure-temperature conditions, so no one element is an infallible tracer. Boron isotope ratios, radiogenic strontium isotope ratios and lead isotope ratios should be interpreted with measured incoming sediments and altered oceanic crust. Arc gases and forearc fluid discharge constrain volatile return; ocean-island basalts, mantle xenoliths and diamond inclusions provide possible evidence of deeper recycling. Each observation samples only part of the system.

For any element $X$, a useful control-volume statement isHere permanent accretion is counted outside the chosen reactive control volume, return includes fluid, melt and exhumed-solid exports, and transient underplating or reservoir growth contributes to storage until exported. For a different boundary choice, the terms must be regrouped consistently. The three incoming layers can have very different transfer efficiencies for bulk rock, water, carbon and a particular trace element. A small mass of escaping fluid can dominate an element's return while most of the solid slab continues into the deep mantle.

Specify what “onset” means. I would distinguish the first local, perhaps short-lived subduction event from persistent, self-sustaining recycling in a connected global network of tectonic plates. Modern plate tectonics combines relatively rigid moving lithosphere, localized boundary deformation, seafloor spreading and sustained convergence. A sinking drip or a single imposed descending sheet is not sufficient evidence of that global regime. Different processes may become established at different times, so a transition interval may be a better hypothesis than an instantaneous worldwide switch.

Construct competing physical models. Solve conservation of mass, momentum and energy for evolving mantle convection and lithosphere, including temperature- and stress-dependent rheology, brittle yielding, plastic deformation, melting, compositional buoyancy and relevant phase changes. Use geodynamic modelling to compare a stagnant lid, episodic overturn, drip-dominated recycling and a sustained mobile lid. In a simplified incompressible creeping-flow framework,Here $\mathbf{u}$ is velocity, $p$ pressure, $\eta$ effective viscosity, $\dot{\mathbf{ϵ}}$ the strain-rate tensor, $\rho$ density, $\mathbf{g}$ gravitational acceleration, $c_p$ specific heat capacity, $k$ thermal conductivity, $H$ radiogenic power per unit mass, and $\Phi$ dissipative heating per unit volume. These equations are a framework: compressibility, latent heat and chemical transport may require additional terms. A simple yield stress law ${\tau }_y=C+\mu (\rho gz-P_f)$ represents cohesion $C$, friction coefficient $\mu$ and pore pressure $P_f$, illustrating why hydration and interface weakening can change the outcome.

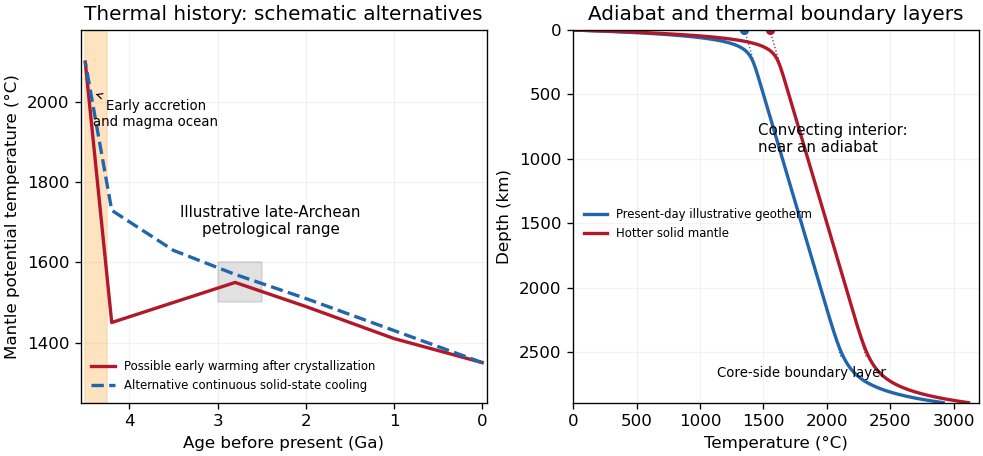

Vary the early-planet controls rather than assuming the answer. Explore plausible initial mantle potential temperature, radiogenic heating, crust thickness and composition, water inventory, grain-size evolution, surface temperature, and boundary strength. Hotter mantle lowers viscosity but can produce thicker buoyant basaltic crust; it does not automatically make sustained subduction easier. A cold strong plate can transmit slab pull yet resist bending and initiation. Water weakening of rocks, melt-induced weakening, inherited faults and mechanically weak sediments can change this balance. Test proposed triggers such as mantle plume impingement or gravitational instability without presupposing an established global plate-force system.

Useful diagnostics include the Rayleigh number,with thermal expansion coefficient $\alpha$, layer thickness $D$, thermal diffusivity $\kappa$ and temperature contrast $\Delta T$, together with surface mobility, the localization of deformation, plate longevity, melt production and material recycling. A large Rayleigh number establishes vigorous convection under suitable conditions, not necessarily a mobile lid. A convincing model should sustain one-sided subduction, connected boundary evolution and seafloor spreading after any artificial trigger is removed. Compare initiation thresholds with continuation thresholds: hysteresis can allow an established regime to persist under conditions in which it would not spontaneously start.

As an example of the type of experiment, three-dimensional models have tested mantle plume-induced subduction initiation, finding sensitivity to plate buoyancy, magmatic weakening and hydration of the interface. The scientific use of such results here is to identify a feasible mechanism and its predicted signatures, not to adopt their success as a direct measurement of an ancient onset date.^[ref]

Connect a model regime to a date through independent evidence. Couple the experiments to candidate planetary cooling histories, then predict observable pressure-temperature-time paths, magmatic compositions, deformation patterns and recycling rates for each regime. If independently dated rocks constrain a thermal or compositional state, ask which regimes can reproduce that state and the observed geological associations. Repeat over uncertain initial conditions and constitutive parameters, check numerical resolution, and compare two- and three-dimensional results where geometry matters. Models that prescribe a descending slab, fix plate velocity, or insert a weak boundary may be excellent forward models of a working subduction zone but do not demonstrate spontaneous initiation.

The result is a conditional statement: persistent plate tectonics is physically feasible under a range of conditions, and dated geological observations may favor that range at a particular time. Uncertain cooling histories, several feasible regimes and uncertain rheology prevent numerical feasibility alone from dating onset. The strongest constraint comes when the same parameter range explains multiple independently dated observations and alternative regimes fail those tests.

Use chemical signatures to reconstruct processes, then test tectonic context. Geochemistry can establish melting conditions, surface alteration and recycling, but plate tectonics is a kinematic system. I would sample dated suites across a mapped geological succession and compare competing origins, rather than declare an isolated “arc-like” analysis proof of a global regime. Radiometric dating must identify whether the measured age records crystallization, later metamorphism, alteration or inheritance.

Hydrous magmatism and selective element transfer. Analyze fresh basalt, associated intrusive rocks and differentiated volcanic suites for major elements, trace elements and isotope ratios. Relative enrichment of fluid-mobile elements such as barium, strontium and lead, together with relative depletion of niobium and tantalum, can support addition of slab-derived components to a depleted mantle wedge. Test coherent variations in barium/niobium, thorium/niobium and rare-earth element patterns against modeled fluid addition, sediment melting, source depletion and fractional crystallization. Do not treat these ratios as fixed universal cutoffs. Crustal contamination, remelting of previously arc-modified crust, residual rutile or other source effects can create some similar patterns. Altered rocks can also gain mobile elements long after their formation.

The case becomes stronger if the chemical evolution occurs in a plausible succession of oceanic, early forearc and mature arc magmas, with supporting structure and geochronology. The key evidence would be correlated process changes in an independently reconstructed margin, not resemblance to one modern basalt plot. A geochemical discrimination diagram is a comparison tool; its modern training associations are not a proof that only those settings could exist on a hotter Earth.

High-pressure melting and the fate of mafic crust. Tonalite-trondhjemite-granodiorite suites with high strontium/yttrium or lanthanum/ytterbium and low heavy rare-earth element abundances can indicate melting with residual garnet and little plagioclase. Model the combined major element composition, residual phases and melt fraction to estimate the pressure, hydration and source of melting. This could support melting of buried hydrous oceanic crust. However, basal melting of thickened crust, delamination and nonplate vertical burial can produce related conditions. High strontium/yttrium alone neither proves a descending slab nor dates the first subduction. Conversely, hotter ancient subduction might not produce exactly the same magmatic products as modern cold slabs.^[ref]

Radiogenic isotopes distinguish new extraction from reworking. Couple zircon uranium-lead dating with hafnium isotope ratios, and whole-rock samarium-neodymium isotope ratios with strontium isotope ratios or lead isotope ratios. These systems can constrain contributions from depleted mantle, older continental crust and altered surface reservoirs. For a closed parent-daughter system,where $P(t)$ is the present parent abundance, $D^{\ast }$ the radiogenic daughter accumulated since closure, and $\lambda$ the radioactive decay constant. Initial daughter composition, closure and mixing must be constrained before interpreting an age. A crustal extraction model age depends on a reference mantle evolution and subsequent history; it is not automatically a rock's crystallization age or the date of a tectonic transition.

Juvenile signatures can indicate addition from the mantle, while evolved signatures can indicate reworking of older crust; neither is exclusive to a particular tectonic regime. Spatially organized juvenile additions at a reconstructed margin, followed by collision and reworking, are more diagnostic than an undifferentiated global age histogram. Work combining zircon hafnium isotope ratios, oxygen isotope ratios and age distributions illustrates how crustal generation, reworking and preservation can be separated conceptually, while remaining dependent on sampling and model assumptions.^[ref]

Stable isotopes can identify a visit to the surface. Zircon oxygen isotope ratios substantially different from an appropriate mantle reference may record melting of material that previously underwent low-temperature water-rock interaction. This would support surface alteration followed by burial or remelting. It would not, by itself, distinguish subduction from burial under a thick volcanic pile or another form of recycling. Alteration, metamorphic exchange, inherited cores and analytical domains need checking. Multiple stable isotope systems, including boron isotope ratios in appropriate rocks, can strengthen a fluid-transfer interpretation if their fractionation and later resetting are modeled.

Deep samples provide an independent archive. If dated diamond inclusions or mantle xenoliths preserve eclogite compositions together with a surface-alteration chemical signature, they could demonstrate transfer of crustal material into deep lithospheric mantle. Dating the relevant mineral assemblage and distinguishing inclusion growth from later host transport are essential. A primary diamond-inclusion study used coupled chemical and isotopic observations to infer changes in deep recycling; the general lesson is to test a transport history, not to make the first preserved sample an infallible onset clock.^[ref] Delamination or other sinking processes remain alternatives unless structure and regional history establish plate convergence.

For each candidate signal, I would seek an older comparison population, quantify alteration and analytical uncertainty, reproduce the pattern in several independent regions, and combine chemistry with the tests in the other parts. A securely dated demonstration of subduction shows that it operated by that time in that region; it does not demonstrate that it began then everywhere. A secular shift toward more frequent, spatially coherent signatures can support expansion of the regime, but only after correcting for the survival of its archive.

Test geological associations and their chronology. The most persuasive hypothetical record would combine rigid-block relative motion, creation of oceanic lithosphere, its destruction at a coherent margin, and repeated assembly and dispersal of continents. I would compile independently dated rock and structural occurrences in age bins, map their associations, and distinguish primary formation from later emplacement. The aim is to evaluate alternative tectonic regimes, not simply to collect the oldest example of a familiar name.

Oceanic lithosphere and sutures. An ophiolite association containing residual peridotite, gabbro, sheeted dikes and submarine basalt could demonstrate construction of an oceanic section. Its case for plate tectonics strengthens if it is associated with an oceanward sedimentary succession, a metamorphic sole, an accretionary prism or mélange, and eventual emplacement along a suture zone between formerly distinct blocks. Date construction, metamorphic heating and emplacement separately. A dismembered collection of ultramafic and mafic rocks need not be a complete ophiolite; an isolated volcanic pile or greenstone belt can also arise in a plateau or vertical-overturn setting. Hotter early mantle may produce oceanic sections unlike a modern template.

Cold burial beside a hot arc. Blueschist and eclogite with well-constrained low temperature/pressure ratios would support unusually deep burial before substantial heating. Coesite or metamorphic diamond in a suitable continental crust protolith could establish ultrahigh-pressure metamorphism, consistent with deep continental burial and return. Reconstruct pressure-temperature-time paths using mineral assemblages, zoning, reaction textures and radiometric dating; a peak pressure without its timing and burial geometry gives a weaker constraint. Eclogite alone only indicates appropriate pressure-temperature-composition conditions and may also form at the base of thick crust.

An approximately coeval, spatially organized pair of low thermal-gradient and high thermal-gradient metamorphic belts would be stronger evidence for juxtaposition of a cold descending plate and a hotter volcanic arc or hinterland. Test the original spatial relation rather than pairing unrelated rocks brought together much later. A statistical study of metamorphic temperature/pressure distributions illustrates how gradual widening and bimodality can be used to evaluate changing tectonic behavior. The ratio is an apparent metamorphic thermal gradient, not necessarily a directly measured steady geothermal gradient.^[ref]

The absence of old blueschist is not a decisive absence of old subduction. A hotter thermal regime may suppress its production, and later heating can transform it. The test should therefore include the distribution of pressure-temperature-time paths predicted by early-planet models, rather than demanding the youngest modern mineral assemblages at all ages.

Kinematic structures and basin evolution. Long, coherent thrust belts, imbricated sediments, folds, regionally consistent shear sense, major strike-slip faults, and suture zones can identify lateral shortening and relative displacement. A reconstructed ocean-facing volcanic arc, forearc basin and accretionary prism with a common polarity is more compelling than isolated shortening. Mountain building alone is not exclusive to plate tectonics: vertical instabilities and impacts can also deform rock. The length scale, sequence, strain partitioning and linkage between structures matter.

For repeated opening and closing, seek a dated progression from continental rifting, through a subsiding passive margin and an intervening oceanic assemblage, to convergence, continental collision and renewed rifting. Matching stratigraphy, sedimentary provenance and structural restoration on opposing blocks can test whether a reconstructed Wilson cycle is geometrically possible. Paleomagnetism from independently dated, demonstrably primary magnetizations could show differential latitudinal motion and rotation of separate blocks. Relative motion between blocks is more useful than motion of one block, which could include true polar wander. Remagnetization, inclination shallowing and longitude ambiguity must be assessed.

Secular changes require an archive model. Compile the incidence, spatial scale and recurrence of these associations through time, normalized where possible by exposed rock area, sampling effort and dating opportunities. Include detrital zircon and sedimentary provenance where they preserve information from eroded source rocks, while recognizing zircon fertility and sedimentary sorting biases. Increased abundance of plate-like associations in several independent regions could support their transition from local episodes to a widespread regime. A sharp break is only one possible outcome; a progressive increase in persistence or geographical coverage would support gradual establishment.

A useful conceptual accounting iswith additional redistribution between age bins if ages are reset or misassigned. This is not a calibrated dating law: it shows why an observed first appearance need not equal a true first formation. Subduction consumes oceanic lithosphere; erosion, metamorphism, tectonic reworking and burial selectively remove or obscure evidence. The oldest archive is especially incomplete, and some apparently diagnostic assemblages only become likely as the planet cools. An age peak may measure enhanced preservation during continental collision rather than an increased production rate.

State the chronological inference precisely. If an unambiguous assemblage forms at time $t_e$, then the required process was operating by $t_e$; an onset time measured forward from planetary formation obeys $t_{\mathrm{onset}}\le t_e$. If both are expressed as ages before present, the inequality reverses: the onset age is at least as old as the assemblage age. Constraining how much earlier onset could have occurred requires well-sampled older records and a credible prediction that the sought evidence would have formed and survived. Several coeval, independent records consistent with sustained horizontal recycling give a stronger inference of widespread plate tectonics than the oldest ambiguous occurrence of any single rock type. Combined with geodynamic modelling and geochemistry, the defensible answer would report a range for first local activity and a potentially different range for establishment of a persistent global system.

Source release: www.whatdotheyknow.com/request/earth_science_past_papers_and_ex/response/3419815/attach/4/Papers.zip?cookie_passthrough=1

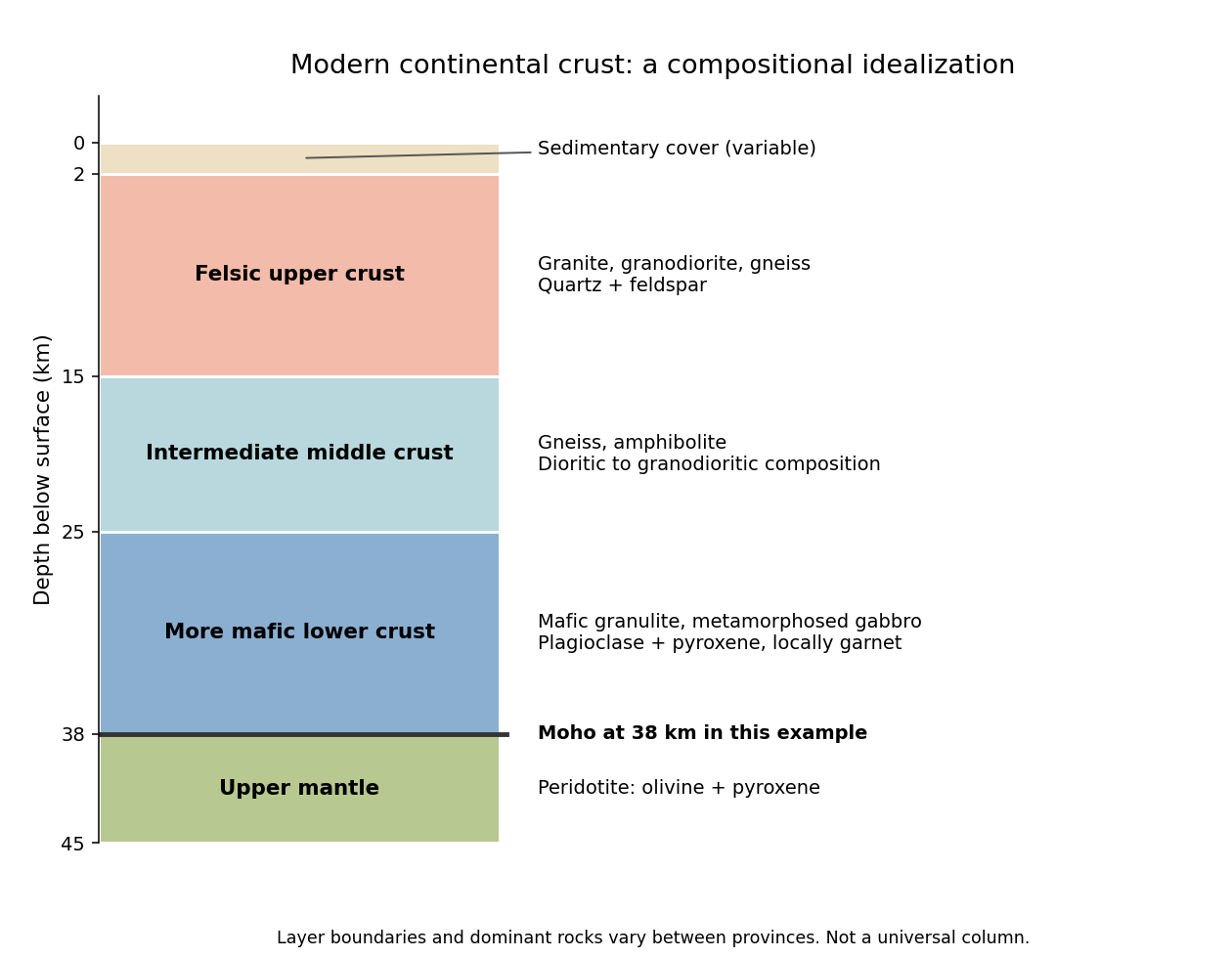

A useful idealization is a thin sedimentary cover over a felsic upper continental crust, an intermediate middle continental crust, and a more mafic lower continental crust, ending at the Mohorovičić discontinuity at about 35–40 km. The boundaries within the continental crust are approximate compositional divisions, not three universal sharp interfaces.

The important trend is increasing average mafic character with depth, rather than a change from granite directly to peridotite. Granulite describes a metamorphic facies, not a unique chemical composition. The synthesis in Nature and composition of the continental crust: A lower crustal perspective by Roberta L. Rudnick and David M. Fountain combines seismic and petrological evidence for these distinctions.

The expected broad contrast is a less mature, commonly thinner early juvenile continental crust, with more mafic material and abundant sodic tonalite-trondhjemite-granodiorite, rather than the more differentiated, potassium-rich granitoid component characteristic of much Phanerozoic continental crust. This is a secular tendency, not a single stratified column applicable throughout the Archean.

Archean terrains commonly expose tonalite-trondhjemite-granodiorite gneiss associated with greenstone belts containing basalt, komatiite and metasedimentary rocks. Many later granitoids are richer in potassium, including granite and granodiorite. The proportions changed during the Archean: a reconstruction from trace element ratios in sedimentary rocks infers a markedly mafic upper continental crust before about 3.0 Ga and a more felsic upper continental crust by 2.5 Ga. Thus “all Archean continental crust was mafic” would be wrong. A preserved tonalite-trondhjemite-granodiorite-dominated nucleus can be strongly felsic, including at depth; its composition is not identical to that of its original juvenile precursor.^[ref]

Thickness needs a stated comparison. An influential seismic compilation found preserved Archean crust about 27–40 km thick, commonly without the thick high-velocity basal layer of its 40–55 km thick Proterozoic comparison provinces. That supports a relatively thin endmember, but is not a measurement of every original Archean continental crust, nor a demonstration that every Archean region was thinner than today's 35–40 km reference column. Tectonic thickening, magmatic underplating, erosion, delamination and preservation bias all alter what survives. The very thick lithospheric mantle beneath a craton must also not be mistaken for thick continental crust.^[ref]

The transferable answer is therefore more mafic early juvenile precursors, widespread sodic tonalite-trondhjemite-granodiorite production, and variable thickness evolving through time; late Archean felsic nuclei can already resemble substantial modern continental crust.

Today the usual first melt is basaltic melt from the mantle wedge; in a hotter Archean subduction zone, melting of hydrated basaltic crust itself could generate sodic felsic melt of tonalite-trondhjemite-granodiorite composition. Distinguish a primary melt from the evolved melt ultimately added to the upper continental crust.

On the modern Phanerozoic Earth:

This adds juvenile material derived from the mantle; simply remelting old continental crust is reworking, not net juvenile addition. The amount and depth of slab water release depend on its thermal history, as quantified in Subduction factory: 4. Depth-dependent flux of H2O from subducting slabs worldwide by Peter E. van Keken and others.

For the hotter Archean endmember posited in the question, a hotter mantle and a warm descending plate make it easier for hydrated basaltic crust to reach its solidus. Its partial melting can directly make silica-rich, sodium-rich tonalite-trondhjemite-granodiorite liquids, leaving a more mafic residue. Residual garnet and amphibole, and the presence or absence of residual plagioclase, help determine the rare-earth element and strontium signatures. These are not ultramafic liquids merely because the surrounding mantle was hotter.

The contrast is therefore commonly fluid-fluxed mantle melting followed by differentiation today, versus a greater potential contribution from direct melting of hydrated mafic crust in the hotter case. Tonalite-trondhjemite-granodiorite is not unique evidence for subduction: melting of thickened mafic crust can produce similar liquids. Nor are all modern arcs devoid of slab melting. These qualifications are central to The composite Archaean grey gneisses: Petrological significance, and evidence for a non-unique tectonic setting for Archaean crustal growth by Jean-François Moyen.

Hotter Archean mantle would generally produce thicker, more magnesium-rich oceanic crust, together with a more strongly depleted residual mantle. Greater melt production, not merely thermal expansion of an unchanged modern column, is the principal reason for the increased crustal thickness.

At a spreading ridge, upwelling peridotite undergoes adiabatic decompression melting. A higher mantle potential temperature makes the ascending mantle intersect the solidus at greater pressure and depth. It therefore melts over a longer decompression interval and generally reaches a larger integrated melt fraction. With comparable melt focusing, more melt is supplied per unit area of newly formed oceanic crust.

Modern normal oceanic crust is about 6–7 km thick and contains basaltic lavas, a sheeted dike complex, and gabbro with mafic cumulates at depth. An illustrative reconstruction for hot ambient Archean mantle gives about 25–35 km of oceanic crust, rather than a universal fixed thickness. Its primary liquids are more magnesium-rich than typical modern primary ridge liquids; their crystallization produces more olivine- and pyroxene-rich cumulates. The extracted liquid and its crystal products must be distinguished: the entire final oceanic crust need not be a homogeneous komatiite layer.^[ref]

The residual peridotite loses more melt components, becoming more refractory and commonly harzburgite-rich. Thick buoyant basaltic crust, its later eclogitization, and the depleted underlying mantle can change the mechanics of subduction. A hotter mantle does not by itself establish how fast plates moved or whether a globally connected modern plate tectonics regime operated.

Komatiites, with very magnesium-rich primary liquids and high inferred eruption temperatures, provide evidence for hot melting, but may sample especially hot mantle plumes. Estimates of ambient mantle conditions also use less exceptional non-arc basalts. Variable source composition, water content, cooling, melt extraction and later alteration all limit the precision of a single inferred Archean thickness. The robust prediction is a larger melting column and melt yield, thicker igneous oceanic crust, and a more depleted residue.

Cascadia subducts a young, warm plate and lacks the enormous plateau and crustal root of the central Andes; the central Andean Nazca Plate system also supports much deeper intraslab earthquakes. These are regional comparisons: neither western margin is uniform along its length.

First, the Juan de Fuca Plate entering Cascadia is young, typically of order 10 million years old, because its spreading ridge lies close to the margin. Its lithosphere is comparatively thin and warm. Much of the Nazca Plate entering the central Andes is older and colder. A cold plate carries low temperatures farther into the mantle, sustaining deep intraslab seismicity; the warm Cascadia slab loses its brittle seismogenic character much shallower. This concerns earthquakes within the slab, not the size of megathrust earthquakes: both margins can generate very large plate-interface events. The official warm-slab synthesis treats Cascadia as an endmember.^[ref]

Second, the central Andes have undergone major sustained crustal shortening and tectonic thickening, building a high plateau and locally roughly 60–70 km thick continental crust. Cascadia has an active volcanic arc and mountains but no equivalent continuous central-Andean plateau and crustal root. The difference reflects the accumulated history of convergence, upper-plate deformation, slab dip, trench motion and mechanical coupling, not just the instantaneous existence of subduction. The Andes include flat-slab segments with gaps in arc volcanism as well as normally dipping segments.^[ref][ref]

A young warm incoming plate and a faster, colder incoming plate can therefore generate different thermal structures, dehydration patterns and deformation histories. Plate age alone is insufficient to predict the thickness of the overriding continental crust.

Three earthquake sources matter: the offshore Cascadia megathrust, deep events inside the Juan de Fuca Plate, and shallow upper-plate faults, including the Seattle Fault. Shaking can damage buildings, bridges, ports and utility networks, interrupting transport, electricity and water supply. Soft basin sediments can amplify or prolong shaking; saturated loose fill can undergo soil liquefaction and lateral spreading. Steep slopes can fail as landslides. The same regional event can therefore have very different consequences on bedrock and on artificial fill.^[ref]

Large Cascadia tsunamis chiefly threaten the outer Pacific coast. Seattle's inland waterways also have local tsunami hazards from crustal faults and underwater landslides; one should not equate a Seattle waterfront site with an open-ocean coastal site. Cascade eruptions can affect the region through volcanic ash and transport disruption. Lahars are strongly channelled by river valleys, so their exposure is location dependent rather than uniform across Seattle. These geological differences influence infrastructure design, land-use decisions and emergency planning.^[ref][ref]

In the interpretation of Christopher Kincaid and colleagues, slab rollback deforms and splits a mantle plume's thermal anomaly: one branch is swept toward the trench beneath the High Lava Plains, whereas the Snake River Plain records the overriding plate moving over a deformed plume conduit. Two opposite age progressions need not represent two stationary hotspots.

In the supplied map, ages decrease toward Yellowstone in the northeast and toward Newberry Volcano in the northwest. Southwestward North American Plate motion leaves older Snake River Plain volcanism to the southwest of the younger source expression. Meanwhile, rollback-driven, three-dimensional mantle flow, including toroidal mantle flow around the slab, carries a passive thermal anomaly trenchward beneath the High Lava Plains. The associated migrating heating and melting front produces the opposite younging toward Newberry Volcano.

The original experiment used a viscous syrup mantle analogue, a kinematically moved rigid slab, and an injected buoyant thermal plume. The result is advection of deformed plume heat by subduction-driven flow, rather than simple radial spreading of an intact plume head under a stationary plate. The mapped systematic progression principally concerns rhyolitic volcanism; basaltic eruptions are more diffuse in time. This laboratory result establishes a physically plausible explanation, not a unique observational proof of the deep source geometry.^[ref]

Left: ordinary frictional strengthening with depth followed by thermally activated material creep. Right: a very weak shallow faulted layer above a narrow strong region near 10 km, followed by essentially the same weakening material creep branch. These are the shapes actually plotted in Figure 2. The right curve is not a strong upper crust over a uniformly weak lower crust; neither diagram displays a second mantle-strength peak.

For the left curve, increasing overburden increases the effective normal load on faults. A schematic Coulomb friction law iswhere $C$ is cohesion, $\mu$ the coefficient of friction, ${\sigma }_n$ the compressive normal stress and $P_f$ the pore pressure. With ordinary rock friction and approximately hydrostatic pressure, ${\sigma }_n-P_f$ increases roughly linearly with depth. The stress needed for frictional sliding therefore increases, as in the straight shallow branch. Byerlee's law summarizes the relatively high friction found in many laboratory rocks.^[ref]

At higher temperature, dislocation creep or another ductile mechanism accommodates the imposed deformation at lower stress. For example,Here $\dot{ϵ}$ is strain rate, $Q$ an activation energy, $R$ the molar gas constant and $T$ absolute temperature. At fixed strain rate, increasing $T$ lowers the required stress. The operative envelope is approximately $\min ({\sigma }_f,{\sigma }_d)$, expressed in a consistent stress convention; the peak marks the brittle-ductile transition. This accounts for the left curve's peak near 100 MPa and its decline toward small strength by about 20 km.

For the right curve, normal high-friction sliding with depth-independent fluid-pressure ratio cannot explain the nearly vertical weak shallow branch. Plausible weakening includes high pore pressure tracking the overburden, low-friction fault gouge, or a connected network of pre-existing weak faults. Roughly constant small ${\sigma }_n-P_f$ yields roughly constant small frictional strength. The abrupt increase near the base of this layer requires a change of conditions: for example, the weak fluid-rich fault network terminates or becomes discontinuous, leaving stronger intact or less altered rock below. A change in mineralogy or deformation localization can also give a contrast. Simply saying “there are fluids” does not explain the return to high strength. Below the strong region, thermal material creep again lowers the strength.

The figure alone does not identify the weakening mechanism or a particular lithological boundary. In particular, a 10 km strength maximum is not evidence for a 10 km deep Mohorovičić discontinuity. The strong-fault/weak-fault evidence and the distinction between fault strength and surrounding crustal strength are discussed in Stress orientations at intermediate angles to the San Andreas Fault, California by Jeanne L. Hardebeck and Andrew J. Michael.

Support for the left curve comes from high laboratory friction and substantial in situ differential stress; support for the right curve comes from low inferred fault traction, weak fault materials or high pore pressure. No single observation directly measures the whole plotted envelope.

For the left, stronger shallow-crust model:

For the right, weak shallow-layer model:

To discriminate, measure the strength-controlling quantities through depth and across both faults and their surroundings. Obtain borehole stress, pore pressure and temperature profiles where feasible; use borehole breakouts and hydraulic tests to constrain effective stress. Recover fault and host rocks and test their friction and material creep at relevant fluid conditions. The right curve specifically predicts an end to the shallow weakening near its sharp rise: investigate changes in permeability of a porous medium, alteration and fault gouge with depth, rather than testing only a surface sample.

Combine those measurements with heat flux transects, magnetotelluric sounding for conductive fluids, accurate earthquake depths and focal mechanisms, and GNSS or InSAR observations of deformation. The latter can help constrain the depth distribution of locking and postseismic relaxation, but neither locking nor seismicity alone gives absolute strength. Earthquake stress drop is a change in stress, not the pre-event stress. Low heat flux can also reflect heat transport or transient weakening; high electrical conductivity can have causes other than free water. A joint explanation of all these data is needed to choose between the models locally.

A lies on the continuation of the offset outside the two ridge tips: it is the fracture zone, whose two sides are carried in the same overall plate direction. A bathymetric step can remain because the two sides have different ages and thermal histories, without continuing plate-boundary strike-slip faulting.

B is the black segment connecting the two white spreading ridges. Construct the plate motion from divergence away from those ridge axes. Between their tips, the upper side of B belongs to the plate west of the right-hand ridge and moves approximately west-northwest; the lower side belongs to the plate east of the left-hand ridge and moves approximately east-southeast. Looking across B from either side, the opposite side moves to the observer's left. B is therefore a left-lateral strike-slip faulting on a transform fault. The offset preserved outside the active segment must not be read as the sense of present slip.

The grey arrows in the source image are pointers to detachment faults, not plate-motion vectors. The original publication identifies white lines as spreading ridges, black lines as transform faults, and arrows as pointers to detachments. Its Figure 1b is the unlettered source of the exam's Figure 3.^[ref]

C lies on the white spreading ridge extending down from the left-hand ridge-transform intersection. Relative motion there is extensional, so its tectonic faults have normal slip. Dike intrusion also accommodates extension at a spreading ridge; “normal slip” is the appropriate category among the four offered, not a claim that all spreading is achieved by a single normal fault.

Probably yes in connected fractures or transiently opened pore space, especially where a transform fault admits circulating seawater; a uniform water-filled porous layer several kilometres thick is not guaranteed. Porosity and permeability of a porous medium generally decrease as cracks close or seal, while ongoing faulting can reopen pathways. Fluid can occur at high pressure and temperature, including a supercritical state; it need not resemble cold surface water.

Several complementary tests address presence and origin:

No one anomaly uniquely identifies water. Seismic velocity can also reflect cracks, composition and temperature; electrical conductivity can reflect melt or conductive minerals. Serpentinization demonstrates incorporation of water into minerals, which must be distinguished from fluid currently occupying pore space. At an oceanic transform fault, an external seawater supply is the natural first hypothesis, but isotope ratios and chemical budgets can test contributions from deep fluids rather than presuming the source. A research example of coupled deformation and hydrothermal alteration is Mass transfer and fluid flow during detachment faulting and development of an oceanic core complex, Atlantis Massif by Chiara Boschi and others; a detachment system illustrates the methods without proving identical flow at every transform fault.

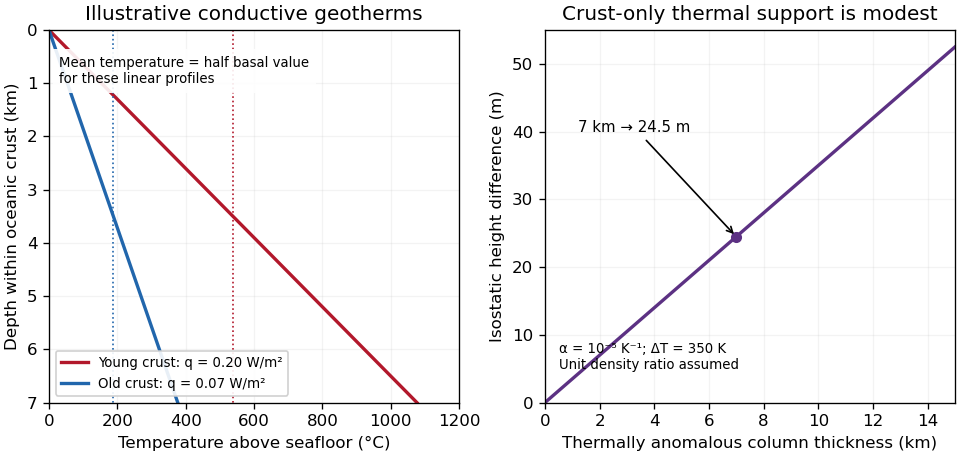

Cooling makes the oceanic lithosphere denser and contracts it; isostatic adjustment therefore lowers the seafloor. The cooling layer includes substantial mantle, not just the approximately fixed-thickness igneous oceanic crust.

New plate near a spreading ridge is hot and relatively buoyant. As it moves away, conductive cooling penetrates more deeply, and material formerly in the hot asthenosphere becomes part of the colder thermal boundary layer. To first order,where $\alpha$ is the volumetric thermal expansion coefficient, ${\rho }_m$ a reference mantle density, $T_m$ the hot reference temperature, and $t$ plate age. A positive depth-integrated density anomaly makes the column negatively buoyant relative to the ridge column. Isostasy is restored by downward displacement and mantle redistribution; cold rock also occupies less volume.

At a fixed sufficiently deep datum, deepening the seafloor by $\Delta d$ removes an equivalent thickness of rock from the column and replaces it with less dense seawater. In the usual constant-property approximation this giveswhere ${\rho }_w$ is seawater density and $z_c$ lies below the relevant thermal anomaly. This explains why contraction alone and water-loaded seafloor subsidence are not identical numerical quantities.

For a half-space cooling model,so integration yieldsHere $\kappa$ is thermal diffusivity and $z$ is measured downward from the surface of the thermal model. The leading oceanic thermal subsidence is proportional to $\sqrt{t}$. A finite oceanic plate cooling model limits this growth at old ages. Sediment loading, dynamic topography, anomalous crust thickness and hydrothermal heat transport can produce departures from the simple relation.^[ref]

Choose a common horizontal compensation depth beneath the deepest cooling-induced density anomaly, within mantle that can relax pressure differences over the timescale considered. In a normal oceanic plate model, this means below the old plate's thermal lithosphere, not at the base of the approximately 7 km thick oceanic crust.

The reason is that cooling changes density through both crust and lithospheric mantle. A datum at the Mohorovičić discontinuity would omit most of the changing column mass. A different datum for each age would also compare unlike columns. Once the common datum is sufficiently deep, extending it farther into laterally uniform mantle adds the same mass per unit area to each column and does not change the predicted relative subsidence.

There is no unique number fixed by the question. For an illustrative oceanic plate cooling model with a thermal thickness about 100–125 km, a common datum beneath that layer, of order 150–200 km below sea level, is a defensible choice provided the model has no substantial lateral density anomaly there. These are model choices, not measured universal boundaries. In a half-space cooling model, use the oldest age $t_{\max }$ to choose a practical cutoff: $z_c\gtrsim 4\sqrt{\kappa t_{\max }}$ makes the remaining temperature anomaly less than about 0.5% of its surface contrast. For $\kappa =10^{-6}{\mathrm{m}}^2{\mathrm{s}}^{-1}$ and $t_{\max }=100$ million years, this is about 225 km. A half-space model has no mathematically sharp finite thermal base.

Finally, equal column mass is the local, approximately constant-gravitational acceleration representation of equal pressure at the datum. A weak asthenosphere permits pressure relaxation through slow solid-state material creep; it need not be liquid. Short-wavelength loads, lithospheric flexure or dynamic topography can violate local column-by-column isostasy, requiring a more complete mechanical model.

I would not assign the lunar mare an automatic terrestrial 100–125 km compensation level. For present-day mare basins, a local equal-column-mass model may have no physically valid compensation depth; first test whether lithospheric flexure supports the load. For ancient thermally driven subsidence that did relax, choose a common datum beneath the cooling layer in deformable lunar mantle appropriate to that epoch.

The Moon is smaller than Earth and has lost a larger fraction of its original heat. Its cold, mechanically strong outer shell can be much thicker relative to its radius than the terrestrial oceanic lithosphere. Lunar mare basalts filled pre-existing impact basins: their loading, basin excavation, mantle uplift, cooling and the evolving strength of the lithosphere all matter. A thick elastic lithosphere can support lateral stress differences, so equal column mass need not hold even after a long time. The strong gravity anomalies of lunar mascons, measured by GRAIL, are evidence that the present mare-basin system is not everywhere locally compensated.^[ref]

For an explicitly assumed ancient relaxed thermal model, estimate its thermal penetration depth from thermal diffusivity and the elapsed cooling time, infer the contemporaneous mechanical lid from gravity-topography admittance or basin deformation, and place $z_c$ below that layer where lateral pressure anomalies relax. For example, a hypothetical several-hundred-kilometre-thick lid requires a deeper datum than that lid, not the shallow crust-mantle boundary. The paper supplies neither an epoch-specific thermal model nor a load wavelength, so a unique kilometre value is not determined. If the chosen datum is a substantial fraction of the lunar radius, spherical geometry and radial variation in gravity must replace the flat, constant-gravity column approximation.

Does the Moon have an asthenosphere? Not a demonstrated shallow, globally connected Earth-like layer underlying mobile plates; but “no weak or partially molten mantle anywhere, ever” is too strong. Apollo lunar seismology indicates a cold outer interior and more attenuating deep regions. Reanalyses support a deep low-velocity or partially molten region near the lunar core, while lunar laser ranging and tidal Love numbers constrain deep deformability and tidal dissipation. Such a deep weak region is sometimes called a lunar asthenosphere; it is not automatically the correct local compensation surface for a mare load.^[ref]

The inferred melt fraction and distribution remain model dependent: Dissipation at tidal and seismic frequencies in a melt-free Moon by Francis Nimmo and others demonstrates that much of the dissipation can also be explained by hot solid-state anelasticity, although its model does not reproduce every frequency-dependent constraint. The Moon was hotter during mare emplacement and could relax loads differently then. Choose the datum from the relevant thermal and mechanical history, or use a flexural model when local isostasy fails.

Worked solutions to the ten marked parts of the plate tectonics paper in the Plate tectonics course of the University of Oxford, third-year examination, 25 May 2023. The examination required candidates to choose two questions; all three are treated here. Source release: Papers.zip, member Papers/Plate Techonics/FOI-202604-431 - Paper 8 2023.pdf, printed code A17843W1, three pages. Question wording is not reproduced.

Choose an ocean–continent convergent margin. The essential relationship is recycling of oceanic lithosphere by subduction, together with production and modification of crust in a volcanic arc.

The incoming tectonic plate consists of thin oceanic crust, chiefly basalt and gabbro, above colder lithospheric mantle. As that oceanic lithosphere approaches the subduction zone, bending produces the subduction trench. Its cold interior can become denser than the surrounding mantle; the resulting slab pull helps sustain subduction. The descending slab carries both oceanic crust and lithospheric mantle into the interior. Thus the recycled unit is an entire portion of lithosphere, rather than just its crust.

At the subduction trench, some incoming sediment is scraped off and stacked by thrust faults into an accretionary prism. Material can also be added beneath the overriding plate by tectonic underplating. A forearc basin collects sediment between the accretionary prism and the volcanic arc. This is an accreting example: other convergent margins lose upper-plate material through tectonic erosion, so an accretionary prism is not universal.

The cold slab undergoes increasing pressure and metamorphism. Conversion of basaltic rocks and gabbro towards eclogite increases their density, while slab dehydration releases water from hydrated minerals. The rising fluid lowers the solidus of hot peridotite in the mantle wedge, causing flux melting. The usual source of arc magma is therefore the fluid-modified mantle wedge; extensive slab melting is not required. Thermal-petrological calculations show that the depth and amount of slab dehydration depend on the incoming slab's thermal structure.^[ref]

Buoyant magma rises through the overriding plate, freezes in igneous intrusions or erupts in the volcanic arc. Fractional crystallization, interaction with existing continental crust and repeated intrusion can produce more evolved arc magmas and add new crust. Some material merely reworks old crust, and simultaneous tectonic erosion can remove it: volcanism alone does not measure net continental growth. Tectonic shortening, folding and thrust faults can thicken and raise the upper plate.

The Wadati-Benioff zone marks earthquakes along and within the cold descending slab. Shallow interface earthquakes reflect unstable slip where the plates are coupled; deeper earthquakes require mechanisms such as dehydration embrittlement and are not simply dry shallow friction operating at every depth. In contrast, the hot mantle wedge deforms mainly by material creep. Together, the subduction trench, accretionary prism, forearc basin, volcanic arc and inclined seismicity connect surface features to the processes recycling and creating crust.

Slab pull is generally the largest direct driving contribution for plates attached to substantial cold descending slabs. Cooling makes oceanic lithosphere negatively buoyant; sinking slabs transmit a pulling force to the rest of the tectonic plate. The comparison is a force balance, so the following driving and resisting processes both matter.

The first two gravitational contributions ultimately belong to the same coupled mantle convection system: the plates are its cold upper thermal boundary layer. They are not passive rafts on a prescribed conveyor belt. A plate with little attached descending slab need not have slab pull as its largest local driver, and a large gross slab pull can be partly consumed by bending and interface resistance. Geological observations and force comparisons nonetheless support the general dominance of slab pull for rapidly moving subducting plates.^[ref]

Repeated assembly and dispersal are supported by mutually consistent paleogeography, paleomagnetism, dated collision belts and subsequent rifted margins. A useful reconstruction must explain both former connections and later separation, at the same geological ages.

For the youngest well-constrained example, Pangaea, matching continental outlines become more compelling when the fit uses the continental edges rather than mobile modern shorelines. More discriminating evidence includes the continuation of mountain belts, sedimentary successions and distinctive basement rocks across now-separated continents. Correlated terrestrial fossil assemblages and the distribution of glacial deposits become geographically coherent when the continents are restored. Each observation alone can have alternatives, but a single reconstruction that satisfies several independent tests is much harder to explain by coincidence.

For older examples, the most useful surviving record lies within the cratons and their margins. Dated suture zones, ophiolites, metamorphic belts and pressure-temperature-time paths document former ocean closure and continental collision. Restoring now-separated belts to continuity tests an assembly. Subsequent continental rifting, matching dike swarms, large igneous provinces and the transition to passive margins test its breakup. Uranium-lead dating of zircon, including detrital zircon populations and sedimentary provenance, helps establish whether the proposed connections existed at the same time.

Paleomagnetism supplies an independent quantitative test. A primary remanent magnetization constrains ancient latitude and orientation. After a proposed relative rotation brings two blocks together, compatible apparent polar wander paths over an interval support their travelling together; divergence of those paths can document separation. Radiometric dating, a paleomagnetic fold test and a paleomagnetic reversal test help identify primary records and distinguish them from remagnetization. There remain important ambiguities: conventional paleomagnetism does not fix absolute longitude, and sparse ages, later deformation and true polar wander complicate a reconstruction.

The broad succession is Columbia or Nuna, assembled mainly around 1.9–1.6 billion years ago; Rodinia, assembled mainly around 1.1–0.9 billion years ago and dispersed in stages during the later Proterozoic; and Pangaea, assembled by roughly 300 million years ago and breaking apart from roughly 200 million years ago. These are broad intervals rather than synchronous global events. A quantitative Nuna reconstruction combines paleomagnetism with the histories of continental margins rather than relying only on matching rock ages.^[ref]

Repeated global peaks in dated magmatism and metamorphism offer supporting evidence, but cannot prove a supercontinent cycle by themselves: erosion, burial and preferential preservation also change the observed age distribution. The persuasive case is the recurrence of dated assembly–breakup sequences in different continental configurations, with stronger geometric constraints for Pangaea than for the older supercontinents. A Wilson cycle describes an individual ocean's opening and closure; a supercontinent cycle concerns the much larger-scale continental assembly and dispersal.

Plate tectonics changes the environments in which natural selection, gene flow and extinction operate. It influences both the persistence of habitable conditions and the geographical and chemical opportunities for evolution. It does not prescribe a unique sequence of biological innovations.

Separation of continents by continental rifting divides populations and reduces gene flow, promoting allopatric speciation. Continental collision or newly exposed land connections can reunite populations, permit dispersal and introduce competitors or predators. These mechanisms connect biogeography to continental configuration. Changing the amount and fragmentation of shallow continental shelf habitat can also change the opportunities for diversification of marine organisms.

Over long intervals, volcanic outgassing, silicate weathering, carbonate burial and subduction exchange carbon among the interior, atmosphere and ocean. In a suitable regime, warmer, wetter conditions increase silicate weathering, remove atmospheric carbon dioxide and weaken the greenhouse effect. This negative feedback can support long-lived habitability, though it depends on exposed fresh rock, available water and reaction rates.^[ref] Mountain building changes precipitation, erosion and delivery of nutrients to the ocean, affecting primary production and organic carbon burial.

The opening and closure of ocean gateways changes ocean circulation, transport of heat and the supply of oxygen to deep water. Together with movement of land through different latitudes and changes in sea level, this reorganizes climate and habitat. Enhanced organic carbon burial can change atmospheric oxygen over long intervals, while a poorly ventilated ocean can develop ocean anoxia. Such chemical changes alter which forms of metabolism are viable.

Hydrothermal circulation at spreading ridges and through fractured rock supplies chemical disequilibrium and mineral surfaces. For example, serpentinization can produce hydrogen usable by chemolithotrophy when suitable electron acceptors are available. This supplies a possible setting for abiogenesis and early ecosystems; it does not establish that life originated there.

There can also be abrupt disruption. Rapid emplacement of a large igneous province can change climate through gas release; sulfur-bearing aerosols can initially cool, whereas sustained carbon dioxide release can warm and contribute to ocean acidification and ocean anoxia. Such perturbations can contribute to mass extinction, followed by adaptive radiation among survivors. The Deccan Traps exemplify the scale of volcanism involved, but their association with the Cretaceous–Palaeogene boundary does not justify attributing the entire biological crisis to volcanism alone. Both gradual environmental reorganization and rare rapid perturbations belong in the explanation.

Interpret habitability as the ability to sustain life with broadly terrestrial biochemistry. Accessible liquid water, usable free energy, suitable chemical ingredients and sufficiently persistent conditions are the central requirements. Earth-like geography, a breathable atmosphere and actual habitation are not part of that definition.

A viable local physical environment. The relevant temperature and pressure must permit liquid water where the organisms live. For a surface habitat this normally requires an appropriate atmosphere and surface temperature; the roughly 6.1 millibar triple-point pressure of pure water is a minimum phase constraint, not a guarantee of a temperate surface. High salinity, extreme acidity and low water activity can make apparently wet environments unsuitable for known life. A subsurface ocean beneath ice can provide liquid conditions even when the surface is frozen, so the entire body need not lie in the conventional surface-water habitable zone.

A suitable orbit and rotation. For a surface-water planet, orbital distance must give an absorbed radiation budget compatible with liquid conditions after the body's Bond albedo, atmosphere and greenhouse effect are included. The simple planetary equilibrium temperature estimateuses orbital irradiance $S$, Bond albedo $A$ and the Stefan-Boltzmann constant $\sigma$, assumes unit thermal emissivity and averages over the whole sphere. It is not a prediction of surface temperature beneath a atmosphere with a greenhouse effect. Excessive absorbed energy risks a runaway greenhouse; inadequate surface heating can freeze surface water, although heat from the interior or tidal heating can maintain a subsurface habitat.

The orbit must persist without collision or ejection for a biologically useful interval. Large orbital eccentricity can produce extreme variations in heating, but neither exactly circular motion nor Earth's particular obliquity is essential. Rotation period and obliquity govern illumination and seasons; atmospheric and ocean heat flux determine how severe those variations become. Tidal locking does not automatically make a body uninhabitable, because sufficient heat transport can moderate the day–night contrast. A natural satellite also needs a stable orbit around its primary and a tolerable combination of irradiation and tidal heating: enough heating may maintain an ocean, whereas excessive heating can make the environment hostile. These are constraints on the body's location and path, without requiring a particular kind of surrounding planetary system.

An adequate chemical inventory and access to it. Known life uses carbon, hydrogen, nitrogen, oxygen, phosphorus and sulfur, together with catalytic trace elements. A rocky planet supplies mineral surfaces and reservoirs, but total inventory is not enough: chemical weathering, water-rock interaction or other transport must make nutrients accessible. A water-rich body with an ocean isolated from its rocky interior by a thick high-pressure ice layer could have difficulty recycling some nutrients; this is a possible limitation, not proof of sterility.

A usable energy supply. Photosynthesis can exploit light in an illuminated habitat. A dark subsurface habitat instead needs sustained chemical disequilibrium, for example oxidized and reduced species brought together by water-rock interaction, hydrothermal circulation or radiolysis. Warm water at complete chemical equilibrium is not, by itself, an energy supply for sustained metabolism.

Retention, protection and longevity. The body's mass, radius, surface gravity and thermal history affect retention of water and an atmosphere. Escape velocity must be considered together with gas temperature, molecular mass, atmospheric escape and replenishment: there is no universal Earth-mass threshold. An atmosphere, ice or rock overburden can protect life from damaging ionizing radiation and short-wavelength light. An intrinsic planetary magnetic field can modify charged-particle exposure and escape, but it is neither a universal requirement nor a guarantee of retention.

Finally, conditions must last long enough. Stored formation heat, radiogenic heating and possibly tidal heating can maintain circulation and chemical exchange. Plate tectonics can recycle materials and support a carbonate-silicate cycle, but it is not established as a necessary condition for every habitable body: conditional long-term carbon cycling is possible on a stagnant-lid planet as well.^[ref] The necessary end result is persistence of a suitable environment, rather than a checklist requiring every feature of the modern Earth.

Prioritize accessible ancient lacustrine deposits at a preserved river delta, especially fine-grained, clay mineral-bearing mudstones, with nearby evidence of groundwater or hydrothermal circulation. The target should combine past habitability, good biosignature preservation and practical access to minimally altered rock.

An inlet valley, a river delta and a stratified basin together can establish a connected fluvial–lake paleoenvironment on Mars. A long-lived lake offers liquid water, chemical transport and a sustained habitat, while a river delta concentrates material from a larger catchment. Distal mudstone is particularly attractive: fine particles can adsorb organic molecules, burial reduces exposure, and quiet deposition can preserve small-scale structures. Rover observations have independently established ancient lake and river delta settings on Mars, so this is a geological search strategy grounded in observed environments.^[ref][ref]

A second high-value setting is an ancient hydrothermal deposit, particularly silica-rich precipitates, spring terraces or mineralized groundwater fractures near a heat source. Such environments combine water-rock interaction, chemical disequilibrium and the possibility of rapid mineral entombment. Distal, moderate-temperature parts of a hydrothermal circulation system are preferable to strongly reheated zones where organic molecules would be destroyed. Orbital observations identify candidate ancient hydrothermal deposits on Mars, although their geological interpretation requires testing on the ground.^[ref] Carbonate-bearing sedimentary deposits can also preserve textures and chemical records of former water, but precipitation of carbonate alone is not a biosignature.

Choose ancient deposits with good stratigraphy, limited later metamorphism and relatively recent exposure by erosion, or sample beneath the irradiated surface. Present exposed organic molecules can be destroyed by cosmic rays, radiolysis and oxidizing surface chemistry, so a drill, fresh scarp or recently excavated material improves the preservation prospects. Laboratory irradiation experiments on Martian analogue materials demonstrate why shallow ancient surface exposure can erase an organic record.^[ref]

At the site, relate every sample to its sedimentary facies and mineral context. Seek several independent, spatially associated biosignatures: plausible microscopic structures, distinctive organic molecules, and isotope fractionation consistent with a biological process. Each has nonbiological alternatives, so test water-rock interaction, mineral self-organization and contamination before inferring life. Include control samples from adjacent unpromising rocks and track terrestrial contamination. A safe landing ellipse with traversable exposures of several related sedimentary facies is more useful than a spectacular but inaccessible single outcrop. The desired outcome is contextual evidence that can distinguish former life from merely former habitability.

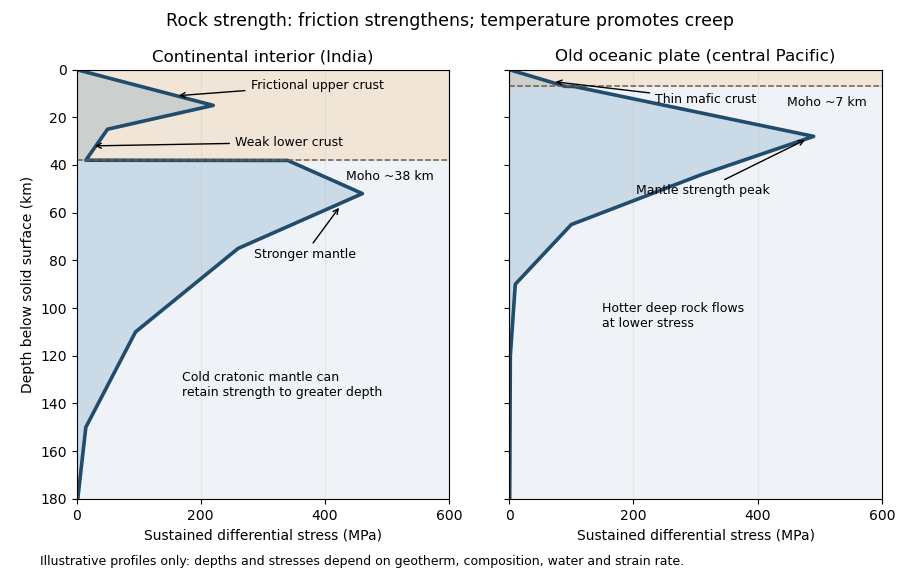

Use a rock strength envelope: at each depth plot the smaller differential stress needed for frictional failure and for sustained ductile material creep at a specified strain rate. Shallow rock generally strengthens with depth because effective confining pressure increases; sufficiently deep hot rock weakens because thermally activated material creep becomes efficient.

At shallow depth, Byerlee's law or a Mohr-Coulomb failure criterion gives a relation of the formwhere $C$ is cohesion, $\mu$ a coefficient of friction, ${\sigma }_n$ the compressive normal stress and $P_f$ the pore pressure. Increasing overburden generally increases effective stress, hence the frictional strength. Conversion from fault shear stress to differential stress depends on the stress regime and fault orientation; a sketch should not label a universal numerical slope. High pore pressure or weak fault gouge can lower the frictional strength substantially.

A simplified dislocation creep relation isHere $Q$ is activation energy, $V^{\ast }$ activation volume, $R$ the molar gas constant and $T$ absolute temperature; $A$ and $n$ depend on composition and deformation mechanism. At fixed strain rate, increasing temperature usually decreases the required stress strongly. The competing effects of pressure, water weakening of rocks, grain size and composition also matter. The intersection with frictional failure gives a brittle-ductile transition, not a change from solid to liquid.

For the Indian continental interior, a useful first sketch has an upper-crustal strength peak, a weaker lower continental crust, and renewed strength in lithospheric mantle beneath the Moho. Quartz-bearing rocks can undergo ductile material creep at conditions where colder, drier olivine-rich mantle retains appreciable strength. This creates a possible two-peak, or “jelly sandwich”, rock strength envelope. With further depth the mantle also weakens. A cold craton can retain strong lithospheric mantle to much greater depths than a tectonically heated continental region.

For the central Pacific, show thin mafic oceanic crust above a relatively thick layer of strong lithospheric mantle. There need not be a conspicuous weak lower-crustal layer. Much of the integrated strength can reside below the Moho, with a broad strength peak followed by ductile weakening towards the asthenosphere. Cooling and age control the thickness: young hot oceanic lithosphere would give a much shallower and weaker profile than an old central-Pacific plate.

The plotted Moho depths of about 38 km and 7 km, and all plotted stresses, are illustrative assumptions. “India” alone does not specify a unique geothermal gradient, water content or strain rate, and the Pacific includes plates of different ages. The robust comparison is the possible crust–mantle layering in a continent versus the thin oceanic crust and mantle-dominated strength of an old oceanic plate. The Moho is a compositional boundary; neither it nor the deepest small plotted strength is automatically the seismic lithosphere-asthenosphere boundary.

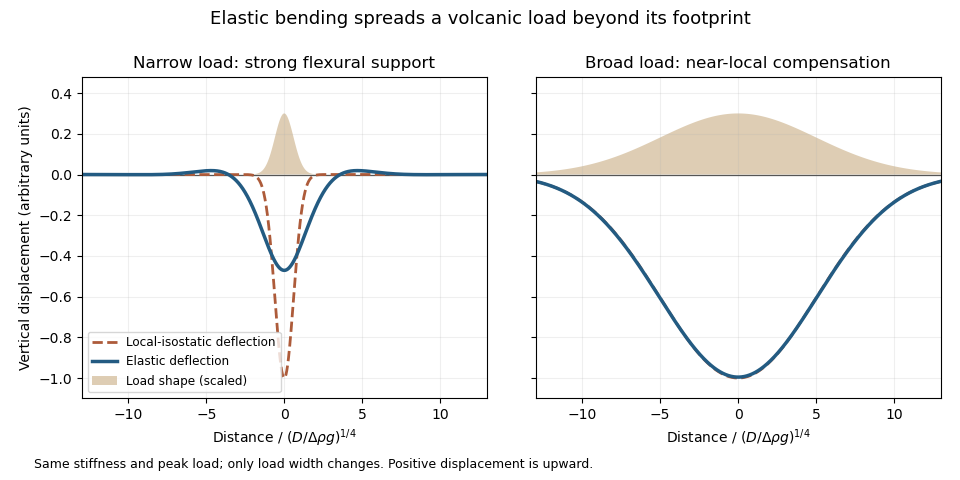

The volume alone does not determine a unique change of elevation. A local isostatic response to an added surface layer depends on its thickness and density, so the Deccan Traps' footprint must be specified or retained as a parameter.

Let the deposited basalt have uniform thickness $H=V/A$ and density ${\rho }_b$, where $V=10^{15}{\mathrm{m}}^3$ and $A$ is the loaded area. Let $w$ be downward displacement of the original land surface, and let ${\rho }_m$ be the density of displaced mantle. Assume a subaerial, laterally extensive deposit, negligible air density, unchanged thickness and density of the pre-existing crust, and complete local isostatic adjustment. Take the magma supply to be external to the local compensation column, and neglect cooling, erosion, magmatic underplating and any deep thermal or source-depletion anomaly.

Choose a compensation depth beneath all the displaced interfaces. The added column mass per unit area is ${\rho }_{b}H$. Downward translation of the pre-existing crust replaces a thickness $w$ of mantle within the column, reducing its mass by ${\rho }_{m}w$. Equality of hydrostatic pressure at the compensation depth therefore givesThe newly formed top of the basalt stands $H$ above the depressed original surface. Consequently the change of the region's top-surface elevation isThus the original substrate subsides, but the top of the deposit rises if ${\rho }_b<{\rho }_m$. Distinguishing these two surfaces prevents reporting the large downward displacement as the change in plateau elevation.

For an explicitly illustrative choice $A=10^{12}{\mathrm{m}}^2$, ${\rho }_b=2900\mathrm{kg}{\mathrm{m}}^{-3}$ and ${\rho }_m=3300\mathrm{kg}{\mathrm{m}}^{-3}$, the deposit is 1000 m thick, the substrate subsides about 879 m, and the final surface rises about 121 m. This is a conditional estimate, not a number fixed by the paper. Half that footprint would double all three heights under the same assumptions. For a nonuniform deposit, local isostasy gives the same relation pointwise with $H(x,y)$; the total volume still cannot specify a unique local elevation.

Elasticity lets the lithosphere share a load with neighbouring regions through lithospheric flexure. Beneath the centre of a localized load, subsidence is generally smaller than the local isostasy estimate, so the deposited surface stands higher. The surrounding plate also bends down, and a more distant flexural forebulge may rise. The extra support is regional bending resistance, rather than removal of the load's mass.

The controlling comparison is load width against the lithosphere's flexural length, which increases with flexural rigidity and decreases with the relevant buoyant geophysical density contrast. Equivalently, the flexural support ratio becomes large for short-wavelength loading. A very broad nearly uniform load produces little curvature in its interior, so even a strong elastic lithosphere has a nearly local isostatic adjustment there. Bending matters most near its edges. A narrow load requires more curvature and can be supported appreciably by the surrounding elastic lithosphere.

The Deccan Traps form a broad continental large igneous province. The volcanic edifices of the Hawaiian Islands are more localized loads on an old oceanic lithosphere, for which regional bending and a flexural moat are prominent. Under the usual broad-Deccan versus narrow-Hawaiian-load comparison, elastic strength matters more for the Hawaiian Islands. The more coherent mantle-dominated strength of an old oceanic plate can reinforce this contrast. It cannot be deduced simply from “oceanic” versus “continental”: a cold Indian craton can be strong, and a site's effective elastic thickness depends on its thermal and loading history.

For an initially submerged Hawaiian load, replacing seawater changes both the load and buoyant restoring contrast. At fixed deposited thickness, the added load relative to the initial water column uses the rock-minus-water density, and the restoring term uses the mantle-minus-water density. An emerged island requires separate treatment of its subaerial and submerged portions. These corrections change the local isostasy reference but do not remove the importance of load width for lithospheric flexure. The broad Hawaiian swell should also be distinguished from the narrower volcanic load: deeper thermal or dynamic support of the Hawaiian swell is not the same mechanism as elastic support of the volcanic ridge.

Finally, over long periods material creep, yielding and thermal modification can reduce elastic support. Without measured load geometries, ages and effective elastic thicknesses, the ranking is a justified qualitative expectation rather than a theorem valid for every continental and oceanic load.

The asthenosphere exists because the mantle's ability to deform is strongly dependent on temperature, pressure, composition, water and deformation mechanism. Cooling from the surface creates a strong lithosphere. Beneath it, hotter mantle deforms by material creep at much lower stress on geological timescales. The asthenosphere is predominantly solid weak rock, not a global ocean of magma. On the much shorter timescale of a seismic wave, it still supports S waves.

The hot shallow mantle can be close to its solidus. Water weakening of rocks and, in some settings, a small connected melt fraction can further lower effective viscosity. At greater depths, changes in pressure, homologous temperature, mineral structure and water storage modify the deformation laws; increasing depth does not imply indefinitely decreasing viscosity. Explaining a weak upper-mantle interval does not require every location to contain the same amount of melt.

There are several physically distinct boundaries to test. The thermal lithosphere-asthenosphere boundary describes a thermal transition, the mechanical boundary a contrast in long-term strength or viscosity, and the seismic lithosphere-asthenosphere boundary a change in seismic velocity or other wave properties. They need not have identical depths. A smooth geothermal gradient can explain broad thermal weakening, but a very sharp decrease of seismic velocity may require changes in melt fraction, hydration, composition or seismic anisotropy. A sharp shallow reflector within a craton might instead be an internal lithospheric boundary.^[ref]

Begin with a thermal null model. A half-space cooling model givesIf a thermal boundary corresponds to a fixed temperature $T_{\ast }$, its depth isso it deepens as the square root of plate age. Test that prediction against independently determined seafloor ages, bathymetry and heat flux. An oceanic plate cooling model adds finite thickness and basal heat supply, allowing the old-age depth to approach a finite value. For continents, include radiogenic heating, crustal thickness, the history of continental rifting or tectonic thickening, and advective heating by magma or mantle flow. A cold, dry craton and a recently extended volcanic region should not share the same thermal profile.

Then calculate the observable consequences of competing mechanisms rather than merely assigning a boundary to a map:

Compare models against the observed boundary depth and its sharpness, including uncertainty and resolution. An age–depth trend with matching heat flux favours thermal control; a sharp discontinuity that fails the thermal prediction but coincides with an electrical anomaly can support a melt- or hydration-related transition. Neither observation alone proves a unique cause. The spatially varying boundary is best understood as the result of thermal evolution interacting with composition, fluids and deformation history.

Solutions to all three questions of Oxford's third-year Plate Tectonics paper, Paper 8, held on 27 May 2022. The source's two-question examination choice does not restrict this coverage. Source release: released examination archive. Numerical readings from the supplied heat-flow plot are approximate; the assumptions needed to convert them into temperatures are stated explicitly.

The decisive change was from moving continents within a supposedly permanent ocean floor to moving coherent tectonic plates that include both continental and oceanic lithosphere. Several independent observations made that change testable.

Continental connections supplied the initial problem. In the early twentieth century, Alfred Wegener assembled matching continental margins, correlatable rock belts and mountain chains, shared fossil assemblages, and paleoclimate indicators into the case for continental drift. Reassembling Gondwana, for example, makes geographically separated glacial deposits and striation directions compatible with one ice-sheet system. Fits at the continental shelf edge are physically more meaningful than exact fits to modern coastlines, which have been modified by erosion and sea-level change. The evidence suggested relative movement, but did not justify the proposed forces: continents cannot readily plough independently through strong oceanic rock. A convincing mechanism and independent motion measurements were missing.

Oceanography changed the boundary conditions. Echo-sounding surveys revealed a connected spreading ridge system, axial valleys, subduction trenches and long fracture zones. Seismic refraction surveys established systematic differences between continental and oceanic crust. Thin oceanic sediment cover, high ridge heat flux and the lack of very old exposed oceanic basement made permanent, ancient ocean basins increasingly implausible. Harry Hammond Hess proposed creation of oceanic lithosphere at ridges and recycling at trenches: seafloor spreading without requiring an expanding Earth. Slow mantle convection supplied a physically plausible connection between surface transport and internal heat loss. The mechanism need not have been completely quantified before its kinematic predictions could be tested.^[ref]

Magnetic records supplied a clock and a speedometer. Dated continental lavas established a sequence of geomagnetic reversals. Marine magnetometers then found elongated, approximately paired marine magnetic stripes on either side of ridges. The 1963 interpretation by F. J. Vine and D. H. Matthews combined repeated reversals with seafloor spreading: cooling basalt locks in remanent magnetization, and continuous motion converts a time sequence into a spatial sequence. If a polarity interval lasts $\Delta t$ and occupies width $w$ on one ridge flank, its half-spreading rate is $w/\Delta t$. Matching several reversals tests the predicted sequence, rather than merely fitting a single stripe.^[ref] Different apparent polar wander paths for different continents also became mutually consistent after continental reconstruction, favoring relative continental motion over independent magnetic-pole histories.

Earthquakes identified creation, translation and consumption. Improved global seismology located shallow earthquakes along ridges and transforms, and dipping Wadati-Benioff zones beneath trenches. Their progressive focal depths identified cold, coherent slabs entering the mantle. Focal mechanisms showed extension at spreading boundaries, tangential slip at transforms and convergence at trenches. In 1965, John Tuzo Wilson's transform fault interpretation made a particularly discriminating prediction: active slip occurs between offset ridge segments, with a sense that can be opposite to that inferred by treating the entire lineament as an ordinary offset fault. The outer fracture zones are inherited traces, not continuing active plate boundaries. Agreement of focal mechanisms with the transform prediction linked magnetic and seismic evidence.

The late-1960s synthesis made these observations one quantitative theory. Relative motion of rigid tectonic plates on a sphere can be described by an Euler angular velocity vector, with $\mathbf{v}=\mathbf{\omega }\times \mathbf{r}$. Spreading rates, transform azimuths and slip directions must fit the same rotation, and relative angular velocities must close around plate circuits. The resulting framework accounted for global boundary geometry and earthquake mechanisms without moving continents separately from the seafloor. Deep-ocean drilling beginning in 1968 subsequently confirmed that basement and overlying sediments generally become older away from ridges; this was a powerful confirmation of an already emerging synthesis, not a prerequisite discovered decades earlier.^[ref]

Thus plate tectonics succeeded through agreement between geological reconstruction, magnetic chronology, ocean-floor structure, seismology and rigid-plate kinematics. Modern satellite geodesy verifies motions directly, but belongs to the later confirmation of the theory, not its original 1960s evidence.

Distinguish the depth-dependent mantle temperature from mantle potential temperature $T_p$: the latter is the temperature a parcel would have after reversible decompression in an adiabatic process to a chosen reference pressure. A convecting mantle is approximately adiabatic through much of its interior, with steep thermal boundary layers near the surface and the core-mantle boundary. It is neither isothermal nor wholly molten.

Early accretion, large impacts and gravitational planetary differentiation supplied heat; metal segregation released gravitational energy and extensive melting could produce a magma ocean. Rapid surface heat loss then crystallized much of the silicate mantle. Subsequent evolution reflects competition between radiogenic heating, heat entering from the core and heat carried out through the upper boundary. In a schematic mantle energy balance,Here $C_m$ is mantle heat capacity, $H_m$ mantle radioactive power and $Q_m$ heat leaving the mantle; continental crustal radioactive production is not included in $H_m$. The convective Urey ratio $H_m/Q_m$ compares internal production with mantle heat loss. A value below one does not alone prove cooling, because core heat also enters; cooling requires $H_m+Q_{\mathrm{cmb}}<Q_m$. Radioactive decay reduces the heating supply, while mantle convection, plate tectonics, melt extraction and changing viscosity control the heat loss. A hotter mantle does not automatically imply proportionally faster plate motion: melting, dehydration and boundary strength can alter that relationship.

The robust long-term picture is an energetic early Earth followed by substantial cooling and a presently mostly solid, convecting mantle. The shape of the solid-state history is less certain. Petrological reconstructions commonly place late-Archean ambient $T_p$ above modern values. One reconstruction infers about $1500$–$1600{}^{\circ }\mathrm{C}$ at $2.5$–$3$ Ga versus about $1350{}^{\circ }\mathrm{C}$ today, and permits warming before that late-Archean maximum after the initial magma-ocean cooling.^[ref] This is a model-dependent ambient-mantle history, not proof that the accreting Earth was cooler than the Archean mantle or that every mantle reservoir followed one curve. An early molten transient, subsequent solid-state heating or cooling, and later secular cooling must be distinguished.

The geological record is a collection of thermometers with different sampling biases, not a direct time series of the whole mantle.

Primary melt compositions constrain melting temperatures. Reconstruct primary magma compositions from dated, suitably unaltered basalts by correcting for fractional crystallization and checking equilibrium with olivine. Experimental phase equilibrium constraints and mineral–melt thermometers then constrain the pressure and temperature of melt generation. In laboratory calibrations, a candidate melt and mineral assemblage are equilibrated at controlled pressure and temperature, quenched, and their crystals and glass analyzed. Repetition across adjacent conditions brackets the relevant phase equilibrium boundaries. Correcting for decompression and latent heat then allows comparison as mantle potential temperature. Age-controlled, non-arc basalt suites are especially valuable for separating changes in ambient mantle from exceptional mantle plumes. The 2010 reconstruction by Claude Herzberg and colleagues combines this approach with the temporal distribution of high-Mg parental melts.^[ref]

Komatiites provide evidence for unusually hot melting, with qualifications. Many ancient high-Mg lavas, their olivine compositions and spinifex textures indicate large degrees of melting and high parental temperatures. Their abundance in Archean terrains and rarity in the recent record are consistent with a hotter past. However, a hot mantle plume, dissolved water, unusual source composition or crystal accumulation can change the interpretation. A komatiite temperature is not automatically the ambient mantle temperature, and spinifex texture alone is not a calibrated thermometer.

Melting residues and crustal products provide independent checks. Depleted peridotite mantle xenoliths, preserved mineral chemistry and compatible-element depletion constrain former melt fractions. More extensive melting can produce thicker mafic crust and more refractory residual mantle; these are predictions to compare with preserved rock packages and seismic or petrological constraints on ancient lithosphere. Metamorphic facies and pressure–temperature paths provide contextual evidence about geothermal regimes, but tectonic burial, decompression and preservation can mimic temporal changes. They do not directly measure $T_p$.

The most persuasive inference is therefore agreement between dated melt thermometry, melting residues and their predicted crustal consequences, while separating source fertility, volatile content, mantle plume anomalies, alteration and selective preservation. Those controls explain why hotter ancient melting is better established than one exact global cooling curve.
