The diagnostic infrared spectroscopy absorptions are the conjugated ester carbonyl near $1720\mathrm{c}{\mathrm{m}}^{-1}$ and the alkene stretch near $1650\mathrm{c}{\mathrm{m}}^{-1}$. Reasonable approximate ranges are $1715$–$1730$ and $1620$–$1660\mathrm{c}{\mathrm{m}}^{-1}$, respectively. Conjugated system lowers the carbonyl stretching spectroscopic wavenumber relative to an unconjugated ester.

The ester C–O stretches and strong C–F stretches lie mainly in the $1000$–$1300\mathrm{c}{\mathrm{m}}^{-1}$ region. Vinylic C–H stretching is just above $3000\mathrm{c}{\mathrm{m}}^{-1}$, and saturated C–H stretching is about $2850$–$3000\mathrm{c}{\mathrm{m}}^{-1}$. There is no hydroxy group to give a broad O–H band.

The assignments are ${\mathrm{H}}_a$: $6.787$ ppm, $1$H, doublet of quartets; ${\mathrm{H}}_b$: $6.496$ ppm, $1$H, doublet of quartets; ${\mathrm{H}}_c$: $4.281$ ppm, $2$H, quartet; ${\mathrm{H}}_d$: $1.331$ ppm, $3$H, triplet. The chemical shift of a multiplet is its centre, rather than its most downfield line.

Each vinylic proton has scalar spin-spin coupling to the other vinylic proton and to three equivalent spin-$\frac{1}{2}$ fluorine nuclei. The first interaction produces a doublet, and the second a $1:3:3:1$ quartet: eight lines overall, partly interleaved for ${\mathrm{H}}_a$. The two chemical shifts differ because the vinylic sites have different substituents.

The ethoxy $\mathrm{OC}{\mathrm{H}}_2$ protons are deshielded by oxygen and split into a $1:3:3:1$ quartet by the three methyl protons. The methyl protons are split into a $1:2:1$ triplet by the two equivalent methylene protons. The relative NMR signal integrals are $1:1:2:3$.

Use the NMR coupling constant conversion $J/\mathrm{Hz}=(\Delta \delta /\mathrm{ppm})({\nu }_0/\mathrm{MHz})$. At $300\mathrm{MHz}$, separating the overlapping quartets givesThe ${\mathrm{H}}_b$ doublet separation independently gives $(6.513-6.461)300=15.6\mathrm{Hz}$. For ${\mathrm{H}}_a$, the two quartets are $\{6.728,6.750,6.772,6.794\}$ and $\{6.780,6.802,6.824,6.846\}$ ppm; simply taking adjacent lines in their combined ordering would mix different scalar spin-spin couplings.

The methylene quartet gives an average adjacent spacing $(4.317-4.244)/3=0.02433$ ppm, or $7.3\mathrm{Hz}$. Thus its printed rounded positions agree with the methyl-derived value to about $0.1\mathrm{Hz}$; quote the ethyl NMR coupling constant as approximately $7.2$–$7.3\mathrm{Hz}$. The large vinylic value supports the trans arrangement. The arrows below join the interacting nuclei; each arrow to ${\mathrm{F}}_3$ represents the same interaction with each equivalent fluorine nucleus.

The six carbon environments are assigned as follows, with chemical shifts at the centres of the fluorine-split multiplets:The supplied carbon-13 spectrum is interpreted as proton-decoupled NMR, as indicated by its unsplit ethoxy signals. Proton decoupling removes C–H splitting but leaves C–F scalar spin-spin coupling. Three equivalent spin-$\frac{1}{2}$ fluorine nuclei give each resolved quartet its $1:3:3:1$ intensity pattern. The carbonyl's much smaller four-bond C–F interaction is unresolved in the plotted spectrum; “singlet” describes what is observed, rather than proving an exactly zero interaction.

The wide quartet is centred at $(127.48+116.74)/2=122.11$ ppm. The other two centres are $(132.04+130.63)/2=131.335$ and $(129.09+128.85)/2=128.97$ ppm. The signal near $77$ ppm is the deuterated chloroform solvent, not another carbon of the analyte. The structure labels skip ${\mathrm{C}}_i$: the ethoxy methylene is ${\mathrm{C}}_j$.

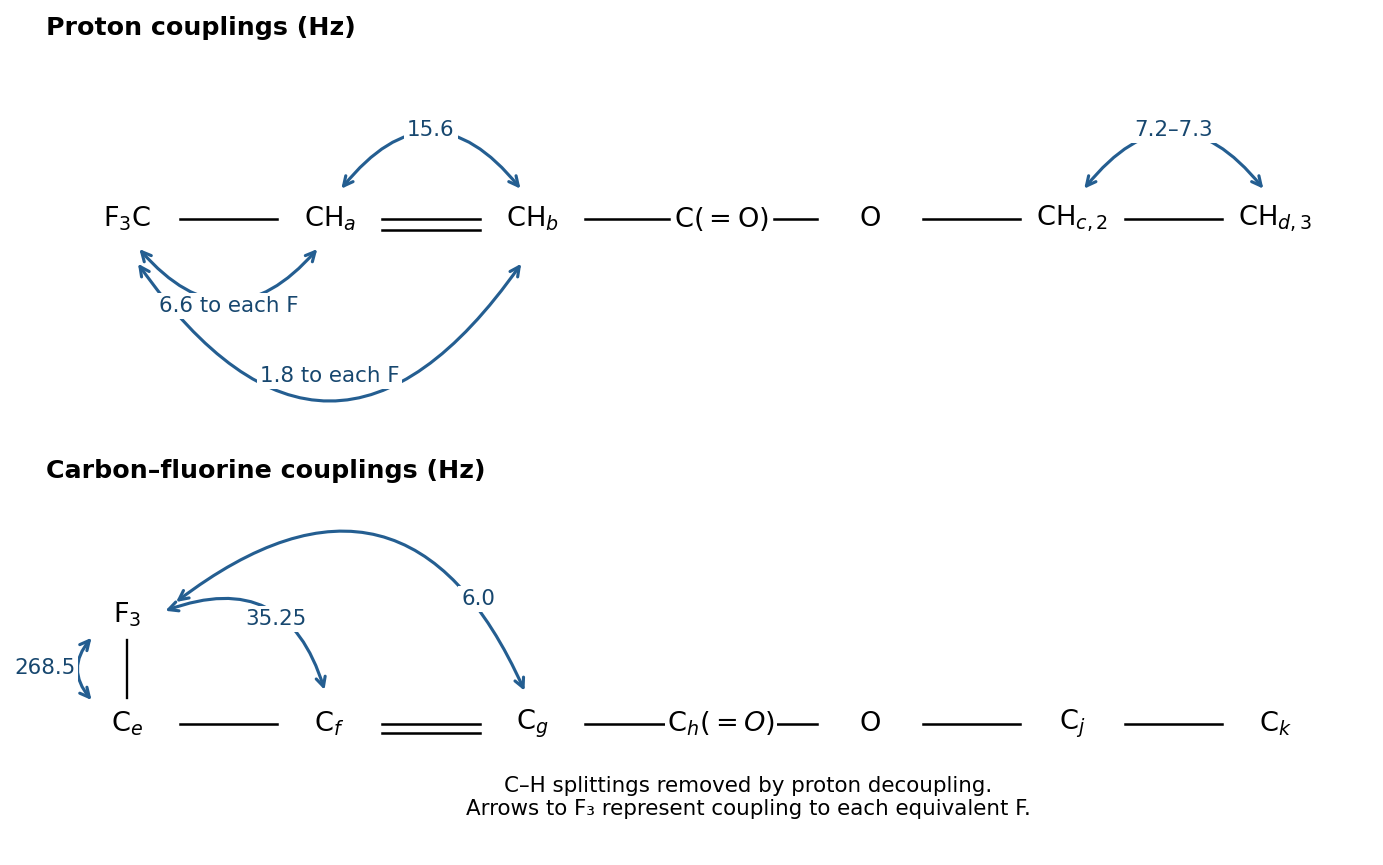

At a carbon-13 resonance frequency of $75\mathrm{MHz}$, the three resolved NMR coupling constants areEach is the spacing of adjacent lines within its own quartet. The lower panel of the original coupling diagram in 1(b)(ii) marks the corresponding carbon–fluorine interactions. The bond superscripts count bonds along the connecting path; they are not additional numerical factors multiplying $J$.

One fluorine-19 NMR resonance, integrating to three equivalent fluorine nuclei, appears as a doublet of doublets with $J=6.6$ and $1.8\mathrm{Hz}$. This predicts four principal lines of equal intensity, from coupling to ${\mathrm{H}}_a$ and ${\mathrm{H}}_b$, respectively. Relative to the unknown resonance centre, their offsets are $\pm 4.2$ and $\pm 2.4\mathrm{Hz}$.

Equivalent fluorine nuclei do not split one another. This prediction assumes ordinary proton-coupled acquisition; proton decoupling would collapse these four principal lines to a singlet. The proton and carbon spectra do not determine the numerical fluorine chemical shift. Weak natural-abundance carbon-13 satellites could accompany the principal pattern.

For a hydrogen-like ion, the Coulomb potential is stronger by the nuclear atomic number $Z$, and the energy levels scale as $Z^2$:Here $Z$ is the number of protons in the atomic nucleus; the ion has exactly one electron, so its net electric charge is $(Z-1)e$. The zero of energy is a separated stationary electron and atomic nucleus at infinite distance. This is the nonrelativistic hydrogenic approximation using the supplied $R_H$; a more precise isotope-specific result also corrects the reduced mass.

The lowest two energy levels have $n=1$ and $n=2$. For carbon, $Z=6$, even though the ion's net charge is $5+$:Increasing $n$ raises the energy toward zero; the most negative value is the ground-state energy.

An emitted photon has positive energyFor spontaneous emission into $n_f=2$, the conservation of energy equation isConsequentlyThe principal quantum number must be an integer, so the transition is $\boxed{n_i=3⟶n_f=2}$. Its calculated wavelength is approximately $18.22\mathrm{nm}$, agreeing with the rounded observation.

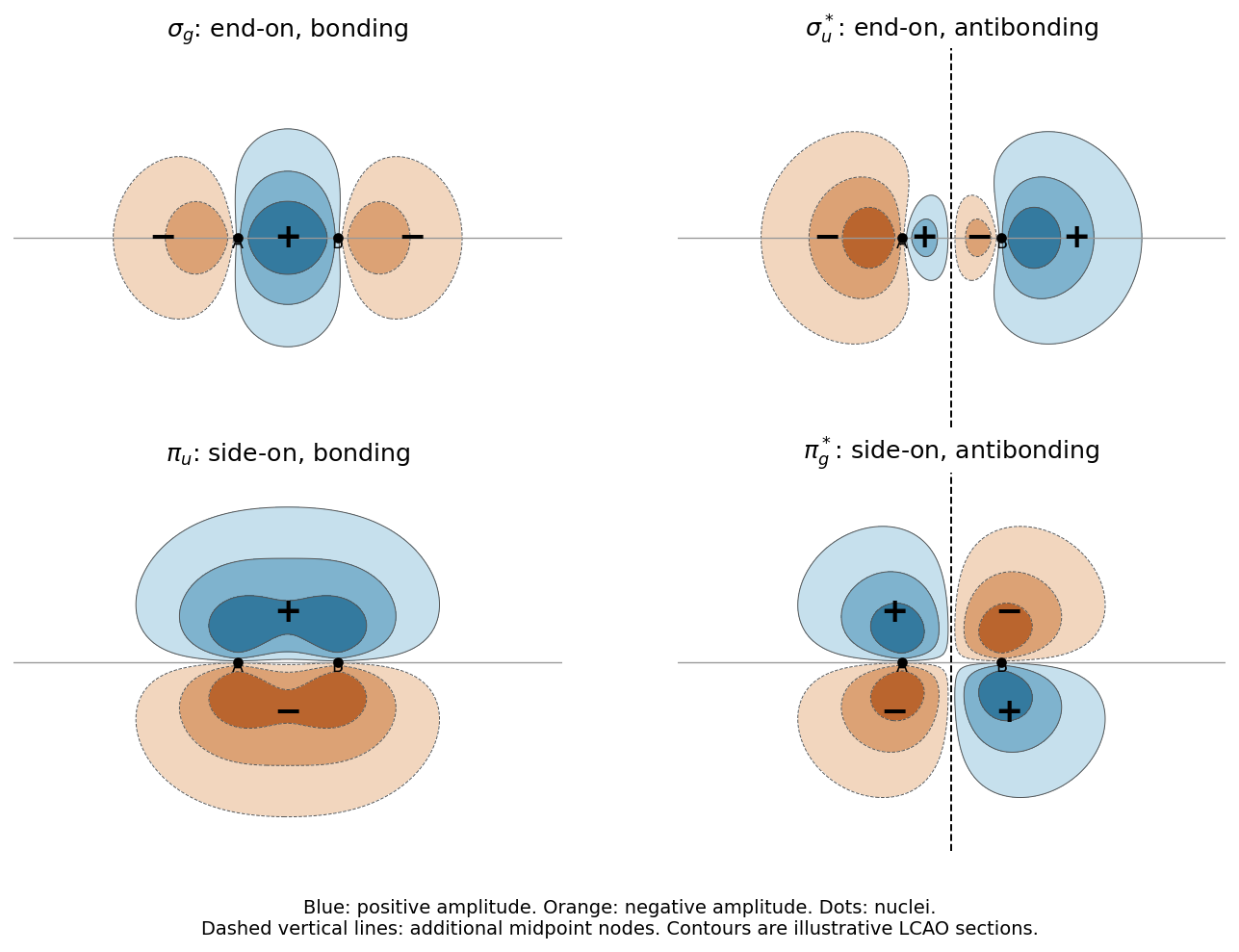

End-on overlap produces $\sigma$ and ${\sigma }^{\ast }$ molecular orbitals; side-on overlap produces $\pi$ and ${\pi }^{\ast }$ molecular orbitals. Matching signs of the facing atomic orbital lobes give constructive interference and a bonding molecular orbital. Opposite signs give destructive interference and an additional nodal plane between the atomic nuclei in the antibonding molecular orbital.

Take the internuclear direction as $x$, and define both atomic $p_x$ functions as positive on their own right-hand side. Up to wavefunction normalization, the combinations areThe minus sign in the bonding $p_x$ combination follows from this common-axis quantum phase convention: the facing lobes of the two unmodified $p_x$ functions have opposite signs. It does not make that combination antibonding. Every $\pi$ molecular orbital also has a nodal plane containing the internuclear axis; the additional midpoint node distinguishes ${\pi }^{\ast }$ from $\pi$.

The labels apply when the molecule has an inversion centre, as a homonuclear diatomic molecule does. The label $g$ means $\psi (-\mathbf{r})=\psi (\mathbf{r})$, and $u$ means $\psi (-\mathbf{r})=-\psi (\mathbf{r})$, with the origin at that centre. In a heteronuclear diatomic molecule, inversion exchanges different atomic nuclei and these are generally not valid symmetry labels.

For the p-derived combinations above,Inversion both exchanges the two centres and changes the sign of each individual p atomic orbital. Applying both operations to each sum or difference gives these labels. The star denotes antibonding molecular orbitals, independently of parity: a bonding molecular orbital need not always be $g$.

One consistent localized orbital hybridization description uses the Lewis structuresFor methyldiazonium, take C as $s{p}^3$ and both N atoms as $sp$. For diazomethane, the double-bond resonance contributor suggests C as $s{p}^2$, central N as $sp$, and terminal N as $s{p}^2$. The central N uses two opposite $sp$ hybrids for the linear C–N–N sigma bond framework. In the localized double-bond picture, terminal N uses one $s{p}^2$ hybrid for its sigma bond, two for lone pairs, and its remaining p atomic orbital for a pi bond.

These labels specify an approximate bonding construction, not uniquely measurable atomic properties. An alternative representation takes terminal N as $sp$, with one $sp$ lone pair and one p lone pair; the latter can participate in the delocalized C–N–N $\pi$ system. It describes the same resonance more explicitly. Neither construction requires an unpaired electron or a bent central N.

There are $\boxed{4+2(1)+2(5)=16}$ valence electrons, all paired, so diazomethane exhibits diamagnetism. A localized orbital occupancy consistent with the double-bond construction in 2(c)(i) isHere $c,t$ mean central and terminal. Each listed occupied spatial orbital contains two electrons of opposite spin. The central N's two p atomic orbitals are perpendicular, so they can support the two perpendicular pi bonds. No central-N lone pair is left over: its positive formal charge accompanies four bonding pairs in this Lewis structure.

Allowing resonance mixes a terminal-N lone pair into the C–N–N $\pi$ orbitals. In the alternative terminal-$sp$ basis, the same electron count is four occupied $\sigma$ orbitals ($8$ electrons), one terminal-$sp$ lone pair ($2$), one perpendicular N–N $\pi$ orbital ($2$), and two occupied orbitals of a three-centre C–N–N $\pi$ system ($4$). The $16$-electron count and the paired ground state survive this change of description; the localized picture does not assert two perfectly isolated double bonds.

On carbon protonation, the C–N bond length increases and the N–N bond length decreases. Forming the fourth C sigma bond changes the carbon from approximately planar $s{p}^2$ to tetrahedral $s{p}^3$, removing its effective C–N pi bonding. The product is described by ${\mathrm{H}}_3\mathrm{C}-{\mathrm{N}}^{+}\equiv \mathrm{N}$: C–N becomes predominantly single and N–N predominantly triple. The resonance of the unprotonated species makes its actual bond orders intermediate rather than exact integers.

The products are hexanenitrile, $\mathrm{C}{\mathrm{H}}_3(\mathrm{C}{\mathrm{H}}_2{)}_4\mathrm{C}\equiv \mathrm{N}$, and ethyl triphenylmethyl ether, $\mathrm{P}{\mathrm{h}}_3\mathrm{C}-\mathrm{O}-\mathrm{C}{\mathrm{H}}_2\mathrm{C}{\mathrm{H}}_3$. The nitrile carbon comes from cyanide, so replacing chloride in the five-carbon chain gives a six-carbon product.

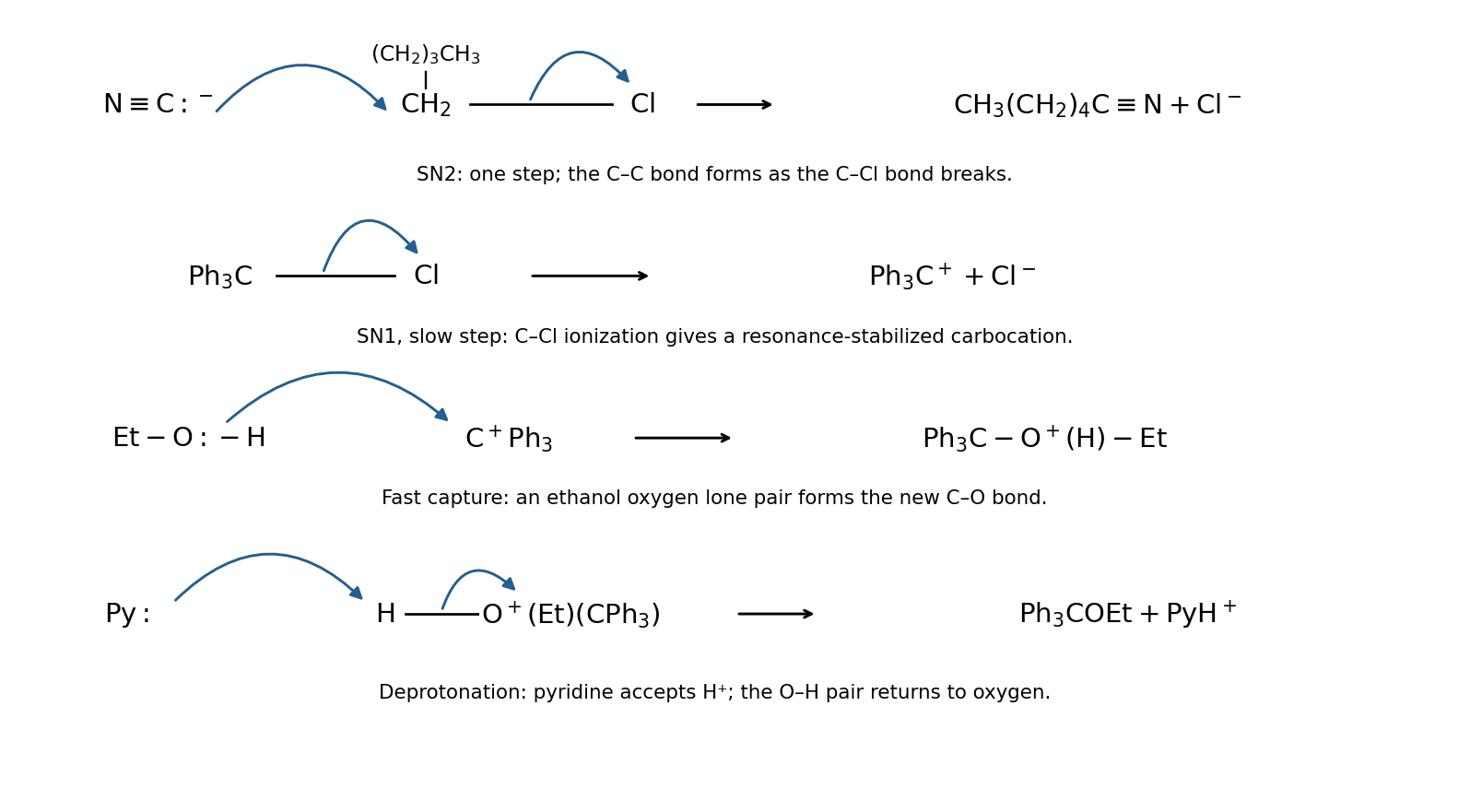

For the primary chloride, the carbon-end lone pair of $\mathrm{C}{\mathrm{N}}^{-}$ attacks the carbon carrying Cl from the back side while the C–Cl bond pair moves onto Cl. The single concerted nucleophilic substitution step forms the C–C bond and releases $\mathrm{C}{\mathrm{l}}^{-}$. Attack through the carbon end gives the nitrile, not an isocyanide.

For the triphenylmethyl chloride, the C–Cl bond first undergoes heterolysis to $\mathrm{P}{\mathrm{h}}_3{\mathrm{C}}^{+}$ and $\mathrm{C}{\mathrm{l}}^{-}$. An ethanol oxygen lone pair then attacks the carbocation, giving $\mathrm{P}{\mathrm{h}}_3\mathrm{C}-{\mathrm{O}}^{+}(\mathrm{H})\mathrm{Et}$. Finally pyridine accepts that O–H proton, with the O–H bond pair returning to oxygen, giving the neutral ether and pyridinium chloride.

The primary chloride undergoes an SN2 reaction; the triphenylmethyl chloride undergoes an SN1 reaction. The primary site is accessible to back-side attack, whereas three phenyl groups make back-side attack at the triphenylmethyl site extremely hindered and stabilize its carbocation through resonance.

For the SN2 reaction, a suitable transition state isThe entering C and leaving Cl lie on opposite sides of the reacting carbon, with partial C–C and C–Cl bonds. The total charge is $-1$. This transition state is not a discrete reaction intermediate.

For the SN1 reaction, the approximately planar $\mathrm{P}{\mathrm{h}}_3{\mathrm{C}}^{+}$ carbocation is a genuine reaction intermediate. Assuming its formation by C–Cl heterolysis is rate determining and trapping is rapid,Thus the limiting rate law is independent of ethanol concentration. The successive attack and proton transfer occur after the slow ionization; a cation-stabilizing environment and efficient trapping underpin this idealized SN1 description.

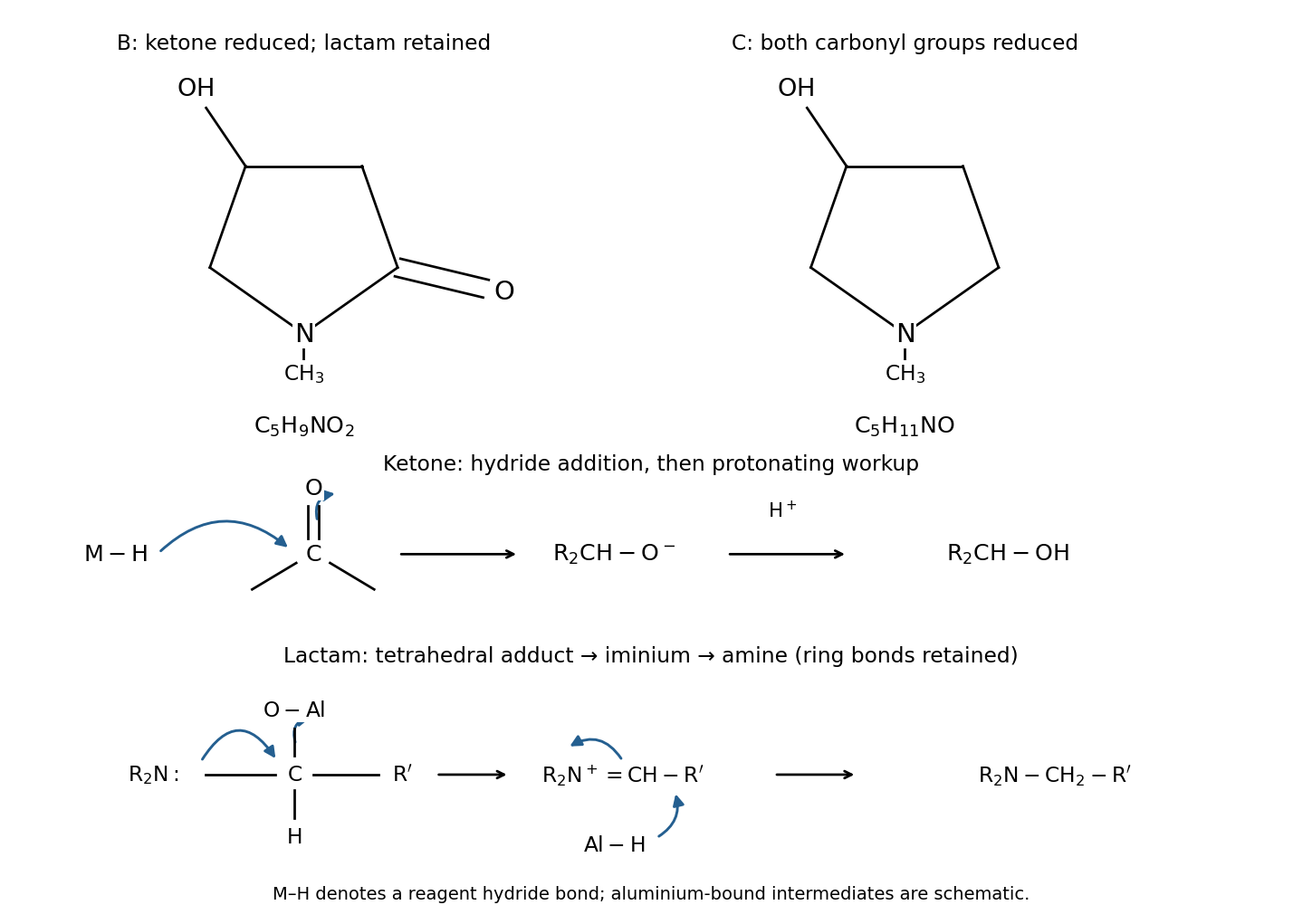

B is 4-hydroxy-1-methylpyrrolidin-2-one; C is 1-methylpyrrolidin-3-ol. Their ring connectivities are shown below. Each ring remains five membered; the attached N-methyl group is retained.

For B, a B–H bond of sodium borohydride supplies a hydride equivalent to the ketone carbonyl carbon, and the carbonyl $\pi$ pair moves to oxygen. This gives an alkoxide, whose protonation during the reaction or workup gives the secondary alcohol. The lactam carbonyl remains. Converting one $\mathrm{C}=\mathrm{O}$ to $\mathrm{CH}(\mathrm{OH})$ adds two H atoms and gives ${\mathrm{C}}_5{\mathrm{H}}_9\mathrm{N}{\mathrm{O}}_2$.

For C, lithium aluminium hydride reduces that ketone in the same net way and also reduces the lactam. Coordination of the amide oxygen to aluminium assists hydride attack at its carbonyl carbon, giving a tetrahedral intermediate. The N lone pair then forms a C=N bond while the C–O bond breaks to an aluminium-bound oxygen group. A resulting iminium ion accepts a second hydride at carbon, yielding the cyclic tertiary amine. Aqueous workup protonates the ketone-derived alkoxide.

The lactam conversion replaces $\mathrm{N}-\mathrm{C}(=\mathrm{O})$ by $\mathrm{N}-\mathrm{C}{\mathrm{H}}_2$; its oxygen is removed rather than retained as another alcohol. Together with ketone reduction, the net change is $+4\mathrm{H}-\mathrm{O}$, giving ${\mathrm{C}}_5{\mathrm{H}}_{11}\mathrm{NO}$. No stereochemistry is specified: the new alcohol stereocentre is formed as a racemic mixture in an achiral environment.

Sodium borohydride is chemoselective for the ketone; lithium aluminium hydride reduces both the ketone and the lactam. In an amide, donation of the N lone pair into the carbonyl $\pi$ system reduces the carbonyl carbon's electrophilicity. It is therefore substantially less susceptible to the milder hydride donor.

Lithium aluminium hydride supplies more strongly reducing hydride equivalents, and the strong affinity of aluminium for oxygen assists removal of the amide oxygen through the iminium pathway. This difference explains both the unchanged lactam carbonyl in B and the absence of that oxygen in C. Both reactions are interpreted after the usual protonating workup.

D is $(\mathrm{MeO}{)}_2\mathrm{CHC}{\mathrm{H}}_2\mathrm{C}{\mathrm{H}}_2\mathrm{C}{\mathrm{O}}_2\mathrm{Me}$, and E is $\mathrm{OHCC}{\mathrm{H}}_2\mathrm{C}{\mathrm{H}}_2\mathrm{C}{\mathrm{O}}_2\mathrm{Et}$. D results from transesterification; E results from acid-catalysed acetal hydrolysis.

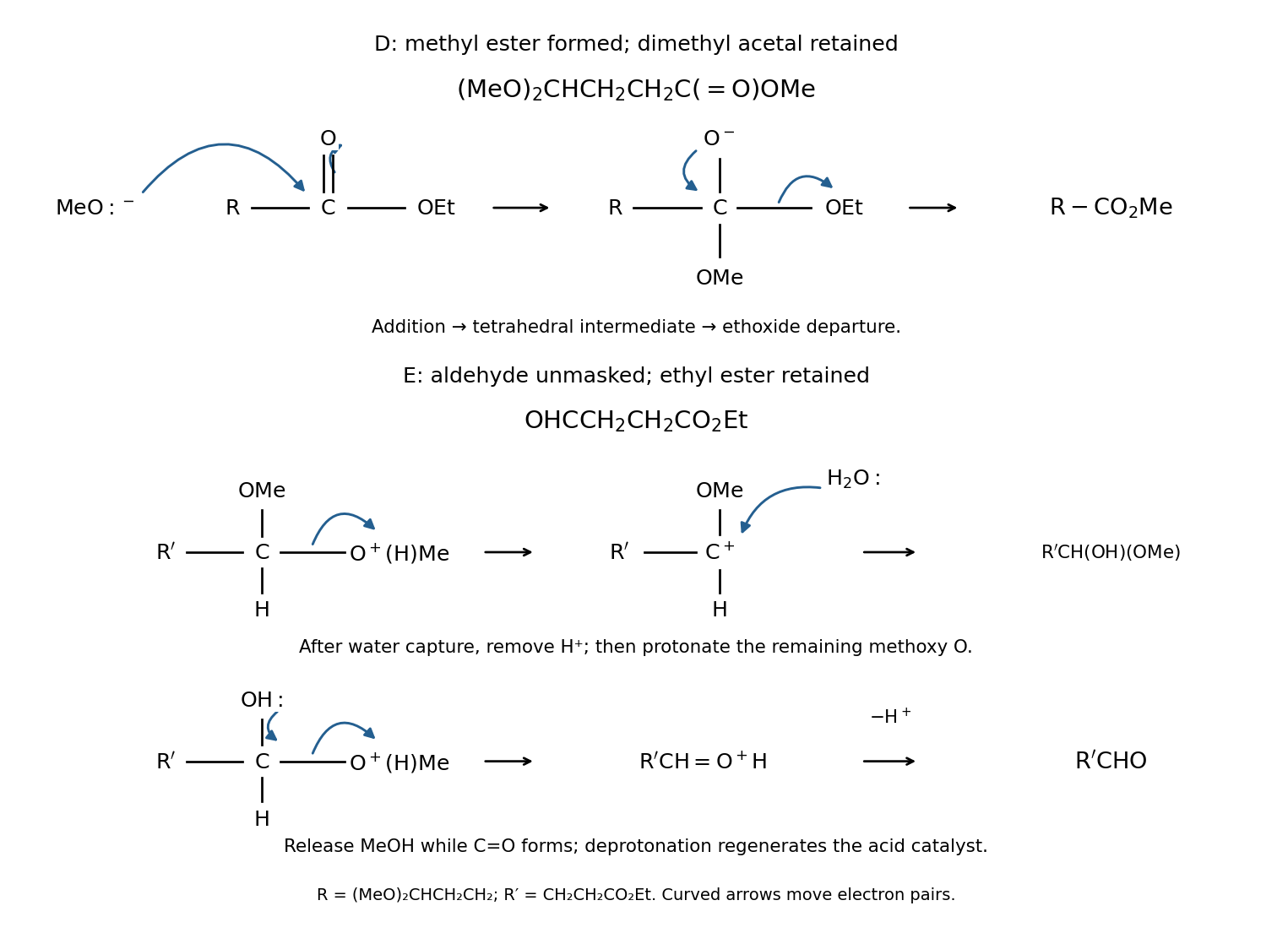

For D, methoxide attacks the ester carbonyl carbon and moves the carbonyl $\pi$ pair to oxygen. Collapse of the tetrahedral reaction intermediate reforms C=O and expels ethoxide. Proton transfer with the methanol solvent regenerates methoxide. Excess methanol favours replacement of the ethyl ester by a methyl ester; the dimethyl acetal survives these basic conditions.

For E, protonate one acetal oxygen, then break its C–O bond with the pair going to oxygen, releasing methanol and forming an oxocarbenium ion. Water attacks that carbon. Deprotonation gives a hemiacetal; protonation of its remaining methoxy oxygen permits loss of a second methanol. The hydroxyl oxygen's lone pair forms C=O during this loss, and deprotonation gives the aldehyde, regenerating the acid catalyst.

The spectroscopy is consistent with these products. D has one ester carbonyl near $1745\mathrm{c}{\mathrm{m}}^{-1}$ and six carbon-13 NMR environments: acetal CH, two distinct chain $\mathrm{C}{\mathrm{H}}_2$ sites, carbonyl, ester $\mathrm{OC}{\mathrm{H}}_3$, and the two equivalent acetal $\mathrm{OC}{\mathrm{H}}_3$ groups. Thus seven carbon atoms give six resonances. E has separate ester and aldehyde carbonyl bands, approximately $1745$ and $1730\mathrm{c}{\mathrm{m}}^{-1}$, and six distinct carbon atoms: two carbonyls, two chain methylenes and the two ethyl carbons.

Basic methanol exchanges the ester alkoxy group while retaining the acetal; dilute aqueous acid removes the acetal while retaining the ethyl ester on the stated reaction timescale. An acetal lacks an electrophilic carbonyl and is stable to ordinary base: expelling methoxide directly would require a poor leaving group. The ester can instead undergo nucleophilic acyl substitution through a carbonyl-derived tetrahedral intermediate.

Under acid, protonating an acetal oxygen converts an alkoxy substituent into departing methanol, and the resulting oxocarbenium is stabilized by its remaining oxygen. Water then drives acetal hydrolysis toward the aldehyde. Ester hydrolysis is also possible under acid, but is slower under the conditions implied by the product data. The retained ethyl group and six distinct carbon-13 NMR environments support E rather than the carboxylic acid that prolonged hydrolysis could produce.

With ideal thermodynamic activities $a_i=[i]/c^{\circ }$, the dimensionless acid dissociation constant isThe factor $c^{\circ }$ makes the equilibrium constant compatible with ${\Delta }_r{G}^{\circ }=-RT\ln K_a$. If the concentration quotient without $c^{\circ }$ is used instead, it has concentration units and its numerical value is identical only when the standard concentration is expressed as $1\mathrm{M}$.
