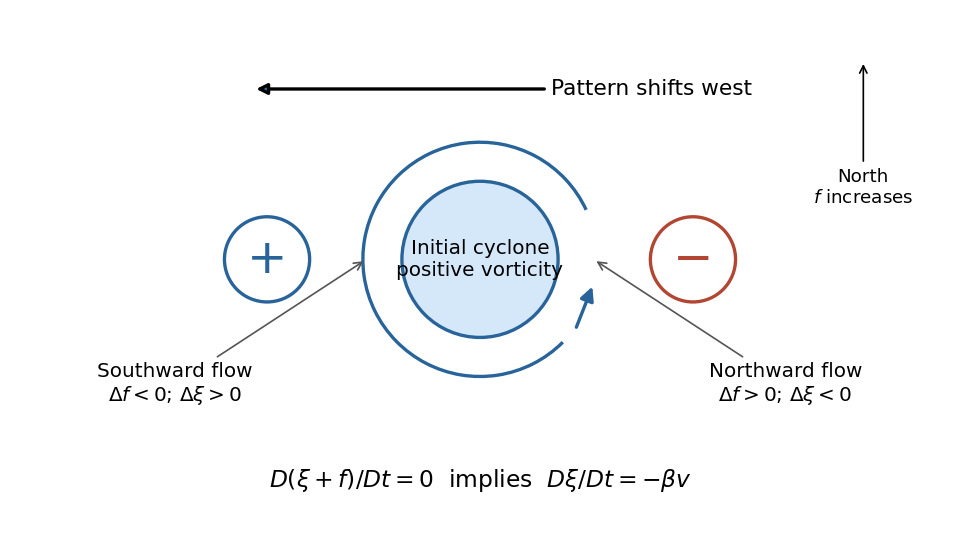

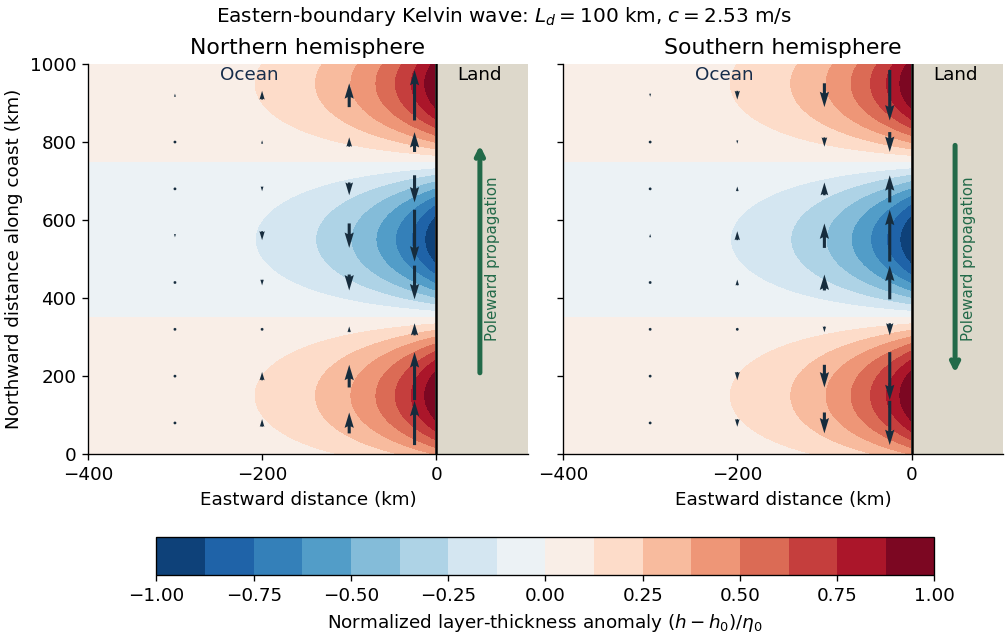

Physics of atmospheres and oceans course of the University of Oxford (Physics Part C major option, C5)

Source: www.whatdotheyknow.com/request/oxford_physics_past_papers_2/response/2340696/attach/10/Physics%20Papers%202021.pdf?cookie_passthrough=1

Source bundle pages 40–47. The cover establishes 2022 despite the attachment filename. Solutions use the source notation; approximation limits and normalization conventions are stated where they affect the result.

For the variable-latent-heat saturation curve of a pure saturated water atmosphere, the total pressure equals the saturation pressure. The exact Clausius-Clapeyron relation along the phase coexistence curve iswhere $v_v,v_c$ are the specific volumes of the vapor and condensed thermodynamic phase. Neglecting $v_c$ and using the ideal gas law, $v_v=R_{\mathrm{wv}}T/p$, givesThe triple point provides the integration constant. Below it, the prescribed latent heat is constant, soAbove it, write $K=L_{\ast }/[R_{\mathrm{wv}}(T_c-T_{\ast })]$. Integrating $K(T_c/T^2-1/T)$ givesThese are the requested implicit temperature profiles $T(p)$. Both branches meet at $(T_{\ast },p_{\ast })$, and each is monotone before the limiting liquid-gas critical point. The lower branch describes equilibrium with ice, rather than a stable liquid surface. A stable liquid ocean surface belongs to the upper branch; the colder upper atmosphere may use the lower branch. Hydrostatic balance is needed to convert this relation into a height profile, but not to obtain $T(p)$.

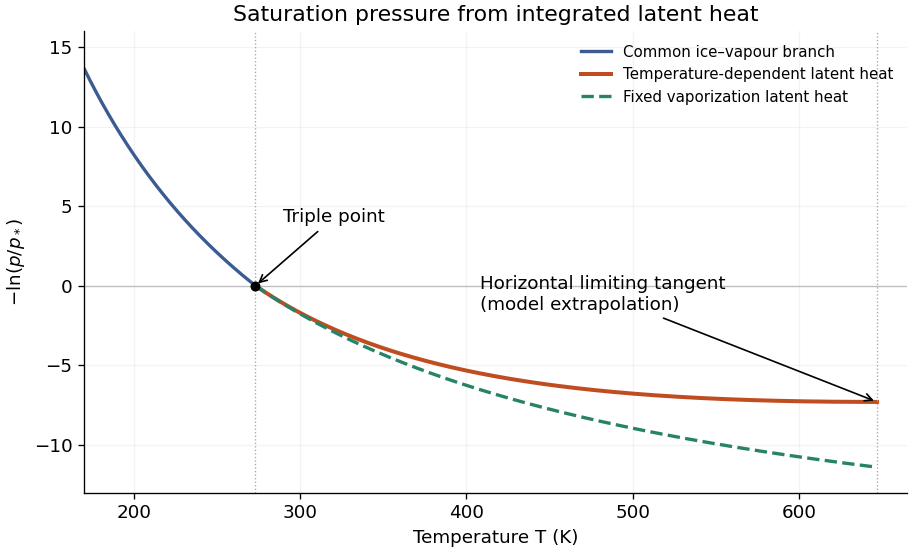

Let $Y=-\ln (p/p_{\ast })$. For the temperature-dependent latent heat,Keeping the latent heat of vaporization fixed changes only the upper branch toBoth curves fall from $+\infty$ as $T\to 0^{+}$, pass through $Y=0$ at the triple point, and are convex. At the triple point there is a corner because the latent heat changes from $L_s$ to $L_{\ast }$. Their right-hand slopes there agree. Above the triple point,The variable-latent heat curve lies above the fixed-latent heat curve: its downward slope has smaller magnitude at every $T>T_{\ast }$. It reaches a horizontal tangent at $T_c$, whereas the fixed-latent heat curve is still descending. Both limiting ordinates are finite; this model gives $Y_{\mathrm{variable}}(T_c)\simeq -7.30$ and $Y_{\mathrm{fixed}}(T_c)\simeq -11.40$. These are extrapolations of the stipulated model, not accurate water liquid-gas critical point data. Extending the variable branch beyond $T_c$ would give negative latent heat and is physically inadmissible.

For constant gravitational acceleration, hydrostatic balance gives the atmospheric column mass $m=p_{\mathrm{sfc}}/g$, with negligible pressure at the top. For the same surface temperature $T_{\ast }<T_{\mathrm{sfc}}<T_c$, the variable latent heat gives a smaller integrated $\ln (p_{\mathrm{sfc}}/p_{\ast })$, and henceMultiplying by the same planetary surface area gives the same comparison for total mass. The models agree for a surface at or below the triple point, where they use the same sublimation branch. The comparison assumes the same surface temperature, rather than the same surface pressure.

No. Near the liquid-gas critical point, the mass densities of liquid and vapor approach each other, so the neglected condensed-phase specific volume becomes comparable with the vapor specific volume. The vapor also ceases to obey the dilute ideal gas law. Although the latent heat tends to zero, the specific-volume difference tends to zero too: the exact Clausius-Clapeyron relation contains their ratio. Setting only the numerator to zero therefore does not justify a vanishing physical saturation pressure slope. A realistic equation of state and coexistence data are required near the surface; the dilute colder upper atmosphere can still be described approximately by the earlier expression.

The pressure-linear grey opacity model interprets $\kappa$ as a mass absorption coefficient. If it is instead a molecular absorption cross section, replace $\kappa$ below by that cross section divided by molecular mass. Assume a plane-parallel atmosphere, hydrostatic balance, local thermodynamic equilibrium, and thermal absorption and emission without scattering of light. With height $z$ increasing upwards,Integrating upwards from the surface givesThusThe vertical optical depth is dimensionless. The atmosphere is optically thick when ${\tau }_{\infty }\gg 1$ and optically thin when ${\tau }_{\infty }\ll 1$. A ray with zenith-angle cosine $\mu$ sees optical depth ${\tau }_{\infty }/\mu$, so even a vertically thin layer can be opaque along a sufficiently grazing ray.

It is convenient to use the optical depth above a level,Thermal radiation escapes mainly from levels with $t$ of order unity: emission much deeper is attenuated, while the column far above contains little emitting material. Hence, in an optically thick atmosphere,For a particular viewing direction, $t\sim \mu$ instead gives $p_{\mathrm{rad}}\sim p_s\sqrt{\mu /{\tau }_{\infty }}$. These are characteristic levels, not sharp emitting surfaces; the contribution function depends on the temperature exponent $a$. If ${\tau }_{\infty }\lesssim 1$, the formal level lies below the surface and the surface itself contributes strongly. A useful estimate then clips $p_{\mathrm{rad}}$ at $p_s$.

Write ${\tau }_0={\tau }_{\infty }$, $n=2a$, and $t={\tau }_0(p/p_s{)}^2$. The integrated Planck function is $B(T)=\sigma T^4/\pi$ by the Stefan–Boltzmann law, andThe formal radiative transfer equation solution for upward radiance at the top isThe first term is transmitted surface emission; the second is emission from the atmosphere. Integrating radiance over the upward hemisphere gives the outgoing radiant flux per unit area,Here $E_j$ is an exponential integral. For fixed $a$ and ${\tau }_0\to \infty$, surface transmission is negligible and the upper limit can be extended to infinity. Positivity permits interchanging the integrals; putting $t=\mu x$ givesConsequently the exact hemispheric optically thick result isThis is a dimensional scale times a dimensionless definite integral depending only on $a$. In the commonly used vertical-ray approximation, define $F_{\mathrm{v}}=\pi I(0,1)$. ThenA vertical-ray approximation therefore has the same scaling but omits the angular factor $1/(a+1)$. Stating which quantity is used prevents a purely angular normalization discrepancy.

At fixed $T_s$ and $a>0$, the outgoing radiant flux scales as $F\propto {\tau }_{\infty }^{-2a}$. Increasing the optical depth shifts the effective emitting region to lower pressure and lower temperature. A surface temperature cannot be inferred from emission alone: specify the absorbed stellar radiant flux $F_0$ and impose radiative equilibrium, $F=F_0$. If the no-atmosphere blackbody has $T_0=(F_0/\sigma {)}^{1/4}$, thenThe vertical-ray approximation omits $a+1$ from this prefactor. For fixed $a>0$ and sufficiently large optical depth, the surface is warmer than $T_0$: this is the thermal greenhouse effect within the prescribed temperature profile. It does not by itself establish a self-consistent vertical heating or convection balance.

For $a=0,\frac{1}{2},1,\frac{3}{2},2,\dots$, put $n=2a=0,1,2,3,4,\dots$. Repeated integration by parts gives $\Gamma (n+1)=n!$. The hemispheric thick-limit results areThe second row assumes fixed surface temperature; the third assumes fixed absorbed radiant flux. In the vertical-ray approximation the first of these rows becomes $1,1/{\tau }_0,2/{\tau }_0^2,6/{\tau }_0^3,24/{\tau }_0^4$, and the surface temperature factors are the inverse fourth roots.

Thus increasing $a$ makes the atmosphere colder at every fixed $0<p<p_s$, decreases outgoing radiation at fixed $T_s$, and requires a warmer surface at fixed absorbed radiant flux. The case $a=0$ is isothermal and gives $F=\sigma T_s^4$ exactly, including finite optical depth.

There is an essential approximation limit. The extension of the integral to infinity is valid for fixed $a$ as ${\tau }_0\to \infty$, and is not uniform for arbitrarily large $a$ at fixed ${\tau }_0$. The vertical integrand peaks at $t=2a$, so one needs that peak well above the surface in optical depth, with a negligible tail beyond ${\tau }_0$. For example, at ${\tau }_0=10$ the thick formula predicts $F/(\sigma T_s^4)=20!/(1110^{20})\simeq 0.00221$ for $a=10$ but approximately $0.04773$ for $a=12$. This artificial increase contradicts the exact monotonicity: in the finite-optical depth expression every atmospheric emission factor $(t/{\tau }_0{)}^{2a}$ decreases with $a$. At fixed finite ${\tau }_0$, the exact limiting outgoing radiant flux is the transmitted surface term $2\sigma T_s^4{E}_3({\tau }_0)$, rather than factorial divergence.

The dilute Köhler curve follows because the Kelvin equation multiplies the planar-solution saturation pressure by the curvature correction. Combining it with Raoult's law therefore givesFor a dilute chemical solution and a small curvature correction, $B/r^3\ll 1$ and $A/r\ll 1$. A first-order Taylor expansion givesThus the simplified Köhler theory relation isThe curvature term raises the required ambient vapor pressure; the solute term lowers it. These laws combine multiplicatively before linearization, so the displayed simplified relation is an approximation, not an exact identity.

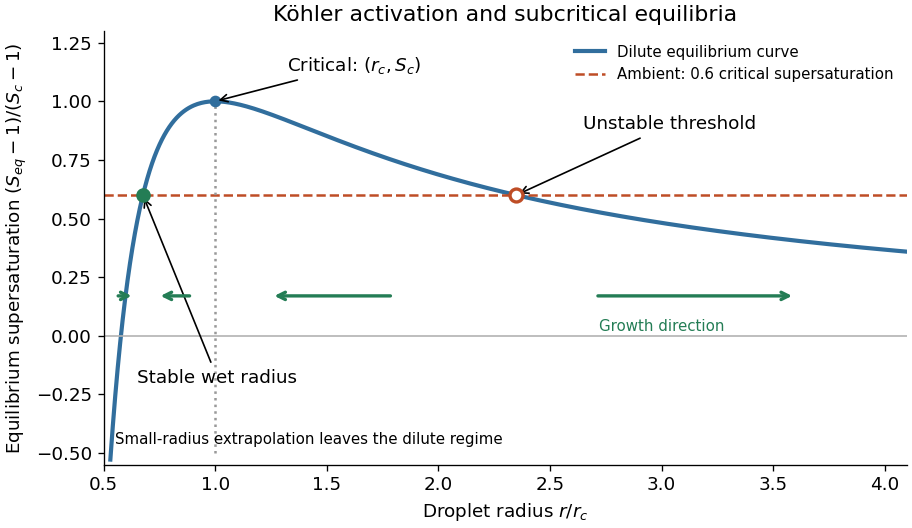

For $A,B>0$, differentiating the simplified Köhler theory curve givesThe derivative is positive below $r_c$ and negative above it, so $r_c$ is the Köhler activation radius, the unique maximum. At that point $B/r_c^3=A/(3r_c)$, givingThe curve crosses $S=1$ at $r=\sqrt{B/A}=r_c/\sqrt{3}$, reaches $S_c$ at $r_c$, and approaches $1$ from above as $r\to \infty$. Its formal divergence to negative values as $r\to 0$ is outside the dilute-chemical solution approximation; a finite dry solute core and composition-dependent properties must replace that extrapolation.

Let $1<S<S_c$ be the ambient saturation ratio. There are two equilibrium radii: $r_{-}<r_c<r_{+}$. Condensation occurs if $S>S_{\mathrm{eq}}(r)$; evaporation occurs if $S<S_{\mathrm{eq}}(r)$. Therefore droplets with $r<r_{-}$ grow towards $r_{-}$, while those with $r_{-}<r<r_c$ shrink towards $r_{-}$. The smaller equilibrium is stable.

Above $r_c$, droplets with $r_c<r<r_{+}$ still undergo evaporation and ultimately approach $r_{-}$. Droplets with $r>r_{+}$ grow, and the larger equilibrium $r_{+}$ is unstable. Merely exceeding $r_c$ is therefore not sufficient for continued growth at subcritical ambient atmospheric supersaturation. For example, if $(S-1)/(S_c-1)=0.6$, the two intersections have approximately $r_{-}/r_c=0.676$ and $r_{+}/r_c=2.349$; a droplet of radius $1.5r_c$ undergoes evaporation. If instead $S>S_c$, there is no equilibrium barrier in this approximation and droplets activate into growing cloud droplets.

Köhler theory explains activation of cloud condensation nuclei, rather than rapid production of atmospheric precipitation. Diffusion-controlled droplet growth is limited by diffusion of water vapor and removal of released latent heat; approximately $d(r^2)/dt$ is proportional to the ambient atmospheric supersaturation. It slows in radius and tends to narrow a droplet size distribution. The available water vapor, changing temperature and shared depletion of atmospheric supersaturation also invalidate unlimited growth at prescribed $S$. Formation of rain-sized drops normally requires collision-coalescence, while colder clouds can additionally use cloud ice nucleation versus ice growth.

At the Köhler activation radius, the two coefficients satisfyConverting the atmospheric supersaturation to a fraction gives $S_c-1=0.004$, not $0.4$. Henceand the supplied curvature coefficient gives the temperatureThe coefficient and the stated radius consistently use a radius convention; replacing radius by diameter without changing the coefficient would introduce a factor-of-two error.

A Michelson interferometer uses a beam splitter to divide collimated input light between a fixed mirror and a moving mirror. Returning beams recombine at the beam splitter; one output reaches a photodetector. A compensator plate can equalize the glass traversed in the two arms. Moving one mirror by $x$ changes the optical path difference by $2x$.

The usual nominal Fourier transform spectroscopy specification is $\delta \nu \simeq 1/d_{\max }$, where $d_{\max }$ is the maximum optical path difference measured from equal arms. It givesThis is a nominal spectral resolution element convention.^[ref] A symmetric rectangular scan from $-d_{\max }$ to $d_{\max }$ instead has a sinc instrumental line shape with first-zero offset $1/(2d_{\max })$. Quoting that first-zero criterion would give $d_{\max }=1$ cm; interferogram apodization and other linewidth criteria change the numerical factor. An exact mathematical minimum requires such a criterion.

In the measurement chain, the Michelson interferometer is the spectral analyzer or modulator, between the collection optics and the photodetector. It encodes the incoming radiation spectrum into an interferogram; detector electronics digitize that signal and a Fourier transform reconstructs the radiation spectrum. It does not itself turn radiant power into an electrical signal.

Let the two returning monochromatic fields at the chosen detector port beHere $\nu$ is wavenumber, rather than temporal frequency. An optical-cycle average uses $⟨{\cos }^2\omega t⟩=1/2$ and $⟨\cos \omega t\cos (\omega t+\phi )⟩=\cos \phi /2$. In units absorbing the detector's field-to-power conversion,The choice of output port can reverse the cosine sign. For mutually incoherent components of the radiation spectrum, add powers rather than instantaneous fields, givingSubtracting the constant term leaves the Fourier cosine transform of the detected spectral weighting $Q(\nu )$, including throughput and detector response.

The printed prefactor requires a normalization convention. In the derivation, $a$ is the amplitude of each returning field at the detector, not an entrance amplitude with input power $a^2$. For a lossless balanced beam splitter and literal input power $P_{\mathrm{in}}$, conservation of energy instead gives $P_{\mathrm{out}}=P_{\mathrm{in}}[1+\cos \phi ]/2$, so the source formula identifies $a^2=P_{\mathrm{in}}/2$. Taking both $P_{\mathrm{in}}=a^2$ and the printed formula literally would give $P_{\mathrm{out}}=2P_{\mathrm{in}}$ at zero optical path difference, a concrete normalization contradiction.

Ignoring refraction, the line of sight is perpendicular to the radius at its tangent point. For a surface tangent, Pythagorean theorem gives the satellite-to-tangent distanceFor tangent altitude $z_t$, replace $R^2$ by $(R+z_t{)}^2$; lower atmospheric scale heights change the estimate little. The required angular resolution isUsing the Rayleigh criterion for a circular telescope aperture, $\theta =1.22\lambda /d$. The longest wavelength imposes the strongest condition, soThe corresponding requirement at $7\mu \mathrm{m}$ is $3.3$ mm. This is a diffraction limit, without allowance for scan sampling, aberrations or instrumental field of view.

Use one spectral resolution element, $\Delta \nu =0.5{\mathrm{cm}}^{-1}$, and assume comparable angular resolution horizontally and vertically, so the pixel solid angle is $\Omega \simeq {\theta }^2=6.67\times 10^{-6}\mathrm{sr}$. The question specifies only the vertical angle; without an assumption about horizontal field of view the diameter is not unique. Interpret throughput $\eta =0.5$ as dimensionless transmission. With primary collecting area $A_p=\pi d^2/4$, the power in that element iswhen $A_p$ is in square metres. There is no extra factor of $\pi$ multiplying the supplied spectral radiance.

For an integration time $t=1$ s, the order-of-magnitude effective noise bandwidth is $\Delta f\simeq 1/t=1$ Hz. The root-mean-square noise-equivalent power is then $P_n=\mathrm{NEP}\sqrt{\Delta f}=5\times 10^{-11}$ W.^[ref] A signal-to-noise ratio of 10 requires $P_s=5\times 10^{-10}$ W, and thereforeAn ideal rectangular average of a one-sided white noise spectral density has $\Delta f=1/(2t)$, giving $d\simeq 5.9$ cm instead. A circular field with diameter $\theta$ changes the diameter by another order-unity factor. These convention choices all require an aperture substantially larger than the $9.5$ mm diffraction estimate, so signal collection is the stronger constraint. The estimate treats the quoted NEP as applicable to the reconstructed channel; a detailed Fourier transform spectroscopy design would also specify scan weighting, background and how interferogram noise propagates into that channel.

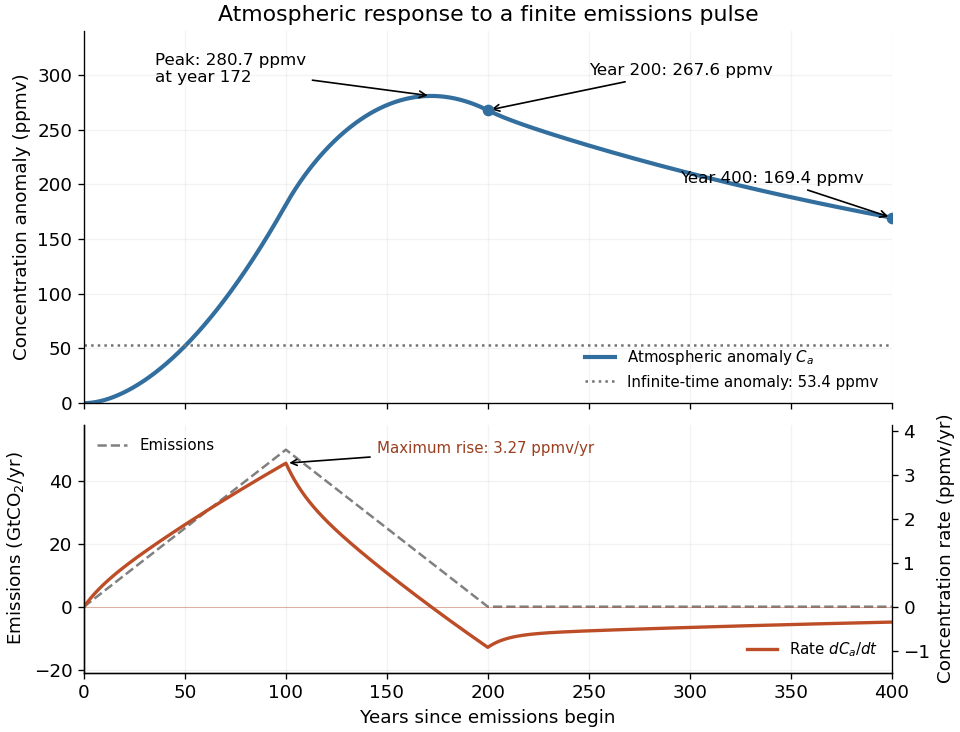

The constants $R_a,R_b,R_d$ are effective reservoir capacities: stored carbon dioxide mass anomaly per unit effective concentration anomaly, in GtCO${}_2$ per ppmv. Only $C_a$ is a literal atmospheric mole fraction; $C_b,C_d$ are scaled reservoir variables chosen to share its equilibrium value. The exchange coefficients $r,s$ are conductances, in GtCO${}_2$ per ppmv per year: $r(C_a-C_b)$ is transfer from the atmosphere to the fast reservoir and $s(C_b-C_d)$ transfer from that reservoir to the deep ocean. They are not by themselves inverse times; division by a reservoir capacity gives an inverse-time rate.

Hydrostatic balance estimates total atmospheric mass as $M_{\mathrm{air}}=4\pi R_E^2\bar{p}/g$. One ppmv of a dilute ideal gas is a mole fraction $10^{-6}$, so, with dry-air molar mass $M_{\mathrm{mol},\mathrm{air}}\simeq 28.97$ g/mol and carbon dioxide molar mass $44.01$ g/mol,The final factor converts kilograms to gigatonnes. This is carbon dioxide mass, not the smaller carbon mass.

For the linear three-reservoir carbon model, with concentrations as a column vector, the linear ordinary differential equation isA homogeneous normal mode has $\mathbf{x}=\mathbf{v}{e}^{\lambda t}$, where $J\mathbf{v}=\lambda \mathbf{v}$. For negative real eigenvalues the e-folding relaxation time is $\tau =-1/\lambda$. The row sums vanish, so ${\mathbf{v}}_3=(1,1,1{)}^T$ has ${\lambda }_3=0$ andEqual effective concentrations generate no exchange. Summing the reservoir budgets givesThus injected carbon dioxide is conserved after emissions cease: the model redistributes it but contains no permanent removal. The zero normal mode records this conserved excess mass, rather than a long but finite decay.
